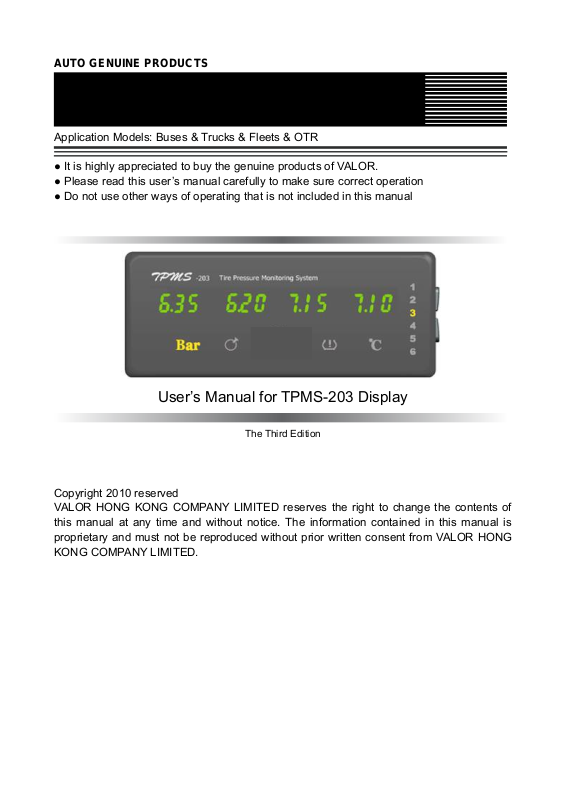

VALOR TPMS203 RD User Manual

AUTO GENUINE PRODUCTS

Application Models: Buses & Trucks & Fleets & OTR

● It is highly appreciated to buy the genuine products of VALOR.

● Please read this user’s manual carefully to make sure correct operation

● Do not use other ways of operating that is not included in this manual

User’s Manual for TPMS-203 Display

The Third Edition

Copyright 2010 reserved
VALOR HONG KONG COMPANY LIMITED reserves the right to change the contents of
this manual at any time and without notice. The information contained in this manual is
proprietary and must not be reproduced without prior written consent from VALOR HONG
KONG COMPANY LIMITED.

TABLE OF CONTENTS

1.1 INTEGRATED DISPLAY .............................................................................................................................................. 2

1.2 GETTING STARTED ................................................................................................................................................... 3

1.3 CHECKING TYRE CONDITIONS ................................................................................................................................. 4

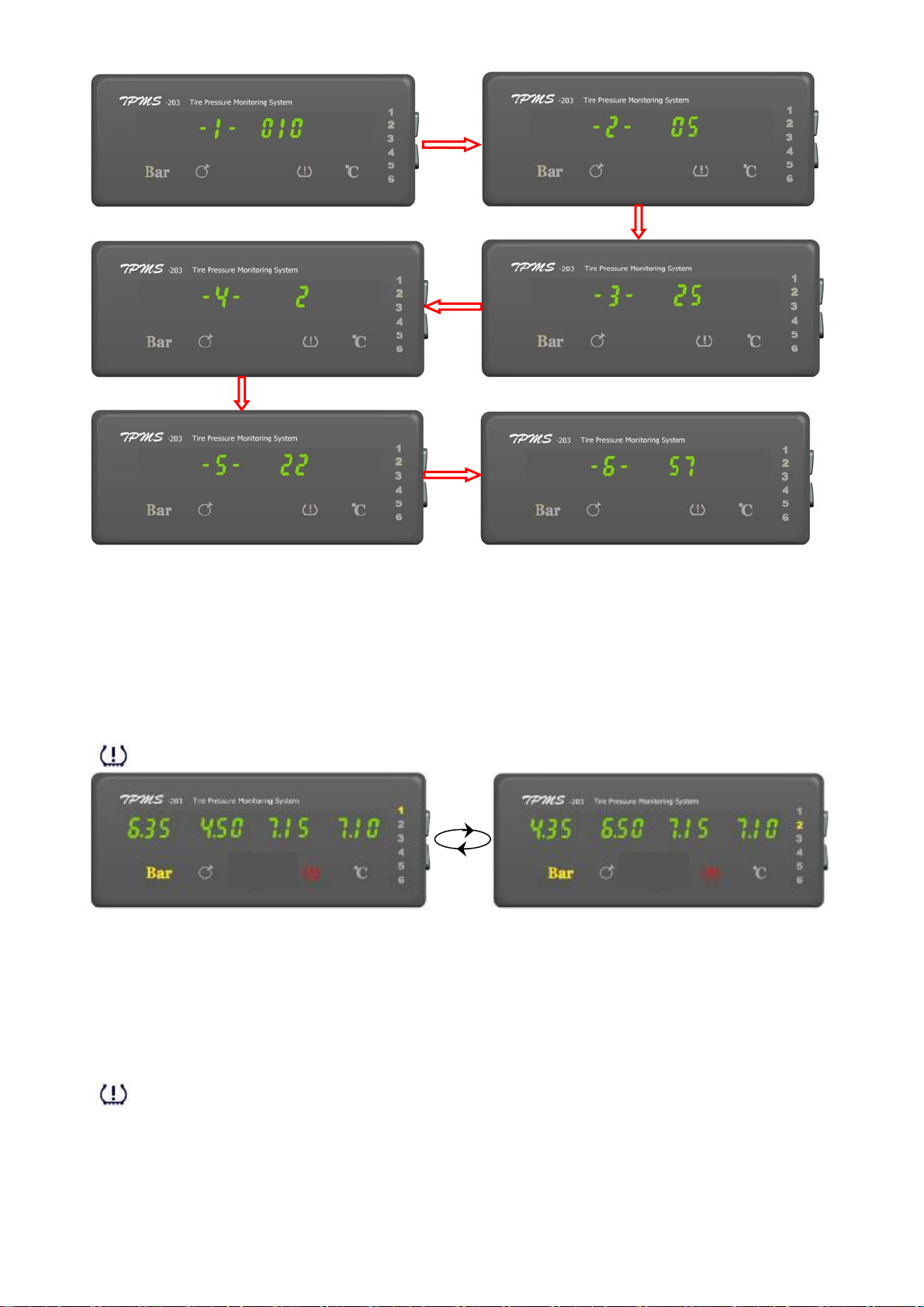

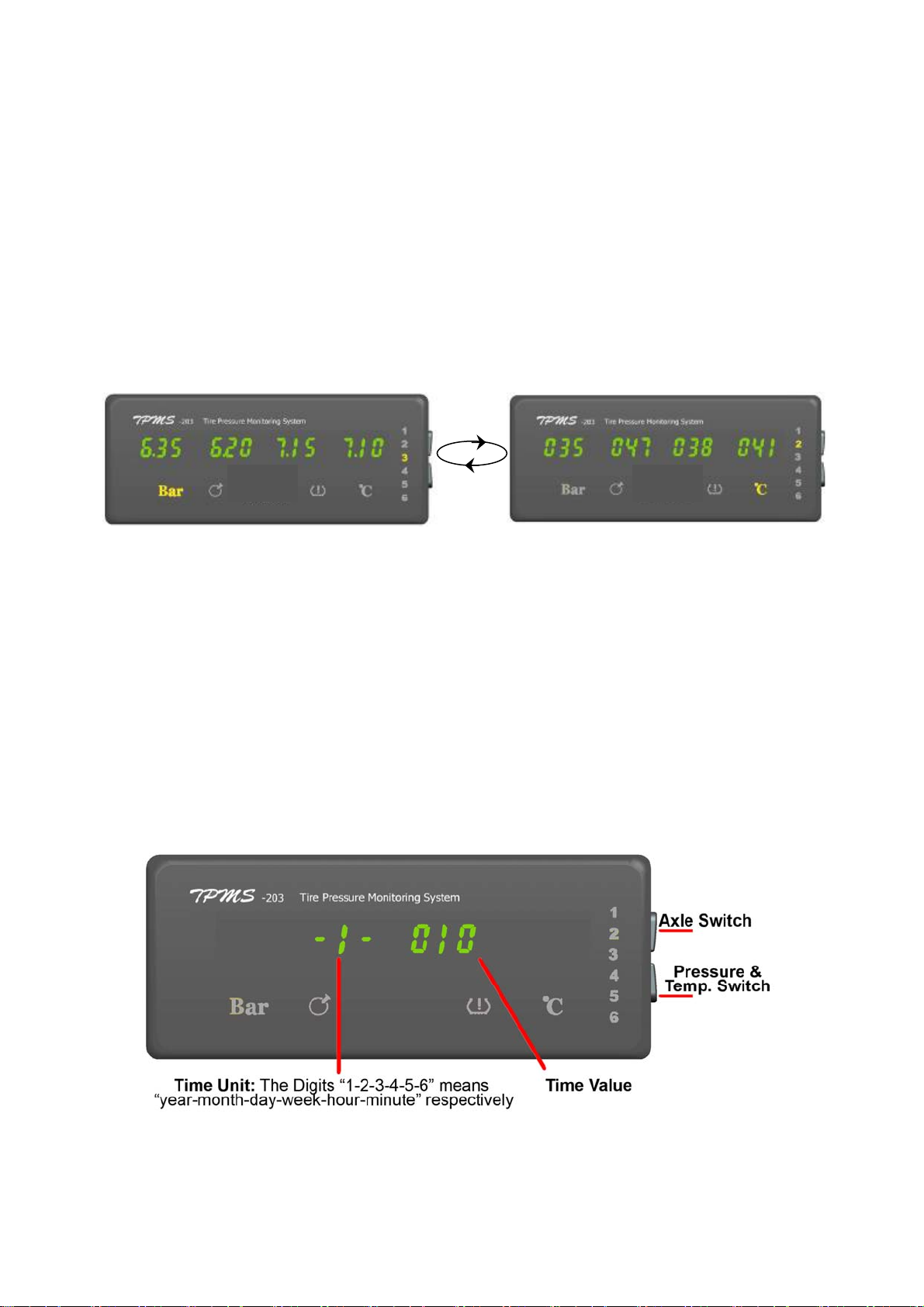

1.4 TIME SETTING .......................................................................................................................................................... 4

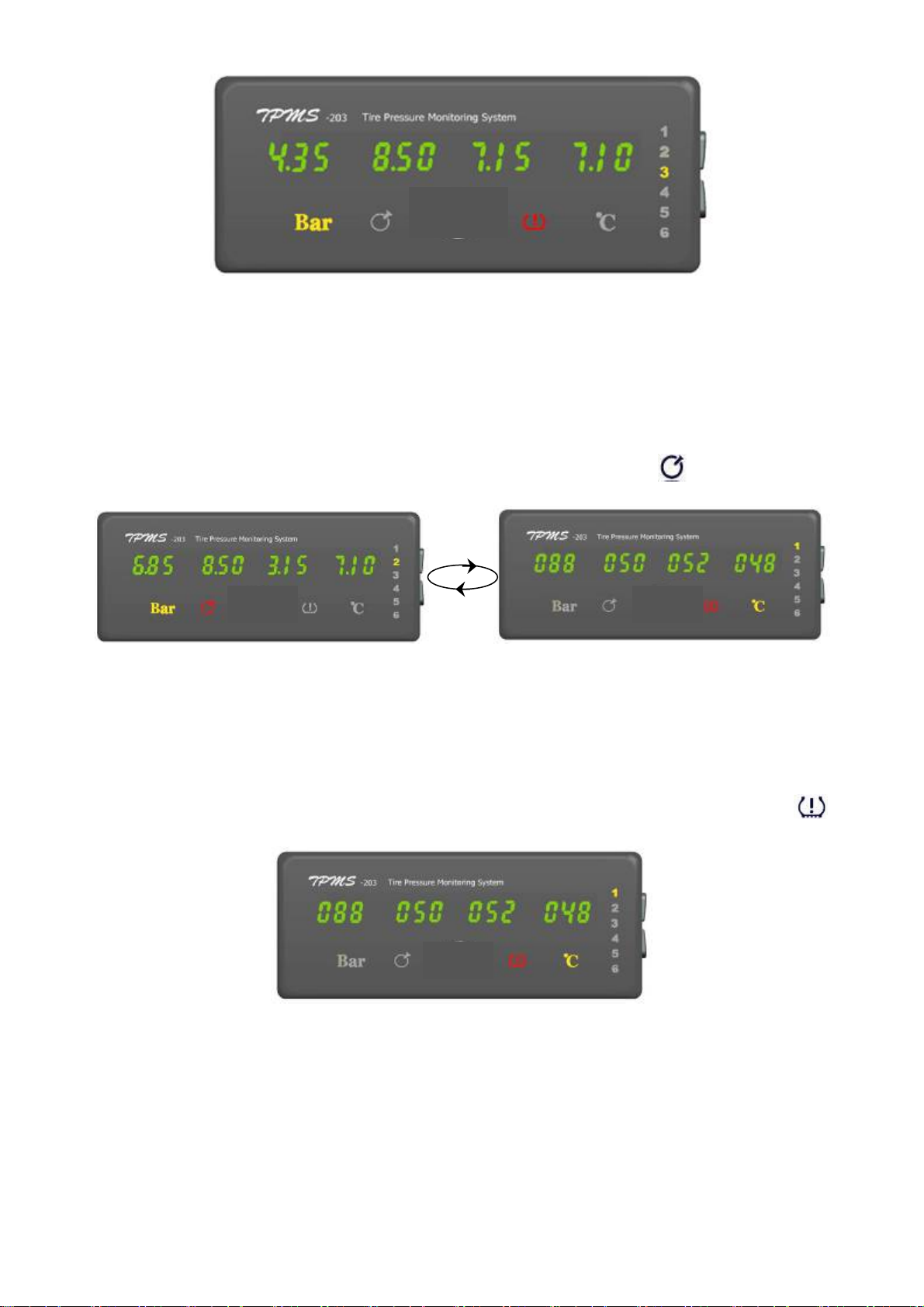

1.5 LOW PRESSURE WARNING ...................................................................................................................................... 5

1.6 HIGH PRESSURE WARNING ..................................................................................................................................... 5

1.7 LEAKAGE WARNING ................................................................................................................................................ 6

1.8 HIGH TEMPERATURE WARNING .............................................................................................................................. 6

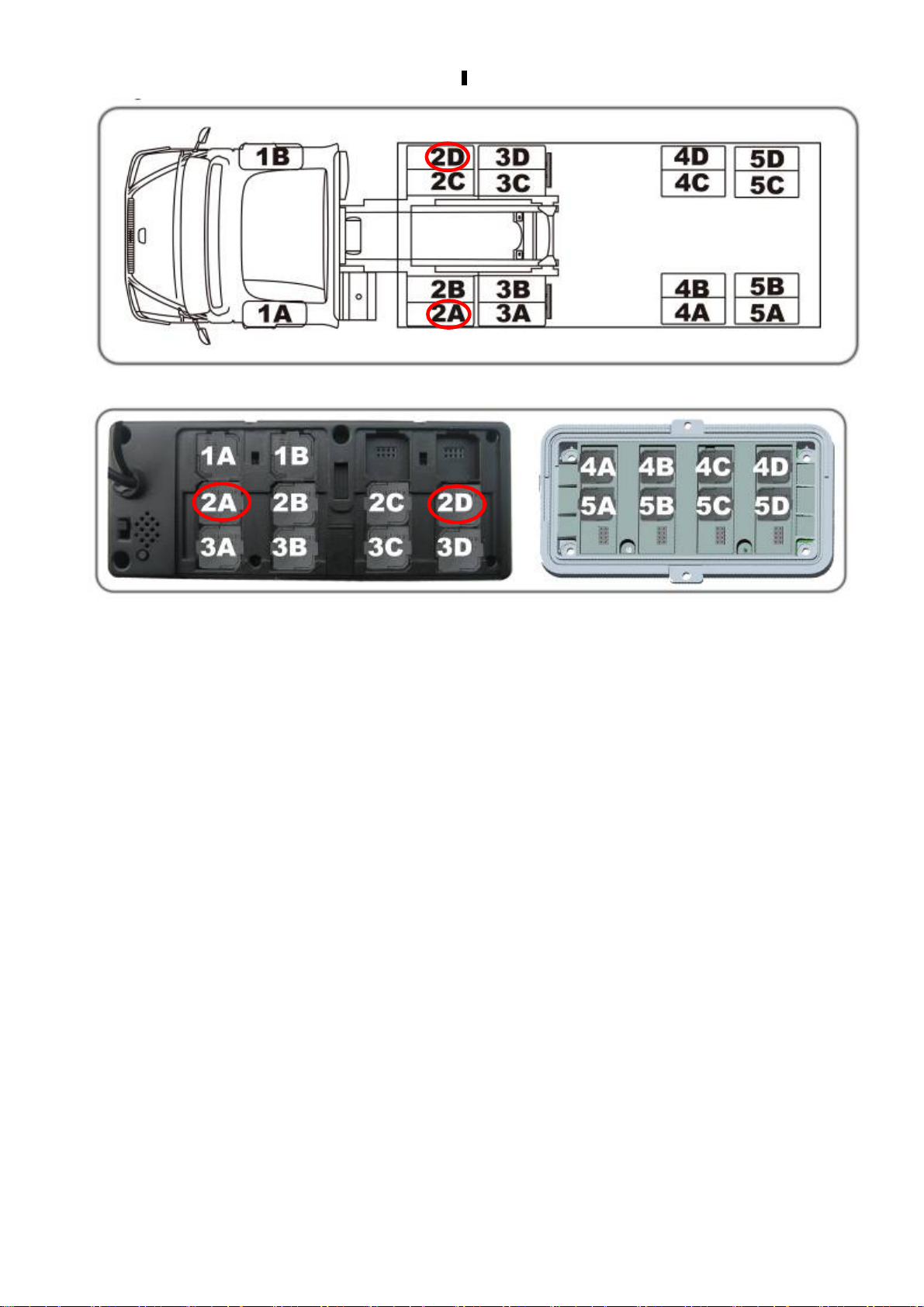

1.9 CHANGE ID MODULE POSITION .............................................................................................................................. 6

2.1 TROUBLE SHOOTING ............................................................................................................................................... 8

2.2 PARAMETERS OF THE PRODUCTS .......................................................................................................................... 9

2.3 FCC'S AUTHENTICATION ANNOUNCEMENT ............................................................................................................. 9

2.4 EUROPEAN REGULATIONS ANNOUNCEMENTS ....................................................................................................... 10

2.5 CE DIRECTIVE ANNOUNCEMENT ............................................................................................................................ 10

1.1 Integrated Display

The display monitors pressure and temperature information of each tyre in a visual form
continuously. It can provide 6 axles up to 24 tyres’ data as well as enabling baseline
pressure adjustment to suit different tyres.

Controls and Indicators Functions

Axle Switch

Pressure & Temperature

Switch

Axle Indicator

Bar

Press it to circularly show the data of each axle

Press it to scroll through the pressure interface and

temperature interface

Display circularly shows the data of six axles

Pressure unit

℃ Temperature unit

Switch
Buzzer

Set Key

Abnormality icon: low / high pressure and high temperature

Turn on or off the display

Give audible alert when the tyre is abnormal

Press it to set baseline pressures of truck according to your

Leakage icon

tyres’ cold inflation pressure

ID Module Slot

ID modules are used to register Transmitters’ ID code into the

display that will recognize wheel positions

Mini USB Port

To download data from display via USB cable to U-disk.

2

1.2 Getting Started

--- For tractor with trailer: turn on the integrated display and trailer ID box, register trailer

into integrated display (see 4.1 in this manual) and set the baseline pressure for each axle.

1.2.1 Set the Baseline Pressure of Tractor
The baseline pressure has been set in the factory at 6Bar (87PSI) for all wheel positions.
We recommend that you set the baseline pressure at the same pressure as standard cold
inflation pressure recommended by tire manufacturer.

1.2.1.1 Inflate all tires’ pressures to their standard cold inflation pressure.

1.2.1.2 Find the set key on the back of display. Press the set key briefly to check the

baseline pressure set by manufacturer (6Bar/87PSI).

1.2.1.3 Press the SET KEY for 4 seconds, you will hear sound “beep”, all backlights will be

on and the screens will show “000”. This means you succeed in deleting the default
baseline pressure.

Set Key

1.2.1.4 The system will exit setting mode automatically after receiving signal from all

transmitters.

1.2.1.5 The display will refresh the tire data after receiving signal. The first pressure value

received will be saved as new baseline pressure automatically.

After the display has received all transmitters’ pressure, then you can press the SET
KEY of display briefly to look up all tires’ baseline pressure.

--- For bus / straight truck / OTR: turn on the integrated display and set the baseline

pressure for each axle (Just the same as tractor).

--- The screen will remain “000” until the data from its transmitter is received. After data
from all transmitters is received the display will be in the state shown until an alert or
warning condition is detected.

3
