OWNER GUIDE
We trust that these instructions give sufficient details to enable this appliance to be
installed and maintained satisfactorily. However, if further information is required, our
Valor Technical Helpline will be pleased to help.
Telephone 08706 061 065 (National call rates apply in the United Kingdom)
INSTALLER: Please leave this guide with the owner
Valor Sirius
MODEL BR643 VA
Valor Quantum
MODEL BR644 VA
(GC No. 32-032-34)
INSET LIVE FUEL
EFFECT GAS FIRE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0591149 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE
REPUBLIC OF IRELAND (IE) ONLY.
CUSTOMER CARE
Thank you for choosing Valor.
All Valor gas fires are designed to meet the most stringent quality, performance and safety requirements to provide our customers with many years’ trouble-free service. Your owner guide aims to improve your understanding and appreciation of your Valor gas appliance by providing simple and informative instructions to ensure that you benefit from the excellent performance and features it has to offer.
If you require further assistance or any advice about gas in general, our Technical Helpline will be pleased to help.
Please telephone 08706 061 065 (National call rates apply in the United Kingdom). In the Republic of Ireland please telephone 0044 08706 061 065
LIST OF CONTENTS
SAFETY....................................................................................................................3
OPERATING YOUR FIRE....................................................................................4
CLEANING..............................................................................................................6
REFITTING CERAMICS......................................................................................7
MAINTENANCE...................................................................................................13
Page 2
OWNER GUIDE
SAFETY
DO
 Have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use) Regulations. In the Republic of Ireland, installation must be in accordance with all national and local regulations in force.
 Have the chimney swept prior to installation if it was previously used for solid fuel.  Have the fire installed in accordance with the installation instructions  Provide a minimum clearance of 750mm from the top surface of the hearth to any
shelf made of wood or other combustible material where the shelf is not more than 150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for
every 25mm of additional shelf depth.  Always use a fireguard complying with BS 8423 for the protection of young children, the elderly or infirm.  Wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason.  Get advice about the suitability of any wall covering near your fire. Soft wall cover
ings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.  Provide a minimum clearance of 100mm from the outside of the fire case to any cor
ner wall or other surface. Please bear this in mind if ever you are altering the room.
DON’T
 Hang clothing, towels or any other fabrics over the fire.  Throw paper or other materials onto your fire.  Use the fire with damaged base ceramics.  Put more loose coals / pebbles on the fire than the number given in this guide or use
any coals / pebbles other than those authorised for this fire. Incorrect combustion
could result.  Attempt to clean or service the fire until it has been switched off and allowed to
cool.
Page 3
OWNER GUIDE
IF YOU SMELL GAS DON’T SMOKE EXTINGUISH ALL NAKED FLAMES DON’T TURN ELECTRICAL SWITCHES ON OR OFF TURN OFF THE GAS SUPPLY AT THE METER OPEN DOORS AND WINDOWS TO GET RID OF THE GAS IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE DIRECTORY
OPERATING YOUR FIRE
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will shut down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is correct. If this probe is cool, the device will prevent any gas flow unless the control knob is kept depressed at the “Pilot/Ign” position. If, for any reason, the flames go out when the fire is hot or if the fire is turned off when hot, always wait at least three minutes before attempting to relight.
Lighting the pilot
This fire is controlled by a 4-position gas tap mounted on the front leg of the appliance. In addition to the “Off” position there is a pilot light and 2 heat control settings. See figure 1.  Depress the control knob and turn anticlockwise towards the “Pilot/Ign” position. A spark should be generated at the pilot while turning. The spark should ignite the pilot. The pilot flame can be seen below the coal / pebble at the front left side.  Keep the button at the “Pilot/Ign” position for a further ten seconds. This will prevent the flame­sensing device from shutting off the gas while its probe warms up.  If the pilot does not ignite instantly, repeat procedure. If after 10 seconds pilot ignition has not
occurred, turn the control knob back to the “Off” position, wait for 3 minutes and then repeat the ignition procedure.
Page 4
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may cause a slight odour and could possibly set off any smoke alarms in the immediate vicinity. These vapours are quite normal with new appliances. They are totally harmless and will disappear after a few hours use.
Figure 1.
Lighting the Main Burner
 Once the pilot light is established, the main burner can be lit by depressing and turning the control knob anticlockwise to the “High” position.
Selecting the Heat Setting
 In order to change from one setting to another depress the control knob slightly and turn the knob to the required position. Any setting from “Low” to “High” may be selected.
Note: The appliance will operate to its maximum potential if the flue is primed during the first 20-30 minutes of operation. To do this, simply operate the appliance at its “High” setting. This will also burn off any carbon deposits that may have formed during previous operations. If operating the appliance for long periods it is beneficial to change between settings. This will help to remove any carbon deposits that may form during operation.
Turning the fire back to Pilot Setting
 Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the Appliance Off
 Make sure that the control knob is in the pilot position. Depress the control knob and turn clockwise to the “Off” position.
 Wait at least three minutes before relighting.
Page 5
OWNER GUIDE
CLEANING
To maintain the high performance and quality finish of your Valor appliance, please follow these guidelines:  Before attempting to clean the fire, please remember to turn off the fire and wait for the appliance to cool. The fire will retain heat for some time before cleaning can begin.  If any pieces of debris are found in the firebox, have the chimney inspected before further use.
Metal Parts
 Clean the metal parts with a slightly damp cloth and then dry.  Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic fuel effect and Rear Wall
 Light coatings of soot will usually be burnt off during the normal operation of the fire.  Should any soot accumulation become excessive, the fuel effect pieces and walls should be removed from the fire for cleaning.  This product uses fuel effect pieces, burner compartment walls and gaskets containing Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate fibres. Excessive exposure to these materials may cause irritation to eyes, skin and respiratory tract. Consequently, it is important to take care when handling these articles to ensure that the release of dust is kept to a minimum. To ensure that the release of fibres from these RCF articles is kept to a minimum, during installation and servicing we recommend that you use a HEPA filtered vacuum to remove any dust and soot accumulated in and around the fire before and after working on the fire. When replacing these articles we recommend that the replaced items are not broken up, but are sealed within a heavy duty polythene bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be disposed of at a tipping site licensed for the disposal of industrial waste. Protective clothing is not required when handling these articles, but we recommend you follow the normal hygiene rules of not smoking, eating or drinking in the work area and always wash your hands before eating or drinking. Cleaning should be carried out in a well ventilated area or in the open air by gently brushing with the pieces held away from your face so that you avoid inhaling the dust.  We suggest that you remove the coals / pebbles in the reverse order to that shown in the fuel bed refitting instructions.
Burner
 The burner surface can be carefully cleaned to remove any loose particles after taking off the coals / pebbles. Make sure that no particles are pushed into the burner slots.
Note: Surface cracking of the burner is normal and no cause for concern.
Page 6
OWNER GUIDE
REFITTING CERAMICS
Both models
1. Fit the burner tray trim over the front rim of the burner tray. Push the trim fully down. See figure 2.
Fitting Coals to models supplied with a Coal Ceramic Fuel Effect.
(For models supplied with a Pebble Ceramic fuel effect see section headed ‘Fitting Pebbles to models supplied with Pebble Ceramic Fuel Effect’).
1. Place the rear base coal in the firebox. It should rest on the ledges at the sides and back of the firebox and its rear face should touch the rear ceramic wall. See figure 3.
Page 7
OWNER GUIDE
Figure 2. Burner Tray Trim
Figure 3. Rear Base Coal Position
2. Place the front base coal in the firebox with its bottom front locating over the front rim of the firebox. Pull the coal forward so that it locates immediately behind the front rim of the firebox. See figure 4.
There are two types of loose coals. These are identified with the letter “A” or “B” on the underside of the coal. There are three “A” coals and two “B” coals.
3. Place a type “A” coal between the front and rear base coals with the letter “A” upright and so that the coal is against the left side of the firebox. See figure 5.
4. Place a type “B” coal between the front and rear base coals as shown in figure 6. The letter “B” should be upright.
5. Place a type “A” coal between the front and rear base coals with the letter “A” upright. The top of the coal should rest against the centre coal of the rear base coal as shown in figure 7.
Page 8
OWNER GUIDE
Figure 7.
Figure 6.
Figure 5.
Figure 4. Front base coal position
6. Place the remaining type “B” coal at the right side of the firebox between the front and rear base coals. The letter “B” should be upright. The coal should touch the right side of the firebox. See figure 8.
7. Place the remaining type “A” coal between the front and rear base coals. The letter “A” should be upside down with its rear face between the right and centre coals of the rear base coal. Angle the coal so that the gap between it and the type “B” coal to its right is appreciably larger than the gap between it and the type “A” coal to its left but do not have it touching the type “A” coal. This will give the best flame effect. See figure
9.
Fitting Pebbles to models supplied with Pebble Ceramic Fuel Effect.
(For models supplied with a Coal Fuel Effect see section headed ‘Fitting Coals to models supplied with a Coal Ceramic Fuel Effect).
1. Place the rear base pebble in the firebox. It should rest on the ledges at the sides and back of the firebox and its rear face should touch the rear ceramic wall. See figure 10.
2. Place the front base pebble in the firebox with its bottom front locating over the front rim of the firebox. Pull the pebble forward so that it locates immediately behind the front rim of the firebox. See figure 11.
Page 9
OWNER GUIDE
Figure 11 Front Base Pebble Position
Figure 10 Rear Base Pebble Position
Figure 9.
Figure 8.

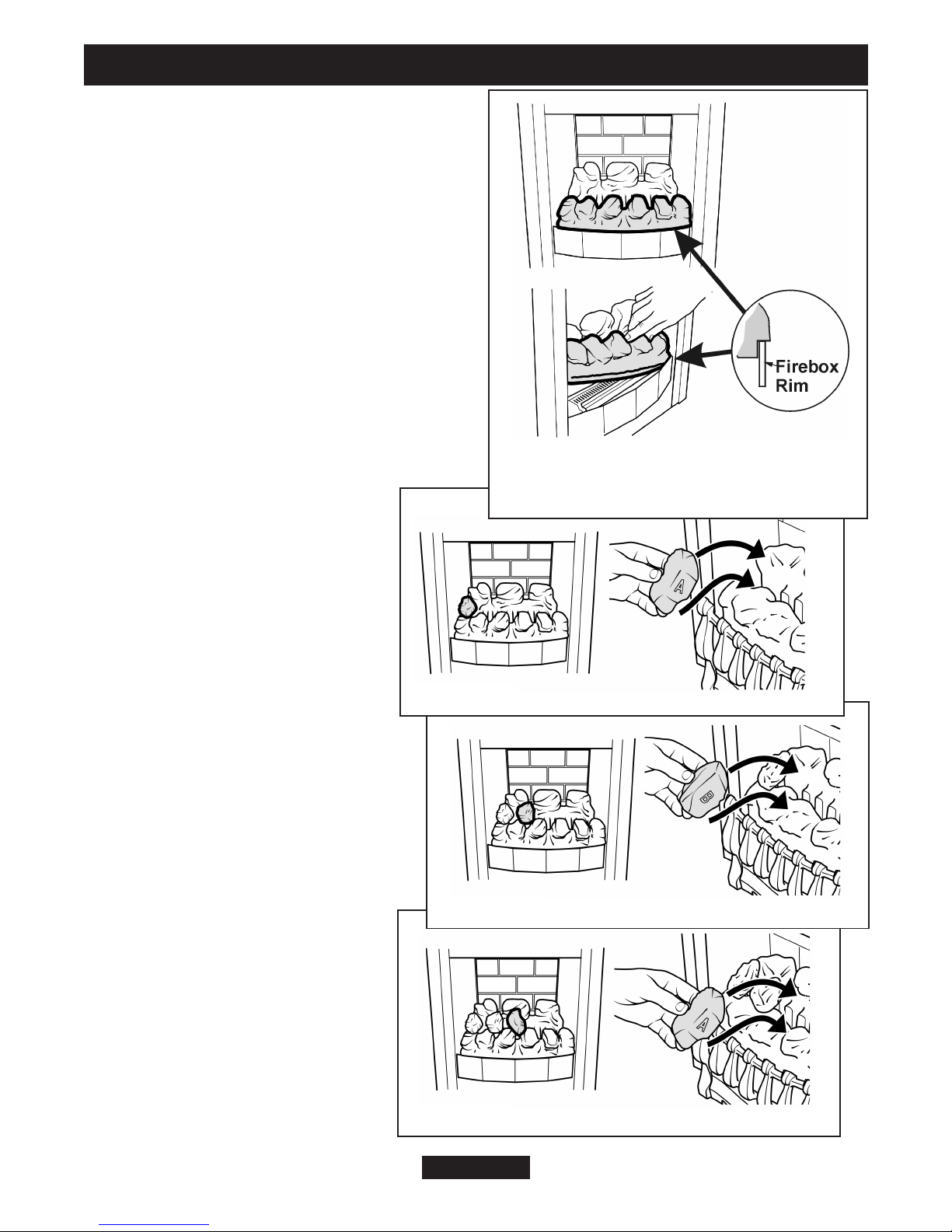

Install the 11 loose pebbles as follows. The underside of each pebble is marked with a letter ‘A’ to ‘K’ and an arrow. The pebbles should be positioned so that the arrows always point towards the back of the fireplace opening. When located into position the stem of each arrow should be at 90° to the rear of the fireplace opening (See figure 12).
3. Hold pebble ‘A’ upright with the arrow pointing to the top. Place pebble “A” on top of the front base pebble. The pebble should rest against the moulded pebble to its left. (See figure 12).
4. Hold pebble ‘B’ upright with the arrow pointing to the top. Place pebble “B” on top of the front base pebble. (See figure 13).
5. Hold pebble ‘C’ upright with the arrow pointing to the top. Place pebble “C” on top of the front base pebble. It should lie against the moulded pebble to its left. (See figure
14).
Page 10
OWNER GUIDE
Figure 14.
Figure 13.
Figure 12.

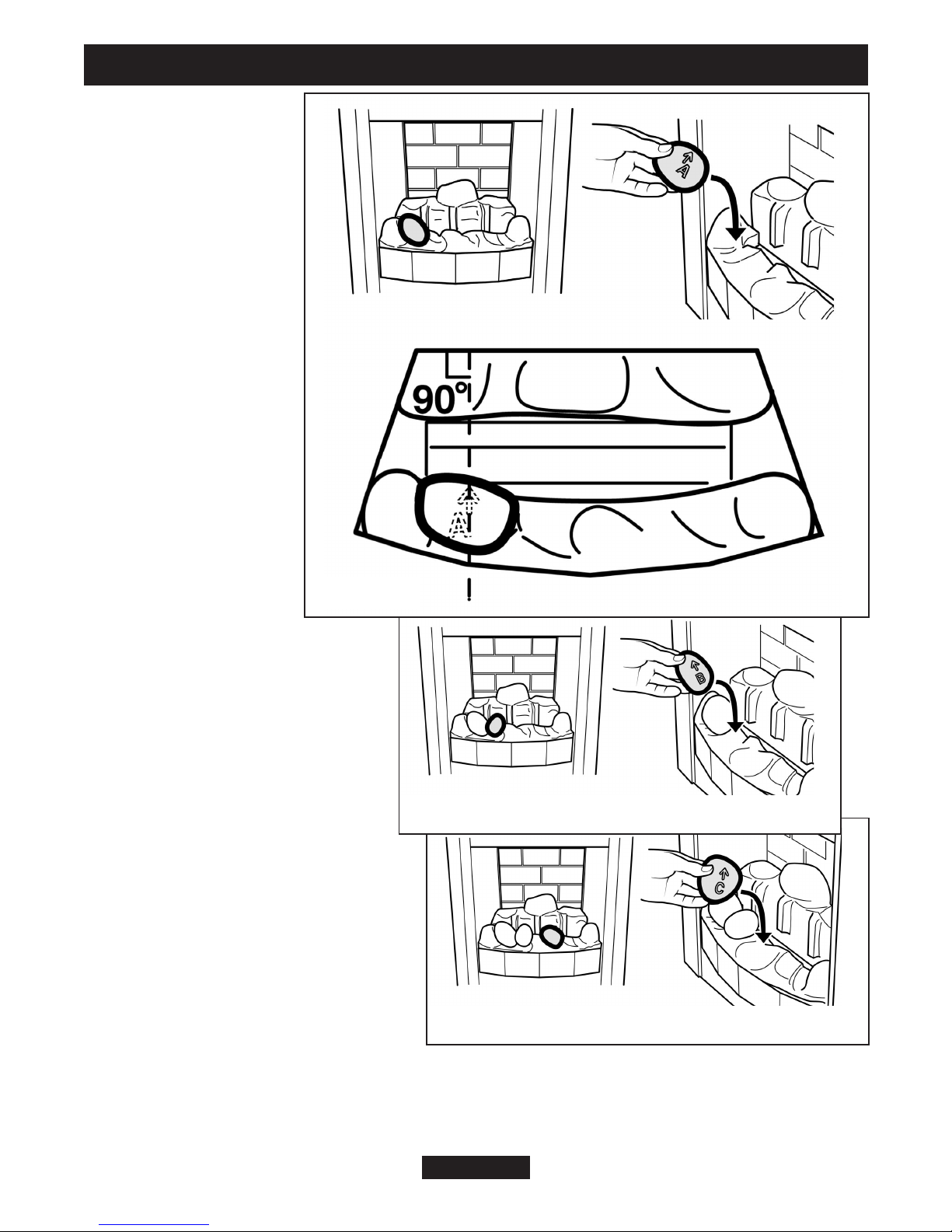

6. Hold pebble ‘D’ upright with the arrow pointing to the top. Place pebble “D” on top of the base front pebble. It should rest against the moulded pebble to its right. (See figure 15).
7. Hold pebble ‘E’ upright with the arrow pointing to the top. Place pebble ‘E’ between the front and rear base pebbles. It should rest against the side of the firebox. (See figure 16).
8. Hold pebble ‘F’ upright with the arrow pointing to the top. Place pebble ‘F’ between the front and rear base pebbles. It should rest on top of pebble ‘A’&’B’. (See figure
17).
9. Hold pebble ‘G’ upright with the arrow pointing to the top. Place pebble ‘G’ between the front and rear base pebbles. It should rest on top of pebble ‘B’ & ‘C’ and rest against the moulded pebble in the rear pebble base. (See figure 18).
Page 11
OWNER GUIDE
Figure 18.
Figure 17.
Figure 16.
Figure 15.

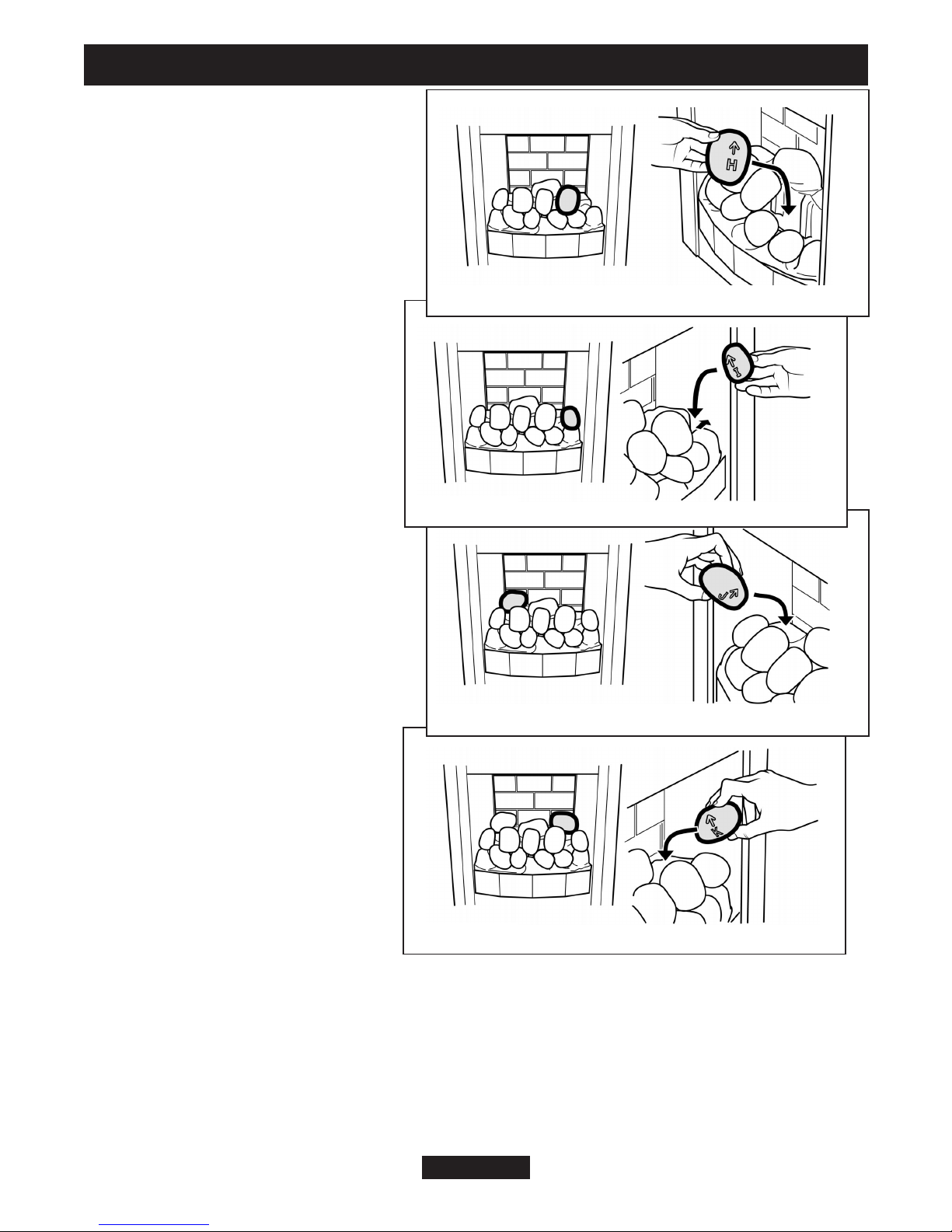

10. Hold pebble ‘H’ upright with the arrow pointing to the top. Place pebble ‘H’ between the front and rear base pebbles. It should rest in between pebbles ‘C’ & ‘D’ and against the moulded pebble in the rear pebble base. (See figure 19).
11. Hold pebble ‘I’ upright with the arrow pointing to the top. Place pebble ‘I’ between the front and rear base pebbles. It should rest against the side of the firebox (See figure 20).
12. Hold pebble ‘J’ upright with the arrow pointing to the top. Place pebble ‘J’ on top of the base pebble rear. (See figure 21)
13. Hold pebble ‘K’ upright with the arrow pointing to the top. Place pebble ‘K’ on top of the base pebble rear. (See figure 22)
Page 12
OWNER GUIDE
Figure 22.
Figure 21.
Figure 20.
Figure 19.
MAINTENANCE
Regular maintenance
In order to achieve and maintain high levels of personal safety and performance efficiency, it is essential that the opening at the back of the fire and the flue are kept clear of any form of obstruction. It is possible that deposits of mortar or soot could fall and accumulate causing the flue to be blocked or restricted and so preventing proper clearance of dangerous exhaust fumes. In the United Kingdom it is the law that a landlord must have any gas appliance, flue and pipework which is situated in a tenant’s premises checked for safety at least every twelve months by a competent person (In the U.K, a CORGI registered installer). We recommend that all gas appliances and their flues, wherever situated, are checked annually.
Servicing
 In the United Kingdom servicing can be carried out either by a Valor service
engineer or a CORGI registered installer.
 If you require your fire to be serviced, please contact Valor Service on 08706 090
081 and quote the following details;
model name and number. appliance serial no. (To be found on the plate close to the control knob.)
 If you wish to replace any of the owner replaceable parts listed below, please
contact Valor Spares on 08706 000 454 for your nearest stockist of these parts. When ordering please quote the part number shown below.
Owner
Replaceable Parts
Description Part No
Ceramic rear wall (Sirius) 0579409 Ceramic rear wall (Quantum) 0579399
Coal model
Front coal 0579119 Rear base coal 0579129 Pack of loose coals 0579149
Pebble model
Front pebble 3002771 Rear base Pebble 3002772 Pack of loose Pebbles 3002773
Page 13
OWNER GUIDE
 When fitting replacement parts, follow the instructions contained in this guide.
It is important that only Valor approved parts are used for maximum safety.
 In the United Kingdom, for general advice about gas and your gas fire call our
Technical Helpline 08706 061 065.
 In the Republic of Ireland call 0044 08706 061 065 for all enquiries.
