Vaisala AMT101, AMT102 Configuration
Legacy configuration codes Valid from 31st March 2003

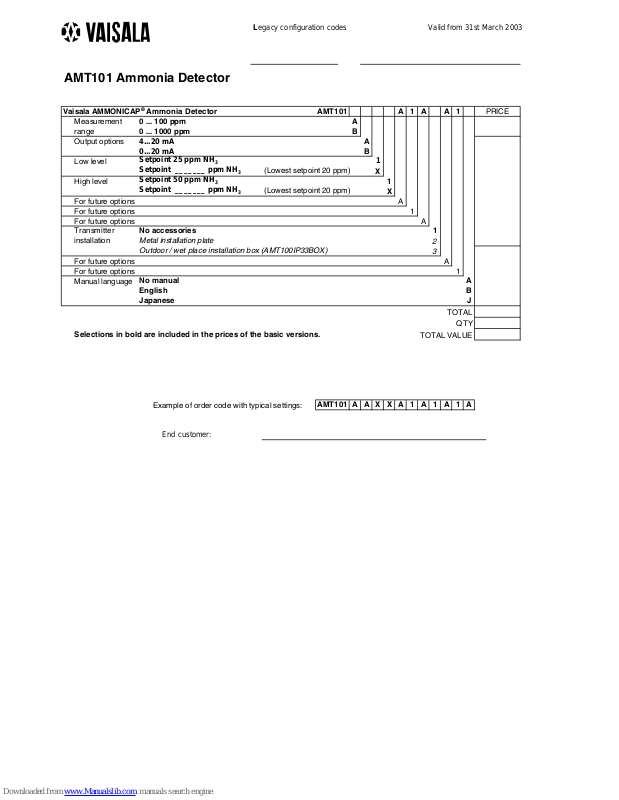

AMT101 Ammonia Detector
Vaisala AMMONICAP
®
Ammonia Detector
AMT101 A 1 A A 1
Measurement
0 ... 100 ppm A
range
0 ... 1000 ppm B
Output options
4...20 mA
A
0...20 mA
B
Low level
Setpoint 25 ppm NH
3
1
Setpoint _______ ppm NH
3
(Lowest setpoint 20 ppm)
X
High level
Setpoint 50 ppm NH
3 1
Setpoint _______ ppm NH
3
(Lowest setpoint 20 ppm)
X
For future options A
For future options 1
For future options A
Transmitter
No accessories 1
installation
Metal installation plate
2
Outdoor / wet place installation box (AMT100IP33BOX)
3
For future options A
For future options 1
Manual language
No manual A
English B
Japanese J
TOTAL
QTY
Selections in bold are included in the prices of the basic versions.
TOTAL VALUE
Example of order code with typical settings:
A A X X A 1 A 1 A 1 A
End customer:
PRICE
AMT101
Legacy configuration codes Valid from 31st March 2003
AMT102 Ammonia Detector with alarm relays
Vaisala AMMONICAP
®
Ammonia Detector
AMT102
1AA
1
Measurement
0 ... 100 ppm
A
range
0 ... 1000 ppm
B
Output options
4...20 mA
A
0...20 mA
B
RS485 and 4…20 mA
C
4...20 mA
With display
*
D
0...20 mA
With display
*
E
RS485 and 4…20 mA
With display
*
F
Alarm low level
Setpoint 25 ppm NH
3
1
Setpoint _______ ppm NH
3
(Lowest setpoint 20 ppm)
X
Alarm high level
Setpoint 50 ppm NH
3
1
Setpoint _______ ppm NH
3
(Lowest setpoint 20 ppm)
X
Relay operations
Below alarm level : Close. Auto release
B
Below alarm level : Close. Manual release (with keypad)
C
Below alarm level : Open. Auto release
D
Below alarm level : Open. Manual release (with keypad)
E
For future options
1
For future options
A
Transmitter
No accessories
1
installation
Metal installation plate
2
Outdoor/wet place installation box (AMT100IP33BOX)
3
For future options
A
For future options
1
Manual language
No manual
A
English
B
Japanese
J
TOTAL
QTY
* The operating temperature range is 0...50 °C with the display. TOTAL VALUE
Selections in bold are included in the prices of the basic versions.
Example of order code with typical settings:
AAXXB1A1A1B
End customer:
PRICE
AMT102
