Instructions for installation and servicing

ecoTEC

Wall hung room sealed fan assisted condensing boiler

ecoTEC plus 612 ecoTEC plus 615 ecoTEC plus 618 ecoTEC plus 624 ecoTEC plus 630

ecoTEC plus 824 ecoTEC plus 831

ecoTEC pro 28

Contents

1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 Notes on the documentation . . . . . . . . . . . . . . . 4

1.1.1 Applicable documents. . . . . . . . . . . . . . . . . . . . . 4

1.1.2 Preservation of documents . . . . . . . . . . . . . . . . 4

1.1.3 Safety instructions and symbols. . . . . . . . . . . . 4

1.2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 CE marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Boiler specifications . . . . . . . . . . . . . . . . . . . 6

2.1 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.4 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3 General requirements . . . . . . . . . . . . . . . . . . 10

3.1 Preliminary remarks . . . . . . . . . . . . . . . . . . . . . . 10

3.2 Related documents . . . . . . . . . . . . . . . . . . . . . . . 10

3.3 Scope of delivery and accessories . . . . . . . . . . 10

3.4 Installation site. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.5 Gas supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.6 Flue pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.6.1 Standard 100 mm flue system . . . . . . . . . . . . . . 13

3.6.2 Optional 125 mm flue system . . . . . . . . . . . . . . . 13

3.7 Flue termination. . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.8 Air supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.9 Electrical supply. . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.10 Guide to system requirements. . . . . . . . . . . . . . 15

3.10.1 Water circulation system . . . . . . . . . . . . . . . . . . 15

3.10.2 Filling and preparing heating system. . . . . . . . 15

3.10.3 Pressure relief valve . . . . . . . . . . . . . . . . . . . . . . 15

3.10.4 Pressure gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.10.5 Expansion vessel . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.11 Pump specifications . . . . . . . . . . . . . . . . . . . . . . 16

3.11.1 Circulating pump . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.11.2 System by-pass. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.11.3 Venting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.12 Condensate trap. . . . . . . . . . . . . . . . . . . . . . . . . . 16

4 Boiler installation sequence. . . . . . . . . . . . . 16

4.1 Required minimum distances/assembly

clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.1.1 Select position for boiler . . . . . . . . . . . . . . . . . . 17

4.1.2 Unpack the boiler. . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1.3 Using boiler template . . . . . . . . . . . . . . . . . . . . . 17

4.2 Flue exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.3 Fitting the boiler hanging bracket . . . . . . . . . . 18

4.4 Installing flue system. . . . . . . . . . . . . . . . . . . . . . 18

4.5 Fitting the boiler . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.6 Removing the front case . . . . . . . . . . . . . . . . . . 18

4.7 General instructions for heating system . . . . . 18

4.8 Gas connection. . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.9 Cold water mains inlet and hot water outlet

(ecoTEC plus 800 and pro only) . . . . . . . . . . . . 19

4.10 Heating connection . . . . . . . . . . . . . . . . . . . . . . 20

4.10.1 Heating flow and return connection. . . . . . . . . 20

4.10.2 Pressure Relief Valve. . . . . . . . . . . . . . . . . . . . . . 21

4.11 Condensate drain pipe . . . . . . . . . . . . . . . . . . . . 22

4.12 Connecting the flue system to the boiler . . . . 22

4.13 Electrical connection. . . . . . . . . . . . . . . . . . . . . . 22

4.13.1 General requirements . . . . . . . . . . . . . . . . . . . . . 22

4.13.2 Connection to the main supply . . . . . . . . . . . . . 23

4.13.3 Electric board layout . . . . . . . . . . . . . . . . . . . . . . 24

4.13.4 Connection of programmable thermostats . . . 27

4.14 Controls (ecoTEC plus 800 and pro only) . . . . 27

4.14.1 External electrical controls . . . . . . . . . . . . . . . . 27

4.14.2 Connection of external controls . . . . . . . . . . . . 27

4.14.3 Connection details for programmable room

thermostats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.14.4 Connection of time switches . . . . . . . . . . . . . . . 28

4.14.5 Connection details for external time switches

and boiler terminal strip . . . . . . . . . . . . . . . . . . . 29

4.14.6 Vaillant optional plug in timer accessories . . . 29

4.15 Controls (600 series) . . . . . . . . . . . . . . . . . . . . . 29

4.15.1 External electrical controls . . . . . . . . . . . . . . . . 29

4.15.2 Connection of external electrical controls . . . 29

4.15.3 Connection details using an external wiring

centre. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.16 Thermostatic radiator valves. . . . . . . . . . . . . . . 29

4.17 Frost protection . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.18 Circulating pump . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.19 Anticycling ‘economiser’ control. . . . . . . . . . . . 29

4.20 Automatic pump spin control (APS). . . . . . . . . 29

5 Commissioning Part I . . . . . . . . . . . . . . . . . . 32

5.1 Preliminary electrical checks. . . . . . . . . . . . . . . 32

5.2 Gas supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.3 Cold water supply (only 800 series). . . . . . . . . 32

5.4 Filling the heating system . . . . . . . . . . . . . . . . . 32

5.4.1 Checking the filling pressure of the heating

system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4.2 ecoTEC plus filling loop (800 series) . . . . . . . . 32

5.4.3 Filling the heating system in ecoTEC pro and

ecoTEC plus (600 series) . . . . . . . . . . . . . . . . . . 33

5.4.4 Filling the heating system for the first time . . 33

5.5 Initial system flush (“cold”) . . . . . . . . . . . . . . . . 33

5.6 Filling the condensation water siphon . . . . . . . 34

5.7 Adjusting the pumping capacity . . . . . . . . . . . . 34

5.8 Adjusting the by-pass . . . . . . . . . . . . . . . . . . . . . 34

5.9 Checking the gas supply. . . . . . . . . . . . . . . . . . . 35

5.9.1 Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.9.2 Gas inlet working pressure. . . . . . . . . . . . . . . . . 35

5.9.3 Checking the gas rate . . . . . . . . . . . . . . . . . . . . . 35

5.10 Refitting the case. . . . . . . . . . . . . . . . . . . . . . . . . 36

5.11 Adjusting the central heating output (range

rating). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.12 Gas changeover . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6 Functional checks (commissioning part II). 36

6.1 Functional checks. . . . . . . . . . . . . . . . . . . . . . . . . 36

6.1.1 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.1.2 Heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.1.3 Water heating (only 800 series) . . . . . . . . . . . . 37

6.1.4 Final flush of the heating system (“hot”) . . . . 37

6.2 Handing over to the user . . . . . . . . . . . . . . . . . . 38

Instructions for installation and servicing ecoTEC

7 Inspection and maintenance . . . . . . . . . . . . 38

7.1 Initial inspection. . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.1.2 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . 38

7.1.3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.1.4 Overview of the maintenance tasks . . . . . . . . . 39

7.1.5 Functional check of boiler operation . . . . . . . . 39

7.2 Servicing the compact thermal module. . . . . . 40

7.2.1 Removing the compact thermal module . . . . . 40

7.2.2 Cleaning the integral condensation heat

exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.2.3 Checking the burner . . . . . . . . . . . . . . . . . . . . . . 41

7.2.4 Refitting the compact thermal module . . . . . . 41

7.3 Cleaning the condensation water siphon . . . . 42

7.4 Checking the expansion vessel . . . . . . . . . . . . . 43

7.5 Recommissioning the boiler. . . . . . . . . . . . . . . . 43

7.6 Test operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 44

8.1 Logical fault finding procedure . . . . . . . . . . . . . 44

8.1.1 Status codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

8.1.2 Diagnosis codes . . . . . . . . . . . . . . . . . . . . . . . . . . 45

8.1.3 Fault codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

8.1.4 Fault memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

8.4 Test programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.5 Resetting parameter to factory settings . . . . . 49

Contents

9 Parts replacement. . . . . . . . . . . . . . . . . . . . . 49

9.1 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . 49

9.2 Replacing burner . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.3 Replacing fan or gas valve . . . . . . . . . . . . . . . . . 50

9.4 Replacing expansion vessel . . . . . . . . . . . . . . . . 50

9.5 Replacing primary heat exchanger. . . . . . . . . . 51

9.6 Replacing electronics and display. . . . . . . . . . . 52

9.7 Check CO

(air-ratio adjustment) . . . . . . . . . . . . . . . . . . . . . 53

10 Recycling and disposal . . . . . . . . . . . . . . . . . 54

10.1 Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

10.2 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

content and if necessary set

3Instructions for installation and servicing ecoTEC

1 Introduction

1.1 Notes on the documentation

The following information is intended to help you throughout the entire documentation. Further documents apply in combination with this installation and maintenance manual.

We assume no liability for any damage caused by non-observance of these manuals.

1.1.1 Applicable documents

The following additional documents are provided with the appliance:

For the owner of the system:

Brief users instructions (only ecoTEC plus) no. 838404 Benchmark logbook no. 800371 Warranty card with return envelope no. 802922

For the qualified technician:

Installation and maintenance manual no. 839592 Assembly manual for flue accessories no. 835296

The manuals for any accessories and controllers used also apply.

1.1.2 Preservation of documents

Please pass on this installation manual to the owner of the system. The owner shall preserve the manuals so that they are available when required.

1.1.3 Safety instructions and symbols

Please observe the safety instructions in this manual for the installation of the appliance! Symbols used in the manual are explained below:

Danger!

Immediate danger to life and limb!

Caution!

Potentially dangerous situation for the product and environment!

Note

Useful information and instructions.

• Symbol for a necessary task

- List for function descriptions or general list

1.2 Introduction

Note

This boiler must be installed and serviced by a competent person in accordance with the Gas Safety (Installation and Use) Regulations 1998. In the UK ‘CORGI’ registered installers undertake the work in compliance with safe and satisfactory standard.

ecoTEC 800 and pro range

The ecoTEC 800 and pro range is a fully automatic, wall mounted, room sealed condensing (high efficiency) combination boiler for central heating and domestic hot water. Domestic hot water is supplied directly from the boiler, without requiring a copper cylinder, cold water tank, feed and expansion vessel and associated pipework. Domestic hot water has priority over central heating. The ecoTEC 800 range consists of 2 models with outputs of 23 kW and 31 kW for domestic hot water and a pro version with an output of 28 kW for domestic hot water. All versions are available in natural gas. The ecoTEC plus 831 is also available in LPG. ecoTEC combination boilers incorporate a warm start facility that keeps the domestic hot water heat exchanger hot, providing an instantaneous delivery of domestic hot water. The temperature in the domestic hot water heat exchanger is limited by the boiler control system and it is not necessary to install a scale reducer on the cold mains to the boiler. However, in areas that get exceptionally hard water, a scale reducer may be fitted to prevent scale formation in the hot water system pipes. The heating system can be filled using the built–in filling loop contained within the boiler.

ecoTEC plus 600 range

The ecoTEC plus 600 range is a fully automatic, wall mounted, room sealed condensing (high efficiency) system boiler for central heating and domestic hot water (where a separate indirect hot water storage cylinder is also incorporated in the system). The ecoTEC 600 range consists of models with outputs of 12, 15, 18, 24 and 30 kW. All ecoTEC 600 range boilers are available in Natural Gas. The ecoTEC plus 618 and 630 are also available in LPG.

1.3 General Notes

The boilers have been designed for use with a sealed central heating system, and come fully tested and assembled with a built in circulating pump, expansion vessel and diverter valve (ecoTEC plus 800 and pro). The boilers are easily mounted on any internal wall and can be installed with either a horizontal or vertical RSF (room sealed fan assisted) flue. The boilers use a standard flue system (100 mm or 125 mm outside diameter). Flue extensions and additional bends and elbows are available for the flue system to increase the flexibility. If desired, an inhibitor may be used in the system. Guidance on the use of inhibitors is contained in these instructions. All boilers have a built in diagnostic system which indicates the operational status of the boiler. This feature provides key information to aid commissioning and fault finding. The data badge is fitted to the underside of the boiler. See text of General Requirements for installation requirements or notes.

4 Instructions for installation and servicing ecoTEC

The Valliant ecoTEC are state-of-the-art appliances which have been constructed in accordance with recognised safety regulations. Nevertheless, danger to the life and limb of the user or third parties can still occur or the appliance or other material assets be impaired in the event of improper use. The appliance is designed to generate heat for connecting to hot water central heating systems and for instantaneous hot water supply (ecoTEC 800 and pro only). Any other use or extended use is considered to be use other than intended. The manufacturer/supplier is not liable for any resulting damage. Intended use includes the observance of the operating and installation manual and the adherence to the inspection and maintenance conditions.

Danger!

Any incorrect use is forbidden.

The appliances must be installed by a qualified engineer, who is responsible for adhering to the existing regulations, rules and guidelines.

Introduction 1

1.4 CE marking

The CE marking shows that the appliances comply with the basic requirements of the following directives:

- Gas appliances directive (90/396/EEC)

- Electromagnetic compatibility directive with threshold

class B (89/336/EEC)

- Low voltage directive (73/23/EEC)

The appliances satisfy the basic requirements of the efficiency directive (92/42/EEC) as condensing appliance.

- The Gas Applaince (Safety) Regulations 1992

- The boiler (Efficiency) Regulations 1993

Vaillant Ltd. supports the Benchmark initiative.

In the information pack, you will find a Benchmark Logbook. It is very important that this is completed correctly at the time of installation, commissioning and hand over to the user.

5Instructions for installation and servicing ecoTEC

2 Boiler specifications

2.1 Technical data

Technical data

CH heat output range 80 °C flow/60 °C return 60 °C flow/40 °C return 50 °C flow/30 °C return 40 °C flow/30 °C return

Drinking water capacity 23.0 31.0 28.0 kW Maximum DHW output 23.5 31.6 28.6 kW Maximum output for heating 18.4 24.5 24.5 kW Minimum output 6.1 8.9 8.9 kW Category II SEDBUK Band A A A Band Inlet gas working pressure required (G20, natural gas) 20 mbar Inlet gas working pressure required (G31, Propane) 37 mbar Connected load (if needed, related to stored charge/

water heating) at 15 °C and 1013 mbar Exhaust mass rate at minimum thermal load (40 °C flow/30 °C return) at maximum thermal load (80 °C flow/60 °C return) Exhaust temperature at minimum thermal load (40 °C flow/30 °C return) at maximum thermal load (80 °C flow/60 °C return) NOx class 5

Protection class IP X4D max. flow temperature 85 °C Adjustable flow temperature

Default setting: max. 75 °C Permitted total overpressure 3.0 bar Circulation water volume (∆T=20 K) Approx. condensation volume

at 40 °C flow/30 °C return heating Pump delivery height 250 mbar Minimum DHW volume 1.5 1.5 1.5 l/min Hot water volume (∆T=30 K) Permitted overpressure 10 bar Required connecting pressure 0.35 bar Hot water discharge temperature range 35 – 65 °C Exhaust flue 60/100 mm 10 l expansion vessel pre-charge pressure 0.75 0.75 0.75 bar Maximum CH system pressure 2.5 2.5 2.5 bar Connections heating flow/return 3/4“ 3/4“ 3/4“ Gas inlet 15 15 15 mm Pressure relief discharge pipework (min.) 15 15 15 mm Condensate drain (min. internal drain) 19 19 19 mm Weight (boiler only) 36 37 37 kg Primary water content 1.9 2.3 2.1 l Electrical supply voltage 230/50 230/50 230/50 V ~/Hz Internal fuse (slow) main voltage 2 A Power input min.

max. at 30 % efficiency

Table 2.1 Technical data plus 800 and pro series

6.0 – 18.0

6.1 – 18.6

6.3 – 19.1

6.5 – 19.5

G31: 1.43

ecoTEC plus

824 831

8.7 – 24.0

9.0 – 24.7

9.3 – 25.5

9.4 – 26.0

2H3P

G20: 1.9

2.8

8.3

774 1032 1032 l/h

1.7 2.2 2.2 l/h

11.0 14.8 13.4 l/min

G20: 3.3

G31: 2.45

4.1

14.2

40 70

40 – 85 °C

130

ecoTEC pro

8.7 – 24.0

9.0 – 24.7

9.3 – 25.5

9.4 – 26.0

G20: 3.0

G31: 2.22

4.1

12.9

Units

kW kW kW kW

m kg/h

g/s g/s

°C °C

W W W

6 Instructions for installation and servicing ecoTEC

Boiler specifications 2

Technical data

CH heat output range 80 °C flow/60 °C return 60 °C flow/40 °C return 50 °C flow/30 °C return 40 °C flow/30 °C return

Memory charging capacity 12.0 15.0 18.0 24.0 30.0 kW Maximum output during memory charging 12.2 15.3 18.4 24.5 30.6 kW Maximum output for heating 12.2 15.3 18.4 24.5 30.6 kW Minimum output 4.1 4.1 6.1 8.9 10.2 kW Category II SEDBUK Band AAAAABand Inlet gas working pressure required (G20, natural gas) 20 mbar Inlet gas working pressure required (G31, Propane) 37 mbar Connected load (if needed, related to stored charge/

water heating) at 15 °C and 1013 mbar Exhaust mass rate at minimum thermal load (40 °C flow/30 °C return at maximum thermal load (80 °C flow/60 °C return) Exhaust temperature at minimum thermal load (40 °C flow/30 °C return) at maximum thermal load (80 °C flow/60 °C return) NOx class 5

Protection class IP X4D max. flow temperature 85 °C Adjustable flow temperature

Default setting: max. 75 °C Permitted total overpressure 3.0 bar

Circulating water volume (∆T=20 K) Approx. condensation volume

at 40 °C flow/30 °C return heating Pump delivery height 250 mbar Adjustable storage target value (15 °C at left stop,

spare adjusting range 40 – 70 °C Exhaust flue 60/100 mm 10 l expansion vessel pre-charge pressure 0.75 0.75 0.75 0.75 0.75 bar Maximum CH system pressure 2.5 2.5 2.5 2.5 2.5 bar Connections heating flow/return 3/4“ 3/4“ 3/4“ 3/4“ 3/4“ Gas inlet 15 15 15 15 15 mm Pressure relief discharge pipework (min.) 15 15 15 15 15 mm Condensate drain (min. internal drain) 19 19 19 19 19 mm Weight (boiler only) 36 36 36 37 39 kg Primary water content 1.9 1.9 1.9 2.1 2.3 l Electrical supply voltage 230/50 230/50 230/50 230/50 230/50 V ~/Hz Internal fuse (slow) main voltage 2 A Power input min.

max. at 30 % efficiency

Table 2.2 Technical data 600 series

612 615 618 624 630

4.0 – 12.0

4.1 – 12.3

4.3 – 12.7

4.4 – 12.9

G20: 1.3

G31: 0.95

1.9

5.5

516 645 774 1032 1290 l/h

1.1 1.4 1.7 2.2 2.7 l/h

4.0 – 15.0

4.1 – 15.5

4.3 – 15.9

4.4 – 16.2

G20: 1.6 G31: 1.19

1.9

6.9

ecoTEC plus

6.0 – 18.0

6.1 – 18.6

6.3 – 19.1

6.5 – 19.5

2H3P

G20: 1.9

G31: 1.43

2.8

8.3

40 70

40 – 85 °C

15 – 70 °C

130

8.7 – 24.0

9.0 – 24.7

9.3 – 25.5

9.4 – 26.0

G20: 4.1

G31: 1.90

4.1

11.1

10.0 – 30.0

10.3 – 30.9

10.6 –31.8

10.8 – 32.4

G20: 3.2

G31: 2.38

4.7

13.8

Units

kW kW kW kW

m kg/h

g/s g/s

°C °C

W W W

7Instructions for installation and servicing ecoTEC

2 Boiler specifications

2.2 Dimensions

440

190

241

883

720

642

Fig. 2.1 Dimensions in mm

175

35 35

125

5 4 3 2

130

100100

180

300

12345

Legend:

1 Heating return pipe Ø 22 mm 2 Cold water connection Ø 15 mm (only 800 series) 3 Gas connection Ø 15 mm 4 Hot water connection Ø 15 mm (only 800 series) 5 Heating flow pipe Ø 22 mm 6 Hanging bracket 7 Flue hole - flue system 60/100 8 Flue hole - flue system 80/125 9 Flue pipe connection 10 Spacer frame accessory (Art. No.: 308 650)

Note

With the spacer frame (Art. No 308 650), the pipes can be run behind the boiler. The distance of the appliance from the wall thus increases by 65 mm.

8 Instructions for installation and servicing ecoTEC

Boiler specifications 2

2.4 Installation

Fig. 2.2 Function elements of 800 series

Legend:

1 Expansion vessel 2 Air intake pipe 3 Compact thermal module 4 Ignition electrode 5 Fan 6 Diverter valve with by-pass 7 Pump 8 Aqua-Sensor 9 Electronics box 10 Pressure sensor 11 Hot water heat exchanger 12 Gas valve 13 Heat exchanger 14 Flue pipe connection

Fig. 2.3 Function elements of 600 series

Legend:

1 Expansion vessel 2 Air intake pipe 3 Compact thermal module 4 Ignition electrode 5 Fan 7 Pump 9 Electronics box 10 Pressure sensor 12 Gas valve 13 Heat exchanger 14 Flue pipe connection

9Instructions for installation and servicing ecoTEC

2 Boiler specifications 3 General requirements

2.5 Type plate

The type plate of the Valliant ecoTEC is attached to the bottom of the appliance at the factory.

Fig. 2.4 Type plate (example)

3 General requirements

3.1 Preliminary remarks

This appliance shall only be installed in conjunction with a Vaillant flue system. Install the flue system as detailed in the separate flue installation instructions supplied with this boiler.

3.2 Related documents

ecoTEC appliances satisfy the Gas Appliance (Safety) Regulations 1992 and the Boiler (Efficiency) Regulations

1993.

The installation of the boiler must be in accordance with the relevant requirements of Gas Safety (Installation and Use) Regulations 1998, Health and Safety Document No. 635 (The Electricity at Work Regulations 1989), BS7671 (IEE Wiring Regulations) and the Water Supply (Water Fitting) Regulations 1999, or The Water Bylaws 2000 (Scotland). It should also be in accordance with the relevant requirements of the Local Authority, Building Regulations, including amendments to the Approved Documents Part L and J 2002, The Building Regulations (Scotland). The Building Regulations (Northern Ireland) and the relevant recommendations of the following British Standards and regulations: BS 5440: Flues and ventilation of gas fired boilers not

exceeding 70 kW net: – Part 1: Flues – Part 2: Ventilation

BS 5449: Specification for forced circulation hot water

for domestic premises.

BS 5546: Specification for gas hot water supplies for

domestic premises.

BS 6700: Services supplying water for domestic use

within buildings and their curtilages.

BS 6798: Specification for installation of gas fired boil-

ers not exceeding 60 kW input.

BS 6891: Specification for installation of low pressure

gas pipework up to 28 mm (R1) in domestic premises (2nd family gas).

BS 7593: Treatment of water in domestic hot water cen-

tral heating systems.

Institute of Gas Engineers Publication IGE/UP/7/1998:

“Guide for gas installations in timber framed housing”

European installation directive

Important:

The appliance must be installed and serviced by a competent person as stated in the Gas Safety (Installation and Use) Regulations 1998. In IE, the installation must be in accordance with the current edition of I.S.813 ‘Domestic Gas Installations’, the current Building Regulations and reference should be made to the current ETCI rules for electrical installation.

Important:

When tightening or slackening screwed connections always use suitable open-ended spanners (not pipe wrench, or extensions, etc.). Incorrect use and/or unsuitable tools can lead to damage being caused (e.g. gas or water leakage)!

3.3 Scope of delivery and accessories

The Vaillant ecoTEC is delivered pre-mounted in a package unit. Check that all the parts have been delivered intact (see Fig. 3.1 and Table 3.1, Fig. 3.2 and Table 3.2 and Fig. 3.3 and Table 3.3).

10 Instructions for installation and servicing ecoTEC

General requirements 3

Fig. 3.1 Scope of delivery for ecoTEC plus 600 series

DO NOT remove the boiler from the polystyrene base at this stage.

Item Quantity Description

1 1 Hanging bracket 2 1 Appliance 3 1 Bottom cover 4 4 Connecting pipes (gas, heating, safety valve) 5 3 Isolating cocks 6 1 Template 7 1 Benchmark logbook

9 2 Bag with small items

Table 3.1 Scope of delivery for ecoTEC plus 600 series

User, installation and maintenance and flue assembly manuals

For LPG appliances, extra: 1 sticker each for

tank and ventilation (above Fig.)

Fig. 3.2 Scope of delivery for ecoTEC plus 800 series

DO NOT remove the boiler from the polystyrene base at this stage.

Item Quantity Description

1 1 Hanging bracket 2 1 Appliance 3 1 Bottom cover

46 5 4 Isolating cocks

6 1 Template 7 1 Benchmark logbook

83 9 2 Bag with small items

Table 3.2 Scope of delivery for ecoTEC plus 800 series

Connecting pipes (gas, heating, water, safety valve)

User, installation and maintenance and flue assembly manuals

For LPG appliances, extra: 1 sticker each for

tank and ventilation (above Fig.)

11Instructions for installation and servicing ecoTEC

3 General requirements

r a b

Fig. 3.3 Scope of delivery for ecoTEC pro

DO NOT remove the boiler from the polystyrene base at this stage.

Item Quantity Description

1 1 Hanging bracket

2 1 Appliance 32 4 4 Isolating cocks

5 1 Template 6 1 Benchmark logbook

8 2 Bag with small items

Table 3.3 Scope of delivery for ecoTEC pro

Connecting pipes (hot water, heating safety valve)

User, installation and maintenance and flue assembly manuals

3.4 Installation site

The location chosen for the boiler must permit the provision of a satisfactory flue termination. The location must also provide adequate space for servicing and air circulation around the boiler. The boiler may be installed in any room, although particular attention is drawn to the requirements of BS7671 (IEE Regulations), the electrical provisions of the Building Standards (Scotland) Regulations, and in IE the current edition of IS813 and the current ETCI rules, in respect of the installation of a boiler in a room containing a bath or shower.

Note

If a room sealed boiler is installed in a room with a bath or shower, electrical switches or boiler controls using the mains power supply must be placed at locations that cannot be reached by the person in the bath or shower.

If the boiler is installed in an unusual location, special procedures may be necessary and BS 5546 and BS 6798 give detailed guidance on this aspect. The boiler must be mounted on a flat, vertical wall, which must be sufficiently robust to take the weight of the boiler. The boiler may be installed on a combustible wall, subject to the requirements of the Local Authorities and Building Regulations. A compartment used to enclose the boiler must be designed and constructed specifically for this purpose. (An existing cupboard or compartment may be used provided that it is modified for the purpose). Details of essential features of cupboard/compartment design including airing cupboard installations are given in BS

6798. If the boiler is to be fitted in a timber framed building, it should be fitted in accordance with Institute of Gas Engineers Publication IGE/UP/7/1998 “Guide for Gas Installation in Timber Framed Housing”. Please note the safety instructions below before deciding where to install the boiler:

Caution!

Do not install the appliance in rooms prone to frost. In rooms with aggressive steam or dust, the appliance must be operated independent of the ambient air.

When choosing the place of installation and while operating the appliance, make sure that the combustion air is technically free of chemical substances containing fluorine, chlorine, sulphur etc. Sprays, solvents and cleaning agents, paints, adhesives etc. contain this kind of substances that can lead to corrosion even in the exhaust system when the appliance is operated depending on the ambient air in the worst case scenario. Particularly in hair-cutting salons, lacquering and finishing, cleaning facilities, the appliance must be operated independent of the ambient air! Otherwise, a separate installation room is required to guarantee that the com-

12 Instructions for installation and servicing ecoTEC

bustion air supply is technical free of the above mentioned substances.

3.5 Gas supply

The gas supplier should ensure the availability of an adequate supply of gas. A gas meter may only be connected to the service pipe by the supplier of gas or their contractor. An existing meter should be checked to ensure that it is capable of passing the rate of gas supply required. Installation pipes should be fitted in accordance with BS 6891. In IE the current edition of IS 813. Pipework from the meter to the boiler must be of an adequate size. Do not use pipes of a smaller size than the boiler gas connection (15 mm). The complete installation must be checked for leaks and purged as described in BS 6891.

3.6 Flue pipe

General requirements 3

550

1435

Danger!

Vaillant appliances are certified only for use with genuine Vaillant flue pipes. Only use genuine Vaillant flue pipes. Malfunctions can occur if you use other accessories. These may result in damage and injury. You will find a list of genuine flue pipes in the Vaillant installation manual for flue pipes. The CE mark is valid only if the appliance is operated with Vaillant flue pipes.

3.6.1 Standard 100 mm flue system

600

Fig. 3.4 Art. No. 303 933

65.5

The standard 100 mm flue system (Art. No. 303 933) is suitable for installations up to 666 mm measured from the centre of the boiler flue outlet to the outside face of the wall. Flue extensions are available to extend this length up to 8 m. Both 90° bends and 45° elbows are also available to increase siting flexibility.

Fig. 3.5 Art. No. 303 900

3.6.2 Optional 125 mm flue system

A concentric flue system of 125 mm outside diameter is available and can be used to achieve flue lengths up to 25 m. A vertical flue system is also available. Refer to flue system installation instructions for full details.

1103

Fig. 3.6 Art. No. 303 209

1530

880

Fig. 3.7 Art. No. 303 200

13Instructions for installation and servicing ecoTEC

3 General requirements

3.7 Flue termination

The following details refer to both flue systems. a. The terminal must be located where the combustible

substances can escape freely at all times.

b. A plume of water vapour will sometimes be visible

from the flue terminal. Positions where this could be a nuisance should be avoided.

c. If the terminal is fitted less than 2 m above a balcony,

above ground or above a flat roof to which people have access then a suitable terminal guard must be provided and fitted (made by Tower Flue Components, Tonbridge, TN9 1TB, Model K3, plastic coated).

H, I

Fig. 3.8 Flue termination

BCD

Note

In addition, the terminal should not be nearer than 150 mm to an opening in the building fabric formed for the purpose of accommodating a built-in element such as a window.

BS 5440–1: It is recommended that the fanned flue terminal should be positioned as follows: a) at least 2 m from an opening in the building directly

opposite, and

b) so that the products of combustion are not directed

to discharge across a boundary.

1) Dimensions B, C and D: These clearances may be reduced to 25 mm without affecting the performance of the boiler. In order to ensure that the condensate plume does not affect adjacent surfaces the terminal should be extended as shown in Fig. 3.9.

2) Dimension F: This clearance may be reduced to 25 mm without affecting the performance of the boiler. However, in order to ensure that the condensate plume does not affect adjacent surfaces a clearance of 300 mm is preferred. For IE, recommendations are given in the current edition of IS 813.

Note

Vertical flues must not terminate within 600 mm of an openable window, air vent or any other ventilation opening.

The flue assembly shall be so placed or shielded as to prevent ignition or damage to any part of the building.

Terminal position mm

Directly below an opening, above an opening or hori-

zontal to an opening, air brick, opening window, etc.

B Below gutters, soil pipes or drain pipes 75 C Below eaves 200 D Below balconies 200 E From vertical drain pipes and soil pipes 25 F From internal or external corners 300 G Above ground, roof or balcony 300 H From a surface facing a terminal 600 I From a terminal facing a terminal 1200

From an opening in the car port (e.g. door, window)

into the dwelling K Vertically from a terminal on the same wall 1500 L Horizontally from a terminal on the same wall 300 M Distance from adjacent for vertical Flue 500

Table 3.4 Terminal position for a fan assisted concentric flue

300

1200

Fig. 3.9 Flue termination under balcony/eaves

3.8 Air supply

Detailed recommendations for air supply are given in BS 5440: Part 2. It is not necessary to have an air vent in the room or internal space in which the boiler is installed.

Cupboard or compartment ventilation

The boilers are very high efficiency appliances. As a consequence the heat loss from the appliance casing during operation is very low. For cupboard or compartment installations it is therefore not necessary to provide any high or low level permanent air vents for cooling purposes.

14 Instructions for installation and servicing ecoTEC

General requirements 3

3.9 Electrical supply

A 230 V, ~ 50 Hz single phase electricity supply fused to 3 Amp. must be provided in accordance with the latest edition of BS 7671 (IEE Wiring Regulations) and any other local regulations that may apply. In IE reference should be made to the current edition of the ETCI rules. The method of connection to the mains electricity supply must provide a means of completely isolating the boiler and its ancillary controls. Isolation is preferably by the use of a fused three pin plug and unswitched shuttered socket outlet, both complying with the requirements of BS 1363. Alternatively, a 3 Amp. fused double pole switch with a 3 mm contact separation on both poles may be used.

Danger!

This appliance must be earthed.

3.10 Guide to system requirements

3.10.1 Water circulation system

Detailed recommendations for the water circulation system are given in BS 6798 and BS 5449: Part 1 (for small bore and micro bore central heating systems). Pipework not forming part of the useful heating surface should be insulated to help prevent heat loss and possible freezing, particularly where pipes are run through roof spaces and ventilated underfloor spaces. Draining taps must be located in accessible positions which permit the draining of the whole system including the boiler and the hot water system. Draining taps should be at least 1/2 in. BSP nominal size and be in accordance with BS 2879. The boiler is suitable for use with minibore or microbore systems. Copper tubing to BS 2871: Part 1 should be used for water carrying pipework. All capillary joints in all DHW pipework must be made with lead free solder. Particularly where a new boiler is to be fitted to an existing system, it is good practice that the system is thoroughly cleansed. This cleansing should take place prior to the fitting of the new boiler and be in accordance with BS 7593. For advice on the application of system cleansers contact Sentinel, Betz Dearborn Ltd. Widnes, Cheshire, WA8 8UD. Tel: 0151 420 9595, or Fernox, Alpha Fry Technologies, Tandem House, Marlow Way, Croydon, CR0 4XS. Tel 0870 8700362.

3.10.2 Filling and preparing heating system

The system can be filled using the built in filling loop (ecoTEC plus 800 series only) or via a separate filling point fitted at a convenient position on the heating circuit. The connection must be removed when filling is completed. Where local Water Authority regulation does not allow temporary connection, a sealed system filler pump with break tank must be used. The heating system will not be filled automatically from the domestic hot water side. (Alternative methods of filling sealed systems are given in BS 5449).

3.10.3 Pressure relief valve

A pressure relief valve is provided with the boiler. This safety device is required on all sealed C.H. systems and is preset at 3 bar and provided with a 15 mm compression connection for a discharge pipe, which must be of no less than 15 mm in diameter. The pressure relief valve must not be used for draining purposes.

3.10.4 Pressure gauge

This is factory fitted to the boiler and indicates the primary circuit pressure to facilitate filling and testing.

3.10.5 Expansion vessel

ecoTEC boilers incorporate a 10 litre expansion vessel which is suitable for a sealed heating system with a maximum water content of 100 litres. If the nominal capacity of the built in expansion vessel is not sufficient for the heating system (for instance in case of modernisation of old open systems) an additional expansion vessel can be installed external to the boiler. It should be fitted in the return pipe as close as possible to the boiler in accordance with BS 5449: Part 1. Guidance on the sizing of an additional expansion vessel is given in Table 3.5.

Vessel Volume [L] Initial system pressure (bar) 1.0 1.5 Pressure relief valve setting (bar) 3.0

Total water content of system litres 25 2.7 3.9 50 5.4 7.8 100 10.9 15.6 125 13.6 19.5 150 16.3 23.4 175 19.1 27.3 200 21.8 31.2 225 24.5 35.1 250 27.2 39.0 275 30.0 42.9 300 32.7 46.8 325 35.7 50.7 350 38.1 54.6 375 40.9 58.5 400 43.6 62.4 425 46.3 66.3 450 49.0 70.2 475 51.8 74.1 500 54.5 78.0 For system volumes other than those given

above, multiply the system volume by the factor across

Table 3.5 Sizing of additional expansion vessel

0.109 0.156

15Instructions for installation and servicing ecoTEC

3 General requirements 4 Boiler installation sequence

3.11 Pump specifications

3.11.1 Circulating pump only ecoTEC plus:

The circulating pump is included in the boiler. The residual pump discharge height depending on the by-pass valve is shown in Fig. 3.10. The operating mode of the 2-step pump can be adjusted below the diagnosis point d.19, see Section 8.1.2.

]

400

mbar

[

300

Lift

200

100

0 200 400 600 800 1000 1200 1600

Fig. 3.10 Pump specifications ecoTEC plus

2. Step1. Step

1400

Volumeflow [l/h

1800

only ecoTEC pro:

The circulating pump is included in the boiler. The ecoTEC pro appliances are fitted with a single-stage pump. The residual pump discharge height depending on the by-pass valve is shown in Fig. 3.11.

]

400

mbar

[

300

Lift

200

100

0 200 400 600 800 1000 1200 1600

Fig. 3.11 Pump specifications ecoTEC pro

1400

Volumeflow [l/h

1800

]

4 Boiler installation sequence

4.1 Required minimum distances/assembly clearances

min

165/246*

min 5

]

Fig. 4.1 Distances during installation (dimensions in mm)

min 5

min 180

The boiler should be mounted on a flat and vertical area of wall of sufficient area for the boiler plus the required clearances for installation and servicing (fig. 4.1). These are shown on the installation template supplied with the boiler and are: – 5 mm either side of the boiler – 180 mm below the boiler – 165 mm* above the boiler when utilising the 100 mm

outside diameter flue

– 246 mm* above the boiler when utilising the 125 mm

outside diameter flue

– 500 mm in front of the boiler to enable easy access

for servicing (may be provided by an opening door)

Note

If the boiler is to be fitted in a timber framed building, it should be fitted in accordance with British Gas publication DM2 ‘Guide for gas installations in timber framed housing’.

min 500**

3.11.2 System by-pass

An automatic system by-pass is provided in the boiler. The boiler is suitable for use in systems with thermostatic radiator valves and no additional by-pass is required. The by-pass valve is adjustable, see Section 5.8.

3.11.3 Venting

The boiler is fitted with an automatic air vent. Additional provision should be made to enable the heating system to be vented during filling and commissioning either by automatic air vents or manually.

3.12 Condensate trap

The boiler is fitted with a siphonic condensate discharge (ecoTEC plus) or a condensate trap (ecoTEC pro) incorporating a water trap of 140 mm.

16 Instructions for installation and servicing ecoTEC

4.1.1 Select position for boiler

Refer to section ‘Boiler location’ for information regarding the appliance location. In general the boiler must be positioned such that:

• There is adequate space around the boiler for service and maintenance

• The boiler can be correctly flued, i.e. the flue terminal position is located in accordance with these instructions and the air/flue duct can be installed in accordance with the flue installation instructions supplied.

• All necessary pipework can be connected, including the pressure relief valve and condensate drain.

4.1.2 Unpack the boiler

To unpack the boiler, cut both plastic carton straps, open box and lift out the polystyrene top packing. Lift the cardboard box upwards.

Boiler installation sequence 4

165

60/100

175

Note

Care should be taken not to scratch the white surface of the boiler casing

4.1.3 Using boiler template

• Fix the paper template to the wall ensure that the template is vertical.

The template shows: – The position of the fixing holes for the boiler mounting

bracket.

– The position of the connections. – The position of the flue exit hole.

• Mark the position of the hanging bracket fixing holes.

• Drill 2 holes Ø 8 mm for the hanging bracket.

Note

Use alternative fixing holes where necessary.

1065

180

45°

256723_01 11 2004

450

Fig. 4.2 Assembly template

17Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

4.2 Flue exit

• If using rear flue mark the position of the air/flue duct and its circumference.

Other flue options Flue instructions for other flue systems such as vertical RSF flues, flues run to the side of the boiler and the use of additional bends etc. are detailed in the flue installation instructions provided with the boiler.

• Remove the template from the wall and plug the drilled holes using the wallplugs supplied.

4.3 Fitting the boiler hanging bracket

Note

Lift the boiler from either side at the bottom edge

• Lower the boiler slowly onto the hanging bracket so that the cross member at the rear of the boiler fully engages onto the hanging bracket.

4.6 Removing the front case

Fig. 4.3 Appliance with hanging bracket

• Fix the hanging bracket to the wall using the plugs and screws provided with the appliance.

Note

Use alternative fixing holes where necessary.

Note

If the boiler is to be fitted in a timber framed building ensure that the bracket is secured to a substantial part of the timber frame capable of taking the weight of the boiler.

4.4 Installing flue system

• Install the flue system (refer to the seperate air/flue duct installation instructions).

4.5 Fitting the boiler

• Lift the boiler (3) up to the wall so that it is slightly above the hanging bracket (1).

Fig. 4.4 Removing/fixing the front case

To remove the front section of the case, proceed as follows:

• Loosen the screw (1) on the bottom of the unit.

• Push in the two retaining clips (2) on the bottom of

the appliance until the case is released.

• Grasp the front case by its bottom edge, pull it towards the front and remove it by lifting it off the unit.

4.7 General instructions for heating system

Caution!

Thoroughly cleanse the heating system before connecting the appliance! By doing that, residue such as welds, cinder, hemp, putty, rust, rough dust and similar substances are removed from the pipes. Otherwise such substances can be deposited in the appliance and cause damage.

- The appliance is fitted with an expansion vessel (10 l/

0.75 bar). Before assembling the appliance check if this volume is adequate. If not, an extra expansion vessel must be provided by the plant, see Section 3.9.5.

18 Instructions for installation and servicing ecoTEC

Boiler installation sequence 4

4.8 Gas connection

Note

With the spacer frame (Art. No 308 650), the pipes can be laid in front of the wall upwards behind the appliance. The distance of the appliance from the wall thus increases by 65 mm.

Danger!

The gas installation may only be established by an authorised technician. The legal directives and the local regulations for gas supply companies must be observed.

Caution!

Ensure a stress-relief assembly of the gas pipes to avoid leakages!

Caution!

The gas regulating block may be tested for leakage only with a maximum pressure of 150 mbar! Higher testing pressures can damage the gas fitting.

Caution!

When making final connection to the boiler, if using soldered fittings, extra care should be taken to avoid damage to isolation valves through heat transfer.

• Insert the union nut (6) and the pinching ring (5) on the conduit arc provided with ecoTEC plus appliances (7).

• Insert the maintenance tap (4) until the stopper on the gas connection pipe and the conduit arc until the stopper in the maintenance tap. Tighten both union nuts in this position of the maintenance tap.

• The diameter of the conduit (7) is 15 mm. Connect a gas supply pipe of not less than 15 mm diameter to the copper tail.

Note

Ensure the gas supply pipework is adequately sized so that a 20 mbar gas pressure is available at the boiler inlet at full flow rate.

• Tighten all connections.

• Check the gas connection with leak indicator spray for leakage.

4.9 Cold water mains inlet and hot water outlet

(ecoTEC plus 800 and pro only)

Caution!

When making final connection to the boiler, if using soldered fittings, extra care should be taken to avoid damage to isolation valves through heat transfer.

Fig. 4.5 Fitting the gas connection (example ecoTEC plus, 800

series)

• Insert the union nut (2) and the pinching ring (3) on the gas connection pipe (1) to the heater.

Fig. 4.6 Installing the hot and cold water connection (ecoTEC

plus, 800 series)

19Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

ecoTEC plus, 800 series

Fig. 4.7 Installing the hot and cold water connection (ecoTEC

pro)

Note

Flush all foreign matter from the mains supply before connecting to the boiler.

• Insert the seal (1) and screw in the maintenance tap (2) at the appliance cold water connection.

• Insert the union nut (4) and the pinching ring (3) on the conduit arc provided with ecoTEC plus appliances (5). The diameter of the conduit is 15 mm.

• Insert the conduit arc until the stopper in the maintenance tap. Tighten the union nuts in this position.

• Insert the seal (7) and screw in the conduit (6) on the appliance hot water connection. The diameter of the conduit is 15 mm.

• Mount the handle for the fill-up valve with a countersunk screw on the maintenance tap (2).

Fig. 4.8 Installing the heating flow and return connection for

ecoTEC plus, 800 series

12 11

• Insert the seal (1) and screw in the maintenance tap (2) at the return connection of the appliance.

• Insert the seal (10) and screw in the maintenance tap (9) at the flow connection of the appliance.

• Install the O-ring seal (12) on the return valve (11).

Note

Lay the filling conduit (13) above the conduit elbows.

• Insert the union nuts (4) and (7) as well as the pinching rings (3) and (8) on the conduit elbows (5) and (6). The diameter of the conduits is 22 mm.

• Insert the conduit elbows until the stopper in the maintenance taps. Tighten the union nuts in this position.

• Mount the handle for the fill-up valve with a countersunk screw on the maintenance tap (9).

4.10 Heating connection

Caution!

When making final connection to the boiler, if using soldered fittings, extra care should be taken to avoid damage to isolation valves through heat transfer.

4.10.1 Heating flow and return connection

Note

Before connecting the heating circuit to the boiler, all pipework and radiators must be thoroughly flushed to remove any installation debris.

20 Instructions for installation and servicing ecoTEC

Boiler installation sequence 4

ecoTEC pro

b ar

Fig. 4.9 Heating flow and return connection for ecoTEC pro

• Insert a seal (1) and screw in the maintenance taps (2)

at the flow and return connection of the appliance.

• Insert a union nut (4) and a pinching ring (3) on the two conduit elbows (5) with a diameter of 22 mm.

• Insert the conduit elbows until the stopper in the maintenance taps. Tighten the union nuts in this position.

ecoTEC plus, 600 series

• Insert the conduit elbows until the stopper in the maintenance taps. Tighten the union nuts in this position.

4.10.2 Pressure Relief Valve

1 2

Fig. 4.11 Installing the drain pipe on the pressure release valve

of the heating system (picture shows ecoTEC 800 plus)

Fig. 4.10 Heating-side flow and return connection for ecoTEC

plus, 600 series

• Insert a seal (1) and screw in the maintenance taps (2)

at the flow and return connection of the appliance.

• Insert a union nut (4) and a pinching ring (3) on both conduit elbows (5). The diameter of the conduits is 22 mm.

Caution!

To ensure fumes do not escape through the syphon of the boiler the trap must be filled with water before the boiler is turned on. Therefore the discharge pipework should be installed so as not to interfere with the removal and refitting of the condensate trap, we recommend the outlet pressure release valve pipe supplied is not shortened.

The pressure release valve for the heating system is integrated in the appliance.

• Position the seal (1) and screw the drain pipe (2) on to

the pressure release valve.

The discharge pipework should be as short as possible and installed continuously away from the boiler. The pipe should terminate in a position which ensures that any discharge of water or steam from the valve cannot create a hazard to persons in or around the premises, or cause damage to any electrical components or external wiring, and the point of discharge should be clearly visible.

21Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

4.11 Condensate drain pipe

Internal stackpipe

Fig. 4.12 Installing the condensate drain pipe (picture shows

ecoTEC 800 plus)

Internal discharge system

Gulley

Soakaway

The ecoTEC plus appliances are fitted with a siphonic trap. The siphon collects the accumulated condensate in a container of approx. 200 ml capacity and directs the entire content into the drain pipe. The risk of the condensate drain pipe freezing is thus minimised. The ecoTEC pro appliances are equipped with a normal condensing water trap where the condensate is constantly emptied into the drain pipe.

• Connect the boiler condensate drain (1) to a condensate discharge pipe (2) which should be minimum of 19 mm internal diameter (22 mm external diameter for any pipework installed external to the property) and be made of an acid resistant material (e.g. plastic overflow pipe).

Note

The discharge pipe from the boiler condensate drain must have a continuous fall (45 mm per meter) and preferably be installed and terminated within the building to prevent possible freezing.

The condensate discharge pipe must terminate in a suitable position, e.g.: a) preferably the discharge pipe should run and termi-

nate internally to the house soil and vent stack (at least 450 mm above the invert of the stack). A trap giving a water seal of at least 75 mm (3) should be incorporated into the pipe run, and there must be an air break (4) in the discharge pipe upstream of the trap. This should be designed so that the condensate cannot be discharged into the house if the condensate pipe becomes blocked.

b) connecting into the internal discharge branch (e.g. sink

waste or washing machine) with an external termination, the condensate discharge pipe should have a minimum diameter of 22 mm with no length restriction and should incorporate a trap with a 75 mm (3) seal. The connection should preferably be made down stream of the sink waste trap. If the connection is only possible upstream, then an air break is needed between the two traps. This is normally provided by the sink waste.

c) terminating in a gully (5) below grid level (6) and

above the water level. The external pipe length should be kept a short as possible to minimise the risk of freezing and should not be more than 3 m.

d)at a condensate absorption point (soakaway) (7). The

external pipe length should not be more than 3 m.

Refer to ‘BS 6798 Specification for installation of gas– fired boilers of rated input not exceeding 70 kW net’ for further information. Before operating the boiler the condensate trap (1) must be filled with water as described in relevant section.

4.12 Connecting the flue system to the boiler

• Refer to separate air/flue duct installation instructions included with the boiler.

4.13 Electrical connection

4.13.1 General requirements

Danger!

Electroculation caused by touching live parts can be fatal. Before working on the appliance, turn off the power supply and secure against restart.

All electrical work shall be carried out by a competent person and shall comply with BS7671 (IEE Regulations). In IE, reference should be made to the current edition of the ETCI rules. The boiler is supplied for connection to 230 V, ~ 50 Hz supply fused at 3 A rating. Connection to the mains supply shall be made via a fused 3 pin plug to an unswitched shuttered socket, both complying with the requirements of BS1363. (Alternatively, connection may be made via a 3 A fused double pole isolator having a contact separation of at least 3 mm in all poles and supplying the boiler and controls only). The point of connection to the mains supply must allow complete electrical isolation of the boiler and its ancillary controls. It should be readily accessible and adjacent to the boiler. A 3 core flexible cord according to BS6500 tables 6, 8 or 16 (3 x 0.75 to 3 x 1.5 mm

) should

be used.

Danger!

This appliance must be earthed.

22 Instructions for installation and servicing ecoTEC

-+789 LN 345

Danger!

Mains connection terminals L and N remain live even when the boiler on/off control is switched off.

Note

Do not connect any power voltage to the connections 7-8-9.

Note

Ensure that all cords pass through the cable clamps in the rear of the control box and are securely fixed. Ensure that the power supply is connected such that the current carrying conductors become taut before the earth conductor should the supply cord slip from the cable clamp.

4.13.2 Connection to the main supply

• Remove the front case and lower the control panel.

Boiler installation sequence 4

-+789 LN 345

Fig. 4.14 Wiring system

Fig. 4.13 Opening the electronics box

• Connect the flex to the L, N and earth plug to the terminal block.

Green/yellow (earth) wire – boiler terminal Earth sign Blue (neutral) wire – boiler terminal N Brown (live) wire – boiler terminal L

Note

Do not connect any power voltage to the connections 7-8-9.

Note

Ensure that the wires are mechanically fixed in the terminal block.

• Refit the terminal box cover by pushing into place until it clips back into position.

• Raise the control panel.

• Unclip the bottom of the terminal box cover and hinge back to reveal the connection plugs.

• Feed the power supply flex into the appliance and the control panel through the cable clamps provided and tighten.

23Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

4.13.3 Electric board layout

Fig. 4.15 Connection wiring ecoTEC

24 Instructions for installation and servicing ecoTEC

Boiler installation sequence 4

NTC flow

X 20/5 red

X 20/7 black

X 20/8 blue

X 20/7 black

Gas valve assembly

X 2/9 black

X 2/11 red

X 2/12 green

NTC return

Ignition electrode

Thermal fuse

X 20/18 red (24 VDC)

X 20/9 blue (earth)

Water pressure sensor

Aqua sensor

X 20/13 black X 20/12 black

Fan unit

Plug in coupling

X 20/16 blue (earth)

X 20/4 grey (PWM)

X 20/3 black (Hall signal)

X 20/17 red (24 VDC)

X 2/16 black A

X 2/7 blue B

X 2/15 brown C

X 2/8 pink D

Diverter valve

Pump

X 2/3 red (+ 5V)

X 2/2 black (earth)

X 2/6 green (signal)

X40

X 20

X31

X41

X 2

Electronic control box

Fig. 4.16 Connection wiring ecoTEC (800 series)

+ –

BUS

X 2/4 orange

X 2/10 black

X 2/5 violet (signal)

X 2/1 black

7 8 9

24V

L N 3 4 5

230V

NTC Plate heat exchanger

NTC Hot water outlet

X12

25Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

NTC flow

X 20/5 red

X 20/7 black

X 20/8 blue

X 20/7 black

Gas valve assembly

X 2/10 black

X 2/14 brown

X 2/9 black

X 2/11 red

X 2/12 green

NTC return

Ignition electrode

Thermal fuse

X 20/18 red (24 VDC)

X 20/9 blue (earth)

Hot water contact C1/C2

Water pressure sensor

X 20/13 black X 20/12 black

Fan unit

Plug in coupling

X 20/16 blue (earth)

X 20/4 grey (PWM)

X 20/3 black (Hall signal)

X 20/17 red (24 VDC)

Pump

X40

X 20

X31

X41

X 2

Electronic control box

Fig. 4.17 Connection wiring ecoTEC (600 series)

+ –

BUS

X 2/4 orange

X 2/10 black

7 8 9

24V

L N 3 4 5

230V

tank NTC connection

X12

26 Instructions for installation and servicing ecoTEC

4.13.4 Connection of programmable thermostats

Boiler installation sequence 4

ACL Drayton Lyfestyle PT271, PT371

ACL Drayton Digistat 2, 3, 4

ACL Drayton Digistat RF - SCR Receiver

Danfoss Randall TP4, TP5, TP5E

Danfoss Randall TP5E RF with receiver RX1

Danfoss Randall TP75

Grässlin Towerchron RTC7

Honeywell CM61, CM67, CM31, CM37

Horstmann Centaurstat 1, 7

Landis & Staefa REV 11, REV 15, REV 22

Smiths Timeguard ProgramaSTAT PRT11, PRT17

Sunvic TLX 6501

Sunvic TLX RFP, TLX RFD

Vaillant VRT 230, 220

Fig. 4.18 Connection details for programmable thermostats

234

LN 3

LL1

LN 3

2341

4.14 Controls (ecoTEC plus 800 and pro only)

4.14.1 External electrical controls

The boiler terminals 3, 4 and 5 are for connecting external electrical controls such as a time switch and/or room thermostat. Terminals 3 and 4 are linked together when the boiler is supplied. If external controls are used, this link must be removed, and the controls connected across terminals 3 and 4. Terminal 5 is an additional neutral connection for external neutrals such as from the anticipator of a room thermostat.

4.14.2 Connection of external controls

4.14.3 Connection details for programmable room thermostats

Fig. 4.18 shows the connection details where a programmable room thermostat (time switch with build in room thermostat) is used to control the boiler.

Note

The numbers with arrows indicate connection to the relevant terminal in the boiler terminal strip.

27Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

4.14.4 Connection of time switches

ACL Drayton Tempus 1, Tempus 2 Lyfestyle LP111, LP711

ACL Drayton Switchmaster SM300

ACL Drayton Switchmaster 980

Danfoss Randall 103 Series

Danfoss Randall Set 1E, TS975

Danfoss Randall TS715

Grässlin Towerchron QE1, QM1

Honeywell ST610A, ST6100C

Horstmann Channel Plus H11, H17, 425 Coronet

Horstmann Centaur Plus C11, C17

Landis & Staefa RWB7, RWB30

Potterton Myson EP 4002, EP 5002

Smiths Timeguard SupplyMASTER FST11, FST17

Sunvic Select 107

234

AB C

65E

234

DLN

1/N

234

LN 3

LN 4

4L3

LN 3

432/L

LN 3

LN E

mains supply

345E

Fig. 4.19 Connection details for time switches

MAINS SUPPLY 230 V

50 Hz

Fig. 4.20 Connection details for time switches

28 Instructions for installation and servicing ecoTEC

3 A FUSE

20 VDC (DO NOT USE 7, 8, 9 IN UK!)

987

SWITCH CONTACTS

CLOCK

ROOM THERMOSTAT

Boiler installation sequence 4

4.14.5 Connection details for external time switches and boiler terminal strip

Fig. 4.19 shows the connection details where a time switch is used without a room thermostat to control the boiler.

Note

The numbers with arrows indicate connection to the relevant terminal in the boiler terminal strip.

If a room thermostat is to be connected in addition to a time switch the wire between the time switch “ON” terminal and boiler terminal 4 should be broken by the contacts of the room thermostat (see schematic layout, Fig.

4.20).

4.14.6 Vaillant optional plug in timer accessories

Refer to the instructions supplied with the optional accessories for connection details. Upon completion of all electrical connections refit the terminal box cover by pushing into place. The cover is secured by two locking clips.

4.15 Controls (600 series)

4.15.1 External electrical controls

The boiler terminals 3, 4 and 5 are for connecting external electrical controls such as a programmer, room thermostat, etc. Terminals 3 and 4 are linked together when the boiler is supplied. If external controls are used, this link must be removed, and the controls connected across terminals 3 and 4. Terminal 5 is an additional neutral connection for external controls.

4.17 Frost protection

The boiler has an integral frost thermostat which is designed for protection of the boiler. To protect remote or exposed parts of the heating system or property additional frost protection measures must be taken such as the installation of an external frost thermostat. This frost thermostat should be connected across the boiler terminals 3 and 4, in parallel with any external heating controls.

Note

External frost protection cannot be used when plug in timers are utilised.

4.18 Circulating pump

The boiler incorporates a built in circulating pump that is fully prewired (no additional wiring is necessary). The pump incorporates an automatic overrun period after the boiler switches off.

4.19 Anticycling ‘economiser’ control

The boiler incorporates a built in anticycling control to ensure that energy wasteful short cycling of the boiler cannot occur. This control prevents the boiler from reigniting for a preset period after central heating operation (the hot water operation is unaffected by this control and hot water can be drawn at any time).

Note

To temporarily override the anticycling control turn the main boiler on/off switch to the off position “0” and then back to the on position “I” after a few seconds.

4.15.2 Connection of external electrical controls

4.15.3 Connection details using an external wiring centre

The boiler should be connected to the system controls using an external wiring centre. Fig. 4.21, 4.22 shows connection details for a system utilising a 3 port mid position motorised valve, figure 4.23, 4.24 shows the connection details for a system utilising two 2 port motorised valves (Important: the numbers with arrows indicate connection to the relevant terminal of the external wiring centre).

4.16 Thermostatic radiator valves

The boiler has a built in automatic by-pass valve making it ideal for use in systems with thermostatic radiator valves (no separate system by-pass is required). For optimum fuel economy where TRV’s are used they must be used in conjunction with a boiler control interlock. A programmable room thermostat or separate timer and room thermostat will ensure complete boiler shut down when the heating demand is satisfied. (The radiator in the room containing the room thermostat should not be fitted with a TRV).

4.20 Automatic pump spin control (APS)

The boiler incorporates a built in control which will spin the built in circulating pump and operate the diverter valve (ecoTEC plus 800 and pro) once in a 23 hour period. This control helps to prevent seizure when the boiler is not operated for a period of time. This control is not active when the power supply to the appliance is turned off.

29Instructions for installation and servicing ecoTEC

4 Boiler installation sequence

Connection details for control systems utilising 3 port motorised valve via external wiring centre/junction box

Diagram only applies to the specific controls mentioned

3 amp fused main supply

Cylinder thermostat

ACL Drayton HTS3

Danfoss Randall ATC

Tower CS1

Honeywell L641

Horstmann HTC1

Siemens-Landis & Staefa RAM 1

Sunvic SA 2452

EARTH BLUE

3 Port mid position motorised valve

Fig. 4.21 Connection details for control systems utilising 3 port

motorised valve

ecoMAX terminal strip

NNL

*Do not use pre-wired printed circuit board type

345

External wiring centre/junction box*

345678910

8 4 7 E

21 C

RED

BROWN OR WHITE

GREY ORANGE

Room thermostat

Vaillant VRT 9090

ACL Drayton Digistat 2, 3, 4

ACL Drayton RTS 1, 2

Danfoss Randall RX-1

Danfoss Randall RMT 230

Danfoss Randall RET 230

Tower SS

Honeywell T6360

Horstmann HRT 1

Siemens-Landys & Staefa RAD 1

4E5 89

Sunvic TLX 2000 series

Programmer for programmer connections see fig. 16.b

EN L

CENTRAL HEATING ON

HOT WATER ON

HOT WATER OFF

E5367 8

not used

5 9 6 L N E

ECA

4 2 4

Lifestyle LP241, LP 522, LP 722

Tempus 6, Tempus 7

Danfoss Randall CP 715, FP715

Note: *Earth not required

Danfoss Randall Set 2E, Set 3E Note: *Earth not required,

Link L - 2 - 5

Grässlin Towerchron QE2

Honeywell ST699B, ST799A

Note: Link L - 5 - 8

Honeywell ST6200, ST6300, ST6400

Horstmann Channel Plus H21, H27 Note: *Earth not required,

Link L - 2 - 5

Siemens-Landis & Staefa RWB2, RWB9

Potterton Myson EP 2002, EP 3002, EP 6002

Note: Link L - 5

Sunvic Select 207

53 8

53 7

53 8

53 7

53 8

234

not used

234

not used

234

not used

234

not used

567

not used

234

not used

234

not used

234

not used

234

not used

Fig. 4.22

30 Instructions for installation and servicing ecoTEC

Connection details for control systems utilising 2 x 2 port motorised valves via external wiring centre/junction box

Diagram only applies to the specific controls mentioned

3 amp fused main supply

Cylinder thermostat

ACL Drayton HTS3

Danfoss Randall ATC

Tower CS1

Honeywell L641

Horstmann HTC1

Siemens-Landis & Staefa RAM 1

Sunvic SA 2452

EARTH BLUE BROWN GREY ORANGE

Hot water 2 port motorised valve

Fig. 4.23 Connection details for control systems utilising 2

port motorised valve

ecoMAX terminal strip

External wiring centre/junction box*

NNL

*Do not use pre-wired printed circuit board type

10 7 E

21 C 3E

RED

Boiler installation sequence 4

Programmer

345

345678910

4E5 310

for programmer connections see fig. 16.d

not used

Room thermostat

Vaillant VRT 9090

ACL Drayton Digistat 2, 3, 4

ACL Drayton RTS 1, 2

Danfoss Randall RX-1

Danfoss Randall RMT 230

Danfoss Randall RET 230

Tow er SS

Honeywell T6360

Horstmann HRT 1

Siemens-Landys & Staefa RAD 1

Sunvic TLX 2000 series

EARTH BLUE BROWN GREY ORANGE

Central heating 2 port motorised valve

N L

OFF

HOT

CENTRAL

WATER

HEATING

5367 8

5 9 6 L N E

ECA

2 4 N 4 2 4

4E5 39

E E E

Lifestyle LP241, LP 522, LP 722

Tempus 6, Tempus 7

Danfoss Randall CP 715, FP715

Note: *Earth not required

Danfoss Randall Set 2E, Set 3E Note: *Earth not required,

Link L - 2 - 5

Grässlin Towerchron QE2

Honeywell ST699B, ST799A

Note: Link L - 5 - 8

Honeywell ST6200, ST6300, ST6400

Horstmann Channel Plus H21, H27 Note: *Earth not required,

Link L - 2 - 5

Siemens-Landis & Staefa RWB2, RWB9

Potterton Myson EP 2002, EP 3002, EP 6002

Note: Link L - 5

Sunvic Select 207

53 7

56not used

53 7

not used

234

not used

234

not used

234

not used

234

not used

567

234

not used

234

not used

234

not used

234

not used

Fig. 4.24

31Instructions for installation and servicing ecoTEC

5 Commissioning Part I

5.1 Preliminary electrical checks

Check the electrical installation by carrying out short circuit, earth continuity and resistance to earth tests and a check for correct polarity.

5.2 Gas supply

The complete gas installation including the gas meter must be inspected, checked for leaks and purged in accordance with BS 6891. In IE the current edition of IS

813. The gas supply to the boiler can be purged by slackening the gas service valve beneath the boiler. Ensure that there is adequate ventilation, extinguish all naked flames and do not smoke whilst purging. After purging, the gas service valve connection must be retightened and checked for leaks. (The boiler itself does not require purging as this will be done by the automatic burner sequence control).

5.3 Cold water supply (only 800 series)

Open all domestic hot water taps supplied by the boiler, turn on the mains water supply to the boiler and open the mains water isolating valve below the boiler. Water will now flow through the boiler to the hot taps. Starting with the lowest tap supplied, turn the hot taps off one at a time until the hot water pipework is purged of air. Check all hot and cold water pipework for leaks.

Note

The ecoTEC appliances come with a manometer and a digital pressure indicator. The manometer allows you to quickly check whether the filling pressure is in target range or not even when the appliance is turned off. If the appliance is in operation, you can display the exact pressure by pressing the “-” (2).

For the heating system to operate properly, the indicator on the manometer (1) must be in the dark grey area when the system is cold. This corresponds to a filling pressure between 1.0 and 2.0 bar. If the pointer is in the light grey area, please refill water.

If the heating system extends over several storeys, the system may require a higher filling pressure.

5.4.2 ecoTEC plus filling loop (800 series)

The ecoTEC plus appliance from the 800 series will be delivered with a filling loop.

5.4 Filling the heating system

5.4.1 Checking the filling pressure of the heating system

plus pro

iFP

bar

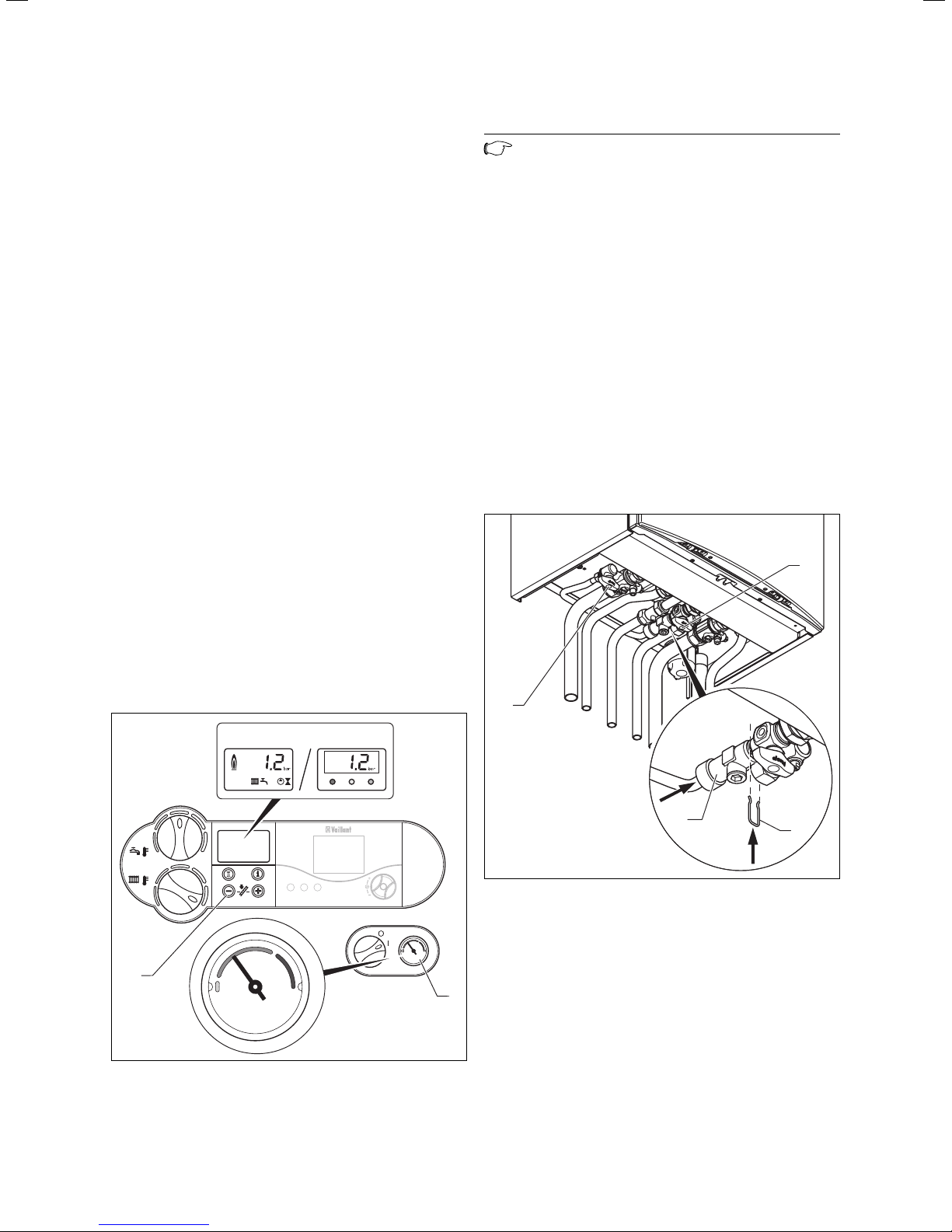

Fig. 5.1 Checking the filling pressure of the heating system

Fig. 5.2 Filling device ecoTEC plus (800 series)

• Insert the double check valve (1) of the filling pipe at

the cold water shutoff valve and secure the double check valve with the spring clip (2).

• To fill, first open the stop valve (3).

• Open the stop valve (4), so that water flows into the

heating system. Fill the heating system as described in Section 5.4.4.

• Close both stop valves after filling and detach the filling device by pulling the double check valve from the cold water stop valve.

32 Instructions for installation and servicing ecoTEC

Commissioning Part I 5

Note

Both stop valves must be closed while operating the heating system and the filling pipe must be again detached at the double check valve.

Fig. 5.3 Double check valve detached while heating

5.4.3 Filling the heating system in ecoTEC pro and ecoTEC plus (600 series)

The ecoTEC pro appliances and the ecoTEC plus appliances from the 600 series do not come with a filling device. In these appliances, water is filled in the heating system through a filling pipe provided onsite.

• Join a hose between a cold water dispensing valve and

the filling pipe of the heating system.

• To fill, first open the cold water dispensing valve.

• Open the stop valve on the filling pipe, so that water

flows into the heating system. Fill the heating system as described in Section 5.4.4.

• After filling, close the stop valve on the filling pipe and

the cold water dispensing valve and remove the filling hose.

5.4.4 Filling the heating system for the first time

• Slowly open the filling valve and let the water flow into the heating system. Ventilate the lowest heating element until the water flows out at the vent valve without bubbles.

• Ventilate all other heating elements until the heating system is completely filled with water, all vent valves have been shut and the manometer pointer is in the centre of the dark grey area. Ventilate the heating pump by loosening the central screw. Close the filling valve and the cold water dispensing valve.

• Rotate the cap of the rapid action fan on the pump a couple of times to loosen it (the appliance is ventilated independently by the rapid action aspirator during continuous operation).

• Check all connections and the entire system for leaks.

5.5 Initial system flush (“cold”)

Note

The complete heating system must be flushed out at least twice: once cold, and once hot as instructed below.

• Check if all heating element thermostat valves and both maintenance taps on the heater are open.

• Connect a hose to the drain valve located at the lowest position of the heating system.

• Open the 1/2” BSP drain taps and all vent valves on the heating elements and allow the water to flow out of the heating system and the heater quickly and completely to remove all installation residue from the heating system before commissioning the heater.

• Close the 1/2” BSP drain taps.

• Fill the heating system again with water as described in Section 5.4.4.

• Check that the pressure control valve of the heating system is working by turning the handle on the valve.

• Check the pressure in the heating system and fill water if needed.

• Close the filling valve and the cold water dispensing valve.

Note

As long as there is insufficient water pressure in the heating system, the display indicator changes between the error message F.22 and the actual pressure indicator when the appliance is on.

Fill the heating system as follows:

• Open all heating element thermostat valves.

• Check if both stop cocks on the heater are open.

• Only in ecoTEC plus (800 series): Connect the filling pipe as described in Section 5.4.2.

• Only in ecoTEC plus (800 series) and in ecoTEC pro: As described in Section 5.4.3 join a hose between the cold water dispensing valve and the filling pipe of the heating system.

• Open the cold water dispensing valve.

33Instructions for installation and servicing ecoTEC

5 Commissioning Part I

5.6 Filling the condensation water siphon

Fig. 5.4 Filling the condensation water siphon

Danger!

Note that if the boiler is run with an empty condensate trap there is a danger that fumes might escape into the room and cause poisoning. For this reason, it is important to ensure that the trap is topped up each time the unit is cleaned.

5.7 Adjusting the pumping capacity

Only in ecoTEC plus:

The capacity of the two-stage pump can be adjusted to the requirements of the heating system. If needed, change the setting of the operating mode dependent pump speed under the diagnosis point “d.19” (see Section 8.1.2).

5.8 Adjusting the by-pass

The appliances have an adjustable by-pass valve. The pressure can be adjusted between 170 and 350 mbar. Approx. 250 mbar is preset (mid-position). The pressure changes by approx. 10 mbar each time the adjusting screw is rotated. By turning right, the pressure increases and turning left decreases it.

• Remove the lower part (1) of the condensate water siphon by turning the bayonet catch in anticlockwise

Fig. 5.11 Adjusting the by-pass valve (in 800 series)

direction.

• Fill the lower part with water until about 10 mm below the upper edge.

• Refit the lower part of the condensate water siphon.

Fig. 5.12 Adjusting the by-pass valve (in 600 series)

• Regulating the by-pass on the adjusting screw (1).

34 Instructions for installation and servicing ecoTEC

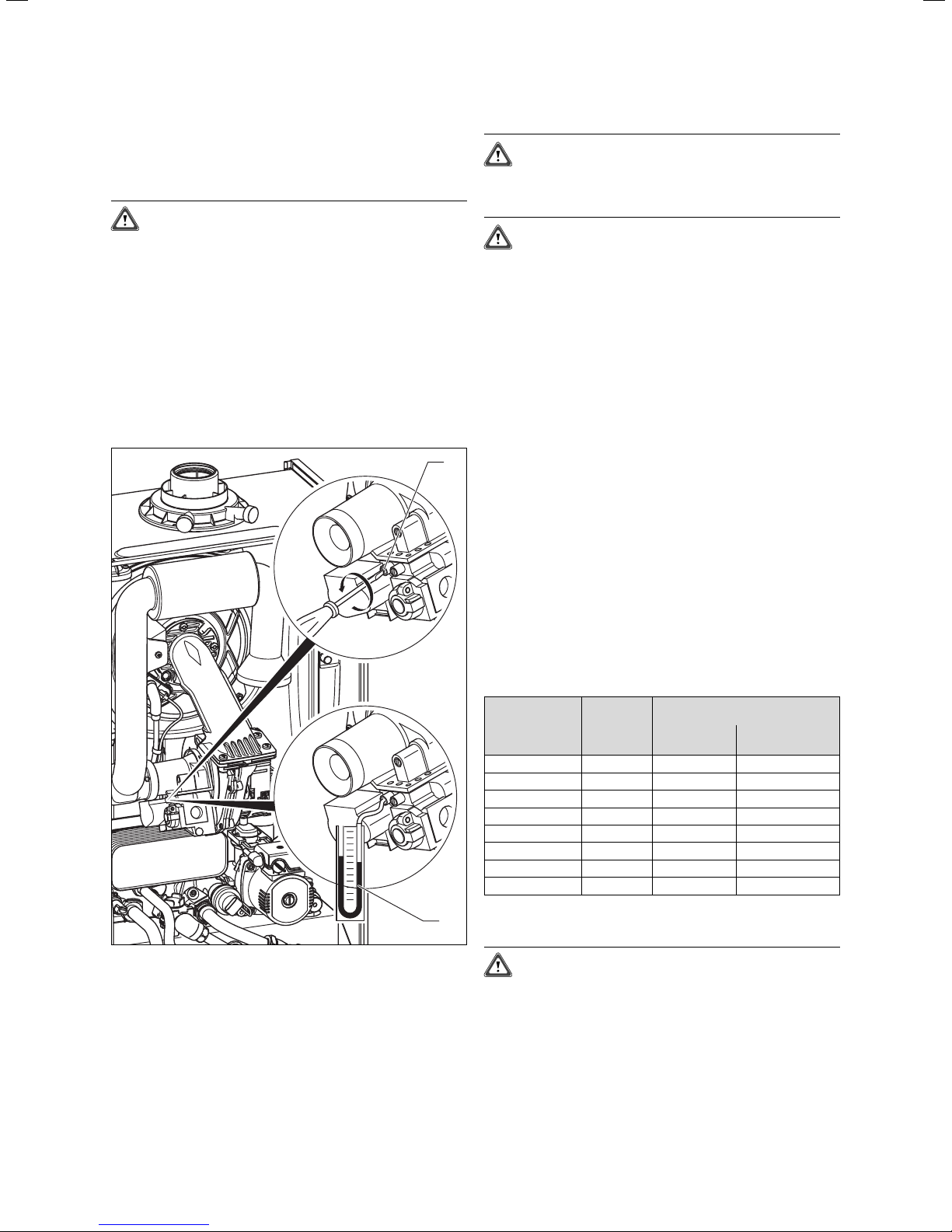

Commissioning Part I 5

5.9 Checking the gas supply

5.9.1 Factory settings

Caution!

Before operating the boiler check the data badge and ensure that the correct gas type appliance has been installed.

The boiler is supplied ready adjusted and no further gas adjustments are necessary, however both the gas inlet working pressures and maximum gas rates should be checked as detailed in 5.9.2 and 5.9.3.

5.9.2 Gas inlet working pressure

Check the inlet pressure as described below:

• Remove the front case from the boiler.

• Close the gas shutoff valve fitted to the boiler.

Natural gas:

DO NOT proceed with adjustment or attempt to put the unit into service if the inlet working pressure lies outside the 17–25 mbar range.

LPG:

DO NOT proceed with adjustment or attempt to put the unit into service if the inlet working pressure is lower than 37 mbar.

• Turn off the appliance, remove U gauge.

• Tighten the test point screw and check for leaks.

• Record appliance working gas inlet pressure (mbar) in the Benchmark Installation, Commissioning and Service Log Book.

5.9.3 Checking the gas rate

The boiler is fitted with a fully modulating automatic gas valve which ensures that the precise air/gas ratio is provided under all operating conditions. The gas rate has been set during production and does not require adjustment. The gas rate of the boiler should be checked with the front case fitted as follows:

• Activate full gas rate mode by simultaneously pressing the “+” and “–” buttons on the display system (for ecoTEC plus 800 and pro boilers fully open the hot water tap to maximum water flow rate).

• Wait at least 5 minutes, or until the boiler has reached its operating temperature.

• With all other gas appliances turned off measure the gas rate at the gas meter. Check that the gas rate is as stated in Table 5.1.

Fig. 5.13 Checking the gas supply pressure

• Loosen the sealing screw marked “in” (1) on the gas

valve assembly.

• Connect a digital or a U gauge (2).

• Open the gas shutoff valve fitted to the boiler.

• Put the boiler into operation (refer to the Instructions for Use supplied with the boiler).

• Check the U gauge reading and ensure the inlet gas pressure is between the pressures detailed below.

Appliance

ecoTEC plus 612 12.2 1.3 0.95 ecoTEC plus 615 15.3 1.6 1.19 ecoTEC plus 618 18.4 1.9 1.43 ecoTEC plus 624 24.5 2.6 1.90 ecoTEC plus 630 30.6 3.2 2.38 ecoTEC plus 824 23.5 2.5 1.82 ecoTEC plus 831 31.6 3.3 2.46 ecoTEC pro 28 28.6 3.0 2.22

Table 5.1 Nominal gas rates

Maximum

net heat

input in kW

Nominal gas rate (Tolerance ±5 %)

Natural gas

in m3/h

Propane

in kg/h

Caution!

If the measured gas flow volume lies outside the tolerance limits specified in Table 5.1, do not operate the appliance and inform the Vaillant Customer Service.

35Instructions for installation and servicing ecoTEC

5 Commissioning Part I

5.10 Refitting the case

Fig. 5.14 Refitting the case

• Hook the top of the front casing over the lip on the top of the boiler chassis and push the bottom of the front casing into place.

• Ensure the spring retaining clips (2) engage correctly.

• Tighten case securing screw (1).

5.11 Adjusting the central heating output (range

rating)

The boilers are fully modulating for central heating, and it is therefore not necessary to range rate the boiler. However, if desired, it is possible to range rate the boiler, as follows:

• Press the “i” and “+” buttons simultaneously.

• Keep the “+” button pressed until “d.0” is displayed.

Note

The display runs from “d.0” to “d.99” before restarting at “d.0”.

• Press the “i” button. The “=” symbol is displayed. The part load setting is now displayed in kW.

• Use the “+” and “–” buttons to increase or decrease the value in steps of 1 kW. The displayed value will flash while the adjustment procedure is being carried out. The available ranges of settings are given in Table

5.2.

• Push the “i” button for about five seconds, or until the display stops flashing. The value is now saved to memory. The display will now return to its normal state (current heating system flow temperature, e.g. 45 °C).

• Press the “i” and “+” buttons simultaneously to cancel

adjustment mode. Adjustment mode is also cancelled if no button is operated for a period of 4 minutes.

Appliance Heating output in kW

ecoTEC plus 612 5 – 12 ecoTEC plus 615 5 – 15 ecoTEC plus 618 7 – 18 ecoTEC plus 624 9 – 24 ecoTEC plus 630 10 – 30 ecoTEC plus 824 7 – 18 ecoTEC plus 831 9 – 24 ecoTEC pro 28 9 – 24

Table 5.2 Heating system part load adjustment ranges

5.12 Gas changeover

Note

To reset the appliance from natural gas to LPG mode, you need the Vaillant conversion kit Art. No. 308 681. To reset the appliance from LPG to natural gas mode, you need the Vaillant conversion kit Art. No. 308 682. Convert the appliance as described in the conversion kit.

6 Functional checks (commissioning

part II)

6.1 Functional checks

6.1.1 Procedure

After installing and checking the gas supply pressure, perform a function check before commissioning the appliance and handing over to the user.

• Commission the appliance according to the relevant operating manual.

• Check the gas supply pipe, exhaust system, heating system and the hot water lines (only in 800 series appliances) for leaks.

• Check that the flue system has been installed properly according to the flue system assembly manual.

• Check for ignition and an even flame on the burner.

• Perform a function check on the heating system (see Section 6.1.2) and the water heating (only in 800 and pro series appliances, see Section 6.1.3).

• Hand over the appliance to the user (see Section 6.2).

36 Instructions for installation and servicing ecoTEC

Fig. 6.1 Function check

6.1.2 Heating

• Switch on the appliance.

• Make sure that there is a heating demand.

• Press “i” to activate the status indicator. As soon as a heat demand is received, the appliance runs through the status indicators “S. 1” to “S. 3”, until the appliance is running correctly in normal mode and the display shows “S. 4”.

plus pro

Fig. 6.2 Display indicator during heating mode

6.1.3 Water heating (only 800 series)

• Switch on the appliance.

• Fully open the hot water tap.

• Press “i” to activate the status indicator. If the water heating is working correctly, the display shows the following: “S.14”.

Commissioning Part I 5

Commissioning Part II 6

plus pro

Fig. 6.3 Display indicator during water heating

6.1.4 Final flush of the heating system (“hot”)

• Operate the appliance until the appliance and the heating system are up to temperature.

• Check the heating system for leaks.

• Connect a hose to the drain valve located at the lowest position of the heating system.

• Shut off the appliance, open the drain valve and all vent valves on the heating elements and allow the water to flow out of the heating system and the heater quickly and fully.

• Close the drain valve.

• Fill the heating system again with water as described in Section 5.4.4.

• Release water from the system until the system design pressure of 1.0 bar is attained. (The actual reading on the digital pressure gauge should ideally be 0.5 bar plus an additional pressure corresponding to the highest point of the system above the base of the boiler – 10 m head equals an additional 1 bar reading on the pressure gauge. The minimum pressure should not be less than 1 bar in any installation.) If the system is to be treated with an inhibitor it should be applied at this stage in accordance with the manufacturer’s instructions. Further information can be obtained from Sentinel, Betz Dearborn Ltd., Tel: 0151 420 9595, or Fernox, Alpha–Fry technologies. Tel: 0870 8700362.

• Refit the boiler casing (see Section 5.10).

• Only in ecoTEC plus appliances: Attach the bottom cover to the boiler by sliding the front edge of the cover into the lip at the bottom front edge of the appliance chassis.

• Carefully push the rear of the bottom cover upwards until the spring retaining clips engage at the side of the appliance. It may be necessary to adapt the bottom cover by removing the easy break sections.

37Instructions for installation and servicing ecoTEC

6 Commissioning Part II 7 Inspection and maintenance

6.2 Handing over to the user

• Set the maximum radiator temperature control to the desired setting.

• Set the maximum hot water temperature control to the desired setting.

• Instruct the user in the safe and efficient operation of the boiler, in particular the function of – the boiler on/off control – the maximum radiator temperature control – the maximum hot water temperature control (only

800 and pro series)

– the pressure gauge

• Show the user how to operate any external controls.

• Explain to the user the importance of having the boiler regularly serviced by a competent servicing company. To ensure regular servicing, it is strongly recommended that arrangements are made for a Maintenance Agreement. Please contact Vaillant Service Solutions (0870 6060 777) for further details.

• Record central heating operating pressure in the Benchmark Log Book along with the heat input (kW) and temperature difference between flow and return. Failure to install and commission this appliance in compliance with the manufacturers instructions may invalidate the warranty (Note: This does not affect your statutory rights).

• Leave the user instructions, installation instructions and log book with the user.

7 Inspection and maintenance

7.1 Initial inspection

To ensure the continued safe and efficient operation of the boiler it is recommended that it is checked and serviced as necessary at regular intervals. The frequency of servicing will depend upon the particular installation conditions and usage, but in general once per year should be adequate.

• Isolate the mains electricity supply by disconnecting the plug at the socket outlet (if there is only an isolating switch remove the fuse from the switch).

• Turn OFF the gas supply at the gas service valve fitted to the boiler.

• When removing any water carrying components ensure that water is kept away from all electrical components.

• Always use new seals and O–rings when parts are replaced.

• Always test for gas soundness and always carry out functional checks after any service work and after replacing any gas carrying component.

• Always check earth continuity, polarity and resistance to earth with a multimeter after any service work and after replacing any electrical component.

Danger!

Electrocution by touching live parts can be fatal! The supply terminals in the appliance switch box are live even if the main ON/OFF switch is turned off. Protect the switch box from spray water. Before working on the appliance, turn off the power supply and secure against restart!

Always perform the following steps after completing any inspection tasks:

• Open the maintenance taps in the heating supply and return and in the cold water inlet (only 800 series).

• If necessary, refill the device with hot water up to a pressure of approx 1.5 bar and evacuate the heating system.

• Open the maintenance tap in the gas supply pipe.

• Turn on the power supply and the main switch.

• Check the appliance for gas and water leaks.

• Fill and evacuate the heating system again, if necessary.

Danger!

It is law that all servicing work is carried out by a competent person (CORGI registered). Inspections/Maintenance work not carried out by a competent person can result in damage to property and personal injury.

Only genuine Vaillant spare parts may be used for inspections, maintenance and repair work to ensure the long-term working order of all functions of your Vaillant appliance. Any spare parts which might be required are contained in the current spare parts catalogues. Information can be obtained from Vaillant Customer Service Centres.

7.1.2 Safety instructions

Important: Before starting any maintenance work:

38 Instructions for installation and servicing ecoTEC

Note

If it is necessary to keep the main switch on for certain inspection and maintenance, this is indicated in the description of the maintenance task.

Note

The boiler is fitted with a combustion analysis test point. A suitable combustion analyser can be connected to this point to establish the combustion performance of the boiler. It is not necessary to check the CO air ratio of the boiler during the annual service. Checking/adjustment of this value is only required in the following instances; replacement of gas valve, conversion to or from Natural Gas/ LPG or if incorrect combustion is suspected (see Section 9.7).

content or adjust the

7.1.3 Maintenance

Before commencing any servicing or maintenance work, carry out an initial inspection of the system as follows:

• Inspect the flue, pipework and electrical connections for indications of damage or deterioration.

• Inspect the air supply and ventilation arrangements of the installation.

• Check the heating and water system, in particular the condition of radiator valves, evidence of leakage from the heating system and dripping hot water taps.

7.1.4 Overview of the maintenance tasks

Inspection and maintenance 7

No. Activity

Disconnect the device from the mains supply, close the gas supply and maintenance taps, depressurise the

device (observe the manometer) 2 Remove the compact thermal module X 3 Clean primary heat exchanger X 4 Check whether the burner is dirty X 5 Refit compact thermal module, replace burner seal. (Spare part number 981 046) X

Check whether the electrical plug connections and other connections are fitted tightly and make adjust6

ments, if necessary. 7 Check/re-pressurise expansion vessel as necessary. X

Open the maintenance taps, fill up the appliance/system up to approx. 1.0 - 2.0 bar (depending on the static 8

height of the system) 9 Check appliance generally, check for dust on the applianceand remove in the low-pressure chamber X X

10 Check and clean condensate trap and connection pipes X X

11 Clean the condensation waterways in the device X

12 Open the gas supply and switch on the device X X

Perform a test operation of the appliance and heating system, including water heating and evacuate, if

necessary

14 Check ignition and burner flame picture XX 15 Check boiler for any leaks XX 16 Check the air/gas flue system XX 17 Check appliance gas setting, reset and record if necessary. X 18 Complete benchmark logbook XX

Table 7.1 Maintenance steps

carry out for:

inspection service

7.1.5 Functional check of boiler operation

• Carry out a functional check of the boiler operation as previously detailed.

• Remove the appliance casing as detailed and operate the boiler.

• Inspect the burner operation through the viewing window.

• Check that the flames are evenly covering the surface of the burner.

• Inspect for signs of excessive flame lift or sooting.

39Instructions for installation and servicing ecoTEC

7 Inspection and maintenance

7.2 Servicing the compact thermal module

7.2.1 Removing the compact thermal module

The compact thermal module consists of the burner, fan, gas valve und the gas supply (mixer tube). These four components make up the complete assembly, the compact thermal module.

Danger!

Danger of explosion through gas leak! The mixer tube between the gas valve and burner must not be split. It can only be guaranteed that this component is sealed after it has been checked at the factory.

Danger!

There is danger of being injured or burnt by the compact thermal module and at all components carrying water. Only carry out work on these components once they have cooled down.

Proceed as follows to remove it:

• Turn off the boiler

• Isolate the electrical supply to the boiler.

• Remove boiler bottom cover by releasing the two spring retaining lugs and lowering the rear of the bottom cover.

• Gently pull the bottom cover backwards to remove from the appliance.

• Turn off the gas service valve.

• Turn off the boiler CH service valves.

• Loosen screw, release the front case spring retaining clips located beneath the front edge of the appliance.

• Remove the front casing by easing forward the bottom edge and gently lifting.

• Lower electronic control box.

• Remove screw (1) and remove the air intake pipe (2).

Fig. 7.2 Disconnecting the gas supply

• Disconnect the gas supply (3) on the gas valve. Ensure the corrugated gas pipe does not twist by holding the flattened section of the pipe, with an open ended spanner, whilst loosening the union nut.

Caution!

Damage to corrugated gas pipe! Under no circumstances must the compact thermal module be suspended from the flexible corrugated gas pipe.

Fig. 7.1 Dismantle air intake pipe

40 Instructions for installation and servicing ecoTEC

Fig. 7.3 Dismantling compact thermal module

• Disconnect HT lead (5) and earth lead (6) from spark electrode.

• Remove four nuts (4) from burner manifold.

• Disconnect two electrical connections (7 and 8) from fan and gas valve.

• Pull forward and remove burner, gas valve and fan assembly (9) from integral condensation heat exchanger (10).

Inspection and maintenance 7

Note

You can suspend the compact thermo module on the hook (11) while carrying out maintenance tasks.

• After removing the thermal compact module, clean the components as described below.

7.2.2 Cleaning the integral condensation heat

exchanger

Caution!

Protect the electronics box against sprayed water.

7.2.3 Checking the burner

Fig. 7.5 Checking burner

The burner (1) is maintenance-free and needs no cleaning.

• Check the burner surface for damage, replace the burner if necessary.

• After checking/replacing the burner, re-assemble the compact thermo module in the boiler as described in Section 7.2.4.

7.2.4 Refitting the compact thermal module

Fig. 7.4 Cleaning the integral condensation heat exchanger

• Dismantle the compact thermo module as described under 7.2.1.

Caution!

Risk of damaging the primary heat exchanger! Do not attempt to loosen nor retighten the four screws (1).

With the burner and fan assembly removed it is now possible to inspect the main heat exchanger (4).

• Remove any loose deposits from the heating spirals (3) using a soft brush and jet of water (ensure that water is kept away from all electrical components. Any water used to clean the main heat exchanger will drain through the condensate trap). Avoid pointing the water jet directly at the insulating surface (2) on the back of the heat exchanger.

If required the heat exchanger can be cleaned using regular vinegar.

Fig. 7.6 Replacing the silicone seal

• Insert a new silicone seal (1) in the burner door.

Caution!

The silicone seal (1) on the compact thermal module (Art. No.: 981 046) must be replaced each time the module is removed (for example during maintenance). If the burner flange insulation on the compact thermal module (Art. No.: 210 734) shows any signs of damage other small cracks it must also be replaced.

41Instructions for installation and servicing ecoTEC

7 Inspection and maintenance

7.3 Cleaning the condensation water siphon

Fig. 7.7 Refitting the compact thermal module

• Insert the compact thermo module (9) in the integral condensation heat exchanger (10).

• Tighten the four nuts (4) on the left/right sides until the burner door fits closely and uniformly to the stop surfaces.

• Reconnect the HT lead (5) and earth lead (6) to the spark electrode.

• Insert the cables (8) on the fan motor and the cable (7) on the gas fitting.

Fig. 7.8 Connecting the gas supply

Fig. 7.9 Cleaning the condensation water siphon

Danger!

• Remove the lower part (1) of the condensate water

siphon by turning the bayonet catch in anticlockwise direction.

• Clean the siphon part section by rinsing it out with water.

• Fill the lower part with water until about 10 mm below the upper edge.

• Fasten the lower part again on the condensate water siphon.

• Reconnect the gas supply (3) to the gas valve, ensur-

ing that a new sealing washer is used and correctly located. Use the spanner flat at the flexible gas line to hold the gas fittings.

• Turn on the gas supply and test for soundness.

• Refit the air inlet pipe, ensuring that the blue seal in the air intake pipe is correctly located.

42 Instructions for installation and servicing ecoTEC

Inspection and maintenance 7

7.4 Checking the expansion vessel

Fig. 7.10 Checking expansion vessel admission pressure

Note

It is not necessary to perform this check every year – a check every three years is sufficient.

7.5 Recommissioning the boiler

• Carry out electrical safety checks.

• Turn on the electrical supply.

• Open the boiler CH service valves.

• Carry out function checks of boiler operation as previously detailed.

• Check gas rate as previously detailed.

• Check for water leaks.

• Refit case, ensuring that a good seal is obtained.

7.6 Test operation

Always perform the following checks after completing any maintenance task:

• Commission the appliance according to the relevant operating manual.

• Check the appliance for gas and water leaks.

• Check the air/flue gas system for leaks, check its fastening

• Check for ignition and an even flame on the burner.

• Check that the heating system and the water heating is working (only 800 series).

• Fill out the benchmark logbook.

• Ensure the boiler CH service valves are closed.

• Release the pressure from the boiler.

• Remove valve cap from expansion vessel charge point.

• Check that the internal charge pressure of the expansion vessel is between 0.75 and 0.9 bar.

If the pressure is lower than this the vessel should be

repressurised using an air pump.

• Refit the valve cap.

• Repressurise boiler and heating system.

Fig. 7.11 Function check

43Instructions for installation and servicing ecoTEC

8 Troubleshooting

8.1 Logical fault finding procedure

These checks must be carried out before attempting to use the fault finding guide.

1. Carry out electrical safety checks (see section ‘Preliminary Electrical Checks’).

2. Check that the external electricity supply to the boiler is on, and a supply of 230 V~ is present between boiler terminals ‘L’ and ‘N’.

3. Check that the gas supply to the boiler is on, that it has been correctly purged and that an inlet pressure of 20 mbar is available at the gas valve. (See section ‘Gas Supply’).

4. Ensure the heating system is full of water and charged to between 1 and 1.5 bar. If not, refill and vent the system. (See section ‘Filling the heating system’). Ensure boiler flow and return service valves are open.

5. Check that the main on/off control is set to the ‘on’ position.

6. Set the central heating temperature to maximum.

7. Set the domestic hot water temperature to maximum (only 800 series).

8. Check that all external controls are on and calling for heat (if no external controls are fitted, boiler terminals 3 and 4 must be linked). Check that the boiler anti– cycling economiser is not engaged.

8.1.1 Status codes

The status codes that you can see on the display provides information about the current operating condition of the appliance.

The display of the status codes can be called as follows:

plus pro

Fig. 8.1 Display of status codes

• Press the “i” key. The display shows the status code, e.g. S.04 for “Burner mode - Heating”.

• Press the “i” key

• Do not press any key for about 4 minutes. The current heating flow temperature appears in the

display again.

Display Meaning All models (heating mode):

S.00 No heat demand S.01 Fan running S.02 Water pump running S.03 Ignition sequence S.04 Burner ignited S.05 Fan and pump running S.06 Fan over run S.07 Pump over run S.08 Anti cycling mode

ecoTEC 800 and pro series only (Domestic hot water mode):

S.10 Hot water demand S.11 Fan running S.13 Ignition sequence S.14 Burner ignited S.15 Fan and pump running S.16 Fan over run S.17 Pump over run

ecoTEC 800 and pro series only (warm start):

S.20 Warmstart demand S.21 Fan running S.22 Pump running S.23 Ignition sequence S.24 Burner ignited S.25 Fan and water pump running S.26 Fan over run S.27 Pump over run S.28 Anti cycling mode

All boilers:

S.30 No heating demand from external controls S.31 Central heating thermostat knob turned off S.32 Heat exchanger antifreeze active, as fan speed varia-

tion is too high. Appliance is within the waiting time of the operation block function

S.34 Antifrost mode active S.36 No heating demand from low voltage controls S.53 Appliance is within the waiting period of the operation

block function due to water shortage (VL-RL spread too big)

S.54 Appliance is within the waiting period of the operation

block function due to water shortage (temperature gradient)

S.76 Appliance is within the waiting period of the operation

block function due to water shortage (water pressure sensor)

Table 8.1 Status codes

The display of the status codes can be cancelled as follows:

44 Instructions for installation and servicing ecoTEC

8.1.2 Diagnosis codes

In the diagnosis mode, you can change certain parameters or display more information. The diagnosis information is divided into two diagnosis levels. The second diagnosis level can be reached only after entering a password.

Caution!

Access to the second diagnosis level must be used exclusively by a qualified technician.

First Diagnosis level

• Press the “i” and “+” keys simultaneously.

The display shows “d.00”.

• Use the “+” or “–” keys to scroll through the desired diagnosis numbers of the first diagnosis level (see Table 8.2).

• Press the “i” key.

The display shows the relevant diagnosis information.

• If necessary, use the “+” or “–” keys to change the value (display flashes).

• Save the new value by holding down the “i” key for approx. 5 seconds until the display no longer flashes.

You can end the diagnosis mode as follows:

• Press the “i” and “+” keys simultaneously. or

• Do not press any key for approx. 4 minutes.

Troubleshooting 8

The current heating flow temperature appears in the display again.

Second diagnosis level

• As described above in the first diagnosis level, scroll through the diagnosis number d.97.

• Change the displayed value to 17 (password) and press the “i” button.

You are now in the second diagnosis level where all information from the first diagnosis level (see Table 8.2) and the second diagnosis level (see Table 8.3) is displayed. Scrolling and changing values and exiting the diagnosis mode is done as described in the first diagnosis level.

Note

After exiting the second diagnosis level, if you press “i” and “+” within 4 minutes, you will directly reach the second diagnosis level without having to enter the password again.

45Instructions for installation and servicing ecoTEC

8 Troubleshooting

Display Meaning Display value/adjustable value

d.00 Heating part load Adjustable heating part load in kW (factory setting: max. output)

d.01 Water pump over run time for heating mode 1 - 60 min (factory setting: 5 min)

d.02 Max. burner anti cycling period at 20 °C Flow tempera-

ture

d.03 Hot water flow temperature reading (800 series and

pro only)

d.05 Flow temperature target value in °C, min. 30 °C and max. the value set in d.71 d.06 Hot water temperature target value in °C, 35 to 65 °C d.07 Warm start temperature target value (800 series and

pro only) Storage temperature target value (600 series only)

d.08 External controls heat demand 0 = no heat request

d.09 Flow target temperature from external analogue regula-

tor to terminal 7-8-9/eBus

d.10 Status internal heating pump 1, 2 = on, 0 = off

d.11 Status external heating pump 1 to 100 = on, 0 = off d.22 Hot water demand 1 = on, 0 = off d.23 Summer/Winter function 1 = Winter, 0 = Summer d.25 Hot water activation via plug in timer 1 = yes, 0 = no d.36 Hot water flow sensor in l/min d.40 Flow temperature Actual value in °C

d.41 Return temperature Actual value in °C d.47 Outside temperature (with connected VRC 410s) Actual value in °C (uncorrected value) d.67 Remaining burner anti cycling time in min d.76 Appliance variant (device specific number) 00 to 99 d.90 Digital regulator status 1 = identified, 0 = unidentified (eBUS Address <=10)

d.91 DCF status with connected external probe with DCF77

receiver

d.97 Activation of the second diagnosis level Password: 17

Table 8.2 Diagnosis codes of the first diagnosis level

2 - 60 min (factory setting: 20 min)

in °C

in °C, 40 to 65 °C

in °C, 15 °C for left stop, then 40 to 65 °C

1 = heat request in °C, minimum from ext. eBus target value and target value terminal 7

0 = no reception, 1 = reception, 2 = synchronised, 3 = valid

Display Meaning Display value/adjustable value

d.17 Heating flow/return regulation changeover 0 = flow, 1 = return (factory setting: 0)

d.18 Pump mode 0 = return, 1 = nonstop, 2 = intermittent, 3 = winter

d.19 Only in ecoTEC plus:

Operating modes of the two-stage heating pump

d.26 Changeover option relay to BMU 1 = circulation pump

d.30 Control signal for both gas valves 1 = on, 0 = off d.33 Fan speed target value in rpm/10 d.34 Fan speed actual value in rpm/10 d.35 Position of diverter valve (only 800 series) 0 = Heating; 1 = Hot water; 2 = Centre position d.44 Ionisation current d.50 Offset for minimum speed in rpm/10, adjustment range: 0 to 254 (Factory setting: 20)

d.51 Offset for maximum speed in rpm/10, adjustment range: -99 to -0 (Factory setting: -30) d.60 Number of temperature limiting cut-offs Quantity

Table 8.3 Diagnosis codes of the second diagnosis level

0 = Flow 300 msec Stage 2, then stage 1, drinking water/storage

charging Stage 2, heating stage 2, return stage 1

1 = Flow 300 msec Stage 2, then stage 1, drinking water/storage

charging Stage 2, heating stage 1, return stage 1

2 = Flow 300 msec Stage 2, then stage 1, drinking water/storage

charging Stage 2, heating in dependence on d.00, return stage 1 (factory setting)

3 = Flow Stage 2, drinking water/storage charging Stage 2, heating

stage 2, return stage 2

2 = ext. pump 3 = Storage charging pump 4 = solar pump

Actual value/100 in µA

46 Instructions for installation and servicing ecoTEC

Display Meaning Display value/adjustable value

d.61 Number of lock outs Number of unsuccessful ignitions in the last attempt d.64 Average ignition time in seconds d.65 Maximum ignition time in seconds d.68 Successful ignitions in the first attempt Quantity d.69 Successful ignitions in the second attempt Quantity d.70 Set priority-changeover valve position 0 = Normal mode (factory setting)

d.71 Target value max. heating flow temperature

d.72 Pump return flow time after charging an electroni-

cally controlled hot water storage (also warm start and charging through C1-C2)

d.73 Offset for warm start target value (only 800 series) Adjustment range: -15 K to +5 K (Factory setting: 0 K) d.75 Maximum charging time for a storage without own

controller

d.77 Storage partial load (storage charging capacity limit) Adjustment range in kW: appliance-specific

d.78 Storage charging temperature limit (target flow tem-

perature in storage mode)

d.80 Heating operating hours in h

d.81 Water heating operating hours (800 series only) in h d.82 Hystereses in heating mode Quantity d.83 Hystereses in hot water operation Quantity d.84 Maintenance indicator: Number of hours until the next

maintenance

d.93 DSN appliance variant setting Adjustment range: 0 to 99 d.95 eBus address Adjustment range (automatic scan) d.96 Factory setting 1 = Resetting adjustable parameters to factory setting

Table 8.3 Diagnosis codes of the second diagnosis level (cont.)

1 = Centre position 2 = permanent heating position

Adjustment range in °C: 40 to 85 (Factory setting: 75) Adjustment range in sec: 0, 10, 20 to 600

Factory setting for 800 series: 80 Factory setting for 600 series: 300

Adjustment range in min: 20, 21, 22 to 90 (Factory setting: 45)

Factory setting: max. output Adjustment range in °C 55 to 90 (Factory setting: 80)

Adjustment range: 0 to 3000 h and “-” Factory setting: “-” (300 corresponds to 3000 h)

Troubleshooting 8

8.1.3 Fault codes

Fault codes take priority over all other display functions in the event of a system fault occurring. If multiple faults occur, the corresponding fault codes are displayed alternately for about two seconds each.

8.1.4 Fault memory

The fault memory stores details of the ten most recent faults.

• Press the ”i” and ”–” buttons simultaneously.

• Use the ”+” button to scroll back through the list of

memorised errors. To cancel fault error memory display mode, proceed as follows:

• Press the ”i” button below the display or

• Do not touch any key for about four minutes. The dis-

play will now revert back to showing the current flow

temperature.

47Instructions for installation and servicing ecoTEC

8 Troubleshooting

Code Meaning Cause

F.00 Flow–NTC:

NTC broken, NTC cable broken, Defective connection at NTC, Defective connection at electronics

F.01 Return–NTC:

NTC broken, NTC cable broken, Defective connection at NTC, Defective connection at electronics

F.02 Drinking water outlet probe stopped (<-10 °C)

(800 series only)

F.10 Short circuit – flow–NTC (< 130 °C) NTC– plug shorted to casing, NTC defective F.11 Short circuit – return–NTC (< 130 °C)

NTC defective

F.13 Short circuit in tank sensor NTC defective, earth leak/short circuit in cable loom,

F.20 Over heat cut off activated Flow probe not correctly thermal-connected or defective, appliance

F.22 Dry fire Too little water in the appliance, water shortage switch defective,

F.23 Water shortage, temperature spread between flow and

return probe too large

F.24 Water shortage, temperature rise too quick Pump blocked, insufficient pump output, air in appliance, plant pres-

F.27 Secondary light, the ionisation signal reports a flame in

spite of gas valve being turned off

F.28 Appliance does not start: Attempts to ignite during start

failed

F.29 Flame goes off during operation and subsequent ignition

attempts failed

F.32 Fan speed variation (too high on start) Fans blocked, plug not inserted correctly on fan, hall sensor defec-

F.60 Gas–valve control + defective Short circuit/earth (ground) leak in cable loom to gas valves, gas

F.61 Gas–valve control – defective Short circuit/earth (ground) leak in cable loom to gas valves, gas

F.62 Gas valve shutoff delay defective Gas fitting leaking, electronics defective F.63 EEPROM error Electronics defective

F.64 Electronics/sensor fault Short-circuit in flow or return sensor or electronics defective F.65 Electronics temperature too high Electronics too hot due to external effect, electronics defective F.70 No valid DSN in AI and/or BMU Spare part failure AI and motherboard interchanged at same time F.71 Flow sensor reports constant value Flow sensor is defective F.72 Flow and/or return sensor fault Flow and/or return sensor is defective F.73 Water pressure sensor or cable harness hydraulics

defective

F.74 Water pressure sensor or cable harness defective Line to water pressure sensor has a short-circuit at 5 V / 24 V or

F.75 No sudden change in pressure was detected on turning

on the pump

F.76 Overheating protection on primary heat exchanger trig-

gered, damage in primary heat exchanger

Table 8.4 Error codes

Flow–NTC cable defective/broken, NTC faulty

Return–NTC cable defective/broken, NTC faulty

NTC-connector not plugged in or loose, NTC defective multiconductor on the electronics not plugged in correctly, cable defective

NTC– plug shorted to casing

damp plug connection

does not shut down

cable to pump or water shortage switch defective, pump blocked or defective, pump output too low Pump blocked or defective, pump output too low

sure too low, flow and return NTC interchanged Secondary light, gas solenoid valves defective, flame detector defective Faults in the gas supply such as:

- Gas meter or gas pressure detector defective

- Air in gas

- Gas flow pressure too low

- Fire protection tap has disengaged Faults in the gas fitting (main gas magnet or operator defective), wrong gas setting, igniter (ignition transformer, ignition cable, ignition plug) defective, ionisation current stopped (cable, electrode), faulty earthing in appliance, electronics defective Gas supply temporarily stopped, ignition transformer has spark failure, faulty earthing of appliance

tive, fault in cable harness, electronics defective

valve assembly defective (earth/ground leak from coils), electronic control system defective

Line to water pressure sensor is broken or has a short-circuit at 0 V or water pressure sensor defective

internal fault in water pressure sensor Water pressure sensor or/and pump defective Too little water in appliance; check adjustable by-pass Cable or cable connection of fuse in the primary heat exchanger defective, replace primary heat exchanger

48 Instructions for installation and servicing ecoTEC

Troubleshooting 8

Parts replacement 9

8.4 Test programs

Special functions can be triggered on the appliances by activating various test programs. These programs are given in detail in the Table 8.4.

• The test programs P.1 to P.6 will be started when

“Power ON” is turned on and the “+” key is pressed

for 5 s. The display shows “P.1”.

• Press the “+” key to start counting the test number

upwards.

• Press the “i” to operate the appliance now and to start

the test program.

• Press “i” and “+” simultaneously to exit the test pro-

grams. You can also exit the test programs by not

pressing any key for 15 minutes.

Display Meaning

P.1 Test program where the appliance is operated in full

load after successful ignition

P.2 Test program where the appliance is operated with

minimum gas volume (ignition gas volume) after successful ignition

P.3 not available P.4 not available P.5 Test program for the safety temperature limit check;

appliance heats up by by-passing a regulating shutdown through the flow regulator until the shutoff temperature of 97 °C is achieved.

P.6 not available

Table 8.5 Test programs

Important:

Before starting any maintenance work: Isolate the mains electricity supply by disconnecting the plug at the socket outlet (if there is only an isolating switch remove the fuse from the switch).

• Close the maintenance taps in the gas supply as well as the in the heating flow and return pipe.

• Close the maintenance tap in the cold water supply line (only 800 series)!

• Empty the appliance if you want to replace water-bearing components of the appliance!

• Make sure that no water drops on live components (e.g. switch box etc.)!

• Use only new seals and O-rings!

• After completing the work, check for gas leaks and perform a function check (see Section 7.6)!

• Always check earth continuity, polarity and resistance to earth with a multimeter after any service work and after exchanging any electrical component.

9.2 Replacing burner

Danger!

Before replacing the component, comply with the safety instructions in Section 9.1.

• Dismantle the compact thermo module as described in Section 7.2.1.

8.5 Resetting parameter to factory settings

Besides the option to reset individual parameters manually to the factory settings specified in Tables 8.2 and

8.3, you can also reset all parameters simultaneously.

• In the second diagnosis level, under the diagnosis

point “d.96” change the value to 1 (see Section 8.1.2).

The parameters of all adjustable diagnosis points now correspond to the factory settings.

9 Parts replacement

The tasks listed below in this section may be carried out only by a qualified engineer.

· Only use genuine spare parts for repairs.

· Make sure the parts are correctly fitted and that their original position and alignment are retained.

9.1 Safety instructions

Danger!

Each time the components are replaced, comply with the safety instructions below for your own safety and to avoid damage to the appliance!

• Put the appliance out of operation.

Fig. 9.1 Replacing burner

• Loosen the 4 screws (1) on burner, and remove the

burner.

49Instructions for installation and servicing ecoTEC

9 Parts replacement

• Mount the new burner with a new seal. Ensuring that the notch in the burner aligns with the burner viewing window.

• Install the compact thermo module as described in Section 7.2.4.

• After completing the work, check for gas leaks and perform a function check (see Section 7.6)!

9.3 Replacing fan or gas valve

Danger!

Before replacing the component, comply with the safety instructions in Section 9.1.

• Turn off the boiler.

• Isolate the electrical supply to the boiler

• Remove the air intake pipe (Fig. 7.1, Pos. 2).

• Loosen the gas supply pipe on the gas fitting (Fig. 7.2, Pos. 3).

Fig. 9.3 Gas fitting/fan screwed joint

• Remove both fixing screws (5) on the gas valve and

remove the fan from the gas valve.

• Replace the defective component.

Caution!

Mount the gas valve and the fan in the same position as before.

• Screw on the fan with the gas valve. Please use new seals.

• Install the complete “gas valve/fan” unit in reverse sequence.

• After completing the work, check for gas leaks and perform a function check (see Section 7.6)!

Fig. 9.2 Dismantling fan with gas fitting

• Pull out the plug (4) from the gas valve.

• Pull out the plug (3) from the fan.

• Remove the three screws (2) on the compact thermo module (1).

• Remove the complete “gas valve/fan” unit.

9.4 Replacing expansion vessel

Danger!

Before replacing the component, comply with the safety instructions in Section 9.1.

• Disconnect the appliance from the mains as described in Section 9.1, and close the service cock in the gas supply pipe.

• Close the flow and return service cocks and drain the water from the boiler.

50 Instructions for installation and servicing ecoTEC

Parts replacement 9

9.5 Replacing primary heat exchanger

Danger!

Before replacing the component, comply with the safety instructions in Section 9.1.

• Disconnect the appliance from the mains as described in Section 9.1, and close the service cock in the gas supply pipe.

• Close the flow and return service cocks and drain the

appliance.

• Remove the compact thermo module as described

under 7.2.1.

• Remove the expansion vessel as described under 9.4.

• Pull out the condensate pipe to the siphon from the primary heat exchanger.

Fig. 9.4 Replacing expansion vessel

• Undo the nut (4) on the water pipe on the lower side

of the expansion vessel.

• Remove both screws (1) retaining plate (2) and remove

the retaining plate.

• Pull out the expansion vessel (3) forwards.

• Guide the new expansion vessel back into the appliance.

• Re-connect the new expansion vessel using a new seal.

• Refix the retaining plate.

• Check the pressure of the expansion vessel (minimum pressure 0.75 bar). If necessary, adjust the pressure to the static height of the heating system.

• Fill and vent the boiler.

• After completing the work, check for water leaks and perform a function check (see Section 7.6)!

Fig. 9.5 Replacing primary heat exchanger

• Pull out the clamps (1) and (2) and free the return pipe

as well as the flow pipe on the primary heat exchanger.

• Remove the four screws (3) on the primary heat

exchanger holder.

51Instructions for installation and servicing ecoTEC

9 Parts replacement

9.6 Replacing electronics and display

Danger!

Before replacing the component, comply with the safety instructions in Section 9.1.

• Comply with the assembly and installation manuals provided with the spare parts.

Replacing display or electronics

If you are replacing only one of the two components, the parameter adjustment functions automatically. On turning on the appliance, the new component takes over the

previously set parameters from the components that are not replaced.

Fig. 9.6 Primary heat exchanger holder

• Disconnect the plug-in connection (2) of the thermal

fuse in the primary heat exchanger.

• Remove the three screws (3) on the primary heat

exchanger holder.

• Turn the holder to the side around the rivet (1), pull

the primary heat exchanger downwards to the right and remove it from the appliance.

• Mount the new primary heat exchanger in reverse order and replace the seals.

Caution!

Risk of damaging the primary heat exchanger! Neither loosen nor retighten the four screws (Fig. 9.5, Pos. 4).

Caution!

Insert the seal rings for the flow and return pipe on the primary heat exchanger with a suitable lubricant. Make sure the clamps are fitted correctly on the flow and return pipe (see Fig. 9.5).

Replacing display and electronics

When replacing both components, after being turned on, the appliance goes to fault and displays the error message “F70”.

• In the second diagnosis level, under the diagnosis

point “d.93” enter the number of appliance variant according to Table 9.1 (see Section 8.1.2).

The electronics is now set to the appliance type and the parameters of all adjustable diagnosis points correspond to the factory settings.

Appliance Device specific number

ecoTEC plus 612 0 ecoTEC plus 615 1 ecoTEC plus 618 2 ecoTEC plus 624 3 ecoTEC plus 630 4 ecoTEC plus 824 6 ecoTEC plus 831 7 ecoTEC pro 28 0

Table 9.1 Device specific numbers

• Fill and vent the boiler as required.

• After completing the work, check for gas and water leaks and perform a function check (see Section 7.6)!

52 Instructions for installation and servicing ecoTEC

Parts replacement 9

9.7 Check CO2 content and if necessary set (air-

ratio adjustment)

Fig. 9.7 Carrying out measurement of CO2 levels, preparing for

air-ratio adjustment

Note

Only for natural gas: Adjust only in increments of 1/8 turn and wait approx. 1 minute after each adjustment until the value stabilises.

Only for liquid gas: Adjust only in very small increments (approx. 1/16 turn), and wait approx. 1 minute after each adjustment until the value stabilises.

• Fold back the suction pipe extension upwards.

• Check the CO

content again.

• If necessary, repeat setting.

• Press the “+” and “-” keys simultaneously.

The “Full load mode” is turned off. The full load mode

is also turned of if no key is pressed for 15 minutes.

• Fasten the suction pipe extension.

• Attach the front cover again.

Settings Natural gas (H)

after 5 min.

full load mode with appliance front closed CO2 after 5 min. full load mode with appliance front removed Set for Wobbe-Index W

Table 9.2 Factory gas settings

Tolerance

9.2 ± 1,0 10.2 ± 0,5

9.0 ± 1,0 10.0 ± 0,5

15 22.5 kWh/m

Propane Tolerance

Unit

Vol.–%

Note

Checking/adjustment of this value is required in the following instances: replacement of gas valve, conversion to or from Natural Gas/LPG or if incorrect combustion is suspected!

• Remove the front cover.

• Press the “+” and “-” keys simultaneously. The “Full load mode” is activated.

• Wait at least 5 minutes until the appliance reaches its operating temperature.

• Measure the CO

content on the flue gas measuring

nozzles (1).

• If necessary, loosen the screw and fold the suction pipe extension forwards by 90° (don‘t remove!).

• If necessary, set the corresponding flue gas value (value with removed appliance front, see Table 9.2) by turning the screw (2).

-> Turn to the left: higher CO

-> Turn to the right: lower CO

content,

53Instructions for installation and servicing ecoTEC

10 Recycling and disposal

The design of all Vaillant products takes into account the subsequent recycling and/or eventual safe scrapping of each component used. Vaillant’s in–house rules set strict standards in this respect. The selection process used for choosing raw materials includes full consideration of their recycling characteristics, and of the breakdown and separation properties of subassemblies. We also take fully into account the environmental and health hazards involved in recycling and in the disposal of non–reusable waste items.

10.1 Appliance

The Vaillant ecoTEC consists largely (92 %) of metal components designed for eventual recycling by incorporation into the smelting process of a steelworks. This gives these parts virtually unlimited scope for subsequent re–use. All plastic materials are duly identified to facilitate sorting and separation when the time comes to recycle the unit.

10.2 Packaging

Vaillant endeavours to keep the amount of transport packaging used for its equipment to the bare minimum necessary. Subsequent re–use is taken into account when selecting packaging materials. High–quality cardboard has long been a valuable secondary raw material for the card and paper industry. The sections of EPS (Styropor in transit. EPS is 100 % recyclable and CFC–free. The foil–wrapping and securing straps are likewise made of recyclable plastic.

) are required in order to protect equipment

54 Instructions for installation and servicing ecoTEC

839592_00 GB 11 2004

Vaillant ecoTEC plus 612, ecoTEC plus 615, ecoTEC plus 618, ecoTEC plus 624, ecoTEC plus 630 Instructions For Installation And Servicing

Specifications and Main Features

Frequently Asked Questions

User Manual
