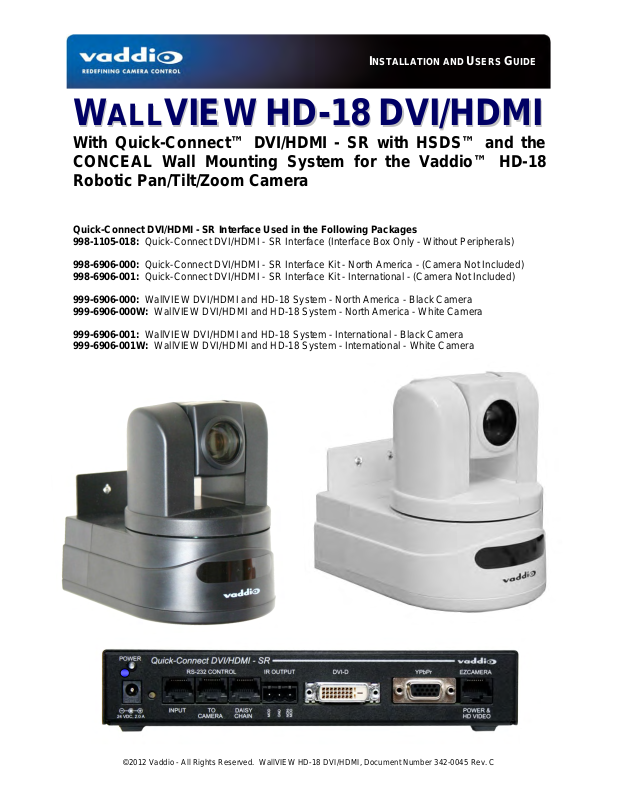

Vaddio HD-18W User Manual

INSTALLATION AND USERS GUIDE

With Quick-Connect™ DVI/HDMI - SR with HSDS™ and the CONCEAL Wall Mounting System for the Vaddio™ HD-18 Robotic Pan/Tilt/Zoom Camera

Quick-Connect DVI/HDMI - SR Interface Used in the Following Packages 998-1105-018: Quick-Connect DVI/HDMI - SR Interface (Interface Box Only - Without Peripherals)

998-6906-000: Quick-Connect DVI/HDMI - SR Interface Kit - North America - (Camera Not Included) 998-6906-001: Quick-Connect DVI/HDMI - SR Interface Kit - International - (Camera Not Included)

999-6906-000: WallVIEW DVI/HDMI and HD-18 System - North America - Black Camera 999-6906-000W: WallVIEW DVI/HDMI and HD-18 System - North America - White Camera

999-6906-001: WallVIEW DVI/HDMI and HD-18 System - International - Black Camera 999-6906-001W: WallVIEW DVI/HDMI and HD-18 System - International - White Camera

ALLLL

VII

D--

VII//

MII

WallVIEW HD-18 DVI/HDMI

Inside Front Cover - Blank

WallVIEW HD-18 DVI/HDMI

Quick-Connect DVI/HDMI - SR Interface Overview:

The Vaddio Quick-Connect DVI/HDMI SR Interface was designed and built specifically to advance the Vaddio HD-18 camera into a wide variety of digital video and extended control applications.

The Quick-Connect DVI/HDMI is a perfect complement to the Vaddio HD-18

Rear Panel of the Quick-Connect DVI/HDMI - SR Interface (1/2 Rack Width Enclosure)

because it takes advantage of the superb flexibility of the camera’s video system and incorporates Vaddio’s EZCamera™ cabling system using two (2) Cat 5e cables to transport Video, Power and Control, to and from the camera and interface. Simply put, these products were designed and manufactured as a

Front Panel of the Quick-Connect DVI/HDMI - SR Interface (Optional Accessory Rack Mount Panel Available)

pair from the beginning. The active electronics built-in both the HD-18 and the Quick-Connect DVI/HDMI deliver high definition

video using high speed differential signaling (HSDS) for the video and IR signals. HSDS is at the core of Vaddio’s Category 5 cabling systems and provides high definition video capability (up to 1080p/60) with superior video quality over cabling distances up to 100’ (30.48m).

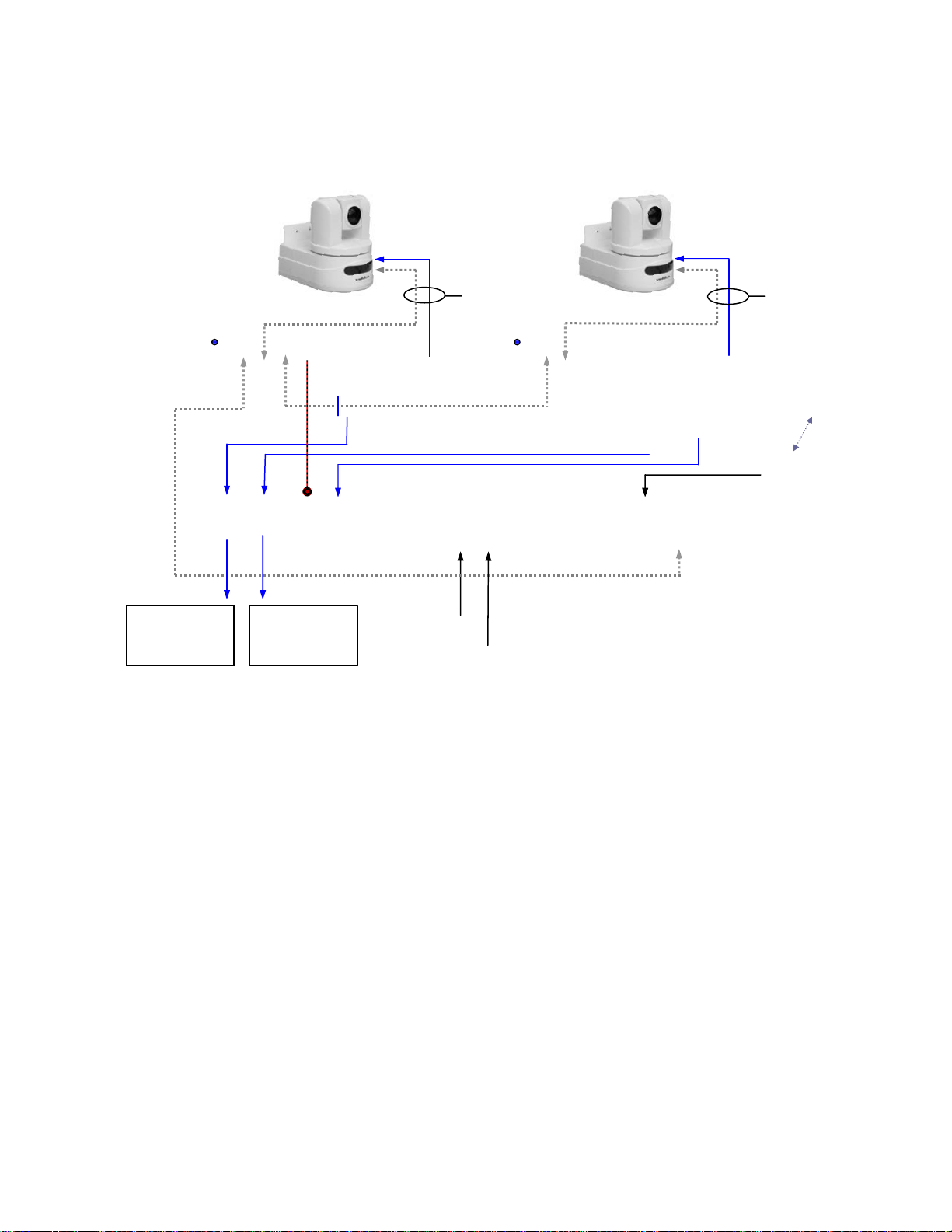

The Quick-Connect DVI/HDMI has many new features including simultaneous analog component video (YPbPr) and digital video outputs (DVI-D or HDMI with the HDMI adapter cable option) on separate connectors which is ideal for multiple monitoring and large projection systems. Extended control functions include Daisy Chain Control Emulation (DCCE™) which allows single control port codecs to control multiple HD-18 cameras, and IR forwarding in modulated and non-modulated formats for extending the reach of the IR remotes included with today’s most popular videoconferencing systems.

Intended Use:

Before operating the system, please read the entire manual thoroughly. The system was designed, built and tested for use indoors, and with the provided power supply. The use of a power supply other than the one provided or outdoor operation has not been tested and could damage the camera and/or create a potentially unsafe operating condition.

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

Use only the power supply provided with the system. Use of any unauthorized power supply will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not work well for professional installations and can be the cause of intermitten t connections which can result in the RS-232 control line failing and locking up, and/or com promising the HSDS™ signals. For best results please use standard RJ-45 connectors and test all cables for proper

in-outs prior to use and connection to Vaddio product.

Save These Instructions:

The information contained in this manual will help you install and operate your system. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from www.vaddio.com free of charge.

WallVIEW HD-18 DVI/HDMI

UNPACKING: System Configurations - Bill of Materials:

Because the Quick-Connect DVI/HDMI - SR Interface is available in several packages, please review the bill of materials upon receipt to ensure that all the parts are present and accounted for. The ferrite cylinders may come in handy when this product is used in a large rack full of equipment in order to eliminate any possible interference with other audio/video products. The ferrite cylinders are included for the integrator’s convenience.

Quick-Connect DVI-D/HDMI – SR Interface Only Part Number 998-1105-018

 One (1) Quick-Connect DVI/HDMI Interface Box only  One (1) User Manual (Document Number 342-0045)

Quick-Connect DVI-D/HDMI - SR Interface Kit for the HD-18 PTZ Camera - North America Part Number 998-6906-000 (Camera Not Included)

 One (1) Quick-Connect DVI/HDMI Interface Box  One (1) 24VDC, 2A Switching Power Supply with AC Cord Set for North America  User Manual (Document Number 342-0045)  One (1) Laird Technologies 28A2432-0A2 Clamp-on Ferrite Cylinder (Wrap IR forwarding LED wires twice

before screwing stripped wire ends to 3 conductor Molex Euro Jack)

 Two (2) Laird Technologies 28A0640-0A2 Clamp-on Ferrite Cylinder (Clamp around 0.8" diameter shielded

DVI Cable at the Quick-Connect DVI end)

 One (1) Laird Technologies HFA163090-0A2 Clamp-on Ferrite Cylinder (C lamp around 0.8" diameter

shielded DVI Cable at the Monitor end).

Quick-Connect DVI-D/HDMI - SR Interface Kit for the HD-18 PTZ Camera - International Part Number 998-6906-001 (Camera Not Included)

 One (1) Quick-Connect DVI/HDMI Interface Box  One (1) 24VDC, 2Amp Switching Power Supply  One (1) AC Cord Set for Euro and One (1) AC Cord Set for UK  User Manual (Document Number 342-0045)  One (1) Laird Technologies 28A2432-0A2 Clamp-on Ferrite Cylinder (Wrap IR forwarding LED wires twice

before screwing stripped wire ends to 3 conductor Molex Euro Jack)

 Two (2) Laird Technologies 28A0640-0A2 Clamp-on Ferrite Cylinder (Clamp around 0.8" diameter shielded

DVI Cable at the Quick-Connect DVI end)

 One (1) Laird Technologies HFA163090-0A2 Clamp-on Ferrite Cylinder (C lamp around 0.8" diameter

shielded DVI Cable at the Monitor end).

WallVIEW DVI/HDMI HD-18 System, Part Number 999-6906-000 North America - Black Camera Kit Part Number 999-6906-000W North America - White Camera Kit

 One (1) HD-18 PTZ Camera 999-6900-000 (Black) or 999-6900-00 0W (White)  One (1) Quick-Connect DVI/HDMI Interface Box  One (1) 24VDC, 2A Switching Power Supply with AC Cord Set for North America  One (1) Laird Technologies 28A2432-0A2 Clamp-on Ferrite Cylinder (Wrap IR forwarding LED wires twice

before screwing stripped wire ends to 3 conductor Molex Euro Jack)

 Two (2) Laird Technologies 28A0640-0A2 Clamp-on Ferrite Cylinder (Clamp around 0.8" diameter shielded

DVI Cable at the Quick-Connect DVI end)

 One (1) Laird Technologies HFA163090-0A2 Clamp-on Ferrite Cylinder (C lamp around 0.8" diameter

shielded DVI Cable at the Monitor end).

 One (1) 535-2100-100 (Black) or 535-2100-200W (White) CONCEAL Wall Mounting S ystem and Mounting

Hardware

 One (1) 998-1001-232 Control Adapter (for control systems)  One (1) 998-1002-232 Control Adapter (for TANDBERG VC systems)  One (1) 3-pos Phoenix type connector  User Manual - Document Number 342-0045

WallVIEW HD-18 DVI/HDMI

Unpacking System Configurations (continued) WallVIEW DVI/HDMI HD-18 System,

Part Number 999-6906-001 International - Black Camera Kit Part Number 999-6906-001W International - White Camera Kit

 One (1) HD-18 PTZ Camera 999-6900-001 (Black) or 999-6900-00 1W (White)  One (1) Quick-Connect DVI/HDMI Interface Box  One (1) 24VDC, 2Amp Switching Power  One (1) AC Cord Set for Euro and One (1) AC Cord Set for UK  One (1) Laird Technologies 28A2432-0A2 Clamp-on Ferrite Cylinder (Wrap IR forwarding LED wires twice before

screwing stripped wire ends to 3 conductor Molex Euro Jack)

 Two (2) Laird Technologies 28A0640-0A2 Clamp-on Ferrite Cylinder (Clamp arou nd 0.8" diameter shielded DVI

Cable at the Quick-Connect DVI end)

 One (1) Laird Technologies HFA163090-0A2 Clamp-on Ferrite Cylinder (Clamp around 0.8" diameter shielded

DVI Cable at the Monitor end).

 One (1) 535-2100-100 (Black) or 535-2100-200W (White) CONCEAL Wall Mounting S ystem and Mounting

Hardware

Quick-Connect DVI/HDMI - SR Interface I/O Description

①

1) Blue LED Power Indicator.

2) 24 VDC Power Port: Coax Power Connector, 5.5mm OD x 2.5mm ID, Positive Center.

3) Recessed Color Space Conversion Switch: Toggles between HDMI YCbCr and sRGB (RGBHV)

4) RS-232 Control Input (from joystick controller, codec or control system).

5) To Camera: RS-232 Control to & from Camera and IR signals returned from the camera.

6) Daisy Chain Control Port: Daisy Chain Control Emulation (DCCE) output to next Quick-Connect

7) IR Output Port: Non-modulated (for hard connections) and Modulated for use with IR emitters.

8) DVI-D Output: High Definition Multimedia Interface (HDMI) Transmitter, HDMI (v 1.3 with deep

9) YPbPr Output: Analog Component Video Output on DE-15F (HD-15F) Connector, Resolutions up to

10) EZCamera Power & HD Video Port: Supplies power to camera and returns HD video from the

③

②

color space. Change the color space to accommodate either YCbCr or RGBHV monitors.

DVI/HDMI SR Interface (does not function with the AutoTrak System).

color) and DVI v 1.0 Compliant - use Recessed Color Space Conversion Switch to toggle between HDMI YCbCr and sRGB (RGBHV) color spaces to suit your monitors

1080p/60 with monitor support. camera via Cat-5e. Maximum distance on the CAT-5e cable is 100’ (30.5 m).

④⑤ ⑥

⑦

⑨⑧

⑩
