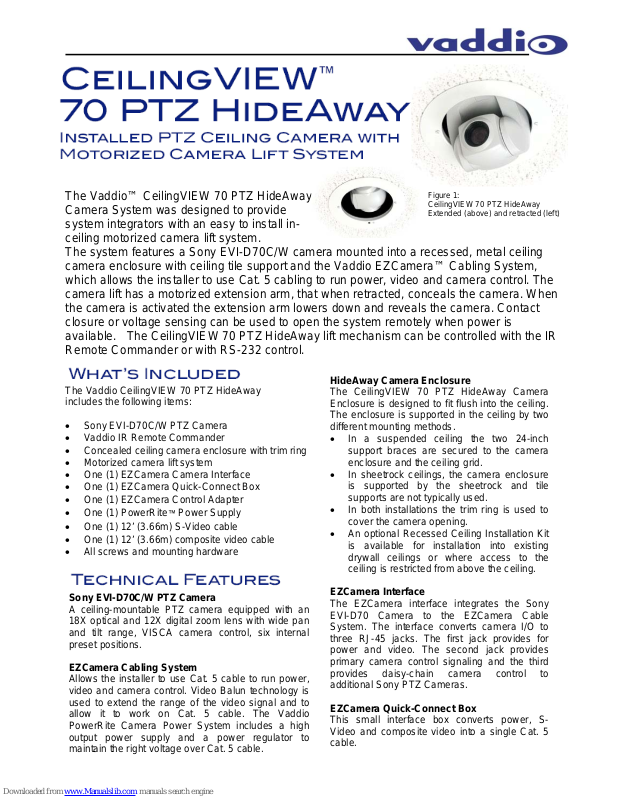

VADDIO CeilingView EVI-D70C/W, CeilingVIEW 70 PTZ HideAway Technical Specifications

The Vaddio™ CeilingVIEW 70 PTZ HideAway
Camera System was designed to provide

Figure 1:
CeilingVIEW 70 PTZ HideAway
Extended (above) and retracted (left)

system integrators with an easy to install in­ceiling motorized camera lift system.
The system features a Sony EVI-D70C/W camera mounted into a recessed, metal ceiling
camera enclosure with ceiling tile support and the Vaddio EZCamera™ Cabling System,
which allows the installer to use Cat. 5 cabling to run power, video and camera control. The
camera lift has a motorized extension arm, that when retracted, conceals the camera. When
the camera is activated the extension arm lowers down and reveals the camera. Contact
closure or voltage sensing can be used to open the system remotely when power is
available. The CeilingVIEW 70 PTZ HideAway lift mechanism can be controlled with the IR
Remote Commander or with RS-232 control.

The Vaddio CeilingVIEW 70 PTZ HideAway
includes the following items:

• Sony EVI-D70C/W PTZ Camera

• Vaddio IR Remote Commander

• Concealed ceiling camera enclosure with trim ring

• Motorized camera lift system

• One (1) EZCamera Camera Interface

• One (1) EZCamera Quick-Connect Box

• One (1) EZCamera Control Adapter

• One (1) PowerRite

• One (1) 12’ (3.66m) S-Video cable

• One (1) 12’ (3.66m) composite video cable

• All screws and mounting hardware

™ Power Supply

Sony EVI-D70C/W PTZ Camera

A ceiling-mountable PTZ camera equipped with an
18X optical and 12X digital zoom lens with wide pan
and tilt range, VISCA camera control, six internal
preset positions.

EZCamera Cabling System

Allows the installer to use Cat. 5 cable to run power,
video and camera control. Video Balun technology is
used to extend the range of the video signal and to
allow it to work on Cat. 5 cable. The Vaddio
PowerRite Camera Power System includes a high
output power supply and a power regulator to
maintain the right voltage over Cat. 5 cable.

HideAway Camera Enclosure

The CeilingVIEW 70 PTZ HideAway Camera
Enclosure is designed to fit flush into the ceiling.
The enclosure is supported in the ceiling by two
different mounting methods.

• In a suspended ceiling the two 24-inch
support braces are secured to the camera
enclosure and the ceiling grid.

• In sheetrock ceilings, the camera enclosure
is supported by the sheetrock and tile
supports are not typically used.

• In both installations the trim ring is used to
cover the camera opening.
An optional Recessed Ceiling Installation Kit

•

is available for installation into existing
drywall ceilings or where access to the
ceiling is restricted from above the ceiling.

EZCamera Interface

The EZCamera interface integrates the Son
EVI-D70 Camera to the EZCamera Cable
System. The interface converts camera I/O to
three RJ-45 jacks. The first jack provides fo
power and video. The second jack provides
primary camera control signaling and the third
provides daisy-chain camera control to
additional Sony PTZ Cameras.

EZCamera Quick-Connect Box

This small interface box converts power, S­Video and composite video into a single Cat. 5
cable.

y

r

Specification CeilingVIEW 70 PTZ HideAway

Part Number (Signal System) 999-2404-000 (NTSC), 999-2404-001 (PAL)
Image sensor 1/4-type EXview HAD CCD
Effective Pixels 768 x 494 (H x V – NTSC), 752 x 582 (H x V - PAL)
Horizontal Resolution 470 TV lines (NTSC), 460 TV lines (PAL)
Lens 18X Optical Zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0
Total Zoom 18X Optical x 12X Digital = 216X Total Zoom
Horizontal angle of view 2.7º (tele end) to 48º (wide end)
Minimum illumination 1 Lux (F1.4)
Auto exposure Auto/Manual/Priority AE, Exposure compensation, Back-light compensation
Shutter speed 1 to 1/10,000 s
Gain Auto/Manual (-3 to +28 dB, 2 dB steps)
White balance Auto/ATW/Indoor/Outdoor/One push/Manual
S/N ratio More than 50 dB
Pan/tilt Pan: ±170º (Max. speed: 100º/s), Tilt: -30º to +90º (Max. speed: 90º/s)
Position preset 6 positions
Picture effect Neg. Art, Black & White
Video outputs Composite Video and S-Video (concurrent)
Power requirement 10.8 VDC to 13.2 VDC (camera only)

Power consumption

Lift Mechanism Control

Codec Compatibility In EVI-D30 mode only (within the x/y/z coordinates of the EVI-D30).
Power Supply 18 VDC, 2.78A (PowerRite Power Supply Spec), 100V– 240V Switcher
Operating Temperature
Storage Temperature
Dimensions 8.84” (22.45cm) H x 8.75” (22.23cm) W x 8.65” (21.97cm) D
Weight 8.4 lbs / 3.81 kg

Idle: 12w
Engaged: 23W
On/Off button on IR Remote, RS-232, Closure pair for camera down only if the camera is powered
(closure pair will not raise the camera)
Note: Most codecs do not generate the camera On/Off command and cannot control the lift.

32 to104˚ F (0 to 40˚ C)

-4 to +140˚ F (-20 to +60˚ C)

Figure 2 – EZCamera cable system with Quick-Connect Box

ⓒ2005 Vaddio. All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing

are subject to change without prior notification. Vaddio, CeilingVIEW, ControlVIEW, EZCamera and PowerRite are registered trademarks
of Vaddio. All other trademarks are property of their respective owners. Form Number 050505 RevB.
