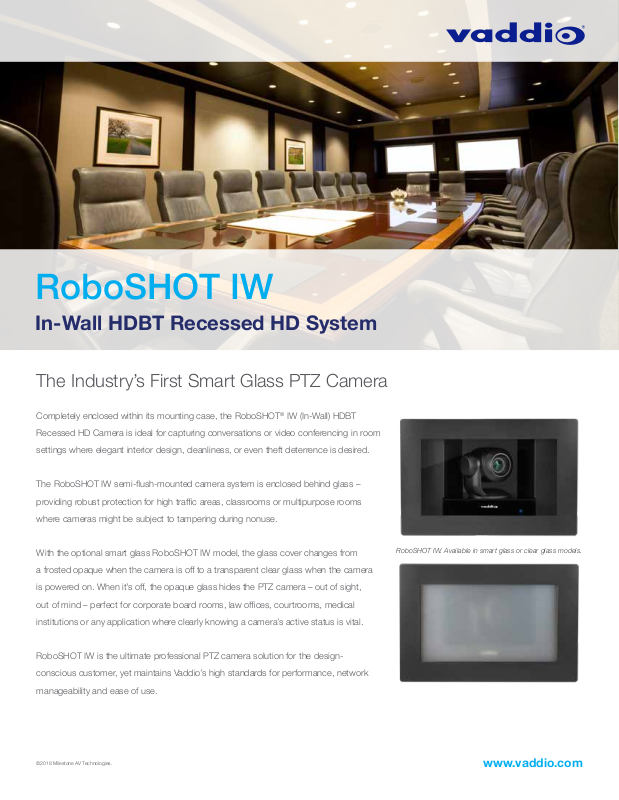

Vaddio 999-9966-800 Quick Start Guide

RoboSHOT IW

In-Wall HDBT Recessed HD System

The Industry’s First Smart Glass PTZ Camera

Completely enclosed within its mounting case, the RoboSHOT® IW (In-Wall) HDBT

Recessed HD Camera is ideal for capturing conversations or video conferencing in room

settings where elegant interior design, cleanliness, or even theft deterrence is desired.

The RoboSHOT IW semi-ush-mounted camera system is enclosed behind glass –

providing robust protection for high trac areas, classrooms or multipurpose rooms

where cameras might be subject to tampering during nonuse.

With the optional smart glass RoboSHOT IW model, the glass cover changes from

a frosted opaque when the camera is o to a transparent clear glass when the camera

is powered on. When it’s o, the opaque glass hides the PTZ camera – out of sight,

out of mind – perfect for corporate board rooms, law oces, courtrooms, medical

institutions or any application where clearly knowing a camera’s active status is vital.

RoboSHOT IW is the ultimate professional PTZ camera solution for the design-

conscious customer, yet maintains Vaddio’s high standards for performance, network

manageability and ease of use.

RoboSHOT IW. Available in smart glass or clear glass models.

www.vaddio.com

Superior Image Quality. Recessed and Out of the Way.

One cable means easier installations

Equipped with Vaddio’s popular OneLINK™ HDBaseT® port, the RoboSHOT IW easily connects to Vaddio OneLINK extension

systems or other HDBaseT-compatible devices to reduce cabling and extend video, power, and control up to an installation distance

of 328 ft (100 m).

Features

• Beautiful, fully enclosed design – Can be

the design spotlight of the conference room or the practical solution to protect the camera in

high trac areas

• Provides privacy – Put room attendees at ease

with clear indication of active camera status

• ADA compliant – Semi-ush-mounted,

making it compliant with the Americans With Disabilities Act (ADA)

• HD 1080p video quality, 10x optical zoom,

73° FOV and 16 congurable camera presets

• Flexible output options – For example,

pass uncompressed, high resolution video over USB by pairing with the OneLINK Bridge AV Interface. Capable of 1080p/60fps for the smoothest video available. Also supports USB 2.0.

• Telnet or IP remote management – Easy,

intuitive web-based user interface for remote

conguration, management and control

• Color adjustment – Automatically or manually

adjust image color, shading, backlight, and wide dynamic range to optimize color in

dierent settings

Ordering Information

Description

Smart Glass Models

RoboSHOT IW Smart Glass HDBT Camera – Black frame 999-9965-800 (Worldwide)

RoboSHOT IW Smart Glass HDBT Camera – Primed frame 999-9965-880 (Worldwide)

RoboSHOT IW Smart Glass OneLINK HDMI System – Black frame 999-9965-100 999-9965-101 999-9965-109

RoboSHOT IW Smart Glass OneLINK HDMI System – Primed frame 999-9965-180 999-9965-181 999-9965-189

RoboSHOT IW Smart Glass OneLINK Bridge System – Black frame 999-9965-200 999-9965-201 999-9965-209

RoboSHOT IW Smart Glass OneLINK Bridge System – Primed frame 999-9965-280 999-9965-281 999-9965-289

Clear Glass Models

RoboSHOT IW Clear Glass HDBT Camera – Black frame 999-9966-800 (Worldwide)

RoboSHOT IW Clear Glass HDBT Camera – Primed frame 999-9966-880 (Worldwide)

RoboSHOT IW Clear Glass OneLINK HDMI System – Black frame 999-9966-100 999-9966-101 999-9966-109

RoboSHOT IW Clear Glass OneLINK HDMI System – Primed frame 999-9966-180 999-9966-181 999-9966-189

RoboSHOT IW Clear Glass OneLINK Bridge System – Black frame 999-9966-200 999-9966-201 999-9966-209

RoboSHOT IW Clear Glass OneLINK Bridge System – Primed frame 999-9966-280 999-9966-281 999-9966-289

North America Europe/UK Australia/New Zealand

THE ART OF EASY | MILESTONE.COM

131 Cheshire Lane, Suite 500, Minnetonka, MN 55305

USA P 800.572.2011 E info@vaddio.com EMEA P +31.495.580.840 E emea.sales@milestone.com APAC P +852.2145.4099 E asia.sales@milestone.com

All other brand names or marks are used for identication purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
