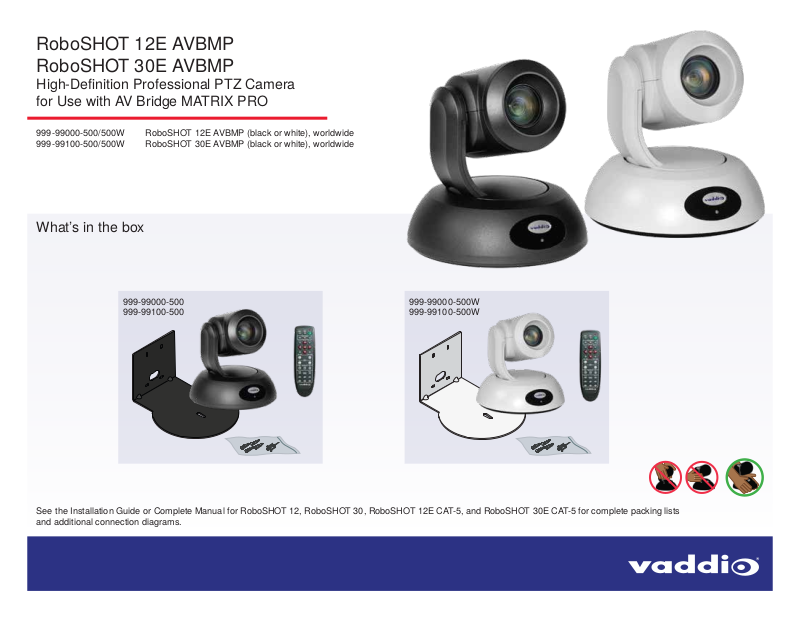

Vaddio 999-99000-500, 999-99100-500 Quick Start Guide

RoboSHOT 12E AVBMP RoboSHOT 30E AVBMP

High-Denition Professional PTZ Camera for Use with AV Bridge MATRIX PRO

999-99000-500/500W RoboSHOT 12E AVBMP (black or white), worldwide 999-99100-500/500W RoboSHOT 30E AVBMP (black or white), worldwide

What’s in the box

999-99000-500 999-99100-500

See the Installation Guide or Complete Manual for RoboSHOT 12, RoboSHOT 30, RoboSHOT 12E CAT-5, and RoboSHOT 30E CAT-5 for complete packing lists and additional connection diagrams.

999-99000-500W 999-99100-500W

Connect up to 3 cameras

Data Screen

Power

Video

EZ-Power Video

Network

RS-232

Document 411-0025-01 Rev B March 2019
