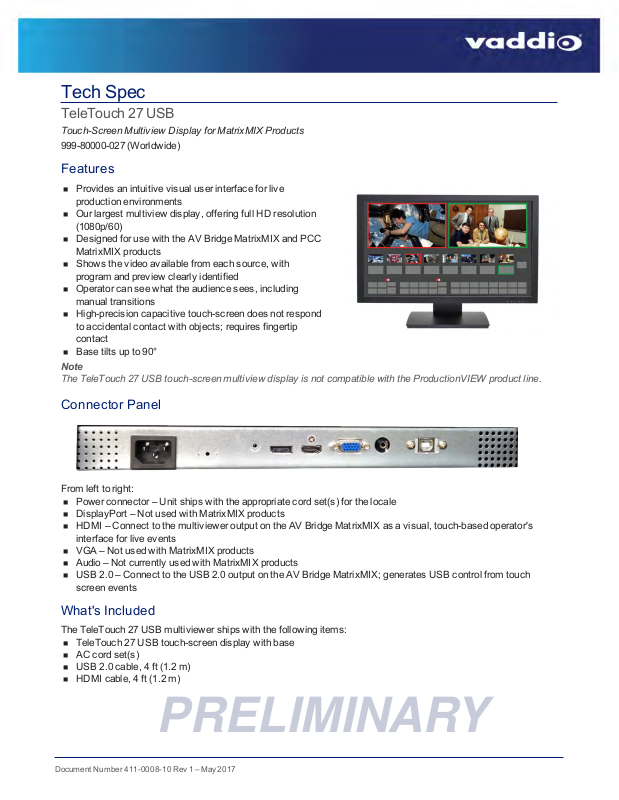

Tech Spec

PRELIMINARY

TeleTouch 27 USB

Touch-Screen Multiview Display for MatrixMIX Products

999-80000-027 (Worldwide)

Features

n Provides an intuitive visual user interface for live

production environments

n Our largest multiview display, offering full HD resolution

(1080p/60)

n Designed for use with the AV Bridge MatrixMIX and PCC

MatrixMIX products

n Shows the video available from each source, with

program and preview clearly identified

n Operator can see what the audience sees, including

manual transitions

n High-precision capacitive touch-screen does not respond

to accidental contact with objects; requires fingertip
contact

n Base tilts up to 90°

Note

The TeleTouch 27 USB touch-screen multiview display is not compatible with the ProductionVIEW product line.

Connector Panel

From left to right:

n Power connector – Unit ships with the appropriate cord set(s) for the locale
n DisplayPort – Not used with MatrixMIX products
n HDMI – Connect to the multiviewer output on the AV Bridge MatrixMIX as a visual, touch-based operator's

interface for live events

n VGA – Not used with MatrixMIX products
n Audio – Not currently used with MatrixMIX products
n USB 2.0 – Connect to the USB 2.0 output on the AV Bridge MatrixMIX; generates USB control from touch

screen events

What's Included

The TeleTouch 27 USB multiviewer ships with the following items:

n TeleTouch 27 USB touch-screen display with base
n AC cord set(s)
n USB 2.0 cable, 4 ft (1.2 m)
n HDMI cable, 4 ft (1.2 m)

Document Number 411- 0008-10 Rev 1 – May 2017

Tech Spec for the TeleTouch 27 USB Touch-Screen Multiview Display

Connections

Specifications

Display and Product Compatibility

Maximum resolution

Aspect ratio

Viewing angle

Compatibility

1080p/60 (Full HD)

16:9

170° x 160°

AV Bridge MatrixMIX, PCC MatrixMIX

Not for use with the ProductionVIEW product line

Touch-screen type

Color depth

Brightness

Surface capacitive

32 bit (16.7 million colors)

300 nits

Power, Environmental, and Physical

Power requirement

Operating temperature

Humidity

Dimensions

90 to 240 VAC

0 to 50C (32 to 122F)

5-90% relative, noncondensing

Width: 25.4 in. (645 mm); Height: 15.25 in. (387 mm); Depth: 2.63 i n. (66.8 mm)

Maximum power consumption

Storage temperature

Weight

60W

-20 to 60C (-4 to 140F)

10.8 lbs. (4.89 Kg)
