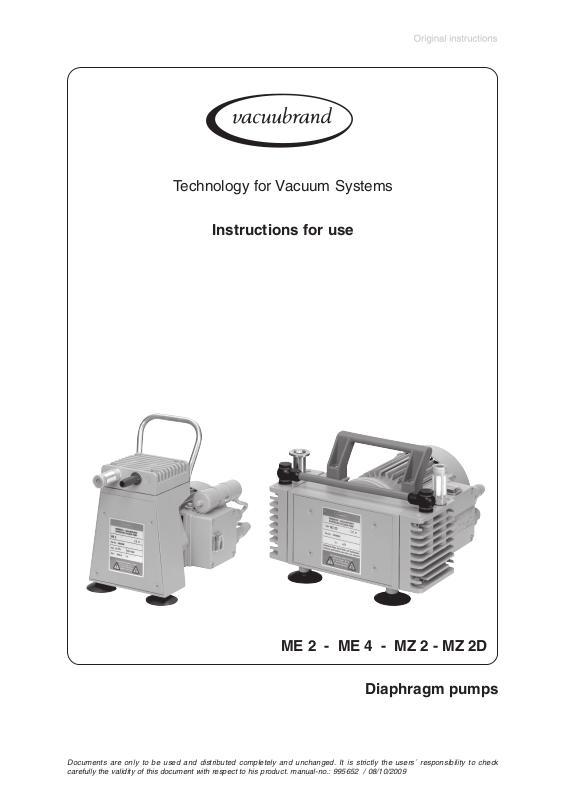

VACUUBRAND MZ 2D User Manual
page 1 of 24
Technology for Vacuum Systems
Instructions for use
ME 2 - ME 4 - MZ 2 - MZ 2D
Diaphragm pumps
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 2 of 24
Dear customer,
Your VACUUBRAND diaphragm pump shall support you at your work for a long time without any trouble and
with full load output. Thanks to our large practical experience we attained much information how you could
add to an efficient application and to personal safety. Please read these instructions for use prior to the
initial start-up of your pump.
VACUUBRAND diaphragm pumps are the result of many years of experience in construction and practical
operation of these pumps combined with the latest results in material and manufacturing technology.
Our quality maxim is the ”zero fault principle”:
Every delivered diaphragm pump is tested extensively including an endurance run of 18 hours. Due to this
endurance run, also faults, which occur rarely, are reported an can be corrected. Every single diaphragm
pump is tested on achievement of the specification after the endurance run.
Every VACUUBRAND pump leaving our factory achieves the specification. We feel obliged to this
high quality standard.
We are aware that the vacuum pump should not draw a part of the real work and we hope to contribute with
our products to an effective and troublefree realisation of your work.
Yours
VACUUBRAND GMBH + CO KG
After sales service: Contact your local dealer or call +49 9342 808-193.
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 3 of 24
Contents
Safety information! ....................................................................................................4
Technical data ............................................................................................................ 7
Use and operation ...................................................................................................11
Accessories - Installation .......................................................................................13
Troubleshooting ......................................................................................................15
Replacing diaphragms and valves ........................................................................16
Notes on return to the factory ................................................................................ 21
Health and safety clearance form ..........................................................................22
Attention! Important notes!
Not permitted! Misuse may cause damage.
Caution! Hot surface!
Isolate equipment from mains.
Note.
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
Safety information!
Remove all packing material, remove the product from its packing-box, remove the
protective covers from the inlet and outlet ports and keep, inspect the equipment.
If the equipment is damaged, notify the supplier and the carrier in writing within three
days; state the item number of the product together with the order number and the
supplier’s invoice number. Retain all packing material for inspection.
Do not use the equipment if it is damaged.
If the equipment is not used immediately, replace the protective covers. Store the
equipment in suitable conditions.
☞ Read and comply with this manual before installing or operating the equip-
ment.
☞ Transport the pump at the provided handles.
Use the equipment for the intended use only (for generation of vacuum).
☞ Prevent any part of the human body from coming in contact with the vacuum.
☞ Comply with notes on correct vacuum and electrical connections, see section ”Use
and operation”.
☞ Make sure that the individual components are only connected, combined and oper-
ated according to their design and as indicated in the instructions for use.
page 4 of 24
Comply with national safety regulations and safety requirements concerning the
use of vacuum and electrical equipment.
☞ Equipment must be connected only to a suitable fused and protected electrical
supply and a suitable earth point. Failure to connect the motor to ground may result
in deadly electrical shock.
☞ The supply cable may be fitted with a moulded European IEC plug or a plug suitable
for your local electrical supply. If the plug has been removed or has to be removed,
the cable will contain wires colour coded as follows: green or green and yellow:
earth; blue or white: neutral; brown or black: live.
☞ Check that mains voltage and current conform with the equipment (see rating
plate):
Pumps with dual-voltage motor (100-120 V / 200-230 V; 50/60 Hz):
☞ The equipment must be connected to a suitable fused and protected electrical
supply and a suitable earth point only, provide slow-blow fuse according to voltage
supply (see ”Technical data”).
☞ Check that the voltage changeover switch is positioned correctly.
Attention: If the pump is switched on with the voltage not correctly selected,
the motor may be damaged!
☞ If the equipment is brought from cold environment into a room for operation, allow
the equipment to warm up (pay attention to water condensation on cold surfaces).
☞ Make sure ventilation is adequate if pump is installed in a housing or if ambient
temperature is elevated.
Comply with all relevant safety requirements (regulations and guidelines) and adopt
suitable safety measures.
☞ Provide a firm level platform for the equipment and check that the system to be
evacuated is mechanically stable and that all fittings are secure.
Attention: Flexible elements tend to shrink when evacuated.
Due to the high compression ratio of the pumps, pressure at the outlet port might be
generated being higher than the max. permitted pressure compatible with the mechanical stability of the system.
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 5 of 24
☞ Comply with maximum permitted pressures and pressure differences, see sec-
tion ”Technical data”. Do not operate the pump with overpressure at the inlet.
Do not permit any uncontrolled pressurizing (e. g. make sure that the exhaust pipeline cannot become blocked). If you have an exhaust-isolation valve, make sure that
you cannot operate the equipment with the valve closed. Risk of bursting!
☞ Ensure that the system design does not allow the exhaust pipeline to become
blocked.
☞ Avoid overpressure of more than 0.2 bar in case inert gas is connected.
☞ The diameter of the inlet and outlet pipeline should be at the least as large as the
diameter of the pump connection pipelines.
To the best of our knowledge the equipment is in compliance with the requirements of
the applicable EC-directives and harmonized standards (see ”Declaration of conformity”) with regard to design, type and model, especially directive IEC 1010. This directive
gives in detail conditions, under which the equipment can be operated safely (see also
IP degree of protection).
☞ Adopt suitable measures in case of differences, e. g. using the equipment outdoors,
installation in altitudes of more than 1000 m above mean sea level, conductive
pollution or dewiness.
Pay attention to symbol ”hot surfaces” on the equipment (according to IEC 1010 recommendation).
☞ Adopt suitable measures to prevent any danger arising from the formation of hot
surfaces or electric sparks.
The pumps have no approval for operation in or for pumping of potentially explosive atmospheres.
If pumping different substances, purge the pump with inert gas prior to changing the
pumped media in order to pump out residues and to avoid reactions of the pumped
substances with each other with and the pump material. Ensure that the materials of
the wetted parts are compatible with the pumped substances, see section ”Technical
data”.
Take into consideration interactions and chemical reactions of the pumped media.
The pumps are not suitable for pumping substances which may form deposits inside
the pump.
☞ If there is a danger of the formation of deposits in the pump chamber (check inlet
and outlet of the pump) inspect the pump chamber regularly and clean if necessary.
The pumps are not suitable to pump unstable substances and substances which
react explosively under impact (mechanical stress) and/or when being exposed to
elevated temperatures without air.
The pumps are not suitable to pump self inflammable substances, substances which
are inflammable without air and explosive substances.
The pumps are not suitable for pumping dust and have no approval for operation
below ground.
Ensure that the materials of the wetted parts are compatible with the pumped substances, see section ”Technical data”.
☞ Adopt suitable measures to prevent the release of dangerous, explosive, corrosive
or polluting fluids.
☞ Use inert gas for gas ballast or venting if necessary.
☞ The user must take suitable precautions to prevent any formation of explosive mixtures
in the expansion chamber or at the outlet. In case of a diaphragm crack, mechanically
generated sparks, hot surfaces or static electricity may ignite these mixtures.
☞ Take adequate precautions to protect people from the effects of dangerous sub-
stances (chemicals, thermal decomposition products of fluoroelastomers), wear
appropriate safety-clothing and safety glasses.
☞ Comply with applicable regulations when disposing of chemicals. Take into consid-
eration that chemicals may be polluted.
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 6 of 24
Due to the residual leak rate of the equipment, there may be an exchange of gas,
albeit extremely slight, between the environment and the vacuum system.
☞ Adopt suitable measures to prevent contamination of the pumped substances or
the environment.
The motor is shut down by a thermal cutout in the winding.
☞ Attention: Manual reset is necessary. Switch off the pump or isolate the equipment
from mains. Wait approx. five minutes before restarting the pump.
☞ Attention: In case of supply voltage below 100V, the lock of the cutout might be
restricted and the pump might restart on its own after sufficient cooling down. Take
suitable precautions, if an automatic restart of the pump may lead to a critical
dangerous situation.
☞ Avoid high heat supply (e. g. due to hot process gases).
☞ Ensure sufficient air admittance if pump is installed in a housing.
Ensure that in case of failure the pump and the vacuum system always will turn into a
safe status.
☞ In case of diaphragm cracks or leaks in the manifold pumped substances mighty
be released into the environment or into the pump housing. To reduce the risk of
leaks, ask for a diaphragm pump with additional safety diaphragm.
☞ Comply especially with notes on operation and use and maintenance.
Use only genuine spare parts and accessories.
☞ Otherwise safety and performance of the equipment as well as the electromagnetic
compatibility of the equipment might be reduced. Possibly the CE mark or the C/US
conformity becomes void if not using genuine spare parts.
The A-weighed emission sound pressure level of the pump does not exceed 70 dB(A).
Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 with standard
silencer or exhaust tube at outlet.
Ensure that maintenance is done only by suitably trained and supervised technicians.
Ensure that the maintenance technician is familiar with the safety procedures which
relate to the product processed by the vacuum system and that the equipment, if
necessary, is appropriately decontaminated before starting maintenance.
Comply with local and national safety regulations.
Wear parts have to be replaced regularly. In case of normal wear the lifetime of the
diaphragms and valves is > 10000 operating hours. Bearings have a typical durability
of 40000 h. Motor capacitors have a typical durability in the range of 10000 to 40000 h
depending strongly on the operation conditions like ambient temperature, humidity or load.
☞ Check every capacitor regularly by measuring its capacity and estimating its opera-
tion time. Exchange old capacitors early enough to prevent a failure. If an overaged
motor capacitor fails it might get hot and even melt and may cause a flame to form
which could be dangerous for persons and equipment in the vicinity. The ca-
pacitors have to be replaced by an electrician.
Before starting maintenance vent the system, isolate the pump and other components from the vacuum system and the electrical supply, drain condensate and allow
sufficient cooling of the pump.
Before starting maintenance, wait two minutes after isolating the equipment from
mains to allow the capacitors to discharge.
In order to comply with law (occupational, health and safety regulations, safety at work
law and regulations for environmental protection) vacuum pumps, components and
measuring instruments returned to the manufacturer can be repaired only when certain
procedures (see section ”Notes on return to the factory”) are followed.
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 7 of 24
Technical data
epyT 2EM 4EM 2ZM D2ZM
deepsgnipmuP
23482NIDzH06/05
muucav)latot(etamitlU
23482NID)etulosba(
rep.xaM
teltuodna
ep.xaM
ta
rewoprotoMW021081081081
taR
zH06~V021
teltuodettim
)etulosba(erusserp
telnineewteberusserp
tneibmadettimr
gniruderutarepmet
noitarepo/egarots
evitalerdettimrep.xaM
erutsiomcirehpsom
on(noitarepognirud
noitcetorprotoM tuotuclamreht
wardtnerrucde
zH06/05~V001
zH06/05~V032
zH05~V032-002/021-001
zH06~V032-002/021-001
ecnereffiddettimrep.xaM
)tasnednocfonoitarapes
m3h/2.2/9.1
mumixam
rabm08<08<94
rab2 4 2 1.1
rab222 1.1
A
A
A
A
A
-
-
1.1/1.1
*3.1/6.2
/6.2
*3.1
0.4/6.3
mumixam
58ot03
-
0.3
6.1/6.1
-
-
2.2/9.14.2/2.2
04+ot01+/06+ot01-
8.3/6.3
0.3
6.1/6.1
-
-
-
0.3
6.1/6.1
*7.1/6.3
*8.1/8.3
foegnardettimrep.xaM
egatlovylppus
noitnettayaP
!etalpgnitar
925CEI
telnI "4/1G01NDelzzonesohegnalfllams
teltuOrecnelis
HxWxL
thgieWgk3.6
* Pump with dual-voltage motor (100-120/200-230 V 50/60 Hz)
rotomot
noitcetorpfoeergeD
zH06/05deepsdetaRnim
snoisnemidllarevO
1-
mmx461x572
1
45PI
*04PI
0081/00510081/00510081/00510081/0051
942
x461x003
*942
*5.7
45PI
-
x532x452
771
-
4.01
-
zH06/05%01-/+~V001
zH06%01-/%5+~V021
zH06/05%01-/+~V032
*zH06/05%01-/%5+~V021-00
*zH06/05%01-/+~V032-002
45PI
-
x532x452
771
-
7.01
-
45PI
*04PI
61ND
x532x452
771
x562x261
*171
7.
01
*4.01
We reserve the right for technical modification without prior notice!
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
page 8 of 24
stnenopmoC strapdetteW
revocdaeh/revocgnisuoh )21iSlA(yollamuinimula
csidgnipmalcmgarhpaid )21iSlA(yollamuinimula
dMPF
recnelisEP/AP
esohEP
gn
ittifdezidona,muinimula
evlav/mgarhpai
)2ZM/2EM(elzzonesohTBP
)4EM(elzzonesohleetssselniats
)D2ZM(egnalfllamsleetssselniats
)2ZM/4EM/2EM(laesCVP
)D2ZM(laesMPF
We reserve the right for technical modification without prior notice!
Gas inlet temperatures:
noitidnocgnitarepO erusserptelnI
noitareposuounitnoC)daolsaghgih(rabm001>
ounitnoC)daolsagwol(rabm001<
noitareposu
)setunim5<(noitarepoemit-trohS)daolsagwol(rabm001<
sagfoegnardettimreP
telnitaserutarepmet
➨ C°04+otC°01+
➨ C°06+otC°0
➨ C°08+otC°01-
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check
carefully the validity of this document with respect to his product. manual-no.: 995652 / 08/10/2009
Loading...
