Page 1

Wet/Dry Vacuums

Operator’s Manual

Model No.

VMVQ1220SS

FOR YOUR SAFETY

Read and understand this manual before use

Keep this manual for future reference

IP24

Page 2

SAFETY INSTRUCTIONS & WARNINGS

TABLE OF CONTENTS

WARRANTY

SECTION PAGE

Warranty…………………………………………………………………………………………...……. Safety Instructions and Warnings……………………………………………………………………. Double Insulation Instructions…..……………………………………………………………………. Extension Cord…………………………………………………………………………………………. Unpacking and Checking Carton Contents………….……………………..…………….…………. General Assembly Instructions…………………………………………………………….…………. Dry Vacuum Operation………………………………………………………………………………… Wet Vacuum Operation……………………………………………………………………………….. Blowing Operation……………………………………………………………………………………… Maintenance……………………………………………………………………………….……………. Installing & Cleaning Cartridge Filter……………………………...………………..….…………….. Installing & Cleaning Foam Sleeve Filter………………...………………….…..….……………….. Troubleshooting………………………………………………………………………………………… Exploded View and Parts List………………………………………………………………………….

Thank you for purchasing this Vacmaster® wet/dry vacuum cleaner. Feel confident that with Vacmaster® you are obtaining a high quality product engineered for optimal performance. This vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS

Vacmaster® takes pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 90 day limited warranty will apply. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or alterations and lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary form state to state.

2 2 4 4 5 6 7 8 9 9 10 11 11 12

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM

Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster® recommended accessories.

Household Type

Page 3

SAVE THIS MANUAL

When using an electrical appliance, basic precautions should always be followed including the following:

FOR FUTURE REFERENCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Do not run vac unattended.

• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline

or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or dust.

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug or other parts.

• If the appliance is not working as it should, has missing parts, has been dropped, damaged, left outdoors,

or dropped into water, return it to a service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or

corners.

• Do not run Wet/Dry Vac over cord.

• Do not handle plug or the Wet/Dry Vac with wet hands.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this Wet/Dry Vac with a torn filter or without the filter installed except when vacuuming liquids

as described in the operation section of this manual.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before

servicing.

• Turn off Wet/Dry Vac before unplugging.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked;

keep free of dust, lint, hair or anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safely.

• Children should be supervised to ensure that they do not play with the appliance.

•

For additional protection: It is recommended that this vac can be used in conjunction with residual current

device (RCD) with a rated residual current of 30mA or less.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vac as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Use safety goggles.

Page 4

OUBLE INSULATION INSTRUCTIONS

SPECIFICATIONS

This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING

INDOORS.

WARNING

RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS, DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

: TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE

: FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S MANUAL. DO NOT

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash. This is a very fine dust which will not be captured by

the filter and may cause damage to motor and void the warranty.

WARNING

WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

• For Household Use Only.

• To reduce the risk of electric shock-unplug before cleaning or servicing.

• DO NOT use without filters in place.

CAUTION

SERVICING.

SERVICING OF DOUBLE-INSULATED WET/DRY VACUUMM

: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE

Motor : 230V ~ 50Hz Container : 20L Watt : 1250W Filter-Dry : Filter-Wet:

Reusable Cloth Filter

Foam Sleeve

Page 5

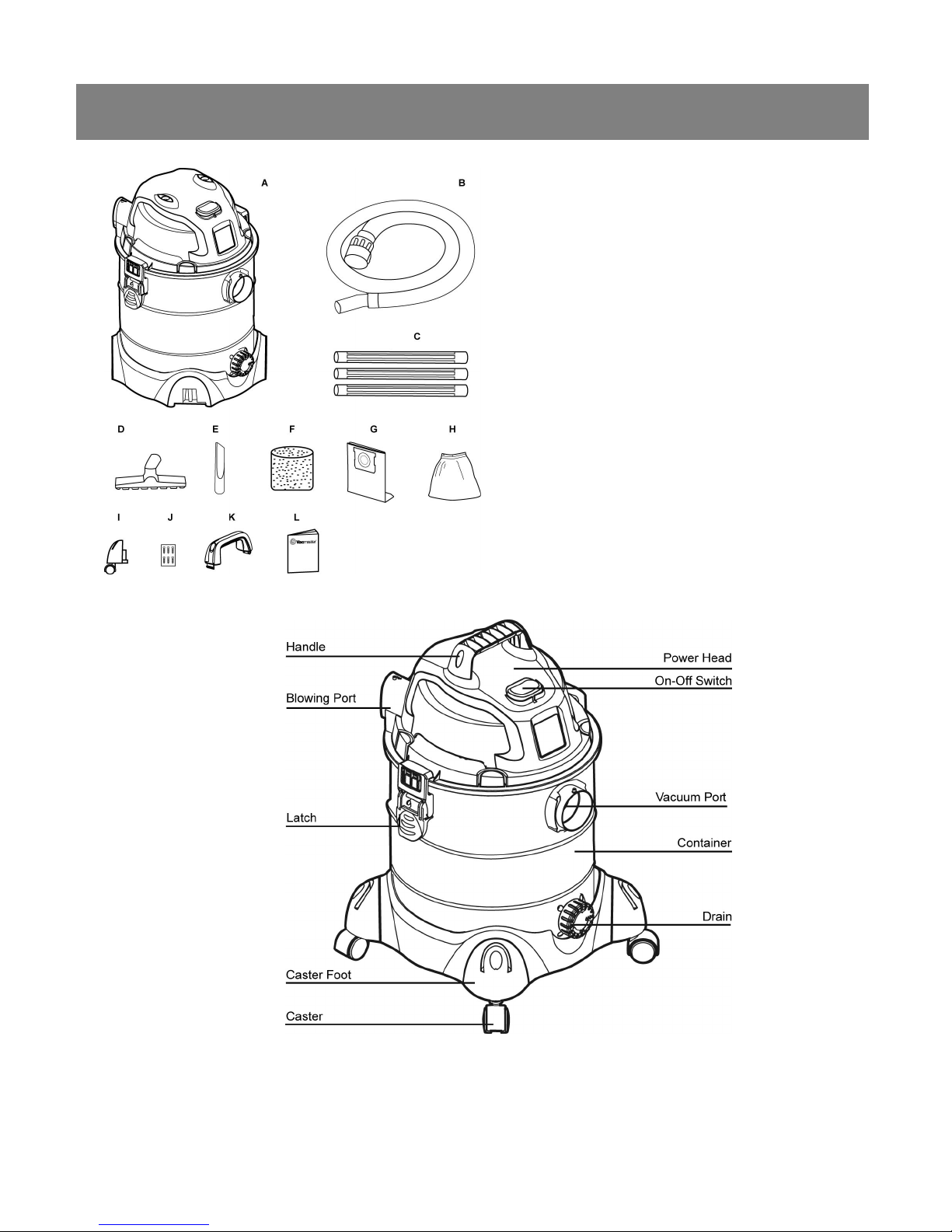

UNPACKING AND CHECKING CARTON CONTENTS

NOTE: The hose and ac

cessories for this vacuum

Remove entire contents from carton. Check

each item against the contents list.

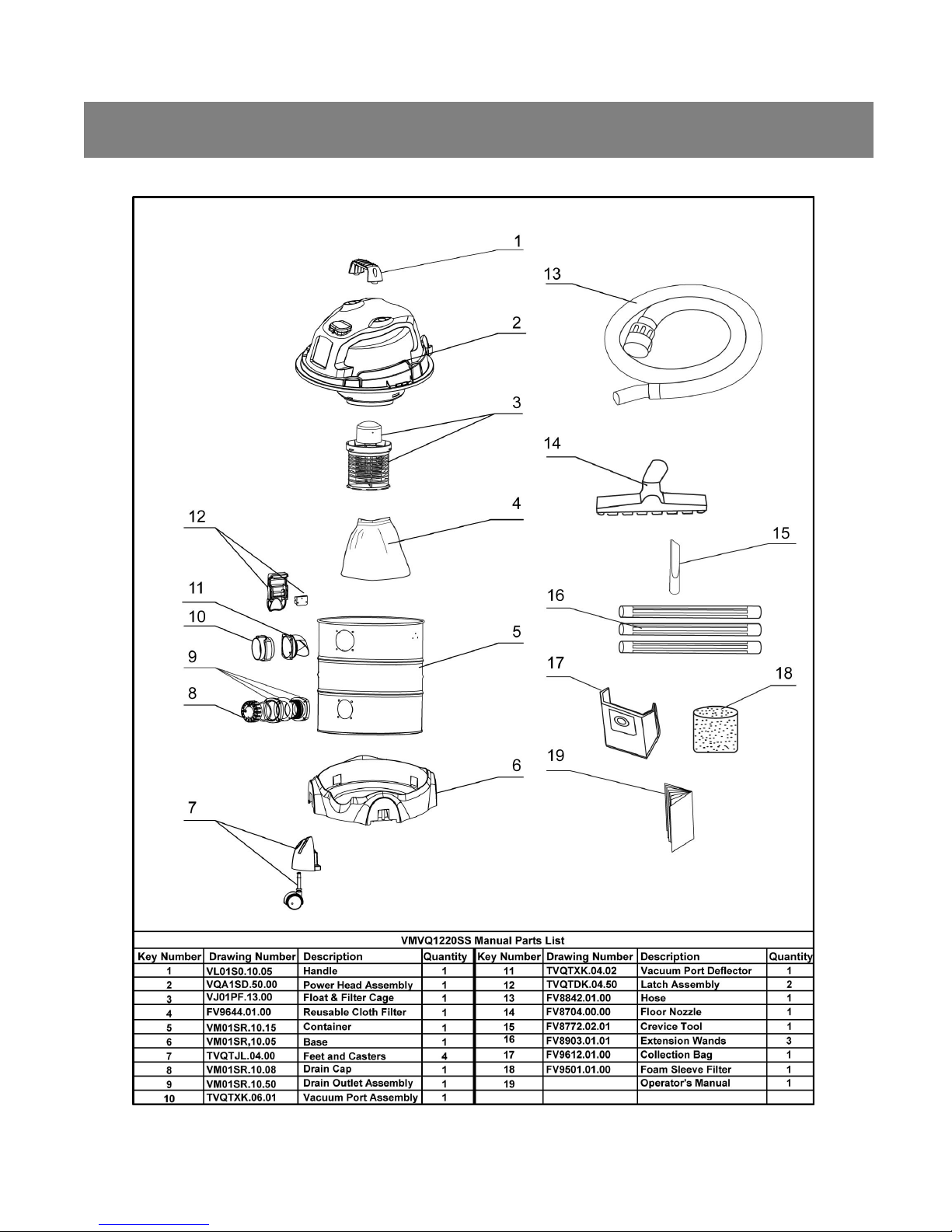

Contents List

Key

Description……………………..…….…QTY

A Vac Assembly……………………………..

B Hose ……………………………..............

C Extension Wands..…………………….....

D Floor Nozzle…………………….....

E Crevice Tool………………………………

F Foam Sleeve Filter...............….………..

G Collection Bag …...................................

H Reusable Cloth Filter……......

I Feet With Casters………………………... J 6 Screws (Bag)…………………..……….. K Handle………………………..…………… L Operator’s Manual………………………..

1 1 3 1 1 1 1 1 4 1 1 1

are 35mm diameter.

Page 6

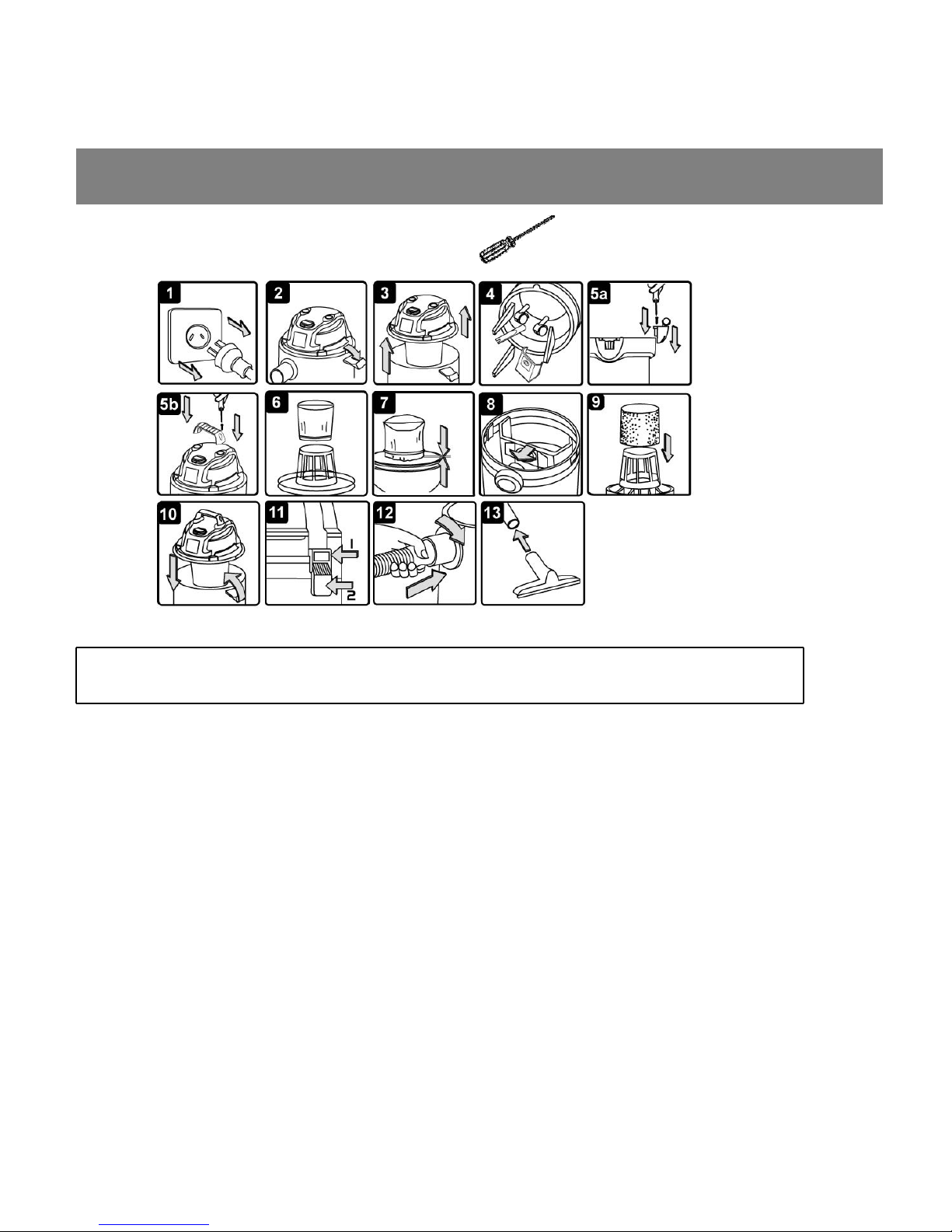

GENERAL ASSEMBLY INSTRUCTIONS

A Philips head screw driver is required for assembly.

WARNING

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Undo the latches. (fig.2)

3. Lift the power head off the container. (fig.3)

4. Remove the contents from inside the container, make sure you have all contents as listed on page 5.

(fig.4)

5. With the power head removed, turn the container upside down. Insert the feet with casters into the slots,

apply downward pressure and secure them with supplied screw. Do not over- tighten screws. (fig.5a)

6. Insert the handle into the slots located on the top of the power head and secure it with the screws

provided. Do not over tighten the screw. (fig.5b)

7. For dry vacuum cleaning, install the supplied dust filter. (fig. 6&7) See page 10 for filter installation.

8. Optional, for improved dust filtering, fit collection bag onto the tank. Fit the flange onto the inlet stub,

taking care not to damage the bag. (fig.8)

9. For wet vacuum cleaning, install the supplied foam filter. (fig.9) See page 11 for filter installation.

10. Place the power head back on the container, and secure into place using the 2 side latches. (fig.10 &

fig.11)

11. Secure the large end of the hose into the vacuum port on the container and lock into place. (fig.12)

12. Choose the desired accessories and extension wands and push onto the suction tube. (fig.13)

: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

Page 7

DRY

VACUUM OPERATION

DRY VACUUMING

WARNING:

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash. This is a very fine dust which will not be captured by

the filter and may cause damage to motor and void the warranty.

WARNING

DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS.

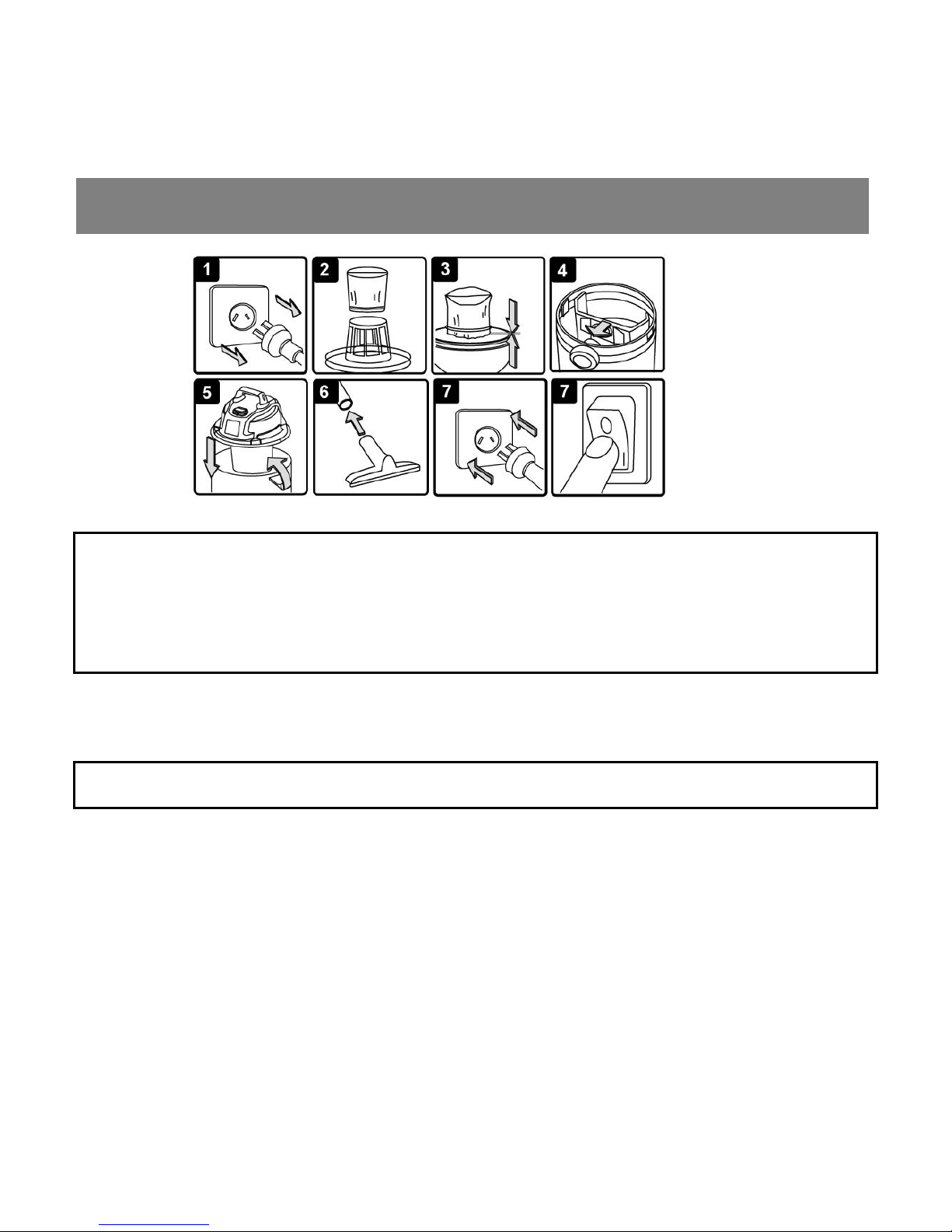

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. In order to prepare your vacuum for dry vacuuming, make sure the filter is completely covering the filter

cage against the power head. (fig.2 & 3) (Your Wet/Dry Vac comes with the reusable cloth filter pre- installed, if not, see page 10 for installation instructions.)

3. Optional, for improved dust filtering, fit collection bag onto the tank. Fit the flange onto the inlet stub,

taking care not to damage the bag. (fig.4)

4. Place the power head back on the container, and secure it in place using the latches. (fig.5)

OPERATING INSTRUCTIONS: DRY VACUUMING

5. Insert the locking end of the hose into the vacuum port and screw in place. Push the required attachment

onto the free end of the hose or extension. (fig.6)

6. Plug in the power cord into the outlet. (fig.7)

7. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig.8)

8. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord

from the outlet.

: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS

Page 8

O = OFF I = ON

WET

VACUUM OPERATION

DO NOT USE THE CLOTH FILTER FOR LIQUID VACUUMING DO NOT USE COLLECTION BAG FOR LIQUID VACUUMING

LIQUID VACUUMING

WARNING:

WARNING

DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS.

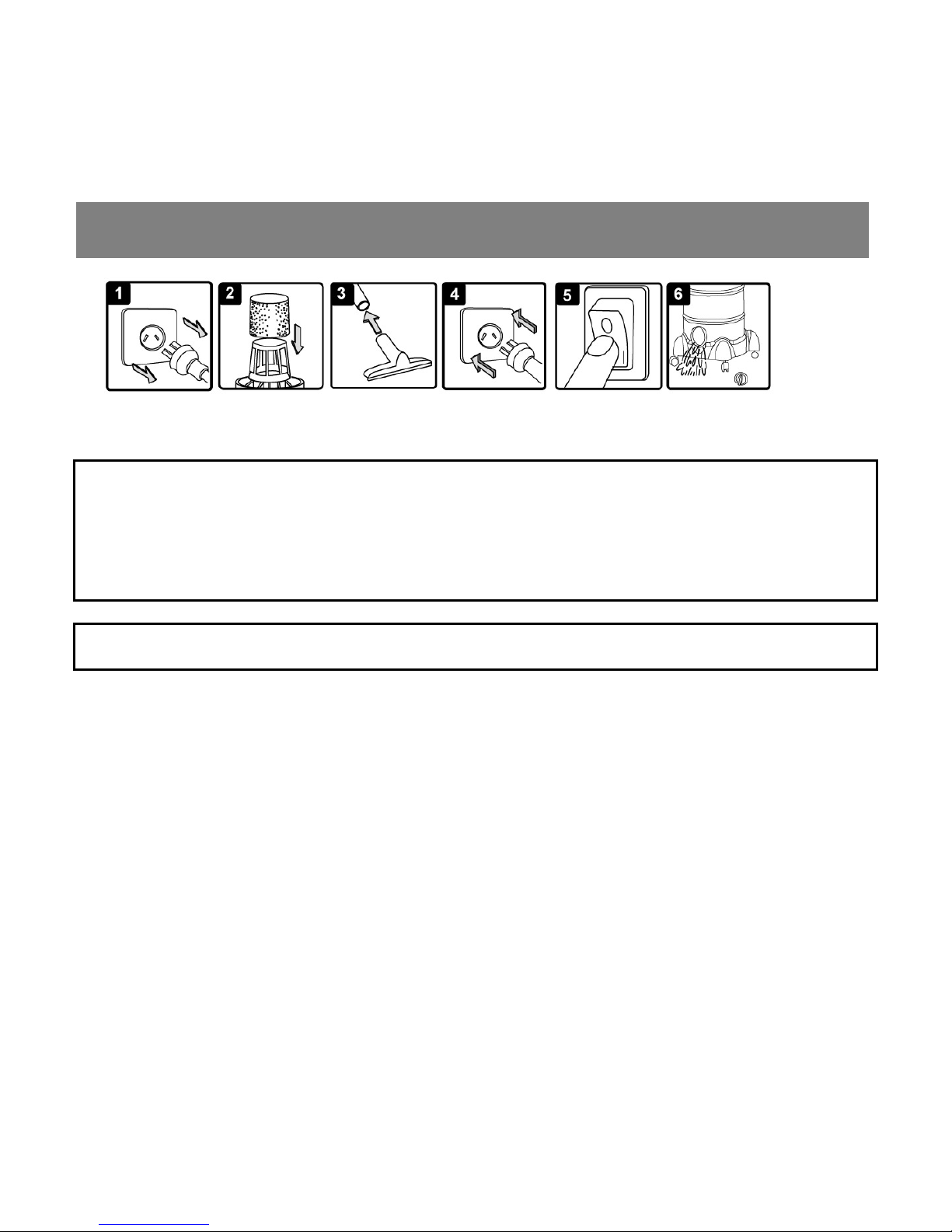

1. Verify that the power cord is disconnected from the outlet. (fig.1) Make sure that the container is clean

and free from dust and dirt.

2. Remove cloth filter and collection bag, then carefully install the foam sleeve filter over the filter cage and

place the power head back on the container. (fig.2) See filter installing instructions on page 11.

DO NOT USE THE CLOTH FILTER FOR LIQUID VACUUMING. DO NOT USE COLLECTION BAG FOR LIQUID VACUUMING

OPERATING INSTRUCTIONS – WET VACUUMING

3. Fit the desired nozzle to the vacuum hose. (fig.3)

4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig.4)

5. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig.5)

6. After use, empty the container by unscrewing the drain cap and drain liquids into suitable receptacle or

drain. (fig.6) Remember to refit the drain cap to the container after draining container.

IMPORTANT!

liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the container reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the inside and outside before storage.

BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS

When vacuuming large quantities of liquids, do not immerse the nozzle completely in the

Page 9

REMEMBER!

MAINTENANCE

BLOWING

OPERATION

before dry vacuuming again.

This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed.

WARNING:

The foam filter must be removed after wet vacuuming, and a cloth filter must be installed

ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH AUSTRALIAN STANDARDS

KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

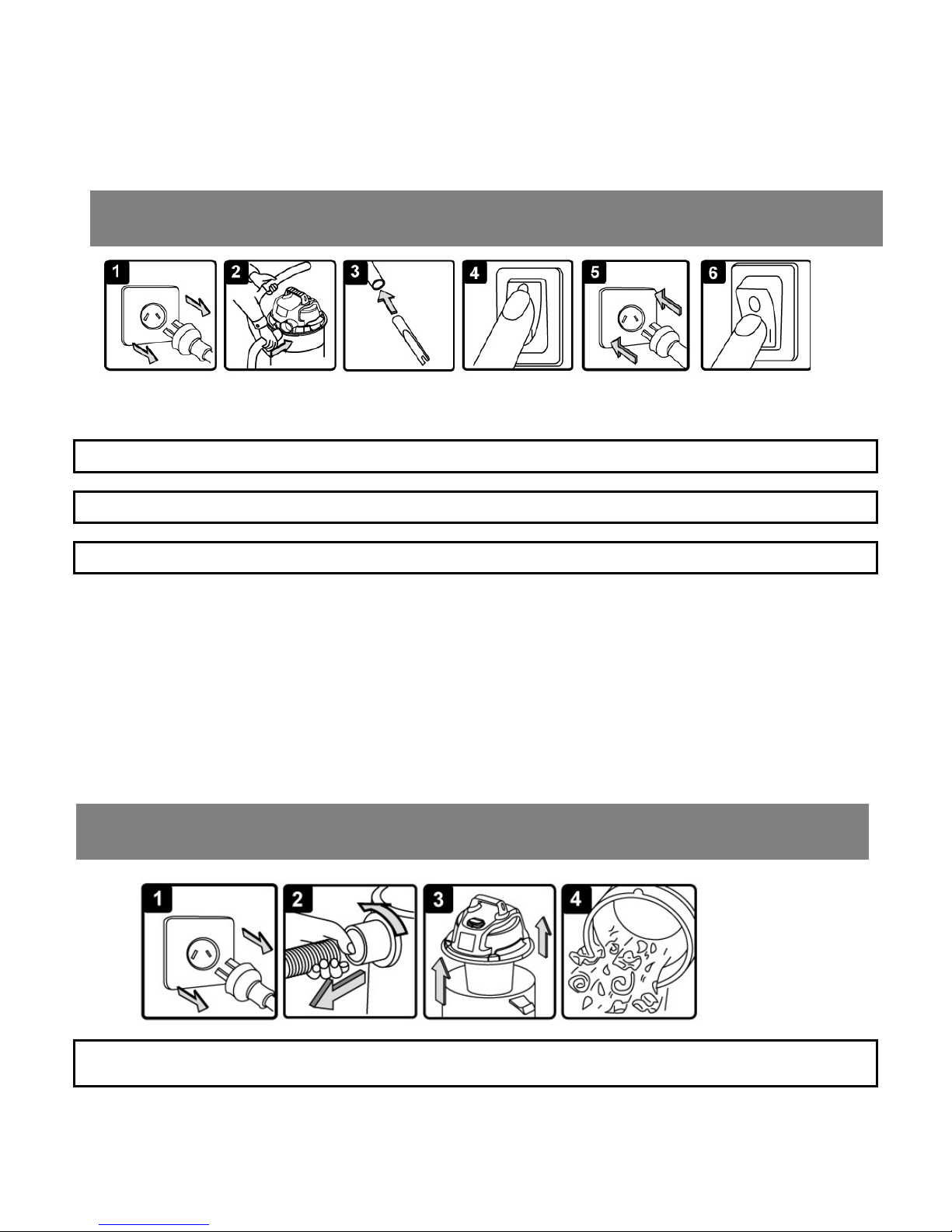

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Make sure the container is empty before using as a blower.

3. Remove hose from the vacuum port.

4. Insert the large end of the hose into the blowing port on the back side of the power head and screw into position. (fig.2)

5. Fit the desired extension wand and / or nozzle to the vacuum hose. (fig. 3)

6. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig.4, fig.5)

7. Before turning on the vac, firmly hold loose end of the hose. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig.6)

WARNING

DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS.

1. Verify that the power cord is disconnected from the outlet. (fig.1)

: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS

Page 10

2. Disconnect the hose from the vacuum, turning large end in counter clockwise direction. (fig.2)

INSTALLING

& CLEANING REUSABLE CLOTH FILTER

3. Undo the latches and remove the power head from the container. (fig.3)

4. Clear all dirt or debris from the container and hose. (fig.4)

5. Check the hose, attachments, and power cord to verify that they have not been damaged.

IMPORTANT!

FILTER FOR DRY VACUUMING. If the machine is used with out the cloth filter, the motor will burn out and

the warranty will be voided. Always keep spare filters on-hand.

NOTICE!

cloth filter should be used for dry pick-up only. A dry cloth filter is necessary to pick up dust. If the cloth filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes, a small hole can let dust pass through and out of the cleaner. Do not use a filter with holes or tears, replace it immediately.

WARNING!

THE POWER HEAD FROM CONTAINER.

Clean or change the cloth filter regularly for best performance. ALWAYS USE CLOTH

The filters included are made of high quality materials designed to stop small dust particles. The

ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING

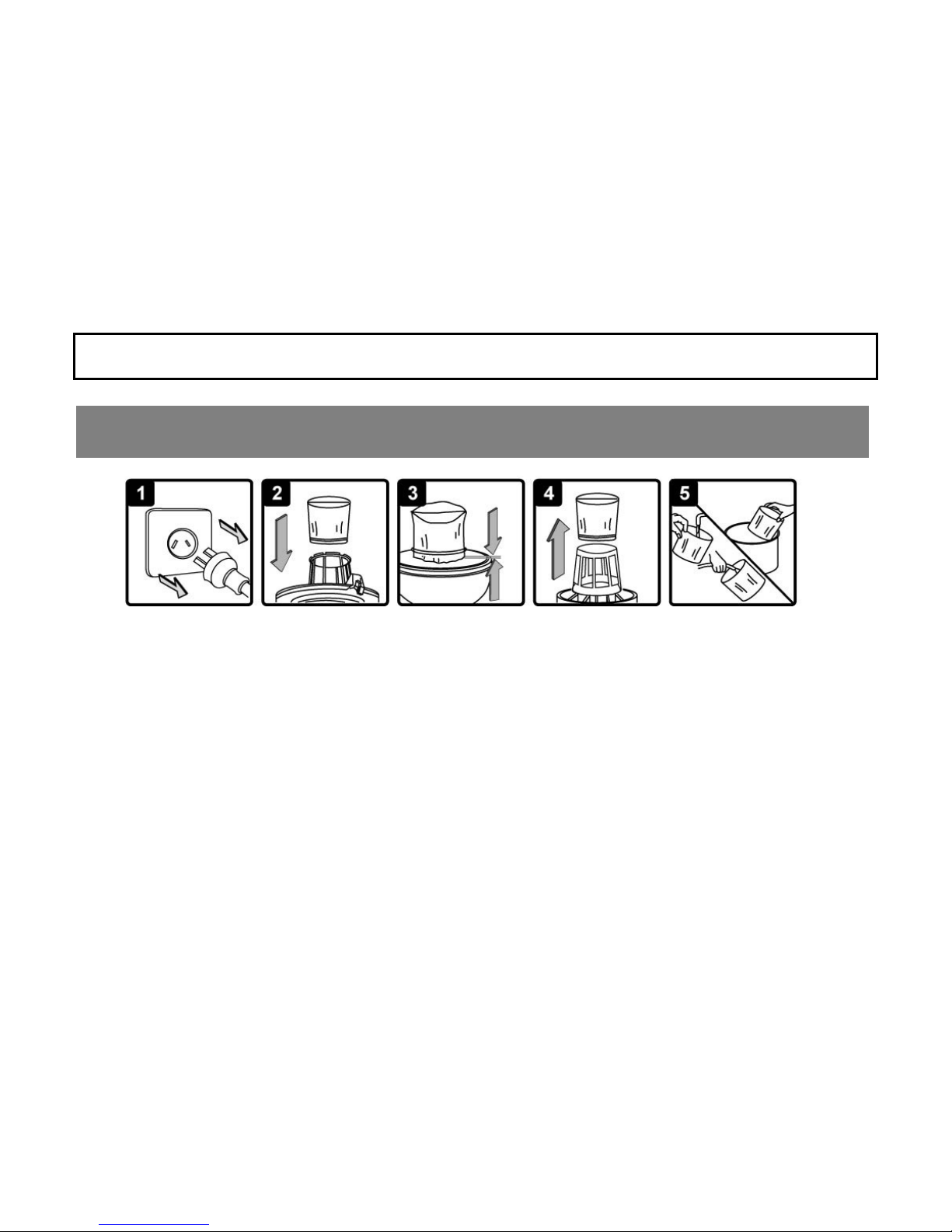

Installing Reusable Cloth Filter

1. Verify that the power cord is disconnected from the outlet (fig.1)

2. Remove power head and place in upside down position.

3. Slide reusable cloth filter down over the filter cage making sure the whole cage is covered. (ﬁg.2 & 3)

4. Replace the power head on to the container.

Removing and Cleaning Reusable Cloth Filter

1. With the removed power head in the upside down position.

2. Carefully remove the reusable cloth filter from the filter cage. (fig. 4) Clean the filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas.

3. Use a mild soap and water solution to wash reusable cloth filter and rinse with clean water. (fig. 5)

4. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

Page 11

TROUBLESHOOTING

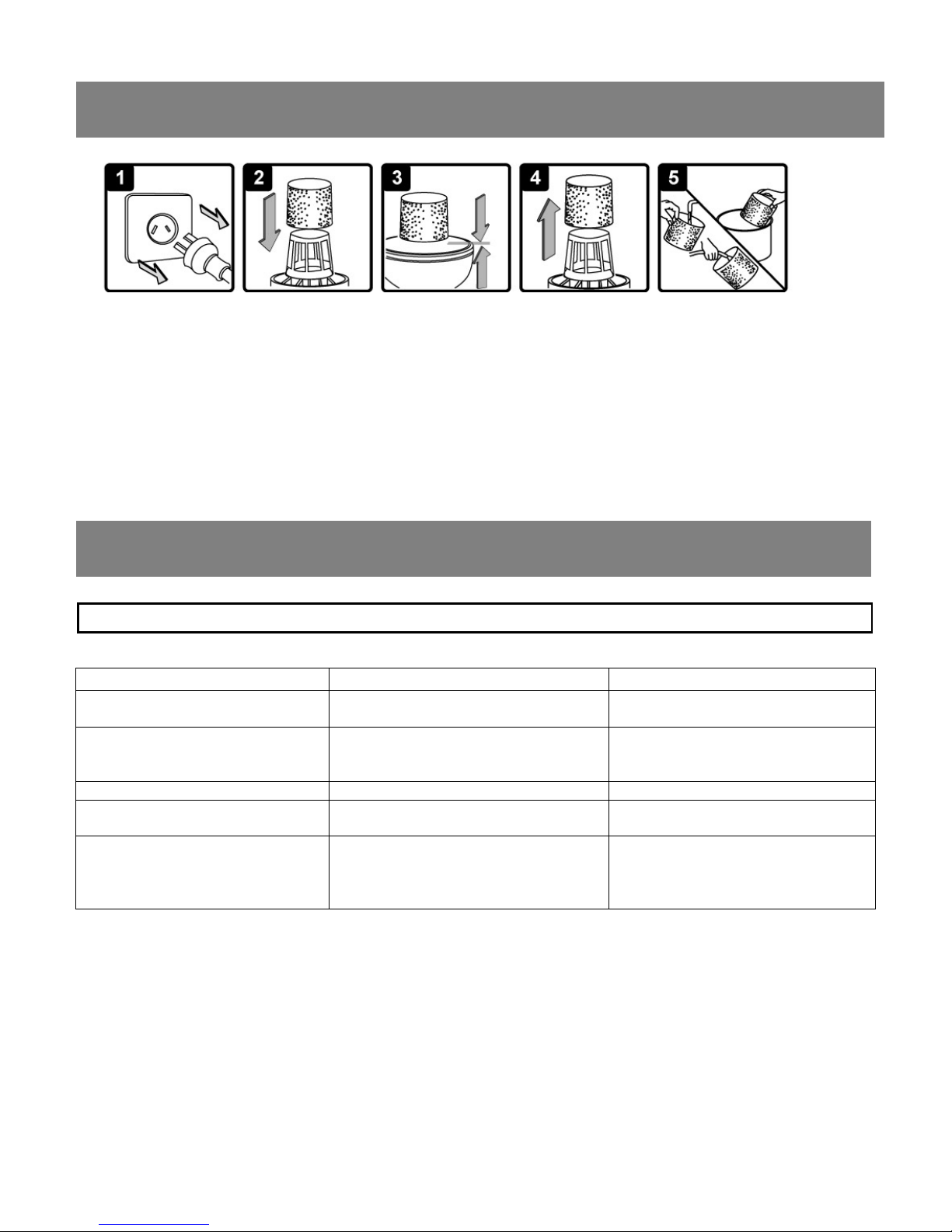

INSTALLING & CLEANING FOAM SLEEVE FILTER

Installing Foam Sleeve Filter

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Remove power head and place in upside down position. Follow instructions to remove cloth filter.

3. Carefully slide foam sleeve filter down over the filter cage making sure the whole cage is covered. (ﬁg.2 & 3)

4. Replace the power head on to the container.

Cleaning Foam Sleeve Filter

1. With the removed power head in the upside down position, carefully remove foam sleeve filter. (fig.4)

2. Use a mild soap and water solution to wash foam sleeve filter and rinse with clean water. (fig.5)

3. Allow filter to air dry before installing and using again.

WARNING!

TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE TROUBLESHOOTING

Symptom Possible Causes Corrective Action

Vacuum will not operate 1) No power supply. 1) Check power supply – cord,

breakers, fuses.

2) Faulty power cord. 2) Unplug and check the power cord. If damaged, have it repaired by a professional.

3) Container full. 3) Empty container.

Dust comes from motor cover. 1) The reusable cloth filter is missing

or damaged. Reduced efficiency and motor/speed vibration.

1) There is a blockage in the nozzle,

hose, or the vacuum inlets. Or the

dust filter is blocked by fine dust.

1) Attach or replace the reusable cloth filter.

1) Check nozzle, hose and container inlets for blockage. Take off the filter and clean it. Or install new filter.

Page 12

PARTS LIST

- EXPLODED VIEW

Page 13
