UTStarcom CDM8630 User Manual

Download

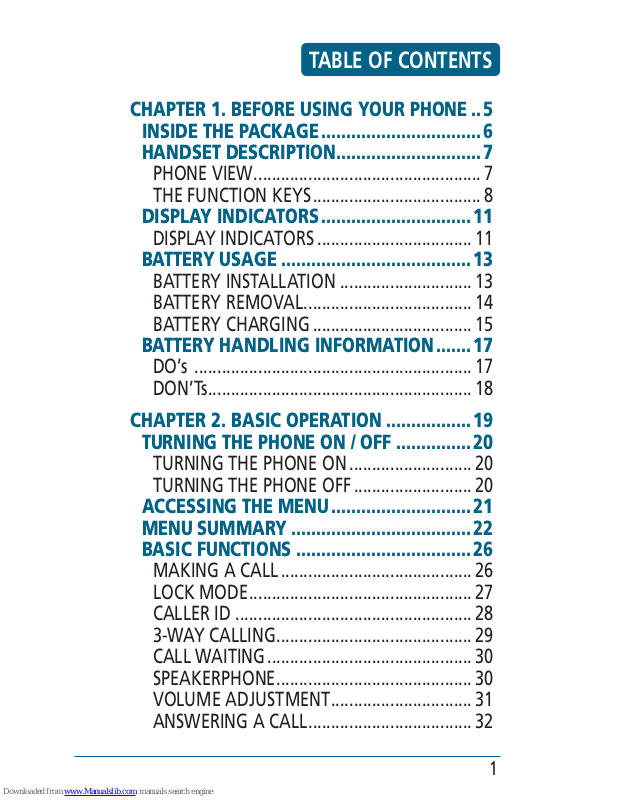

TABLE OF CONTENTS
1
CHAPTER 1. BEFORE USING YOUR PHONE .. 5
INSIDE THE PACKAGE ................................6
HANDSET DESCRIPTION .............................7
PHONE VIEW .................................................. 7
THE FUNCTION KEYS ..................................... 8
DISPLAY INDICATORS ..............................11
DISPLAY INDICATORS .................................. 11
BATTERY USAGE ...................................... 13
BATTERY INSTALLATION ............................. 13
BATTERY CHARGING ................................... 15
BATTERY HANDLING INFORMATION ....... 17
DO’s ............................................................. 17
DON’Ts .......................................................... 18
CHAPTER 2. BASIC OPERATION .................19
TURNING THE PHONE ON / OFF ...............20
TURNING THE PHONE ON ........................... 20
TURNING THE PHONE OFF .......................... 20
ACCESSING THE MENU ............................21
MENU SUMMARY ....................................22
BASIC FUNCTIONS ...................................26
MAKING A CALL .......................................... 26
LOCK MODE ................................................. 27
CALLER ID .................................................... 28
3-WAY CALLING ........................................... 29
CALL WAITING ............................................. 30
SPEAKERPHONE ........................................... 30
VOLUME ADJUSTMENT ............................... 31
ANSWERING A CALL .................................... 32
WAIT/2-SEC PAUSE ...................................... 33
DURING A CALL ....................................... 34
MUTE (UNMUTE) ......................................... 34
AVAILABLE OPTIONS DURING A CALL ....... 34
MAKING AN EMERGENCY CALL .............36
911 USING ANY AVAILABLE SYSTEM ........ 36
CHAPTER 3. MEMORY FUNCTIONS ............37
STORING A PHONE NUMBER ...................38
ENTERING LETTERS, NUMBERS &
SYMBOLS ................................................. 40
STANDARD INPUT MODE ............................ 42
WORD INPUT MODE ................................... 44
NUMERIC MODE .......................................... 46
SYMBOL MODE ........................................... 47
CHAPTER 4. MENU FUNCTIONS .................49
MESSAGING .............................................50
WHEN A NEW MESSAGE ARRIVES .............. 50
VOICEMAIL .................................................. 50
SEND TEXT MESSAGE .................................. 51
INBOX ........................................................... 54
DRAFTS ......................................................... 58
SENT ............................................................. 60
SETTINGS ...................................................... 65
CONTACTS ................................................75
CONTACT LIST .............................................. 75
NEW CONTACT ............................................ 78
EDIT CONTACT ............................................. 79
ERASE CONTACT .......................................... 80
SPEED DIALS ................................................ 80
TABLE OF CONTENTS TABLE OF CONTENTS
2 3
PRIMARY CONTACTS. .................................. 84
MY NAME & NUMBER ................................. 86
RECENT CALLS .........................................88
MISSED CALLS .............................................. 88
DIALED CALLS .............................................. 90
ANSWERED CALLS ....................................... 92
ALL CALLS .................................................... 94
CALL TIMERS ................................................ 96
TOOLS .......................................................97
CALENDAR ................................................... 97
ALARM ....................................................... 104
WORLD CLOCK .......................................... 106
NOTEPAD ................................................... 107
STOP WATCH ............................................. 109
CALCULATOR ............................................. 111
TIP CALCULATOR ....................................... 113
SETTINGS ...............................................114
SOUNDS SETTINGS ..................................... 114
DISPLAY SETTINGS ..................................... 124
PHONE SETTINGS ....................................... 130
PHONE INFO ........................................... 140
MY NUMBER .............................................. 140
PHONE STATUS .......................................... 140
ICON LIST ................................................... 141
SW/HW VERSION ....................................... 142
VOICE TOOLS .........................................143
AVR (ADVANCED VOICE RECOGNITION) .. 143
CONTACT NAME ........................................ 144
REDIAL ....................................................... 145
VOICEMAIL ................................................ 146
CHAPTER 1
BEFORE
USING
YOUR PHONE
This chapter provides important information about using the CDM8630 including:
INSIDE THE PACKAGE HANDSET DESCRIPTION DISPLAY INDICATORS BATTERY USAGE BATTERY HANDLING
INFORMATION
CHAPTER 1 BEFORE USING YOUR PHONE
TABLE OF CONTENTS
4
TABLE OF CONTENTS
SPEAKERPHONE ......................................... 146
SETTINGS .................................................... 147
CHAPTER 5. SAFETY AND WARRANTY .... 151
SAFETY INFORMATION FOR WIRELESS
HANDHELD PHONES ...............................
152 SAFETY INFORMATION FOR FCC RF
EXPOSURE .............................................. 165
SAR INFORMATION ................................ 167
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS
DEVICES ................................................. 171
FDA CONSUMER UPDATE ...................... 175
12 MONTH LIMITED WARRANTY ........... 193
This package should include all items pictured below. If any are missing or different, immediately contact the retailer where you purchased the cellular telephone.
Handset
Travel AC/DC Adaptor
Standard Battery
User Guide
The actual phone may be different from the picture.
The CDM8630 weighs 3.3 ounces and measures 3.8” X 1.8” X 2.0”.
H
PHONE VIEW
AVR Key
Charger Jack
Headset Jack
Volume Key
Sub LCD
Phone
Speaker
BEFORE USING
INSIDE THE PACKAGE HANDSET
DESCRIPTION
BEFORE USING
6 7
Intenna
H
THE FUNCTION KEYS
Display Indicators
Text & Graphic Area
Soft Key Indicators
Navigation
Key
Right Soft Key
END Key
SEND Key
Vibrate Key
Lock Key
CLR Key
Side Volume
Key
Left Soft Key
OK Key
AVR Key
Primary Hot Key
Speakerphone
Key
: Press to access Message Menu or
function displayed on bottom line.
: Press to access the Main Menu or the function displayed on the bottom line.
: In Idle mode, press right/left/up/ down to access short cut keys. Within a menu, use to scroll through menu options, or to select a function displayed on the screen.
Display Indicators: See page 11 for a list of icons.
Text & Graphic Area: Displays messages and indicator icons.
Soft Key Indicators: Shows the functions currently assigned to each soft key and displays some icons.
Speakerphone Key: Press to turn speakerphone On or Off.
BEFORE USING
HANDSET DESCRIPTION
HANDSET
DESCRIPTION
BEFORE USING
8 9
H
DISPLAY INDICATORS
New Message
New text message.
No Service
Phone cannot receive a signal from the system.
Signal Strength
Current signal strength: the more lines, the stronger the signal. (1X Mode/Digital Mode)
Roaming
Phone is out of home area.
TTY
Indicates your phone is active in TTY mode.
Battery
Battery charging level – the more blocks, the stronger the charge.
: Press to turn the phone on/off, to terminate a call or to return the phone to idle mode.
: Press to make or receive a call. In idle mode, press to view the Recent Calls List.
: Press to clear a digit from the display or to return to the previous page.
: Press and hold to enter lock mode.
Readout
This indicator is displayed only when a prompt appears in the AVR mode.
: Press and hold to enter Vib Mode.
: Press to adjust volume.
: Press to access the main menu.
AVR Key: Press and hold to enable VoiceSignal
TM
.
Primary Hot Key: Press and hold to call a Primary phone number.
BEFORE USING
HANDSET DESCRIPTION
DISPLAY INDICATORS
BEFORE USING
10 11
12 13
Voice Msg
Indicates you have voice message.
Missed Call
Indicates you have missed calls.
Voicemail
Indicates you have a voicemail message.
Silence All
Ringer volume is set to off.
Vibrate Only
Phone will vibrate when call is received.
Calendar Event
Event Alarm is active.
Speakerphone
Indicates phone is in speakerphone mode.
Alarm Set
Appears when an alarm is set.
BEFORE USING
DISPLAY INDICATORS
H
BATTERY INSTALLATION
Place the battery on the back of
the phone so the metal contacts match up on the battery and in the battery cavity.
Push the battery down into the
battery cavity until it locks into place.
Place the battery cover over the
battery and slide up into place.
Listening
Indicates AVR listening.
BATTERY USAGE
BEFORE USING
BEFORE USING
BATTERY USAGE BATTERY USAGE
BEFORE USING
14 15
H
BATTERY CHARGING
Plug the Travel AC/DC Adaptor
into a standard outlet.
Plug the other end of the Travel
AC/DC Adaptor into the charger jack located on the lower right side of your phone. The battery must be installed onto the phone.
If the battery is not correctly placed in the compartment, the handset will not turn on and/or the battery may detach during use.
H
BATTERY REMOVAL
Push down the release latch
button, then slide the battery cover off the phone.
Lift the battery up and out of the
battery cavity.
•
When you charge the battery with the phone power off, you will see a charging status screen. You cannot operate the phone until it is powered on.
•
The battery is not charged at the time of purchase.
•
Fully charge the battery before use.
•
It is more efficient to charge the battery with the handset powered off.
•
The battery must be installed in the phone in order to charge it.
•
Battery operating time gradually decreases over time.
•
If the battery fails to perform normally, you may need to replace the battery.
BEFORE USING
BATTERY USAGE BATTERY HANDLING
INFORMATION
BEFORE USING
16 17
H
DO’s
•
Only use the approved battery and charger for the CDM8630.
•
Only use the battery for its original purpose.
•
Try to keep batteries in a temperature between 41ºF (5ºC) and 95ºF (35ºC).
•
If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using.
•
Store the discharged battery in a cool, dark and dry place.
•
Purchase a new battery when the operating time of the current battery has decreased gradually over time.
•
Properly dispose of the battery according to local laws.
CHAPTER 2
BASIC
OPERATION
This chapter addresses and explains the basic features of your cellular telephone including:
TURNING THE PHONE ON / OFF ACCESSING THE MENU MENU SUMMARY BASIC FUNCTIONS DURING A CALL MAKING AN EMERGENCY CALL
CHAPTER 2 BASIC OPERATION
18
BEFORE USING
BATTERY HANDLING INFORMATION
H
DON’Ts
•
Don’t attempt to disassemble the battery – it is a sealed unit with no serviceable parts.
•
Don’t accidentally short circuit the battery by carrying it in your pocket or purse with other metallic objects such as coins, clips and pens. This may critically damage the battery.
•
Don’t leave the battery in extremely hot or cold temperatures. Otherwise, it could significantly reduce the capacity and lifetime of the battery.
•
Don’t dispose of the battery by placing into a fire.
H
TURNING THE PHONE ON
Press until your Power On
logo appears on your internal display and the tone sounds.
H
TURNING THE PHONE OFF
Press and hold until your
Power Off logo appears on the internal display.
•
Immediately change or recharge
the battery when “
Battery Low!! Phone Is Turning Off!” appears on the display.
•
Turn the phone off before removing or replacing the battery. If the phone is on, unsaved data may be lost.
To access the menu, press the Left
Soft Key
[MENU] or .
Press the Navigation Key
right, left, up or down to scroll through the menu.
To return to the previous page,
press . To exit the current menu and return to idle mode, press
.
Press to enter a function
when its main page is displayed or press its assigned number to have direct access to the function.
Your phone can be customized via the menu. Each function can be accessed by pressing the Navigation Key
up, down, left or right. Or you can press the number that corresponds with the menu item.
BASIC OPERATION
TURNING THE PHONE ON / OFF
ACCESSING THE
MENU
BASIC OPERATION
20 21
BASIC OPERATION
MENU SUMMARY MENU SUMMARY
BASIC OPERATION
22 23
MAIN MENU
1. Messaging
2. Contacts
2ND DEPTH
1. Voicemail
2. Send Text Message
3. Inbox
4. Drafts
5. Sent
6. Settings
1. Contact List
2. New Contact
3. Edit Contact
4. Erase Contact
5. Speed Dials
6. Primary Contacts
7. My Name & Number
3RD DEPTH
1. Voicemail Alert
2. Text Alert
3. My Phrase
4. Signature
5. Entry Mode
6. Auto Erase
4TH DEPTH
1. Alert Tone
2. Reminder
1. Alert Tone
2. Reminder
MAIN MENU
3. Recent Calls
4. Tools
5. Settings
2
ND
DEPTH
1. Missed Calls
2. Dialed Calls
3. Answered Calls
4. All Calls
5. Call Timers
1. Calendar
2. Alarm
3. World Clock
4. Notepad
5. Stop Watch
6. Calculator
7. Tip Calculator
1. Sounds Settings
3RD DEPTH
1. Ringtone
2. Volume
3. Vibrate Mode
4. Keypad Volume
5. Voice Commands
4TH DEPTH
1. Menu Readout
2. Digit Dial Readout
BASIC OPERATION
MENU SUMMARY MENU SUMMARY
BASIC OPERATION
24 25
MAIN MENU
6. Phone Info
2ND DEPTH
1. My Number
2. Phone Status
3. Icon List
4. SW/HW Version
3RD DEPTH
2. Language
3. Answer Call Options
4. Standalone Mode
5. Speed Dial Call
6. TTY
7. DTMF
8. Restrictive Dialing
9. Lock Codes
4TH DEPTH
4. Right Direction
1. Incoming Calls
2. Outgoing Calls
1. Edit Codes
2. Phone Lock Settings
MAIN MENU 2
ND
DEPTH
2. Display Settings
3. Phone Settings
3RD DEPTH
6. Voicemail Alert Tone
7. TXT Alert Tone
8. Advanced
1. Wallpaper
2. Display Themes
3. Banner
4. Clock Format
5. Dial Font
6. Backlight
1. Shortcut Keys
4TH DEPTH
3. Launch Keys
1. Attach Accessory
2. Power On/Off
3. Roam Tone
4. Minute Beep
5. Call Disconnect
1. Personal
2. Network
1. Up Direction
2. Down Direction
3. Left Direction
H
LOCK MODE
Locks your phone and prevents unauthorized use. Phone can only be used after inputting the password.
To lock the phone, press and hold
.
To unlock the phone, press
or Right Soft Key
[UNLOCK] then input the password. The default password is the last four digits of your phone number.
BASIC OPERATION
BASIC FUNCTIONS BASIC FUNCTIONS
BASIC OPERATION
26 27
H
MAKING A CALL
Enter a phone number.
To modify the phone number you have entered:
•
Erase one digit at a time by pressing .
•
Erase the entire number by pressing and holding
.
Press .
•
If “CALL FAILED” appears on the display or the line is busy, press .
•
When you place or receive a call from a phone number stored in your contact list with a contact name, the name and number will be displayed.
To end a call, press .
BASIC OPERATION
BASIC FUNCTIONS BASIC FUNCTIONS
BASIC OPERATION
28 29
H
3-WAY CALLING
With 3-Way Calling, you can talk to two people at the same time. When you make a 3-Way Call, you will be charged the normal airtime rates for both calls.
Enter the phone number you wish
to call and press
.
When the person you called
answers, enter the second number you wish to call and press
.
When the second person you
called answers, press
again
and all 3 of you can begin talking.
If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you initiated the call and are the first to hang up, all three callers are disconnected.
H
CALLER ID
Identifies the person calling you by displaying their phone number. If the caller’s name and number are already stored in your phone book, only their name appears.
The caller ID information is stored in Recent Calls.
•
Internal LCD: Name and number will appear on the display.
•
External LCD: Name will appear on the display.
BASIC OPERATION
BASIC FUNCTIONS BASIC FUNCTIONS
BASIC OPERATION
30 31
H
VOLUME ADJUSTMENT
To adjust the volume:
When your phone is not in
any menu or performing any functions, press the Side Volume Key up or down. Or, press Left Soft Key
[MENU]
Settings
,
Sounds Settings
,
Volume
.
Select one of the following
options, then press
to save it.
Press the Side Volume Key up or down to adjust Earpiece volume during a call.
•
Silence All
•
Vibrate Mode
•
1 Beep / Low / Medium / Med-High / High
H
CALL WAITING
Notifies you of an incoming call when you are already on a call by sounding a beep tone and displaying the caller’s phone number.
To answer another call while on the phone, press
. This places the first call on hold. To switch back to the first caller, press
again.
H
SPEAKERPHONE
The speakerphone feature lets you hear audio through the speaker and talk without holding the phone.
To activate the Speakerphone in
idle mode or while on a call, press
.
The phone returns to normal
(Speakerphone Off) after
ending a call or when the phone is turned off and back on.
BASIC OPERATION
BASIC FUNCTIONS BASIC FUNCTIONS
BASIC OPERATION
32 33
H
WAIT/2-SEC PAUSE
Pauses are used for automated systems (i.e., voicemail, calling cards). Insert a pause after a phone number then enter another group of numbers. The second set of numbers is dialed automatically after the pause. This feature is useful for dialing into systems that require a code.
To insert a pause, enter a phone
number then press Right Soft Key
[OPTIONS]. Select either a Add 2-Sec Pause (“P” appears) or a Add Wait (“W” appears).
Press to dial or Left Soft Key
[SAVE] to store the number in your contacts.
Please refer to page 38 for more details about storing a phone number.
H
ANSWERING A CALL
When your phone rings or
vibrates, press
to answer the incoming call. (Depending on your phone’s settings, you may also answer incoming calls by opening the phone or by pressing any key.)
•
To ignore incoming calls, press Right Soft
Key [IGNORE].
•
To silence the ringer, press Left Soft Key [SILENCE] or press the Side Volume Key
up or down.
To end the call, press .
RECENT CALLS
Enables you to review the Recent Calls List while on a call.
To view your Recent Calls List during a call, press Right Soft Key [OPTIONS],
Recent Calls
.
PHONE INFO
Enables you to view your phone’s information while on a call.
To view phone information during a call, press Right Soft Key [OPTIONS],
Phone Info
.
MAIN MENU
Enables access the phone's main menu while on a call.
To access the Main Menu during a call, press Right Soft Key [OPTIONS],
Main Menu
.
BASIC OPERATION
DURING A CALL DURING A CALL
BASIC OPERATION
34 35
H
MUTE (UNMUTE)
When you mute a call, the caller cannot hear you or any sounds from your side but you can still hear them.
To turn on the Mute function during a call, press Left Soft Key
[MUTE].
H �
AVAILABLE OPTIONS DURING A CALL
To display menu options during a call, press Right Soft Key [OPTIONS].
CONTACT LIST
Enables you to review your contacts list while on a call.
To access your contacts List during a call, press Right Soft Key [OPTIONS],
Contact List
.
•
To deactivate, press Left Soft Key
[UNMUTE].
•
The phone will automatically unmute in Emergency Call or Callback mode.
CHAPTER 3
MEMORY
FUNCTIONS
This chapter addresses memory functions including:
STORING A PHONE NUMBER ENTERING LETTERS, NUMBERS &
SYMBOLS MAKING A CALL FROM THE PHONE
BOOK
CHAPTER 3 MEMORY FUNCTIONS
36
BASIC OPERATION
MAKING AN EMERGENCY CALL
The 911 feature puts the phone in the Emergency Call Mode when you dial the emergency number, 911
.
H �
911 USING ANY AVAILABLE SYSTEM
Enter “911” and then press .
The call connects.
The phone maintains Emergency
Mode for 5 minutes.
The 911 call does not appear in the Recent Call List.
While the phone is in Emergency Mode for 5 minutes, the phone can receive an incoming call from any available system.
The phone book stores up to 500 entries.
Enter the phone number then
press Left Soft Key
[SAVE]. Choose “New Contact” or “Update Existing” then press to select.
If “New Contact” is selected,
press the Navigation Key up or down to choose the type of number you’re adding, as indicated by the Number Type. Press to select.
Enter a name. Please refer to page
40 for more details on entering letters, numbers & symbols. To change the input mode, press Right Soft Key
[Abc].
Press the Navigation Key down
to select other options (Mobile 1,
Mobile 2, Home ....).
If you entered a phone number,
press Right Soft Key
[OPTIONS] to select one of the following options:
To store the entry, press Left Soft
Key [SAVE]. “Contact Saved” will be displayed.
If “Update Existing” is selected,
your Contact List is displayed. Choose the entry to add the phone number to, then press
Left
Soft Key
[SELECT]. Press the
Navigation Key
up or down to choose the type of number you’re adding, as indicated by the Number Type. Press to select. ”Contact Updated” will be displayed.
•
Add 2-Sec Pause
•
Add Wait
MEMORY FUNCTIONS
STORING A PHONE NUMBER
STORING A PHONE
NUMBER
BASIC OPERATION
38 39
The input mode (Alpha editor) will automatically be activated when necessary to enter letters and numbers. There are 5 available modes: Standard input mode (Abc) and Standard all capitals (ABC), Numeric mode (123), T9Word input mode (Word), and Symbol mode (Symbols).
The input mode indicator appears on the upper right of the display when letters and numbers are entered. To select the desired input mode among the 5 modes below, press Right Soft Key [Abc], then enter letters and numbers.
The following illustrates the function assigned to each key in the A
lpha
Editor.
Abc - Press to change mode.
[Abc][ABC][123][Word][Symbols]
OK - Confirm the letters and
numbers you entered.
Clear - Press to delete a charac-
ter to the left of the cursor.
KEY FUNCTION
Space - Press to accept a word
and add a space.
Caps Lock - Press to select a
letter case of the standard text input or T9 text input mode. [Abc], [ABC] and [abc] indicate the standard text input. [Word], [WORD] and [word] indicate the predictive text input. Press and hold to change mode.
Next - Press to view the next
matching word if the highlight
­ed word is not the word you intended in Word input mode.
MEMORY FUNCTIONS
ENTERING LETTERS, NUMBERS & SYMBOLS
ENTERING LETTERS,
NUMBERS & SYMBOLS
BASIC OPERATION
40 41
H
STANDARD INPUT MODE
Use the number keys to enter letters, numbers and characters.
Enter letters using the key pad as
follows:
To change the input mode, press Right Soft Key
[OPTIONS], then
Entry Mode
. To enter special character such as . @ , 1 - ? & : _ ( ) !, press repeatedly.
Press
1 Time
Press
2 times
Press
3 times
Press
4 times
Press
5 times
Key Pad
A
D
G
J
M
B
E
H
K
N
C
F
I
L
O
2
3
4
5
6
A
D
G
J
M
P
T
W
Q
U
X
R
V
Y
S
8
Z
7
T
9
To enter a space, press . The
cursor will automatically move to the next space.
Repeat until letters are entered.
To delete one digit, press .
If you press and hold
, it will
delete characters up to last space.
To change from lowercase to
uppercase, press .
FOR EXAMPLE:
Select Abc mode by pressing Right Soft Key
[OPTIONS], then
Entry Mode.
When you select this mode, the Abc icon appears as a visual confirmation.
•
Find the key that corresponds to the letter you want to enter.
•
Press it as many times as needed for the letter to appear on the screen.
MEMORY FUNCTIONS
ENTERING LETTERS, NUMBERS & SYMBOLS
ENTERING LETTERS,
NUMBERS & SYMBOLS
BASIC OPERATION
42 43
•
To enter the name “John”:
Press [
] J
Press [
, , ] o
Press [
, ] h
Press [
, ] n
H
WORD INPUT MODE
The Word input mode incorporates a built-in-dictionary to determine a word based on the entered characters. A word can be entered more quickly by pressing a key once per character.
Create a new text message. See
instructions on page 51.
Select the Word mode by pressing
Right Soft Key
[OPTIONS],
Entry Mode
,
Word
.
Press a digit key once to enter the
character you want then enter all the characters to input the word you want.
To view the next matching word,
press .
To accept the matching word and
enter a space, p
ress .
To enter a compound word:
•
Enter the first part of the word and then press the Navigation Key
right to accept it.
•
Enter the last part of the word and then press to enter the word.
FOR EXAMPLE:
To enter “Hello Bill” in Word input mode:
When you select this mode, the Word icon appears as a visual confirmation.
MEMORY FUNCTIONS
ENTERING LETTERS, NUMBERS & SYMBOLS
ENTERING LETTERS,
NUMBERS & SYMBOLS
BASIC OPERATION
44 45
H
SYMBOL MODE
Allows you to enter symbols.
Select Symbol mode by pressing
Right Soft Key
[OPTIONS],
Entry Mode
,
Symbols
.
To display more symbols, press the
Navigation Key
up or down. To input a symbol, press the number that appears next to the symbol, and the text will appear in the input screen. Press
.
•
After you enter the 1st letter, press Right Soft Key
[Options], then
Entry Mode to select input
mode and
to choose the
lower case (Word).
•
Press , , , ,
and you will see “Hello”
highlighted. Press
to select
it.
•
Press , , , and you will see
“Bill” highlighted.
H
NUMERIC MODE
Allows you to enter numbers.
Select Numeric mode by pressing
Right Soft Key
[OPTIONS],
Entry Mode
,
123
.
To enter a number, press its
corresponding digit key.
To insert a number while in “Word“ or “Abc“ mode, press and hold the desired number key.
MEMORY FUNCTIONS
ENTERING LETTERS, NUMBERS & SYMBOLS
ENTERING LETTERS,
NUMBERS & SYMBOLS
BASIC OPERATION
46 47
CHAPTER 4
MENU
FUNCTIONS
This chapter addresses accessing the menu and using its functions and features to customize your phone.
MESSAGING CONTACTS RECENT CALLS TOOLS SETTINGS PHONE INFO VOICE TOOLS
CHAPTER 4 MENU FUNCTIONS
48
MEMO
50 51
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
H �
WHEN A NEW MESSAGE ARRIVES
A display appears when a new
message arrives.
To display the message, press
[VIEW].
H
VOICEMAIL
TO ACCESS YOUR VOICEMAIL BOX
Press Left Soft Key [MENU],
Messaging
,
Voicemail
,
then press
. Or press
[OK], then select “Yes“.
In idle mode, press and hold to call your voicemail box.
Follow the prompts to enter
your password and retrieve your messages.
If you hear your own system greeting when you dial *VM (
, ,
), press to interrupt it and follow the prompts to enter your password.
H
SEND TEXT MESSAGE
To send a new text message:
Press Left Soft Key [MENU],
Messaging
,
Send Text
Message
. Or Right Soft Key
[MESSAGE],
Send Text
Message
.
Select “Contact” or “Enter
Number”, then press
.
Press Left Soft Key [NEXT].
Input a new text message. (Please
refer to page 40 for more details on entering letters, numbers and symbols.)
1. Contact: Search for a phone number stored in your contacts list.
2. Enter Number:
To enter a phone number directly or use the Phonebook menu to select a phone number registered in the Phonebook.
•
By pressing Right Soft Key [ADD], you can choose from the following:
1. Add Recipient: To add another phone number to your contacts list.
2. Recent Calls: To add another phone number from your Recent Calls List.
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
52 53
To send the text message, press
Left Soft Key [SEND] or .
Input at least one text msg field or address to save in the draft box.
•
By pressing Right Soft Key [OPTIONS], you can choose from the following:
1. Entry Mode: Press to change entry mode. [Abc][ABC][123] [Word][Symbols]
2. Save As Draft: To save message in draft folder.
3. Add Phrase: Inserts already written sentences into the text message.
4. Add Recipient:
To add another
phone number.
5. Add Image
: Inserts a simple
graphic image in text message.
6. Add Sound
: Inserts a sound in
your text message
7. Add Name Card
: Inserts your
name card in the text message.
H
INBOX
The Inbox manages received text messages. To access:
Press Left Soft Key [MENU],
Messaging
,
Inbox
. Or
Right Soft Key
[MESSAGE],
Inbox
.
The received messages list will be
displayed.
By pressing Right Soft Key
[OPTIONS], the user can choose from the following:
ERASE
To erase an Inbox message:
Press Right Soft Key
[OPTIONS].
Press
Erase
.
Press Left Soft Key [Yes].
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
54 55
ERASE INBOX
To erase all Inbox messages:
Press Right Soft Key
[OPTIONS].
Press
Erase Inbox
.
Press Left Soft Key [Yes].
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to unlock the message.
Press Right Soft Key
[OPTIONS].
Press
Lock
.
Press Left Soft Key [Yes].
The “Lock” function is used to prevent received messages from being erased. Once a message is locked, you cannot delete the message with the Erase or Erase Inbox button. Unlock the message first to delete it.
Select a message and press Left
Soft Key
[VIEW]. The message
is displayed.
If you receive an EMS message,
press Left Soft Key
[MUTE/ UNMUTE] to turn On/Off EMS sound.
Press Right Soft Key [REPLY] to reply to received message.
By pressing Right Soft Key
[OPTIONS], the user can choose from the following:
ERASE
To erase a message, select “Erase“ then select “Yes“.
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
56 57
FORWARD
To forward the message:
Input the phone number of the
person you are sending the message to, then select 1. Contact or 2. Enter Number.
Input any text message to go
along with the forwarded message, then press Left Soft Key [SEND] or .
ADD TO CONTACTS
To save number to contacts.
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to unlock the message.
H
DRAFTS
The Drafts Folder contains any draft messages or saved messages. If message composition is interrupted by a voice call or other interrupting event, the text of the current composition is automatically saved in the Drafts Folder.
Press Left Soft Key [MENU],
Messaging
,
Drafts
. Or
Right Soft Key
[MESSAGE],
Drafts
.
By pressing Right Soft Key
[OPTIONS], the user can choose from the f
ollowing:
ERASE
To erase a draft message:
Press Right Soft Key
[OPTIONS].
Press
Erase
.
Press Left Soft Key [Yes].
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
58 59
ERASE DRAFTS
To erase all draft messages:
Press Right Soft Key
[OPTIONS].
Press
Erase Drafts
.
Press Left Soft Key [Yes].
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to unlock the message.
Press Right Soft Key
[OPTIONS].
Press
Lock
.
The “Lock” function is used to prevent draft message from being erased. Once a message is locked, you cannot delete the message with the Erase or Erase Draft button.
60
Select a message and then press
Left Soft Key
[EDIT]. The message is displayed. Please refer to page 51 for more details on Send Text Message.
H
SENT
Manages sent messages or messages waiting to be sent.
Press Left Soft Key [MENU],
Messaging
,
Sent
. Or
Right Soft Key
[MESSAGE],
Sent
.
The sent messages list will be
displayed.
By pressing Right Soft Key
[OPTIONS], the user can choose from the following:
61
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
ERASE
To erase a sent message:
Press Right Soft Key
[OPTIONS].
Press
Erase
.
Press Left Soft Key [Yes].
ERASE SENT
To erase all sent messages:
Press Right Soft Key
[OPTIONS].
Press
Erase Sent
.
Press Left Soft Key [Yes].
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to unlock the message.
Press Right Soft Key
[OPTIONS].
Press
Lock
.
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
62 63
The “Lock” function is used to prevent sent message from being erased. Once a message is locked, you cannot delete the message with the Erase or Erase Sent button. Unlock the message first to delete it.
Select a message and press Left
Soft Key
[VIEW]. The message
is displayed.
To erase a message, Left Soft Key
[ERASE].
By pressing Right Soft Key
[OPTIONS], the user can choose from the following:
SEND AGAIN
To re-send the message:
Press Right Soft Key
[OPTIONS].
Press
Send Again
.
Press .
FORWARD
To forward the Text message:
Press Right Soft Key
[OPTIONS].
Press
Forward
.
Select 1. Contact or 2. Enter
Number, then input the phone number of the person you are sending the message to.
Input any Text message to
go along with the forwarded message, then press Left Soft Key
[SEND].
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
64 65
ADD TO CONTACTS
To save the number to your Contact List:
Press Right Soft Key
[OPTIONS].
Press
Add to Contacts
.
Select the number.
Press the Left Soft Key
[SAVE].
Select “New Contact” or
“Update Existing,” complete the contact details then press Left Soft Key
[SAVE].
LOCK & UNLOCK
Select “Lock” to lock the message or “Unlock” to unlock the message.
Press Right Soft Key
[OPTIONS].
Press
Lock
.
The “Lock” function is used to prevent sent message from being erased. Once a message is locked, you cannot delete the message with the Erase or Erase Sent button. Unlock the message first to delete it.
MESSAGE INFO
To view message information:
Press Right Soft Key
[OPTIONS].
Press
Message Info
.
Press .
H
SETTINGS
Manages messaging features.
ALERT SOUNDS
To select the type of sound you will hear when you receive an incoming voicemail message or text message:
VOICEMAIL ALERT
ALERT TONE
Press Left Soft Key [MENU],
Messaging
,
Settings,
Voicemail Alert,
Alert
Tone
. Or Right Soft Key
[MESSAGE],
Settings,
Voicemail Alert,
Alert Tone
.
Select one of the following
options by pressing the Navigation Key
up or down:
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
66 67
To save, press Left Soft Key
[SELECT].
REMINDER
Press Left Soft Key [MENU],
Messaging
,
Settings,
Voicemail Alert,
Reminder
. Or Right Soft Key
[MESSAGE],
Settings,
Voicemail Alert,
Reminder
.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
•
No Sound, Vibe Only, Beep Once, Gentle Pioneer, Force of nature, Casiopea, Seek and hide, Silence, Starlight, Zulu, Ringtone 1, Ringtone 2, Ringtone 3, Tone 1, Tone 2, Tone 3, Chime high, Chime low, Chord high, Chord low, Claps, Ding, Drum, Fanfare, Notify, Tada
•
Press Right Soft Key [PLAY/ STOP] to play/stop sound.
Off/Every 5 Mins/Every 15 Mins/ Every 30 Mins
68
TEXT ALERT
ALERT TONE
Press Left Soft Key [MENU],
Messaging
,
Settings,
Text Alert,
Alert
Tone
. Or Right Soft Key
[MESSAGE],
Settings,
Text Alert,
Alert Tone
.
Select one of the following
options by pressing the Navigation Key
up or down:
69
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
To save, press Left Soft Key
[SELECT].
REMINDER
Press Left Soft Key
[MENU],
Messaging
,
Settings,
Text Alert,
Reminder
. Or Right Soft Key
[MESSAGE],
Settings,
Text Alert,
Reminder
.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
•
No Sound, Vibe Only, Beep Once, Gentle Pioneer, Force of nature, Casiopea, Seek and hide, Silence, Starlight, Zulu, Ringtone 1, Ringtone 2, Ringtone 3, Tone 1, Tone 2, Tone 3, Chime high, Chime low, Chord high, Chord low, Claps, Ding, Drum, Fanfare, Notify, Tada
•
Press Right Soft Key [PLAY/ STOP] to play/stop sound.
Off/Every 5 Mins/Every 15 Mins/ Every 30 Mins
MY PHRASE
To edit a My Phrase message you have saved or add a new My Phrase message:
Press Left Soft Key [MENU],
Messaging
,
Settings,
My Phrase
. Or Right
Soft Key
[MESSAGE],
Settings,
My Phrase
.
2.1. To edit a My Phrase message, press Left Soft Key
[EDIT], edit the text, then press Left Soft Key [SAVE]
.
2.1. To add a new My Phrase message, press Right Soft Key [OPTIONS],
Add
New,
enter the new text, then press Left Soft Key [SAVE]
.
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
70 71
2.2. To erase a saved My Phrase message, press Right Soft Key
[OPTIONS]
Erase,
then press Left Soft Key [YES].
SIGNATURE
To create a signature that can automatically be inserted at the end of a message:
Press Left Soft Key [MENU],
Messaging
,
Settings,
Signature
. Or Right Soft Key
[MESSAGE],
Settings,
Signature
.
•
Pre-defined My Phrase as below. What's up?/Let's meet./Check this out!/Whacha doing?/Thanks/What do you think?/You've gotta be here to enjoy this./Would you like to join me for a date tonight?/On my way./Yes/ You're the best!/Call me.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
AUTO ERASE
Automatically erases Inbox messages when new messages arrive.
Press Left Soft Key [MENU],
Messaging
,
Settings,
Auto Erase
. Or Right
Soft Key
[MESSAGE],
Settings,
Auto Erase
.
Select either “Automatically”
or “Manually” by pressing the Navigation Key
up or down.
MENU FUNCTIONS
MESSAGING MESSAGING
MENU FUNCTIONS
72 73
Input a new signature message.
Press or Left Soft Key
[SAVE]
to save it.
ENTRY MODE
Sets an Entry Mode as a default. For example, if Word Mode is the default, its icon will appear when editing a text message.
Press Left Soft Key [MENU],
Messaging
,
Settings,
Entry Mode
. Or Right
Soft Key
[MESSAGE],
Settings,
Entry Mode
.
•
By pressing Right Soft Key [OPTIONS], you can choose from the following:
1. Entry Mode: Press to change entry mode. [Abc][ABC][123] [Word][Symbols]
2. Cancel Signature: To cancel edited s
ignature.
Abc/ABC/123/Word
Stores up to 500 entries. Entries can be retrieved by name.
H
CONTACT LIST
Retrieves an entry by name and calls by simply pressing
. You can review all the entries stored in your Contact List or quickly find an entry by entering a name or its character string.
Press Left Soft Key [MENU],
Contacts
,
Contact List
.
The list of names in your phone
book is displayed alphabetically.
•
To use and manage contacts, press Right Soft Key
[OPTIONS] then
select:
1. New Contact: To add a New
Contact.
2. Send Text Message: To create and send a text message to the contact.
3. Edit Contact: To edit a Contact.
MENU FUNCTIONS
MESSAGING CONTACTS
MENU FUNCTIONS
74 75
Press to save it.
•
Automatically: Oldest read message erased from Inbox automatically when Inbox is full.
•
Manually: Oldest read message not erased from Inbox automatically when Inbox is full.
76 77
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
To edit the entry, press Left Soft
Key [EDIT]. Press Right Soft Key [OPTIONS] to see the options below:
To call the selected number,
press Right Soft Key
[OPTIONS]
and then select
Call
or press
.
1. Call: To call the contact.
2. Set Speed Dial
: To assign a speed
dial.
3. Add Picture ID
: To add a picture ID.
4. Set as Default
: To set as default call
number.
5. Erase
Contact: To delete a contact.
6. Send Text Message: To create a
text message.
4. Erase Contact: To delete a Contact.
5. Set as Primary: To set as a primary phone number.
6. Erase All: To delete all names in the Contact list.
•
To set as primary number, select “Primary Contacts”. Please refer to page 84 for more details on “Primary Contacts”.
Enter a name or part of a name or
scroll through the list by pressing the Navigation Key
up or down. Please refer to page 40 for more details on entering letters, numbers & symbols.
To show entry details, press Left
Soft Key
[VIEW].
To save the entry, press Left Soft
Key [SAVE]. To return to the previous page, press
.
If only a phone number is entered and the name field is left blank, the contact will still be saved and the Contact List will display the phone number.
H
EDIT CONTACT
To change the information you have saved for a Contact:
Press Left Soft Key [MENU],
Contacts
,
Edit Contact
.
To edit the entry, press Left Soft
Key [EDIT].
To save the entry, press Left Soft
Key [SAVE].
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
78 79
H
NEW CONTACT
Adds a new contact entry.
To add a new entry to the phone
book, p
ress Left Soft Key
[MENU],
Contacts
,
New Contact
.
To enter a name or number, press
the Navigation Key
up or down to select the contact fields.
•
Contact Fields: Name/Mobile 1/ Home/Work/Mobile 2/My circle/ Ringtone/Picture.
•
Under “Mobile 1”, “Mobile 2”, “Home”, “Work” or “My circle
” input the phone number, then press the Right Soft Key [OPTIONS], to access the following:
1. Add 2-Sec Pause
2. Add Wait
•
Please refer to page 40 for more details on entering letters, numbers & symbols.
80 81
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
H
ERASE CONTACT
Press Left Soft Key [MENU],
Contacts
,
Erase Contact
.
The list of names in your phone
book is displayed alphabetically.
To show entry details, press Right
Soft Key
[VIEW].
To delete the entry, press Left Soft
Key [ERASE].
H
SPEED DIALS
In idle mode, calls can be placed to numbers stored in speed dial by pressing & holding the location number on the key pad or by pressing the location number, then pressing
. For a 2-
digit location number, press the f
irst number and then press and hold the second number.
Speed Dial 1 is assigned to voicemail and cannot be changed.
To save a contact to Speed Dial:
Press Left Soft Key [MENU],
Contacts
,
Speed Dials
.
To assign a phone number to a
location, choose the speed dial location then p
ress Left Soft Key [ASSIGN]. Select “From Contacts” or “Enter Number
”.
Press to select.
82 83
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
•
If you press and hold a speed dial number that has no phone number assigned to that location, “Location Not Assigned. Assign Now?” will appear on the screen.
1. From Contacts: Search for a phone number that is stored in the contacts list. To assign speed dial number press Left Soft Key [VIEW], select the phone number to be saved, then press the
Left
Soft Key
[ASSIGN]. “Speed Dial Number Assigned” will be displayed.
2. Enter Number:
To store the new phone number in contacts. To save and assign a number to speed dial, enter the contact information in the fields then press Left Soft Key
[SAVE]. “Contact Saved and Added as Speed Dial Number” will be displayed.
•
To call an assigned number, press & hold the last digit of the speed dial number in idle mode. For example, to call the telephone number assigned to location #2, press and hold
. To call the telephone number assigned to location #12, quickly press
,
then press and hold
.
ONE-TOUCH/TOW-TOUCH DIALING
Ideal for frequently dialed numbers, this feature allows phone book entries to be dialed via the key pad with only one or two key presses.
ONE-TOUCH DIALING:
1-9: Press and hold the corresponding
memory number for more than 1 second.
TWO-TOUCH DIALING:
10-22: Press the first digit and second
digits of the memory number to short and long respectively.
PERSONAL INFO
You can use the “Personal Info” field to add personal notes, including allergies, medications and other health information.
Press Left Soft Key [MENU],
Contacts
,
Primary
Contacts
.
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
84 85
H
PRIMARY CONTACTS
Your phone has a special menu to organize your primary contacts and information.
Press Left Soft Key [MENU],
Contacts
,
Primary
Contacts
.
Select one of the entries by
pressing the Navigation Key up or down. To set a new Primary number, choose Contact 1
,
Contact 2
or Contact 3. Press Left
Soft Key
[ASSIGN].
Select “From Contacts” or “Enter
Number”, then press
.
1. From Contacts: Search for a phone number which is stored in your contacts list. To assign from the saved number press Left Soft Key
[VIEW], select which number
to save, then press Left Soft Key
[ASSIGN].
2. Enter Number: To store a number not stored in your contacts list as a new primary phone number in contacts. Enter the contact information for the phone number you want to save then press the Left Soft Key
[SAVE].
Press the Navigation Key up
or down to select “Personal Info.” Press Left Soft Key
[VIEW].
Read the directions on the display,
then press the Left Soft Key [OK].
Choose Note 1, 2 or 3, then press
Left Soft Key
[ADD].
Enter a special note for your
primary contact, then press Left Soft Key
[SAVE] to save it.
H
MY NAME & NUMBER
Create your own business card, so that you can send all your details upon request by text message.
Press Left Soft Key [MENU],
Contacts
,
My Name &
Number
.
MENU FUNCTIONS
CONTACTS CONTACTS
MENU FUNCTIONS
86 87
Enter your name in the “My
Name” field. Please refer to page 40 for more details on entering letters, numbers & symbols. Press Left Soft Key
[SAVE].
Your My Name & Number
information is displayed. To edit it, press Left Soft Key
[EDIT].
Edit the information then press
Left Soft Key
[SAVE].
To send your My Name & Number
information to someone via messaging from the My Name & Number menu, press Right Soft Key [SEND]. Follow directions for sending a new message on page 51.
88 89
MENU FUNCTIONS
RECENT CALLS RECENT CALLS
MENU FUNCTIONS
H
MISSED CALLS
Displays information about the 90 most recent calls you did not answer. Place a call to a missed call number by simply pressing .
To see a list of the 90 most
recently missed calls, press
Left
Soft Key
[MENU],
Recent
Calls
,
Missed Calls
. If the number is already stored in your contacts, only the name appears. If the number is not stored, only the phone number appears.
Press Right Soft Key [OPTIONS]
and then select “Save” to save it or select “Erase” to delete it. Other options include:
•
Save: To store the phone number in your contact.
To view missed call details, press
Left Soft Key
[VIEW].
Call details include date, time and phone number.
Press Left Soft Key [SAVE/
DETAILS].
Press Right Soft Key
[MESSAGE] to send a text
message.
After 90 missed calls, the oldest call will automatically be erased from the history.
•
Details: You can enter a phone number directly or use the Phonebook menu to select a phone number registered with the Phonebook.
•
Send Text Message: To send a text message to the caller.
•
Erase: To erase a missed calls entry.
•
Erase All: To erase all missed calls entries.
MENU FUNCTIONS
RECENT CALLS RECENT CALLS
MENU FUNCTIONS
90 91
H
DIALED CALLS
Displays information about the 90 most recently dialed calls. Place a call to a dialed call number by simply pressing
.
To see a list of the 90 most
recently dialed numbers,
press Left
Soft Key
[MENU],
Recent
Calls
,
Dialed Calls
. If the number is already stored in your contacts, only the name appears. If the number is not stored, only the phone number appears.
Press Right Soft Key [OPTIONS]
and then select “Save” to save it or select “Erase” to delete it. Other options include:
To view dialed call details, press
Left Soft Key
[VIEW].
Call details include date, time, call duration and phone number.
Press Left Soft Key [SAVE/
DETAILS].
Press Right Soft Key
[MESSAGE] to send a Text
message.
After 90 dialed calls, the oldest call will automatically be erased from the history.
•
Save: To store the phone number in your contact.
•
Details: If the selected entry is already stored in the contacts list, press to view the caller’s information.
•
Send Text Message: To send a text message to the caller.
•
Erase: To erase a dialed calls entry.
•
Erase All: To erase all dialed calls entries.
MENU FUNCTIONS
RECENT CALLS RECENT CALLS
MENU FUNCTIONS
92 93
H
ANSWERED CALLS
Displays information about the 90 most recently answered calls. Place a call to an answered call number by simply pressin
g
.
To see a list of the 90 most recently answered calls,
press Left
Soft Key
[MENU],
Recent
Calls
,
Answered Calls
. If the number is already stored in your contacts, only the name appears. If the number is not stored, only the phone number appears.
Press Right Soft Key [OPTIONS]
and then select “Save” to save it or select “Erase” to delete it. Other options include:
•
Save: To store the phone number in your contact.
To view answered call details,
press Left Soft Key [VIEW].
Call details include date, time, call duration and phone number.
Press Left Soft Key [SAVE/
DETAILS].
Press Right Soft Key
[MESSAGE] to send a text
message.
After 90 answered calls, the oldest call will automatically be erased from the history.
•
Details: If the selected entry is already stored in the contacts list, press to view the caller’s information.
•
Send Text Message: To send text message to the caller.
•
Erase: To erase an answered calls entry.
•
Erase All: To erase all answered calls entries.
94 95
MENU FUNCTIONS
RECENT CALLS RECENT CALLS
MENU FUNCTIONS
H
ALL CALLS
Displays information about the most recently answered, dialed and missed calls.
To see a list of the 270 most
recently answered, dialed and missed calls,
press Left Soft Key
[MENU],
Recent Calls
,
All Calls
. If the number is already stored in your contacts, only the name appears. If the number is not stored, only the phone number appears.
Press Right Soft Key [OPTIONS]
and then select “Save” to save it or select “Erase” to delete it. Other options include:
•
Save: To store the phone number in your contact.
To view details, press Left Soft Key
[VIEW].
Call details include date, time, phone number and call duration (Except missed calls).
Press Left Soft Key [SAVE/
DETAILS].
Press Right Soft Key
[MESSAGE] to send a text
message.
After 270 answered, dialed or missed calls, the oldest call will automatically be erased from the history.
•
Details: If the selected entry is already stored in the contacts list, press to view the caller’s information.
•
Send Text Message: To send text message to the caller.
•
Erase: To erase an all calls entry.
•
Erase All: To erase the entire all calls list.
MENU FUNCTIONS
RECENT CALLS TOOLS
MENU FUNCTIONS
96 97
H
CALL TIMERS
Checks the usage time. The 7 timers include Last Call, All Calls, Answered Calls, Dialed Calls, Last Reset, Roam Calls, Lifetime Calls:
Press Left Soft Key [MENU],
Recent Calls
,
Call
Timers
.
Select “Last Call”, “All Calls”,
“Answered Calls”, “Dialed Calls”
, “Last Reset”, “Roam Calls”, “Lifetime Calls” by pressing the Navigation Key
up or down. To reset the timer, press Left Soft Key [RESET], then press Left Soft Key
[YES]. To reset all timers, press Right Soft Key [RESET ALL], then press Left Soft Key
[YES].
To return to the previous page,
press .
H
CALENDAR
Sets an event and reminds you of that event.
Press Left Soft Key [MENU],
Tools
,
Calendar
.
Press Right Soft Key [OPTIONS]
to manage your calendar. Press
Add New, Add Special
Occasion, Erase Passed or
Erase All.
ADD NEW
Press the Navigation Key up,
down, left or right to choose a date in the calendar. Press
Right
Soft Key
[OPTIONS],
Add
New
to enter a new event.
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
98 99
The Event field is highlighted.
Enter the name of the event. Press the Navigation Key
up or down to set the other fields for the event:
EVENT
Use the keypad to enter an appointment in your schedule.
START TIME
Use the keypad to set a start time and press Right Soft Key
to select “am”
or “pm”.
END TIME
Use the keypad to set an end time and press Right Soft Key to select “am” or “pm”.
ALERT
Press Right Soft Key [SET] to select a new ringtone. Press the Navigation Key
up or down to highlight a ringtone,
then press
[SELECT] to save it.
REMINDER
Press the Navigation Key left or right to select an alert time interval option (Event Time, 5 min before, 10 min before).
START DATE
Use the keypad to change or enter the start date.
RECURRENCE
Press the Navigation Key left or right to set the recurrence of the event (Daily, Weekly, Monthly, Yearly).
END DATE
Use the keypad to change or enter the end date.
Press Left Soft Key [SAVE]
or press
to return to the
calendar.
The date of the event will be
highlighted on your calendar.
100 101
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
ADD SPECIAL OCCASION
Press the Navigation Key up,
down, left or right to choose a date in the calendar. Press
Right
Soft Key
[OPTIONS],
Add
Special Occasion
to enter a new
occasion.
The Occasion field is highlighted.
Choose the type of occasion. Press the Navigation Key
up or down to set the other fields for the event:
OCCASION
Press the Navigation Key left or right to select an occasion type (Birthday, Anniversary, Party, Other
).
NOTE
Use the keypad to enter a memo in the occasion field.
DATE
Use the keypad to change or enter the date.
TIME
Use the keypad to set a start time and press Right Soft Key
to select “am”
or “pm”.
ALERT
Press Right Soft Key [SET] to select a new ringtone. Press the Navigation Key
up or down to highlight a ringtone,
then press
[SELECT] to save it.
REMINDER
Press the Navigation Key left or right to select an alert time interval option (Event Day, 1 day before, 3 days
before).
RECURRENCE
Press the Navigation Key left or right to set the recurrence of the event (Daily, Weekly, Monthly, Yearly).
Press Left Soft Key [SAVE]
or press
to return to the
calendar.
The date of the occasion will be
marked on your calendar.
ERASE PASSED
To erase past scheduled events
from the calender, press
Right
Soft Key
[OPTIONS],
Erase Passed
. “Erase Passed Events?“ will appear on the display. Select the Left Soft Key
[YES] to erase passed events,
or Right Soft Key
[NO] to
cancel.
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
102 103
ERASE ALL
To erase all scheduled events from
the calendar, press
Right Soft Key
[OPTIONS],
Erase all
. “Erase All Events?“ will appear on the display. Select the Left Soft Key
[YES] to erase all scheduled events, or Right Soft Key [NO] to cancel.
VIEW PLAN LIST
To view items/appointments/agendas, etc. in your calendar:
Press Left Soft Key [MENU],
Tools
,
Calendar
.
Press the Navigation Key
up or down
to choose an event and then press Left Soft Key [VIEW].
The Alarm field will be
highlighted. Press the Navigation Key down to select alarm options.
ALARM
Press the Navigation Key left or right to select
“Alarm On“ or “Alarm
Off
“.
TIME
Use the keypad to set a time for the alarm and press Right Soft Key
to
select “am” or “pm”.
FREQUENCY
Press the Navigation Key left or right to select a setting for the alarm (Once, Daily, Mon - Fri, Weekends).
SOUND
Press Right Soft Key [SET], then press the Navigation Key
up or down to select the alert tone you wish to set.
To edit it, press Left Soft Key
[EDIT]. To erase a event, press Right Soft Key
[ERASE].
If the event is set as recurrence, it will erase all the recurrence events.
H
ALARM
Press Left Soft Key [MENU],
Tools
,
Alarm
.
Select one of the entries by
pressing the Navigation Key
up or down. If you want to turn an alarm on/off, press Right Soft Key
[SET ON/SET OFF].
To set a new alarm, choose alarm
1, 2 or 3. To edit an existing alarm, select that alarm. Press Left Soft Key [EDIT].
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
104 105
106
To save an alarm setting press Left
Soft Key
[SAVE].
To reset all alarms, press
Reset All
, then press Left Soft Key
[YES].
H
WORLD CLOCK
To display the time and date in pre­programmed cities:
Press Left Soft Key [MENU]
Tools
,
World Clock
.
Select a city by pressing Left Soft
Key [CITIES]. Or press the Navigation Key
up, down, left
or right to select another city.
The world map appears with the
city, its date and time.
107
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
DST (Daylight Saving Time)
information should be applied. Press Right Soft Key
[DST] to
set the DST options.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
H
NOTEPAD
Your phone includes an internal notepad that can be used to compose and store reminders and notes.
Press Left Soft Key [MENU],
Tools
,
Notepad
.
108
If there are no memos stored,
press
New Note
, or Left
Soft Key
[EDIT] to directly go to the Edit mode. To add a new memo, press Right Soft Key [OPTIONS],
New
. Input a new
text memo.
Please refer to page 40 for more details on entering letters, numbers & symbols.
To save, press Left Soft Key
[SAVE]
.
109
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
The list of all memos, in saved
order, is displayed. Select a memo and then press Left Soft Key [VIEW].
To edit it, press Left Soft Key
[EDIT]. To erase a memo,
press
Right Soft Key [ERASE].
H
STOP WATCH
Simultaneously times up to seven different events. To operate the stop watch:
Press Left Soft Key [MENU],
Tools
,
Stop Watch
.
To measure a time period:
1. To start the stop watch, press Left Soft Key
[START].
2. To pause it, press Left Soft Key
[STOP].
•
By pressing Right Soft Key [OPTIONS], you can choose from the following:
1. New: To add a new memo.
2. Erase:
To erase a memo.
3. Erase All:
To erase all memos.
3. To resume it, press Left Soft Key [START]. To reset it, press Right Soft Key
[RESET].
To time up to seven events at
once:
1. To start, press
Left Soft Key
[START].
2. To stop a time period and continue measuring another one, press Right Soft Key [LAP].
3. To stop the second and continue measuring a third one, press Right Soft Key [LAP].
4. To measure up to seven time periods, repeat the above steps.
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
110 111
5. To stop the stop watch, press Left Soft Key
[STOP].
6. To review the results, press the Navigation Key
up or down.
7. To start, press
Left Soft Key
[START].
8. To reset it, press Right Soft Key
[RESET].
H
CALCULATOR
To access the calculator:
Press Left Soft Key [MENU],
Tools
,
Calculator
.
Follow the instructions below to
calculate 8×6÷4-2.5=9.5
Navigation Key right : X, Navigation Key
down : -,
Navigation Key
left : ÷,
Navigation Key
up : +, : .,
Left Soft Key
: Clear All.
To reset, press Left Soft Key
[CLEAR ALL].
To change the displayed number from positive (+) to negative (-) and vice versa, press
[±].
MENU FUNCTIONS
TOOLS TOOLS
MENU FUNCTIONS
112 113
Input 8 and then press the Navigation Key right. Input 6 and then press the Navigation Key Left. Input 4 and then press the Navigation Key down. Input 2 and then press the
to input (.). Press 5. Press and you will see the answer.
H
TIP CALCULATOR
To access the tip calculator:
Press Left Soft Key [MENU],
Tools
,
Tip Calculator
.
Follow the instructions below to
tip calculate.
To reset, press Right Soft Key
[RESET].
•
Enter the Total Bill amount then press the Navigation Key down. (Press Left Soft Key to input decimal)
•
Enter the Tip (%). (Press Left Soft Key to input decimal)
•
Press the Navigation Key down and enter how many parties will be splitting the bill
.
•
Total/Each Bill appears on bottom below calculation.
H
SOUNDS SETTINGS
RINGTONE
To select a Ringer volume to alert you to incoming calls:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Ringtone
.
Select one of the pre-installed 24
music bells. Press Right Soft Key
[PLAY/STOP].
To confirm, press Left Soft Key
[SELECT].
VOLUME
To adjust the volume:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Volume
.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
114 115
Select one of the following
options:
Press to save it.
VIBRATE MODE
When receiving an incoming call alert, ringer and vibration will be activated at the same time.
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Vibrate Mode
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
High/Med-High/Medium/Low/ 1 Beep/Vibrate Only/Silence All
116 117
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
KEYPAD VOLUME
To adjust key pad tone:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Keypad Volume
.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
VOICE COMMANDS
You can use voice commands to control your device.
MENU READOUT
This function will read all the menus. Additionally, it will also read the Notification Pop Ups and Confirmation Pop Ups from the Setting.
High/Medium/Low/Off
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Voice Commands
,
Menu Readout
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
DIGIT DIAL READOUT
When selected, this function will announce the digits when you press them.
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Voice Commands
,
Digit Dial Readout
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
118 119
LAUNCH KEYS
To set up Voice Command options:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Voice Commands
,
Launch Keys
.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
•
Voice Key Only: If you select “Voice Key Only”, Voice Commands will only work when you press the white Voice Key on the right side of the phone.
•
Key & Flip Open: If you select “Key & Flip Open”, Voice Command works when you open the folder or when you press the white Voice Key on the right side of the phone.
VOICEMAIL ALERT TONE
To set an alert tone to sound when you receive a voicemail:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Voicemail Alert
Tone
.
Select one of the following
options by pressing the Navigation Key
up or down:
To save, press Left Soft Key
[SELECT].
•
No Sound, Vibe Only, Beep Once, Gentle Pioneer, Force of nature, Casiopea, Seek and hide, Silence, Starlight, Zulu, Ringtone 1, Ringtone 2, Ringtone 3, Tone 1, Tone 2, Tone 3, Chime high, Chime low, Chord high, Chord low, Claps, Ding, Drum, Fanfare, Notify, Tada
•
Press Right Soft Key [PLAY/ STOP] to play/stop sound.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
120 121
TXT ALERT TONE
To set an alert to sound when you receive a new text message:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
TXT Alert Tone
.
Select one of the following
options by pressing the Navigation Key
up or down:
To save, press Left Soft Key
[SELECT].
•
No Sound, Vibe Only, Beep Once, Gentle Pioneer, Force of nature, Casiopea, Seek and hide, Silence, Starlight, Zulu, Ringtone 1, Ringtone 2, Ringtone 3, Tone 1, Tone 2, Tone 3, Chime high, Chime low, Chord high, Chord low, Claps, Ding, Drum, Fanfare, Notify, Tada
•
Press Right Soft Key [PLAY/ STOP] to play/stop sound.
ADVANCED
You can set additional Advanced phone settings including:
ATTACH ACCESSORY
To set an alert to sound when you successfully attach the charger or ear piece:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Advanced
,
Attach Accessory
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
122 123
POWER ON/OFF
To select to hear a tone when you turn your phone on or off:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Advanced
,
Power On/Off
.
Select either “Play Tone” or
“Tone Off” by pressing the Navigation Key
up or down.
Press to save it.
ROAM TONE
To select to hear a tone when you enter a roaming area:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Advanced
,
Roam Tone
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
MINUTE BEEP
To select to hear a tone every minute you’re on a call:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Advanced
,
Minute Beep
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
124 125
CALL DISCONNECT
To select to hear a tone when you end a call:
Press Left Soft Key [MENU],
Settings
,
Sounds
Settings
,
Advanced
,
Call Disconnect
.
Select either “On” or “Off” by
pressing the Navigation Key up or down.
Press to save it.
H
DISPLAY SETTINGS
WALLPAPER
To set your phone to display wallpaper when the phone is in standby mode:
Press Left Soft Key [MENU],
Settings
,
Display
Settings
,
Wallpaper
.
Press the Navigation Key
up, down, left or right to view Wallpaper optins. To expand a selected image, press Right Soft Key [VIEW].
To save, press Left Soft Key
[SELECT].
DISPLAY THEMES
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Display Themes
.
Under “1.Menu Type”, select
“Grid Type” or
“List Type”.
Under “2.Color Schemes”, select
“Blue”, “Green” or “Orange”.
Press to save it.
126
BANNER
You can choose to display a personal Banner greeting or the Enhanced Roaming Indicator (ERI) banner on the phone’s screens:
PERSONAL
The text greeting can be up to 16 characters and is displayed on your phone’s screen in standby mode.
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Banner
,
Personal
.
Enter a new personal greeting.
To change the entry mode, press Right Soft Key
[Abc].
Press Left Soft Key [SAVE] to
save it.
127
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
NETWORK
You can insert your personal banner greeting and turn the Network banner on or off.
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Banner
,
Network
.
Select “On” or “Off” with the
Navigation Key
up or down.
Press to save it.
CLOCK FORMAT
MAIN CLOCK
To change the main clock’s appearance on the standby screen:
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Clock Format
,
Main Clock
.
128
Select “Digital”, “Analog” or
“Off” by pressing the Navigation Key up or down.
Press to save it.
FRONT CLOCK
To change the front clock’s appearance on the standby screen:
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Clock Format
,
Front Clock
.
Select “Digital” or “Analog” by
pressing the Navigation Key up or down
.
Press to save it.
129
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
DIAL FONT
To adjust the size of the text on the display:
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Dial Font
.
Select “Normal” or “Large Only”
by pressing the Navigation Key
up or down.
Press to save it.
BACKLIGHT
Backlights the display and key pad and activates dimming for easy viewing in dark places.
Press Left Soft Key [MENU]
Settings
,
Display
Settings
,
Backlight
.
130 131
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
H
PHONE SETTINGS
SHORTCUT KEYS
Your phone offers you the option of assigning a shortcut key (
) to a favorite or often-used function. To assign a shortcut to the key:
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Shortcut Keys
.
Select for Up Direction,
for Down Direction,
for
Left Direction or
for Right
Direction.
On/10 Seconds/15 Seconds/ 30 Seconds/Off
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
LANGUAGE
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Language
.
Select “English” or “Español” by
pressing the Navigation Key up or down
.
Press to save it.
None/Messaging/Contacts/Calender/ Alarm/Calculator/Tip Calculator/Stop Watch/Inbox/Speed Dials/Tools/ Sounds Settings/Settings
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
132 133
ANSWER CALL OPTIONS
To select an answer mode:
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Answer Call
Options
.
Select by pressing the Navigation
Key up or down, then press Right Soft Key [MARK/ UNMARK].
•
Flip Open: Answer the phone call by opening your phone.
•
Any Key: Answer the phone call by pressing any key.
•
Send Only: Answer the phone call by pressing
or any numeric
key.
•
Auto w/ Headset: This function can only be used when the headset is on. It will automatically answer the call after 5 seconds when the phone is opened.
Press Left Soft Key [SAVE] to
save it.
•
If “Auto w/ Headset“ is selected, the Automatic Answer feature is disabled when you close the phone.
•
The three functions can be used at the same time.
STANDALONE MODE
Standalone Mode allows you to turn off the phone’s radio functions where they are restricted.
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Standalone Mode
.
Select “On” or “Off” by pressing
the Navigation Key
up or
down.
Press to save it.
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
134 135
SPEED DIAL CALL
This function enables you to use the speed dial feature.
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Speed Dial Call
.
Select by pressing the Navigation
Key up or down, then press Right Soft Key [MARK/ UNMARK].
Press Left Soft Key [SAVE] to
save it.
The two functions can be used at the same time.
•
Press Hold Digit: It will dial the assigned phone number.
•
Digit + Send: The assigned phone number will be displayed.
TTY
Your phone is able to operate with a TTY (Teletypewriter) device in both analog and digital modes. This feature is system dependent and may not be available in all areas.
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
TTY
.
Select one of the following
options by pressing the Navigation Key
up or down:
Press to save it.
•
TTY Off
•
TTY Full
•
TTY + Talk (VCO)
•
TTY + Hear (HCO)
136 137
MENU FUNCTIONS
SETTINGS SETTINGS
MENU FUNCTIONS
DTMF
To adjust tone length:
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
DTMF
.
Select “Normal” or “Long” by
pressing the Navigation Key up or down
.
Press to save it.
RESTRICTIVE DIALING
Incoming calls or making calls are only allowed to numbers stored on your phone book.
INCOMING CALLS
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Restrictive
Dialing
,
Incoming Calls
.
Select “On” or “Off” by pressing
the Navigation Key
up or
down.
Press to save it.
OUTGOING CALLS
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Restrictive
Dialing
,
Outgoing Calls
.
Select “On” or “Off” by pressing
the Navigation Key
up or
down.
Press to save it.
138 139
MENU FUNCTIONS
SETTINGS PHONE INFO
MENU FUNCTIONS
LOCK CODES
EDIT CODES
To change your 4 digit Lock Code:
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Lock Code
enter
your lock code, then press
.
Select
Edit Codes
.
Enter a “New Lock Code” then
press .
Enter a “Confirm Lock Code”
then press
.
•
Locked: Lock the phone.
•
Unlocked: Do not lock the phone.
PHONE LOCK SETTINGS
Prevents the phone from being used without entering the lock code first.
Press Left Soft Key [MENU]
Settings
,
Phone
Settings
,
Lock Code
enter
your lock code, then press
.
Select
Phone Lock Settings
.
Press .
140 141
MENU FUNCTIONS
PHONE INFO PHONE INFO
MENU FUNCTIONS
The phone status appear. (Battery,
Signal, Volume, Voicemails, Missed Calls, Text Msg, ERI Text)
To return to the previous page,
press .
H
ICON LIST
Displays the Indicator Icons of your phone.
Press Left Soft Key [MENU],
Phone Info
,
Icon List
.
A list of your phone indicator
icons appear.
To return to the previous page,
press .
H
MY NUMBER
Displays your phone number.
Press Left Soft Key [MENU],
Phone Info
,
My
Number
.
You will see your phone number.
To return to the previous page,
press .
H
PHONE STATUS
To view the status of the battery level, signal level, v
olume, number of voicemails, number of missed calls, number of text messages, and number of ERI text:
Press Left Soft Key [MENU],
Phone Info
,
Phone
Status
.
H
SW/HW VERSION
Displays the Software version/PRL Number/ERI Number/Hardware version
.
Press Left Soft Key [MENU],
Phone Info
,
SW/HW
Version
.
The Software version/PRL version/
ERI version/Hardware version appear.
To return to the previous page,
press .
MENU FUNCTIONS
PHONE INFO VOICE TOOLS
MENU FUNCTIONS
142 143
Your phone is equipped with an AVR (Advanced Voice Recognition) feature. This feature allows you to make calls or use the phone’s functions by simply using your voice. All you have to do is talk into the phone, and the phone will recognize your voice and complete tasks by itself.
H �
AVR (ADVANCED VOICE RECOGNITION)
Press and hold Side AVR Key or
located on the right side of
the phone
.
The phone displays the Command
menu and prompts you to say the name of the command you want to use. To complete your task, simply follow the voice prompts. You can speak the name of the command after you hear a beep.
MENU FUNCTIONS
VOICE TOOLS VOICE TOOLS
MENU FUNCTIONS
144 145
If calling a contact from your list,
say <Name>. Your phone will ask you to confirm the name you said. Say
“Yes“ if it was repeated correctly. That phone number will be dialed. If there is more than one number saved for that contact, you will be asked to confirm which number to dial. Examples: - Tom Smith.
Mary Parker.
H
REDIAL
Use the Redial Command to make a call to the last phone number you dialed.
Press and hold Side AVR Key or
located on the right side of the phone. You will hear “Say a Name or Shortcut” and the Voice Commands menu will be displayed.
Say “Redial”.
When it recognizes one of these commands, the phone launches the associated application. If the phone does not hear a command within approximately eight seconds, AVR mode will turn itself off.
H
CONTACT NAME
Use the Call command to voice dial a name from your contact list or a phone number.
Press and hold Side AVR Key
or located on the right side of the phone. You will hear “Say a Name or Shortcut” and the Voice Commands menu will be displayed.
•
<Contact Name>
•
Redial
•
Voicemail
•
Speakerphone
MENU FUNCTIONS
VOICE TOOLS VOICE TOOLS
MENU FUNCTIONS
146 147
H
VOICEMAIL
Use the Voicemail command to call your Voicemail number.
Press and hold Side AVR Key
or located on the right side of the phone. You will hear “Say a Name or Shortcut” and the Voice Commands menu will be displayed.
Say “Voicemail”.
H
SPEAKERPHONE
Use the Speakerphone command to activate the speakerphone.
Press and hold Side AVR Key
or located on the right side of the phone. You will hear “Say a Name or Shortcut” and the Voice Commands menu will be displayed.
Say “Speakerphone”.
H
SETTINGS
CHOICE LISTS
When voice recognition is not confident it has recognized a name or number correctly, it will show you a list of up to three choices. You can control when choice lists appear.
Press and hold Side AVR Key or
located on the right side of the phone
.
Press Left Soft Key [SETTINGS],
Choice Lists
.
Select “Automatic”, “Always On”
or “Always Off”.
Press Left Soft Key [OK] to
save it.
148
SOUND
PROMPTS
To turn audio prompts such as, “Say a name or Shortcut,“ on or off:
Press and hold Side AVR Key or
located on the right side of
the phone
.
Press Left Soft Key
[SETTINGS],
Sound
.
Select
Prompts
, press .
Select “On” or “Off”.
Press Left Soft Key [OK] to
save it.
149
MENU FUNCTIONS
VOICE TOOLS VOICE TOOLS
MENU FUNCTIONS
NAMES
You can turn name playback on or off when dialing a contact name.
Press and hold Side AVR Key or
located on the right side of
the phone
.
Press Left Soft Key
[SETTINGS],
Sound
.
Select
Names
, press .
Select “On” or “Off”.
Press Left Soft Key [OK] to
save it.
ABOUT
Press and hold Side AVR Key or
located on the right side of
the phone
.
Press Left Soft Key [SETTINGS],
About
.
The VSuite version, Build, and
Device Name appears.
To return to the previous page,
press Left Soft Key [OK].
150
CHAPTER 5
SAFETY AND
WARRANTY
This chapter addresses the safety guidelines and precautions to follow when operating your phone. Before operating your phone, please be aware of all the safety details. This chapter contains the terms and conditions of services and the warranty for your phone. Please review them thoroughly.
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION FOR FCC RF EXPOSURE
SAR INFORMATION FCC HEARING-AID COMPATIBILITY
(HAC) REGULATIONS FOR WIRELESS DEVICES
FDA CONSUMER UPDATE 12 MONTH LIMITED WARRANTY
CHAPTER 5 SAFETY AND WARRANTY
MENU FUNCTIONS
VOICE TOOLS
EXPOSURE TO RADIO FREQUENCY SIGNALS
Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:
ANSI C95.1 (1992) * NCRP Report 86 (1986) * ICNIRP (1996) *
Read This Information Before Using Your Handheld Portable Cellular Telephone
Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C951).
The design of your phone complies with the FCC guidelines (and those standards).
1* : American National Standards
Institute.
2* : National Council on Radiation
protection and measurements.
3* : International Commission on
Nonionizing Radiation Protection.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
152 153
ANTENNA SAFETY
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations.
Please contact your local dealer for replacement antenna.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.
If your phone is equipped with an inter antenna, obstructing the internal antenna could inhibit call performance.
HOLD YOUR PHONE
Your phone is equipped with an intenna. For optimal call quality, hold the phone by the gripped edges on the side and avoid touching the top and bottom of the phone.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
154 155
Correct Incorrect
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them.
Also, if using your phone while driving, please:
If you must use the phone while driving, please use one-touch, speed dialing, and auto answer modes. An airbag inflates with great force.
156 157
Do not place objects, including both installed or portable wireless equipment, in the area over the airbag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.
WARNING: Failure to follow these instructions may lead to serious personal injury and possible property damage.
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Therefore, use of your phone must be restricted in certain situations.
•
Give full attention to driving. Driving safely is your first responsibility.
•
Use hands-free operation, if available.
•
Pull off the road and park before making or answering a call, if driving conditions so require.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider (or call the customer service line to discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.
Turn your phone OFF in healthcare facilities when any regulations posted in these areas instruct you to do so. Hospitals or healthcare facilities may be using equipment that could be sensitive to external RF energy.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers :
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
158 159
•
Always keep the phone more than six inches from your pacemaker when the phone is turned on.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite the pacemaker to minimize the potential for interference.
•
If you have any reason to suspect that interference is taking place, turn your phone OFF immediately.
VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
OTHER SAFETY GUIDELINES
AIRCRAFT
FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. Always request and obtain prior consent and approval of an authorized airline representative before using your phone aboard an aircraft. Always follow the instructions of the airline representative whenever using your phone aboard an aircraft, to prevent any possible interference with airborne electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area” or in areas posted: “Turn off two-way radio.” Obey all signs and instructions.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
160 161
162 163
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle’s engine.
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) AC Adaptor (2) Battery and (3) Product Using Battery.
Failure to follow the directions below could result in serious bodily injury and/ or property damage due to battery liquid leakage, fire or rupture.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR WIRELESS
HANDHELD PHONES
SAFETY AND WARRANTY
•
DO NOT use this equipment in an extreme environment where high temperature or high humidity exists.
•
DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not using, lay down the unit to avoid possible damage due to instability.
•
DO NOT expose this equipment to rain or spilled beverages.
WARNING! READ THIS INFORMATION BEFORE USING
CAUTIONS
In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.
WARNING
•
This product contains a chemical known to the State of California to cause cancer.
•
This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
SAFETY INFORMATION
FOR FCC RF EXPOSURE
SAFETY AND WARRANTY
164 165
•
DO NOT use unauthorized accessories.
•
DO NOT disassemble the phone or its accessories. If service or repair is required, return unit to an authorized UTStarcom cellular service center. If unit is disassembled, the risk of electric shock or fire may result.
•
DO NOT short-circuit the battery terminals with metal items etc.
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.
BODY-WORN OPERATION
This device was tested for typical body­worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt­clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.
SAFETY AND
WARRANTY
SAFETY INFORMATION FOR FCC RF EXPOSURE
SAR INFORMATION
SAFETY AND WARRANTY
166 167
For more information about RF exposure, please visit the FCC website at www.fcc.gov
.
The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is
1.13 W/Kg and when worn on the body, as described in this user guide, is
0.286 W/Kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure.
The SAR testing for Body-worn operation was performed with a belt clip that provided a 20mm separation. The User’s Manual indicates that any holsters/clips used with this device should contain no metallic components.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure.
SAFETY AND
WARRANTY
SAR INFORMATION SAR INFORMATION
SAFETY AND WARRANTY
168 169
170 171
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on PP4EZ2.
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http:// www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements.
SAFETY AND
WARRANTY
SAR INFORMATION
FCC HEARING-AID
COMPATIBILITY (HAC)
REGULATIONS FOR
WIRELESS DEVICES
SAFETY AND WARRANTY
Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.
In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.
The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.
M-Ratings:
Phones rated M3 or M4
meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
SAFETY AND
WARRANTY
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS DEVICES
FCC HEARING-AID
COMPATIBILITY (HAC)
REGULATIONS FOR
WIRELESS DEVICES
SAFETY AND WARRANTY
172 173
U.S. FOOD AND DRUG ADMINISTRATION - CENTER FOR DEVICES AND RADIOLOGICAL HEALTH CONSUMER UPDATE ON WIRELESS PHONES
The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.
For information about hearing aids and digital wireless phone
• Fcc Hearing Aid Compatibility and Volume Control http://www.fcc.gov/cgb/ dro/hearing.html
• Gallaudet University, RERC http://tap.gallaudet.edu/DigWireless. KS/DigWireless.htm
• Self Help for Hard of Hearing People Inc. [SHHH] www.hearingloss.org/hat/ TipsWirelessPhones.htm
• The Hearing Aid Compatibility FCC Order http://hraunfoss.fcc.gov/edocs_ public/attachmatch/ FCC-03-168A1.pdf
1. Do wireless phones pose a health
hazard?
The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used.
SAFETY AND
WARRANTY
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS DEVICES
FCC HEARING-AID
COMPATIBILITY (HAC)
REGULATIONS FOR
WIRELESS DEVICES
SAFETY AND WARRANTY
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
174 175
176 177
They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices.
However, the agency has authority to take action if wireless phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:
• Support needed research into possible biological effects of RF of the
type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function;
and
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
178 179
• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level.
The following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some inter-agency working
group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves,
the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document.
3. What kinds of phones are the subject
of this update?
The term “wireless phone” refers here to hand-held wireless phones with built-in antennas, often called “cell,” “mobile,” or “PCS” phones.
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be predisposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don’t know with certainty what the results of such studies mean for human health. Three large epidemiology studies have been published since December 2000.
These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user’s head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
180 181
However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years’ follow-up may be needed to provide answers about some health effects, such as cancer.
This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do -may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.
6. What is FDA doing to find out more
about the possible health
effects of
wireless phone RF?
Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neu-roma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.
5. What research is needed to decide whether RF exposure from
wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years.
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
182 183
industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure I can get by using my wireless phone?
All phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC established these guidelines in consultation with FDA and the other federal health and safety agencies. The FCC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg).
The FCC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National
FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF). FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996.
An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues. FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety.
FDA provides the scientific oversight, obtaining input from experts in government,
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
184 185
and leadership of FDA scientists and engineers. The standard, “Recommended Practice for Determining the Spatial­Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques,” sets forth the first consistent test methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue­simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines.
Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body’s ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCC. The FCC website (http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC identification number on your phone so you can find your phone’s RF exposure level in the online listing.
8. What has FDA done to measure the
radiofrequency energy
coming from
wireless phones ?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
186 187
188 189
Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all.
9. What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone?
If there is a risk from these products— and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.
• If you must conduct extended
conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote
antenna.
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that that no interference occurs when a person uses a “compatible” phone and a “compatible” hearing aid at the same time. This standard was approved by the IEEE in 2000. FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.
For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.
11. What about wireless phone
interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI).
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
FDA CONSUMER
UPDATE
SAFETY AND WARRANTY
190 191
12. Where can I find additional
information?
For additional information, please refer to the following resources:
• FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/ index.html)
• Federal Communications Commission
(FCC) RF Safety Program
(http://www.
fcc.gov/oet/rfsafety)
• International Commission on Non-
Ionizing Radiation Protection
(http://
www.icnirp.de)
• World Health Organization (WHO)
International EMF Project
(http://www.
who.int/emf)
• National Radiological Protection
Board (UK) (http://www.nrpb.org.uk/)
SAFETY AND
WARRANTY
FDA CONSUMER UPDATE
192 193
UTStarcom Personal Communications (the Company) warrants to the original retail purchaser of this UTStarcom handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.
12 MONTH LIMITED
WARRANTY
SAFETY AND WARRANTY
(f) Product damaged from external causes
such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.
The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.
When sending your wireless device to UTStarcom Personal Communications for repair or service, please note that any personal data or software stored on the device may be inadvertently erased or altered. Therefore, we strongly recommend you make a back up copy of all data and software contained on your device before submitting it for repair or service.
This Warranty does not apply to: (a) Product subjected to abnormal use
or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Product whose mechanical serial
number or electronic serial number has been removed, altered or defaced.
(c) Damage from exposure to moisture,
humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection
to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic,
decorative or structural items such as framing and non-operative parts;
SAFETY AND
WARRANTY
12 MONTH LIMITED WARRANTY
12 MONTH LIMITED
WARRANTY
SAFETY AND WARRANTY
194 195
This includes all contact lists, downloads (i.e. third-party software applications, ringtones, games and graphics) and any other data added to your device.
In addition, if your wireless device utilizes a SIM or Multimedia card, please remove the card before submitting the device and store for later use when your device is returned, UTStarcom Personal Communications is not responsible for and does not guarantee restoration of any third-party software, personal information or memory data contained in, stored on, or integrated with any wireless device, whether under warranty or not, returned to UTStarcom Personal Communications for repair or service.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
SAFETY AND
WARRANTY
12 MONTH LIMITED WARRANTY
12 MONTH LIMITED
WARRANTY
SAFETY AND WARRANTY
196 197
198 199
Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to province.
IN USA: UTStarcom Personal
Communications 555 Wireless Blvd. Hauppauge, NY 11788 (800) 229-1235
IN CANADA: UTStarcom Canada
Company 5535 Eglinton Avenue
West Suite# 234 Toronto, ON M9C 5K5 (800)465-9672.
SAFETY AND
WARRANTY
12 MONTH LIMITED WARRANTY
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
