USR8000A

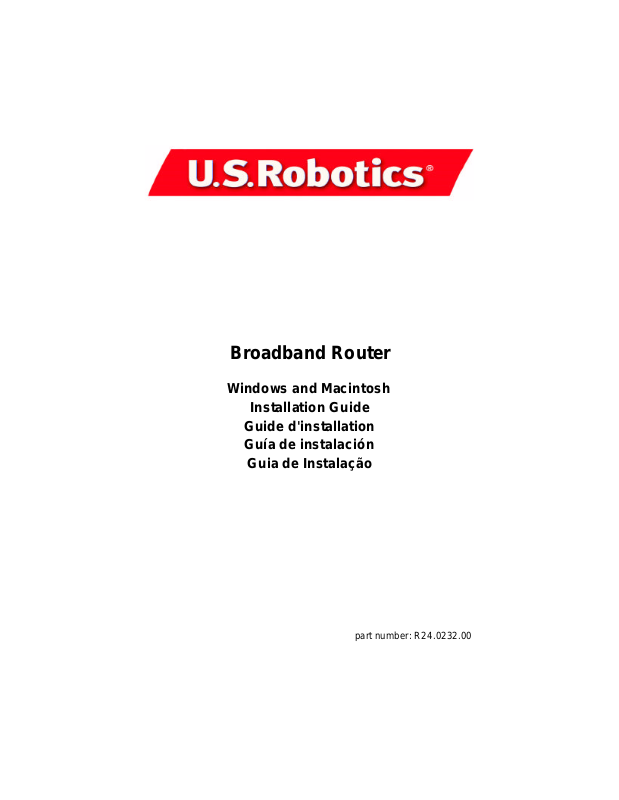

Us robotics USR8000A Installation Guide

Broadband Router
Windows and Macintosh
Installation Guide Guide d'installation Guía de instalación
Guia de Instalação
part number: R24.0232.00
Installation Guide ....................................................................................................... 1
Before you begin - Cable or DSL connection............................................................... 2
Connecting a Cable or DSL modem to the Broadband Router.................................... 4
Before you begin – Analogue or ISDN connection .......................................................6
Connecting an Analogue or ISDN modem to the Broadband Router...........................8
Broadband Router
Broadband Router
What You Need to Begin
• PC with an Ethernet NIC installed
• A functioning Ethernet-based Cable or DSL modem OR an RS-232 based analogue or ISDN modem
• Operating system installation CD-ROM
• Internet Explorer 4 or higher OR Netscape 4 or higher
• If you have an analogue or ISDN modem, an RS-232 cable
Front View Reset Button: Pressing in and holding the Reset button for one second will reboot the Broadband Router; holding the
Reset button for five seconds will reset the Broadband Router to factory defaults.
Power LED: The green Power LED stays lighted to indicate the system is functioning properly and flashes during the
self-test phase or firmware upgrade process.
WAN LED: The green WAN port LED flashes when the WAN port is sending or receiving data. LAN Ports 1-4: The LAN ports are used to connect devices to the local area network. The green Link/Act LEDs flash
when the specific LAN port is sending or receiving data. The yellow 10/100 LEDs are illuminated to indicate a speed of 100 Mbps and not illuminated to indicate a speed of 10 Mbps.
Back View PRINTER: This parallel port is used to attach a printer to the local area network.
WAN: The RJ-45 WAN port is used to connect to a broadband modem. COM: This serial port can be used to connect an analogue modem. 12VDC: This connection port is for the power supply of the Broadband Router.
The U.S. Robotics Broadband Router can easily be connected to any Ethernet-based Cable modem or DSL modem, or an RS-232 based analogue or ISDN modem. You can verify compatibility by checking to see if your Cable or DSL modem is connected to the network adapter in your computer using an Ethernet cable. If you have an analogue or ISDN Internet connection, proceed to the Before you begin
- Analogue or ISDN section of this Guide.
1
Broadband Router
Before you begin - Cable or DSL connection
This Quick Install Guide covers most Cable and DSL installations that are configured for Dynamic or Static IP addressing. This guide assumes that you have an active and properly functioning Cable or DSL Internet service. If you are uncertain about which type of configuration you have, please refer to the User Guide located on the Installation CD for more advanced setup procedures.
Note: DSL users, if you use a login application to access the Internet, you are more than likely using a
PPPoE connection. Refer to the appropriate section of the User Guide on the Installation CD for information on collecting your configuration information. If you use Dial-Up Networking and a VPN adapter, you are most likely using a PPTP connection. Refer to the appropriate section of the User Guide on the Installation CD for information on collecting your configuration information. If you are unsure about what type of connection you are using, contact your Internet Service Provider.
Note: Your Cable or DSL modem must be connected to your computer via an RJ-45 Ethernet
connection. The Broadband router is not compatible with Cable or DSL modems with only a USB connection. You must have an Ethernet adapter (NIC) installed on your computer.
You will be required to gather the following information about your computer from your Internet Service Provider. Contact them for assistance in obtaining this information.
IP Address:
Subnet Mask:
Gateway/Router
DNS Servers/
Name Servers:
Host Name/ DHCP
Client ID: ______________________________________________________________
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________ _______________-_______________-_______________-_______________
Not all of this information may be required for the installation of the Broadband Router. If your ISP cannot provide you with this information, the following basic steps will assist you in gathering most of the required information.
A. These steps will need to be performed on the computer that is currently connected to your Cable
or DSL modem.
Windows Users
1. All Windows Users:
Click Windows Start, Settings, and then Control Panel.
2. Windows 95/98/Me Users:
Double-click Network.
Windows 2000 and XP Users:
Double-click Network and Dial-up Connections.
Windows NT Users:
Double-click Network and then click the Protocols tab.
2
3. All Windows Users:
Select the TCP/IP option for the network adapter that is used to connect to your Cable or DSL modem and click Properties. Proceed to Step B.
Macintosh Users
Macintosh OS 9.x Users:
Click Apple , Control Panels and then TCP/IP . Proceed to Step B.
Macintosh OS X Users:
Click Apple , System Preferences and then Network. Proceed to Step B.
Broadband Router
B. All Windows Users:
You should now be in the TCP/IP properties window.
• If the Obtain an IP address automatically option is selected, you may proceed with the installa- tion of the Broadband Router in the Connecting section that follows.
• If this option is not selected, you will need to collect the necessary configuration information if it was not provided by your Service Provider. Depending on your operating system, you may need to click multiple tabs within the TCP/IP window to obtain all the necessary information. Select the Obtain an IP address automatically option and click OK. If necessary, click OK again to close the Network Properties page. If you are prompted to restart your computer, click No. You may proceed to the Connecting section of this Install Guide.
Note: Windows 2000 users must right-click My Computer, click Properties , and then click the
Network Identification tab to get the Computer Name/Host Name.
Macintosh Users:
Change the Connect via: option from whatever it is currently at to Connect via: Ethernet.
Check to see what the Configure: option is set to and if any information is supplied by your service provider for the IP address, DHCP Client ID, or Name Servers.
• If the Configure: option is set to Using DHCP, you may proceed to the Connecting section.
• If the Configure: option is not set to Using DHCP, you will need to collect the necessary configu­ration information if it was not provided by your Service Provider. You may need to click multiple tabs within the TCP/IP or Network window to obatin all the necessary information. Set the TCP/IP Configure: option to Using DHCP. Click Save and close the TCP/IP or Network window. You may proceed to the Connecting section of this Install Guide.
3
Connecting a Cable or DSL modem to the Broadband Router
Connecting a Cable or DSL modem to the Broadband Router

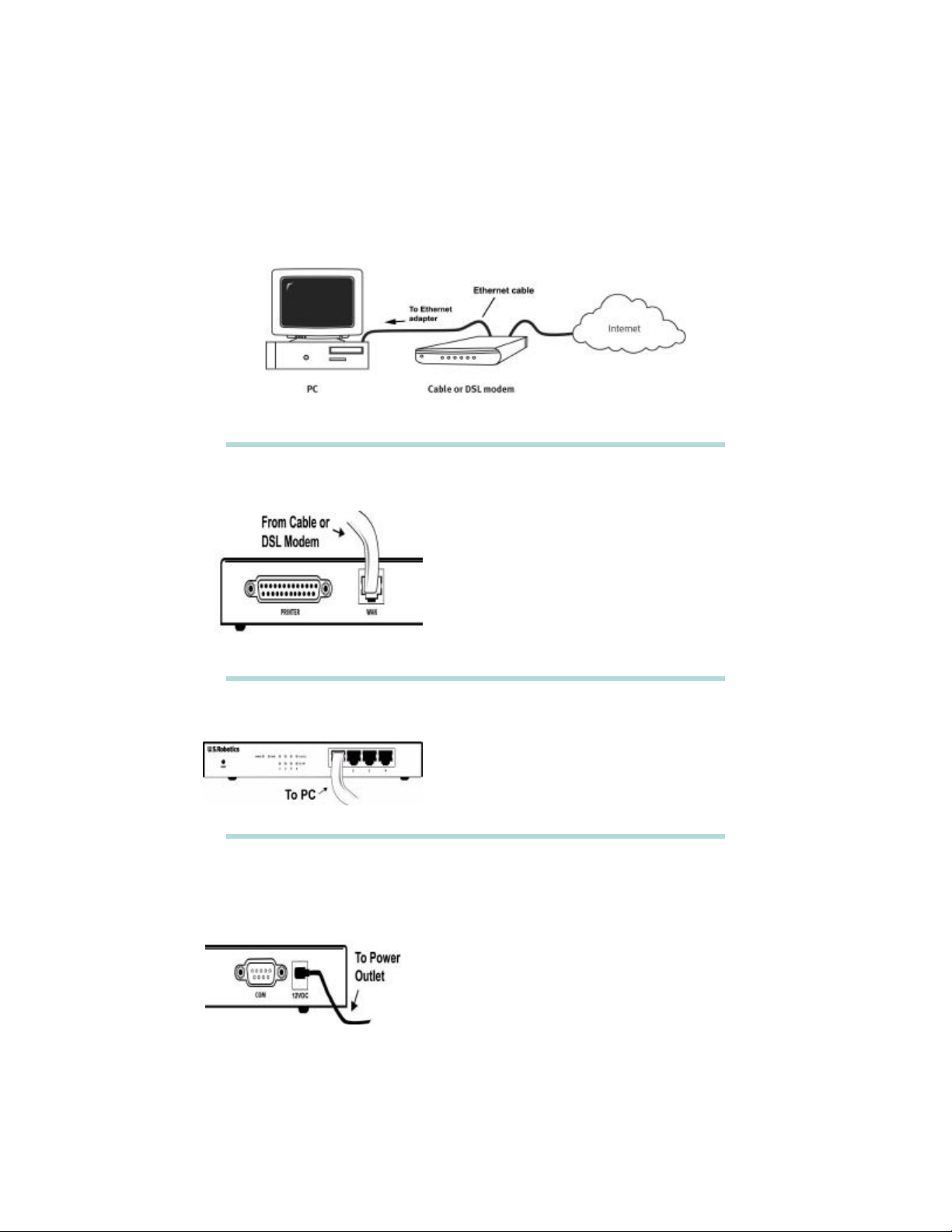

The following graphic is a representation of your system topology before the installation of the Broadband Router.
1
Turn off your PC and your Cable or DSL modem.
Note: If your Cable or DSL modem is connected to your PC
using a USB cable, disconnect the USB cable from both your PC and from your Cable or DSL modem.
Locate the Ethernet cable from your Cable or DSL modem that is connected to your PC’s Ethernet adapter. Disconnect that Ethernet cable from your PC’s Ethernet adapter. Connect that Ethernet cable to the WAN port on the rear of the Broadband Router.
2
3
Connect one end of the supplied Ethernet cable to your PC's Ethernet adapter. Connect the other end to one of the LAN ports on the Broadband Router.
Turn on your Cable or DSL modem. Connect the included power cord to the power jack on the Broadband Router. Plug the power cord into a standard power outlet. The Broadband Router will automatically enter the self-test phase. After the self-test phase is complete, turn on your PC.
Note: When the Broadband Router is in the self-test phase, the
Power LED may flash rapidly and all four LAN LEDs will light for approximately five seconds. Finally, the Power LED will continuously be lighted to indicate that the Broadband Router is operating normally and the self-test phase is complete.
4
Connecting a Cable or DSL modem to the Broadband Router
4
To configure the Broadband Router for your specific ISP, launch a Web browser and type http://
192.168.123.254 to access the Configuration Utility. There is no default password for the Broadband
Router, so just click Login . Click Setup and follow the on-screen instructions. You will need any network connection information you collected earlier.
Note: If you collected any network information earlier, you will need to enter this information into the
Setup WAN configurations screens.
5
After you have performed the configuration steps, the installation procedure is now complete. You should now have secure and shared Internet access. To verify your connection, launch a Web browser and go to www.usr.com. If the page loads, you are finished with the installation procedure. If the page does not load, proceed to the Troubleshooting section of this Guide.
Note: It is recommended that you write down the settings for your Broadband Router for future
reference. You can view the settings in the Broadband Router Configuration Utility by logging in at http:/ /192.168.123.254.

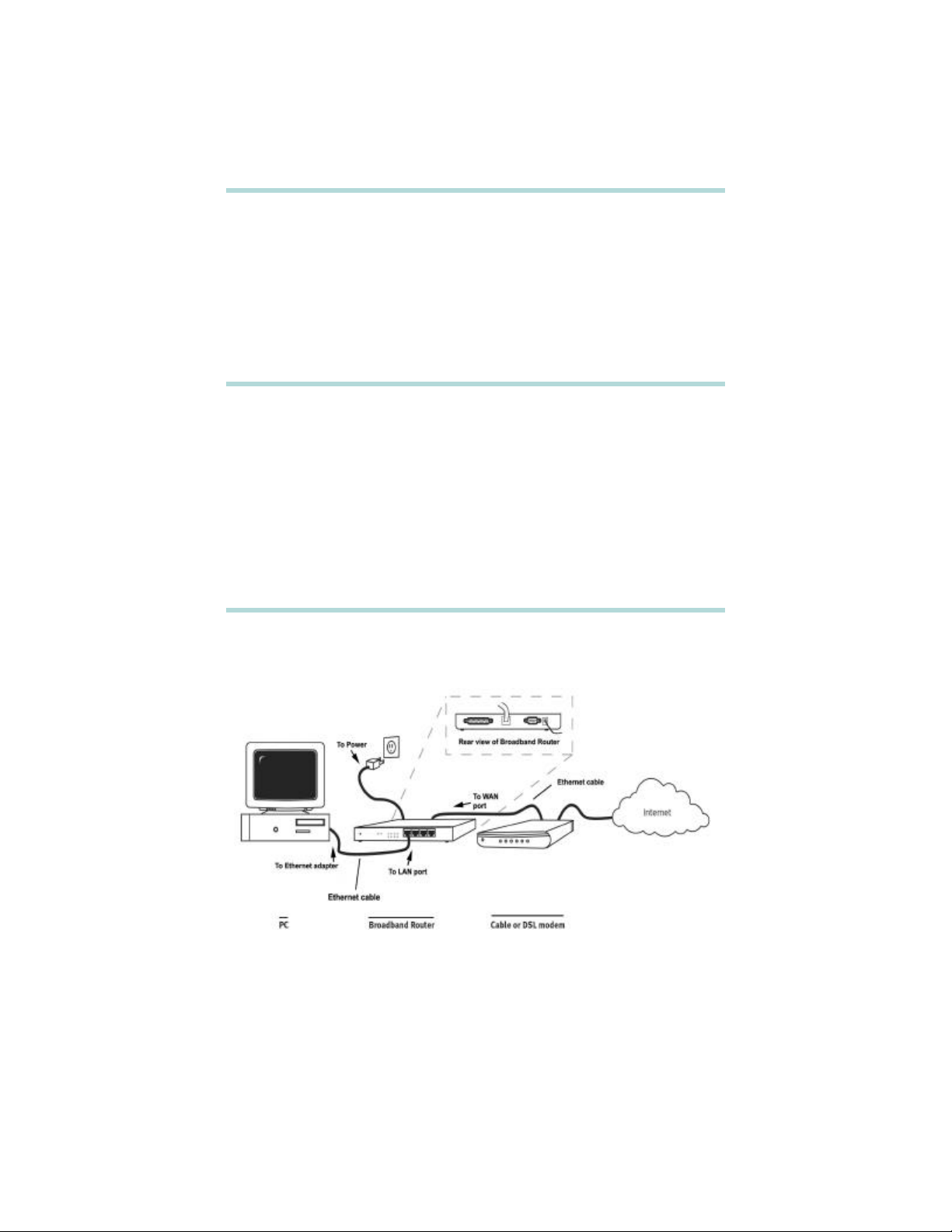

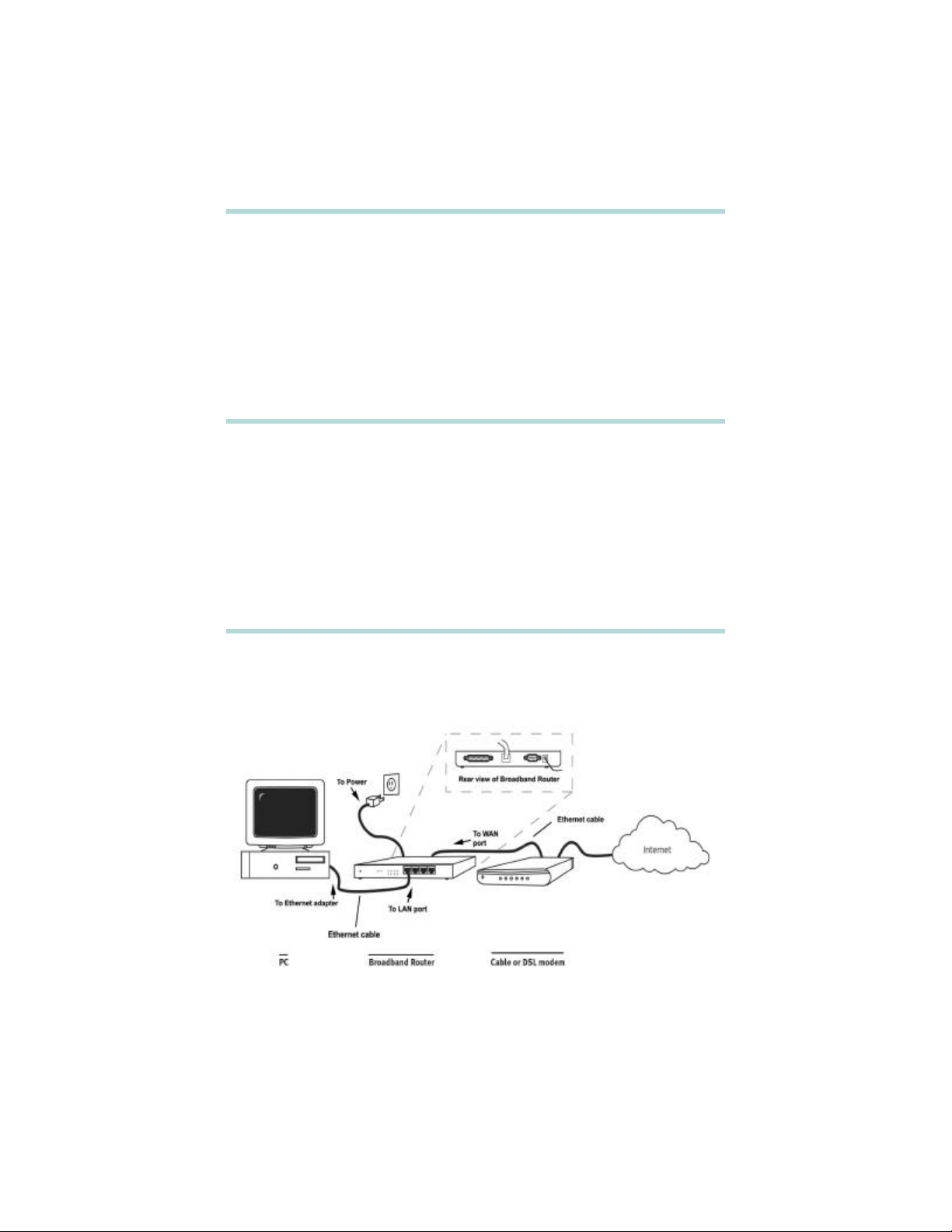

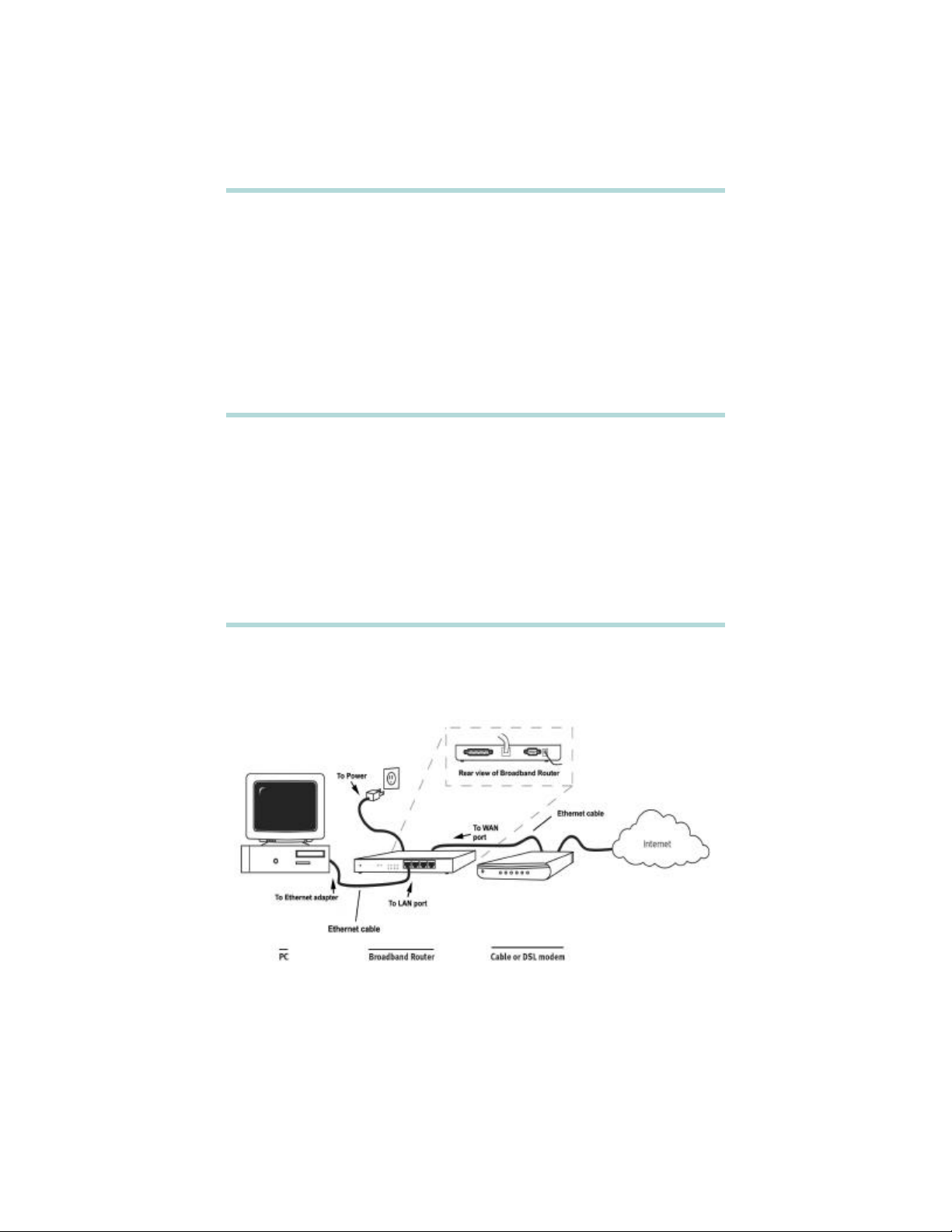

The following graphic is a representation of your system topology after the installation of the Broadband Router.
5
Before you begin – Analogue or ISDN connection
Before you begin – Analogue or ISDN connection
This Quick Install Guide covers most dial-up or remote access connections that are configured for Dynamic or Static IP addressing. This guide assumes that you have an active and properly functioning analogue or ISDN Internet service. If you are uncertain about which type of configuration you have, please refer to the User Guide located on the Installation CD for more advanced setup procedures
Note: The Broadband Router requires an external analogue or ISDN modem for dial-up functionality.
Your analogue or ISDN modem must be connected to your computer via an RS-232 serial connection. The Broadband router is not compatible with analogue or ISDN modems with only a USB connection. You must also have an Ethernet adapter (NIC) installed on your computer.
You will be required to gather the following information about your Dial-up or Remote Access connec­tion to your Internet Service Provider. Contact them for assistance in obtaining this information.
IP Address:
Subnet Mask:
Gateway/Router
DNS Servers/
Name Servers:
User Name*:
Password*:
Dial-up Access
Number*: ______________________________________________________________
*If you are using Windows, go to your Dial-up Networking or Network and Dial-up Connections folder to get this infor­mation. If you are using a Macintosh, enter Remote Access through Control Panels to get this information.
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________
_______________-_______________-_______________-_______________ _______________-_______________-_______________-_______________
______________________________________________________________
______________________________________________________________
Not all of this information may be required for the installation of the Broadband Router. If your ISP can­not provide you with this information, the following basic steps will assist you in gathering most of the required information.
A. These steps will need to be performed on the computer that is currently connected to your ana-
logue or ISDN modem.
Windows 95 and 98 Users:
Right-click My Computer and then click Explore. Double-click Dial-Up Networking. Right-click your ISP connection and click Properties. Click the Server Types tab and then click the TCP/IP
Settings button. Proceed to Step B.
Windows 2000 Users:
Click Windows Start , Settings, and then Control Panel. Double-click Network and Dial-up Connections . Right-click your ISP connection and click Properties. Click the Networking tab and then scroll down in the list of components. Select Internet Protocol (TCP/IP) and click Prop- erties. Proceed to Step B.
6
Before you begin – Analogue or ISDN connection
Windows NT Users:
Right-click My Computer and then click Explore. Double-click Dial-Up Networking. Select your ISP connection from the Phonebook entry drop-down menu. Click More and select Edit entry and modem properties. Click the Server tab and then click the TCP/IP Settings button. Pro­ceed to Step B.
Windows Me Users:
Click Windows Start , Settings, and then Dial-Up Networking. Right-click your ISP connection and click Properties. Click the Networking tab and then click the TCP/IP Settings button. Pro­ceed to Step B.
Windows XP Users:
Click Windows Start and then Control Panel. Double-click Network Connections. Right-click your ISP connection and click Properties . Click the Networking tab, select Internet Protocol
(TCP/IP) from the menu, and click Properties. Proceed to Step B.
Macintosh OS 9.x Users:
Click Apple , Control Panels, and then TCP/IP . Proceed to Step B.
Macintosh OS X Users:
Click Apple , System Preferences, and then Network. Proceed to Step B.
B. All Windows Users:
You should now be in the TCP/IP Properties window.
• If the Server assigned IP address and Server assigned name server addresses options are selected, you have a Dynamic IP address. Close any open properties windows and may proceed with the installation of the Broadband Router.
• If these options are not selected, you have a Static IP address and will need to check for the fol­lowing information: IP Address, Subnet Mask, and Default Gateway. You may proceed to the analogue or ISDN Connecting section.
Macintosh Users:
Ensure that the Connect via: option is set to Connect via: Ethernet.
• If the Configure: option is set to Manually, write any of the suplied information in the previous table. Set the Configure: option to Using DHCP Server.
• If the Configure: option is set to any other selection, change it to Using DHCP Server.
Click Save and close the TCP/IP or network window. You may proceed to the analogue or ISDN Connecting section.
7
Connecting an Analogue or ISDN modem to the Broadband Router
Connecting an Analogue or ISDN modem to the Broadband Router
There are two main reasons why you would want to use either an analogue or ISDN modem with the Broadband Router:
• You use Dial-up Internet service instead of Cable or DSL Internet service.
• You have Cable or DSL Internet service but want to have an analogue or ISDN backup in case your broadband Internet service is unavailable.
The following graphic is a representation of your system topology before the installation of the Broad­band Router.
Perform the following steps to connect an analogue or ISDN modem, manually change the WAN type, and properly configure the Broadband Router:
1
2
Turn off your PC and your analogue or ISDN modem.
Note: If your analogue or ISDN modem is connected to
your PC using a USB cable, disconnect the USB cable from both your PC and from your analogue or ISDN modem.
Connect a serial modem cable to your analogue or ISDN modem and to the COM port on the Broadband Router.
Connect one end of an Ethernet cable to your PC’s Ether­net adapter. Connect the other end to one of the LAN ports on the Broadband Router.
8
Connecting an Analogue or ISDN modem to the Broadband Router
3
Connect the included power cord to the power jack on the Broadband Router. Plug the power cord into a stan­dard power outlet. The Broadband Router will automati­cally enter the self-test phase. Turn on your PC and your analogue or ISDN modem.
Note: When the Broadband Router is in the self-test
phase, the Power LED may flash rapidly and all four LEDs will light up for approximately five seconds. Finally, the Power LED will continuously be lighted to indicate that the Broadband Router is operating normally and the self-test phase is complete.
4
In the location or address line of your Web browser, type http://192.168.123.254 to access the Configuration Utility. There is no default password for the Broad­band Router, so just click Login. Click Setup and follow the on-screen instructions. You will need any network information you collected earlier. When prompted, select the WAN type as Dial-up Modem and continue to follow the on-screen instructions.
5
Click Connect to initiate a dial-up session with your ISP. The Status page status will display whether or not the call was successful. If the settings are correct, the analogue or ISDN modem can be used to connect to the Internet. If the connection fails, verify that you entered the correct values.
The following graphic is a representation of your system topology after the installation of the Broad­band Router.
9
Troubleshooting
Troubleshooting
I can’t connect to the Configuration Utility of the Broadband Router.
Possible Solution:
Make sure all the Ethernet cables are properly and securely connected and the power cord is plugged in.
Possible Solution:
Make sure that you correctly performed all the steps in the Before you begin section of this Guide. If you have a Static IP address and did not select the Obtain an IP address automatically option for your computer, you will not be able to connect to the Broadband Router.
Possible Solution:
Make sure that your PC is using an IP address that is within the default range of 192.168.123.xxx. Make sure the address of the subnet mask is 255.255.255.0. If necessary, the Default Gateway and the DNS server data should also match the information you collected earlier. To verify all these set­tings, perform the following steps:
Windows 95, 98, or Me Users:
Click Windows Start and then Run. Type winipcfg and click OK. Check the IP Address, Subnet Mask, Default Gateway, and DNS server data to make sure they are correct. If the information is not correct, click Release All and then click Renew All.
Windows NT, 2000, or XP Users:
Click Windows Start and then Run. Type cmd and click OK. At the DOS prompt, type ipconfig /all. Check the IP Address, Subnet Mask, Default Gateway, and DNS server data to make sure they are correct. If the information is not correct, type ipconfig /release and press ENTER. Then, type ipcon- fig /renew and press ENTER.
If you are still unable to connect to the Broadband Router, refer to the Troubleshooting Ping Procedure section in the User Guide on the Installation CD.
Possible Solution:
You need to verify the connection setting of your Web browser and that the HTTP Proxy feature of your Web browser is disabled. You need to do this so that your Web browser can read the configura­tion pages inside your Broadband Router. Launch your Web browser.
Internet Explorer users: Click Tools, Internet Options, and then the Connections tab. Select
Never dial a connection, click Apply, and then click OK. Click Tools again, then click Internet Options . Click the Connections tab, and click the LAN Settings button. Clear all the check boxes, and click OK. Click OK.
Netscape Navigator users: Click Edit, Preferences, and then double-click Advanced in the Cate-
gory window. Click Proxies, select Direct connection to the Internet, and then click OK. Click Edit again, then click Preferences. Under Category , double-click Advanced, then click Proxies. Select
Direct connection to the Internet, and click OK.
I can’t access the Internet.
Possible Solution:
Make sure the power cord and all the Ethernet cables are connected correctly. This includes the cables connecting the Broadband Router, the modem, and all the PCs.
You can also reboot the Broadband Router by unplugging and plugging in the power supply. If you are still unable to access the Internet, refer to the Troubleshooting Ping Procedure section in this Guide and refer to the documentation for your modem.
10
Regulatory Approvals
I do not know if my assigned IP Address is Static or Dynamic.
Possible Solution:
If you have Cable or DSL service, you most likely have a Dynamic IP address. You should always check with your service provider to verify this information, since some providers will assign Static IP addresses. If you have a Dynamic IP address, select Dynamic IP Address in the WAN Setup area of the Configuration Utility and the Broadband Router will automatically obtain the information it needs from your service provider. If you have a Static IP address, select Static IP Address in the WAN Setup area of the Configuration Utility. You will need to refer to the network connection information you collected earlier and manually enter this information.
My Cable or DSL service is not working, but I need to access the Internet.
Possible Solution:
If you have an external analogue modem and dial-up Internet service, you can still access the Internet. Connect the external analogue modem according to the procedure described in this Guide. Open a Web browser and type http://192.168.123.254 to access the Configuration Utility. Click Setup, WAN, and then select Dial-up Modem . Enter the appropriate information for your dial-up Internet Service Provider settings.
While trying to check my network configuration settings in Windows Me or XP, I can’t find the Network icon.
Possible Solution:
The default setting in Windows Me and XP is to not show all of the icons within the Control Panel. Click Windows Start, Settings, and then Control Panel. Within Control Panel, click View all Control Panel
options on the left side of the screen. All the Control Panel icons should now be visible.
Are You Still Having Problems?
1. Call the dealer who sold you this U.S. Robotics product.
The dealer may be able to troubleshoot the problem over the phone or may request that you bring the product back to the store for service.
2. Call the U.S. Robotics Technical Support Department.
Technical questions about U.S. Robotics products can also be answered by technical support special­ists.
Country Voice Online Support Hours
United States (801) 401-1143 http://www.usr.com/support/s-contact.asp 9:00 A.M. - 5:00 P.M., Monday - Friday CST Canada (801) 401-1145 http://www.usr.com/international.asp 8:00 A.M. - 7:00 P.M., Monday - Friday CST
Argentina AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Brazil AT&T Direct + (877) 487-6253 brazil_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Mexico AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Chile AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Colombia AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Costa Rica AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Peru AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Puerto Rico AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST Venezuela AT&T Direct + (877) 643-2523 lat_modemsupport@usr.com 9:00 A.M. - 5:00 P.M., Monday - Friday CST
For current support contact information, go to the following Web site:
http://www.usr.com/
Regulatory Approvals
FCC Declaration of Conformity
We declare under our sole responsibility that the U.S. Robotics Broadband Router to which this declaration relates, is in conformity with the following standards or other normative documents:
· ANSI C63.4-1992 Methods of measurement
· Federal Communications Commission 47 CFR Part 15, subpart B
15.107 (e) Class B Conducted Limits
11
15.109 (g) Class B Radiated Emissions Limits
FCC Class B Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.this device may not cause harmful electromagnetic interference, and
2.this device must accept any interference received including interference that may cause undesired operations.
Radio and Television Interference
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip­ment generates and uses radio frequency energy and, if not installed and used in accordance with the instructions, may cause interfer­ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna or cable input device.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
The user may find the following information prepared by the Federal Communications Commission helpful: Telephone Interference Bulletin. This document is available on the Internet through the FCC Consumer Information Bureau Home Page at http://www.fcc.gov/cib. Under Consumer Information Directory - Telephone - Miscellaneous Telephone Information, select Interference to Telephones. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
CSA Certified
This information technology equipment is CSA-Certified for the uses described in the installation guide.
Canadian notice:
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the interf erence-caus­ing equipment standard entitled Digital Apparatus, ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B préscrites dans la norme sur le matèriel brouilleur: Appareils Numériques, NMB-003 édictée par l'Industrie Canada.
Your warranty and repair service centre is: Centre de guarantie et de service aprés vente: U.S. Robotics Unit-100 13751 Mayfield Pl. Richmond, B.C. Canada V6V 2G9
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make electrical ground connections by themselves, but should contact the appropriate inspection authority or an electrician, as appropriate.
U.S. Robotics Corporation Limited Warranty
U.S. Robotics Corporation Limited Warranty
HARDWARE: U.S. Robotics warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for the following length of time from the date of purchase from U.S. Robotics or it s autho­rised reseller:
Two (2) years
U.S. Robotics’s sole obligation under this express warranty shall be, at U.S. Robotics’s option and expense, to repair the defective prod­uct or part, deliver to Customer an equivalent product or part to replace the defective item, or if neither of the two foregoing options is rea­sonably available, U.S. Robotics may, in its sole discretion, refund to Customer the purchase price paid for the defective produ ct. All products that are replaced will become the property of U.S. Robotics. Replacement products may be new or reconditioned. U.S. Robotics warrants any replaced or repaired product or part for ninety (90) days from shipment, or the remainder of the initial warranty period, whichever is longer.
SOFTWARE: U.S. Robotics warrants to Customer that each software program licensed from it will perform in substantial conformance to its program specifications, for a period of ninety (90) days from the date of purchase from U.S. Robotics or its authorised rese ller. U.S. Robotics warrants the media containing software against failure during the warranty period. No updates are provided. U.S. Robotics’s sole obligation under this express warranty shall be, at U.S. Robotics’s option and expense, to refund the purchase price paid by Cus­tomer for any defective software product, or to replace any defective media with software which substantially conforms to applicable U.S. Robotics published specifications. Customer assumes responsibility for the selection of the appropriate applications program and associ­ated reference materials. U.S. Robotics makes no warranty or representation that its software products will meet Customer’s require­ments or work in combination with any hardware or applications software products provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. For any third-party prod­ucts listed in the U.S. Robotics software product documentation or specifications as being compatible, U.S. Robotics will make reason­able efforts to provide compatibility, except where the noncompatibility is caused by a “bug” or defect in the third party’s product or from use of the software product not in accordance with U.S. Robotics/’s published specifications or User Guide. THIS U.S. ROBOTICS PRODUCT MAY INCLUDE OR BE BUNDLED WITH THIRD-PARTY SOFTWARE, THE USE OF WHICH IS GOVERNED BY A SEPARATE END-USER LICENSE AGREEMENT. THIS U.S. ROBOTICS WARRANTY DOES NOT APPLY TO SUCH THIRD-PARTY SOFTWARE. FOR THE APPLICABLE WARRANTY, PLEASE REFER TO THE END-USER LICENSE AGREE­MENT GOVERNING THE USE OF SUCH SOFTWARE.
OBTAINING WARRANTY SERVICE: Customer must contact a U.S. Robotics Corporate Service Centre or an Authorised U.S. Robotics Service Centre within the applicable warranty period to obtain warranty service authorisation. Dated proof of purchase from U.S. Robot­ics or its authorised reseller may be required. Products returned to U.S. Robotics’s Corporate Service Centre must be pre-authorised by U.S. Robotics with a Service Repair Order (SRO) number marked on the outside of the package, and sent prepaid and packaged appro-
12
priately for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. The
U.S. Robotics Corporation Limited Warranty
repaired or replaced item will be shipped to Customer, at U.S. Robotic’s expense, not later than thirty (30) days after U.S. Robotics receives the defective product. Return the product to:
In the United States:
USR-Walnut
528 Spanish Lane
Walnut, Ca. 91789
In Canada:
U.S. Robotics
Unit-100, 13751 Mayfield Place
Richmond, B.C. Canada V6V 2G9
U.S. Robotics shall not be responsible for any software, firmware, information, or memory data of Customer contained in, stored on, or integrated with any products returned to U.S. Robotics for repair, whether under warranty or not.
WARRANTIES EXCLUSIVE: IF A U.S. ROBOTICS PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT U.S. ROBOTICS’S OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPON­DENCE WITH DESCRIPTION, AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. U.S. ROBOTICS NEI­THER ASSUMES NOR AUTHORISES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. U.S. ROBOTICS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PROD­UCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTAL­LATION OR TESTING, UNAUTHORISED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW, U.S. ROBOTICS ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CON­SEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF U.S. ROBOTICS OR ITS AUTHORISED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT U.S. ROBOTICS’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
DISCLAIMER: Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of inci­dental or consequential damages for certain products supplied to consumers, or the limitation of liability for personal injury, so the above limitations and exclusions may be limited in their application to you. When the implied warranties are not allowed to be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights which may vary depending on local law.
GOVERNING LAW: This Limited Warranty shall be governed by the laws of the State of Illinois, U.S.A. excluding its conflicts of laws prin­ciples and excluding the United Nations Convention on Contracts for the International Sale of Goods.
This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are reg istered property of their respective owners.
13
U.S. Robotics Corporation Limited Warranty
14
Broadband Router
Broadband Router
Ce dont vous avez besoin pour commencer
• Un PC équipé d'une carte réseau Ethernet
• Un modem câble ou DSL compatible Ethernet OU un modem RNIS ou analogique compatible RS-232
• Le CD-ROM d'installation du système d'exploitation
• Internet Explorer 4 ou version ultérieure OU Netscape 4 ou version ultérieure
• Si vous disposez d'un modem analogique ou RNIS, il vous faut un câble RS-232
Vue avant Bouton Reset: Si vous maintenez le bouton Reset enfoncé pendant une seconde, vous réinitialiserez le Broadband
Router; si vous le maintenez enfoncé pendant cinq secondes, vous restaurerez les réglages par défaut du fabricant.
DEL Power: La diode électroluminescente (DEL) d'alimentation verte reste allumée pour indiquer que le système
fonctionne correctement et clignote lors de la phase d'auto-test ou de mise à niveau du micrologiciel.
DEL WAN: La DEL verte de port WAN (réseau étendu) clignote lorsque le port transmet et reçoit des données. Ports LAN 1 à 4: Les ports LAN (réseau local) permettent de connecter les périphériques au réseau local. Les DEL
de liaison/activité vertes (Link/Act) clignotent lorsque les ports LAN correspondants transmettent et reçoivent des données. Les DEL 10/100 jaunes indiquent une vitesse de 100Mbits/s lorsqu'elles sont allumées et une vitesse de 10Mbits/s lorsqu'elles sont éteintes.
Vue arrière PRINTER: Le port parallèle PRINTER (imprimante) permet de relier une imprimante au réseau local.
WAN: Le port WAN RJ-45 permet de connecter le Broadband Router à un modem à large bande. COM: Ce port série peut être utilisé pour connecter un modem analogique. 12VDC: Ce port permet de raccorder l'alimentation électrique au Broadband Router.
Le Broadband Router de U.S. Robotics peut être facilement connecté à tout modem câble ou DSL compatible Ethernet ou à un modem RNIS ou analogique compatible RS-232. Vous pouvez vérifier la compatibilité en déterminant si votre modem câble ou DSL est connecté à la carte réseau dans votre ordinateur à l'aide d'un câble Ethernet. Si vous disposez d'une connexion analogique ou RNIS, consultez la section Avant de commencer - connexion analogique ou RNIS du Guide.
15
Loading...
+ 43 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
