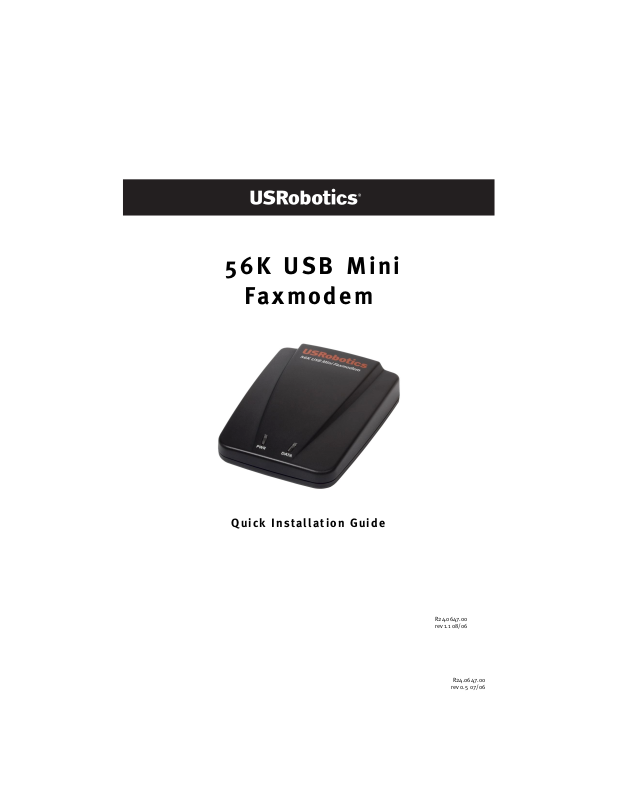

Us robotics USR5635 Quick Installation Guide

56K USB Mini

Faxmodem

Quick Installation Guide

#R24.0647.00

rev 1.1 08/06

Contents

Installation ...........................................................1

Operations ...........................................................5

Troubleshooting ....................................................6

Additional Information ...........................................9

Support .............................................................. 10

English

Installation

Package Contents

English

! USR5635 56K USB Mini

Faxmodem

! Quick Installation Guide

! Telephone cord ! Installation CD-ROM
! USB cable

Physical Features

LEDs

LED State Function

Solid The 56K USB Mini Faxmodem is receiving

PWR

Off The 56K USB Mini Faxmodem is not receiving

Flashing The 56K USB Mini Faxmodem is active.

DATA

Off The 56K USB Mini Faxmodem is not active.

power.

power.

1
