US Robotics USR5500 User Manual

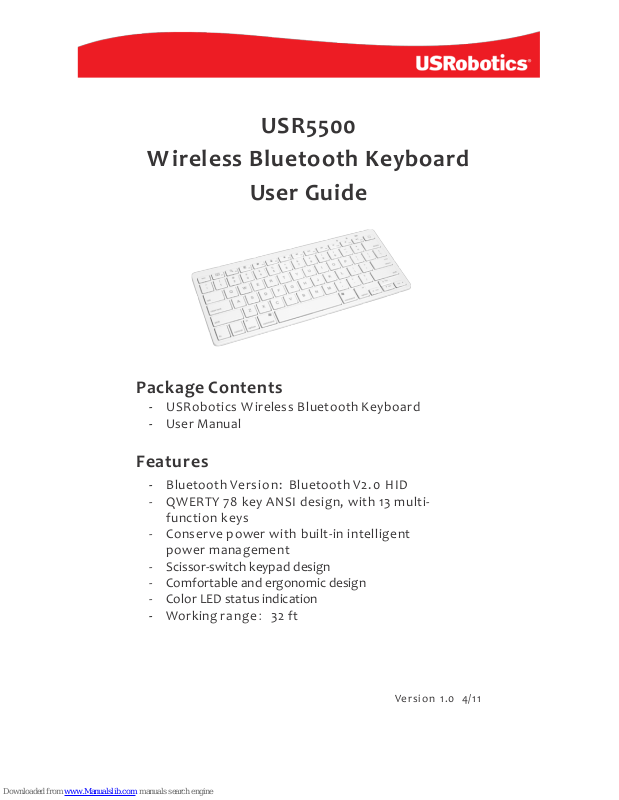

USR5500

Wireless Bluetooth Keyboard

User Guide

Package Contents

- USRobotics Wireless Bluetooth Keyboard

- User Manual

Features

- Bluetooth Version: Bluetooth V2.0 HID

- QWERTY 78 key ANSI design, with 13 multi­function keys

- Conserve power with built-in intelligent
power management

- Scissor-switch keypad design

- Comfortable and ergonomic design

- Color LED status indication

- Working range: 32 ft

Version 1.0 4/11

 Table of contents

• Introduction

• System Requirements

• Installation

o Charging the keyboard
o Multimedia Key Character Map

o

iPad / iPhone

o Windows Mobile
o Nokia Symbian
o Windows
o Macintosh
o Linux
o Playstation 3

• FAQs

• Product Warranty & Support

• Regulatory

Introduction

Thank you for purchasing the USRobotics Wireless Bluetooth
Keyboard, the perfect accessory for tablets and other handheld
devices.

System requirements

• Built-in Bluetooth functionality on any of the following systems:

o Apple iPad 1& 2, iPhone/Touch with iOS 4 & later
o Android tablets (Xoom, Galaxy Tab)
o Windows Mobile OS 6. 0 & later
o Nokia Symbian S60 OS V3. 0 & later
o Computers with Windows, Mac, or Linux OS
o Sony Playstation 3
o HTPC

Installation

NOTE: The first time the keyboard is used you will need to install two

AAA alkaline batteries (not included).

Step 1 – Prepare the keyboard

• Turn the keyboard to the ON position.

• Press the pair (connect) button; the green LED on the top will flash

when in pairing mode.

• The keyboard is now ready to connect with a Bluetooth ready
system.

pair/connect button

Step 2 – Connect to a Bluetooth ready system

• On the Bluetooth ready system turn Bluetooth ON

• The device should detect the keyboard and provide a way to pair

the device. This will include a code or pin that will need to be typed
onto the keyboard to finish the pairing process.

Detailed installation instructions immediately

follow the Keyboard Character Map.

Note: If no signal is received after 10 minutes or the connected device

is turned off, the keyboard will revert to Standby Mode. To reactivate
the keyboard, click the Enter key on the keyboard.

Multimedia Keys for iPad/iPhone & Windows

Connect with iPad/iPhone

1. Prepare the keyboard for pairing by turning it on and pressing the

pair button.

2. On your iPad/iPhone, go to Settings then select General.

3. Turn Bluetooth ON, it will start searching for Bluetooth devices.

4. When the system finds the keyboard, select Bluetooth Keyboard.

5. A random Bluetooth passkey or pin will be provided by your

system. Type this number onto the keyboard, and press Enter to
complete the pairing.

6. Now the keyboard is successfully connected with your iDevice.

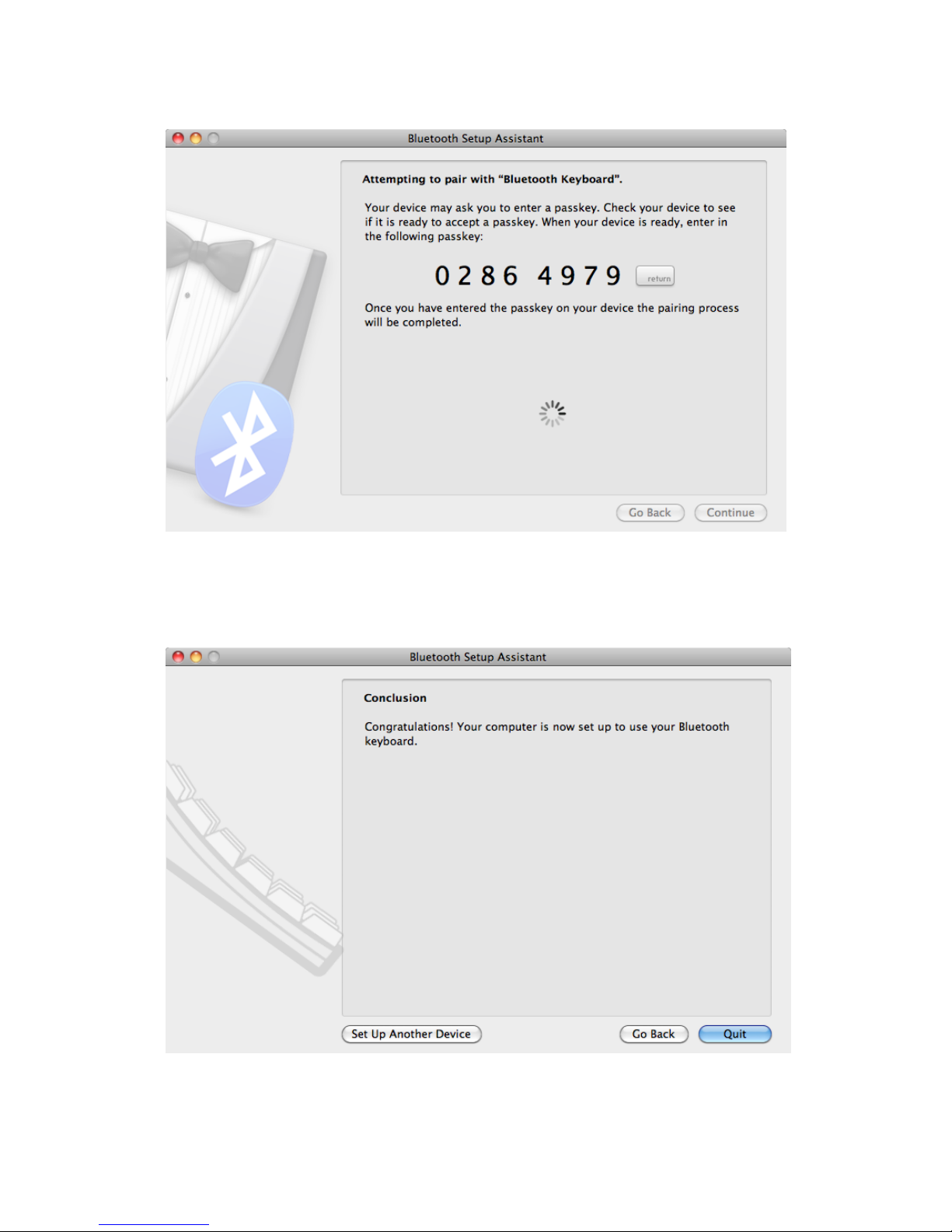

Connect with Macintosh OSX

NOTE: Before you connect the Bluetooth Keyboard, please make

sure you have Bluetooth functionality on your system.

1. Prepare the keyboard for pairing by turning it on and pressing

the pair button.

2. Make sure that the Bluetooth Function has been activated on your

computer. Select Set up Bluetooth device from the Bluetooth status
dropdown in the menu bar.





3. When the system finds the keyboard, select Bluetooth Keyboard

and click Continue.
