ABOUT THE 802.11g 54Mbps

Congratulations on your purchase of the 802.11g 54Mbps Router. U.S. Robotics is proud to provide you with a powerful yet simple communication device for connecting your home network or local area network (LAN) to the Internet.

LED Indicators

The 802.11g 54Mbps Router includes status LED indicators, as described in the following figure and table.

Router

802.11g 54Mbps Router

LED Status Description

PWR (Green)

WLAN (Green)

WAN (Green)

LAN1-4

100

On The 802.11g 54Mbps Router is receiving power.

On The 802.11g 54Mbps Router has established a valid

Flashing The WLAN port is transmitting or receiving traffic.

On The WAN port has established a valid network

On The indicated LAN port has established a valid

Flashing The indicated LAN port is transmitting or receiving

wireless connection.

connection.

100 Mbps network connection.

traffic.

100

1234

100

About the 802.11g 54Mbps Router

LED Status Description

LAN1-4

On The indicated LAN port has established a valid 10 Mbps

Flashing The indicated LAN port is transmitting or receiving

network connection.

traffic.

Front and Rear Panels

The following figure shows the components of the 802.11g 54Mbps Router:

Figure 1. Front and Rear Panels

802.11g 54Mbps Router

100

1234

100

Item Description

LEDs Power, WLAN, WAN and LAN port status indicators.

Power Inlet Connect the included power adapter to this inlet.

WAN Port WAN port (RJ-45). Connect your cable modem, DSL modem, or

(See “LED Indicators” on page 1.)

Warning: Using the wrong type of power adapter may damage your router.

an Ethernet router to this port.

Item Description

Reset Button Use this button to reset the power and restore the default factory

(LAN) Ports

settings.

Fast Ethernet ports (RJ-45). Connect devices (such as a PC, hub or switch) on your local area network to these ports.

System Requirements

You must have an ISP that meets the following minimum requirements:

• Internet access from your local telephone company or Internet Service Provider (ISP) using a DSL modem or cable modem.

• A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or a USB-to-Ethernet converter.

• TCP/IP network protocol installed on each PC that needs to access the Internet.

• A web browser, such as Microsoft Internet Explorer 5.5 or above installed on one PC at your site for configuring the 802.11g 54Mbps Router.

Installing the 802.11g 54Mbps Router

INSTALLING THE 802.11g 54Mbps

Router

Basic Installation Procedure Note: It is important that you have your serial number written down before

you install the 802.11g 54Mbps Router. You can find your serial number on the bottom label of the 802.11g 54Mbps Router. If you ever need to call our Technical Support department, you will need this number to receive assistance.

Model Number Serial Number

USR5462

Note: Be sure to find out what letter your CD-ROM drive uses before you begin installing your new product. You will need to know this to properly install your software.

Step One: Connect your modem to the 802.11g 54Mbps Router

• Turn off your computer and your cable or DSL modem.

• Locate the Ethernet cable from your cable or DSL modem that is connected to your computer’s Ethernet adapter.

• If your broadband is connected, disconnect that Ethernet cable from your computer’s Ethernet adapter.

• Use the Ethernet cable to connect your cable or DSL modem to the WAN port on the rear of the 802.11g 54Mbps Router.

Installing the 802.11g 54Mbps Router

Note: Some cable or DSL modems can be connected using either a USB cable or an Ethernet cable. To connect your cable or DSL modem to the

802.11g 54Mbps Router, you must use an Ethernet cable.

Step Two: Connect your 802.11g 54Mbps Router to your computer and connect the power supply

Connect one end of the supplied Ethernet cable to your computer’s Ethernet adapter. Connect the other end to one of the LAN ports on the 802.11g 54Mbps Router.

Installing the 802.11g 54Mbps Router

Turn on your cable or DSL modem. Connect the included power adapter to the power socket on the 802.11g 54Mbps Router. Plug the power adapter into a standard power outlet. Turn on your computer.

Step Three: Configure the basic connection settings

Note: You will also need to verify that the HTTP Proxy feature of

your web browser is disabled. Refer to “Troubleshooting” on page 57.

Perform the steps of the Setup Wizard to configure the basic connection settings of the 802.11g 54Mbps Router.

Your Internet connection user name and password will be required for the installation of the 802.11g 54Mbps Router. Depending on your ISP, you may need to know some of the following information: IP Address, Subnet Mask, Gateway/Router, DNS Servers/ Name Servers, and Service Name (optional).

Note: To obtain the necessary information, first look within your login application. If you cannot find all the necessary information, contact your ISP for assistance in obtaining this information.

Installing the 802.11g 54Mbps Router

1. Launch a Web browser. In the location or address line of your Web

browser, type http://192.168.2.1 to access the Web User Interface.

After the connection is established, you will see the Web User Interface. The default password is admin. Click Login.

When you access the Web User Interface, click the Setup Wizard.

Note: If you are prompted to connect to the Internet, you may need to select Try Again or Connect, depending on your Internet browser.

2. Select your Time Zone and then click Next.

3. Choose your Broadband Type. (Enter the appropriate information for

the type of Internet connection you chose.) When you are finished, click Next. Refer to “Broadband Type” on page 12 for more information.

4. If required, enter the IP address Info for the 802.11g 54Mbps Router and

then click Finish.

After finishing the Setup Wizard, if it does not report "Connected," perform the steps of the Setup Wizard again.

If Web User Interface still did not report “Connected,” or if at anytime you want to validate your Internet settings, click Advanced Setup and select Status.

To make a wireless connection: Make sure each wireless adapter that will be connected to the network is set to Infrastructure mode. If you purchased the USR5470 Wireless Starter Kit, refer to the Navigating the Wireless Configuration Utility section of the

802.11g 54Mbps USB Adapter User Guide on the Installation CD-ROM to determine how to change this setting and for instructions on collecting your configuration information. If you are connecting a different wireless adapter, refer to that wireless adapter’s documentation.

Installing the 802.11g 54Mbps Router

When you are finished configuring the basic connection settings, you should now have Internet access. Launch a Web browser and register your product at www.usr.com/productreg If the page loads, you are finished with the installation procedure. If the page does not load, refer to the Troubleshooting section.

Note: Refer to“Configuring the 802.11g 54Mbps Router” on page 9 for more detailed configuration information. Contact your ISP if you have any questions about your WAN type or your connection information.

The installation procedure for the 802.11g 54Mbps Router is now complete. If you experience any difficulties, refer to “Troubleshooting” on page 57 for more detailed information.

Configuring the 802.11g 54Mbps Router

ONFIGURING THE

802.11

54M

The 802.11g 54Mbps Router can be configured by Windows Internet Explorer 5.5 or above. Using the Web User Interface, you can configure the 802.11g 54Mbps Router and view statistics to monitor network activity.

Before you attempt to log into the web-based administration, please verify the following.

1. Your browser is configured properly (see below).

2. Disable any firewall or security software that may be running.

3. Confirm that the cable is securely plugged into your computer

and the 802.11g 54Mbps Router (ports 1-4).

4. Make sure that the LED that corresponds with the port you are using is lit green. If you don’t have a link light, then try another cable until you get a good link.

Navigating the Web Browser Interface

To access the 802.11g 54Mbps Router’s user interface, enter the 802.11g 54Mbps Router IP address in your web browser http://

192.168.2.1 Then enter the password and

click LOGIN. (The default password is admin.)

BPS

OUTER

Note: Passwords can contain from 3 to 12 alphanumeric

characters and are case sensitive.

Configuring the 802.11g 54Mbps Router

The home page displays the Setup Wizard and Advanced Setup options.

The 802.11g 54Mbps Router’s user interface features a Setup Wizard and an Advanced Setup section. Use the Setup Wizard if you want to quickly set up the 802.11g 54Mbps Router for use with a cable modem or DSL modem.

Advanced setup supports more advanced functions like hacker attack detection, IP and MAC address filtering, intrusion detection, virtual server setup, virtual DMZ hosts, and other advanced functions.

Making Configuration Changes

Configurable parameters have a dialog box or a drop-down list. Once a configuration change has been made on a page, be sure to click the APPLY or NEXT button at the bottom of the page to enable the new setting.

Setup Wizard

Time Zone

Click on the Setup Wizard picture. The first item in the Setup Wizard is Time Zone setup.

For accurate timing of client filtering and log events, you need to set the time zone. Select your time zone from the drop-down list, and click NEXT.

Broadband Type

Select the type of broadband connection you have.

Note: If you have any questions regarding what type of service

you have, check with your Internet Service Provider for more information.

For a cable modem connection see the following page. For a Fixed-IP xDSL connection see “Fixed-IP xDSL” on page 13, for a PPPoE xDSL connection, see “PPPoE xDSL” on page 14, for a PPTP connection, see “Point-to-Point Tunneling Protocol (PPTP)” on page 15, and for BigPond connection, see “BigPond” on page 16.

Cable Modem or xDSL Router

Your Internet Service Provider may have given you a host name. If so, enter it into the field.

Your connection may require you to clone your MAC address. If required, enter the MAC address of the network adapter that was used to setup your cable connection. Then click Clone MAC address.

Click Finish to complete the setup. The Status page will be displayed, allowing you to view the connection status, as well as other information. See “Status” on page 56 for details.

Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a fixed (static) IP address. If you have been provided with this information, choose this option and enter the assigned IP address, Subnet Mask, Gateway IP Address, and DNS IP address. Click Finish to complete the setup.

Configuring the 802.11g 54Mbps Router

PPPoE xDSL

Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers.

Leave the Maximum Transmission Unit (MTU) at the default value (1454) unless your service provider has specified otherwise.

Enter a Maximum Idle Time (in minutes) to define a maximum period of time for which the Internet connection is maintained during inactivity. If the connection is inactive for longer than the Maximum Idle Time, it will be dropped. (Default: 0)

Enable the Auto-reconnect option to automatically re-establish the connection as soon as you attempt to access the Internet again. Click Finish to complete the setup.

Setup Wizard

Point-to-Point Tunneling Protocol (PPTP)

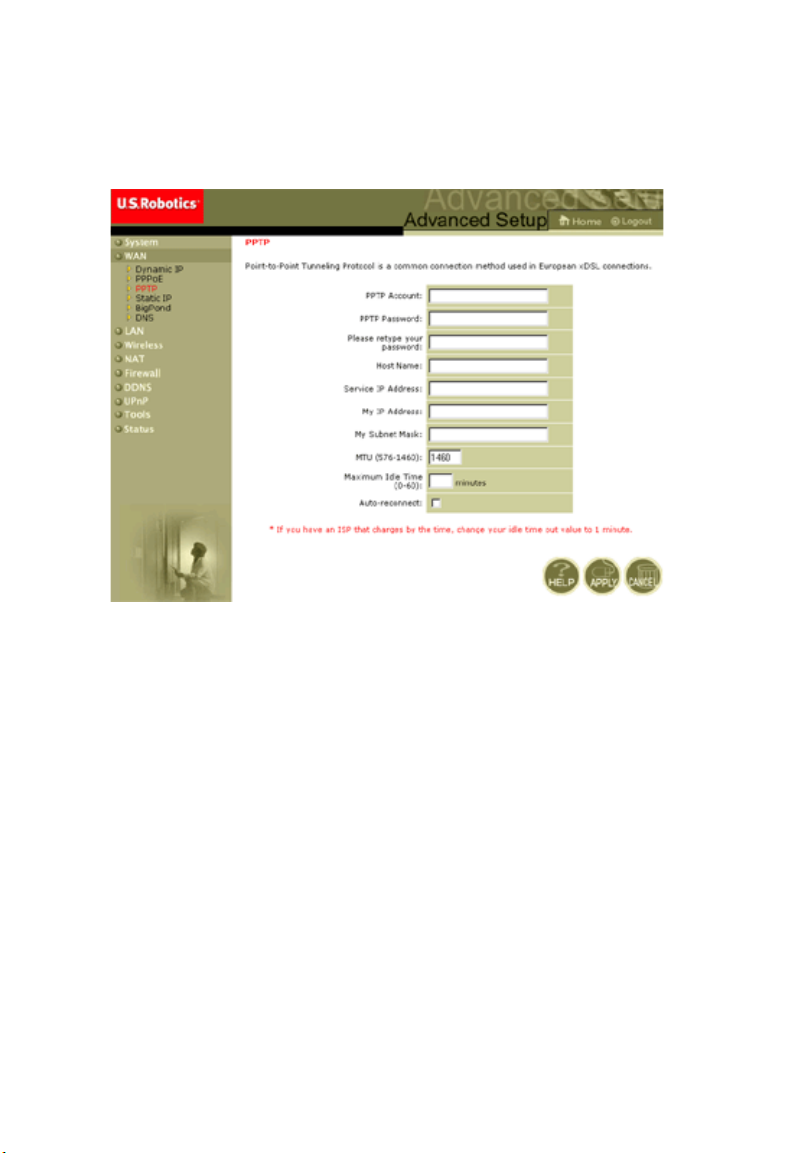

Point-to-Point Tunneling Protocol is a connection method used for xDSL connections in Europe. It can be used to join different physical networks using the Internet as an intermediary.

If you have been provided with the information as shown on the screen, enter the PPTP Account name and password, Host Name, Service IP Address, the assigned IP Address, and Subnet Mask.

Leave the Maximum Transmission Unit (MTU) at the default value (1460) unless your service provider has specified otherwise.

Enable the Auto-reconnect option to automatically re-establish the connection as soon as you attempt to access the Internet again. Click Finish to complete the setup.

Configuring the 802.11g 54Mbps Router

BigPond

If you use the BigPond Internet Service which is available in Australia, enter the User Name, Password and Authentication Service Name for BigPond authentication. Click Finish to complete the setup.

Advanced Setup

Use the Web User Interface to define system parameters, manage and control the 802.11g 54Mbps Router and its ports, or monitor network conditions. The following table outlines the selections available from this program.

Menu Description

System Sets the local time zone, the password for administrator access,

WAN • Specifies the Internet connection type: (1) Dynamic IP, (2)

LAN Sets the TCP/IP configuration of the 802.11g 54Mbps Router’s

Wireless Configures the radio frequency, SSID, WPA/WEP encryption,

NAT Shares a single ISP account with multiple users, sets up virtual

Firewall Configures a variety of security and specialized functions,

DDNS Dynamic DNS provides users on the Internet with a method to

UPnP With Universal Plug and Play, a device can automatically join a

Tools Contains options to back up and restore the current

Status Provides WAN connection type and status, firmware and

system log server, and the IP address of a PC that will be allowed to manage the 802.11g 54Mbps Router remotely.

PPPoE configuration, (3) PPTP, (4) Static IP and ISP gateway address, or (5) BigPond (Internet service available in Australia).

• Specifies DNS servers to use for domain name resolution.

LAN interface and all DHCP clients.

and 802.1x for wireless communications.

servers.

including: Access Control, Hacker Prevention, and DMZ.

tie their domain name to a computer or server.

network, obtain an IP address, communicate its capabilities, and learn about the presence and capabilities of other devices. Devices can then directly communicate with each other. This further enables peer-to-peer networking.

configuration, restore all configuration settings to the factory defaults, update system firmware, or reset the system.

hardware version numbers, system IP settings, as well as DHCP, NAT, and Firewall information.

Displays the number of attached clients, the firmware versions, the physical MAC address for each media interface, and the hardware version and serial number.

Shows the security and DHCP client log.

Configuring the 802.11g 54Mbps Router

System

Time Zone

Set the time zone and time server for the 802.11g 54Mbps Router. This information is used for log entries and client access control.

• Set your local time zone settings

Select your time zone from the drop-down list, and set the start and end dates if your area requires daylight savings.

To automatically update the 802.11g 54Mbps Router’s internal clock by synchronizing with a public time server over the Internet, choose one of the methods below.

• Get date and time from online time servers (Network Time Protocol)

Choose the online standard time server for your area from the drop-down menu, or enter the IP address of the time server on your network.

• Set date and time using the PC's date and time

Click on the radio button for synchronizing the 802.11g 54Mbps Router’s internal clock with the host PC.

Advanced Setup

• Set date and time manually

For manually setting the date and time, configure the date by selecting the options from the drop-down list, and enter the digits for the time.

Configuring the 802.11g 54Mbps Router

Password Settings

Use this menu to restrict access based on a password. For security you should assign your own password before exposing the 802.11g 54Mbps Router to the Internet. (Default: admin)

Passwords can contain from 3 to 12 alphanumeric characters and are case sensitive.

Note: If your password is lost, or you cannot gain access to the

user interface, press the Reset button on the rear panel (holding it down for at least five seconds) to restore the factory defaults.

Enter a maximum Idle Time Out (in minutes) to define a maximum period of time for which the login session is maintained during inactivity. If the connection is inactive for longer than the maximum idle time, it will perform system logout, and you have to log into the web user system again. (Default: 9 minutes)

+ 54 hidden pages

Us robotics USR5462 USER GUIDE

Specifications and Main Features

Frequently Asked Questions

User Manual
