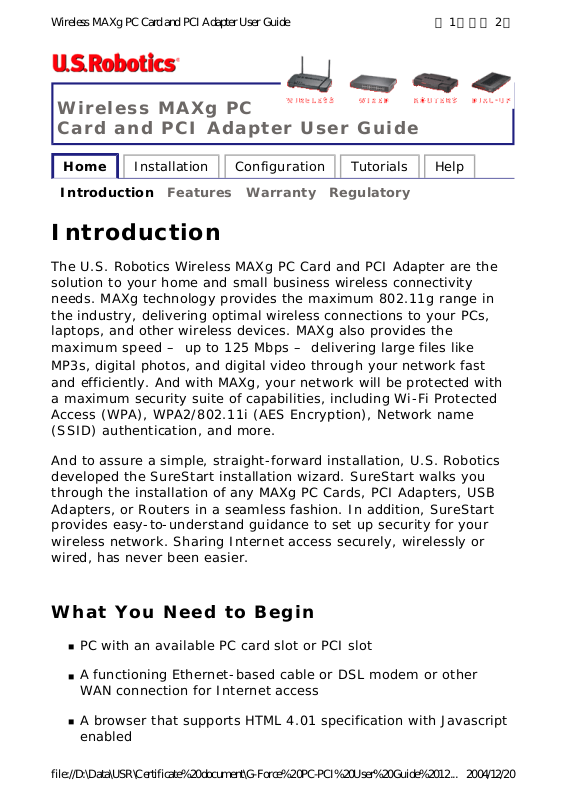

Introduction

The U.S. Robotics Wireless MAX g PC Card and PCI Adapter are the
solution to your home and small business wireless connectivity
needs. MAXg technology provides the maximum 802.11g range in
the industry, delivering optimal wireless connections to your PCs,
laptops, and other wireless devices. MAX g also provides the
maximum speed – up to 125 Mbps – delivering large files like

MP3s, digital photos, and digital video through your network fast
and efficiently. And with MAXg, your network will be protected with
a maximum security suite of capabilities, including Wi -Fi Protected
Access (WPA), WPA2/802.11i (AES Encryption), Network name
(SSID) authentication, and more.

And to assure a simple, straight -forward installation, U.S. Robotics
developed the SureStart installation wizard. SureStart walks you
through the installation of any MAXg PC Cards, PCI Adapters, USB
Adapters, or Routers in a seamless fashion. In addition, SureStart
provides easy-to-understand guidance to set up security for your
wireless network. Sharing Internet access securely, wirelessly or
wired, has never been easier.

What You Need to Begin

n PC with an available PC card slot or PCI slot

A functioning Ethernet -based cable or DSL modem or other

n

WAN connection for Internet access

n A browser that supports HTML 4.01 specification with Javascript

enabled

2004/12/20file://D:\Data\USR\Certificate%20document\G-Force%20PC-PCI%20User%20Guide%2012...

rev 1
12/04

第 2 頁，共 2 頁Wireless MAXg PC Card and PCI Adapter User Guide

2004/12/20file://D:\Data\USR\Certificate%20document\G-Force%20PC-PCI%20User%20Guide%2012...

第 1 頁，共 2 頁Wireless MAXg Router User Guide

Wireless MAXg PC
Card and PCI Adapter User Guide

Home Installation Configuration Tutorials Help

Introduction Features Warranty Regulatory

Product Specifications

Wireless MAXg PC Card

n Complies with IEEE 802.11g 54 Mbps wireless radio standard

100mW power output

n

Wireless MAXg PCI Adapter

n Complies with IEEE 802.11g 54 Mbps wireless radio standard

100mW power output

n

2 dBi Detachable Reverse SMA Antenna

n

Security Features

n WPA and WPA2 (Wi-Fi Protected Access)

64/128-bit WEP (Wired Equivalent Privacy) data encryption

n

Ability to disable wireless radio

n

Acknowledgements

This product includes software developed by MDC and its licensors.

2004/12/20file://D:\Data\USR\Certificate%20document\G-Force%20PC-PCI%20User%20Guide%2012...

第 2 頁，共 2 頁Wireless MAXg Router User Guide

This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit (http://www.openssl.org/). This
product includes cryptographic software written by Eric Young
([e-mail] ). This product includes software written by
Tim Hudson ([e-mail]).

2004/12/20file://D:\Data\USR\Certificate%20document\G-Force%20PC-PCI%20User%20Guide%2012...
