Regal Series
C-HDS-A Char Broiler Series 24
C-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_1.pdf
Regal Series
C-HDS-A Char Broiler Series 24
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 3
2 153888 Grid Frame - 24” 1
4 222034 Bottom (Waffle) Grate 4
4A 153913-1 Bottom Grate Support 24” 1
5 153907 Burner Shield 2
6 151726 Cast Iron H-Burner 2
6 154156 Burner with Shield 2
7 223005 Air Shutter 2
8 153898 Fire Box - 24” 1 [1]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [2]
11 154123 Side Support 2
12 153834 Lift Plate 1 [2]
13 151877 Pivot Plate 2
14 154131 Push Rod Assembly 1 [3]
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [4]
19 154806 Grease Trough - 24" 1 [3]
20 153822 Screen Pan Holder - Right 1
20 153827 Screen Pan Holder - Left 1
21 153897 Manifold Assembly C-HDSA-24 1
22 M8-48 Small Orifice #48 - Natural Gas
22 26878xx Open Burner Valve - No Hood 2
22 M8-31 Small Orifice #31 - Natural Gas 2
22 M8-47 Small Orifice #47 - Natural Gas 2
23 224008 Knob Burner Valve - Chrome 2 [5]
23 1089100 Knob 2 [5]
24 1510402 Pilot Valve Double 1
25 151096 Pilot Tubing Assembly - 8.5" 2
27 153886 Screen 24” 1 [2]
28 153882 Slide Pan 24" 1 [2]
29 153879 Grease Can 19” x 5” 1 [2]
30 153887 Front Apron Door 24" 1
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154806 Grease Trough - 24" 1 [3]
35 154114 Manifold Tie Bar Assembly 1
36 153866 Landing Ledge Assembly 24” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
C-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_1.pdf
Regal Series
C-HDS-A Char Broiler Series 24
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - C-HDS
[2] - HDS
[3] - CHDS
[4] - C-JR/HDS
[5] - RECOMMENDED STOCK PARTS
C-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_1.pdf
Regal Series
C-HDS-A Char Broiler Series 30
C-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_2.pdf
Regal Series
C-HDS-A Char Broiler Series 30
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 4
2 153940 Grid Frame - 30” 1 [1]
3 153631-010 Lava Rock 10Lb Bag 1
4 222034 Bottom (Waffle) Grate 5
4A 153984-1 Bottom Grate Support 30” 1
5 153907 Burner Shield 2
6 151726 Cast Iron H-Burner 2
6 154156 Burner with Shield 2
7 223005 Air Shutter 2
8 153985 Fire-Box - 30” 1 [2]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [1]
11 154123 Side Support 2
12 153834 Lift Plate 1 [1]
13 151877 Pivot Plate 2
14 154131 Push Rod Assembly 1 [3]
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [4]
19 154807 Grease Trough - 30” 1 [1]
20 153822 Screen Pan Holder - Right 1
21 153827 Screen Pan Holder - Left 1
21 154119 Manifold Assembly C-HDSA-30 1
22 M8-48 Small Orifice #48 - Natural Gas
22 26878xx Open Burner Valve - No Hood 2
22 M8-31 Small Orifice #31 - Natural Gas 2
22 M8-47 Small Orifice #47 - Natural Gas 2
23 224008 Knob Burner Valve - Chrome 2 [5]
23 1089100 Knob 2 [5]
24 1086597 Gum Valve - 0.1875” 2
25 151096-1 Pilot Tube Assembly 6.5” 2
27 154087 Perforated Screen - 30” 1 [1]
28 153936-1 Slide Pan - 30" & 60” 1 [1]
29 153879 Grease Can 19” x 5” 1 [1]
30 153939 Front Apron Door 30” 1
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154807 Grease Trough - 30” 1 [1]
35 154115 Manifold Tie Bar Assembly 30” 1
36 153933 Landing Ledge Assembly 30” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
C-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_2.pdf
Regal Series
C-HDS-A Char Broiler Series 30
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - HDS
[2] - C-HDS
[3] - CHDS
[4] - C-JR/HDS
[5] - RECOMMENDED STOCK PARTS
C-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_2.pdf
Regal Series
C-HDS-A Char Broiler Series 36
C-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_3.pdf
Regal Series
C-HDS-A Char Broiler Series 36
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 5
2 153970 Grid Frame - 36” 1 [1]
3 153631-010 Lava Rock 10Lb Bag 1
4 222034 Bottom (Waffle) Grate 6
4A 153983-1 Bottom Grate Support 36” 1
5 153907 Burner Shield 3
6 151726 Cast Iron H-Burner 3
6 154156 Burner with Shield 3
7 223005 Air Shutter 3
8 153973 Fire-Box - 36” 1 [2]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [1]
11 154123 Side Support 2
12 153834 Lift Plate 1 [1]
13 151877 Pivot Plate 2
14 154131 Push Rod Assembly 1 [3]
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [4]
19 154808 Grease Trough - 36” 1 [3]
20 153822 Screen Pan Holder - Right 1
20 153827 Screen Pan Holder - Left 1
21 154004 Manifold Assembly C-HDSA-36 1
22 26878xx Open Burner Valve - No Hood 3
22 M8-31 Small Orifice #31 - Natural Gas 3
22 M8-47 Small Orifice #47 - Natural Gas 3
22 M8-48 Small Orifice #48 - Natural Gas
23 224008 Knob Burner Valve - Chrome 3 [5]
23 1089100 Knob 3 [5]
24 1086597 Gum Valve - 0.1875” 1
24 1510402 Pilot Valve Double 1
25 151096 Pilot Tubing Assembly - 8.5" 2
25 151096-1 Pilot Tube Assembly 6.5” 1
27 154090 Perforated Screen 36” 1
28 153966-1 Slide Pan - 36” 1 [1]
29 153879 Grease Can 19” x 5” 1 [1]
30 153969 Front Apron Door 36” 1
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154808 Grease Trough - 36” 1 [3]
35 154116 Manifold Tie Bar - 36” 1
36 153963 Landing Ledge Assembly 36” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
C-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_3.pdf
Regal Series
C-HDS-A Char Broiler Series 36
# PART # DESCRIPTION QTY Note
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - HDS
[2] - C-HDS
[3] - CHDS
[4] - C-JR/HDS
[5] - RECOMMENDED STOCK PARTS
1
C-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_3.pdf
Regal Series
C-HDS-A Char Broiler Series 48
C-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_4.pdf
Regal Series
C-HDS-A Char Broiler Series 48
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 6
2 153888 Grid Frame - 24” 2
3 153631-010 Lava Rock 10Lb Bag 1
4 222034 Bottom (Waffle) Grate 8
4A 153913-1 Bottom Grate Support 24” 2
5 153907 Burner Shield 4
6 151726 Cast Iron H-Burner 4
6 154156 Burner with Shield 4
7 223005 Air Shutter 4
8 153898 Fire Box - 24” 2 [1]
9 154080 Back Support Assembly 4
10 153820 Fire-Box Side Bracket 8 [2]
11 154123 Side Support 4
12 153834 Lift Plate 2 [2]
13 151877 Pivot Plate 4
14 154131 Push Rod Assembly 2 [3]
15 153835 Drag Link 2
16 153830 Lift Lever 2
17 151696 Lift Lever Handle 2
18 153836 Lift Lever Lock 2 [4]
19 154809 Grease Trough - 48” 1
20 153822 Screen Pan Holder - Right 2
20 153827 Screen Pan Holder - Left 2
21 154003 Manifold Assembly 1
22 26878xx Open Burner Valve - No Hood 4
22 M8-31 Small Orifice #31 - Natural Gas 4
22 M8-47 Small Orifice #47 - Natural Gas 4
22 M8-48 Small Orifice #48 - Natural Gas
23 224008 Knob Burner Valve - Chrome 4 [5]
23 1089100 Knob 4 [5]
24 1510402 Pilot Valve Double 2
25 151096 Pilot Tubing Assembly - 8.5" 4
27 153886 Screen 24” 3 [2]
28 153882 Slide Pan 24" 2 [2]
29 153879 Grease Can 19” x 5” 2 [2]
30 153887 Front Apron Door 24" 2
33 154108 Spring Holder 2
33 151699 Ratchet Spring 2
33 225000 Hook “S” Type 2
34 154809 Grease Trough - 48” 1
35 154117 Manifold Tie Bar Assembly 48” 1
36 154005 Landing Ledge Assembly 48” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
C-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_4.pdf
Regal Series
C-HDS-A Char Broiler Series 48
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - C-HDS
[2] - HDS
[3] - CHDS
[4] - C-JR/HDS
[5] - RECOMMENDED STOCK PARTS
C-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_4.pdf
Regal Series
C-HDS-A Char Broiler Series 60
C-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_5.pdf
Regal Series
C-HDS-A Char Broiler Series 60
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 8
2 153940 Grid Frame - 30” 2 [1]
3 153631-010 Lava Rock 10Lb Bag 2
4 222034 Bottom (Waffle) Grate 10
4A 153984-1 Bottom Grate Support 30” 2
5 153907 Burner Shield 4
6 151726 Cast Iron H-Burner 4
6 154156 Burner with Shield 4
7 223005 Air Shutter 4
8 153985 Fire-Box - 30” 2 [2]
9 154080 Back Support Assembly 4
10 153820 Fire-Box Side Bracket 8 [1]
11 154123 Side Support 4
12 153834 Lift Plate 2 [1]
13 151877 Pivot Plate 4
14 154131 Push Rod Assembly 2 [3]
15 153835 Drag Link 2
16 153830 Lift Lever 2
17 151696 Lift Lever Handle 2
18 153836 Lift Lever Lock 2 [4]
19 154810 Grease Trough Assembly 60” 1
20 153822 Screen Pan Holder - Right 2
20 153827 Screen Pan Holder - Left 2
21 154017 Manifold Assembly C-HDSA-60 1
22 26878xx Open Burner Valve - No Hood 4
22 M8-31 Small Orifice #31 - Natural Gas 4
22 M8-47 Small Orifice #47 - Natural Gas 4
22 M8-48 Small Orifice #48 - Natural Gas
23 224008 Knob Burner Valve - Chrome 4 [5]
23 1089100 Knob 4 [5]
24 1086597 Gum Valve - 0.1875” 4
27 154087 Perforated Screen - 30” 3 [1]
28 153936-1 Slide Pan - 30" & 60” 2 [1]
29 153879 Grease Can 19” x 5” 2 [1]
30 153939 Front Apron Door 30” 2
33 154108 Spring Holder 2
33 151699 Ratchet Spring 2
33 225000 Hook “S” Type 2
34 154810 Grease Trough Assembly 60” 1
35 154118 Manifold Tie Bar Assembly 60” 1
36 154018 Landing Ledge Assembly 60” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
C-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_5.pdf
Regal Series
C-HDS-A Char Broiler Series 60
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - HDS
[2] - C-HDS
[3] - CHDS
[4] - C-JR/HDS
[5] - RECOMMENDED STOCK PARTS
C-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_5.pdf
Regal Series
C-JR-CHAR-BROILER-SERIES 21
C-JR-CHAR-BROILER-SERIES 21
U_GC_PL_COUNTER_REGAL_6.pdf
Regal Series
C-JR-CHAR-BROILER-SERIES 21
# PART # DESCRIPTION QTY Note
2 154527 Grid Frame 1
4 222031 Grate Bottom 1 [1]
5 154516 Burner Shield 1 [2]
6 222012 Burner 1
6 154515 Burner with Shield 1
7 151182 Air Shutter 1
8 154510 Fire Box 1
9 154501 Fire Box Back Support 2
13 153651 Pivot Plate Assembly 1
14 153627 Push Rod Assembly C-JR 1
15 153835 Drag Link 1
16 152127 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [3]
19 154507 Grease Trough Assembly 1
20 154503 Screen Pan Holder Assembly 1
20 154504 Screen Pan Holder Assembly 1
20A 154470 Baffle R/H C/R 1 [4]
21 154512 Manifold Assembly C-JR 1
22 26878xx Open Burner Valve - No Hood 1
22 M8-48 Small Orifice #48 - Natural Gas
22 M8-56 Small Orifice #56 - LP 1
22 M8-36 Small Orifice #36 - Natural Gas 1
23 224008 Knob Burner Valve - Chrome 1 [5]
23 1089100 Knob 1 [5]
24 1086597 Gum Valve - 0.1875” 1
25 151096-2 Pilot Tubing Assembly 8” 1
26 154508 Drain Tube 1
27 154488 Perforated Screen - 11.125” x 14.5" 1
28 154490 Slide Pan C-JR-21 1
29 154492 Grease Pan 1
30 154493 Door SS C-JR-21 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - NLA
[2] - NOT ILLUSTRATED
[3] - C-JR/HDS
[4] - No Longer Available
[5] - RECOMMENDED STOCK PARTS
1
C-JR-CHAR-BROILER-SERIES 21
U_GC_PL_COUNTER_REGAL_6.pdf
Regal Series
C-JR-CHAR-BROILER-SERIES 30
C-JR-CHAR-BROILER-SERIES 30
U_GC_PL_COUNTER_REGAL_7.pdf
Regal Series
C-JR-CHAR-BROILER-SERIES 30
# PART # DESCRIPTION QTY Note
4 222031 Grate Bottom 2
5 154524 Burner Shield - C-JR-30 1
6 222036 Burner 1
6 154525 Burner w/Shield Assembly 1
7 151182 Air Shutter 1
8 154523 Fire Box Assembly 1
9 154501 Fire Box Back Support 2
13 153651 Pivot Plate Assembly 1
14 153627 Push Rod Assembly C-JR 1
15 153835 Drag Link 1
16 152127 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [1]
19 154522 Grease Trough Assembly 1
20 154503 Screen Pan Holder Assembly 1
20 154504 Screen Pan Holder Assembly 1
21 154512 Manifold Assembly C-JR 1
22 26878xx Open Burner Valve - No Hood 1
22 M8-48 Small Orifice #48 - Natural Gas
22 M8-51 Small Orifice #51 - LP 1
22 M8-30 Small Orifice #30 - Natural Gas 1
23 224008 Knob Burner Valve - Chrome 1 [2]
23 1089100 Knob 1 [2]
24 1086597 Gum Valve - 0.1875” 1
25 151096-2 Pilot Tubing Assembly 8” 1
26 154508 Drain Tube 1
27 154489 Perforated Screen NLA 1
28 154491 Slide Pan C-JR-30 NLA 1
29 154492 Grease Pan 1
30 154494 Apron Door, Front NLA 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - C-JR/HDS
[2] - RECOMMENDED STOCK PARTS
1
C-JR-CHAR-BROILER-SERIES 30
U_GC_PL_COUNTER_REGAL_7.pdf
Regal Series
RBA Series Char-Broiler 24"
RBA Series Char-Broiler 24"
U_GC_PL_COUNTER_REGAL_8.pdf
Regal Series
RBA Series Char-Broiler 24"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 7 [1]
1 222041 Top Grate - 4 Bar 7
2 222024 Cast Iron Radiant 4
3 222079-1 Burner 4
3 223005-10 Air Shutter SS 4
4A 26878xx Open Burner Valve - No Hood 4 [2]
4B 223242-50 Burner Orifice - Oven - LP 4 [3]
4B 223242-57 Burner Orifice - M8-57 4 [4]
5 1089100 Knob 4 [2]
5 224008 Knob Burner Valve - Chrome 4 [2]
6A 1086597 Gum Valve - 0.1875” 2 [2]
6B 1510402 Pilot Valve Double 1 [2]
7 253133 Single Pilot 3 [2]
8 282417 Pilot Tubing 1 [5]
9 1196302 Leg 4” Metal 4
10 253009-24 Fire Box Assembly RBA 24” 1
11 253857-1 Inner Grease Pan - 24” Front 1
12 253857-6 Grease Pan -24” Back 1
13 253015 RBA Side Trim 2
14 253014-1 Back Trim Top 24” 1
15 253013-1 RBA Top Trim 1
16 253022-1 Valve Cover RBA - 24” 1 [2]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
1 [2]
RBA Series Char-Broiler 24"
U_GC_PL_COUNTER_REGAL_8.pdf
Regal Series
RBA Series Char-Broiler 30"
RBA Series Char-Broiler 30"
U_GC_PL_COUNTER_REGAL_9.pdf
Regal Series
RBA Series Char-Broiler 30"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 9 [1]
1 222041 Top Grate - 4 Bar 9
2 222024 Cast Iron Radiant 5
3 222079-1 Burner 5
3 223005-10 Air Shutter SS 5
4A 26878xx Open Burner Valve - No Hood 5 [2]
4B 223242-50 Burner Orifice - Oven - LP 5 [3]
4B 223242-57 Burner Orifice - M8-57 5 [4]
5 1089100 Knob 5 [2]
5 224008 Knob Burner Valve - Chrome 5 [2]
6A 1086597 Gum Valve - 0.1875” 3 [2]
6B 1510402 Pilot Valve Double 1 [2]
7 253133 Single Pilot 4 [2]
8 282417 Pilot Tubing 1 [5]
9 1196302 Leg 4” Metal 4
10 253009-30 Fire Box Assembly, RBA-30” 1
11 253857-2 Inner Grease Pan-30” Front 1
12 253857-7 Grease Pan -30” Back 1
13 253015 RBA Side Trim 2
14 253014-2 Back Top Trim 30” RBA 1
15 253013-2 Front Top Trim 1
16 253022-2 Valve Cover 1 [2]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
1 [2]
RBA Series Char-Broiler 30"
U_GC_PL_COUNTER_REGAL_9.pdf
Regal Series
RBA Series Char-Broiler 36"
RBA Series Char-Broiler 36"
U_GC_PL_COUNTER_REGAL_10.pdf
Regal Series
RBA Series Char-Broiler 36"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 11 [1]
1 222041 Top Grate - 4 Bar 11
2 222024 Cast Iron Radiant 6
3 222079-1 Burner 6
3 223005-10 Air Shutter SS 6
4A 26878xx Open Burner Valve - No Hood 6 [2]
4B 223242-50 Burner Orifice - Oven - LP 6 [3]
4B 223242-57 Burner Orifice - M8-57 6 [4]
5 1089100 Knob 6 [2]
5 224008 Knob Burner Valve - Chrome 6 [2]
6A 1086597 Gum Valve - 0.1875” 4 [2]
6B 1510402 Pilot Valve Double 1 [2]
7 253133 Single Pilot 5 [2]
8 282417 Pilot Tubing 1 [5]
9 1196302 Leg 4” Metal 4
10 253009-36 Fire Box Assembly, RBA-36” 1
11 253857-3 Inner Grease Pan-36” Front 1
12 253857-8 Grease Pan -36” Back 1
13 253015 RBA Side Trim 2
14 253014-3 Back Top Trim 36” RBA 1
15 253013-3 Front Top Trim 1
16 253022-3 Valve Cover 36” RBA 1 [2]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
[2]
RBA Series Char-Broiler 36"
U_GC_PL_COUNTER_REGAL_10.pdf
Regal Series
RBA Series Char-Broiler 48"
RBA Series Char-Broiler 48"
U_GC_PL_COUNTER_REGAL_11.pdf
Regal Series
RBA Series Char-Broiler 48"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 15 [1]
1 222041 Top Grate - 4 Bar 15
2 222024 Cast Iron Radiant 8
3 222079-1 Burner 8
3 223005-10 Air Shutter SS 8
4A 26878xx Open Burner Valve - No Hood 8 [2]
4B 223242-50 Burner Orifice - Oven - LP 8 [3]
4B 223242-57 Burner Orifice - M8-57 8 [4]
5 1089100 Knob 8 [2]
5 224008 Knob Burner Valve - Chrome 8 [2]
6A 1086597 Gum Valve - 0.1875” 4 [2]
6B 1510402 Pilot Valve Double 2 [2]
7 253133 Single Pilot 6 [2]
8 282417 Pilot Tubing 2 [5]
9 1196302 Leg 4” Metal 4
10 253009-48 Fire Box Assembly, RBA-48” 1
11 253857-5 Inner Grease Pan-48” Front 1
11 4515419 Assembly, 24” Grease Tray 2
12 253857-10 Grease Pan -48” Back 1 [6]
13 253015 RBA Side Trim 2
14 253014-5 Trim, Top Back 1
15 253013-5 Front Top Trim 48” RBA 1
16 253051-12 Valve Cover 48” 1 [7]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
18 253042-1 Grease Can Slide - Right 24" 2
19 253024 Firebox Divider 2
20 253117-07 Flat Bar 2
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
[6] - Two trays instead of oneuse 4515419
[7] - RECOMMENDED STOCK PARTSPanel
1 [2]
RBA Series Char-Broiler 48"
U_GC_PL_COUNTER_REGAL_11.pdf
Regal Series
RBA Series Char-Broiler 60"
RBA Series Char-Broiler 60"
U_GC_PL_COUNTER_REGAL_12.pdf
Regal Series
RBA Series Char-Broiler 60"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 19 [1]
1 222041 Top Grate - 4 Bar 19
2 222024 Cast Iron Radiant 10
3 222079-1 Burner 10
3 223005-10 Air Shutter SS 10
4A 26878xx Open Burner Valve - No Hood 10 [2]
4B 223242-50 Burner Orifice - Oven - LP 10 [3]
4B 223242-57 Burner Orifice - M8-57 10 [4]
5 1089100 Knob 10 [2]
5 224008 Knob Burner Valve - Chrome 10 [2]
6A 1086597 Gum Valve - 0.1875” 6 [2]
6B 1510402 Pilot Valve Double 2 [2]
7 253133 Single Pilot 8 [2]
8 282417 Pilot Tubing 2 [5]
9 1196302 Leg 4” Metal 4
10 253009-60 Fire Box Assembly RBA-60” 1
11 253857-2 Inner Grease Pan-30” Front 2
12 253857-7 Grease Pan -30” Back 2
13 253015 RBA Side Trim 2
14 253014-6 Back Top Trim 60" 1
15 253013-6 Front Top Trim 1
16 253051-13 Valve Cover 60” 1 [6]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
[6] - RECOMMENDED STOCK PARTSPanel
1 [2]
RBA Series Char-Broiler 60"
U_GC_PL_COUNTER_REGAL_12.pdf
Regal Series
RBA Series Char-Broiler 72"
RBA Series Char-Broiler 72"
U_GC_PL_COUNTER_REGAL_13.pdf
Regal Series
RBA Series Char-Broiler 72"
# PART # DESCRIPTION QTY Note
1 222040 Top Grate - 3 Bar 23 [1]
1 222041 Top Grate - 4 Bar 23
2 222024 Cast Iron Radiant 12
3 222079-1 Burner 12
3 223005-10 Air Shutter SS 12
4A 26878xx Open Burner Valve - No Hood 12 [2]
4B 223242-50 Burner Orifice - Oven - LP 12 [3]
4B 223242-57 Burner Orifice - M8-57 12 [4]
5 1089100 Knob 12 [2]
5 224008 Knob Burner Valve - Chrome 12 [2]
6A 1086597 Gum Valve - 0.1875” 8 [2]
6B 1510402 Pilot Valve Double 2 [2]
7 253133 Single Pilot 10 [2]
8 282417 Pilot Tubing 2 [5]
9 1196302 Leg 4” Metal 4
10 253009-72 Fire Box Assembly RBA-72” 1
11 253857-3 Inner Grease Pan-36” Front 2
12 253857-8 Grease Pan -36” Back 2
13 253015 RBA Side Trim 2
14 253014-7 Back Top Trim 72" 1
15 253013-7 Front Top Trim 1
16 253051-14 Valve Cover 72” 1 [6]
17 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [2]
17 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - 3 Bar
[2] - RECOMMENDED STOCK PARTS
[3] - RECOMMENDED STOCK PARTSNatural
[4] - RECOMMENDED STOCK PARTSPropane
[5] - RECOMMENDED STOCK PARTSPFII/RBA
[6] - RECOMMENDED STOCK PARTSPanel
1 [2]
RBA Series Char-Broiler 72"
U_GC_PL_COUNTER_REGAL_13.pdf
Regal Series
RG-HDS-A Char Broiler Series 24
RG-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_14.pdf
Regal Series
RG-HDS-A Char Broiler Series 24
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 3
2 153888 Grid Frame - 24” 1
5 153539 Stainless Steel Radiant - Optional 4
6 222078-1 Tube Burner 4
7 223005-10 Air Shutter SS 4
8 153847 Fire Box - 24” 1 [1]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [2]
11 154123 Side Support 2
12 153834 Lift Plate 1 [2]
13 151877 Pivot Plate 2
14 153832 Push Rod - 10.125” 1
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [3]
19 154806 Grease Trough - 24" 1 [4]
20 153822 Screen Pan Holder - Right 1
20 153827 Screen Pan Holder - Left 1
21 153837 Manifold Assembly RG-HDSA-24 1
22 26878xx Open Burner Valve - No Hood 4
22 M8-48 Small Orifice #48 - Natural Gas 4
22 M8-56 Small Orifice #56 - LP 4
23 224008 Knob Burner Valve - Chrome 4 [5]
23 1089100 Knob 4 [5]
24 1510402 Pilot Valve Double 2
25 151096 Pilot Tubing Assembly - 8.5" 4
27 153886 Screen 24” 3 [2]
28 153882 Slide Pan 24" 1 [2]
29 153879 Grease Can 19” x 5” 1 [2]
30 153887 Front Apron Door 24" 1
31a 153851 Aligner 1
32 222024 Cast Iron Radiant 4
32 153539 Stainless Steel Radiant - Optional 4
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154806 Grease Trough - 24" 1 [4]
35 154114 Manifold Tie Bar Assembly 1
36 153866 Landing Ledge Assembly 24” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
39 154129 Center Bracket Assembly - Right 1
40 154130 Center Bracket Assembly - Left 1
1
RG-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_14.pdf
Regal Series
RG-HDS-A Char Broiler Series 24
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - RG-HDS
[2] - HDS
[3] - C-JR/HDS
[4] - CHDS
[5] - RECOMMENDED STOCK PARTS
RG-HDS-A Char Broiler Series 24
U_GC_PL_COUNTER_REGAL_14.pdf
Regal Series
RG-HDS-A Char Broiler Series 30
RG-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_15.pdf
Regal Series
RG-HDS-A Char Broiler Series 30
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 4
2 153940 Grid Frame - 30” 1 [1]
5 153539 Stainless Steel Radiant - Optional 5
6 222078-1 Tube Burner 5
7 223005-10 Air Shutter SS 5
8 153922 Fire Box - 30” 1 [2]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [1]
11 154123 Side Support 2
12 153834 Lift Plate 1 [1]
13 151877 Pivot Plate 2
14 153832 Push Rod - 10.125” 1
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [3]
19 154807 Grease Trough - 30” 1 [1]
20 153822 Screen Pan Holder - Right 1
20 153827 Screen Pan Holder - Left 1
21 153920 Manifold Assembly 1
22 26878xx Open Burner Valve - No Hood 5
22 M8-48 Small Orifice #48 - Natural Gas 5
22 M8-56 Small Orifice #56 - LP 5
23 224008 Knob Burner Valve - Chrome 5 [4]
23 1089100 Knob 5 [4]
24 1086597 Gum Valve - 0.1875” 1
24 1510402 Pilot Valve Double 2
25 151096 Pilot Tubing Assembly - 8.5" 4
25 151096-1 Pilot Tube Assembly 6.5” 1
27 154087 Perforated Screen - 30” 3 [1]
28 153936-1 Slide Pan - 30" & 60” 1 [1]
29 153879 Grease Can 19” x 5” 1 [1]
30 153939 Front Apron Door 30” 1
31B 153976 Burner Back Holder 1
32 222024 Cast Iron Radiant 5
32 153539 Stainless Steel Radiant - Optional 5
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154807 Grease Trough - 30” 1 [1]
35 154115 Manifold Tie Bar Assembly 30” 1
36 153933 Landing Ledge Assembly 30” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
RG-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_15.pdf
Regal Series
RG-HDS-A Char Broiler Series 30
# PART # DESCRIPTION QTY Note
39 154129 Center Bracket Assembly - Right 1
40 154130 Center Bracket Assembly - Left 1
PART NOTES:
[1] - HDS
[2] - RG-HDS
[3] - C-JR/HDS
[4] - RECOMMENDED STOCK PARTS
RG-HDS-A Char Broiler Series 30
U_GC_PL_COUNTER_REGAL_15.pdf
Regal Series
RG-HDS-A Char Broiler Series 36
RG-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_16.pdf
Regal Series
RG-HDS-A Char Broiler Series 36
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 5
2 153970 Grid Frame - 36” 1 [1]
5 153539 Stainless Steel Radiant - Optional 6
6 222078-1 Tube Burner 6
7 223005-10 Air Shutter SS 6
8 153952 Fire Box - 36” 1 [2]
9 154080 Back Support Assembly 2
10 153820 Fire-Box Side Bracket 4 [1]
11 154123 Side Support 2
12 153834 Lift Plate 1 [1]
13 151877 Pivot Plate 2
14 153832 Push Rod - 10.125” 1
15 153835 Drag Link 1
16 153830 Lift Lever 1
17 151696 Lift Lever Handle 1
18 153836 Lift Lever Lock 1 [3]
19 154808 Grease Trough - 36” 1 [4]
20 153822 Screen Pan Holder - Right 1
20 153827 Screen Pan Holder - Left 1
21 154106 Manifold Assembly 1
22 26878xx Open Burner Valve - No Hood 6
22 M8-48 Small Orifice #48 - Natural Gas 6
22 M8-56 Small Orifice #56 - LP 6
23 224008 Knob Burner Valve - Chrome 6 [5]
23 1089100 Knob 6 [5]
24 1510402 Pilot Valve Double 3
25 151096 Pilot Tubing Assembly - 8.5" 5
27 154090 Perforated Screen 36” 2
28 153966-1 Slide Pan - 36” 1 [1]
29 153879 Grease Can 19” x 5” 1 [1]
30 153969 Front Apron Door 36” 1
32 222024 Cast Iron Radiant 6
32 153539 Stainless Steel Radiant - Optional 6
33 154108 Spring Holder 1
33 151699 Ratchet Spring 1
33 225000 Hook “S” Type 1
34 154808 Grease Trough - 36” 1 [4]
35 154116 Manifold Tie Bar - 36” 1
36 153963 Landing Ledge Assembly 36” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
39 154129 Center Bracket Assembly - Right 1
40 154130 Center Bracket Assembly - Left 1
1
RG-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_16.pdf
Regal Series
RG-HDS-A Char Broiler Series 36
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - HDS
[2] - RG-HDS
[3] - C-JR/HDS
[4] - CHDS
[5] - RECOMMENDED STOCK PARTS
RG-HDS-A Char Broiler Series 36
U_GC_PL_COUNTER_REGAL_16.pdf
Regal Series
RG-HDS-A Char Broiler Series 48
RG-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_17.pdf
Regal Series
RG-HDS-A Char Broiler Series 48
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 6
2 153888 Grid Frame - 24” 2
5 153539 Stainless Steel Radiant - Optional 8
6 222078-1 Tube Burner 8
7 223005-10 Air Shutter SS 8
8 153847 Fire Box - 24” 2 [1]
9 154080 Back Support Assembly 4
10 153820 Fire-Box Side Bracket 8 [2]
11 154123 Side Support 4
12 153834 Lift Plate 2 [2]
13 151877 Pivot Plate 4
14 153832 Push Rod - 10.125” 2
15 153835 Drag Link 2
16 153830 Lift Lever 2
17 151696 Lift Lever Handle 2
18 153836 Lift Lever Lock 2 [3]
19 154809 Grease Trough - 48” 1
20 153822 Screen Pan Holder - Right 2
20 153827 Screen Pan Holder - Left 2
21 154002 Manifold Assembly RG-HDSA-48 1
22 26878xx Open Burner Valve - No Hood 8
22 M8-48 Small Orifice #48 - Natural Gas 8
22 M8-56 Small Orifice #56 - LP 8
23 224008 Knob Burner Valve - Chrome 8 [4]
23 1089100 Knob 8 [4]
24 1510402 Pilot Valve Double 4
25 151096 Pilot Tubing Assembly - 8.5" 8
27 153886 Screen 24” 4 [2]
28 153882 Slide Pan 24" 2 [2]
29 153879 Grease Can 19” x 5” 2 [2]
30 153887 Front Apron Door 24" 2
31A 153851 Aligner 2
32 222024 Cast Iron Radiant 8
32 153539 Stainless Steel Radiant - Optional 8
33 154108 Spring Holder 2
33 151699 Ratchet Spring 2
33 225000 Hook “S” Type 2
34 154809 Grease Trough - 48” 1
35 154117 Manifold Tie Bar Assembly 48” 1
36 154005 Landing Ledge Assembly 48” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
39 154129 Center Bracket Assembly - Right 1
40 154130 Center Bracket Assembly - Left 1
1
RG-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_17.pdf
Regal Series
RG-HDS-A Char Broiler Series 48
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - RG-HDS
[2] - HDS
[3] - C-JR/HDS
[4] - RECOMMENDED STOCK PARTS
RG-HDS-A Char Broiler Series 48
U_GC_PL_COUNTER_REGAL_17.pdf
Regal Series
RG-HDS-A Char Broiler Series 60
RG-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_18.pdf
Regal Series
RG-HDS-A Char Broiler Series 60
# PART # DESCRIPTION QTY Note
1 222035 Top Grate - 6” x 24” - 11 bar 8
2 153940 Grid Frame - 30” 2 [1]
5 153539 Stainless Steel Radiant - Optional 10
6 222078-1 Tube Burner 10
7 223005-10 Air Shutter SS 10
8 153922 Fire Box - 30” 2 [2]
9 154080 Back Support Assembly 4
10 153820 Fire-Box Side Bracket 8 [1]
11 154123 Side Support 4
12 153834 Lift Plate 2 [1]
13 151877 Pivot Plate 4
14 153832 Push Rod - 10.125” 2
15 153835 Drag Link 2
16 153830 Lift Lever 2
17 151696 Lift Lever Handle 2
18 153836 Lift Lever Lock 2 [3]
19 154810 Grease Trough Assembly 60” 1
20 153822 Screen Pan Holder - Right 2
20 153827 Screen Pan Holder - Left 2
21 154016 Manifold Assembly RG-HDSA-60 1
22 26878xx Open Burner Valve - No Hood 10
22 M8-48 Small Orifice #48 - Natural Gas 10
22 M8-56 Small Orifice #56 - LP 10
23 224008 Knob Burner Valve - Chrome 10 [4]
23 1089100 Knob 10 [4]
24 1086597 Gum Valve - 0.1875” 2
24 1510402 Pilot Valve Double 4
25 151096 Pilot Tubing Assembly - 8.5" 8
25 151096-1 Pilot Tube Assembly 6.5” 2
27 154087 Perforated Screen - 30” 4 [1]
28 153936-1 Slide Pan - 30" & 60” 2 [1]
29 153879 Grease Can 19” x 5” 2 [1]
30 153939 Front Apron Door 30” 2
31B 153976 Burner Back Holder 2
32 222024 Cast Iron Radiant 10
32 153539 Stainless Steel Radiant - Optional 10
33 154108 Spring Holder 2
33 151699 Ratchet Spring 2
33 225000 Hook “S” Type 2
34 154810 Grease Trough Assembly 60” 1
35 154118 Manifold Tie Bar Assembly 60” 1
36 154018 Landing Ledge Assembly 60” x 4” 1
36 153869 Landing Ledge Bracket - Right 1
36 153872 Ledge Bracket - Left 1
37 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
37 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
1
RG-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_18.pdf
Regal Series
RG-HDS-A Char Broiler Series 60
# PART # DESCRIPTION QTY Note
39 154129 Center Bracket Assembly - Right 1
40 154130 Center Bracket Assembly - Left 1
PART NOTES:
[1] - HDS
[2] - RG-HDS
[3] - C-JR/HDS
[4] - RECOMMENDED STOCK PARTS
RG-HDS-A Char Broiler Series 60
U_GC_PL_COUNTER_REGAL_18.pdf
Regal Series
RGM Series Manually Controlled Griddle 2424-1
RGM Series Manually Controlled Griddle 2424-1
U_GC_PL_COUNTER_REGAL_24.pdf
Regal Series
RGM Series Manually Controlled Griddle 2424-1
# PART # DESCRIPTION QTY Note
1 253052-7 Plate Assembly RGM-2436-1 1
2 252336 Burner Assembly 1
2 223005-2 Air Shutter 1
2 225072 Screw - #10-0.5" 1
3 26878xx Open Burner Valve - No Hood 1
3 223242-44 Griddle Burner Orifice - Natural Gas 2
3 223242-54 Griddle Burner Orifice - LP 2
4 224008 Knob Burner Valve - Chrome 2 [1]
5 1086597 Gum Valve - 0.1875” 2
6 253133-8 Pilot Tubing Single 1
6 252133-9R Pilot Tubing-Double-R/A 1
6 253133-9L Pilot Tubing-Double-L/H 1
7 253037-1 Front Top 24” 1
8 253051-2 Valve Panel 24” 1
9 1196302 Leg 4” Metal 4
10 253046 Grease Can 1
11 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
11 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1

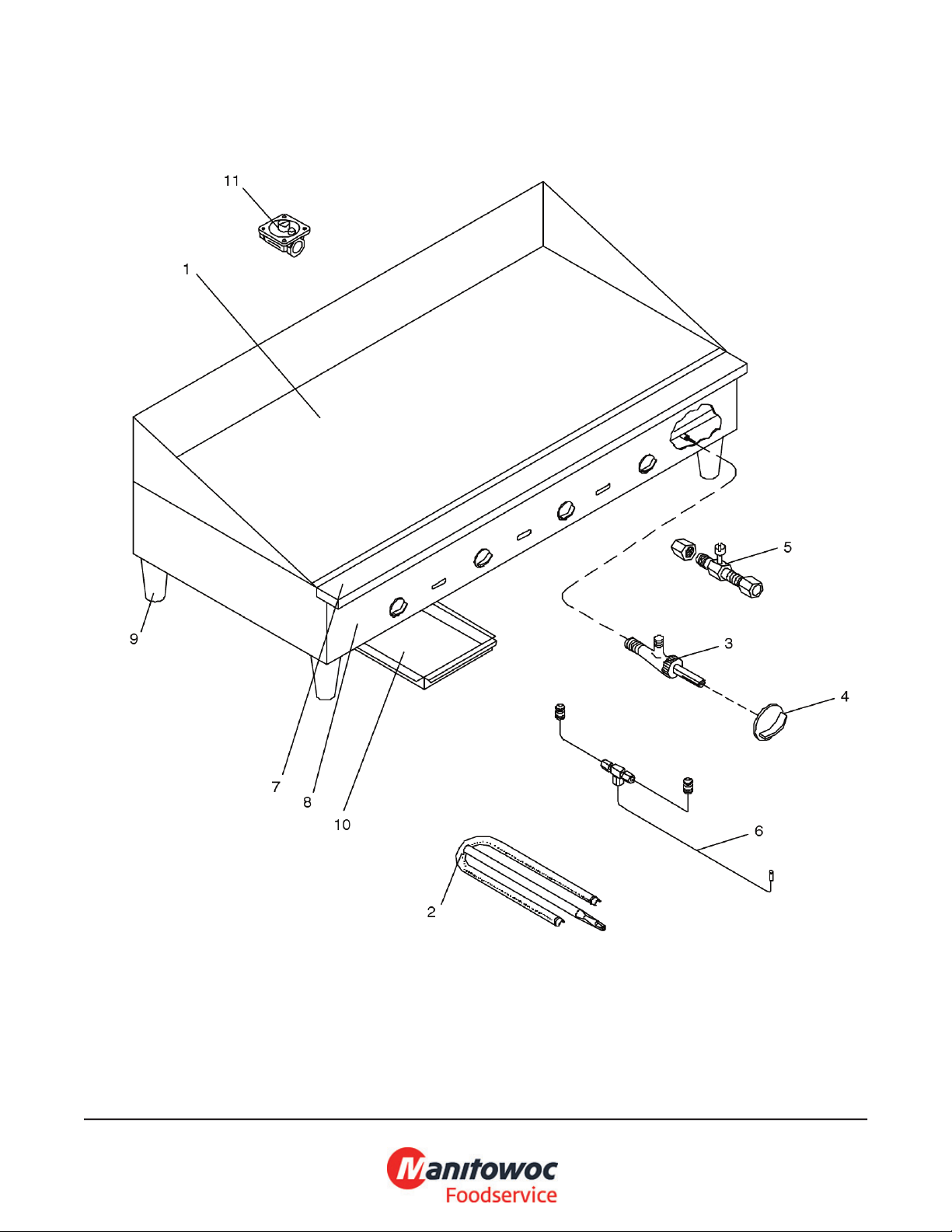

RGM Series Manually Controlled Griddle 2424-1
U_GC_PL_COUNTER_REGAL_24.pdf
Regal Series
RGM Series Manually Controlled Griddle 2436-1
RGM Series Manually Controlled Griddle 2436-1
U_GC_PL_COUNTER_REGAL_25.pdf
Regal Series
RGM Series Manually Controlled Griddle 2436-1
# PART # DESCRIPTION QTY Note
1 253052-8 Plate Assembly RGM-2448-1 1
2 252336 Burner Assembly 3
2 223005-2 Air Shutter 3
2 225072 Screw - #10-0.5" 3
3 26878xx Open Burner Valve - No Hood 3
3 223242-44 Griddle Burner Orifice - Natural Gas 3
3 223242-54 Griddle Burner Orifice - LP 3
4 224008 Knob Burner Valve - Chrome 3 [1]
5 1086597 Gum Valve - 0.1875” 3
6 253133-8 Pilot Tubing Single 1
6 252133-9R Pilot Tubing-Double-R/A 1
6 253133-9L Pilot Tubing-Double-L/H 1
7 253037-2 Front Top 36” 1
8 253051-4 Valve Panel 36” 1
9 1196302 Leg 4” Metal 4
10 253046 Grease Can 1
11 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
11 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle 2436-1
U_GC_PL_COUNTER_REGAL_25.pdf
Regal Series
RGM Series Manually Controlled Griddle 2448-1
RGM Series Manually Controlled Griddle 2448-1
U_GC_PL_COUNTER_REGAL_26.pdf
Regal Series
RGM Series Manually Controlled Griddle 2448-1
# PART # DESCRIPTION QTY Note
1 253052-9 Plate Assembly RGM-2460-1 1
2 252336 Burner Assembly 4
2 223005-2 Air Shutter 4
2 225072 Screw - #10-0.5" 4
3 26878xx Open Burner Valve - No Hood 4
3 223242-44 Griddle Burner Orifice - Natural Gas 4
3 223242-54 Griddle Burner Orifice - LP 4
4 224008 Knob Burner Valve - Chrome 4 [1]
5 1086597 Gum Valve - 0.1875” 4
6 252133-9R Pilot Tubing-Double-R/A 2
6 253133-9L Pilot Tubing-Double-L/H 2
7 253037-3 Front Top 48” 1
8 253051-5 Valve Panel 48” 1
9 1196302 Leg 4” Metal 4
10 253046 Grease Can 1
11 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
11 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle 2448-1
U_GC_PL_COUNTER_REGAL_26.pdf
Regal Series
RGM Series Manually Controlled Griddle 2460-1
RGM Series Manually Controlled Griddle 2460-1
U_GC_PL_COUNTER_REGAL_27.pdf
Regal Series
RGM Series Manually Controlled Griddle 2460-1
# PART # DESCRIPTION QTY Note
1 253052-10 Plate Assembly RGM-2472-1 1
2 252336 Burner Assembly 5
2 223005-2 Air Shutter 5
2 225072 Screw - #10-0.5" 5
3 26878xx Open Burner Valve - No Hood 5
3 223242-44 Griddle Burner Orifice - Natural Gas 5
3 223242-54 Griddle Burner Orifice - LP 5
4 224008 Knob Burner Valve - Chrome 5 [1]
5 1086597 Gum Valve - 0.1875” 5
6 252133-9R Pilot Tubing-Double-R/A 2
6 253133-9L Pilot Tubing-Double-L/H 2
7 253037-4 Front Top 60” 1
8 253051-6 Valve Panel 60” 1
9 1196302 Leg 4” Metal 4
10 253046 Grease Can 1
11 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
11 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle 2460-1
U_GC_PL_COUNTER_REGAL_27.pdf
Regal Series
RGM Series Manually Controlled Griddle 2472-1
RGM Series Manually Controlled Griddle 2472-1
U_GC_PL_COUNTER_REGAL_28.pdf
Regal Series
RGM Series Manually Controlled Griddle 2472-1
# PART # DESCRIPTION QTY Note
1 253052-11 Plate Assembly RGM-2472-1 1
2 252336 Burner Assembly 6
2 223005-2 Air Shutter 6
2 225072 Screw - #10-0.5" 6
3 26878xx Open Burner Valve - No Hood 6
3 223242-44 Griddle Burner Orifice - Natural Gas 6
3 223242-54 Griddle Burner Orifice - LP 6
4 224008 Knob Burner Valve - Chrome 6 [1]
5 1086597 Gum Valve - 0.1875” 6
6 252133-9R Pilot Tubing-Double-R/A 3
6 253133-9L Pilot Tubing-Double-L/H 3
7 253037-5 Front Top 72” 1
8 253051-7 Valve Panel 72” 1
9 1196302 Leg 4” Metal 4
10 253046 Grease Can 1
11 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
11 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle 2472-1
U_GC_PL_COUNTER_REGAL_28.pdf
Regal Series

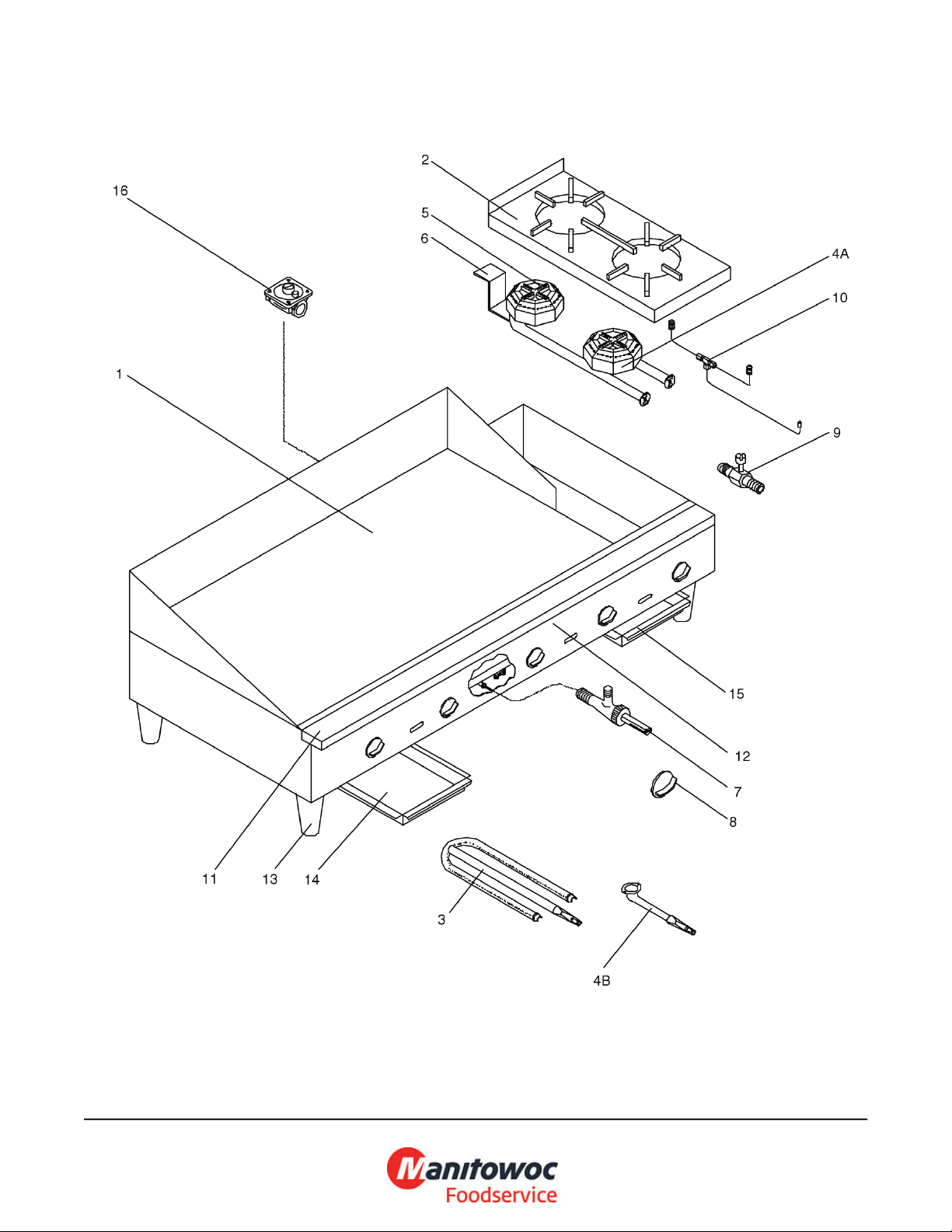

RGM Series Manually Controlled Griddle With Open Burners 2424-1-2
RGM Series Manually Controlled Griddle With Open Burners 2424-1-2
U_GC_PL_COUNTER_REGAL_19.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2424-1-2
# PART # DESCRIPTION QTY Note
1 253052-31 Plate Assembly RGM-2424-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 2
3 223005-4 Air Shutter- Griddle Burner 2
3 225072 Screw - #10-0.5" 2
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 4
7 223242-44 Griddle Burner Orifice - Natural Gas 2
7 223242-54 Griddle Burner Orifice - LP 2
7 M8-46 Small Orifice #46 - Natural Gas 2
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 4 [3]
9 1086597 Gum Valve - 0.1875” 3
10 253062-2 Pilot Assembly 1
10 253133-9 Pilot Tubing Assembly RGM Double 2
11 253037-1 Front Top 24” 1
12 253051-2 Valve Panel 24” 1
13 1196302 Leg 4” Metal 4
14 253046 Grease Can 1
15 253060-5 Drip Pan - 24.25" x 8.5" 1
16 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
16 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle With Open Burners 2424-1-2
U_GC_PL_COUNTER_REGAL_19.pdf
Regal Series

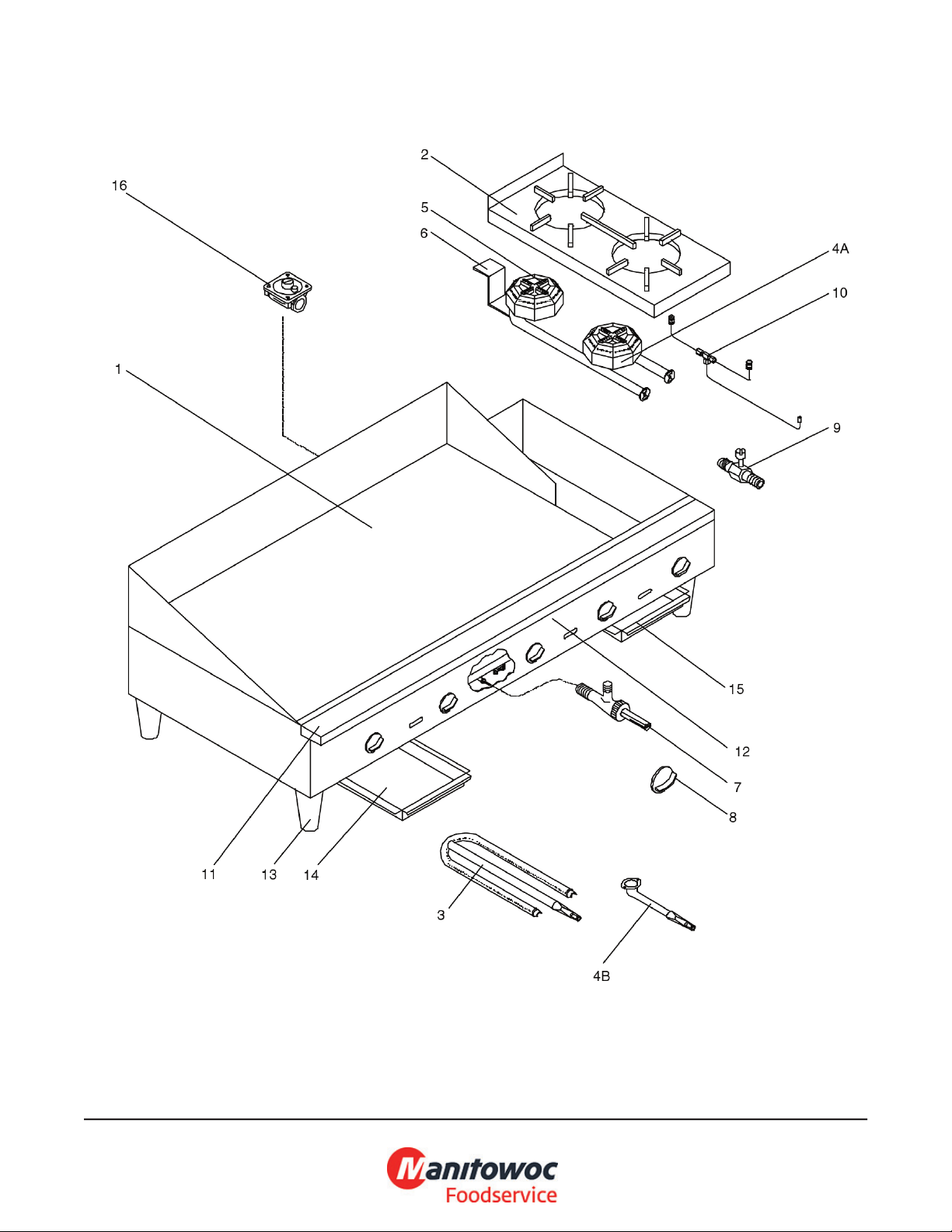

RGM Series Manually Controlled Griddle With Open Burners 2436-1-2
RGM Series Manually Controlled Griddle With Open Burners 2436-1-2
U_GC_PL_COUNTER_REGAL_20.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2436-1-2
# PART # DESCRIPTION QTY Note
1 253052-32 Plate Assembly RGM-2436-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 3
3 223005-4 Air Shutter- Griddle Burner 3
3 225072 Screw - #10-0.5" 3
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 5
7 223242-44 Griddle Burner Orifice - Natural Gas 3
7 223242-54 Griddle Burner Orifice - LP 3
7 M8-46 Small Orifice #46 - Natural Gas 2
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 5 [3]
9 1086597 Gum Valve - 0.1875” 4
10 253062-2 Pilot Assembly 1
10 151096 Pilot Tubing Assembly - 8.5" 1
10 253133-9 Pilot Tubing Assembly RGM Double 2
11 253037-2 Front Top 36” 1
12 253051-4 Valve Panel 36” 1
13 1196302 Leg 4” Metal 4
14 253046 Grease Can 1
15 253060-5 Drip Pan - 24.25" x 8.5" 1
16 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
16 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle With Open Burners 2436-1-2
U_GC_PL_COUNTER_REGAL_20.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2448-1-2
RGM Series Manually Controlled Griddle With Open Burners 2448-1-2
U_GC_PL_COUNTER_REGAL_21.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2448-1-2
# PART # DESCRIPTION QTY Note
1 253052-33 Plate Assembly RGM-2448-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 4
3 223005-4 Air Shutter- Griddle Burner 4
3 225072 Screw - #10-0.5" 4
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 6
7 223242-44 Griddle Burner Orifice - Natural Gas 4
7 223242-54 Griddle Burner Orifice - LP 4
7 M8-46 Small Orifice #46 - Natural Gas 2
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 6 [3]
9 1086597 Gum Valve - 0.1875” 5
10 253062-2 Pilot Assembly 1
10 253133-9 Pilot Tubing Assembly RGM Double 4
11 253037-3 Front Top 48” 1
12 253051-5 Valve Panel 48” 1
13 1196302 Leg 4” Metal 4
14 253046 Grease Can 1
15 253060-5 Drip Pan - 24.25" x 8.5" 1
16 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
16 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle With Open Burners 2448-1-2
U_GC_PL_COUNTER_REGAL_21.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2460-1-2
RGM Series Manually Controlled Griddle With Open Burners 2460-1-2
U_GC_PL_COUNTER_REGAL_22.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2460-1-2
# PART # DESCRIPTION QTY Note
1 253052-34 Plate Assembly RGM-2460-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 5
3 223005-4 Air Shutter- Griddle Burner 5
3 225072 Screw - #10-0.5" 5
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 7
7 223242-44 Griddle Burner Orifice - Natural Gas 5
7 223242-54 Griddle Burner Orifice - LP 5
7 M8-46 Small Orifice #46 - Natural Gas 2
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 7 [3]
9 1086597 Gum Valve - 0.1875” 6
10 253062-2 Pilot Assembly 1
10 151096 Pilot Tubing Assembly - 8.5" 1
10 253133-9 Pilot Tubing Assembly RGM Double 4
11 253037-4 Front Top 60” 1
12 253051-6 Valve Panel 60” 1
13 1196302 Leg 4” Metal 4
14 253046 Grease Can 1
15 253060-5 Drip Pan - 24.25" x 8.5" 1
16 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
16 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle With Open Burners 2460-1-2
U_GC_PL_COUNTER_REGAL_22.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2472-1-2
RGM Series Manually Controlled Griddle With Open Burners 2472-1-2
U_GC_PL_COUNTER_REGAL_23.pdf
Regal Series
RGM Series Manually Controlled Griddle With Open Burners 2472-1-2
# PART # DESCRIPTION QTY Note
1 253052-35 Plate Assembly RGM-2472-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 6
3 223005-4 Air Shutter- Griddle Burner 6
3 225072 Screw - #10-0.5" 6
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 8
7 223242-44 Griddle Burner Orifice - Natural Gas 6
7 223242-54 Griddle Burner Orifice - LP 6
7 M8-46 Small Orifice #46 - Natural Gas 2
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 8 [3]
9 1086597 Gum Valve - 0.1875” 7
10 253062-2 Pilot Assembly 1
10 253133-9 Pilot Tubing Assembly RGM Double 6
11 253037-5 Front Top 72” 1
12 253051-7 Valve Panel 72” 1
13 1196302 Leg 4” Metal 4
14 253046 Grease Can 1
15 253060-5 Drip Pan - 24.25" x 8.5" 1
16 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
16 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
1
RGM Series Manually Controlled Griddle With Open Burners 2472-1-2
U_GC_PL_COUNTER_REGAL_23.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2424-1
RGTA Series Thermostatically Controlled Griddles 2424-1
U_GC_PL_COUNTER_REGAL_29.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2424-1
# PART # DESCRIPTION QTY Note
1 253052-16 Griddle Plate 24 GXT2” 1
2 252336 Burner Assembly 2
2 223005-4 Air Shutter- Griddle Burner 2
3 227000 Thermostat - Griddle “BJ Type” 1 [1]
3 227000-1 Thermostat - Griddle - “BJ Type” 1 [1]
4A 1224504 Dial 1
4B 228112 Bezel - Griddle TST 1
5 1086597 Gum Valve - 0.1875” 1
6 253134-1 Pilot Tubing - Short 1 [1]
6 253134-2 Pilot Tubing - Long 1 [1]
7 223242-44 Griddle Burner Orifice - Natural Gas 2
7 223242-54 Griddle Burner Orifice - LP 2
8 253037-1 Front Top 24” 1
9 253051-9 Valve Panel 24” 1
10 1196302 Leg 4” Metal 4
11 253046 Grease Can 1
12 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [1]
12 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
13 253835-4 Back Flue Cover 24” 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
1 [1]
RGTA Series Thermostatically Controlled Griddles 2424-1
U_GC_PL_COUNTER_REGAL_29.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2436-1
RGTA Series Thermostatically Controlled Griddles 2436-1
U_GC_PL_COUNTER_REGAL_30.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2436-1
# PART # DESCRIPTION QTY Note
1 253052-17 Griddle Plate Assembly 1
2 252336 Burner Assembly 3
2 223005-4 Air Shutter- Griddle Burner 3
3 227000 Thermostat - Griddle “BJ Type” 2 [1]
3 227000-1 Thermostat - Griddle - “BJ Type” 2 [1]
4A 1224504 Dial 2
4B 228112 Bezel - Griddle TST 2
5 1086597 Gum Valve - 0.1875” 2
6 253134-1 Pilot Tubing - Short 2 [1]
6 253134-2 Pilot Tubing - Long 1 [1]
7 223242-44 Griddle Burner Orifice - Natural Gas 3
7 223242-54 Griddle Burner Orifice - LP 3
8 253037-2 Front Top 36” 1
9 253051-11 Valve Cover 36” 1 [2]
10 1196302 Leg 4” Metal 4
11 253046 Grease Can 1
12 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [1]
12 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
13 253835-3 Back Flue 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Panel
1 [1]
RGTA Series Thermostatically Controlled Griddles 2436-1
U_GC_PL_COUNTER_REGAL_30.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2448-1
RGTA Series Thermostatically Controlled Griddles 2448-1
U_GC_PL_COUNTER_REGAL_31.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2448-1
# PART # DESCRIPTION QTY Note
1 253052-18 Griddle Plate Assembly 1
2 252336 Burner Assembly 4
2 223005-4 Air Shutter- Griddle Burner 4
3 227000 Thermostat - Griddle “BJ Type” 2 [1]
3 227000-1 Thermostat - Griddle - “BJ Type” 2 [1]
4A 1224504 Dial 2
4B 228112 Bezel - Griddle TST 2
5 1086597 Gum Valve - 0.1875” 2
6 253134-1 Pilot Tubing - Short 2 [1]
6 253134-2 Pilot Tubing - Long 2 [1]
7 223242-44 Griddle Burner Orifice - Natural Gas 4
7 223242-54 Griddle Burner Orifice - LP 4
8 253037-3 Front Top 48” 1
9 253051-12 Valve Cover 48” 1 [2]
10 1196302 Leg 4” Metal 4
11 253046 Grease Can 1
12 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [1]
12 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
13 253835-1 Back Flue 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Panel
1 [1]
RGTA Series Thermostatically Controlled Griddles 2448-1
U_GC_PL_COUNTER_REGAL_31.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2460-1
RGTA Series Thermostatically Controlled Griddles 2460-1
U_GC_PL_COUNTER_REGAL_32.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2460-1
# PART # DESCRIPTION QTY Note
1 253052-19 Griddle Plate Assembly 1
2 252336 Burner Assembly 5
2 223005-4 Air Shutter- Griddle Burner 5
3 227000 Thermostat - Griddle “BJ Type” 3 [1]
3 227000-1 Thermostat - Griddle - “BJ Type” 3 [1]
4A 1224504 Dial 3
4B 228112 Bezel - Griddle TST 3
5 1086597 Gum Valve - 0.1875” 3
6 253134-1 Pilot Tubing - Short 3 [1]
6 253134-2 Pilot Tubing - Long 2 [1]
7 223242-44 Griddle Burner Orifice - Natural Gas 5
7 223242-54 Griddle Burner Orifice - LP 5
8 253037-4 Front Top 60” 1
9 253051-13 Valve Cover 60” 1 [2]
10 1196302 Leg 4” Metal 4
11 253046 Grease Can 1
12 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [1]
12 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
13 253835-2 Back Flue 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Panel
1 [1]
RGTA Series Thermostatically Controlled Griddles 2460-1
U_GC_PL_COUNTER_REGAL_32.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2472-1
RGTA Series Thermostatically Controlled Griddles 2472-1
U_GC_PL_COUNTER_REGAL_33.pdf
Regal Series
RGTA Series Thermostatically Controlled Griddles 2472-1
# PART # DESCRIPTION QTY Note
1 253052-20 Griddle Plate Assembly 1
2 252336 Burner Assembly 6
2 223005-4 Air Shutter- Griddle Burner 6
3 227000 Thermostat - Griddle “BJ Type” 3 [1]
3 227000-1 Thermostat - Griddle - “BJ Type” 3 [1]
4A 1224504 Dial 3
4B 228112 Bezel - Griddle TST 3
5 1086597 Gum Valve - 0.1875” 3
6 253134-1 Pilot Tubing - Short 4 [1]
6 253134-2 Pilot Tubing - Long 2 [1]
7 223242-44 Griddle Burner Orifice - Natural Gas 6
7 223242-54 Griddle Burner Orifice - LP 6
8 253037-5 Front Top 72” 1
9 253051-14 Valve Cover 72” 1 [2]
10 1196302 Leg 4” Metal 4
11 253046 Grease Can 1
12 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [1]
12 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
13 253835-3 Back Flue 1
PART NOTES:
[1] - RECOMMENDED STOCK PARTS
[2] - Panel
1 [1]
RGTA Series Thermostatically Controlled Griddles 2472-1
U_GC_PL_COUNTER_REGAL_33.pdf
Regal Series
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2424-1-2
U_GC_PL_COUNTER_REGAL_34.pdf
Regal Series
# PART # DESCRIPTION QTY Note
1 253052-22 Plate Assembly RGTA-2424-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 2
3 223005-4 Air Shutter- Griddle Burner 2
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 2 [3]
7 M8-46 Small Orifice #46 - Natural Gas 2 [3]
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 2 [3]
9 227000 Thermostat - Griddle “BJ Type” 1 [3]
9 227000-1 Thermostat - Griddle - “BJ Type” 1 [3]
9 1086701 Flange Mounting Nipple 1 [3]
10A 1224504 Dial 1
10B 228112 Bezel - Griddle TST 1
11 1086597 Gum Valve - 0.1875” 1
12 253134-1 Pilot Tubing - Short 1
12 253134-2 Pilot Tubing - Long 1
13 223242-44 Griddle Burner Orifice - Natural Gas 2 [3]
13 223242-54 Griddle Burner Orifice - LP 2 [3]
14 253037-1 Front Top 24” 1
15 253051-11 Valve Cover 36” 1 [4]
16 1196302 Leg 4” Metal 4
17 253046 Grease Can 1
18 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [3]
18 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
19 253060-8 Drip Pan - 44.5" x 24.5" 1
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
[4] - Panel
[3]
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2424-1-2
U_GC_PL_COUNTER_REGAL_34.pdf
Regal Series
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2436-1-2
U_GC_PL_COUNTER_REGAL_35.pdf
Regal Series
# PART # DESCRIPTION QTY Note
1 253052-23 Plate Assembly RGTA-2436-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 3
3 223005-4 Air Shutter- Griddle Burner 3
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 2 [3]
7 M8-46 Small Orifice #46 - Natural Gas 2 [3]
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 2 [3]
9 227000 Thermostat - Griddle “BJ Type” 2 [3]
9 227000-1 Thermostat - Griddle - “BJ Type” 2 [3]
9 1086701 Flange Mounting Nipple 2 [3]
10A 1224504 Dial 2
10B 228112 Bezel - Griddle TST 2
11 1086597 Gum Valve - 0.1875” 2
12 253134-1 Pilot Tubing - Short 2
12 253134-2 Pilot Tubing - Long 2
13 223242-44 Griddle Burner Orifice - Natural Gas 3 [3]
13 223242-54 Griddle Burner Orifice - LP 3 [3]
14 253037-2 Front Top 36” 1
15 253051-12 Valve Cover 48” 1 [4]
16 1196302 Leg 4” Metal 4
17 253046 Grease Can 1
18 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [3]
18 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
19 253060-8 Drip Pan - 44.5" x 24.5" 1
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
[4] - Panel
[3]
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2436-1-2
U_GC_PL_COUNTER_REGAL_35.pdf
Regal Series
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2448-1-2
U_GC_PL_COUNTER_REGAL_36.pdf
Regal Series
# PART # DESCRIPTION QTY Note
1 253052-24 Plate Assembly RGTA-2448-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 4
3 223005-4 Air Shutter- Griddle Burner 4
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 2 [3]
7 M8-46 Small Orifice #46 - Natural Gas 2 [3]
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 2 [3]
9 227000 Thermostat - Griddle “BJ Type” 2 [3]
9 227000-1 Thermostat - Griddle - “BJ Type” 2 [3]
9 1086701 Flange Mounting Nipple 2 [3]
10A 1224504 Dial 2
10B 228112 Bezel - Griddle TST 2
11 1086597 Gum Valve - 0.1875” 2
12 253134-1 Pilot Tubing - Short 2
12 253134-2 Pilot Tubing - Long 2
13 223242-44 Griddle Burner Orifice - Natural Gas 4 [3]
13 223242-54 Griddle Burner Orifice - LP 4 [3]
14 253037-3 Front Top 48” 1
15 253051-13 Valve Cover 60” 1 [4]
16 1196302 Leg 4” Metal 4
17 253046 Grease Can 1
18 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
18 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
19 253060-8 Drip Pan - 44.5" x 24.5" 1
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
[4] - Panel
SUPPLIED WITH SALAMANDER/CHEESEMELTER
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2448-1-2
U_GC_PL_COUNTER_REGAL_36.pdf
Regal Series
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2460-1-2
U_GC_PL_COUNTER_REGAL_37.pdf
Regal Series
# PART # DESCRIPTION QTY Note
1 253052-25 Plate Assembly RGTA-2460-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 5
3 223005-4 Air Shutter- Griddle Burner 5
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 2 [3]
7 M8-46 Small Orifice #46 - Natural Gas 2 [3]
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 2 [3]
9 227000 Thermostat - Griddle “BJ Type” 3 [3]
9 227000-1 Thermostat - Griddle - “BJ Type” 3 [3]
9 1086701 Flange Mounting Nipple 3 [3]
10A 1224504 Dial 3
10B 228112 Bezel - Griddle TST 3
11 1086597 Gum Valve - 0.1875” 3
12 253134-1 Pilot Tubing - Short 3
12 253134-2 Pilot Tubing - Long 3
13 223242-44 Griddle Burner Orifice - Natural Gas 5 [3]
13 223242-54 Griddle Burner Orifice - LP 5 [3]
14 253037-4 Front Top 60” 1
15 253051-14 Valve Cover 72” 1 [4]
16 1196302 Leg 4” Metal 4
17 253046 Grease Can 1
18 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1
18 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
19 253060-8 Drip Pan - 44.5" x 24.5" 1
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
[4] - Panel
SUPPLIED WITH SALAMANDER/CHEESEMELTER
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2460-1-2
U_GC_PL_COUNTER_REGAL_37.pdf
Regal Series
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2472-1-2
U_GC_PL_COUNTER_REGAL_38.pdf
Regal Series
# PART # DESCRIPTION QTY Note
1 253052-26 Plate Assembly RGTA-2472-1-2 1
2 222186 Regal Cast Top Grate 12” x 24” 1
3 252336 Burner Assembly 6
3 223005-4 Air Shutter- Griddle Burner 6
4A 2278700 Open Top Burner - Front 1
4B 222015 Venturi/Air Shutter-Front Burner Cast Iron 1
4B 222171 Front Venturi SS 1
5 282555 Open Top Burner - Rear 1
5 222161 Venturi/Air Shutter-Rear Burner Cast Iron 1
5 222162 Open Burner Head Only 1
5 224005 Gasket/Burner Head - Cast Iron 1 [1]
5 224005-1 Gasket/Burner Head - Steel 1 [2]
5 223005 Air Shutter 1
5 225004 Screw - #10-24 x 0.5" 1
6 272051 Burner Hanger Weldment 1
7 26878xx Open Burner Valve - No Hood 2 [3]
7 M8-46 Small Orifice #46 - Natural Gas 2 [3]
7 M8-56 Small Orifice #56 - LP 2
8 224008 Knob Burner Valve - Chrome 2 [3]
9 227000 Thermostat - Griddle “BJ Type” 3 [3]
9 227000-1 Thermostat - Griddle - “BJ Type” 3 [3]
9 1086701 Flange Mounting Nipple 3 [3]
10A 1224504 Dial 3
10B 228112 Bezel - Griddle TST 3
11 1086597 Gum Valve - 0.1875” 3
12 253134-1 Pilot Tubing - Short 4
12 253134-2 Pilot Tubing - Long 2
13 223242-44 Griddle Burner Orifice - Natural Gas 6
13 223242-54 Griddle Burner Orifice - LP 6
14 253037-5 Front Top 72” 1
15 253051-15 Valve Cover 84” 1 [4]
16 1196302 Leg 4” Metal 6
17 253046 Grease Can 1
18 1019012 Pressure Regulator - Natural Gas - 0.75" x 5.0" 1 [3]
18 2127500 10” W.C 3/4” NPT, REGULATOR PROPANE GAS,
SUPPLIED WITH SALAMANDER/CHEESEMELTER
19 253060-8 Drip Pan - 44.5" x 24.5" 1
PART NOTES:
[1] - Cast Iron Only
[2] - Steel Venturi Only
[3] - RECOMMENDED STOCK PARTS
[4] - Panel
[3]
RGTA Thermostatically Controlled Griddles With Open Burner Pairs 2472-1-2
U_GC_PL_COUNTER_REGAL_38.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24"
RGTSA - Snap-action Thermostat Controlled Griddles 24"
U_GC_PL_COUNTER_REGAL_39.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24"
# PART # DESCRIPTION QTY Note
1 253805-3 Griddle Plate Weld Assembly 1
2 252336 Burner Assembly 2
2 223005-4 Air Shutter- Griddle Burner 2
2 225072 Screw - #10-0.5" 2
3 253809-3 Base 48” Spot Weld Assembly 1 [1]
4 253843-1 Grease Can Cover 1 [1]
5 253844-1 Thermostat Mount 2
6 227301-1 Sonic/Snap Action Grid T-stat 2 [2]
7 G02716-1 Dial - (Universal) Small Shaft 2 [2]
8 G02725-19 Dial Insert 2 [2]
9 227302-1 Manual Gas Valve 1 [3]
9 1265900 Shut-Off Valve Brass - 0.75” NPT 1 [4]
10 228114-12 Insulation - Thermostat Cap 2 [1]
11 253834-3 Air Baffle - 24” 1
12 253840-3 Top Trim 1
13 253824-4 Valve Cover 24”` 1
14 253849-1 Tubing Pilot Assembly 2
15 153844 Pilot Valve-Double - Use 1510402 1
15 227199 Pilot Valve Adjustment 1
15 223075 Compression Nut - 0.1875” 2
15 223087 Compression Ferrule 0.1875" 2
16 253835-3 Back Flue 1 [1]
17 253559-1 Solenoid Valve Assembly 2 [2]
17 223088 Ferrule Only - 0.375" 4
17 223079 Half Union/Brass - 0.375” x 0.25” 2
17 223073 Elbow 90 - 0.375" x 0.375" NPT 2
17 223086 Compression Nut Only - 0.375" 4
18 253832-1 Solenoid Feed Tubing 2 [1]
19 223077 Fitting 90 Degree x 0.125" NPT Comp. 2 [1]
19 223086 Compression Nut Only - 0.375" 2 [1]
19 223088 Ferrule Only - 0.375" 2 [1]
20 253833-1 Solenoid Discharge Tubing 2
21 223000-1 Oririce Elbow without Orifice 2 [1]
21 223086 Compression Nut Only - 0.375" 2 [1]
21 223088 Ferrule Only - 0.375" 2 [1]
21 1339 Nut - Plate Adjustment - Front 2 [1]
22 223242-44 Griddle Burner Orifice - Natural Gas 2
22 223242-54 Griddle Burner Orifice - LP 2
23 228052-13 Pressure Regulator - 0.75” - Natural Gas 1 [2]
23 228052-14 Pressure Regulator - 0.75” - LP 1 [2]
24 253046 Grease Can 1
25 1129 Power Cord 1 [1]
26 225066 Hex Nut - #10-24” 1 [1]
27 228049 Strain Relief 1
27 228082 Lock Nut - 0.5" NPT 1
30 253827-3 Main Frame 1 [1]
RGTSA - Snap-action Thermostat Controlled Griddles 24"
U_GC_PL_COUNTER_REGAL_39.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24"
# PART # DESCRIPTION QTY Note
30 225117 Bolt - Plate Adjustment - Rear/Front 4 [1]
30 1339 Nut - Plate Adjustment - Front 2 [1]
31 223232 Legs - 4” 4
32 225053-1 Hex Nut - 0.25” -20 x 0.5” 2 [1]
32 225054 Washer 2 [1]
33 253838-3 Wire Package 1 [1]
35 228046-1 Wire Tie 3 [1]
36 253851-1 Gas Valve Heat Shield 1 [1]
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - RECOMMENDED STOCK PARTS
[3] - Up to 2/20/97RECOMMENDED STOCK PARTSBraso
[4] - From 2/20/97
RGTSA - Snap-action Thermostat Controlled Griddles 24"
U_GC_PL_COUNTER_REGAL_39.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
U_GC_PL_COUNTER_REGAL_40.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
# PART # DESCRIPTION QTY Note
1 253805-6 Griddle Plate 1
2 252336 Burner Assembly 2
2 223005-4 Air Shutter- Griddle Burner 2
2 225072 Screw - #10-0.5" 2
3 253809-3 Base 48” Spot Weld Assembly 1 [1]
4 253843-1 Grease Can Cover 1 [1]
5 253844-1 Thermostat Mount 2
6 227301-1 Sonic/Snap Action Grid T-stat 2 [2]
7 G02716-1 Dial - (Universal) Small Shaft 2 [2]
8 G02725-19 Dial Insert 2 [2]
10 228114-12 Insulation - Thermostat Cap 2 [1]
11 253834-3 Air Baffle - 24” 1
12 253840-3 Top Trim 1
13 253824-4 Valve Cover 24”` 1
14 253849-1 Tubing Pilot Assembly 2
15 153844 Pilot Valve-Double - Use 1510402 1
15 223075 Compression Nut - 0.1875” 2
15 223087 Compression Ferrule 0.1875" 2
16 253835-3 Back Flue 1 [1]
17 253559-1 Solenoid Valve Assembly 2 [2]
17 223088 Ferrule Only - 0.375" 4
17 223079 Half Union/Brass - 0.375” x 0.25” 2
17 223073 Elbow 90 - 0.375" x 0.375" NPT 2
17 223086 Compression Nut Only - 0.375" 4
18 253832-1 Solenoid Feed Tubing 2 [1]
19 223077 Fitting 90 Degree x 0.125" NPT Comp. 2 [1]
19 223086 Compression Nut Only - 0.375" 2 [1]
19 223088 Ferrule Only - 0.375" 2 [1]
20 253833-1 Solenoid Discharge Tubing 2
21 223000-1 Oririce Elbow without Orifice 2 [1]
21 223086 Compression Nut Only - 0.375" 2 [1]
21 223088 Ferrule Only - 0.375" 2 [1]
21 1339 Nut - Plate Adjustment - Front 2 [1]
22 223242-44 Griddle Burner Orifice - Natural Gas 2
22 223242-54 Griddle Burner Orifice - LP 2
23 228052-13 Pressure Regulator - 0.75” - Natural Gas 1 [2]
23 228052-14 Pressure Regulator - 0.75” - LP 1 [2]
24 253046 Grease Can 1
25 1129 Power Cord 1 [1]
26 225066 Hex Nut - #10-24” 1 [1]
27 228049 Strain Relief 1
27 228082 Lock Nut - 0.5" NPT 1
30 253827-3 Main Frame 1 [1]
30 225117 Bolt - Plate Adjustment - Rear/Front 4 [1]
30 1339 Nut - Plate Adjustment - Front 2 [1]
31 223232 Legs - 4” 4
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
U_GC_PL_COUNTER_REGAL_40.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
# PART # DESCRIPTION QTY Note
32 225053-1 Hex Nut - 0.25” -20 x 0.5” 2 [1]
32 225054 Washer 2 [1]
33 253838-3 Wire Package 1 [1]
35 228046-1 Wire Tie 3 [1]
36 253851-1 Gas Valve Heat Shield 1 [1]
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - RECOMMENDED STOCK PARTS
RGTSA - Snap-action Thermostat Controlled Griddles 24" 58"
U_GC_PL_COUNTER_REGAL_40.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36"
RGTSA - Snap-action Thermostat Controlled Griddles 36"
U_GC_PL_COUNTER_REGAL_41.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36"
# PART # DESCRIPTION QTY Note
1 253805-2 Griddle Plate 1
2 252336 Burner Assembly 3
2 223005-4 Air Shutter- Griddle Burner 3
2 225072 Screw - #10-0.5" 3
3 253809-2 Base 48” 1 [1]
4 253843-1 Grease Can Cover 1 [1]
5 253844-1 Thermostat Mount 3
6 227301-1 Sonic/Snap Action Grid T-stat 3 [2]
7 G02716-1 Dial - (Universal) Small Shaft 3 [2]
8 G02725-19 Dial Insert 3 [2]
9 227302-1 Manual Gas Valve 1 [3]
9 1265900 Shut-Off Valve Brass - 0.75” NPT 1 [4]
10 228114-12 Insulation - Thermostat Cap 3 [1]
11 253834-2 Air Baffle - 36” 1
12 253840-2 Top Trim 1
13 253824-3 Valve Cover 36” 1
14 253849-1 Tubing Pilot Assembly 3
15 153844 Pilot Valve-Double - Use 1510402 1
15 227199 Pilot Valve Adjustment 1
15 223075 Compression Nut - 0.1875” 3
15 223087 Compression Ferrule 0.1875" 3
16 253835-2 Back Flue 1 [1]
17 253559-1 Solenoid Valve Assembly 3 [2]
17 223088 Ferrule Only - 0.375" 6
17 223079 Half Union/Brass - 0.375” x 0.25” 3
17 223073 Elbow 90 - 0.375" x 0.375" NPT 3
17 223086 Compression Nut Only - 0.375" 6
18 253832-1 Solenoid Feed Tubing 3 [1]
19 223077 Fitting 90 Degree x 0.125" NPT Comp. 3 [1]
19 223086 Compression Nut Only - 0.375" 3 [1]
19 223088 Ferrule Only - 0.375" 3 [1]
20 253833-1 Solenoid Discharge Tubing 3
21 223000-1 Oririce Elbow without Orifice 3 [1]
21 223086 Compression Nut Only - 0.375" 3 [1]
21 223088 Ferrule Only - 0.375" 3 [1]
21 1339 Nut - Plate Adjustment - Front 3 [1]
22 223242-44 Griddle Burner Orifice - Natural Gas 3
22 223242-54 Griddle Burner Orifice - LP 3
23 228052-13 Pressure Regulator - 0.75” - Natural Gas 1 [2]
23 228052-14 Pressure Regulator - 0.75” - LP 1 [2]
24 253046 Grease Can 1
25 1129 Power Cord 1 [1]
26 225066 Hex Nut - #10-24” 1 [1]
27 228049 Strain Relief 1
27 228082 Lock Nut - 0.5" NPT 1
30 253827-2 Main Frame 1 [1]
RGTSA - Snap-action Thermostat Controlled Griddles 36"
U_GC_PL_COUNTER_REGAL_41.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36"
# PART # DESCRIPTION QTY Note
30 225117 Bolt - Plate Adjustment - Rear/Front 4 [1]
30 1339 Nut - Plate Adjustment - Front 2 [1]
31 223232 Legs - 4” 4
32 225053-1 Hex Nut - 0.25” -20 x 0.5” 2 [1]
32 225054 Washer 2 [1]
33 253838-2 Wire Package 1 [1]
35 228046-1 Wire Tie 6 [1]
36 253851-1 Gas Valve Heat Shield 1 [1]
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - RECOMMENDED STOCK PARTS
[3] - BrasoUp to 2/20/97RECOMMENDED STOCK PARTS
[4] - From 2/20/97
RGTSA - Snap-action Thermostat Controlled Griddles 36"
U_GC_PL_COUNTER_REGAL_41.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
U_GC_PL_COUNTER_REGAL_42.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
# PART # DESCRIPTION QTY Note
1 253805-5 Griddle Plate 1
2 252336 Burner Assembly 3
2 223005-4 Air Shutter- Griddle Burner 3
2 225072 Screw - #10-0.5" 3
3 253809-2 Base 48” 1 [1]
4 253843-1 Grease Can Cover 1 [1]
5 253844-1 Thermostat Mount 3
6 227301-1 Sonic/Snap Action Grid T-stat 3 [2]
7 G02716-1 Dial - (Universal) Small Shaft 3 [2]
8 G02725-19 Dial Insert 3 [2]
10 228114-12 Insulation - Thermostat Cap 3 [1]
11 253834-2 Air Baffle - 36” 1
12 253840-2 Top Trim 1
13 253824-3 Valve Cover 36” 1
14 253849-1 Tubing Pilot Assembly 3
15 153844 Pilot Valve-Double - Use 1510402 1
15 223075 Compression Nut - 0.1875” 3
15 223087 Compression Ferrule 0.1875" 3
16 253835-2 Back Flue 1 [1]
17 253559-1 Solenoid Valve Assembly 3 [2]
17 223088 Ferrule Only - 0.375" 6
17 223079 Half Union/Brass - 0.375” x 0.25” 3
17 223073 Elbow 90 - 0.375" x 0.375" NPT 3
17 223086 Compression Nut Only - 0.375" 6
18 253832-1 Solenoid Feed Tubing 3 [1]
19 223077 Fitting 90 Degree x 0.125" NPT Comp. 3 [1]
19 223086 Compression Nut Only - 0.375" 3 [1]
19 223088 Ferrule Only - 0.375" 3 [1]
20 253833-1 Solenoid Discharge Tubing 3
21 223000-1 Oririce Elbow without Orifice 3 [1]
21 223086 Compression Nut Only - 0.375" 3 [1]
21 223088 Ferrule Only - 0.375" 3 [1]
21 1339 Nut - Plate Adjustment - Front 3 [1]
22 223242-44 Griddle Burner Orifice - Natural Gas 3
22 223242-54 Griddle Burner Orifice - LP 3
23 228052-13 Pressure Regulator - 0.75” - Natural Gas 1 [2]
23 228052-14 Pressure Regulator - 0.75” - LP 1 [2]
24 253046 Grease Can 1
25 1129 Power Cord 1 [1]
26 225066 Hex Nut - #10-24” 1 [1]
27 228049 Strain Relief 1
27 228082 Lock Nut - 0.5" NPT 1
30 253827-2 Main Frame 1 [1]
30 225117 Bolt - Plate Adjustment - Rear/Front 4 [1]
30 1339 Nut - Plate Adjustment - Front 2 [1]
31 223232 Legs - 4” 4
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
U_GC_PL_COUNTER_REGAL_42.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
# PART # DESCRIPTION QTY Note
32 225053-1 Hex Nut - 0.25” -20 x 0.5” 2 [1]
32 225054 Washer 2 [1]
33 253838-2 Wire Package 1 [1]
35 228046-1 Wire Tie 6 [1]
36 253851-1 Gas Valve Heat Shield 1 [1]
PART NOTES:
[1] - NOT ILLUSTRATED
[2] - RECOMMENDED STOCK PARTS
RGTSA - Snap-action Thermostat Controlled Griddles 36" 58"
U_GC_PL_COUNTER_REGAL_42.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 48"
RGTSA - Snap-action Thermostat Controlled Griddles 48"
U_GC_PL_COUNTER_REGAL_43.pdf
Regal Series
RGTSA - Snap-action Thermostat Controlled Griddles 48"
# PART # DESCRIPTION QTY Note
1 253805-1 Griddle Plate 1
2 252336 Burner Assembly 4
2 223005-4 Air Shutter- Griddle Burner 4
2 225072 Screw - #10-0.5" 4
3 253809-1 Base - 48” 1 [1]
4 253843-1 Grease Can Cover 1 [1]
5 253844-1 Thermostat Mount 4
6 227301-1 Sonic/Snap Action Grid T-stat 4 [2]
7 G02716-1 Dial - (Universal) Small Shaft 4 [2]
8 G02725-19 Dial Insert 4 [2]
9 227302-1 Manual Gas Valve 1 [3]
9 1265900 Shut-Off Valve Brass - 0.75” NPT 1 [4]
10 228114-12 Insulation - Thermostat Cap 4 [1]
11 253834-1 Air Baffle - 48” 1
12 253840-1 Top Trim 1
13 253824-1 Valve Cover 48” 1
14 253849-1 Tubing Pilot Assembly 4
15 153844 Pilot Valve-Double - Use 1510402 2
15 223075 Compression Nut - 0.1875” 4
15 223087 Compression Ferrule 0.1875" 4
16 253835-1 Back Flue 1 [1]
17 253559-1 Solenoid Valve Assembly 4 [2]
17 223088 Ferrule Only - 0.375" 8
17 223079 Half Union/Brass - 0.375” x 0.25” 4
17 223073 Elbow 90 - 0.375" x 0.375" NPT 4
17 223086 Compression Nut Only - 0.375" 8
18 253832-1 Solenoid Feed Tubing 4 [1]
19 223077 Fitting 90 Degree x 0.125" NPT Comp. 4 [1]
19 223086 Compression Nut Only - 0.375" 4 [1]
19 223088 Ferrule Only - 0.375" 4 [1]
20 253833-1 Solenoid Discharge Tubing 4
21 223000-1 Oririce Elbow without Orifice 4 [1]
21 223086 Compression Nut Only - 0.375" 4 [1]
21 223088 Ferrule Only - 0.375" 4 [1]
21 1339 Nut - Plate Adjustment - Front 4 [1]
22 223242-44 Griddle Burner Orifice - Natural Gas 4
22 223242-54 Griddle Burner Orifice - LP 4
23 228052-13 Pressure Regulator - 0.75” - Natural Gas 1 [2]
23 228052-14 Pressure Regulator - 0.75” - LP 1 [2]
24 253046 Grease Can 1
25 1129 Power Cord 1 [1]
26 225066 Hex Nut - #10-24” 1 [1]
27 228049 Strain Relief 1
27 228082 Lock Nut - 0.5" NPT 1
30 253827-1 Main Frame 1 [1]
30 225117 Bolt - Plate Adjustment - Rear/Front 4 [1]
RGTSA - Snap-action Thermostat Controlled Griddles 48"
U_GC_PL_COUNTER_REGAL_43.pdf
Loading...
