USGlobalsat TR-203A User Manual

TR-203A

Version 1.2

TR-203A

Personal Tracker

User’s Guide

v1.2

GlobalSat Technology Corporation

16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan
Tel: [phone]/ Fax: [phone]

[e-mail]
www.globalsat.com.tw

Page 1 of 26

USGlobalSat Incorporated

14740 Yorba CT. Chino, CA 91710
Tel: [phone] / Fax: [phone]

[e-mail]
www.usglobalsat.com

TR-203A_User_Manual _V1.2_Eng

Status

Version

Date

Comment

Audience

Approved

1.0.0

02/27/09

Document Creation

Public

Pending

1.1.0

03/04/09

Specification Revision

Public

TR-203A

Version 1.2

History

© 2009 GlobalSat Technology Corporation/USGlobalSat, Inc. All rights reserved. The GlobalSat logo is a trademark of
GlobalSat Corporation. Windows is a register trademark of Microsoft Corporation. Acrobat is a registered trademark of
Adobe Systems Incorporated. Mac is a registered trademark of the Apple Corporation. All other trademarks or regis tered
trademarks are acknowledged as the exclusive property of their respective owners.

All rights reserved. No part of this manual may be reproduced, transmitted, copied, or stored in any storage medium, for
any purpose, without prior written consent from GlobalSat Technology Corporation or USGlobalSat,
Inc. GlobalSat/USGlobalSat hereby grants the right to do wnload one (1) copy of this manual onto a hard drive for personal
use.
This manual is copyrighted and may contain proprietary information that is subject to change without notice.

Page 2 of 26

TR-203A

Version 1.2

Table of

1. Warning

2.

Welcome .............................................................................................................................................

3.

Overview.............................................................................................................................................

3.1 Introduction

3.2

3.3 Required Items for

4. Product Description

4.1 Tracker

4.2 LED Indicator Chart..

4.3

5.

Operation...........................................................................................................................................

5.1 Battery

5.2 SIM Card

5.3 Initialization

5.4 Carry

6. Specifications

6.1

6.2 Rechargeable Battery Pack

7. Troubleshooting

8. Contact Information

9. Safety

10. Limited

11. FCC

12. PTCRB

13. CE Notice
Nominal electrical charging

..............................................................................................................................................

................................................................................................................................. 6

Feature........................................................................................................................................ 6

Tracking....................................................................................................... 6

............................................................................................................................

Description....................................................................................................................... 7

....................................................................................................................8

Accessories…...............................................................................................................................9

Charging........................................................................................................................ 10

Installation................................................................................................................. 10

............................................................................................................................... 11

Bag .................................................................................................................................. 11

..................................................................................................................................

Hardware................................................................................................................................... 13

...................................................................................................... 14

..............................................................................................................................

........................................................................................................................

Information ...........................................................................................................................

Warranty ..............................................................................................................................

Notice ........................................................................................................................................

Notice ...................................................................................................................................

..........................................................................................................................................

characteristics.........................................................................................

Contents

Page 3 of 26

4
5
6

7

10

13

15
16
16

18

23
24
25

26

TR-203A

Version 1.2

1.

Warning

USE RESPONSIBLY. READ ALL INSTRUCTIONS AND
SAFETY INFORMATION BEFORE USE TO AVOID INJURY.

GlobalSat Technology Corporation / USGlobalSat, Inc. will not accept any responsibility whatsoever for
accidents resulting from failure to observe the precautions provided. Manufacturer recommendations
must always take precedence over any instructions produced by other manufacturers, vendors,
telecommunication service providers, or tracking software developers.

WARNING: SIM card.

It is your responsibility as the device owner to disable voicemail, call waiting, and call forwarding. If not certain,
contact your telecommunications service provider to disable these features.

WARNING: Power supply usage.

It is your responsibility as the device owner to charge the internal rechargeable battery for a minimum of three (3)
hours via the supplied AC power adapter under the power-off condition. This is highly recommended for first time
users.

WARNING: Battery care.

It is your responsibility as the device owner to meet all battery operating parameters set forth by the manufacturer’s
specifications. Otherwise, operators exceeding the recommended Li-Ion battery pack care may encounter a
potential risk of heating, explosion, and ignition leading to the risk of fire and burns. Do not disassemble, crush,
puncture, short contacts and dispose in fire or water. Do not use battery if the following is encounter: notice
physical damage, deformed, or emissions a foul odor.

WARNING: TO REDUCE FIRE OR SHOCK HAZARD RISK, DO NOT EXPOSE PRODUCT TO RAIN OR

MOISTURE. DO NOT REMOVE ENCLOSURE. THERE IS NO USER INTERNAL SERVICEABLE PARTS.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Page 4 of 26

TR-203A

Version 1.2

2. Welcome

Thank you for purchasing the GlobalSat TR-203A Personal Tracker. The TR-203A device incorporates the most
sophisticated communication mediums such as the GPS, GPRS, and SMS technologies via a GSM network
used today by many telecommunication industries. GlobalSat has married these technologies and transformed it
to a higher and better use, the result…an intelligent tracking device with the ability to monitor parties remotely;
i.e., the elderly, children, pets, and vehicles.

In today’s society, the need for tracking is essential and its applications are endless. The TR-203A device meets
and exceeds these needs for personal and asset tracking/management applications.

Page 5 of 26

TR-203A

Version 1.2

3. Overview

3.1

Introduction

TR-203A is a personal tracking device with fast acquisition times. Its compact, portab le, and stylish design
users can remotely configure the TR-203A with ease. Displaying its ph ysical location via a mapping
applicatio n of choice. In addition to its overall tracking abilities, the device incorporates voice monitoring,
geofencing, and data logging functions.

3.2

Features

The TR-203A encompasses many of today’s necessary features for tracking
applications.

 High sensitivity GPS chipset  Effortless configuration via SMS, GPRS, or USB
 Combination of GPS and GSM/GPRS wireless

network

 Quad-band GSM (850/900/1800/1900MHz)

GPRS class10

 Position tracking function: locate with preset time

interval or one time report via SMS or GPRS

 Built-in data logger capability to record up to

150,000 data positions

and

 SOS button for emergency rescue and action

 Low power alarm by SMS/GPRS

 Voice-Monitor function

 GeoFence function

3.3 Required Items for

Tracking

 TR-203A Personal Tracker (included)
 GSM SIM Card (provided separately)
 Tracking Software (provided separately)

Page 6 of 26

TR-203A

Version 1.2

4. Product Description

4.1 Tracker

1

Description

6

2 7

3
4

1. SIM Card Holder 5. GSM LED

2. SOS Button 6. Reset Button

3. Power Status LED 7. Power Button

4. GPS LED 8. Mini-USB Port

Page 7 of 26

5

8

LED

Orange

Red

State

TR-203A is connected to charger or

USB

cable

Battery power is

low

LED

Blink Quickly

(Once per

second)

Blink Slowly

(Once

every 3

seconds)

State

TR-203A does not get GPS

fix

TR-203A gets GPS

fix

LED

Blink Quickly

(Once per

second)

Blink Slowly

(Once

every 3

seconds)

State

No SIM card

inserted

TR-203A is searching GSM

network

SIM card is registering to

GSM

Standby

Mode

TR-203A

Version 1.2

4. Product Description (Continued)

4.2 LED Indicator

Power Status

LED

Chart

LED

GPS

GSM

LED

Page 8 of 26

TR-203A

Version 1.2

4. Product Description (Continued)

4.3

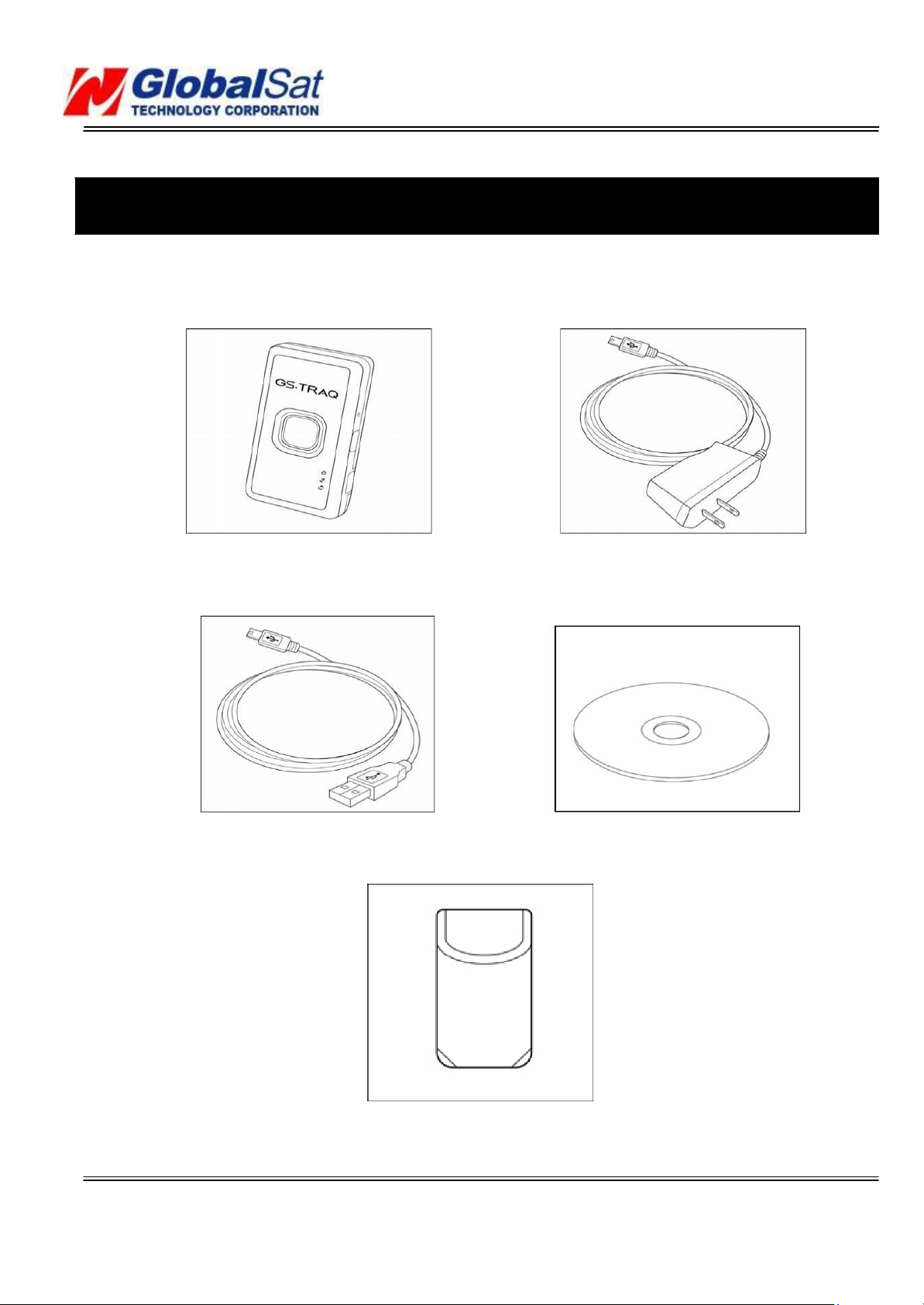

Accessories

TR-203A AC charger

USB cable CD ROM

Carry Bag

Page 9 of 26

5. Operation

5.1 Battery

Initially, the enclosed rechargeable battery requires a complete charge before device usage. Therefore, to
maximize your device’s battery life, it is highly recommended to proceed by performing the steps listed below.

METHOD 1: Using the AC adapter cable charge method:

1. Connect TR-203A to its supplied AC adapter cable.

2. Allow a 4 hour battery charge time. (TR-203A in power-off condition)

METHOD 2: Using the USB cable charge method:

3. Connect TR-203A to its supplied USB to Mini-USB cable to PC or Notebook. (Computer requires to

Charging

TR-203A

Version 1.2

Figure 1

be turned “ON”)

4. Allow a 4 hour battery charge time. (TR-203A in power-off condition)

5.2 SIM Card

With the copper contacts facedown, align the notch on the SIM card with the notch on the SIM slot and insert
the SIM card. If the SIM is inserted correctly, you will not be able to see the copper contacts after inserting the
card.

To eject SIM card, simply, use your fingernail and apply slight pressure.

Installation

Figure 2

Page 10 of 26

TR-203A

Version 1.2

5. Operation (Continued)

5.3

Initialization

To turn the device “ON”, press and hold the power button until you feel the device vibrating. To turn the
device “OFF”, press and hold the power button until you feel the device vibrating. The vibration effect indicates
the user requests have been acknowledged.

5.4 Carry

Bag

Power Button

Figure 3

The enclosed carry bag provides versatility to users with applications encompassing persons and/or pets. In
addition to flexibility, security is the other important attribute with the assistance of a belt.

Personal

Use

Use

Pet

Figure 4 Figure 5

Page 11 of 26

TR-203A

Version 1.2

5. Operation (Continued)

Slide the TR-203A device into the carry bag, until it’s secured. To remove the TR-203A device from the carry
bag, simply apply pressure at the bottom with outward force pushing the TR-203A out of the bag as pictured
below.

Page 12 of 26

Figure

6

Description:

Spec ification s:

Model:

TR-203A

GSM module:

SIMCOM 900 GSM/GPRS module

GSM Antenna Type :

GSM 850/900/1800/1900 monopole antenna system

GPS Chipset:

High Sensitivity GPS Receiver

Operating Temperature:

Battery: -20℃~60℃

Charger: 0℃~45℃

Humidity:

5% to 95% Non-condensing

Rechargeable Battery:

920mAh Li-ion battery (3.7V)

Battery Life:

1.) Standby(GSM ON, GPS OFF) without any activity: 200 hrs.

2.) Period Report Mode every 30 minutes (GSM ON, GPS OFF): 100 hrs.

3.) Sleep Mode (GSM OFF, GPS OFF) without any activity : 120 days

USB Port:

Mini-USB port connector for charging

Charging:

5VDC

LED Indicators:

Power Status, GSM, GPS, SOS

Dimensions:

79.1 mm x 41.8 mm x 18 mm

Buttons:

Power button

Reset button

SOS button

Accessories:

1.) AC Charger

2.) USB cable

3.) CD-ROM: Quick start guide, drivers, etc.

Certification:

CE, FCC, PTCRB

Data Logger Flash Memory:

150,000 data records

Waterproof:

IPX4

TR-203A

Version 1.2

6. Specifications

6.1

Hardware

The electrical specifications apply to the TR-203A Personal Tracker.

The Hardware Specifications

Page 13 of 26

TR-203A

Version 1.2

6. Specifications (Continued)

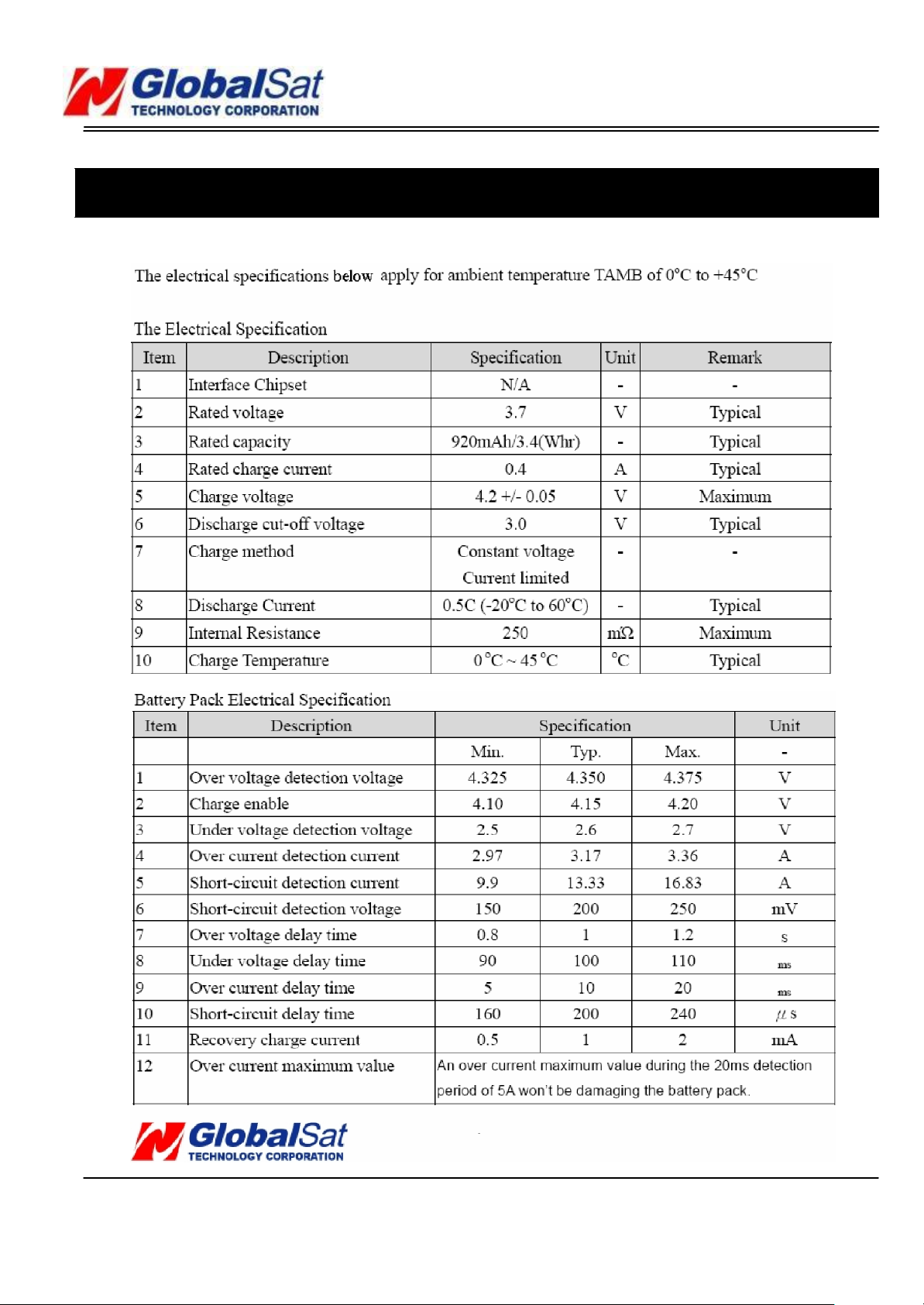

6.2 Rechargeable Battery Pack

Specifications

Page 14 of 26

Problem Solution

TR-203A cannot receive GPS signals.

Take your TR-203A outdoors and away from tall buildings and
trees. Remain stationary for several minutes to get the necessary
GPS information from satellites.

TR-203A cannot turn “ON”.

1. Verify if the battery is fully charged.

2. Verify the original designated charging cable is functional with

the supplemental charging cable.

I cannot see the TR-203A’s location.

1. Be certain the SIM card is inserted property as instructed in the
SIM card installation section.

2. Validate your telecommunication service provider settings are
correct.

3. Validate your tracker program incorporates the necessary
TR-203A settings provided by your telecommunication
service provider.

TR-203A

Version 1.2

7. Troubleshooting

Page 15 of 26

TR-203A

Version 1.2

8. Contact Information

GlobalSat Technology Corporation (Taiwan) USGlobalSat, Inc. (North America)

www.GlobalSat.com.tw www.USGlobalSat.com
[e-mail] [e-mail]
(pre-sales GPS product questions only) (pre-sales GPS product questions only)

Technical Support (North America)
See our DOWNLOADS and FAQ section on our web-site for GPS driver updates.
www.USGlobalSat.com

Product Pre-Registration Requirements: Before receiving product technical support and/ or online support from our

“Support Ticket” system from USGlobalSat’s website. Using our online support will expedite in receiving product resolutions in a
secure and prompt manner. Note, products purchased from an authorized USGlobalSat dealer, require account and product

registration at: http://www.USGlobalSat.com/store/support/

9. Safety Information

As for the operation of this product in the aircraft, please consult the aviation company first. Special care

should be taken when an electronics device is engaged during a flight.

Never get close to a place emitting intensive radio waves or radiation which could affect the operation of this

product.

Never expose this product to humid environment or rain, as the water could leak into it and disable the

device to the extent of beyond repair.

Over-voltage, power cable strain, being bent or squeezed by heavy objects is not allowed to avoid device

overheating or

Never deploy any chemical or detergent to clean up the device in order to prevent erosion of the

surface or paintwork.

In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands. Water

may cause permanent device damage.

Never charge the battery in an extremely cold nor hot environments, this could damage the battery.
Keep this product out of reach from children when charging.

fire disaster.

Page 16 of 26

TR-203A

Version 1.2

9. Safety Information (Continued)

Never put it under direct sunlight or in a place with high temperature. This would avoid the

heating the battery or this product, which could be dangerous.

When any sort of fault comes into being, please contact the qualified maintenance personnel for service

rather than disassemble the device at your own discretion.

Keep all the wires in order so as to prevent damage-fostering tangling.

Page 17 of 26

problem of

over-

TR-203A

Version 1.2

10. Limited Warranty

GlobalSat/USGlobalSat (1) Year Limited Warranty

FOR CONSUMERS, WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS
IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, IN THEIR COUNTRY OF RESIDENCE, THE
BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES
CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. THIS WARRANTY
DOES NOT EXCLUDE, LIMIT, OR SUSPEND ANY RIGHTS OF CONSUMERS ARISING OUT OF
NONCONFORMITY WITH A SALES CONTRACT. SOME COUNTRIES, STATES, AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION MAY LAST, SO
THE LIMITATIONS OR EXCLUSIONS DESCRIBED BELOW MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY BY COUNTRY, STATE, OR PROVINCE. THIS LIMITED WARRANTY IS GOVERNED BY
AND CONSTRUED UNDER THE LAWS OF THE COUNTRY IN WHICH PRODUCT PURCHASE TOOK
PLACE. GLOBALSAT/ USGLOBALSAT, THE WARRANTOR UNDER THIS LIMITED WARRANTY, IS
IDENTIFIED AT THE END OF THIS DOCUMENT ACCORDING TO THE COUNTRY OR REGION IN
WHICH THE PRODUCT PURCHASE TOOK PLACE.

GlobalSat/USGlobalSat’s warranty obligations for this hardware product are limited to the terms set forth
below:

GlobalSat/USGlobalSat, as defined below, warrants this hardware product against manufacturing defects in
materials and workmanship under normal use for a period of ONE (1) year from the date of retail purchase by
the original end-user purchaser and purchased from a recognized “authorized dealer” (“Warranty Period”).
Products purchased from any unauthorized source, such as unauthorized e-Bay resellers, will not qualify for free
warranty service/support and may require the end-user to pre-pay fees associated with, but not limited to the
support, repair, replacement, and shipping of the product to and from the service center. If a hardware defect arises
and a valid claim is received by GlobalSat/USGlobalSat within the Warranty Period, at its option and to the extent
permitted by law, GlobalSat/USGlobalSat will either (1) repair the product at no charge, using new parts or parts
equivalent to new in performance and reliability, (2) exchange the product with a product that is new or equivalent to
new in performance and reliability and is at least functionally equivalent to the original product or, (3) refund the
purchase price of the product. GlobalSat/USGlobalSat may request that you replace defective parts with new or
refurbished user-installable parts that GlobalSat/USGlobalSat

Page 18 of 26

provides

TR-203A

Version 1.2

10. Limited Warranty (Continued)

in fulfillment of its warranty obligation. A replacement product or part, including a user-installable part that has been
installed in accordance with the instructions provided by GlobalSat/USGlobalSat, assumes the remaining warranty
of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer
coverage for you. When a product or part is exchanged, any replacement item becomes your property and the
replaced items become GlobalSat/USGlobalSat’s property. Parts provided by GlobalSat/USGlobalSat in the
fulfillment of its warranty obligation must be used in products for which warranty service is claimed. When a refund
is given, the product for which the refund is provided must be returned to GlobalSat/USGlobalSat and become
GlobalSat/USGlobalSat’s property.

If a defect arises and a valid claim is received by GlobalSat/USGlobalSat after the first one hundred and eighty (180)
days of Warranty period, shipping and handling charge may apply to any repair or exchange of the product
undertaken by GlobalSat/USGlobalSat.

EXCLUSIONS AND LIMITATIONS
This Limited Warranty applies only to the hardware product manufactured by or for GlobalSat that can be identified
by the “GlobalSat” trademark, trade name, or logo annexed to it. The Limited Warranty does not apply to
any non-GlobalSat hardware product or any software, even if packaged or sold with the GlobalSat hardware.

Manufacturers, suppliers, or publishers, other than GlobalSat/USGlobalSat, may provide their own warranties to
the end user purchaser, but GlobalSat/USGlobalSat, in so far as permitted by law, provides their products “as-is”.
Software distributed by GlobalSat/USGlobalSat with or without the GlobalSat brand name (including, but not limited
to system software) is not covered under this Limited Warranty. Refer to the licensing agreement accompanying the
software for details of your rights with respect to its use. GlobalSat/USGlobalSat does not warrant that the operation
of the product will be uninterrupted or error-free. GlobalSat/USGlobalSat is not responsible for damage arising from
failure to follow instructions relating to the product’s use.

This warranty does not apply: (a) to consumable parts, such as batteries, unless damage has occurred due
to a defect in materials and workmanship; (b) to cosmetic damage, including but not limited to scratches,
dents, and broken plastic on ports; (c) to damage cause by use accident, abuse, misuse, flood, fire,
earthquake, or other external causes; (e) to damage caused by operating the product outside the
tted or intended uses described by GlobalSat/USGlobalSat; (f) to damage caused by service (including
upgrades and expansions) performed by anyone who is not a

Page 19 of 26

permi

TR-203A

Version 1.2

10. Limited Warranty (Continued)

representative of GlobalSat/USGlobalSat or a GlobalSat/USGlobalSat authorized service provider; (g) to a
product or part that has been modified to alter functionality or capability without the written permission of
GlobalSat/USGlobalSat; or if any GlobalSat/USGlobalSat serial number has been removed or defaced.

IMPORTANT: Do not open the hardware product. Opening the hardware product may cause damage that is
not covered by this warranty. Only GlobalSat/USGlobalSat or an authorized service provider should perform
service on this hardware product.

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR
WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AS PERMITTED BY APPLICABLE LAW,
GLOBALSAT/USGLOBALSAT SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR
A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF
GLOBALSAT/USGLOBALSAT CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN
TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION OF THE
EXPRESS WARRANTY AND TO THE REPAIR OF REPLACEMENT SERVICE AS DETERMINED BY
GLOBALSAT/USGLOBALSAT IN ITS SOLE DISCRETION.

No GlobalSat/USGlobalSat reseller, agent, or employee is authorized to make any modifications, extension, or
addition to this warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the
remaining terms shall not be affected or impaired.

EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW,
GLOBALSAT/USGLOBALSAT IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER
ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS
OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE
USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF
GOODWILL; LOSS OF REPUTATION; LOSS OF DAMAGE TO OR CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF
EQUIPMENT AND

Page 20 of 26

TR-203A

Version 1.2

10. Limited Warranty (Continued)

PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA
STORED IN OR USED WITH THE GLOBALSAT/ USGLOBALSAT PRODUCT AND ANY FAILURE TO MAINTAIN
THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE FOREGOING LIMITATION SHALL NOT
APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND
GROSS NEGLIGENT ACTS AND/OR OMISSIONS. GLOBALSAT/USGLOBALSAT DISCLAIMS ANY
RESPRESENTATION THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE
A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.

OBTAINING WARRANTY SERVICE
Please access and review the online help resources referred to in the documentation accompanying this hardware
product before seeking warranty service. If the product is still not functioning properly after making use of these
resources, access the online website www.USGlobalSat.com for instructions on how to obtain warranty service.
You must follow GlobalSat/USGlobalSat warranty processes. GlobalSat/USGlobalSat may provide warranty service
(i) by sending the unit to GlobalSat/USGlobalSat location, where service is performed at the location, or (ii) by
sending the unit to an authorized GlobalSat/USGlobalSat supplier (iii) by sending you new or refurbished
customer
service”). Upon receipt of the replacement product or part, the original product or part becomes the property of
GlobalSat/USGlobalSat and you agree to follow instructions, including, if requires, arranging the return of the
product or part to GlobalSat/USGlobalSat in a timely manner. When providing RMA service requiring the return of
the original product or part, GlobalSat/USGlobalSat may require credit card authorization as security for the retail
price of the replacement product or part and applicable shipping costs. If you follow the instructions,
GlobalSat/USGlobalSat will cancel the credit card authorization, so you will not be charged for the product or part
and shipping costs. If you fail to return the replace product or part as instructed, GlobalSat/USGlobalSat will charge
the credit card for the authorized amount. Service options, parts availability, and response times may vary
according to the country in which service is requested. Service options are subject to change at any time. You may
be responsible for shipping and handling charges if product cannot be serviced in the country in which service is
requested. If you seek service in a country that is not the country of purchase, you will comply with applicable export
laws and regulations and be responsible for all custom duties, V.A.T., and other associated taxes and charges. For
international service, GlobalSat/USGlobalSat may repair or exchange defective products and parts with comparable
products and parts that comply with local standards. In accordance with applicable law, GlobalSat/USGlobalSat may
require that you furnish proof of purchase
warranty service.

-installable replacement product or parts to enable you to service or exchange your own product (“RMA

details and/ or comply with the registration requirements before receiving

Page 21 of 26

TR-203A

Version 1.2

10. Limited Warranty (Continued)

Please refer to the accompanying documentation for more details on this and other matters obtaining warranty
service.

GlobalSat/USGlobalSat will maintain and use customer information in accordance with the
GlobalSat/USGlobalSat

Privacy Policy.

If your product is capable of storing software programs, data and other information, you should make periodic backup copies
of the information contained on the product’s hard drive or other storage media to protect the contents and as a precaution
against possible operational failures. Before you deliver your product for warranty service it is your responsibility to keep a
separate backup copy of the contents, and disable any security pa sswords. IT IS POSSIBLE THAT THE CONTENTS OF
YOUR HARD DRIVE WILL BE LOST OR REFORMATTED IN THE COURSE OF WARRANTY SERVICE, AND
GLOBALSAT/USGLOBALSAT AND ITS AGENTS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF
PROG RAMS, DATA, OR OTHER INFORMATION CONTAINED ON THE MEDIA OR ANY PART OF THE PRODUCT
SERVICED. Your product will be returned to you configured as originally purchased, subject to applicable updates. You will
be responsible for reinstalling all other software programs, data, and passwords. Recovery and reinstallation of
service

programs and user data are not covered under this Limited Warranty.

Page 22 of 26

TR-203A

Version 1.2

11. FCC Notices

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment utilizes, exhibits and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance
with FCC RF exposure compliance requirements, please follow operation instruction as documented in this
manual.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware
programmed at the factory to match the intended destination. The firmware setting is not accessible by th e end user.

Page 23 of 26

TR-203A

Version 1.2

12. PTCRB Notice

PTCRB stands for (PCS Type Certification Review Board). The PTCRB Certification process is administered by

CTIA via the PTCRB website. It manages the test and certification process for manufacturers of GSM/UMTS
wireless devices which will be operating on PTCRB operator networks (mainly North America). This way the PTCRB
network operators ensure that a minimum set of 'device performance requirements' are met and that the wireless
devices in use will not cause harm to their networks. PTCRB operators reserve the right to block devices which are
not PTCRB certified.

PTCRB certification is important for both module manufacturers and End Product manufacturers implementing
PTCRB certified modules. For North American markets, manufacturers, who integrate a pre-certified module into
their GSM/UMTS wireless M2M device, have to submit their “End Product” in its final (production) form factor to a
PTCRB authorized test laboratory for testing & certification.

Because the majority of the test cases have already been completed when the module was initially certified, an “End
Product” device manufacturer / integrator will only be required to perform a minimal amount of testing. This is to
ensure that the interfaces associated with the integration will meet the PTCRB expected performance requirements.

7 layers has been operating PTCRB accredited laboratories for almost 10 years. You can rely on our up-to-date
understanding of the PTCRB regulations combined with an extensive knowledge of the world’s leading wireless
modules.

Page 24 of 26

TR-203A

Version 1.2

13. CE Notice

European Union Notice

If this product has telecommunications functionality, it also complies with the essential requirements of the following
EU Directive:
* R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to harmonized European standards (European Norms) that are
listed in the EU Declaration of Conformity issued by GlobalSat for this product or product family.
This compliance is indicated by one of the following conformity markings placed on the product.

This CE marking is valid for EU non-harmonized telecommunications products

“

The GPRS and GSM antenna of the product, under normal use condition is at least 20cm away from the body of the
user in data link modes.

This equipment should be installed and operated with a minimum distance of 15mm between the radiator and your
body.

Your tracking device is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for
exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S.
Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population.

The exposure standard for cellular communication devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The tests for SAR have been conducted based on the standard operating position away
from body 15mm. Please keep this distance when the device is in operation.

Page 25 of 26

TR-203A

Nominal electrical charging characteristics

Li-Ion Rechargeable Battery:

3.7 Vcc 900mAh
Adapter:
Input: 100 – 240 Vac
Frequency: 50 - 60Hz 0.2 A

Version 1.2

Output: 5.0 Vcc 1.2 A

Page 26 of 26
