GLOBALSAT GPS Engine Board

Hardware Data Sheet

Product No : EB-5631RE

Version 1.2

GlobalSat Technology Corporation

16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan Tel: 886-2-8226-3799 Fax: 886-2-8226-3899 E-mail : service@globalsat.com.tw Website: www.globalsat.com.tw

Issue Date

2012/7/30

APPR

Ray

CHECK

PREPARE

Luwalk

Page 2

2012/7/30

- 2 -

Product Description

EB-5631RE GPS module features high sensitivity, low power and ultra small form factor. This GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance. Besides, MicroPower Mode allows GPS module to stay in a hot-start condition nearly continuously while consuming very little power. EB-5631RE is suitable for the following applications:

 Automotive navigation  Personal positioning  Fleet management  Mobile phone navigation  Marine navigation

Product Features

 SiRF Star IV high performance GPS Chipset  Very high sensitivity (Tracking Sensitivity: -163 dBm)  Extremely fast TTFF (Time To First Fix) at low signal level  Support UART interface  Built-in LNA(with in CHIP)  Compact size (15.9mm x 13.1 mm x 2.7mm) suitable for space-sensitive application  One size component, easy to mount on another PCB board  Support NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL, ZDA)  Support OSP protocol  MEMS Support : 3-axis Magnetometer for compass heading for “Point and Tell” feature  MicroPower Mode(MPM) : Reduce MPM current consumption from <500 uA to < 125 uA  Support SBAS (WASS, EGNOS, MSAS, GAGAN)

Page 3

2012/7/30

- 3 -

PIN Number(s)

Name

Type

Description

Note

RF IN

GPS antenna input

2,3,4,6,8,9,10,12 14,15,17,19,21, 22,23,24,26,28, 29,33,35,36

GND

Ground.

VBAT

This is the battery backup power input for the SRAM and RTC when main power is removed.

7,32,34,16

VCC

This is the main power supply to the engine board. (3.1Vdc to 3.5Vdc)

RESET

This input is low active.

GPIO

I/O

User can use this I/O pin for special functions. (For example, control LED)

TIMEMARK

One pulse per second output.(1PPS)

ON_OFF

ON_OFF pin is used to command the EB-5631RE to turn on or off

WAKE_UP

System power on, 1.8V output .

TXD

This is the main transmits channel for outputting navigation and measurement

data to user’s navigation software or user

written software. Output TTL level.

RXD

This is the main receive channel for receiving software commands to the engine board from SiRFDemo software or from user written software.

Product Pin Description

Page 4

2012/7/30

- 4 -

Parameter

Min.

Typ.

Max.

Conditions

Unit

POWER Supply

Main power supply(VCC)

3.1

3.3

3.5

V Backup battery supply

2.0

3.5

V Main power supply Current

GPS is not 3D Fixed.

Backup battery supply Current

GPS is 3D Fixed.

RF POWER Supply

VCC

RF Input

Input Impedance

Ω Operating Frequency

1.575

GHz

<Note>

1. GPIO is 1.8V Level

2. The ON_OFF pin commands the EB-5631RE ON or OFF. The turn ON command is a hardware feature of the Power Control FSM when sensing a rising edge on the pin. The turn OFF command is a software feature based on interrupts related to rising and/or falling edges and/or sensing of pin levels.

3. The WAKE_UP pin is an output from the EB-5631RE used to enable an external PMIC. A low on this output indicates that the EB-5631RE is in one of its low-power states (KA-only, Hibernate, or Standby mode) and requires no more than 60μA of current on the VIO_18 input. A high on this output indicates that the EB-5631RE is in operational mode requiring an external regulator to provide enough current on both the VIO_18 and VREG_18 inputs to handle the peak current requirements of the EB-5631RE.

Electrical Specification

Absolute Maximums Ratings

Page 5

2012/7/30

- 5 -

Parameter

Symbol

Min.

Typ.

Max.

Conditions

Units

VI H

0.7*VCC

3.6

VI L

-0.4

0.45

VOH

0.75*Vgcc

Vgcc

VOL

0.4

IOH

IOL

Sensitivity

Tracking : Autonomous acquisition :

-163dBm

-160 dBm

Time-To-First-Fix

Cold Start – Autonomous < 35s

<15s (with CGEE)

Warm Start – Autonomous

< 35s

< 15s(with CGEE)

Hot Start – Autonomous

< 1s

Horizontal Position Accuracy

Autonomous

< 2.5m

Velocity Accuracy

Speed Heading

< 0.01 m/s < 0.01 degrees

Reacquisition

0.1 second, average

Update Rate

1 Hz

Maximum Altitude

< 18,000 meter

Maximum Velocity

< 515 meter/ second

Maximum Acceleration

< 4G

DC Electrical characteristics

Vgcc is SiRF Star IV Chip power input, 1.8V Vin.

Receiver Performance

<Note>

1. 50% -130dBm Fu 0.5ppm Tu ±2s Pu 30Km

2. Commanded Warm START

3. Commanded Hot START

4. 50% 24hr static, -130dBm

5. 50% @ 30m/s

Page 6

2012/7/30

- 6 -

Parameter

Min

Typ

Max

Unit

Humidity Range

5 95

% non-condensing

Operation Temperature

-40

℃

Storage Temperature

-40

℃

Type

36-pin stamp holes

Dimensions

15.9 mm * 13.1 mm * 2.7mm ±0.2mm

Environmental Characteristics

Physical Characteristic

Unit: mm

Page 7

2012/7/30

- 7 -

VBAT

C10 10UF

RESET

GPIO

1PPS OUTPUT

ON_OFF

WAKE_UP

I2C_SDA

I2C_SCL

CHOKE RF

GPS_ANTENNA

C11 CAP NP

C12 CAP NP

50ohm LINE

2K2/NCR92K2/NC

1V8 1V8GPS_3V3

RXD TXD

GPS_3V3

M1 EB-5631RE

RF IN

GND

VBAT

GND

VCC

GND12RESET13GND14GND15ECLK16GND17GPIO

GND

TIMEMAEK

GND

ON_OFF

GND

WAKE_UP

GND

TXD

RXD

DR_I2C_DIO

GND

DR_I2C_CLK

GND

C7 10UF

R2 10K/NC

10K

50 Ohm Micro strip line

Frequency:

1575.42 + 2MHz

Amplifier Gain:

18~22dB Typical

Axial Ratio:

3 dB Typical

Output VSWR:

2.0 Max.

Output Impedance:

50Ω

Noise Figure:

2.0 dB Max

Polarization:

RHCP

Antenna Input Voltage:

3.3V (Typ.)

Application

Application Circuit

GPS Active Antenna Specifications (Recommendation)

Page 8

2012/7/30

- 8 -

NOTE:

1. RESET: Low Active, when EB-5631RE is accepted this single, EB-5631RE going to Hibernate mode. If want EB-5631RE up, need input ON_OFF single.

2. TIMEMARK: One pulse per second output. When EB-5631RE is 3D Fixed, this pin will output 1uS Hi level pulse. If don’t use this, just NC.

3. ECLK: ECLK clock input for frequency aiding applications or as a test clock. If don’t use this, just NC.

4. GPIO: User can use this I/O pin for special functions. For example, control LED, and can be used External Interrupts. If don’t use this, just NC.

5. WAKE_UP: EB-5631RE power on, WAKE_UP will output 1.8V.

6. ON_OFF: This pin is controlled EB-5631RE power on. If EB-5631RE want to EB-365 pin to pin compactable, please ON_OFF connect to WAKE_UP. If don’t use this, just NC.

7. DR I2C interface: The I2C interface supports required sensor instruments such as gyros, accelerometers, compasses or other sensors that can operate with an I2C bus. If don’t use this, just NC.

8. VBAT: This is the battery backup power input for the SRAM and RTC when main power is removed. VBAT is 2V ~ 3.5V.

9. EB-5631RE RF is has 3.3V external POWER to active ANTENNA use.

Page 9

2012/7/30

- 9 -

OPERATING Description

RF_IN

This pin receives signal of GPS analog via external active antenna. It has to be a controlled impedance trace at 50ohm. Do not have RF traces closed the other signal path and routing it on the top layer. Keep the RF traces as short as possible.

GND

This is Ground pin for the baseband circuit.

VBAT

This is the battery backup power input for the SRAM and RTC when main power is off. Without the external backup battery, EB-365 will always execute a cold star after turning on. To achieve the faster start-up offered by a hot or warm start, a battery backup must be connected. The battery voltage should be

ON or OFF. There are multiple methods of connecting this pin for different applications in order to minimise host resource requirements. The ON_OFF pin is used to command the EB-5631RE to turn on or off:  The turn on command is a hardware

feature of the Power Control FSM based on sensing a rising edge on the pin.

 The turn off command is a software

feature based on interrupts related to rising and/or falling edges and/ or sensing

of pin levels. (Not currently supported.) The ON_OFF pin processing is carried out by the Power Control FSM. The ON_OFF rising edge event during low power modes is recorded in a status register that is subsequently read by the processor once it is

between 2.0V and 3.5V.

EB-5631RE reserves pin, Just NC.

VCC

This is the main power supply to the engine board. (3.1Vdc to 3.5Vdc)

RESET

Low Active, when EB-5631RE is accepted this single, EB-5631RE going to Hibernate mode. If want EB-5631RE up, need input ON_OFF single.

GPIO

User can use this I/O pin for special functions. (For example, control LED)

TIMEMARK

This pin provides one pulse-per-second output from the board, which is synchronized to GPS

running. When the processor is running at the time of an ON_OFF event, the processor can poll the status or set-up an interrupt.

WAKE_UP

System power controller, when EB-5631RE

Power ON, this pin will output 1.8Vdc.

TXD

This is the main transmits channel for outputting navigation and measurement data

to user’s navigation software or user written

software. Output is TTL level, 0V ~ 2.85V.

RXD

This is the main channel for receiving software commands from SiRFDemo software or from your proprietary software.

time. This is not available in Trickle Power mode

ON_OFF

The ON_OFF pin commands the EB-5631RE

. If do not use it, Just NC.

Page 10

2012/7/30

- 10 -

Note – Fields marked in italic red apply only to NMEA version 2.3 (and later) in this NMEA message description

Name

Example

Units

Description

Message ID

$GPGGA

GGA protocol header

UTC Time

161229.487

hhmmss.sss

Latitude

3723.2475

ddmm.mmmm

N/S Indicator

N N=north or S=south

Longitude

12158.3416

dddmm.mmmm

E/W Indicator

W E=east or W=west

Position Fix Indicator

1 See Table B-3

Satellites Used

07 Range 0 to 12

HDOP

1.0

Horizontal Dilution of Precision

MSL Altitude

9.0

meters

Units

meters

Geoid Separation1

-34.2

meters

Geoid-to-ellipsoid separation. Ellipsoid altitude=MSL Altitude + Geoid Separation

Units

meters

Age of Diff. Corr.

second

Null fields when DGPS is not used

Diff. Ref. Station ID

0000

Checksum

*18

End of message termination

Value

Description

Fix not available or invalid

GPS SPS Mode, fix valid

Differential GPS, SPS Mode , fix valid

Not supported

Dead Reckoning Mode, fix valid

SOFTWARE COMMAND

NMEA Output Command GGA - Global Positioning System Fixed Data

Table B-2 contains the values for the following example:

$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M,-34.2,M,,0000*18

Table B-2 GGA Data Format

Table B-3 Position Fix Indicator

Page 11

2012/7/30

- 11 -

Note – Fields marked in italic red apply only to NMEA version 2.3 (and later) in this NMEA message description

Name

Example

Units

Description

Message ID

$GPGLL

GLL protocol header

Latitude

3723.2475

ddmm.mmmm

N/S Indicator

n N=north or S=south

Longitude

12158.3416

dddmm.mmmm

E/W Indicator

W E=east or W=west

UTC Position

161229.487

hhmmss.sss

Status

A A=data valid or V=data not valid

Mode

A A=Autonomous, D=DGPS, E=DR N=Output Data Not Valid R= Coarse Position

S=Simulator

Checksum

*41

End of message termination

Note: A valid status is derived from all the parameters set in the software. This includes the minimum number of satellites required, any DOP mask setting, presence of DGPS corrections, etc. If the default or current software setting requires that a factor is met, then if that factor is not met the solution will be marked as invalid.

GLL - Geographic Position-Latitude/Longitude

Table B-4 contains the values for the following example:

$GPGLL,3723.2475,N,12158.3416,W,161229.487,A,A*41

Table B-4 GLL Data Format

1. Position was calculated based on one or more of the SVs having their states derived from almanac parameters, as opposed to ephemerides.

Page 12

2012/7/30

- 12 -

Name

Example

Units

Description

Message ID

$GPGSA

GSA protocol header

Mode 1

A See Table B-6

Mode 2

3 See Table B-7

Satellite Used1

07 Sv on Channel 1

Satellite Used1

02 Sv on Channel 2

…..

Satellite Used1

Sv on Channel 12

PDOP2

1.8

Position dilution of Precision

HDOP2

1.0

Horizontal dilution of Precision

VDOP2

1.5

Vertical dilution of Precision

Checksum

*33

End of message termination

Value

Description

Manual-forced to operate in 2D or 3D mode

2Dautomatic-allowed to automatically switch 2D/3D

Value

Description

Fix Not Available

2D (<4 SVs used)

3D (>3 SVs used)

GSA - GNSS DOP and Active Satellites

Table B-5 contains the values for the following example:

$GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33

Table B-5 GSA Data Format

1. Satellite used in solution.

2. Maximum DOP value reported is 50. When 50 is reported, the actual DOP may be much larger.

Table B-6 Mode1

Table B-7 Mode 2

Page 13

2012/7/30

- 13 -

Name

Example

Units

Description

Message ID

$GPGSV

GSV protocol header

Number of Messages

2 Range 1 to 3

Message Number

1 Range 1 to 3

Satellites in View

Satellite ID

07 Channel 1(Range 1 to 32)

Elevation

degrees

Channel 1(Maximum90)

Azimuth

048

degrees

Channel 1(True, Range 0 to 359)

SNR(C/No)

dBHz

Range 0 to 99,null when not tracking

…….

Satellite ID

27 Channel 4 (Range 1 to 32)

Elevation

Degrees

Channel 4(Maximum90)

Azimuth

138

Degrees

Channel 4(True, Range 0 to 359)

SNR(C/No)

dBHz

Range 0 to 99,null when not tracking

Checksum

*71

End of message termination

GSV - GNSS Satellites in View

Table B-8 contains the values for the following example:

$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71 $GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41

Table B-8 GSV Data Format

1. Depending on the number of satellites tracked, multiple messages of GSV data may be required. In some software versions, the maximum number of satellites reported as visible is limited to 12, even though more may be visible.

Page 14

2012/7/30

- 14 -

Note – Fields marked in italic red apply only to NMEA version 2.3 (and later) in this NMEA message description

Name

Example

Units

Description

Message ID

$GPRMC

RMC protocol header

UTC Time

161229.487

hhmmss.sss

Status1

A A=data valid or V=data not valid

Latitude

3723.2475

ddmm.mmmm

N/S Indicator

N N=north or S=south

Longitude

12158.3416

dddmm.mmmm

E/W Indicator

W E=east or W=west

Speed Over Ground

0.13

knots

Course Over Ground

309.62

degrees

True

Date

120598

ddmmyy

Magnetic Variation2

degrees

E=east or W=west

East/West Indicator2

E E=east

Mode

A A=Autonomous, D=DGPS, E=DR N=Output Data Not Valid R= Coarse Position

S=Simulator

Checksum

*10

End of message termination

RMC - Recommended Minimum Specific GNSS Data

Table B-9 contains the values for the following example:

$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598,,,A*10

Table B-9 RMC Data Format

1. A valid status is derived from all the parameters set in the software. This includes the minimum number of satellites required, any DOP mask setting, presence of DGPS corrections, etc. If the default or current software setting requires that a factor is met, then if that factor is not met the solution will be marked as invalid.

2. SiRF Technology Inc. does not support magnetic declination. All “course over ground” data are geodetic WGS84 directions relative to true North.

3. Position was calculated based on one or more of the SVs having their states derived from almanac parameters, as opposed to ephemerides.

Page 15

2012/7/30

- 15 -

Note – Fields marked in italic red apply only to NMEA version 2.3 (and later) in this NMEA message description

Name

Example

Units

Description

Message ID

$GPVTG

VTG protocol header

Course

309.62

degrees

Measured heading

Reference

T True

Course

degrees

Measured heading

Reference

M Magnetic1

Speed

0.13

knots

Measured horizontal speed

Units

N Knots

Speed

0.2

Km/hr

Measured horizontal speed

Units

K Kilometers per hour

Mode

A A=Autonomous, D=DGPS, E=DR N=Output Data Not Valid R= Coarse Position

S=Simulator

Checksum

*23

End of message termination

VTG - Course Over Ground and Ground Speed

Table B-10 contains the values for the following example:

$GPVTG,309.62,T,,M,0.13,N,0.2,K,A*23

Table B-10 VTG Data Format

1. SiRF Technology Inc. does not support magnetic declination. All “course over ground” data are geodetic WGS84 directions.

2. Position was calculated based on one or more of the SVs having their states derived from almanac parameters, as opposed to ephemerides.

Page 16

2012/7/30

- 16 -

Name

Example

Unit

Description

Message ID

$GPZDA

ZDA protocol header

UTC Time

181813

hhmmss

The UTC time units are: hh=UTC hours from 00 to 23 mm=UTC minutes from 00 to 59 ss=UTC seconds from 00 to 59 Either using valid IONO/UTC or estimated from default leap seconds

Day

14 Day of the month, range 1 to 31

Month

10 Month of the year, range 1 to 12

Year

2003

Year

Local zone hour

hour

Offset from UTC (set to 00)

Local zone minutes

minute

Offset from UTC (set to 00)

Checksum

*4F

End of message termination

ZDA - Time and Date

This message is included only with systems which support a time-mark output pulse identified as "1PPS". Outputs the time associated with the current 1PPS pulse. Each message is output within a few hundred ms after the 1PPS pulse is output and tells the time of the pulse that just occurred.

Table B-11 contains the values for the following example: $GPZDA,181813,14,10,2003,,*4F<CR><LF>

Table B-11: ZDA Data Format

1. Not supported by CSR, reported as 00.

Page 17

2012/7/30

- 17 -

0=SiRF Binary, 1=NMEA, 4=USER1

<baud>

1200, 2400, 4800, 9600, 19200, 38400

8,7. Note that SiRF protocol is only valid f8 Data bits

0,1

0=None, 1=Odd, 2=Even

NMEA Input Command

A). Set Serial Port ID: 100 Set PORTA parameters and protocol

This command message is used to set the protocol (SiRF Binary, NMEA, or USER1) and/or the communication parameters (baud, data bits, stop bits, parity). Generally, this command would be used to switch the module back to SiRF Binary protocol mode where a more extensive command message set is available. For example, to change navigation parameters. When a valid message is received, the parameters will be stored in battery backed SRAM and then the receiver will restart using the saved parameters.

Format:

$PSRF100,<protocol>,<baud>,<DataBits>,<StopBits>,<Parity>*CKSUM<CR><LF>

Example 1: Switch to SiRF Binary protocol at 9600,8,N,1

$PSRF100,0,9600,8,1,0*0C<CR><LF>

Example 2: Switch to User1 protocol at 38400,8,N,1

$PSRF100,4,38400,8,1,0*38<CR><LF>

**Checksum Field: The absolute value calculated by exclusive-OR the 8 data bits of each

character in the Sentence, between, but excluding “$” and “*”. The hexadecimal value of the most

significant and least significant 4 bits of the result are converted to two ASCII characters (0-9, A-F) for transmission. The most significant character is transmitted first.

**<CR><LF> : Hex 0D 0A

B). Navigation lnitialization ID：101 Parameters required for start

This command is used to initialize the module for a warm start, by providing current position （in X,

Y, Z coordinates）,clock offset, and time. This enables the receiver to search for the correct satellite signals at the correct signal parameters. Correct initialization parameters will enable the

receiver to acquire signals more quickly, and thus, produce a faster navigational solution. When a valid Navigation Initialization command is received, the receiver will restart using the input parameters as a basis for satellite selection and acquisition.

Page 18

2012/7/30

- 18 -

<X>

X coordinate position INT32

<Y>

Y coordinate position INT32

<Z>

Z coordinate position INT32

Clock offset of the receiver in Hz, Use 0 for last saved value if available. If this is unavailable, a default value of 75000 for GSP1, 95000 for GSP 1/LX will be used. INT32

GPS Time Of Week UINT32

GPS Week Number UINT16

（ Week No and Time Of Week calculation from UTC time）

Number of channels to use.1-12. If your CPU throughput is not high enough, you could decrease needed throughput by reducing the number of active channels UBYTE

bit mask 0×01=Data Valid warm/hot start=1 0×02=clear ephemeris warm start=1 0×04=clear memory. Cold start=1 UBYTE

Format： $PSRF101,<X>,<Y>,<Z>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,<chnlCount>,<ResetCfg>*CK

SUM<CR><LF>

Example: Start using known position and time.

＄PSRF101,-2686700,-4304200,3851624,96000,497260,921,12,3*7F

C). Set DGPS Port ID: 102 Set PORT B parameters for DGPS input

This command is used to control Serial Port B that is an input only serial port used to receive RTCM differential corrections. Differential receivers may output corrections using different communication parameters. The default communication parameters for PORT B are 9600Baud, 8data bits, 0 stop bits, and no parity. If a DGPS receiver is used which has different communication parameters, use this command to allow the receiver to correctly decode the data. When a valid message is received,

Page 19

2012/7/30

- 19 -

<baud>

1200,2400,4800,9600,19200,38400

0,1

0=None, Odd=1,Even=2

<msg>

0=GGA, 1=GLL, 2=GSA, 3=GSV, 4=RMC, 5=VTG 6=MSS(if internal beacon is supported) 7=Not defined 8=ZDA(if 1PPS output supported) 9=Not defined

<mode>

0=SetRate 1=Query 2=ABP On 3=ABP Off

<rate>

Output every <rate>seconds, off=0,max=255

0=disable Checksum,1=Enable checksum for specified message

the parameters will be stored in battery backed SRAM and then the receiver will restart using the saved parameters.

Format:

＄PSRF102,<Baud>,<DataBits>,<StopBits>,<Parity>*CKSUM<CR><LF>

Example: Set DGPS Port to be 9600,8,N,1 ＄PSRF102,9600,8,1.0*12

D). Query/Rate Control ID: 103 Query standard NMEA message and/or set output rate

This command is used to control the output of standard NMEA message GGA, GLL, GSA, GSV, RMC, VTG. Using this command message, standard NMEA message may be polled once, or setup for periodic output. Checksums may also be enabled or disabled depending on the needs of the receiving program. NMEA message settings are saved in battery backed memory for each entry when the message is accepted.

Format: ＄PSRF103,<msg>,<mode>,<rate>,<cksumEnable>*CKSUM<CR><LF>

Page 20

2012/7/30

- 20 -

<Lat>

Latitude position, assumed positive north of equator and negative south of equator float, possibly signed

<Lon>

Longitude position, it is assumed positive east of Greenwich and negative west of Greenwich Float, possibly signed

<Alt>

Altitude position float, possibly signed

Clock Offset of the receiver in Hz, use 0 for last saved value if available. If this is unavailable, a default value of 75000 for GSP1, 95000 for GSP1/LX will be used. INT32

GPS Time Of Week UINT32

GPS Week Number UINT16

Number of channels to use. 1-12 UBYTE

bit mask 0×01=Data Valid warm/hot starts=1 0×02=clear ephemeris warm start=1 0×04=clear memory. Cold start=1 UBYTE

Example 1: Query the GGA message with checksum enabled ＄PSRF103,00,01,00,01*25 Example 2: Enable VTG message for a 1Hz constant output with checksum enabled ＄PSRF103,05,00,01,01*20 Example 3: Disable VTG message ＄PSRF103,05,00,00,01*21

E). LLA Navigation lnitialization ID: 104 Parameters required to start using Lat/Lon/Alt

This command is used to initialize the module for a warm start, by providing current position (in Latitude, Longitude, Altitude coordinates), clock offset, and time. This enables the receiver to search for the correct satellite signals at the correct signal parameters. Correct initialization parameters will enable the receiver to acquire signals more quickly, and thus, will produce a faster navigational solution. When a valid LLA Navigation Initialization command is received, the receiver will restart using the input parameters as a basis for satellite selection and acquisition.

Format:

＄PSRF104,<Lat>,<Lon>,<Alt>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,<ChannelCount>, <ResetCfg>*CKSUM<CR><LF>

Page 21

2012/7/30

- 21 -

<debug>

0=Off, 1=On

Example: Debug On ＄PSRF105,1*3E

Example: Debug Off ＄PSRF105,0*3F

Name

Example

Unit

Description

Message ID

$PSRF106

PSRF106 protocol header

Datum

178

21=WGS84 178=TOKYO_MEAN 179=TOKYO_JAPAN 180=TOKYO_KOREA 181=TOKYO_OKINAWA Debug

Checksum

*32

End of message termination

Example: Start using known position and time.

＄PSRF104,37.3875111,-121.97232,0,96000,237759,922,12,3*37

F). Development Data On/Off ID: 105 Switch Development Data Messages On/Off

Use this command to enable development debug information if you are having trouble getting commands accepted. Invalid commands will generate debug information that should enable the user to determine the source of the command rejection. Common reasons for input command rejection are invalid checksum or parameter out of specified range. This setting is not preserved across a module reset.

Format: ＄PSRF105,<debug>*CKSUM<CR><LF>

G). Select Datum ID: 106 Selection of datum to be used for coordinate Transformations

GPS receivers perform initial position and velocity calculations using an earth-centered earth-fixed (ECEF) coordinate system. Results may be converted to an earth model (geoid) defined by the selected datum. The default datum is WGS 84 (World Geodetic System 1984) which provides a worldwide common grid system that may be translated into local coordinate systems or map datums. (Local map datums are a best fit to the local shape of the earth and not valid worldwide.)

Examples: Datum select TOKYO_MEAN

$PSRF106,178*32

Page 22

2012/7/30

- 22 -

Unit: mm Tolerance: 0.1mm

PCB Layout Recommend

Recommended Layout PAD

PCB Layout Recommendations

Do not routing the other signal or power trace under the engine board.

RF:

This pin receives signal of GPS analog via external active antenna .It has to be a controlled impedance trace at 50ohm. Do not place the RF traces close to the other signal path and not routing it on the top layer. Keep the RF traces as short as possible.

Antenna:

Keep the active antenna on the top of your system and confirm the antenna radiation pattern、axial

ratio、power gain、noise figure、VSWR are correct when you Setup the antenna in your case.

Page 23

2012/7/30

- 23 -

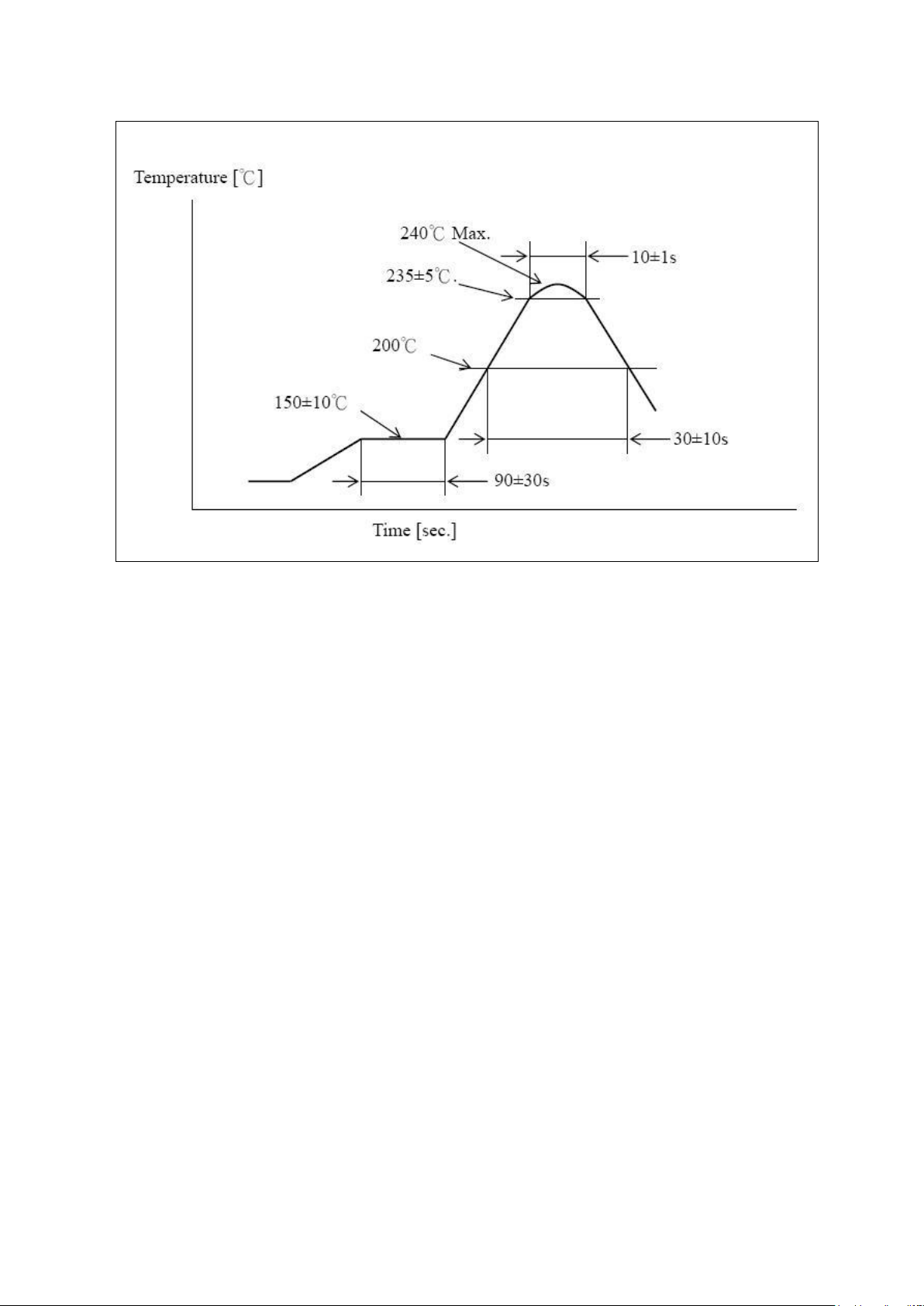

Pre heating temperature: 150±10[℃]

Pre heating time:

90±30[sec.]

Heating temperature: 235±5[℃]

Heating time:

10±1[sec.]

Recommended Reflow Profile:

Peak temperature must not exceed 240℃ and the duration of over 200℃ should be 30±10 Seconds.

Page 24

2012/7/30

- 24 -

A: Brand: GLOBALSAT B: MODULE Model: EB-5631 B-1:

R = UART, I = I2C I/F

E = Included EEPROM C: CHIP Type: SiRF IV D: Bar code E: Serial Number:

□ □ □ □□□□

Appendix

LABEL Artwork

Product NO (HEX) Place of origin, T= Taiwan, C=China Product Month, 123456789XYZ, X->Oct,Y->Nov,Z->Dec Product Year

Function Description

EB-5631RC EB-5631RC default is close Static Mode and SBAS; B/R setting 4800; NMEA output is GGA, GLL, GSA and RMC. Output rate is 1 message per 1 second. GSV rate is 1 message per 5 second. 1PPS output = 200mS.

EB-5631RJ EB-5631RC default is close Static Mode and SBAS; B/R setting 9600; NMEA output is GGA, GLL, GSA and RMC. Output rate is 1 message per 1 second. GSV rate is 1 message per 5 second. 1PPS output = 200mS.

EB-5631RE EB-5631RE default is open Static Mode; close SBAS; B/R setting 9600; NMEA output is GGA, GSA, GSV, RMC, VTG, GLL and ZDA. Output rate is 1 message per 1 second. GPS is not 3D Fixes, the GPIO5 is LO output, 3D Fixed is Flash output, or other GPS feature and NMEA output feature.
