Page 1
USB 4001
User manual
Page 2
USB 4001
Home theater speakers
Introduction
Thank you for purchasing US Blaster products, and welcome to the US Blaster family of satisfied
customers!
US Blaster was established to fulfill the need for high quality speakers of exceptional design at an
affordable price. After years of research and development US Blaster is able to offer you speakers
of superior value.
Each speaker component has been designed and engineered with first-rate materials to produce
exceptional sound. Our speakers offer the best of it all – high-quality sound, hand-made solid construction, and a remarkably stylish appearance.
We welcome you to witness the results. Our team’s dedication to quality, reliability and attractive
design has created some of the best-value speakers you can find today.
R
eading this manual fully will help you to set up your speaker properly and reward you with a fine
listening experience.
Connections
Make sure all equipment is turned off. When connecting the speakers, be sure to retain the correct
polarity. Most speaker cables will have (+) red sign for positive and (-) black sign for negative.
Connect the speaker cable to the positive (+) front-left speaker terminal on the amplifier and to the
positive (+) terminal on the front-left speaker. Connect the speaker cable to the negative (-) frontleft speaker terminal on the amplifier and to the negative (-) terminal on the front left speaker.
Repeat the same step for the right-side front speaker. This method can be applied to bi-wire terminals as long as the shorting straps are in place. If your amplifier is equipped with bi-wire output
connection, remove the shorting straps and connect each terminal to the associated terminal in
your amplifier.
Connect the speaker cable to the positiv
e (+) center speaker terminal on the amplifier and to the
positiv
e (+) terminal on the center speaker. Connect the speaker cable to the negative (-) center
speaker terminal on the amp and to the negative (-) terminal on the center speaker.
Connect the speaker cable to the positiv
e (+) rear left speak
er terminal on the amplifier and to the
positive (+) terminal on the rear-left speaker. Connect the speaker cable to the negative (-) rearleft speaker terminal on the amplifier and to the negative (-) terminal on the rear-left speaker.
R
epeat the same step for the right-side rear speaker
.
© US Blaster Europe BV
Page 3

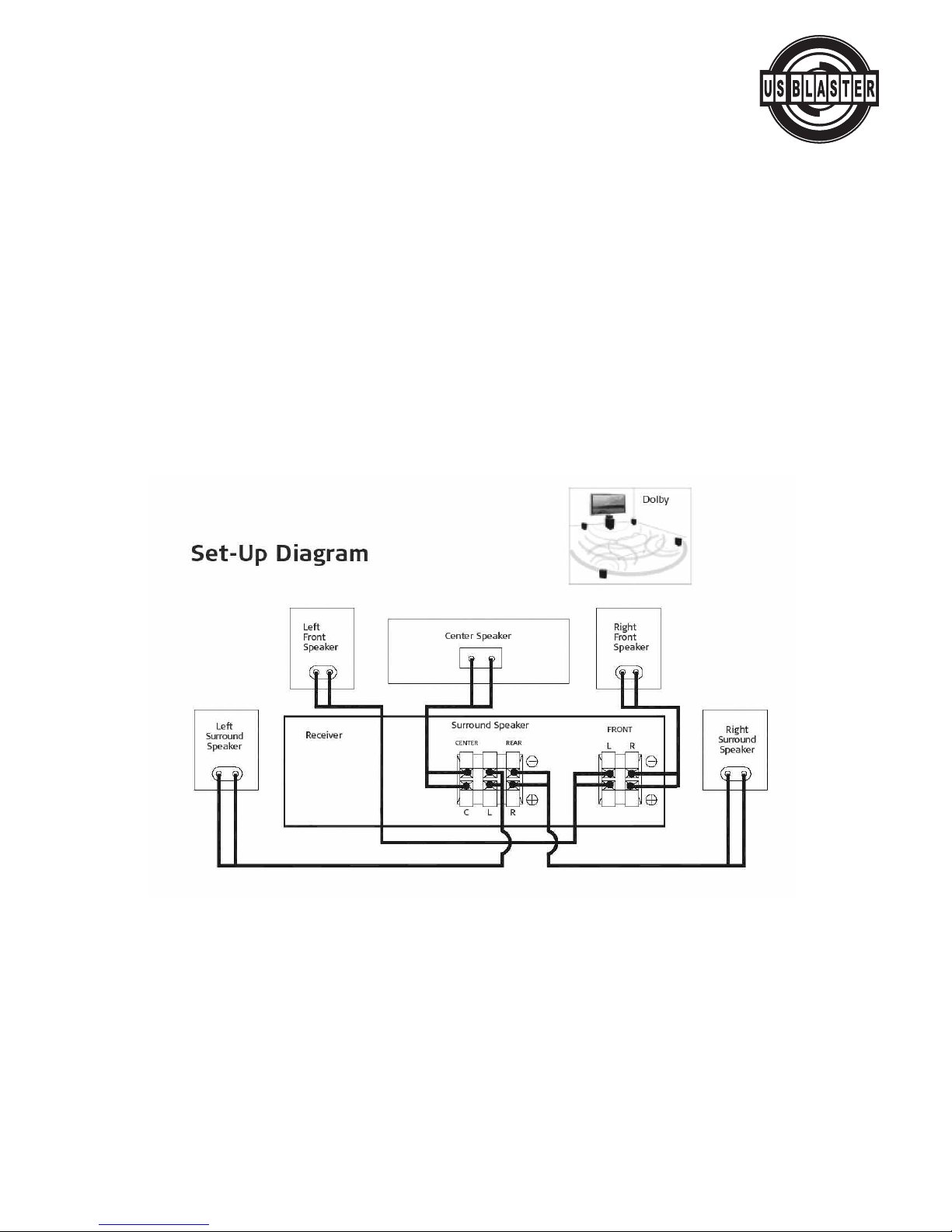

Position
THE FRONT SPEAKERS
Should be placed on each side of your TV or in front of your favorite listening position. As a general
guideline the space from the speakers to the listening position should be 1.5 times the distance
between the speakers. For example if your listening position is 9ft (2.7m) away from the speakers,
the distance between the speakers should be 6ft (1.8m)
THE CENTER CHANNEL SPEAKER
Should be on top of or just above your TV.
THE REAR (SURROUND) SPEAKERS
Should be positioned either to the side of, or behind, your listening position. Typical placement is
on the side walls, slightly above ear level, about two-thirds of the way back from the front of the
room. This allows the surround speakers to aim directly at the listener, placing you in the middle of
a fiv
e-speaker sound field.
Running time and cleaning
The performance of the speak
ers ma
y change during the initial use due to storage and mechanical
limitations. Please allow 15 hours of use for the temperature effect and mechanical parts to attain
their intended design characteristics.
Make sure to turn all equipment off before cleaning. The cabinet only requires occasional dusting.
Please a
v
oid touching the driv
e units.
© US Blaster Europe BV
Page 4
USB 4001

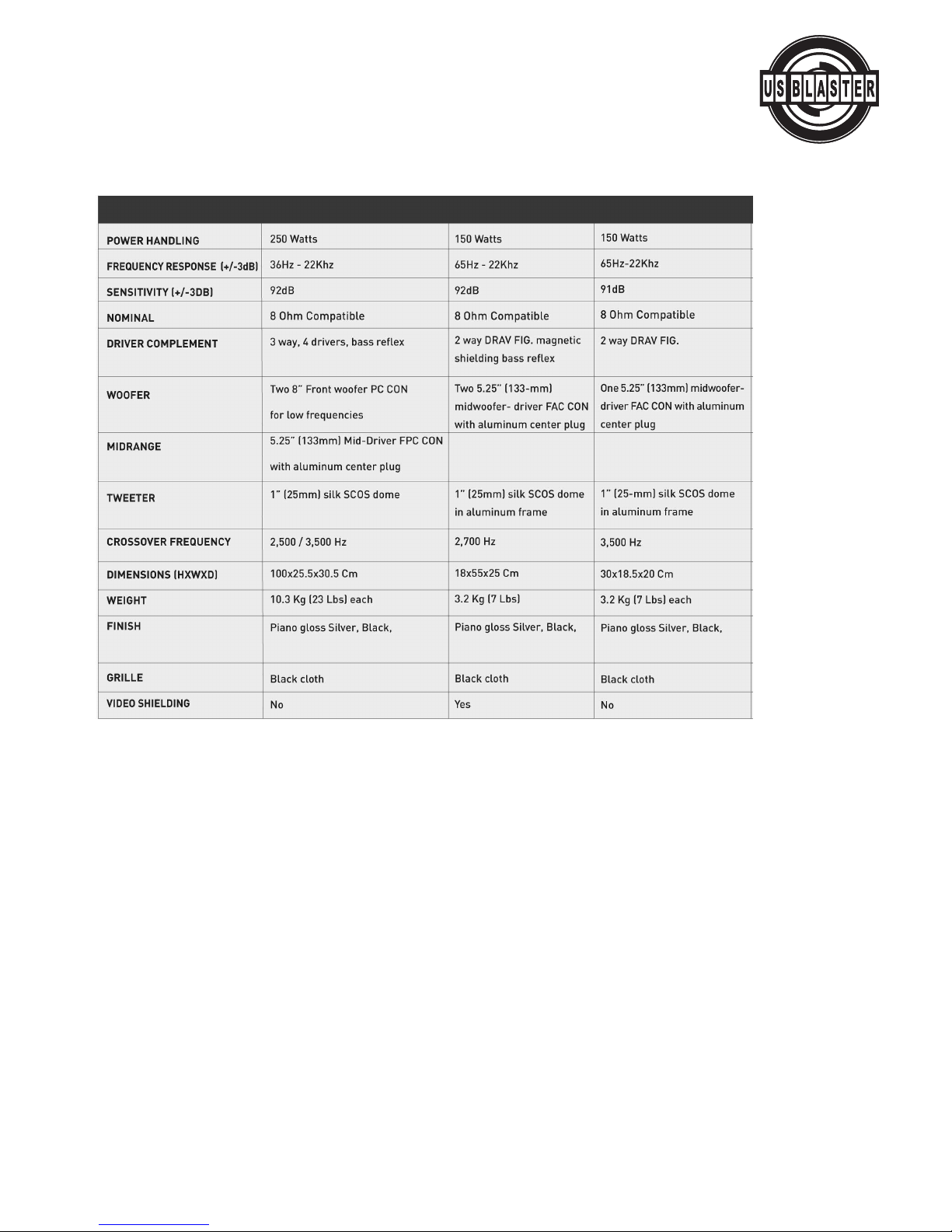

Technical specifications
© US Blaster Europe BV
Front Center Satellite
