DATASHEET

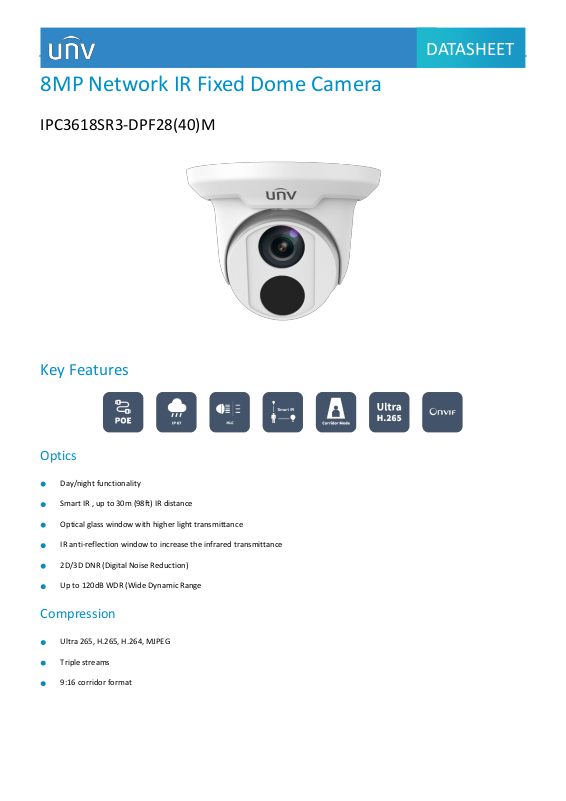

8MP Network IR Fixed Dome Camera
IPC3618SR3-DPF28(40)M
Key Features
Optics
Day/night functionality
Smart IR , up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Up to 120dB WDR (Wide Dynamic Range
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
9:16 corridor format
Page 2
2
DATASHEET
DATASHEET
IPC3618SR3-DPF28M
IPC3618SR3-DPF40M
Camera
Sensor
1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens
Angle of view (H)
118.1°
91.6°
Angle of view (V)
64.0°
47.2°
Angle of view (O)
153.5°
112.7°
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
50.4
20.2
10.1
5.0
4.0
72
28.8
14.4
7.2
Adjustment Range
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.05Lux (F2.0, AGC ON)
0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>52dB
IR Range
Up to 30m (98ft) IR range
wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 8MP (3840*2160), Max 20fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
9:16 Corridor Mode
Supported
OSD
Up to 8 OSDs
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
Specifications
Page 3
3
DATASHEET
DATASHEET
Privacy Mask
Up to 8 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
Support
HLC
Support
BLC
Support
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS,
SNMP
Compatible Integration
ONVIF (Profile S, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network
10M/100M Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H)
Φ126 x 94mm (Ø5.0” x 3.7”)
Net Weight
0.45kg (0.99lb)
Material
Metal + Plastic
Working Environment
-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection
2KV
Ingress Protection
IP67
Page 4
4
DATASHEET
DATASHEET
TR-JB03-H-IN
TR-JB07/WM03-F-IN
TR-WM03-B-IN
TR-A01-IN
TR-UP06-IN
TR-SE24-IN
TR-SE24-A-IN
TR-CM24-IN
Junction box
Pole mount
TR-JB03-H-IN+TR-A01-IN
TR-JB07/WM03-F-IN (TR-WM03-B-IN)+ TR-UP06-IN
Dimensions
Accessories
Page 5
5
DATASHEET
DATASHEET
Indoor pendent mount
TR-JB04-D-IN+TR-A01-IN+ TR-SE24-IN(TR-SE24-A-IN)+ TR-CM24-IN
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: [email protected]; [email protected]
http://www.uniview.com
© 2019 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
