WARNING

UNOX accepts no responsibility for

WARNING

any situation resulting from work carried out in an unprofessional manner, or from the incorrect interpretation or application of regulations.

GENERAL INSTALLATION

Incorrect installation or any modiﬁcations made to the appliance may damage property or result in injury or even death.

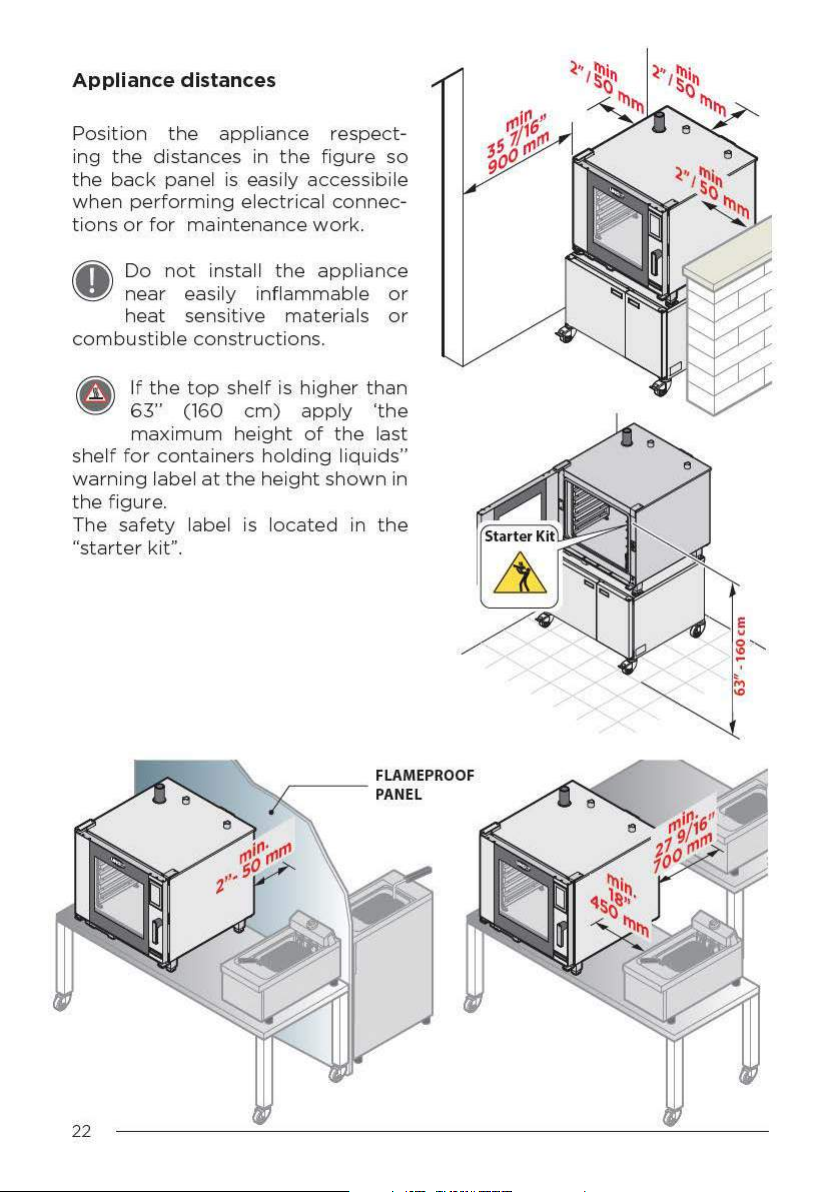

Fire risk! If the appliance is positioned near walls, partitions, kitchen cabinets, decorative trim, etc. (see INITIAL PREPARATION on page 17), these items must be made by a non ﬂammable material. All ﬁre prevention regulations must be strictly observed.

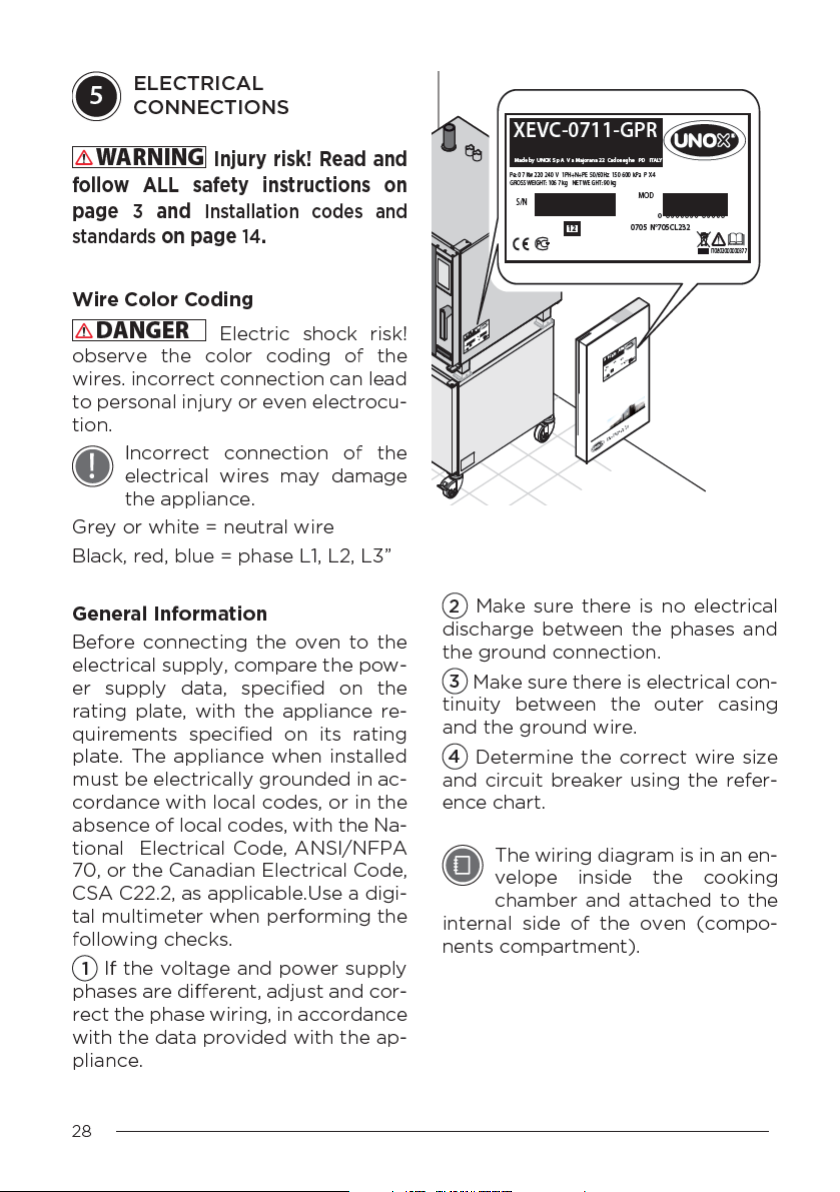

ELECTRICAL

Electrical Grounding Instructions. This appliance is equipped with a three-prong

(grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

Electrical connections or any work required on the electrical circuits inside the appliance, must be performed by certiﬁed technicians in compliance with local, state, and federal regulations.

Injury risk! A ground fault interruption circuit (GFI) must be installed.

WARNING

Fire risk! Make sure all electrical connections

WARNING

are properly done.

OPERATION

Fire risk! Do not place foods containing highly ﬂammable ingredients (alcohol-based foods) in the oven. These substances may burst into ﬂames and, therefore, constitute a ﬁ re and explosion hazard. Explosions may cause the door to open suddenly or even violently.

Fire risk! When using the appliance for the ﬁrst time, make sure there are no instruction manuals, plastic bags, or accessories inside the oven.

Food contamination risk! Before cooking with the appliance, make sure there are no detergent or other caustic residues inside the oven. Remove any detergent residues using a damp cloth while wearing suitable eye and hand protection, then rinse the oven thoroughly.

Burn risk! Always wear heatresistant gloves when handling accessories or other objects which have been inside the hot oven.

Burn risk! Make sure any hanging rack frames and/or tray rack trolleys inside the oven are secured. Improperly placed containers holding hot liquids may fall or slip inside the oven causing the potential for burns.

WARNING

Burn risk! The temperature of the external

WARNING

parts of the oven may exceed 140 °F (60 °C). Touch only the components used to control the appliance.

Burn risk! When containers are full of liquid or will be ﬁ lled with liquid during the cooking process, the user must be able to see inside each container. Do not place any racks above eye level.

Burn risk! Take extra care to avoid drips or spills when removing trays containing hot liquids.

Burn risk! The maintenance operations of the unit must be carried out by qualiﬁed and trained personnel only when the appliance is empty and disconnected from power supply, water and gas connections.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Burn risk! Always open the door slowly and carefully to prevent being burned by hot steam escaping from the oven.

WARNING

Burn risk! Do not leave the core probe hanging

WARNING

outside the oven door, as this could damage the probe and cause hot steam or liquid to escape from the oven during the cooking process. Always remove the core probe from the food before removing it from the oven.

Burn risk! If the tray rack trolleys need to be moved while in use, always make sure the containers are secured properly. Close the containers holding liquids so that no hot liquid can spill out.

INSPECTION AND MAINTENANCE

For gaining access for servicing, remove from the installed position the oven the get access to the service panel on the back.

Injury risk! When loading and unloading the tray rack trolley, apply the wheel lock brake.

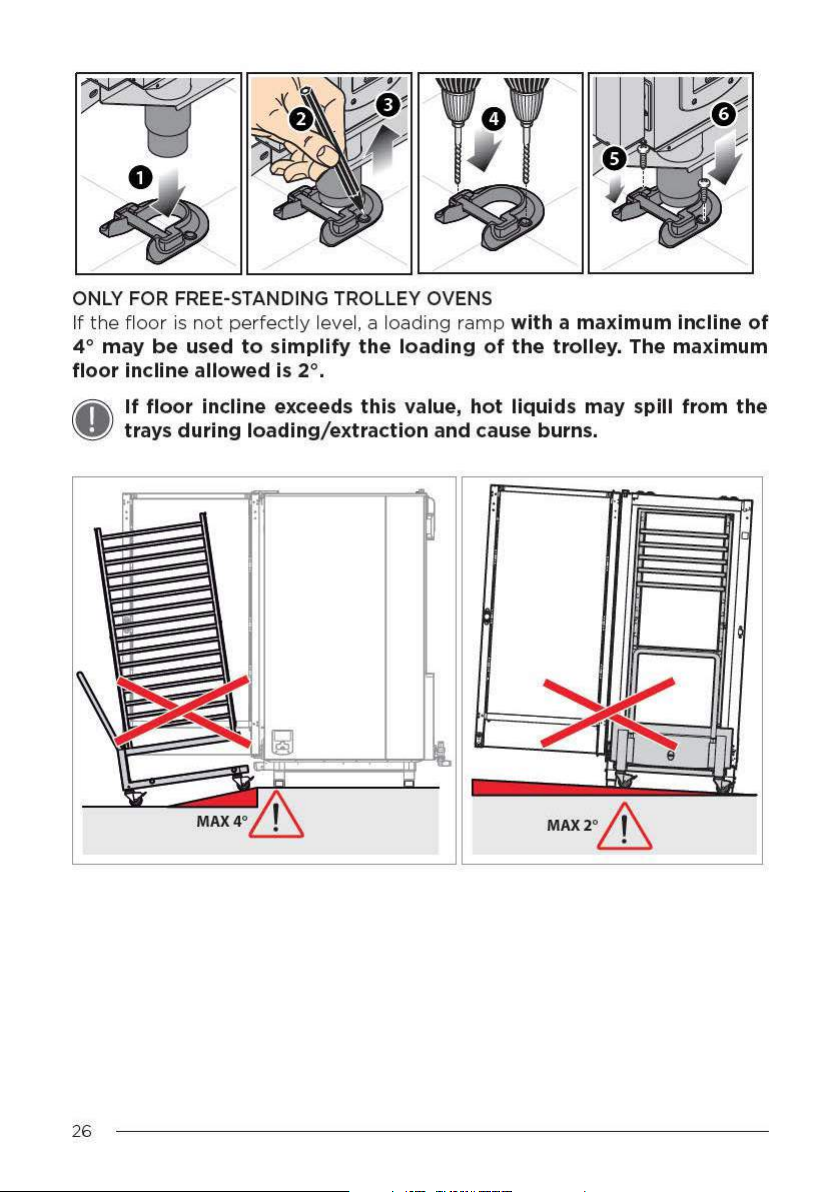

Injury risk! Tray rack trolleys may tip over when wheeled along uneven surfaces or when crossing the threshold of a door.

Electrocution and burn risk! To reduce the risk of ﬁre and/or electric shock do not remove the service panels. There are no user serviceable items under the service panels. Only qualiﬁ ed service agents are permitted to remove the service panels.

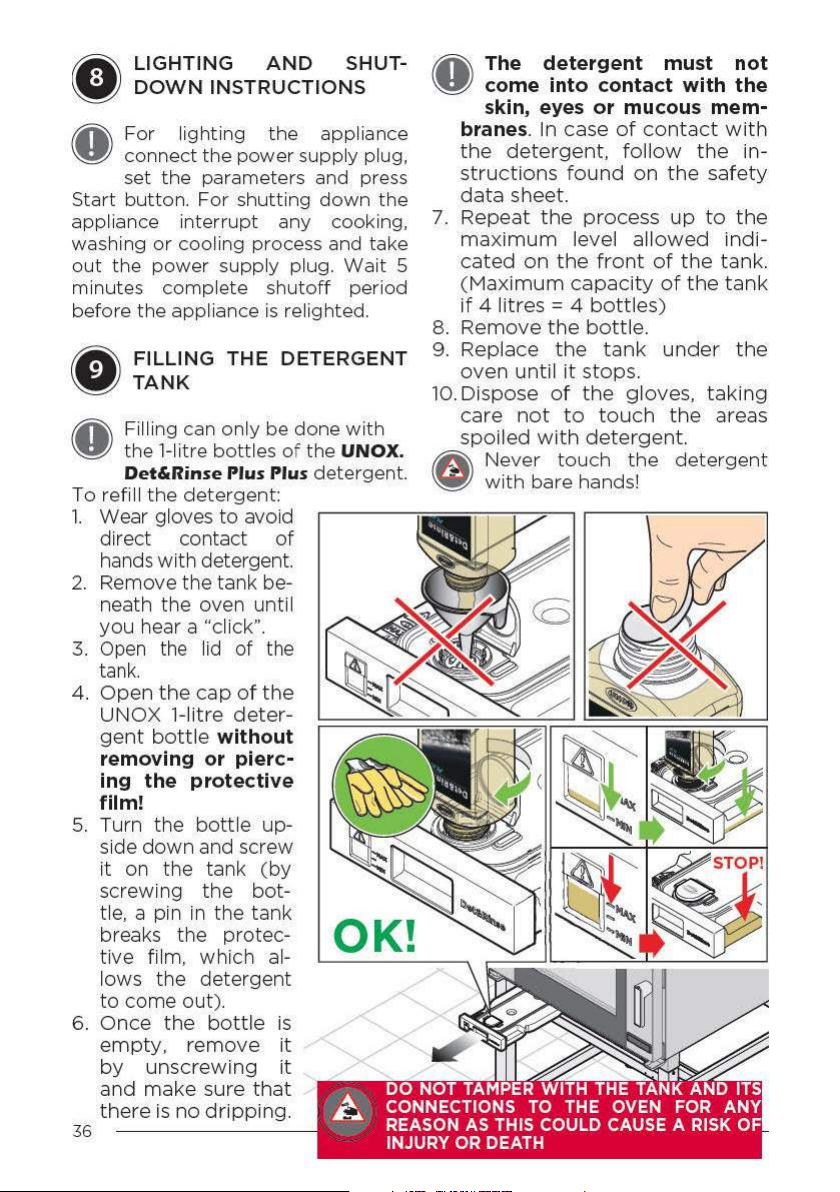

CLEANING

WARNING

Burn risk! Do not open the oven door during washing. There is danger of severe caustic burns from the presence of hot air, acids, or basics that may come in contact with the skin and/or eyes. If the washing program is stopped before its completion, launch and complete a LH2O WASHING program before opening the door.

Fire risk! If the appliance is not cleaned or not cleaned thoroughly, grease or remnants of food which have accumulated inside the oven may start to burn.

Injury risk! Appliance maintenance must only be performed by suitably trained personnel.

Injury risk! Before any maintenance work is performed, the appliance must be disconnected from the electrical supply. Apply a lock out tag to the electrical supply connection.

Injury risk! All parts not supplied by UNOX must be pre-approved before installation.

REPAIR WORK SAFETY

Repair work must only be performed by UNOX or one of its qualiﬁed service agents. UNOX accepts no responsibility for any situation resulting from work performed by untrained technicians.

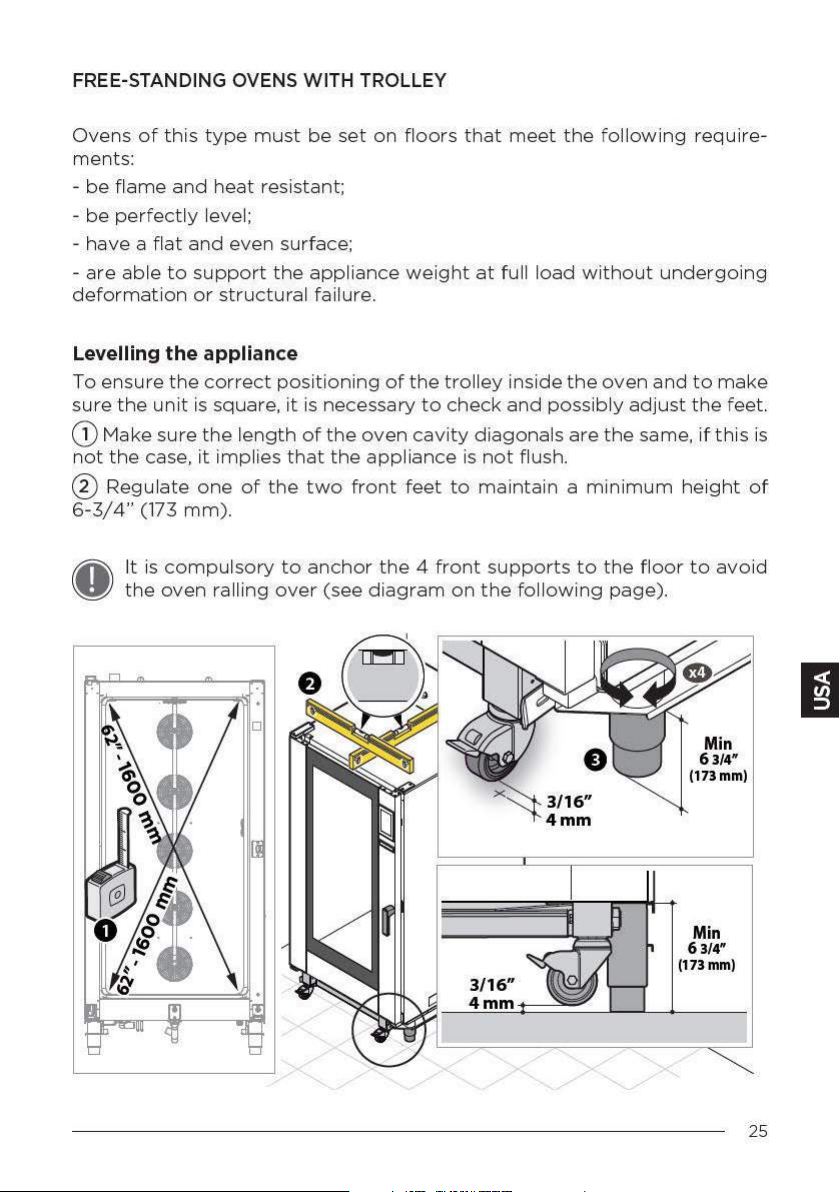

• Appliances must be installed in areas:

- that comply to the safety requirements called for by the standards in force;

USA

- that have adequate ventilation. Make sure that air is continually refreshed from the outside to ensure correct combustion and to avoid the formation of volatile substances hazardous to health - risk of suffocation!

• Make sure:

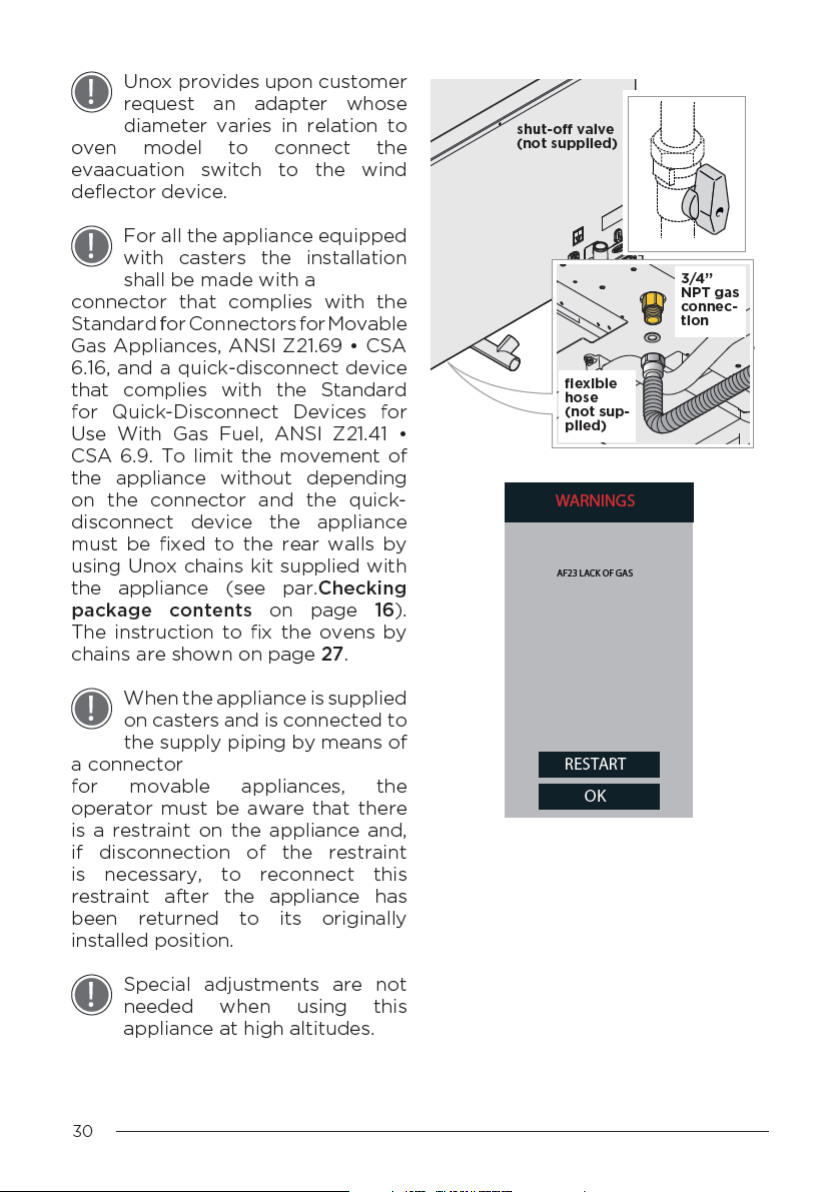

- that installation is performed by respecting the safety regulations of the country of use and of the gas company;

- that the ventilation inlets and the appliance exhausts are not obstructed (e.g. objects and walls);

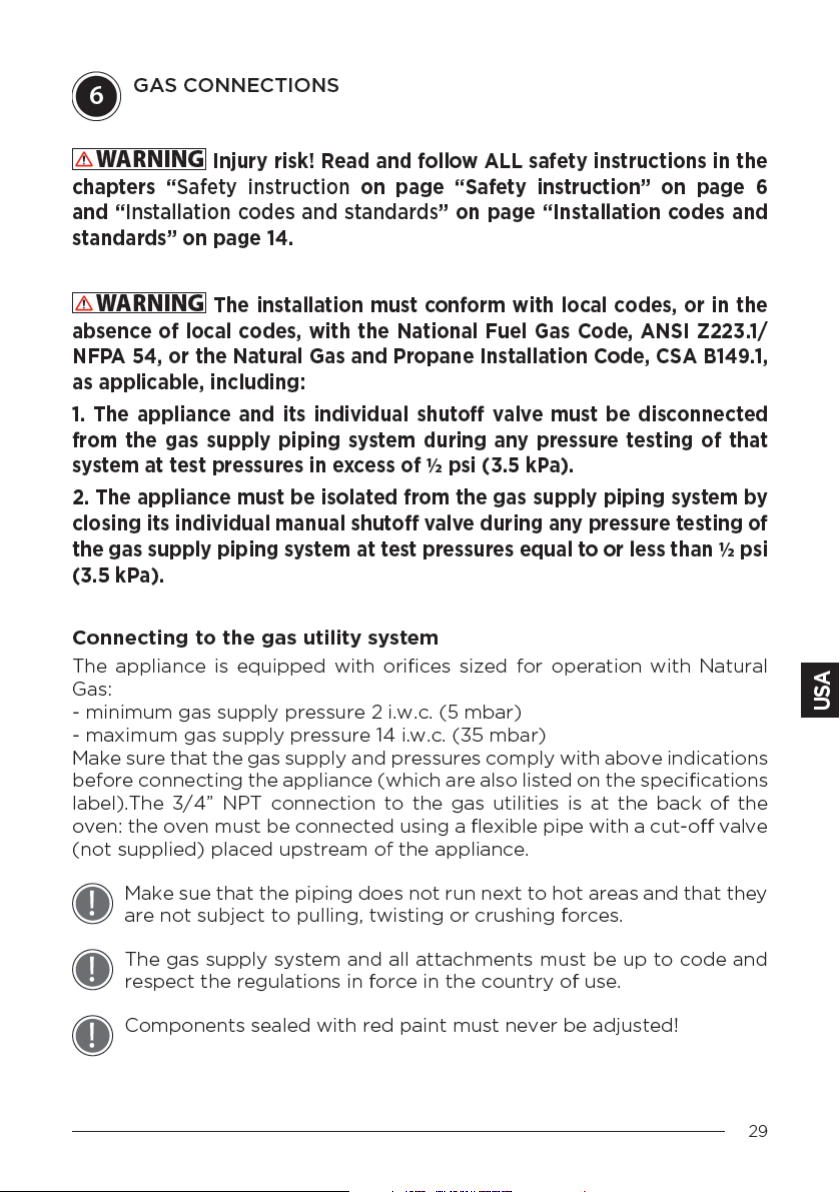

- that the type of gas available corresponds to the type indicated on the appliance;

- that the gas pipe diameters meet the required measurements;

- that components - not supplied by UNOX - used for installation comply with the regulations in force of the country of use;

- that the connection pipe pressure equals that of the gas supply inlet;

- that maximum gas piping inlet pressure is 55 mbar; pressures may not exceed this threshold.

• After connection to the gas supply, check for gas leaks of the components by preferably using non-corrosive foams. Never use ﬂames!

• Upon commissioning a qualiﬁed technician authorised by UNOX must analyse the burner exhaust gases (CO and CO2) and record the registered values on the appliance.

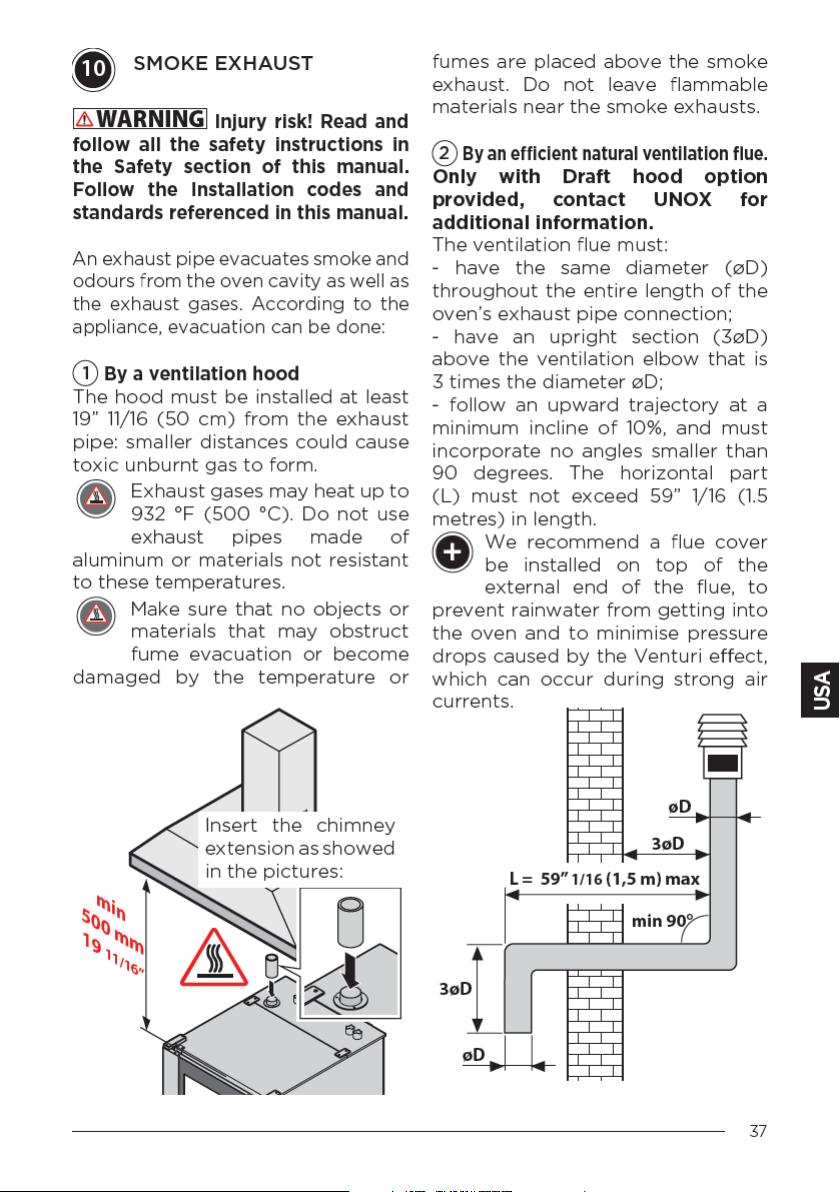

• Always maintain the smoke exhaust pipe, that is located on the top portion of the oven, free of obstructions (e.g. objects, trays, etc...) .

• Always switch-on the hood if installed when using the appliance

• If the appliance is connected to a smoke ﬂue, this must be:

- kept free of any obstructions - risk of ﬁre!

- regularly cleaned and inspected as called for by the relative standards of the country of use - risk of ﬁre!

• The appliance must be installed far from air currents or drafts - risk of ﬁre!

• Make sure that ventilation inlets and the underlying part of the appliance are clean and free of obstructions (e.g. objects near the appliance).

• If the odour of gas is detected:

- immediately isolate the gas supply;

- notify the Emergency Services immediately.

USA

TECHNICAL DATA

Oven model**

XAVC-0511-GPR

XAVC-1011-GPR

XAVC-0621-GPR

XAVC-1021-GPR

XAVC-2021-GPR

XAVC-06FS-GPR

XAVC-10FS-GPR

XAVC-16FS-GPR

Oven model**

XAVC-0511-GPR

XAVC-1011-GPR

XAVC-0621-GPR

XAVC-1021-GPR

XAVC-2021-GPR

XAVC-06FS-GPR

XAVC-10FS-GPR

XAVC-16FS-GPR

* The values refer to the appliance when empty. ** Oven listed as example have ﬁnal letter R that means the right to left door opening. All the ovens

with ﬁnal letter L have the left to right door opening.

Trays

type

GN 1/1

GN 2/1

18”x26

Amperage

Draw for

oven

8,3 15 1 22 2,20 12,77 120V/1P+N/60Hz

11,7 15 1 24 4,00 11,61 120V/1P+N/60Hz

8,3 15 1,4 33 3,30 9,58 120V/1P+N/60Hz

20 25 2,4 80 4,00 11,61 120V/1P+N/60Hz

8,3 15 1 24 4,00 13,56 120V/1P+N/60Hz

11,7 15 1,4 33 3,30 11,19 120V/1P+N/60Hz

20 25 2,4 80 5,00 16,95 120V/1P+N/60Hz

N° Trays

29” 17/32 x 30” 7/16 x 33” 3/16 - 750x773x843

29” 17/32 x 30” 7/16 x 39” 3/4 - 750x773x1010

33” 27/32 x 44”

33” 27/32 x 47”

33” 27/32 x 37” 11/16 x 33” 3/16 - 860x957x843

33” 27/32 x 37” 11/16 x 45” 25/32 - 860x957x1163

34” 23/32 x 41” 1/16 x 73” 15/32 - 882x1043x1866

Circuit

Breaker

Amperage

5 15 0,6 15 3,00 17,42 120V/1P+N/60Hz

Power

[kW]

Dimensions

[inches - mm]

3/32

x 33” 3/16

- 860x1120x843

3/32

45” 25/32

- 860x1120x

33/64

73” 15/32

- 860x1207x1866

Electrical and Gas ratings

GAS burner power [kW]

kW/tray kW/m

202 lbs - 92 kg

258 lbs - 117 kg

408 lbs - 185 kg

1163

434 lbs - 197 kg

529 lbs - 240 kg

258 lbs - 117 kg

335 lbs - 152 kg

485 lbs - 220 kg

connection

Weight*

[lbs - Kg]

Electrical

USA

UNOX LIMITED WARRANTY CONDITIONS - US

End users (“End Users”) who have purchased an appliance (the “Product”) from an authorized dealer of Unox, Inc., a Delaware corporation (“UNOX”) may be entitled to a limited manufacturer’s warranty (the “Limited Warranty”). In order to beneﬁt from such a warranty, End User should register on UNOX’s website (www.unox.com).

1. Warranty Term

a) The warranty period for the Limited Warranty (the “Warranty Term”) is, with

respect to labor, 12 months, and with respect to the Product or parts thereof (such parts being hereinafter referred to as “Spare Parts”), 24 months, in each case from the earlier of (i) the date of End User’s dealer invoice and (ii) the date of installation of the Product at the End User’s location (the “Warranty Start Date”); provided, however, that upon failure from End User to provide UNOX, upon request, with supporting evidence reasonably satisfactory to UNOX of such End User’s dealer invoice or installation date, as shall be determined by UNOX in its sole discretion, then the Warranty Start Date may, at UNOX’s sole discretion, be the date of UNOX’s invoice to its own dealer.

b) For ChefTop Mind.MapsTM ovens only, and only if End User has purchased

or otherwise has been provided with a LONG.LIFE4 extended warranty (the “Extended Warranty”), then the Warranty Term is, with respect to labor, 12 months from the Warranty Start Date, and with respect to the Product and/or Spare Parts, the earlier of (i) 48 months from the Warranty Start Date, and (ii) ten thousand (10,000) hours of working and/or stand-by time of such Product, as determined by the Product’s internal clock. The foregoing Extended Warranty is available to End User if and only if the applicable Product is connected to the internet via Ethernet cable, WIFI or 3G/4G and remains accessible for remote login and maintenance by the UNOX service team at all times.

2. If End User decides not to buy the Extended Warranty, in order for the Limited Warranty to apply, End User will need to furnish UNOX a copy of End User’s dealer invoice and sufﬁcient proof (as determined by UNOX in its sole discretion) of the installation date and the type of Product in the form of a written conﬁrmation or an invoice for installation issued by a Service Agent.

3. a) For Products subject to the Limited Warranty, during the applicable Warranty

Term, and if and only if such Product is unaltered and unmodiﬁed by End User or any third party and is properly used as set forth in UNOX’s speciﬁcations and instructions of use, End User’s sole remedy under the Limited Warranty shall be (x) for a period of twelve (12) months after the Warranty Start Date, at UNOX’s sole cost and expense and in UNOX’s sole discretion, (i) repair, or (ii) return and replacement (including, in each of the foregoing cases (i) and (ii), any cost of UNOX’s or its designee’s work associated therewith), of the Product (including any Spare Parts), and (y) for a period of twelve (12) months after the initial twelve (12) months following the Warranty Start Date, at UNOX’s sole cost and expense, replacement of the Products and/or Spare Parts, excluding any work associated therewith.

b) For Products subject to the Extended Warranty, during the applicable Warranty

USA

shall be (x) for a period of twelve (12) months after the Warranty Start Date, at UNOX’s sole cost and expense and in UNOX’s sole discretion, (i) repair, or (ii) return and replacement (including, in each of the foregoing cases (i) and (ii), any cost of UNOX’s or its designee’s work associated therewith), of the Product (including any Spare Parts), and (y) for a period which shall be the shorter of (A) thirty-six (36) months after the initial twelve (12) months following the Warranty Start Date, and (B) ten thousand (10,000) hours of working and/or stand-by time of such Product has been reached, if earlier, as determined by the Product’s internal clock, at UNOX’s sole cost and expense, replacement of the Product and/or Spare Parts only, excluding any work associated therewith.

The warranty services set forth above shall be referred to herein as “Warranty

Services”, as applicable. Except as provided above, the Products are provided “as is”.

4. The performance of Warranty Services shall in no event trigger an extension of a

Warranty Term, nor shall it trigger a new Warranty Term.

5. Replaced parts shall pass into the ownership of UNOX.

6. UNOX does not assume any transport costs or risks.

7. In order to be eligible for the Warranty Services during the applicable Warranty

Term, End User must notify UNOX in writing of any damage or defects within 14 days after such damage or defects were or should have been discovered by sending a notiﬁcation to the UNOX service support, as provided on the UNOX website, www. unox.com.

8. Please be aware that neither the Limited Warranty nor the Extended Warranty shall apply in any of the following instances, without limitation, as determined in UNOX’s sole discretion:

• Damage resulting from defective installation or unprofessional or improper attempts at repair, work performed by un-authorized third parties, improper use, injudicious operation or any and all other actions not in compliance with the instruction manual for the Product;

• Non-compliance, by End User or any third party, with the UNOX installation check list, the installation manual, or the prescribed maintenance and inspection cycles;

• If cleaning agents or preservative agents other than those expressly approved by UNOX have been used;

• Defects or damage in connection with unauthorized uses of the Product, such as the use of soiled, aggressive water, sub-standard gas or electricity with unsuitable voltage or current;

• Damage caused by surges;

• Normal wear and tear to items such as lamps, gaskets, seals, probes, door handles, ancillary and consumable parts etc ., as well as damage to glassware and other ancillary parts

• The use of water not meeting requirements set forth by UNOX in the installation manual and spec sheet (for the avoidance of doubt, in addition, but without limitation, to the foregoing, it is the sole responsibility of the End User to verify that the incoming water supply is comprehensively tested and, if required, to provide a means of water treatment that would meet the minimum water

quality standards required by UNOX, as outlined on the Product speciﬁcation sheet. Non-compliance with these minimum standards will potentially damage Products and/or Spare Parts, which, at UNOX’s sole discretion, may nullify and void the original Limited Warranty or Extended Warranty, as applicable);

• Damage or malfunctions caused by the build-up of limescale or rust in the Product;

• Wear and tear of the Product; or

• Cases in which replacement or parts other than original UNOX parts are used, regardless of whether the damage or defects result therefrom.

14. The Limited Warranty and the Extended Warranty may only be asserted for

Products located in the United States of America.

15. An obligation to render Warranty Services shall only exist if the Product is in

compliance with the applicable technical requirements in the country in which the Product is operated.

16. NO OTHER WARRANTIES. EXCEPT AS SET FORTH IN THE INTRODUCTION

HERETO, THE PRODUCTS ARE PROVIDED “AS IS”, AND THE LIMITED WARRANTY AND EXTENDED WARRANTY ARE GIVEN IN LIEU OF ALL OTHER WARRANTIES AND GUARANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE (EVEN IF INFORMED OF SUCH USE), OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE, WHICH ARE HEREBY EXCLUDED TO THE FULLEST EXTENT ALLOWED BY APPLICABLE LAW. NO WARRANTY HAS BEEN MADE THAT THE PRODUCTS WILL MEET END USER’S OR ITS CUSTOMER’S REQUIREMENTS, OR THAT THE OPERATION OF THE PRODUCTS WILL BE UNINTERRUPTED OR ERROR-FREE.

PLEASE CONTACT UNOX AT infousa@unox.com IF YOU HAVE ANY QUESTIONS.

UNOX S.p.A.

Via Majorana, 22 - 35010 - Cadoneghe (PD) - Italy Tel.:+39 049 86.57.511 - Fax: +39 049 86.57.555

info@unox.com www.unox.com

LI2482A4.D00-LDI-01 - Printed: 07-2016

Subject to technical changes.
