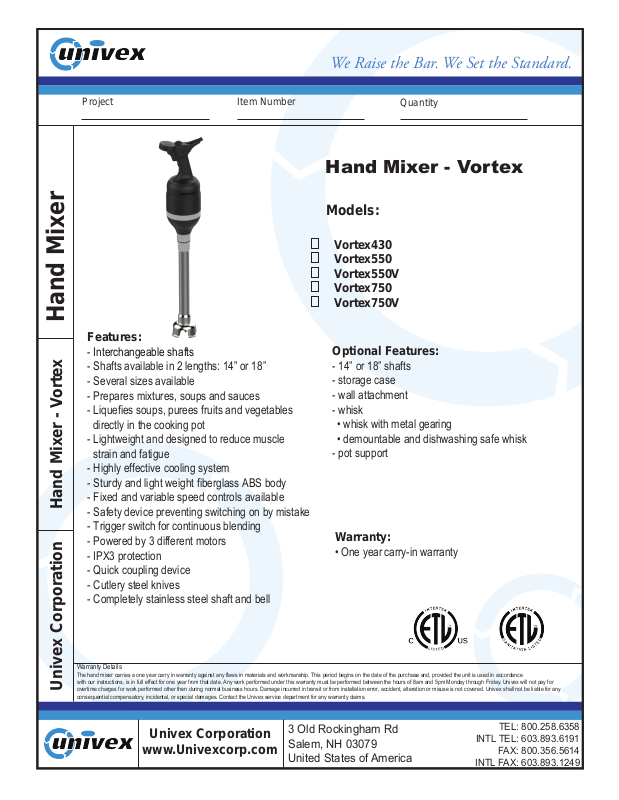

Univex Vortex430 User Manual

We Raise the Bar. We Set the Standard.

Project Item Number

Hand Mixer

Features:

- Interchangeable shafts

- Shafts available in 2 lengths: 14” or 18”

- Several sizes available

- Prepares mixtures, soups and sauces

- Liquefies soups, purees fruits and vegetables
directly in the cooking pot

- Lightweight and designed to reduce muscle
strain and fatigue

- Highly effective cooling system

- Sturdy and light weight fiberglass ABS body

- Fixed and variable speed controls available

Hand Mixer - VortexUnivex Corporation

- Safety device preventing switching on by mistake

- Trigger switch for continuous blending

- Powered by 3 different motors

- IPX3 protection

- Quick coupling device

- Cutlery steel knives

- Completely stainless steel shaft and bell

Quantity

Hand Mixer - Vortex

Models:

Vortex430
Vortex550
Vortex550V
Vortex750
Vortex750V

Optional Features:

- 14” or 18” shafts

- storage case

- wall attachment

- whisk

• whisk with metal gearing

• demountable and dishwashing safe whisk

- pot support

Warranty:

• One year carry-in warranty

Warranty Details

The hand mixer carries a one year carry in warranty against any flaws in materials and workmanship. This period begins on the date of the purchase and, provided the unit is used in accordance
with our instructions, is in full effect for one year from that date. Any work performed under this warranty must be performed between the hours of 8am and 5pm Monday through Friday. Univex will not pay for
overtime charges for work performed other then during normal business hours. Damage incurred in transit or from installation error, accident, alteration or misuse is not covered. Univex shall not be liable for any
consequential compensatory, incidental, or special damages. Contact the Univex service department for any warranty claims.

Univex Corporation

www.Univexcorp.com

3 Old Rockingham Rd
Salem, NH 03079
United States of America

TEL: [phone]

INTL TEL: [phone]

FAX: [phone]

INTL FAX: [phone]

We Raise the Bar. We Set the Standard.

Hand Mixer

*Optional Whisk

Attachment and
Wall hanger

VORTEX

Hand Mixer Dimensions:

Vortex 430 Body:

A 4.92”
B 7.48“
C 14.84”

Vortex 550/550V Body:

A 4.92“
B 7.48”
C 15.16“

Vortex 750/750V Body:

A 4.92”
B 7.48“
C 15.35”

Electrical: 120V, 60Hz
Watts/HP:

Vortex430 - 280/0.3 HP
Vortex550/550V - 373/0.5 HP
Vortex750/750V- 480/0.6 HP

Shipping Information:

Freight Class: 85
Net Weight/Shipping Weight:

Vortex430 - 5.5 lbs/10.6 lbs
Vortex550/550V - 7.7 lbs/8.8 lbs
Vortex750/750V - 8.8 lbs/9.9 lbs
18” Shaft - 3.5 lbs/4.6 lbs
Whisk - 2.7 lbs/3.5 lbs

Shipping Box Dimensions:

Length: 9.06”
Width: 10.63”
Height: 16.93”

Working Capacity:

up to 115 Qts
up to 160 Qts
up to 210 Qts

Univex Corporation

www.Univexcorp.com

Shafts:

A 3.93”
C 16.3”
D 14.0”
C 20.3
D 18.0”

Whisk:

A 4.61“
B 4.45”
C 15.16”

3 Old Rockingham Rd
Salem, NH 03079
United States of America

18” Shaft Shipping
Box Dimensions:

23.23” x 9.06” x 5.91”

Whisk Shipping
Box Dimensions:

20.47” x 8.27” x 9.84”
