Univex Remote Control User Manual

Remote Control

Remote Control

User Guide

User Guide

Table of Contents

SETUP AND OPERATION

Quick Setup

Insert the Batteries ..............................................................S-1

Making the Remote Work with Your Receiver...................S-1

Program the Remote to Control Your TV...........................S-2

Placing Your Remote in Limited Mode...............................S-3

Operation

If You Lose Your Picture (Using RECOVER) .....................S-3

SAT Mode..............................................................................S-4

TV Mode................................................................................S-5

VCR Mode.............................................................................S-6

IN THIS GUIDE

Remote Control Overview...................................................... 1

Using the Guide ...................................................................... 1

Remote Control Modes ..........................................................1

How the Remote Communicates........................................... 2

Programming for Other Equipment .... ..................................2

Combination Equipment (for example, TV/VCR) ..........2

Limited Mode ...................................................................3

Fixed Channel Mode........................................................3

Setting Fixed Channel Mode for TV/VCR ..................3

Removing Fixed Channel Mode for TV/VCR .............3

Programming Using Equipment Code Tables .............. 4

Scanning for Equipment Codes.....................................5

Switching Between TV & Amplifier Volume Control.....7

Programming the Remote to Control a Second Receiver

in AUX Mode .................................................................8

Reading Out the Remote Control Codes ..............................9

Discrete Codes for Learning Remotes ............................... 10

Changing the Remote and Receiver Address.................... 10

Equipment Codes ................................................................. 12

TV Codes........................................................................12

VCR Codes.....................................................................14

DVD Player Codes .........................................................16

Tuner/Amplifier Codes..................................................16

TV/VCR Combo Codes..................................................17

TV/DVD Combo Codes..................................................18

TV/VCR/DVD Combo Codes .........................................18

TV/VCR/Tuner Combo Codes.......................................18

VCR/DVD Combo Codes...............................................19

Troubleshooting.................................................................... 20

Limited Warranty................................................................... 22

Your Remote Control Codes.....................Inside Back Cover

A

B

Quick Setup

A

B

1

Insert the Batteries

1

2

Battery

A

B

Battery

3

Battery

Battery

Pull the

remote
battery

cover off.

batteries making

sure to match the
plus (+) ends with
the plus markings

on the battery case.

Making the Remote Work

With Your Receiver

1

Turn your receiver and

TV on, and press SYSTEM

INFO on the front

of the receiver.

3

RECORD

Press RECORD on

your remote. The remote

address probably

changes on the screen.

Insert 4 AAA

2

Confirm that you

Use the remote to select
Done from System Info to
confirm that your remote

operates your receiver.

If this is not working,

go back to step

S-1

Replace

the
remote
battery

cover.

2

see the System

Info screen.

4

1.

Quick Setup

Program the Remote to

Control Your TV

1

Press & hold the

Turn your

TV on.

TV Mode button

buttons light up.

3

Press

POWER.

repeatedly

press per second)

5 6

2

until all Mode

4

Press the UP

ARROW

(about 1

until your TV

turns off.

#

Press

POUND.

Press the POWER

button to turn the TV on

and try other buttons

to make sure the code
works. If you want to try
another code, start over

from step 1.

S-2

Quick Setup/Operation

Placing Your Remote

in Limited Mode

Limited Mode locks out all the TV mode operations except for

TV power, Mute, and Volume. This feature prevents you from

accidentally tuning away from satellite programming.

1

2

PAGE

Press & hold the

TV Mode button

until all Mode

buttons light up.

To take the remote out of Limited Mode, use the PAGE DOWN

button instead of the PAGE UP button in step 2.

Press the
PAGE UP

button.

If You Lose Your Picture

(How to Use the Recover Button)

Use the Recover button to get back to watching

satellite programming if you accidentally change

1

2

(Your screen may be different)

channels or inputs on your TV.

Press and hold RECOVER until all
mode buttons light up.

If you see the System Info
screen, proceed to step 4.
Otherwise, continue to step 3.

3

#

Press

POUND.

3

4

SAT

TV

SELECT

Press RECOVER again & wait until
the mode lights stop flashing. If you
see the System Info screen, go to

VCR

AUX

step 4. If not, repeat this step until
you do.

Press SELECT to resume watching TV.

S-3

Operation

Remote Operation

SAT Mode

To use the features described in this section, make

sure you are in SAT mode by pressing the SAT Mode button.

Note: Some features may not be available depending on your receiver model.

Volume & Mute Buttons

Control TV volume

Receiver Power

& TV Power

Top button turns

the receiver on/off

Bottom button

turns the TV on/off

Programming required

(see page S-2)

Receiver Menu

Access receiver

features and settings

Search for programs

Themes

using Themes

Recall

Go back to last

channel viewed

Info

Display program info

Recover

Recovers satellite

programming if your

TV input or channel

has changed

Picture-In-Picture

(PIP) Buttons

Watch two separate

programs at once
(in Single Mode if

available on your

receiver)

Format

Format the picture

to the desired width

to match the program

you are viewing

(this feature varies

by receiver)

Programming required (see page S-2)

Press this
button for
SAT Mode

S-4

Page Buttons

Page up/down in
menus

Program Guide

Display current and
future satellite
program listings

Arrows/Select
Buttons

Channel up/down,
navigate through
menus/guides and
select a desired
option

Browse

See what is on other
channels while
watching TV

View Satellite
Programming

Exit out of any menu/
guide and go back to
viewing live TV

DISH

Explore interactive
TV features

Number Buttons

Enter a channel
number or select
menu items

Search

Search for a program

SAT

Operation

Remote Operation

TV Mode

To use the features described in this section, make
sure you are in TV mode by pressing the TV Mode

button. Remote programming is required.

See page S-2 for instructions.

TV

TV/Video

Switch between

TV inputs

(available only for

certain makes and

models of TVs)

TV Menu

Access menu

features available on

some TVs

Turn TV volume

Mute

on or off

Recall

Go back to last

TV channel viewed

Picture-In-Picture

(PIP) Buttons

Display PIP features

on some TVs with

PIP capabilities

Press this

button for

TV Mode

TV Power

Top & bottom
button

Turn TV on/off

Volume

Control TV
volume

Up/Down Arrow
Buttons

Channel up/down
on TV

Number Buttons

Enter a desired
channel number
on TV

Note: Remote operation is different on DISH Network TVs.

See your DISH Network TV User's Guide for proper operation.

S-5

Operation

Remote Operation

VCR Mode

To use the features described in this section, make

sure you are in VCR mode by pressing the VCR Mode button.

You can use this mode to operate your DVD player instead of a VCR.

Remote programming is required. See page 2 for instructions.

Press this
button for

VCR/DVD Power

VCR Mode

& TV Power

Top button turns

VCR/DVD player

Bottom button

turns the TV on/off

on/off

TV/Video

Switch VCR between

its TV & VCR mode

Rewind a videotape

or reverse a DVD

Back

Stop

Stop playing

or recording a

videotape, or stop

playing a DVD

VCR

Up/Down Arrow
Buttons

Channel up/down
on VCR

Pause

Pause a videotape or
DVD

FWD

Forward a videotape
or DVD

Play

Play a videotape or
DVD

VCR

Record

Record on a

videotape

Number Buttons

Enter a desired
channel number
on VCR

S-6

REMOTE CONTROL OVERVIEW

Great Idea: Whenever you finish using

other equipment (TV, VCR, DVD, etc.) be
sure to put the remote back in SAT mode.

Use this full-function remote to control your DISH Network receiver.
Also, you can program the remote to control most of the popular
brands of audio/video equipment like a TV, VCR, DVD player, or a
second DISH Network satellite receiver. See Programming for Other
Equipment on page 2.

Note: This remote control may have features not used by your
receiver.

USING THE GUIDE

This guide makes it easy to set up and use your remote control. By now
you’ve noticed that the pages at the beginning of this User Guide
contain information on quick set up and remote operation.

The rest of the guide contains in-depth information to help you get the
most from your remote control, including controlling other equipment
like TVs, VCRs, and DVD players.

REMOTE CONTROL MODES

Use the remote control’s mode buttons to set the remote to the correct
mode for the equipment. Be sure to program the remote to control other
equipment as described on page 2.

To change the mode, press the button for the equipment you want to
control. The mode button lights for two seconds to show you’ve set the
remote to that mode.

1

If you program the remote to control other equipment, refer to the
following pages located at the beginning of this guide for remote
control operation instructions:

• TVs, Remote Operation TV Mode, page S-5.

• VCRs and DVD players, Remote Operation VCR Mode,

page S-6.

• DISH Network satellite receivers, Remote Operation SAT Mode,

page S-4.

• Stereo equipment use only these buttons: SELECT (change

inputs), MUTE, VOLUME, and POWER.

HOW THE REMOTE COMMUNICATES

This remote uses IR signals to control the receiver and other
equipment.

IR signals travel only short distances (up to 40 feet), and cannot go
through walls or other solid objects. Point the remote control right at
the equipment you want to control, with no objects to block the signal
path.

PROGRAMMING FOR OTHER EQUIPMENT

Page S-2, Program the Remote to Control Your TV, shows you how to
program the remote to control a TV. This section uses a different
method to program the remote to control a TV or other equipment
(such as a VCR, DVD player, tuner, amplifier, or a second TV). You
can program the remote by either following the instructions in

Programming Using Equipment Code Tables on page 4, or the
Scanning for Equipment Codes procedure described on page 5.

COMBINATION EQUIPMENT (FOR EXAMPLE, TV/VCR)

When programming the remote to control combination equipment,
such as a TV/VCR or a TV/DVD, program the remote control in one
mode, and then repeat the procedure in the other mode. Use the
appropriate equipment codes provided later in this guide (see page 12).
For example, to program the remote to control a Magnavox TV/VCR
using code 887, follow the instructions to program the remote to
control the TV using code 887, and then repeat the instructions for the
VCR using code 797. Put the remote in TV mode to use the TV and
VCR mode to use the VCR.

2

LIMITED MODE

You can program your remote control in Limited Mode to keep from
accidentally changing the channel on your TV or VCR. When Limited
Mode is enabled, you cannot select TV mode. If you press the TV
button while TV mode is programmed in Limited Mode, the TV button
flashes and the SAT button lights, telling you cannot switch to TV
mode. The remote then moves back to SAT mode.

When you use the remote to control your TV in Limited Mode, you are
only be able to use the POWER, MUTE, and VOLUME buttons to
control your TV. Also, when you use the remote to control your VCR
in Limited Mode, you are only be able to use the POWER and VCR
function buttons. The section Programming Using the Equipment Code
Tables (page 4) has a step that tells the remote control to go into
Limited Mode. Also, a quick way to put the remote in Limited Mode is
on page S-3, Placing Your Remote in Limited Mode.

Note: Limited Mode cannot be used with audio amplifiers.

FIXED CHANNEL MODE

You can program your remote control in Fixed Channel Mode to
automatically set the TV and/or VCR to a given channel when you
press either RECOVER or the SAT button.

SETTING (OR CHANGING) FIXED CHANNEL MODE FOR TV

AND/OR VCR

1 Press and hold the TV or VCR mode button until all four mode

lights illuminate.

2 Press the STAR key (* ). Enter a channel, using two or th ree digits

between 02 and 125. For example, to set channel 25, enter *25.

3 Press the POUND (#) key. The TV or VCR mode button flashes

three times.

REMOVING FIXED CHANNEL MODE FOR TV AND/OR VCR

1 Press and hold the TV or VCR mode button until all four mode

lights illuminate.

2 Press the STAR (*) key followed by two zeros (*00).
3 Press the POUND (#) key. The TV or VCR mode button flashes

three times.

3

PROGRAMMING USING EQUIPMENT CODE TABLES

You can set up the remote to control other equipment using the
equipment codes listed on page 12 and the modes as shown on page 1.

Instructions Additional Information

1 Turn the equipment on. Use the equipment’s front panel

buttons or its remote control.

2 Find the brand name of the

equipment in the tables
starting on page 12.

3 Press and hold the mode

button until all the other
mode buttons light up, and
then let go of the button.
The mode button flashes.

4 For AUX mode only. Press

0 for a second TV, or 1 for a
second VCR, or 2 for a
tuner or amplifier.

5 Enter one of the three-digit

equipment codes from the
table using the number
buttons.

6 If you want to program

Limited Mode, press 1.
If not, skip to step 7.

7 Press POUND (#). If you entered the code

If the brand isn’t listed, see
Scanning for Equipment Codes
on page 5.

For example, hold the TV mode
button for a TV until all of the
other mode buttons light. When
you let go, TV flashes.

This step is for programming
the kind of equipment that
should be programmed in AUX
mode. If you’re not
programming in AUX mode,
skip to step 5.

The three-digit equipment code
should be for the brand name of
your equipment that you found
in step 2.

See Limited Mode on page 3 for
more information.

correctly, the mode button
flashes three times.

8 Press POWER to turn off

the equipment. If the
equipment does not turn
off, go to step 10.

4

If the code works, the
equipment turns off.

Instructions Additional Information

9 Turn the equipment back

on and try some other
buttons to make sure they
work. If the code works for
other buttons, stop here.

Note: If you have
programmed your remote in
Limited Mode, only the
MUTE and VOLUME
buttons work.

10 If the code doesn’t work,

repeat steps 3 through 9
with another equipment
code from the tables.

11 If you can’t find a code that

works, try Scanning for
Equipment Codes that

follows.

For example, sometimes
POWER works when other
buttons don’t.

Try every code listed for your
brand until one works for your
equipment.

SCANNING FOR EQUIPMENT CODES

Instructions Additional Information

1 Turn the equipment on. Use the equipment’s front panel

buttons or its remote control.

2 Press and hold the mode

button until all the other
mode buttons light up, and
then let go of the button.
The mode button flashes.

3 For AUX mode only . Press

0 for a second TV, or 1 for a
second VCR, or 2 for a
tuner, or amplifier. Then
press the STAR (*) button.

For example, hold TV for a TV
until all of the other mode
buttons light. When you let go,
TV flashes.

This step is for programming
which kind of equipment that
should be programmed in AUX
mode. If you’re not
programming in AUX mode,
skip to step 4.

5

Instructions Additional Information

4 Press POWER. This puts your remote in the

scan mode.

5 Press the UP or DOWN

ARROW repeatedly until

the equipment turns off.

6 Press POUND (#). The mode button flashes three

7 Turn the equipment back

on and try some other
buttons to make sure they
work.

8 If necessary, repeat this

procedure until you’ve tried
all the codes.

As you press the UP or DOWN
ARROW, the remote tries each
code in the memory to see if it
can turn off your equipment.
When the equipment turns off,
you have found a code that
might work.
Note: The mode button for the
equipment flashes rapidly eight
times when you’ve scanned all
the codes for that equipment.

times if you have entered the
code correctly. This stores the
code you found.

Press POWER to turn the
equipment back on. Try some
other buttons to make sure they
work. Sometimes POWER
works when other buttons
don’t.

Y ou may need to repeat the scan
to find the best code for your
equipment.

9 Once you find a code that

works, consider using
Limited Mode.

6

See page S-3, Placing Your
Remote in Limited Mode for

putting your remote in Limited
Mode.

SWITCHING BETWEEN TV AND AMPLIFIER VOLUME

ONTROL

C

When you set up the remote to control a TV, the MUTE and VOLUME
buttons control the TV volume, even if your remote control is in SAT
mode. However, if you want to use the AUX mode to control a tuner or
amplifier that has a volume setting, you can set up the remote to control
the tuner or amplifier’s volume instead of the TV volume while your
remote control is in SAT mode. Follow the instructions in the left
column to switch to controlling volume in AUX mode. To change back
to controlling the TV volume in SAT mode, follow the instructions in
the right column.

Control Amplifier Volume Control TV Volume

1 Press and hold the AUX

mode button for three
seconds, and then let go of
it. The AUX mode button
blinks.

2 Press the POUND (#)

button.

3 Press the plus (+) side of

the VOLUME button.

4 Press the 0 number button. 4 Press the 0 number button.
5 Press the POUND (#)

button.
The AUX mode button

flashes three times.

MAKE SURE THE REMOTE

CONTROLS THE AMPLIFIER’S
VOLUME:

6 Press the SAT mode

button.

7 Press the plus (+) and

minus (-) sides of the
VOLUME button.

8 The equipment’s volume

changes and the AUX mode
button lights instead of the
TV mode button.

1 Press and hold the TV

mode button for three
seconds, and then let go of
it. The TV mode button
blinks.

2 Press the POUND (#)

button.

3 Press the plus (+) side of

the VOLUME button.

5 Press the POUND (#)

button.
The TV mode button

flashes three times.

M

AKE SURE THE REMOTE

CONTROLS THE TV’S VOLUME:

6 Press the SAT mode

button.

7 Press the plus (+) and

minus (-) sides of the
VOLUME button.

8 The TV’s volume changes

and the TV mode button
lights instead of the AUX
mode button.

7

PROGRAMMING THE REMOTE TO CONTROL A SECOND

ECEIVER IN AUX MODE

R

If you have another DISH Network satellite receiver installed, you can
use this remote in AUX mode to control it along with your new
receiver. When you program the remote to control the other receiver,
the remote sends out IR signals to the receiver. You can program the
remote to control any other DISH Network satellite receiver , exc ept for
following:

• TV2 on Duo 322 (also known as DISH 322), DuoDVR™ 522,

DuoDVR™ 625, DuoDVR™ ViP
622 (also known as DISH Player-DVR models 522, 625, and
ViP 222, & ViP 622 DVR)

• DishPlayer 7100/7200

1 Turn on the other receiver and display the System Info screen (see

the receiver’s User Guide for information on how to display this
screen).

Write down the address shown:

2 Press and hold the AUX button until all the other mode buttons

light up, and then let go of the button. The AUX button flashes.

3 Press the 3 button.
4 Use the NUMBER PAD to enter the address you wrote in

step 1.

5 Press POUND (#). The AUX button blinks three times.
6 Press RECORD to make sure the address and the remote matches

the address on the receiver.

®

222, and DuoDVR™ ViP®

8

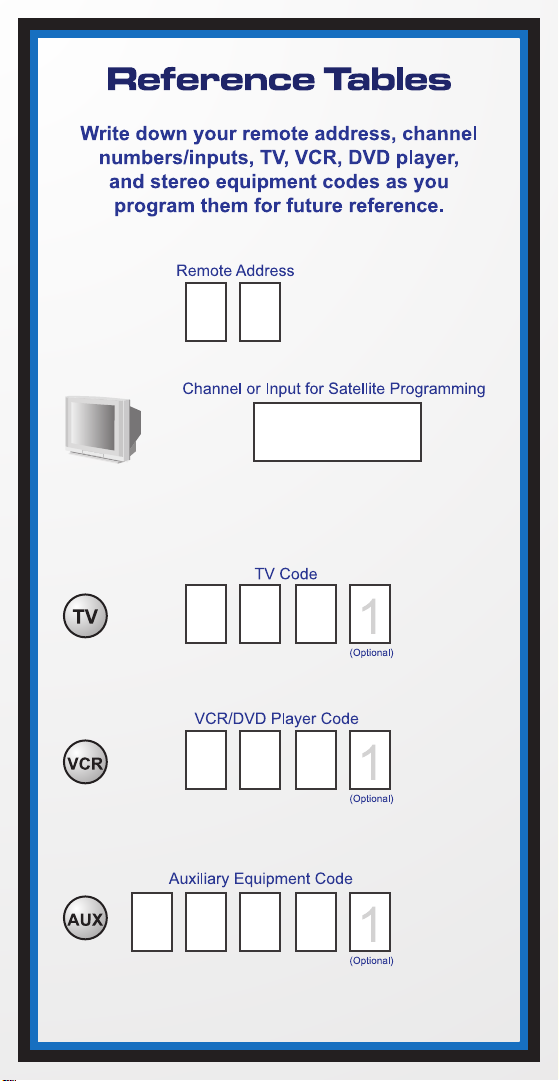

READING OUT THE REMOTE CONTROL CODES

These instructions explain how to check the codes you put in the
remote control when you set it up. Be sure to write them in the spaces
provided on the inside of the back cover.

Instructions Additional Information

1 Press and hold the mode

button for the equipment
you want the remote to
control. When all the other
mode buttons light up, let
go of the mode button—
that mode button should
now be flashing.

2 Press the POUND (#)

button twice. The mode
button flashes the number
for each digit of the
equipment code, with a
pause between the groups
of flashes. A quick flash is
for zero.

For AUX mode, the first
group of flashes tells you
what type of device the
AUX mode controls. A
quick flash (zero) before
the three-digit code is for a
TV; one regular flash is for
a VCR or DVD player; and
two flashes is for a tuner or
amplifier.

For a satellite receiver
programmed in AUX mode,
the group of flashes tells
you the address number.

For example, hold the TV mode
button for a TV until all of the
other mode buttons light. When
you let go, the TV mode light
flashes.

For example, if the code is 570,
the mode button flashes five
times, pauses, flashes seven
times, pauses, and quick flashes
for zero.

For example, if the TV code is
570, the AUX mode button
flashes once quickly, pauses,
flashes five times, pauses,
flashes seven times, pauses, and
quick flashes for zero.

For example, if the AUX mode
button is set to control a
satellite receiver with address 5,
the AUX mode button flashes
five times.

9

DISCRETE CODES FOR LEARNING REMOTES

Remote control discrete On and Off IR commands are used by
installers when programming macro commands into universal remotes.
Using an On-only or Off-only command is more effective than a toggle
On/Off command when trying to ensure the satellite receive r is reliably
in one state or the other. To use discrete power commands, complete
the following:

1 Program the DISH Network remote to desired remote address (see

Changing the Remote and Receiver Address below).

2 Hold the SAT mode button until al l mode buttons light, then

release.

3 Press POWER (not TV POWER).
4 Press VOLUME UP for discrete power on or VOLUME DOWN

for discrete power off.

5 Press any other button when done to end this procedure.

CHANGING THE REMOTE AND RECEIVER ADDRESS

One quick way to avoid remote conflicts is by changing the address on
your remote and receiver. If you notice that your receiver is changing
channels or opening menus but you’re not using the remote control, a
quick change of address should fix the problem.

1 Press SYSTEM INFO on the receiver's front panel. The System

Info screen displays and shows the Remote Address.
Write down the address shown:
Note: If you aren’t sure how to access the System Info screen or

if there isn’t a SYSTEM INFO button on the front panel of your
receiver, check your receiver’s User Guide.

2 Press and hold SAT on your remote control for about three

seconds, until all of the mode buttons light up, and then let go of
SAT.

3 Use the NUMBER PAD to enter any number between 1 and 16,

but not the one you wrote in step 1.

4 Press the POUND (#) on your remote (the SAT button flashes

three times). Write down the number you entered in the space
provided on the inside back cover.

10

5 Press RECORD. Make sure the Remote Address you see on

the System Info screen is the same as the one you entered in step

3. If it isn’t, the remote cannot control the receiver. Press
RECORD a second time.

6 Press SELECT to close the System Info screen.

11

EQUIPMENT CODES

These tables contain the manufacturer codes for programming the
remote to control your TV, a VCR, DVD player, or audio amplifier.
Every attempt has been made to include all codes. If your equipment
brand is not listed or if the codes do not work, the remote may not
control your equipment. In some cases codes may operate some but not
all buttons shown in this guide.

TV CODES

Programming in AUX mode: In most cases use these codes to
program in TV mode; however, if programming in AUX mode, press 0
before entering the TV code.

Abex 730
Action 662
Admiral 521 605 675
Aiko 727
Akai 570 573 906 907 908
Alleron 682
A-Mark 620
Amtron 657
Anam National 509 541 620 651 657

698

AOC 505 506 519 520 573 620 627

652 653 654

Apex 743 744 745 757 814 815
Archer 620
Audiovox 620 657 662
Baycraft 536
Belcor 652
Bell & Howell 590 675 683
Bradford 657
Brockwood 627 652
Broksonic 562 748 752
Candle 506 523 525 536 627 652 654
Candle/Citizen 573
Capehart 519 627
Circuit City 627
Citizen 506 516 523 524 525 526 590

652 654 657 658 680 727

Colortyme 573 627 652 654
Concerto 523 652 654
Contec Cony 662
Contec/Cony 541 655 657 726
Craig 536 541 657 662 694
Crown 526 536 657
Curtis Mathes 506 516 526 573 590

641 645 650 652 654 658 680 683
703 708

CXC 541 657 662
Cytron 903 904
Daewoo 505 524 526 529 530 531

573 630 652 653 654 658 684 698
719 727 816

Daytron 526 627 652 654 658

Dell 772 773 774
Dimensia 645 650
Dixi 566 620
Dumont 501 627 652
Echostar 722
Electrohome 526 573 651 652 654

656 709 728

Emerson 526 534 536 541 573 590

627 636 642 648 652 654 655 657
658 662 682 683 692 696 699 720
816

Envision 506 573 652 654
Fisher 542 590 683
Fortress 573

534 682 694

Fujitsu
Funai 534 541 657 662 682 694
Futuretech 541 657 694
GE 508 509 543 544 630 645 646 650

651 652 654 676 690 691 698 701
715 716 725 728 742 779 809 859

General Electric 627
Gibralter 501 652
Goldstar 505 523 526 545 546 566

573 652 653 654 655 656 658 693
730

Granada 627
Grand 627
Grunpy 657 682
Hallmark 627 652 654
Harmon Kardon 561
Harvard 657
Hinari 534
Hisense 759
Hitachi 523 526 548 549 553 554 555

585 597 626 636 638 643 648 652
654 655 702 718 726 786 788 789
790 791 792 801 802

HP 911 912
IMA 657
Infinity 566
JBL 566

12

TV CODES (CONTINUED)

JC Penney 505 506 516 525 526 543
546 631 645 646 650 652 653 654
658 676 680 690 691 701 725 726
728 730

Jensen 556 573 652 654
JVC 508 557 559 642 649 655 676

726 735 736 737 812 817

Kawasho 548 561 573 652 654
Kenwood 506 573 652 654 656
Kloss 561 610
Kloss Novabeam 657 698 723 724
KTV 526 541 573 657 658 662 696
LG 653 766
Lloyds 627
Lloytron 526
Loewe 566
Logik 675
Luxman 523 652 654
LXI 563 566 590 595 617 631 635 645

646 650 654 683 691 701 725

M. Wards 500 505 506 534 543 567

568

Magnasonic 573
Magnavox 506 520 525 536 566 567

568 573 610 652 654 656 723 724
729 762 818 887 888

Majestic 675
Marantz 506 566 573 652 654
Megatron 627 654
Memorex 590 627 653 654 675 683

720

MGA 504 505 506 542 571 573 627

652 653 654 656 728

Midland 501 646 658 676 725 730
Mitsubishi 504 505 542 570 571 572

573 597 623 627 652 653 654 656
705 728 787 799 804

Mitsui 769
Montgomery Ward 675
Motorola 521 605 651
MTC 505 506 516 523 573 627 652

653 654 680

Multitech 657
NAD 502 617 627 631 635 637 654
National 509
NEC 505 506 507 517 523 573 627

651 652 653 654 731 732

Nikkai 612
Nikko 654 727
Normandic 717
Novabeam 561
NTC 727
Nyon 701
Olevia 910
Onwa 541 657
Optimus 637
Optonica 521 605 607

Orion 694

612

Osaki
Panasonic 508 509 512 566 644 651

662 676 685 689 698 700 716 734
761 765 780 784 811 819 820 821
822 823 867 868 869 870 871 872
873 874 875 876 877 878 879 880
881 882 883 884 885 886 889 890
900

Philco 505 506 525 536 568 573 610

651 652 653 654 655 656 723 724
729

Philips 525 566 651 652 655 656 690

723 724 729 770 782 824 825 826
827 828 891 892 893 894

Philips Magnavox 782 826 827 828

829

Pilot 652 658
Pioneer 502 548 576 636 637 648

652 654 708

Polaroid 766
Portland 505 526 573 652 653 654

658 727

Price Club 680
Prism 676
Proscan 645 646 650 691 725 742

857

Proton 513 519 526 536 585 627 652

654 655

Pro View 902
Pulsar 501 652
Quasar 508 509 651 676 698 700 860

861 862 895 896

Radio Shack 526 541 590 607 612

645 662 683 698

Radio Shack/Realistic 590 607 650

652 654 655 657 658 683 730

RCA 503 505 548 630 633 634 636

641 645 646 648 650 651 652 653
654 656 691 698 701 708 715 716
725 742 749 763 776 805 830 831
832 863 864

Realistic 590 645 683
Runco 501
Sampo 506 519 652 654 658 698 730

746

Samsung 505 506 516 523 526 566

573 612 627 647 652 653 654 655
656 658 680 704 717 730 738 755
833 858 897

Samwon 620
Sansui 754 834
Sanyo 542 590 652 683
SBR 566
Schneider 566
Scotch 654

13

TV CODES (CONTINUED)

Scott 526 534 541 600 652 654 655

657 662 682 696 701
Sears 523 534 542 563 590 595 601
604 617 627 631 635 645 646 650

652 654 656 682 683 688 691 703
725 726

Seimitsu 627
Sharp 521 526 585 605 607 628 629

652 654 655 658 739 740 741 777

794 803 835 836 898 913

Shogun 652
Signature 675
Silver 573
Simpson 525
Solavox 612
Sony 500 640 690 758 781 783 795

796 797 798 806 807 808 810 837

838 839 840 841 842 843 844 845
Soundesign 525 536 541 627 652

654 657 682

Spectricon 520 620
Squareview 694
SSS 505 541 573 652 657
Starlite 657
Supra 523
SVA 901 905
Sylvania 506 525 536 566 568 569

573 600 610 652 654 656 723 724

729 733 756 764
Symphonic 632 657 662 692 694

846

Tandy 521 605
Tatung 509 651 698

VCR CODES

Technics 508 676
Techwood 523 573 652 654 676
Teknika 504 505 512 516 523 524

525 526 534 536 541 573 644 652
653 654 655 657 658 662 675 680
682 685 726 727

Tera 513
Thomas 627
Thompson 709
TMK 523 573 627 652 654
Toshiba 516 590 617 631 635 680

683 688 750 771 785 793 847 848
849 850 851 852 853 854 855 856
865 866 909

Totevision 526 658
Toyomenko 627
Universal 543 690
Vector Research 506
Victor 557
Video Concepts 570
Vidtech 505 573 627 652 653 654
Viewsonic 760
Wards 536 573 607 645 650 652 653

654 656 675 682 690 715 723 724
729

White Westinghouse 816
Yamaha 505 506 573 652 653 654

656

York 627

501 520 639 652 675 693 775

Zenith

778 813 899

Zonda 620

Programming in AUX mode: In most cases use these codes to

program in VCR mode; if programming in AUX mode, press 1 before
entering the VCR code.

Adventura 588
Aiwa 588 622 623
Akai 513 515 516 517 518 568 682
American High 678
Amstrad 588
ASA 556
Asha 675
Audio Dynamics 592
Audiovox 676
Beaumark 675
Bell & Howell 581
Broksonic 559
Calix 676
Candle 534 594 675 676
Canon 554 678
Citizen 534 591 592 594 675 676

Colortyme 592
Craig 591 675 676
Curtis Mathes 554 592 594 605 607

675 678

Cybernex 675
Daewoo 534 547 559 588
DBX 592
Dimensia 607
Dumont 549
Dynatech 588
Electrohome 676
Electrophonic 676
Emerson 505 508 509 511 512 518

534 559 568 588 590 618 676 678

Finlandia 549
Finlux 549 556 588

14

VCR CODES (CONTINUED)

Fisher 549 581 584 588 610
Fuji 678
Funai 588
Garrard 588
GE 551 552 554 572 591 605 607 675

678

Go Video 557 558 620
Goldstar 592 594 676
Goodmans 585
Gradiente 588
Granada 549 581
Grundig 556
Harley Davidson 588
Harmon Kardon 568 592
Headquarter 581
Hitachi 536 538 539 540 588 595 597

682

Instant Replay 678
ITT 518
JC Penney 554 581 591 592 594 595

675 676 678

JCL 678
Jensen 595 682
JVC 561 562 581 592 594 682
Kenwood 562 581 592 594 682
Kodak 676 678
LG 676
Luxor 518
Lloyd’s 588
LXI 676
M. Wards 512 554 585 590 591
Maganvox 797
Magnavox 533 554 556 678 797 798
Magnin 676
Marantz 554 556 581 585 592 594

678

Marta 676
Matsushita 678
MEI 554 678
Memorex 533 549 554 566 581 585

588 675 676 678

MGA 512 567 568
MGN Technology 675
Midland 579
Minolta 595
Mitsubishi 512 562 567 568 570 595
Motorola 678
MTC 544 588 675
Multitech 579 588 675
Mutitech 591
NEC 562 581 592 594 682
Nikko 676
Noblex 675
Olympus 678
Optimus 676
Optonica 585

Panasonic 554 614 628 633 678 777

780 781 782 783 784 785 786 787
788 789 790 791 792 793 794 795
796 799 808 809

Pentax 592 595
Pentex Research 594
Perdio 588
Philco 554 678
Philips 554 556 585 678 801 802 803

804

Pilot 676
Pioneer 562 574 575 576
Proscan 605 607
Pulsar 533
Quarter 581
Quartz 581
Quasar 554 678 770 771 772 805 806
Radio Shack 512 607 610 676
Radio Shack/Realistic 581 584 588

675 676 678

Radix 676
Randex 676
RCA 518 525 591 595 605 607 615

649 675 678 773 774 775

Realistic 534 549 554 581 584 585

588 675 676 678

Ricoh 502
Runco 533
Salora 567 581
Samsung 515 517 534 579 591 675

755 807

Sanky 533
Sansui 544 562 682
Sanyo 549 581 583 675
SBR 556
Scott 508 534 559 590
Sears 549 581 584 595 610 676 678
Sharp 512 585 595 607
Shintom 595
Shogun 675
Singer 678
Sony 500 501 502 768 778
STS 678
Sylvania 554 556 567 588 678 756
Symphonic 588 594
Tandy 581 588
Tashiko 676
Tatung 594 682
Teac 588 594 682
Technics 554 633 678
Teknika 554 588 676 678

675

TMK
Toshiba 534 535 567 584 590 769

776

Totevision 591 675 676

15

VCR CODES (CONTINUED)

Unitech 675
Vector Research 534 592
Victor 561 562
Video Concepts 534 568 592
Videosonic 591 675

Wards 534 588 595 675 676 678
XR-1000 588 678
Yamaha 581 592 594 682
Zenith 500 501 533 779

DVD PLAYER CODES

Programming in AUX mode: In most cases use these codes to
program in VCR mode; if programming in AUX mode, press 1 before
entering the DVD Player code.

Aiwa 634 694
Alpine 653
Apex 654 655 744 757 835 839
Archos 885
BOSE 758 811
Broksonic 656 752
Clarion 696
Classic 695
CyberHome 833
Cytron 904
Daewoo 657 859
Denon 697 699 700
EchoStar 722
Emerson 658
Fisher 659
Funai 658
GE 702 703
Go Video 692 693 822
GPX 704
Hitachi 660 668 705 706 707 740 823

860

JVC 689 711 850 861 862 863
Konka 637 638 753
Koss 745
Magnavox 661
Memorex 709
Mintek 710
Mitsubishi 767 867

Norcent 711
Oritron 723
Panasonic 639 663 699 714 715 716

734 765 813 840 841 855 856 868
869 870 871 872 873 882

Philips 766 874
Pioneer 665 719 812 876 877 878

879 880

Proscan 720
Qwestar 723
RCA 666 690 749 816 842 854
Sampo 724
Samsung 652 667 668 691 705 740

741 820 821 844 845 866 875 881

Sansui 725 754
Sanyo 643
Sharp 669 865
Sony 617 645 670 671 729 730 731

817 818 830 831 832 836 837 838
843 847 848 849 851 852 853 857
858 864 883 884

Sylvania 658 764 829
Teac 732
Technics 733
Techwood 664
Toshiba 616 646 672 735 736 814

815 819 825 826 827 828 834 846

737 739

Yamaha
Zenith 673 824

TUNER/AMPLIFIER CODES

Programming in AUX mode: Press 2 before entering the tuner/
amplifier code.

Aiwa 636 641 656 687 718 720 725

726

BOSE 761 780
Carver 653
Citizen 709
Denon 647 674 759 760 762 807 809

814 835

Fisher 653
GE 711
Goldstar 677 690
Harmon Kardon 640 672 751
Hitachi 717
JBL 640

16

TUNER/AMPLIFIER CODES (CONTINUED)

JVC 637 703 725 786 827
Kenwood 676 691 726 728 774 795

828 829 830 831 832 840 842

Magnavox 654 705
Marantz 651 764 845
Nakamichi 671
NEC 716
Onkyo 642 660 662 678 785 788 790

791 792 796 801 846

Optimus 648 664
Panasonic 643 644 652 783 797 798

799 808 810 815 816 817 818 819
820 821 822 824 825 826 833 836
837 838 839

Pioneer 667 668 679 702 767 770

772 779 802 806 844

Proton 654 705

TV/VCR C

OMBO CODES

Quasar 652
RCA 635 638 704 727
Sharp 712 713 714 715
Sherwood 646 670
Sony 639 645 687 728 729 730 765

766 769 771 773 775 776 777 778
781 782 784 787 789 793 794 803
811 812 813

Soundmatters 763
Teac 684
Technic 652
Technics 643 644 652 768 804 805

843

Toshiba 710
Victor 703
Yamaha 663 730 731 732 733 823

834 841

Programming for combination equipment: Program the remote
control in TV mode using the TV code and then in VCR mode using
the VCR code.

TV Code VCR Code

Magnavox 887 797

888 798

Philips 891 801

892 802
893 803
894 804

Quasar 860 770

861 771
862 772
895 805
896 806

RCA 863 773

864 774

Samsung 755 755

897 807

Sylvania 756 756

17

TV/DVD COMBO CODES

Programming for combination equipment: Program the remote
control in TV mode using the TV code and then in VCR mode (or
AUX - press 1 before entering the DVD code) using the DVD code.

TV Code DVD Code

Apex 757 757

Broksonic 752 752

Cytron 904 904

Panasonic 734 734

765 765

RCA 749 749

Sansui 754 754

Sylvania 764 764

Toshiba 865 814

866 815

TV/VCR/DVD COMBO CODES

Programming for combination equipment: Program the remote
control in TV mode using the TV code, then in VCR mode using the
VCR code, and then DVD in AUX mode (press 1 before entering the
DVD code) using the DVD code.

TV Code VCR Code DVD Code

Panasonic 900 810 882

TV/VCR/TUNER COMBO CODES

Programming for combination equipment: Program the remote
control in TV mode using the TV code, then in VCR mode using the
VCR code, and then tuner in AUX mode (press 2 before entering the
tuner code) using the tuner code.

TV Code VCR Code Tuner Code

Panasonic 867 796 797

868 799 798
869 808 799
870 780 839
871 781 838
872 782 837

Table continues on next page

18

TV/VCR/TUNER COMBO CODES (CONTINUED)

TV Code VCR Code Tuner Code

Panasonic 873 783 836

874 784 833
875 785 826
876 786 825
877 787 824
878 788 822
879 789 821
880 790 820
881 791 819
882 792 818
883 793 817
884 794 816
885 795 815
889 809 808

VCR/DVD COMBO CODES

Programming for combination equipment: Program the remote
control in VCR mode using the VCR code, and then DVD in AUX
mode (press 1 before entering the DVD code) using the DVD code.

VCR Code DVD Code

Go Video No Code 692

No Code 693
No Code 822

JVC No Code 689

RCA No Code 690

Samsung No Code 667

No Code 691
No Code 820
No Code 821

Sony 778 817

No Code 818

768 No Code

Toshiba No Code 819

Zenith 779 No Code

19

TROUBLESHOOTING

What’s

Happening

While doing
remote
control
procedure,
the remote
control stops
working.

When you
press a button
on the remote
control, the
equipment
doesn’t do
what you
expect.

What’s Wrong What You Can Do

• If you don’t
press
a button for 20
seconds in a
programming
sequence, the
remote shuts off
its programming
function.

• Maybe you
didn’t set the
remote to the
mode for the
equipment you
want to control.

• Maybe you’re
not pointing the
remote control
right at the TV
(or other
equipment).

• Maybe the
remote control is
missing
batteries, maybe
you put the
batteries in the
remote the
wrong way, or
maybe the
batteries are
weak or dead.

Start over again.

• Press the correct mode button to
set the remote to the mode for the
equipment you want to control.

• The remote control uses IR signals
to control all equipment except for
the receiver (when using UHF). IR
signals travel only 40 feet or less,
and can’t go through walls or other
solid objects. You must point the
remote control right at the
equipment, with no objects to
block the signal path.

• If the batteries are missing or dead,
put fresh AAA-size batteries in. If
the remote has fresh batteries,
check whether you put them in the
right way. If you didn’t, take them
out and put them in the right way.

20

• Maybe you
didn’t set up the
remote to
control the
equipment.

• Make sure you set up the remote
to control all the equipment you
want to use. See Program the
Remote to Control Your TV on
page S-2 and Programming for
Other Equipment on page 2.

What’s

Happening

What’s Wrong What You Can Do

Your picture
is snowy (or
blue or
black).

Your remote
control isn’t
working

When you
press the
remote
control Mute
or Volume
button,
nothing
happens.

• You have
accidentally
changed the
channel on your
TV.

•The remote
control is in the
wrong mode.

• You might be
using the wrong
remote control
(TV1 or TV2).

• Your batteries
are worn out.

• Maybe you have
not set up the
remote control.

• Maybe you’re
trying to control
TV volume but
you set up the
remote to
control a tuner
or amplifier in
AUX mode.

• Make sure your TV (and VCR, if
connected) is tuned to the correct
channel. Also try using the
Recover button as described on
page S-3, If You Lose Your Picture
(How to Use the Recover Button).

• Make sure the remote control is in
the correct mode. For example, if
you want to use the satellite
receiver, put the remote control in

SAT mode (see Remote Control

Modes on page 1).

• Make sure you are using the
correct remote control (TV1 or
TV2) for your locations (multi­room receivers only).

• Change the batteries as described
on page S-1 in Insert the Batteries.

• See Program the Remote to
Control Your TV on page S-2 at
the beginning of this guide and

Programming for Other
Equipment on page 2.

• Set up the remote to control either
TV volume or tuner/amplifier
volume, whichever you want. See
page 7.

Your PIP
(Picture-In­Picture)
button isn’t
working.

• Your receiver
doesn’t use PIP.

• Upgrade to a receiver with this
feature.

21

LIMITED WARRANTY

This Limited Warranty is a legal document. Keep it in a safe
place. Remember to keep your Sales Receipt for warranty
service. We will consider any items you return without a copy of
the Proof of Purchase to be out of warranty.

This warranty extends only to the original user (“you,” “your”) of the DISH
Network remote control and is limited to the purchase price of the remote
control. DISH Network and its affiliated companies (“we,” “our,” “us”) warrant
this remote control against defects in materials or workmanship as follows.

For one year from the original date of purchase, if we find the remote control is
defective subject to the limits of this warranty, we will replace the remote at no
charge for parts or labor. We warrant any such work done against defects in
materials or workmanship for the remaining part of the original warranty
period.

This warranty does not cover installation of the DISH Network System;
consumer instruction; physical set up or adjustment of any consumer electronic
equipment; remote control batteries; signal reception problems; loss of use of
the equipment; unused programming charges due to equipment malfu nction;
cosmetic damage; damage due to lightning, electrical or telephone line surges,
fire, flood, or other acts of Nature; accident; misuse; abuse; repair or alteration
by other than our factory service; negligence; commercial or institutional use;
improper or neglected maintenance; equipment sold AS IS or WITH ALL
FAULTS; equipment removal or reinstallation; shipping damage if the
equipment was not packed and shipped in the manner we prescribe; nor
equipment purchased, serviced, or operated outside the contiguous United
States of America.

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE
REMEDY. WE SHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED
WARRANTY ON THIS DEVICE, NOR FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO
USE, THIS DEVICE. UNDER NO CIRCUMSTANCES SHALL OUR LIABILITY, IF
ANY, EXCEED THE PURCHASE PRICE PAID FOR THIS DEVICE. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
DEVICE IS LIMITED IN DURA TION TO THE DURATION OF THIS WARRANTY. WE
RESERVE THE RIGHT TO REFUSE TO HONOR THIS WARRANTY IF WE
DETERMINE ANY OF THE ABOVE EXCEPTIONS TO HAVE CAUSED THIS
DEVICE NOT TO HAVE PERFORMED PROPERLY. THIS WARRANTY SHALL BE
VOID IF ANY FACTORY-APPLIED IDENTIFICATION MARK, INCLUDING BUT
NOT LIMITED TO SERIAL OR CONDITIONAL ACCESS NUMBERS, HAS BEEN
ALTERED OR REMOVED. THIS WARRANTY SHALL ALSO BE VOID IF THE
DEVICE HAS BEEN OPENED BY AN UNAUTHORIZED PERSON (with the exception
of opening the battery cover).

This warranty gives you specific legal rights which may vary from state to state.
Some states do not allow the exclusion or limitations of incidental or
consequential damages, or allow limitations on the duration of an implied
warranty, so those limitations may not apply to you.

22

DISH NETWORK’S EXCHANGE PROGRAMS

DISH Network offers two options if you need to replace your remote control:
the Advanced Exchange Program and the Post Receipt Exchange Program.

Advance Exchange Program

The Advanced Exchange Program allows you to have a replacement remote
shipped immediately to you. Depending upon where you live, the remote should
arrive within 3 to 5 business days. You will not have to return your defective
remote to DISH Network using this program.

A shipping charge will be applied for shipping the replacement remote. This is a
one-time fee based on DISH Network’s competitive bulk shipping rates
(additional charges may apply outside the continental U.S.). This fee will be
charged to your billing account or valid credit card.

Post Receipt Exchange Program

The Post Receipt Exchange Program does require that you send DISH Network
the defective remote control at your cost to determine if the equipment is
covered under warranty. To provide faster service, upon receipt of your
equipment you will be shipped a replacement. Y our original equipment will not
be available for return.

If your equipment is not covered under warranty and can be repaired, your
billing account or credit card will be charged the standard repair fee for the
replacement. If damage to the defective equipment is found, which DISH
Network in its sole discretion determines has voided the warranty, or makes the
equipment unrepairable, your billing account or credit card will be charged the
market price of the replacement.

ACCESSORY WARRANTY

An accessory is any DISH Network branded equipment, displaying the DISH
Network logo, excluding the receiver, Smart Card, cables and hookups, and
non-mechanical components. A one-year warranty becomes effective upon the
activation of the DISH system or date of purchase, if bought separately. A proof
of purchase is required to verify the purchase date. If an accessory has an
expired warranty, no exchange will be issued. You may purchase replacement
accessories from DISH Network or your local retailer.

IF YOU NEED HELP

1. Review this User Guide.

2. See Troubleshooting on page 20.

3. Call the Customer Service Center at 1-800-333-DISH (3474). Have the
date of purchase and your customer account number ready.

a. If the representative finds you should return the remote control,

you’ll get a telephone number to call for a Return Authorization
(RA) number. Before shipping any equipment to us, you must get a
Return Authorization number.

b. You must package returned equipment the right way. Follow the

instructions the representative gives you.

c. Write the RA number in large, clearly visible characters on the

outside of the shipping box used to return the equipment.
To avoid confusion and misunderstandings, we will return
shipments without an RA number clearly visible on the outside of
the box to you at your cost.

23

d. We will:

• Check the remote control, including whether it is covered under

the warranty.

• Replace any remote we find is defective with a new or

refurbished remote, if the defective remote is covered under the
warranty. We will ship the replacement remote at our expense.

• If a defective remote is not covered under the warranty,

we will tell you. We may assess you a flat rate charge for a
replacement remote, including shipping and insurance.

REGULATORY FACTORS

This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including
interference that may cause undesired operation.

Changes or modifications to this device may void your authority to operate this
equipment.

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the use is
encouraged to try to correct the interference by one or more of the following
measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected. Consult the dealer or an
experienced radio/TV technician for help.

PUBLISHING INFORMATION

Copyright © 2009. EchoStar Technologies L.L.C., Englewood,
Colorado 80112. All rights reserved.

The information in this Guide may change without notice. Revisions
may be issued to tell you about such changes.

You should address comments or questions about this User Guide to:
[e-mail] or

Technical Publications, EchoStar Technologies Corporation, 90
Inverness Circle East, Englewood, Colorado 80112.

Document Number: 167821
Printed in
DISH Network is a trademark and service mark of DISH Network.
All product names, trade names, or corporate names mentioned in this

Guide are acknowledged to be the proprietary property of the
registered owners.

24

If you enter a “1” as the last number of your code,

your remote is in Limited Mode (see page 3 for more details).

To read out your remote codes, see page 9 for instructions.

For all your customer needs,

call the Customer Service Center

at 1-800-333-DISH(3474)

167821
