Project Item Number Quantity

________________________________ ______________________________ ________________

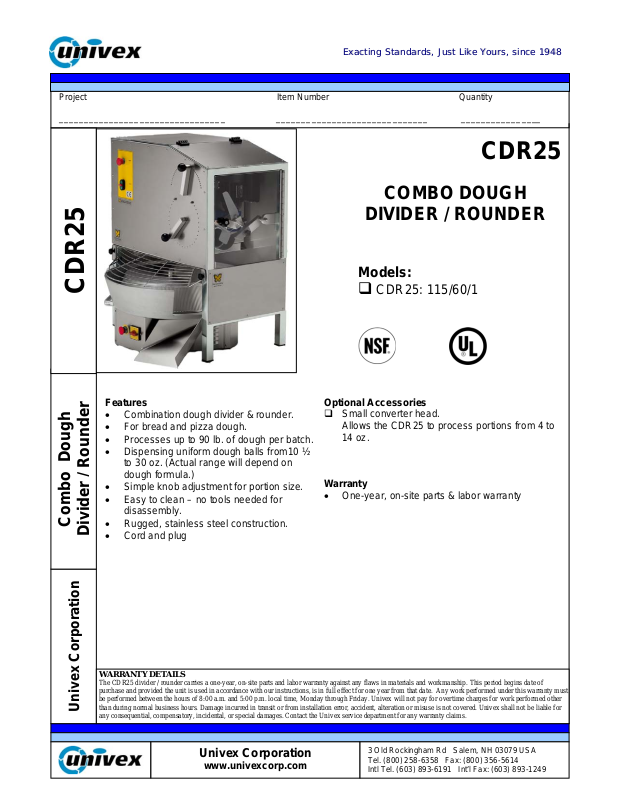

CDR25

COMBO DOUGH

DIVIDER / ROUNDER

CDR25

Models:

 CDR25: 115/60/1

Features

• Combination dough divider & rounder.

• For bread and pizza dough.

• Processes up to 90 lb. of dough per batch.

• Dispensing uniform dough balls from10 ½

to 30 oz. (Actual range will depend on
dough formula.)

• Simple knob adjustment for portion size.

• Easy to clean – no tools needed for

disassembly.

Combo Dough

• Rugged, stainless steel construction.

• Cord and plug

Optional Accessories

 Small converter head.

Allows the CDR25 to process portions from 4 to
14 oz.

Warranty

• One-year, on-site parts & labor warranty

WARRANTY DETAILS

The CDR25 divider / rounder carries a one-year, on-site parts and labor warranty against any flaws in ma terials and workmanship. This period begins date of
purchase and provided the unit is used in accordance with our instructions, is in full effect for one year from that date. Any work performed under this warranty must
be performed between the hours of 8:00 a.m. and 5:00 p.m. local time, Monday through Friday. Univex will not pay for overtime charge s for work performed other
than during normal business hours. Damage incurred in transit or from installation error, accident, alteration or misuse is not covered. Univex shall not be liable for

Univex Corporation

any consequential, compensatory, incidental, or special damages. Contact the Univex service department for any warranty claims.

Univex Corporation

www.univexcorp.com

3 Old Rockingham Rd Salem, NH 03079 USA
Tel. [phone] Fax: [phone]
Intl Tel. [phone] Int’l Fax: [phone]

EEx

x

t

t

gg

t

t

r

r

,, J

J

tt

Y

Y

r

r

,,

aac

c

n

S

a

s

s

e

u

s

iin

S

aanndda

dds

uus

LLiikke

oou

s

ssiinncce

e

COMBO DOUGH DIVIDER / ROUNDER CDR25

Dimensions

Height: 46” (117cm)
Width: 30” (76cm)
Length: 32” (82cm)
Installed Footprint: 30” wide X 32” deep

Shipping Information
Freight Class: 85
Net Weight: 408 lb. (97 kg )
Shipping Weight: 441 lb. (114 kg)
Shipping Box Dimensions:
Height: 47 1/4” (1220mm)
Width: 38 1/2" (980mm)
Depth: 36” (910mm)

Cartons are affixed to a pallet. The pallets are heat­treated and NELMA approved for international
shipping. The weight and dimensions of the pallet are
included in the weight and dimensions above.

11994

488

Capacity: 90 lb. of dough per
batch

Motor: 1.2 hp and .25 hp (two
motors) in divider unit, .5 hp in
rounder unit. Capacitor start.

Electrical:
Divider: 115/60/1 13 amps
Rounder: 115/60/1 6.5 amps

Controls: Divider: Momentary
contact STOP & two START
buttons to choose speed There is
also a red mushroom style
emergency STOP button. Dough
portions are controlled by a dough
length control lever. The optional
small converter head is controlled
by a small converter head control
lever.
Rounder: ON/OFF switch and red
mushroom style emergency STOP
button.

Dough Tank Capacity: 90 lb.
Adjustable Portion Weight

Range: 10.5 oz. (298g) to 30 oz.

(851g)

Lubrication: Self-lubricating.
Construction: Stainless steel and

anodized aluminum.

Optional Accessories:
The following are available at an
extra cost:

3110545 Small Converter Head

Allows the CDR25 to

divide and round portions
from 4 oz. (114g) to 14 oz.
(397g).

Printed in the USA 03/07
