QUICK REFERENCE GUIDE

2010 ARMADA

INSTRUMENT BRIGHTNESS CONTROL

VEHICLE INFORMATION DISPLAY

LOW TIRE PRESSURE WARNING LIGHT

HEADLIGHT AND TURN SIGNAL CONTROL

WINDSHIELD WIPER / WASHER SWITCH

STEERING WHEEL SWITCHES FOR AUDIO CONTROL/BLUETOOTH姞

*See your Owner’s Manual for more information.

CRUISE CONTROL

POWER LIFTGATE SWITCH (IF SO EQUIPPED)*

POWER VENT WINDOWS (IF SO EQUIPPED)*

PEDAL POSITION ADJUSTMENT SWITCH

REAR OR FRONT AND REAR SONAR SYSTEM OFF SWITCHES (BEHIND STEERING WHEEL)

STEERING WHEEL TILT ADJUSTMENT*

HOOD RELEASE*

CONTROL PANEL DISPLAY

AUDIO SYSTEM

CLIMATE CONTROLS

FRONT-PASSENGER AIR BAG STATUS LIGHT

AUXILIARY AUDIO INPUT JACK*

TOW MODE SWITCH (IF SO EQUIPPED)

VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH

HEATED SEAT SWITCHES (IF SO EQUIPPED)*

Remote Keyless Entry System (if so equipped)................2

NISSAN Intelligent Key™ (if so equipped) ...................3

Automatic Door Locks ..............................4

Windshield Wiper/Washer Switch .......................4

Headlight and Turn Signal Control .......................5

Steering Wheel Switches for Audio Control/Bluetooth姞 (if so equipped)

Cruise Control ...................................6

Automatic Climate Control............................7

Rear Climate Control Dials ...........................9

FM/AM/XM姞* Radio with CD Player (if so equipped) ............9

CompactFlash姞 (CF) Player Operation (if so equipped)..........11

Music Box™ Hard-Disk Drive Audio System (if so equipped) .......12

Control Panel Display with Navigation System (if so equipped) .....12

RearView Monitor (if so equipped) ......................13

Clock Set/Adjustment .............................13

Vehicle Information Display...........................14

Instrument Brightness Control/Trip Change Button ............14

Automatic Drive Positioner (if so equipped) .................14

Pedal Position Adjustment Switch ......................15

Four-Wheel Drive (4WD) Shift Switch (if so equipped) ..........16

Vehicle Dynamic Control (VDC) OFF Switch ................16

Tow Mode Switch (if so equipped) ......................16

Front Passenger Air Bag Status Light ....................17

Tire Pressure Monitoring System (TPMS) ..................17

Seat Belt Warning Light and Chime .....................17

TABLE OF CONTENTS

Sonar System Off Switches (if so equipped) ................18

Child Safety Rear Door Lock .........................18

Outside Mirror Control Switch.........................18

Moonroof Controls (if so equipped) .....................19

Front Seat Adjustments ............................19

Adjusting and Folding the 2nd Row Seat ..................20

Tip Up for Easy Entry to the 3rd Row.....................21

Folding the 3rd Row Split Bench Seat (if so equipped) ..........21

3rd Row Power Folding Seats (if so equipped) ...............21

HomeLink姞 Universal Transceiver (if so equipped) .............22

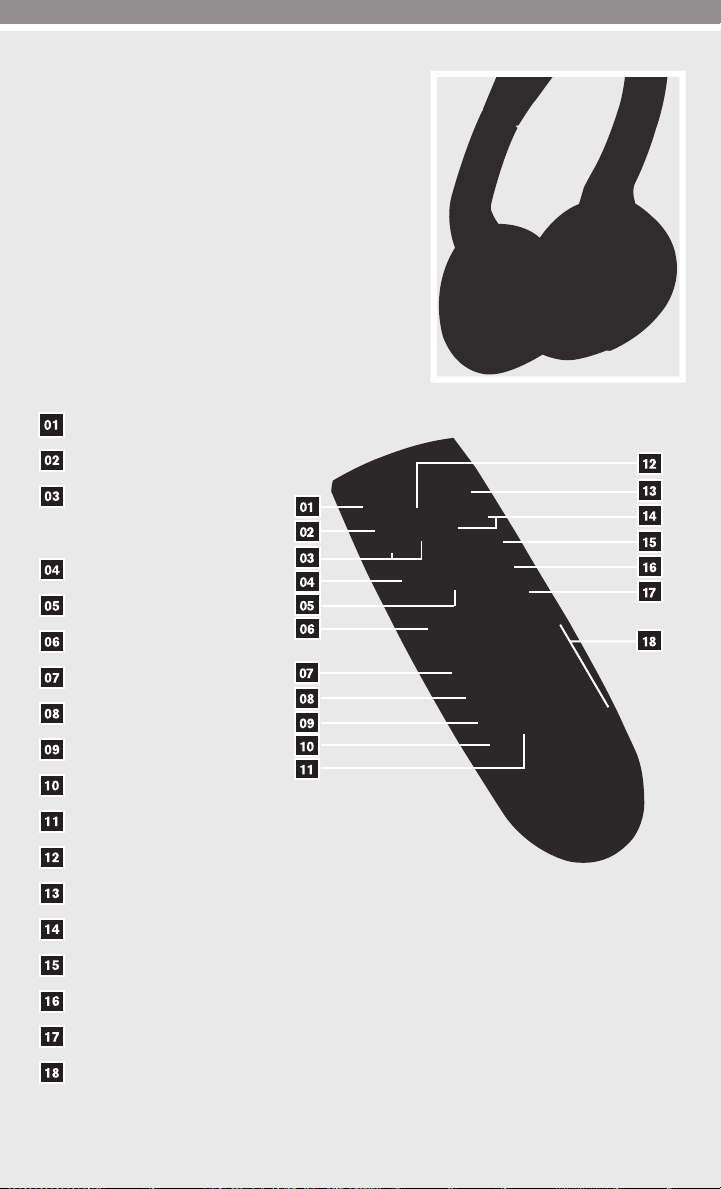

NISSAN Mobile Entertainment System (if so equipped) ..........23

Bluetooth姞 Hands-Free Phone System (Without Navigation System –

if so equipped)..................................27

Bluetooth姞 Hands-Free Phone System (Navigation System only –

if so equipped)..................................30

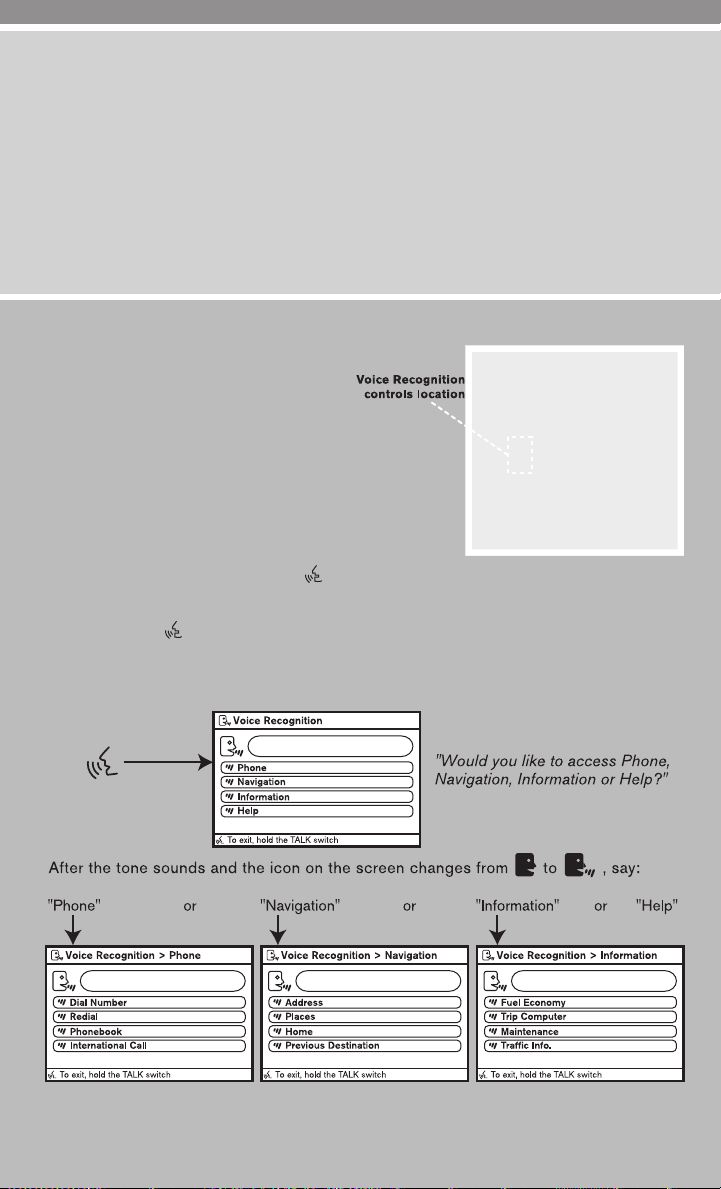

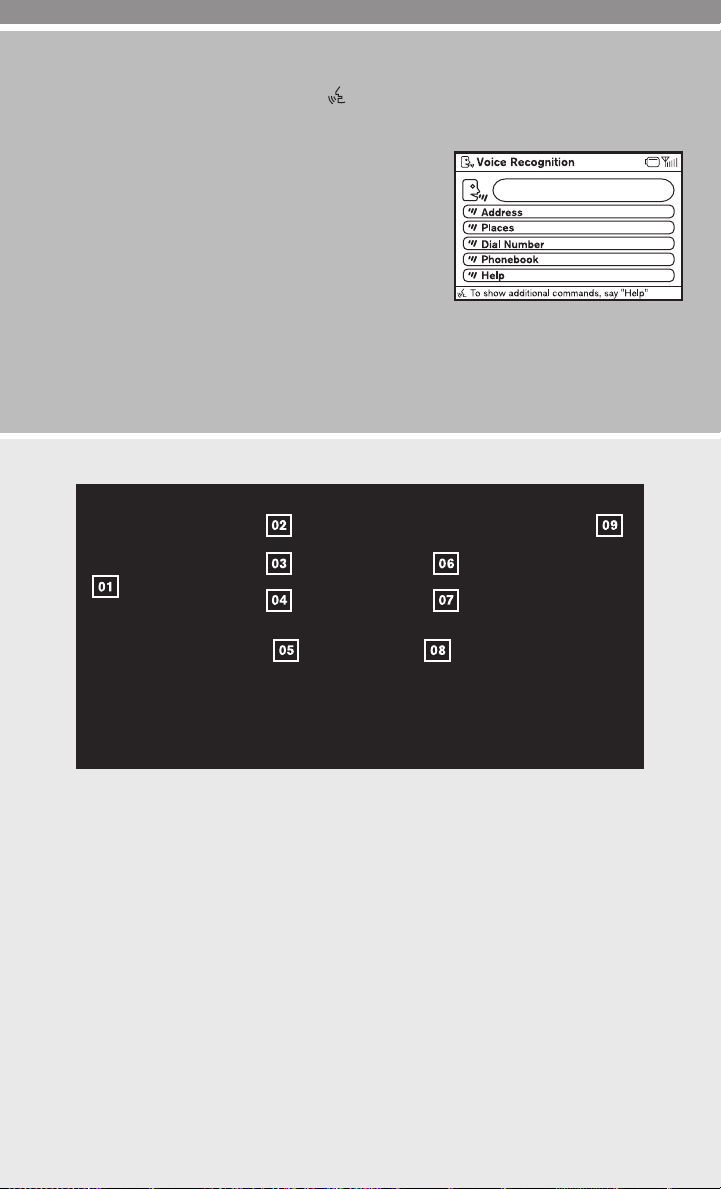

NISSAN Voice Recognition System (Navigation System only) ......33

Navigation System (if so equipped)......................38

This easy-to-use Quick Reference Guide is intended to help you more fully appreciate some of the unique features and functions of your new vehicle. However, it is not intended to replace your Owner’s Manual. The Owner’s Manual contains more detailed information to help you better understand the important safety warnings, features, operation and maintenance of your vehicle. All information, specifications, photographs and illustrations in this publication are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.

..................................6

REMOTE KEYLESS ENTRY SYSTEM (if so equipped)

LOCK DOORS

Press the

UNLOCK DOORS

Press the only. Press the button again within 5 seconds to

unlock all doors.

OPEN WINDOWS

Press and hold the (The keyfob is not able to close the windows after opening them.)

POWER LIFTGATE (if so equipped)

Press and hold the power liftgate. The hazard lights will flash and a chime will sound to indicate that the

power open or power close sequence has started. If you press the button again, the liftgate will reverse direction immediately; a chime will sound to indicate the reversal.

button to lock all doors.

button once to unlock the driver’s door

button longer than 3 seconds to open the front windows.

button for longer than 0.5 seconds to open or close the

SILENCING THE HORN BEEP FEATURE

Using the keyfob:

䡲 To deactivate: Press and hold the

䡲 To activate: Press and hold the

Using the control panel display:

䡲 If you change the horn beep feature with the keyfob, the display screen will not show the

current mode. Use the keyfob to return to the previous mode and set horn beep feature using the control panel.

䡲 Press the SETTING button on the control panel.

䡲 Select “Comfort & Convenience”.

䡲 Press ENTER .

䡲 Select “Remote Key Response Horn”.

䡲 Set operation conditions to turn horn beep ON or OFF when unlocking the vehicle with

the keyfob.

and buttons for at least 2 seconds.

NISSAN INTELLIGENT KEY™ (if so equipped)

The NISSAN Intelligent Key™ allows you to lock or unlock your vehicle, open your lift gate and start the engine.

NOTE: It is important to make sure the Intelligent Key is with you (that is, in your pocket or purse).

䡲 The operating range of the door and lift gate lock/unlock

function is approximately 31 in (0.8 m).

䡲 Locking the vehicle - Push any door handle Request

Switch

䡲 Unlocking the vehicle - Push any door handle Request

Switch

Push the door handle Request Switch 30 seconds; all other doors, including the liftgate and

liftgate glass, will unlock.

It is also possible to change the default settings of the Intelligent Keyunlock/lock by using the Comfort & Convenience mode under Settings in the control panel.

once.

once. The corresponding door will unlock.

again within

STARTING THE ENGINE

䡲 Push the ignition switch in.

䡲 Confirm KEY DETECTED appears in the Vehicle Information

Display.

䡲 Turn the ignition switch to the START position.

TURNING THE ENGINE OFF

䡲 Shift the transmission into P (Park).

䡲 Place the ignition switch in the LOCK position.

䡲 An audible warning chime will sound when exiting the vehicle if the ignition switch is not

completely placed in the OFF position.

SILENCING THE HORN BEEP FEATURE

Using the keyfob:

䡲 To deactivate: Press and hold the

䡲 To activate: Press and hold the and buttons for at least 2 seconds.

Using the control panel display:

䡲 If you change the horn beep feature with the keyfob, the display screen will not show the

current mode. Use the keyfob to return to the previous mode and set horn beep feature using the control panel.

䡲 Press the SETTING button on the control panel.

䡲 Select “Comfort & Convenience”.

䡲 Press ENTER.

䡲 Select “Remote Key Response Horn”.

䡲 Set operation conditions to turn horn beep ON or OFF when unlocking the vehicle with

the keyfob.

and buttons for at least 2 seconds.

AUTOMATIC DOOR LOCKS

䡲 All doors lock automatically when the vehicle speed reaches 15 MPH (24 km/h).

䡲 All doors unlock automatically when the ignition switch is placed in the OFF position

(Intelligent Key equipped vehicles) or when the key is removed from the ignition switch (non-Intelligent Key equipped vehicles).

The automatic lock and unlock functions can be deactivated or activated independently of each other. To deactivate or activate the automatic door lock or unlock

system, perform the following procedure:

1. Close all doors.

2. Place the ignition switch in the ON position.

3. Do one of the following within 20 seconds of performing Step #2:

● To change AUTO UNLOCK settings: push and hold the power door lock switch to the

position (UNLOCK) for more than 5 seconds.

● To change AUTO LOCK settings: push and hold the power door lock switch to the

position (LOCK) for more than 5 seconds.

4. When activated, the hazard warning lights will flash twice. When deactivated, the hazard warning lights will flash once.

5. The ignition switch must be placed in the OFF and ON position again between each setting change.

WINDSHIELD WIPER/WASHER SWITCH

䡲 The ignition switch must be in the ON position to

activate the windshield wipers.

䡲 Move the lever to the following positions to oper-

ate the windshield wipers:

Intermittent (INT) – Front wipers operate intermittently and can be further adjusted by

twisting the time control ring

Low Speed (LO) – Continuous low-speed operation of front wipers.

High Speed (HI) – Continuous high-speed operation of front wipers.

Mist (MIST) – Lift the lever up for one sweep of the front wipers.

Rear Wipers (REAR) – Twist the end section to operate the first (INT) or second (ON) speed settings for the rear wipers.

䡲 The washer function activates the washer fluid and several sweeps of the wipers:

● For FRONT WASHER, pull lever toward you.

● For REAR WIPER, push lever away from you.

HEADLIGHT AND TURN SIGNAL CONTROL

TO ACTIVATE THE AUTOLIGHT SYSTEM:

Turn the headlight control switch to activate the autolight system. The autolight system can:

䡲 Turn the headlights on automatically when it is dark.

䡲 Turn the headlights off automatically when it is light.

䡲 Keep the headlights on for 45 seconds after you place the ignition switch in the OFF

position and all doors are closed.

to the AUTO position

TO DEACTIVATE THE AUTOLIGHT SYSTEM:

䡲 Turn the headlight control switch to the OFF , or position.

HEADLIGHT CONTROL SWITCH

䡲 Turn the headlight control switch to the position to turn on the front parking,

tail, license plate and instrument panel lights.

䡲 Turn the headlight control switch

other lights remain on.

to the position to turn on the headlights. All

FOG LIGHT OPERATION

䡲 Turn the switch (inside collar) to the

䡲 Turn the switch (inside collar)

to the OFF position to turn off the fog lights.

HIGH BEAM

䡲 Push the headlight control switch forward to

select the high beam function. The blue cator light illuminates. Pull the headlight switch

back to the original position to select the low beam. The blue

䡲 Pull and release the headlight control switch

and off.

indicator light goes off.

position to turn on the fog lights.

indi-

to flash the headlight high beams on

STEERING WHEEL SWITCHES FOR AUDIO CONTROL/ BLUETOOTH姞 (if so equipped)

䡲 Press the MODE button to turn the radio system on.

䡲 To choose Preset A, B, C, Music Box™ (if so equipped), CD,

XM姞 (if so equipped), CompactFlash姞 (if so equipped) or DVD (if so equipped), press MODE repeatedly.

䡲 The tuning up or down

following:

● Push the

preset station.

● Push and hold the

seek the next or previous broadcasting radio station.

● Push the

seconds to change tracks on the CD/CF card.

● If the vehicle is equipped with a CD changer, push and hold the

than 1.5 seconds to change between CDs.

● If the vehicle is equipped with the Music Box, push and hold the

than 1.5 seconds to change between playlists.

䡲 Push the VOL control switch up or down to increase or decrease the volume.

switch for less than 1.5 seconds to change to a

switch while playing a CD/CF card (if so equipped) for less than 1.5

switch can be used to perform the

switch for more than 1.5 seconds to

switch for more

CRUISE CONTROL

䡲 To activate the cruise control, push the ON·OFF switch. The

indicator light in the Vehicle Information Display will illuminate.

䡲 To set cruising speed, accelerate the vehicle to the desired

speed, push the COAST·SET switch and release it. The SET indicator light in the Vehicle Information Display will illuminate.

䡲 To reset at a faster cruising speed, push and hold the

ACCEL·RES switch. When the vehicle attains the speed you desire, release the switch.

䡲 To reset at a slower cruising speed, push and hold the COAST·SET switch. Release the

switch when the vehicle slows to the desired speed.

䡲 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET

indicator light in the Vehicle Information Display will go out.

䡲 To resume a preset speed, push and release the ACCEL·RES switch. The vehicle

returns to the last set cruising speed when the vehicle speed is over 25 MPH (40 km/h).

䡲 To turn off cruise control, push the ON·OFF switch. Both the CRUISE indicator light and

the SET indicator light in the Vehicle Information Display will go out.

AUTOMATIC CLIMATE CONTROL

AUTO BUTTON

䡲 Press the AUTO button

. Turn the driver’s side temperature control dial to

the desired temperature. This will allow the fan speed, air flow distribution and temperature to be automatically maintained at the selected temperature.

䡲 To disable auto mode, press the MODE button

button

䡲 Press the DUAL

or press the front defroster control button .

button to turn the passenger’s side temperature controls on or

, press the fan speed control

off. This will allow the passenger’s side temperature to be adjusted independently from the driver’s side control.

䡲 When AUTO is pressed, AUTO will be displayed. When DUAL is pressed, DUAL

will be displayed.

DRIVER’S SIDE TEMPERATURE CONTROL DIAL/AUTO MODE

Turn the driver’s temperature control dial left for cold air or right for hot air.

PASSENGER’S SIDE TEMPERATURE CONTROL DIAL/DUAL MODE

Turnthe passenger’s temperature control dial left for cold air or right for hot air. Doing so will activate dual mode.

AIR FLOW/MODE BUTTON

Press the MODE button repeatedly to select the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side, and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.

Air flows mainly from the defroster vents.

FAN SPEED CONTROL BUTTONS

Press

(slower) or (faster) button to control fan speed. Press AUTO to

automatically control fan speed. Press OFF to turn the climate control off.

DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS

䡲 Press the defroster control button

to turn the system on. The A/C automatically

turns on when the defroster mode is selected.

䡲 Turn the driver’s side temperature control dial

left or right to set the desired

temperature.

䡲 To set the defroster on high, press and hold the

button until fan speed

increases.

DEFROSTING/DEFOGGING REAR WINDOW AND OUTSIDE HEATED MIRROR (if so equipped).

Push the rear window defroster switch

on. Push the switch again to manually turn

the defroster off. This function automatically turns off in approximately 15 minutes.

A/C ON/OFF BUTTON

Press the A/C button to manually turn the A/C on or off.

AIR RECIRCULATION BUTTON

䡲 Press the air recirculation button

to recirculate air inside the vehicle.

䡲 Press the air recirculation button

again to turn air recirculation off.

䡲 The air recirculation mode can only be selected if the air flow control mode is in the

following positions:

or .

REAR CLIMATE CONTROL DIALS

To adjust the climate control system for rear seat passengers, use the dials on the overhead console.

REAR FAN SPEED CONTROL DIAL

REAR TEMPERATURE CONTROL DIAL/REAR CTRL BUTTON

Press the REAR CTRL button to transfer rear climate functions to the rear passengers.

AIR FLOW/MODE BUTTONS

Press to select the following air flow outlets:

Air flows from the ceiling and foot vents.

Air flows from the ceiling vents.

Air flows mainly from the foot vents.

FM/AM/XM姞* RADIO WITH CD PLAYER (if so equipped)

PRESET A·B·C BUTTON

Press the PRESET A·B·C button until you reach the desired setting. The radio is equipped with three separate banks, each with six station presets. You may store any combination of FM, AM or XM姞 radio presets on each bank.

DISC/AUX BUTTON

Press the DISC/AUX button to play a CD loaded into the CD player. Press the DISC/AUX button again to play a compatible device such as an MP3 player when it is

plugged into the auxiliary jacks located below the climate controls (cable not included). Press the DISC/AUX button again to play a DVD loaded into the DVD player (if so equipped). Press the DISC/AUX button again to play the CompactFlash姞 Drive, if a card is in the drive.

NOTE: You may need to adjust the volume on any compatible device plugged into the auxiliary jack to find the most desired sound level of the audio system.

AM·FM/SAT BUTTON

Pressing the AM·FM/SAT button will change the band to either FM, AM or XM姞 radio stations.

STATION SELECT BUTTONS

To store a radio station in a preset, you must first select the FM, AM or SAT (if so equipped) radio band by pressing the AM·FM/SAT button and tuning to the desired FM, AM or XM姞 station. Then press and hold the desired station select button for at least 2 seconds. When the preset indicator illuminates, a beep will sound, indicating memorization is complete. To retrieve a previously set station, select the memory bank where the preset was set, then press the corresponding station select button.

EJECT BUTTON

Press the

button; the CD will eject.

SCAN·RPT BUTTON

䡲 Press the SCAN·RPT button while listening to a radio station (FM, AM or XM姞). The

radio will stop for 5 seconds at each station that has significant signal strength. Pressing the SCAN·RPT button again during this 5-second period will stop scan tuning and the radio will remain tuned to that station. If the SCAN·RPT button is not pressed within 5 seconds, scan tuning moves to the next station.

䡲 To change the play pattern of the CD, CompactFlash姞 (if so equipped) or Music Box

Hard-Disk Drive Audio System (if so equipped), press the SCAN·RPT button.

SEEK/CAT AND TRACK BUTTONS

䡲 To scan quickly through each broadcasting station, press the SEEK/CAT or the

TRACK button.

䡲 To skip from one track to another on a CD, press the SEEK/CAT or the TRACK

button. Each time the button is pressed, the CD will advance or skip back one track.

䡲 When the SEEK/CAT or the TRACK button is pressed and held while a CD is

playing, it will rewind or fast forward. When the button is released, the CD will play at normal speed.

TUNE/FOLDER AND AUDIO KNOB (Bass, Treble, etc.)

䡲 To manually tune the radio, turn the TUNE/FLDR knob. If playing a CD that is

formatted with MP3/WMA folders, turn the TUNE/FLDR knob to scroll through the available folders.

䡲 Adjust the Bass, Treble, Fade and Balance by pressing the AUDIO knob until the

desired mode appears in the display. Then turn the AUDIO knob to adjust to the desired level.

*XM姞 Satellite Radio is only available on vehicles equipped with optional XM姞 satellite subscription service.

COMPACTFLASH姞 (CF) PLAYER OPERATION (if so equipped)

Place the ignition switch in the ACC or ON position and insert a CF card into the

CompactFlash姞 player slot press the DISC/AUX button repeatedly

to switch to the CompactFlash姞 mode.

PLAYING THE COMPACTFLASH姞 CARD

The CompactFlash姞 player can only play MP3s and WMAs stored on the CompactFlash姞 card.

. Then

Select the CompactFlash姞 player by using one of the following methods:

䡲 Press the MODE select button on the steering wheel.

䡲 Press the DISC/AUX button.

䡲 Give voice commands.

SEEK/CAT AND TRACK BUTTONS

䡲 Press the SEEK/CAT button or the TRACK button while the CF card is being played;

the next track or the beginning of the current track on the CF will be played.

䡲 Press and hold the SEEK/CAT (rewind) button or the TRACK (fast forward) button for

more than approximately 1.5 seconds; the CF card will play while rewinding or fast forwarding. When the SEEK/CAT (rewind) button or the TRACK (fast forward) button is released, the CF card will return to the normal playing speed.

The NISSAN controller can also be used to select tracks when the CF card is being played.

EJECTING THE CF CARD

Press the knob next to the CF slot

while a CF card is inserted; the CF card will be

ejected.

MUSIC BOX™ HARD-DISK DRIVE AUDIO SYSTEM (if so equipped)

The Music Box hard-disk drive audio system can store songs from CDs being played. The system has a 9.3 gigabyte (GB) storage capacity and can record up to 200 hours

(approximately 2,900 songs).

RECORDING CDS

The system will not record MP3 or WMA files, only regular formatted CDs.

1. Turn on the audio system and insert a CD.

2. Touch the “REC” key. The system starts recording and playing the first track on the CD and REC CD appears on the screen.

PLAYING RECORDED SONGS

Select the Music Box audio system by using one of the following methods:

䡲 Press the MODE select button on the

steering wheel.

䡲 Press the MUSIC BOX button on the

control panel.

䡲 Give voice commands.

SEEK/CAT AND TRACK BUTTONS

䡲 Press the SEEK/CAT button or the TRACK button while a track is being played; the

next track or the beginning of the current track will be played.

䡲 Press and hold the SEEK/CAT (rewind) button or the TRACK (fast forward) button for

more than approximately 1.5 seconds; the track will play while rewinding or fast forwarding. When the SEEK/CAT (rewind) button or the TRACK (fast forward) button is released, the track will return to the normal playing speed.

䡲 Turn the TUNE/FLDR knob to change to another album or artist.

䡲 The NISSAN controller can also be used to select tracks.

CONTROL PANEL DISPLAY WITH NAVIGATION SYSTEM (if so equipped)

INFO BUTTON

When the INFO button is pressed, the following information modes will display on the screen:

䡲 Warning Messages (if there are any)

䡲 Fuel Economy (Distance to Empty, Average

Fuel Economy, Fuel Economy Record)

䡲 Tire Pressure (View vehicle’s tire pressure)

䡲 Trip Computer (Elapsed Time, Driving Dis-

tance, Average Speed)

䡲 Maintenance (Customize up to four mainte-

nance intervals)

MAINTENANCE ITEMS

You can set up to four different maintenance interval items. To display the setting of the maintenance interval, select one of the four “Reminder” keys using the NISSAN controller and press the ENTER button. To set the maintenance interval, select the “Interval” key using the NISSAN controller and press the ENTER button. Use the NISSAN controller to change the interval; press the BACK button to accept the changes. To reset the maintenance interval, select the “Reset Distance” key using the NISSAN controller and press the ENTER button.

DISPLAY SCREEN SETTINGS

The SETTINGS screen will appear when the SETTING button is pressed. Select the “Display” key using the NISSAN controller and press the ENTER button to choose from various display screen options. The “Display” key will allow you to adjust the information shown on the display screen, such as brightness or contrast.

REARVIEW MONITOR (if so equipped)

When the shift selector is moved to the R (Reverse) position, the monitor display will automatically change to show the area directly behind the vehicle.

The colored lines on the display screen indicate approximate distances to objects.

䡲 Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and

10 ft (3 m).

CLOCK SET/ADJUSTMENT

NAVIGATION SYSTEM ONLY (if so equipped)

Press the SETTING button, then select the “Clock” key using the NISSAN controller and press the ENTER button to access the following clock settings:

䡲 On-screen Clock – When this item is

turned to ON, a clock is always displayed in the upper right corner of the screen. The clock is automatically adjusted by the GPS system.

䡲 Clock Format – Choose either the 12-

hour clock display or the 24-hour clock display.

䡲 Offset Adjust – Adjust the time by increasing or decreasing per minute.

䡲 Daylight Saving Time – Turn this item to ON for daylight saving time application.

䡲 Time Zone – Choose the time zone.

VEHICLE INFORMATION DISPLAY

When the INFO button is pressed, the following modes will display on the screen:

䡲 Warnings (if there are any)

䡲 Range (average distance to empty)

Rotate the dial button to enter the highlighted mode.

to highlight the desired mode. Press the INFO

INSTRUMENT BRIGHTNESS CONTROL/TRIP CHANGE BUTTON

䡲 The instrument brightness control operates when the headlight

control switch is in the

䡲 Turn the control to adjust the brightness of the instrument panel

lights.

䡲 Press the change button to select trip computer features.

or position.

AUTOMATIC DRIVE POSITIONER (if so equipped)

The automatic driver positioner system has two features:

䡲 Memory storage function.

䡲 Entry/exit function.

MEMORY STORAGE FUNCTION

Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.

SET THE DESIRED POSITIONING

1. Place the shift selector in the P (Park) position.

2. Place the ignition switch in the ON position and adjust the driver’s seat, accelerator and brake pedals, and outside mirrors to the desired positions.

3. Press the SET (memory) button and within 5 seconds press the position button (1 or 2) until the indicator light illuminates. The position is now stored in memory.

+ 36 hidden pages
