Congratulations!

Congratulations on purchasing Universal Remote Control’s WR7 7-Component Pre--Programmed and Learning remote control. You now have the power to control your entire home entertainment system with one easy--to--use remote. The WR7 can be used with thousands of audio/video components because of the extensive library of codes that have already been programmed into the remote. So... get ready to sit back, relax, and simplify your home entertainment experience.

This Owner’s Manual is designed to assist you in programming your WR7 remote to work with your components by guiding you through an easy step-by-step process. Everything you need to know about programming the WR7 is contained in this Manual.

WR7 Owner’s Manual

2008 Universal Remote Control, Inc.

This document is protected by the copyright laws of the United States and internationally by the Berne Convention. No part of this manual may be reproduced in any form without the express written consent of Universal Remote Control, Inc. Although reasonable care has been taken to assure the accuracy of the information herein contained, Universal Remote Control, Inc. is not responsible for operational, technical or editorial errors or omissions. The specifications and information in this manual may be subject to change without notice. MacroPower and SimpleSound are trademarks of Universal Remote Control, Inc. Entertainment Made Simple

is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective owners.

UNIVERSALUNIVERSAL

remote controlremote control

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

The Pioneer in Control Technology

WR7 1/13/08 12:18 PM Page 2

Page 3

Table of Contents

Getting Started - Overview

• Control up to 7 Components………………….......5

• Activating Component Buttons………………….....5

• Learning Capability……………………………........5

• AUX Function………………………......................6

• Light Button......................................................6

• Battery Installation............................................6

• Low Battery Warning…………………………........6

• Couch Mode……….………….........…...............6

Special Advanced Features

• MacroPower™ & Other Macros…………….........7

• ‘My Favorites’ - Favorite Channels…………….......7

• SimpleSound™ & Other ‘Punch Throughs’...........7

Keypad Layout & Button Functions.......8

Programming WR7 Using

Pre-Programmed Codes.......................9

• Quick Set-Up Method........................................9-10

• Three-Digit Code Entry Method...........................11-13

• Auto-Search Method.........................................14-15

Programming WR7 Using the

Learning Method...............................16-18

AUX Function: Programming a 7th

Component........................................19

Finding a Component’s Set-Up

Code Number....................................19-20

WR7 1/13/08 12:18 PM Page 3

Page 4

Programming Special Advanced Features

• MacroPower

™

Total System On/Off......................21-22

• ‘My Favorites’ – Favorite Channels......................23-24

• SimpleSound

™

Total System Volume Control...........25-26

• Channel Control ‘Punch Through’.........................27

• Transport Control ‘Punch Through’........................28

• OSD (On-ScreenDisplay) Control ‘Punch Through’.......29

Erasing Commands - Overview.............30

• Erasing a Single Learned Command.....................30

• Erasing All Learned Commands from

One Component................................................31

• Erasing MacroPower & Other

Macro Commands..............................................32

• Erasing SimpleSound & Other ‘Punch

Through’ Commands...........................................33

• Factory Reset......................................................34

Pre-Programmed Code Tables ..............31

• AUDIO ............................................................36

• CD .................................................................37

• VCR/DVR ........................................................38-39

• AUX ...............................................................40

• TV ...................................................................41-43

• DVD ................................................................44-45

• CABLE/SAT ......................................................46

FAQs ................................................47

Warranty ..........................................48

Specifications ....................................48

WR7 1/13/08 12:18 PM Page 4

Page 5

Getting Started - Overview

Control up to 7 Components

The WR7 remote control is designed to control up to seven different Audio/Video components and operate virtually all brands of AUDIO, TV, DVD, VCR/DVR, CD, SAT/CABLE and AUX (Light, Music Server, etc.) components.

Activating Component Buttons

Once you have programmed the WR7 for all of your components, all you need to do is press a component button and all the buttons on the WR7 will work with that component. For example, when you press the TV component button, all the buttons on your WR7 will operate your TV. If you press the DVD component button, all the buttons on the WR7 will operate your DVD.

Each time you press any of the buttons on the remote, the LED light in the component button will light up to indicate which component you are controlling.

Learning Capability

The WR7 has the ability to ‘learn’ functions from the original remote controls of other manufacturers, even if they are not in the Pre-programmed database.

TV BUTTON

WR7 1/13/08 12:18 PM Page 5

Page 6

AUX Function

The AUX (Auxillary) button is designed to operate a 7th audio/video component that you may have in your system… such as a TIVO, a second VCR or DVD, or an additional audio component.

Light Button

The WR7 features a fully backlit keypad for ease of use in low light or darkened viewing conditions. Press the LIGHT button to backlight all the keypad buttons. Press again to turn off (or simply wait 10 seconds for automatic shut-off).

Battery Installation

Press the tab and remove the cover of the battery compartment located in the back of your remote. Insert the two AA Alkaline batteries (included in the package) making sure to match the positive (+) and negative (- ) symbols as shown in the diagram. Place the cover back over the battery compartment.

INSERT BATTERIES

CORRECTLY

Low Battery Warning

When the batteries are low and need to be replaced the component LED will quickly blink three times when you press the POWER [ON] button.

Couch Mode

The WR7 is designed to automatically turn itself off if a button is pressed for more than 30 seconds. This prevents battery power from being depleted should the remote accidentally slip between the couch cushions.

WR7 1/13/08 12:18 PM Page 6

Page 7

Special Advanced Features

The WR7 also offers the following special advanced features that can offer you many time-saving conveniences:

MacroPower™& Other Macro Buttons

MacroPower is a unique feature that enables you to turn all your components ON or OFF, all at the same time, simply with the press of one button. The WR7 has 13 Macro buttons that are designed to store up to 20 commands in each button. Pressing any one of the Macro buttons will send out the series of commands that are stored in that button.

‘My Favorites’ (Favorite Channels)

This is one of the most desirable features of the WR7 remote control. Once it’s set up, you can select one of four favorite channels with the press of one button – without the need to type in a channel number. So, whether it’s CNN or the Food Network, your favorite viewing spot is just one click away.

SimpleSound™& Other ‘Punch Throughs’

SimpleSound Volume Control is a dynamic feature that gives you total volume control over all the components in your system, even those that do not have their own built--in volume control, such as TIVO, DVD and VCR... saving you the hassle and inconvenience of constantly needing to switch between component modes on the remote. As an example, in order to increase the volume while watching a DVD, you would typically have to pick up the TV remote control to increase the volume. With the WR7, you do not even have to press the TV component button. Once you program SimpleSound in your DVD mode, you will automatically have TV volume control in DVD mode.

SimpleSound is what is called a ‘Punch Through’ feature and is not limited to volume control. It can also be applied to Channel Control, Transport Control, and OSD Control.

WR7 1/13/08 12:18 PM Page 7

Page 8

Keypad Layout &

Button Functions

Allows you to turn the selected component on and off.

SYSTEM OFF

Designed to send Power

On/Off commands for

up to seven components

with one button press.

Displays FAVORITE CHANNEL listings through the SAT/CABLE set top box.

Used to select the component you want to operate and signals remote control activity.

Displays the Applications Menu through the Cable Set Top Box.

Displays the Program Guide Listings provided by the Cable or Satellite Service Provider.

Used for programming steps and on-screen navigation and highlighting.

Displays information about

the program currently playing or highlighted in the Program Guide (see GUIDE).

Selects highlighted screen options.

Use to enter

code numbers for

programming components and to enter channel numbers to tune in channels. Also used to make numeric entries on on-screen menus. The alpha labels on the keys refer to Audio component functions that can be accessed with the respective keys.

NUMBER

PAD

Press to

back-light all

keypad buttons.

Press again to shut off (or simply wait

10 seconds for automatic shut-off).

LIGHT

BUTTON

Raises or lowers the sound volume.

VOLUME

Custom-programmable

Favorite Channel Buttons

FAVORITES

Skip forward or backward a whole day in the Program Guide.

Perform standard VCR and DVD functions when in VCR and DVD mode, or VOD (Video-On-Demand) and DVR (Digital Video Recorder) functions when in Cable mode.

TRANSPORT

CONTROLS

AUD, CD, VCR,

AUX, TV, DVD,

SAT/CABLE

PREVIOUS CHANNEL

Selects the video source from available components.

Returns to the previously tuned channel through the SAT/Cable Set Top Box.

GUIDE

INPUT

FAVORITE

Silences the Audio. Press to activate. Press again to restore sound to the previous level.

Selects the next

higher or lower channel.

MUTE

CHANNEL

INFO

Exits from current screen.

EXIT

CURSOR

NAVIGATION

PAD

SELECT

SKIP-/+

WR7 1/13/08 12:18 PM Page 8

Page 9

Programming WR7 using

Pre-Programmed Codes

There are three ways you can program your WR7 using the component brand codes that are pre-programmed into the remote.

• Quick Set-Up Method

• Three-Digit Code Entry Method

• Auto--Search Method

The Quick Set-Up Method is a unique new feature that enables the fastest and easiest set-up by using one-digit codes for up to 10 major brands for each component. The Three-digit Code Entry Method allows you to set-up the WR7 using 3-digit codes for component brand names. It is also a fast and easy way to program the remote. The Auto-Search Method scans through all the brands in the remote control, one at a time. It should be used when either the Quick Set-Up or Three-Digit Code Entry Methods do not work.

* * *

Quick Set--Up Method

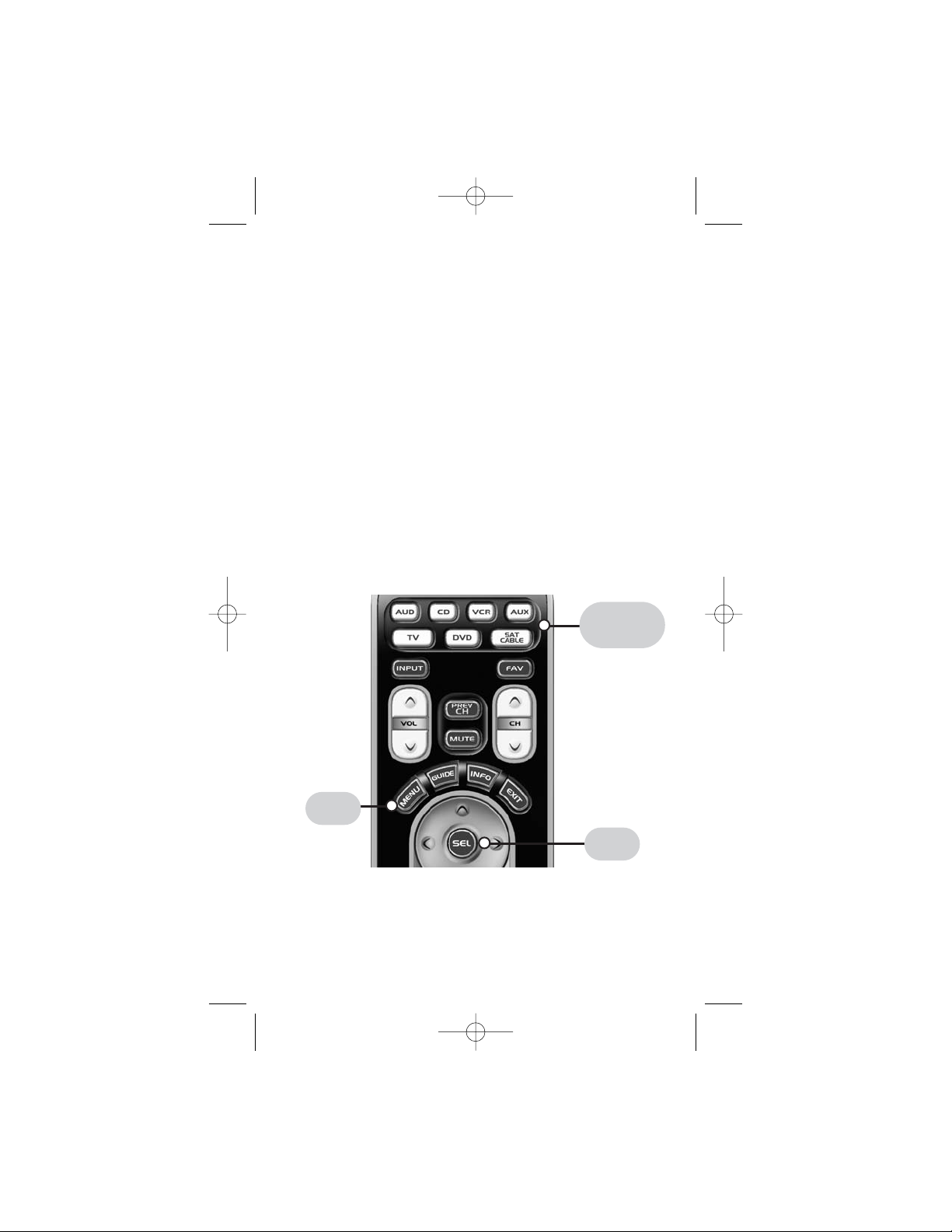

STEP 1: Manually or using your old remote, turn on the component you want to program—for example, to program your TV, turn on your TV set.

STEP 2: Point the WR7 toward the component that you want to program (in this case the TV set) and press and hold the component button (in this case the TV button). While holding down the component button, begin to press numeric keys, one number at a time, starting from 1, continuing to 2, 3…0 until the component (in this case the TV) turns off.

WR7 1/13/08 12:18 PM Page 9

Page 10

STEP 3: Release the component button to save the code. The component LED light will blink three times to confirm that the code has been stored.

Repeat the above steps for other components.

COMPONENT

BUTTONS

NUMBER

PAD

WR7 1/13/08 12:18 PM Page 10

Page 11

Three-Digit Code Entry Method

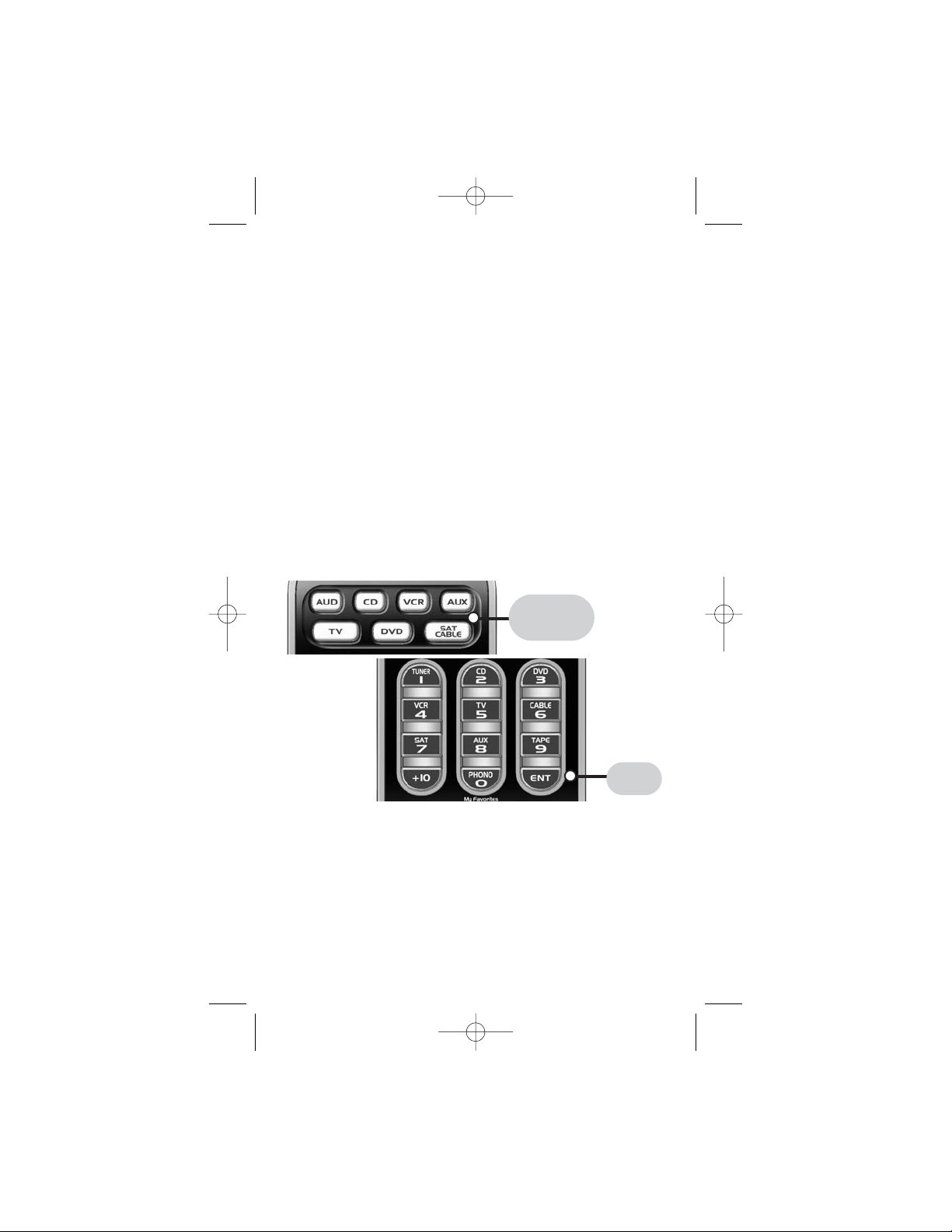

STEP 1: Find the 3-digit code numbers assigned to your brand from the lists in the back of this manual. The codes are listed by component category (i.e., TV, VCR, DVD, etc.), then by brand name. For instance, if you would like to locate a code for a Sony television, first locate the TV category and then look for the Sony brand.

STEP 2: Once you have located the 3-digit codes for each of the components that you wish to operate with your WR7, write them ALL down on a piece of paper. It’s important that you write down all the codes listed for your brand because only one code is going to work with your component.

STEP 3: Manually or using your old remote, turn on the component you want to program—for example, to program your TV turn on your TV set.

STEP 4: On the WR7, press the Component button that you want to program (in this case the button that says TV) and the SELECT [SEL] button at the same time. Hold down both buttons for two seconds until the TV Component LED light turns on. This signals that you are in programming mode.

COMPONENT

BUTTONS

SELECT

BUTTON

WR7 1/13/08 12:18 PM Page 11

Page 12

IMPORTANT: You have 30 seconds to perform the next step while you are in programming mode. If you do not press a button within 30 seconds, the component LED light will turn off. The remote will exit the programming mode and you will have to start over.

STEP 5: Point the WR7 toward the component (in this example the TV) and punch in the first 3-digit code that you wrote down for that specific component. Use the Number buttons 0~9 on the remote to punch in the code. The TV LED light will blink each time a number is pressed.

If the 3-digit code number you just punched in is the correct number, the component you are trying to program will turn off. If it did not turn off, enter the next code number from your list until it does turn off.

STEP 6: Once you’ve entered the code number and the component has turned off, press the POWER [ON] button on the WR7 remote to turn the component back on.

Next test the VOLUME and CHANNEL buttons (or PLAY and STOP buttons for VCR and DVD) to make sure they all work. For example, perhaps your Sony TV turned off with code number 147, but the volume controls did not work properly. In this case, try the next code number listed for that component. Repeat Step 5 using the next code number until you find a perfect match.

NUMBER

BUTTONS

WR7 1/13/08 12:18 PM Page 12

Page 13

STEP 7: Once you’ve entered a correct code, you must save it. Press the component button you just programmed

(in this case TV) one more time to save the code number. The component LED light will blink three times to confirm that the code was successfully stored. Now when you press the TV component button, all of the buttons will work with your TV.

Program the remaining components by repeating steps 3 through 7.

IMPORTANT: If you have tried all the set-up codes in the list and the component still did not turn off after Step 5, either the Auto-Search Method (page 14) or the Learning Method (page 16) will help you program.

WR7 1/13/08 12:18 PM Page 13

Page 14

Auto-Search Method

The Auto-Search Method is a way you can scan through all of the codes in the table to find the right code for your component.

STEP 1: Manually or using your old remote, turn on the

component you want to program—for example, to program your TV, turn on your TV set.

STEP 2: On the WR7, press the Component button

that you want to program (in this case the button that says TV) and the SELECT [SEL] button at the same time. Hold down both buttons for two seconds until the TV Component button light turns on. This signals that you are in programming mode.

IMPORTANT: You have 30 seconds to perform the next

step while you are in programming mode. If you do not press a button within 30 seconds, the component LED light will turn off. The remote will exit the programming mode and you will have to start over.

ARROW

DOWN

ARROW

WR7 1/13/08 12:18 PM Page 14

Page 15

STEP 3: Point the WR7 remote control toward the component and press the UP [ ] arrow (or DOWN [ ] arrow) button once. Each time the UP or DOWN arrow button is pressed, the code will count up (or down) one code number and send a Power OFF signal. When the correct code is sent out, the component will turn off.

STEP 4: Once you have found the right code number and the component has turned off, press the POWER [ON] button on the WR7 remote to turn the component back on.

Next test the VOLUME and CHANNEL buttons (or PLAY and STOP buttons for VCR and DVD) to make sure they all work. If any of the buttons do not work properly, you need to find a new code. Continue pressing the UP (or DOWN) arrow button until you find a new code that turns off the component and makes the VOLUME or PLAY buttons respond correctly.

STEP 5: Once you have found the right code, you must save it. Press the component button you just programmed (in

this case TV) one more time to save the code number. The component LED light will blink three times to confirm that the code was successfully stored. Now when you press the TV component button, all of the buttons will work with your TV.

NOTE: Use this method for those components you cannot program with either the Quick Set-Up or 3-digit Code Entry Methods.

IMPORTANT: If you cannot find the right code after 5 minutes of trying the Auto-Search Method, try the Learning Method (page 16).

PLEASE DO NOT RETURN

THIS PRODUCT TO THE STORE

PLEASE CONTACT OUR TECHNICAL

SUPPORT CENTER.

IF YOU NEED ASSISTANCE E-MAIL

techsupport@UniversalRemote.com

or dial 1-800-901-0800

(9:00AM - 6:00PM EST)

WR7 1/13/08 12:18 PM Page 15

Page 16

Programming WR7 using the

Learning Method

STEP 1: Line up the WR7 to the remote control you want to

‘learn’ from, head--to--head as shown below. Start with both remotes’ IR windows touching (or nearly touching).

STEP 2: On the WR7, press the Component button that you want to program (in this case the button that says TV) and the ENTER [ENT] button at the same time. Hold down both buttons for two seconds until the TV Component button light turns on. This signals that you are in programming mode.

STEP 3: Press any button on the WR7 that you want to teach a command to. For example, if you want to teach the [MUTE] button on the WR7 the TV Mute command from the other remote, first press the [MUTE] button on the WR7 and the TV component button LED light will blink once indicating that the WR7 is ready to learn the command.

WR7 1/13/08 12:18 PM Page 16

Page 17

STEP 4: Press and hold the [MUTE] button on the other remote until the component button LED on the WR7 blinks twice. Now you can continue learning all other buttons from your old remote by pressing the next button on the WR7 and repeating this step.

Note: The component LED will blink five times if there was an error in the learning process. In this case, please repeat Steps 3 and 4.

STEP 5: Once the WR7 has learned all the buttons in the selected component mode, press and hold the Component button and ENTER [ENT] buttons at the same time to save the learned functions. The component LED light will blink three times to confirm the programming. Now test all the buttons to make sure they learned correctly.

Repeat Steps 1-5 to program any other component modes.

If the Learning Method does not work, here are a few suggestions:

• If you have a Plasma TV, move to another room

• Avoid programming under fluorescent light or direct sunlight

• Put new batteries in the old remote

• Gradually vary the distance between the two remote controls

• Adjust the angles of the remotes (i.e., keep the WR7 on a flat surface while holding the other remote in hand and angling it down toward the WR7)

• Tap the button on your old remote instead of pressing and holding it during the learning process

WR7 1/13/08 12:18 PM Page 17

Page 18

Here are some additional facts regarding the Learning process:

• Learned functions override any existing pre-programmed functions on the remote control

• Learned functions are automatically erased when a new function is learned on the same button

• Learned functions are retained even after a different set-up code number is programmed into the remote control

• To return to an original pre-programmed function, a learned function must be erased

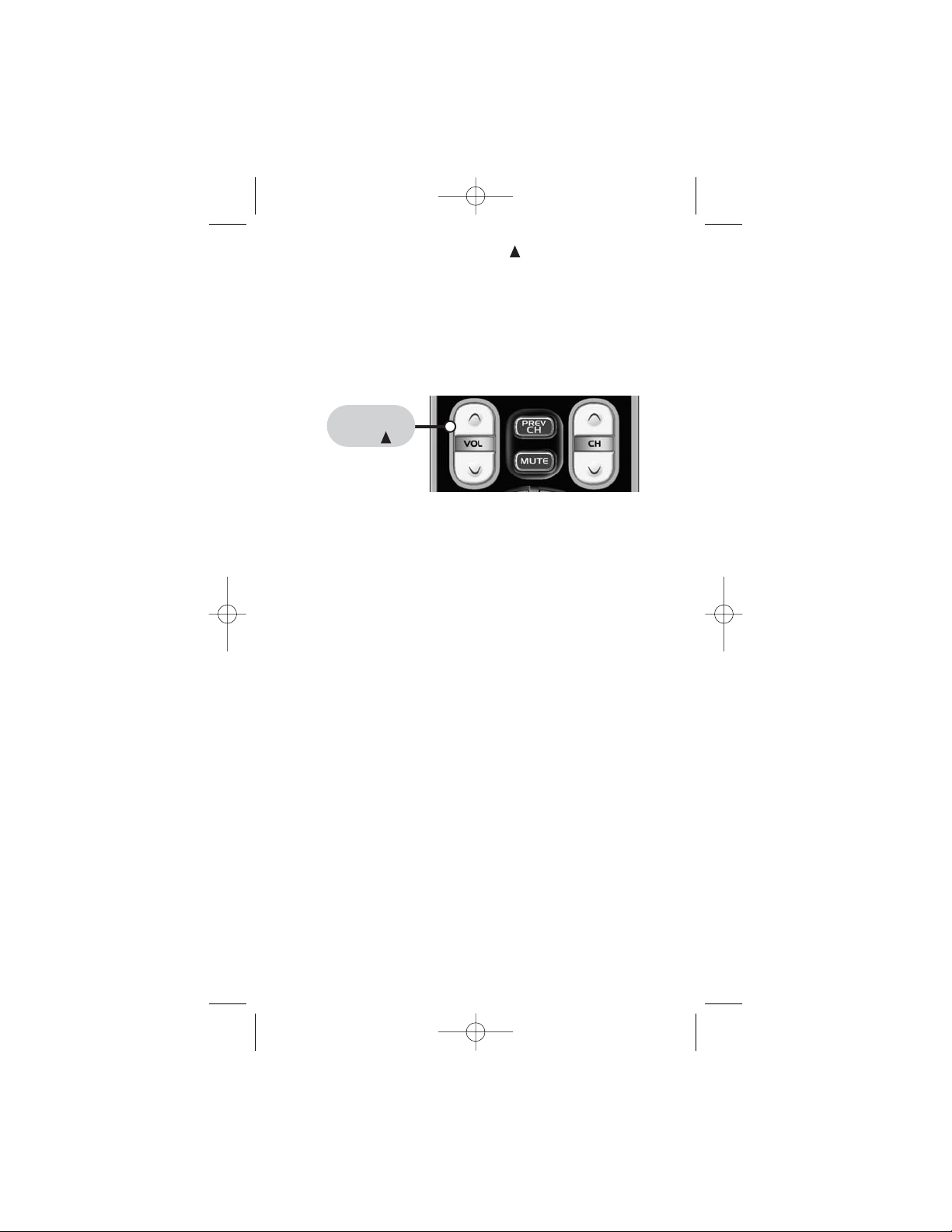

• Rapidly tapping the Volume Up button on the old remote will teach the WR7 to ramp the volume instead of raising it in increments of one

WR7 1/13/08 12:18 PM Page 18

Page 19

AUX Function: Programming

a 7th Component

After you’ve finished programming the WR7 for six primary components and you did not use AUX, you can take advantage of the AUX function to program a 7th component, such as a second TV, DVD, or any other audio/video component that you may have in your system. Simply program the [AUX] button in the same manner as any other component using either the Quick Set-Up Method, the 3-Digit Code Entry Method, the Auto-Search Method or the Learning Method.

Finding a Component’s Set-up

Code Number

If you used the Auto--Search or Learning Methods to program a component, you may not know the code number you programmed. Here is a way for you to identify what that code number is, so you can make a note in the back of this Manual for future reference.

STEP 1: Press the component button you would like to verify and the SELECT [SEL] button at the same time for two seconds until the selected component LED light turns on.

COMPONENT

BUTTONS

SELECT

INFO

WR7 1/13/08 12:18 PM Page 19

Page 20

STEP 2: Press the [INFO] button and count the number of times the Component LED light blinks. This number indicates the first digit of the code. Next it will pause for about one second and begin blinking again to indicate the number of the second digit. Then once again it will pause, then blink, to indicate the number of the third digit.

Example: One blink, pause, eight blinks, pause, three blinks indicates code number 183.

Note that ten (10) blinks represent the number 0.

WR7 1/13/08 12:18 PM Page 20

Page 21

Programming Special

Advanced Features

Programming Multi-Commands to Macro Buttons

The WR7 has 13 Macro buttons (ON, SYSTEM OFF, 7 Component buttons, and 4 ‘My Favorites’ buttons) that are designed to store up to 20 commands in each button. Pressing any one of the Macro buttons will send out the series of commands that are stored in that particular button.

MacroPower™Total System On/Off

MacroPower makes several devices work together by pressing one button. Imagine the convenience of turning on your TV, your DVD player and your Surround Sound receiver by pressing a single button on your WR7. What could normally take three remotes and three button pushes, the WR7 can accomplish with the press of one button. We call that MacroPower. Any of the Power On or the System Off buttons can be programmed for MacroPower control. To set it up, follow these easy steps:

STEP 1: To program MacroPower commands for the POWER [ON] button, press the POWER [ON] button and the [MUTE] button at the same time for two seconds until one of the component button LED lights turns on.

POWER

MUTE

WR7 1/13/08 12:18 PM Page 21

Page 22

STEP 2: Press the component button you want to turn on and then the POWER [ON] button; repeat for all other components in the order you want them to turn on. The component LED lights will blink once each time you press the POWER [ON] button.

STEP 3: Once you’ve entered all the Power On commands, press the CHANNEL Up [CH ] button to save your MacroPower commands. The component LED lights will blink three times to confirm that the programming has been successfully saved.

SUGGESTION: Most of the components have the same signal to turn the power On and Off. You may want to program MacroPower only in the POWER [ON] button and save the [SYSTEM OFF] button to turn components On or Off individually.

Note: If you want to program MacroPower for the [SYSTEM OFF] button, repeat the same steps used for POWER [ON] programming.

COMPONENT

BUTTONS

CHANNEL

POWER

WR7 1/13/08 12:18 PM Page 22

Page 23

Programming ‘My Favorites’ - Favorite Channel Buttons

In Cable mode, the four [MY FAVORITES] buttons are also designed to serve as dedicated Favorite Channel buttons. Each button will access one of your favorite channels with just one button press. Here’s how to program Favorite Channels:

STEP 1: Press the [CABLE/SAT] button to select the Cable/SAT mode.

STEP 2: Press one of the [MY FAVORITES] buttons and the [MUTE] button at the same time for two seconds until the [CABLE/SAT] component LED turns on.

MUTE

FAVORITES

WR7 1/13/08 12:18 PM Page 23

Page 24

STEP 3: Using the Number Pad, punch in the Channel number of the Favorite Channel that you want to store in the Macro button. The CABLE/SAT component LED light will blink once for each button pressed.

STEP 4: Press the CHANNEL UP [CH ] button to store the commands entered. The [CABLE/SAT] component LED will blink three times to confirm the programming.

Notes regarding programming multi-commands to Macro buttons:

• You can program up to 20 commands on each Macro button.

• You can program delays in between commands by pressing the [PAUSE] button. Each press adds a one-half second delay.

• Also, if you add the delay time as the first step of Macro commands, the remote will not send the Macro unless the button is held for two seconds. (This is the Press & Hold Function).

• You can also program macro commands in ‘layers’ by pressing the [STOP] button in between commands. (For example, if you press [009], [STOP], [035], [STOP], [365], [STOP] in Step 3 of the Favorite Channel programming process) the remote will send out 009 at the first press of the selected [My Favorites] button, and then send out 035 at the second press, etc.

• You cannot program the [CH ] or [PAUSE] buttons as macro commands.

CHANNEL

WR7 1/13/08 12:18 PM Page 24

Page 25

SimpleSound

™

Total System Volume Control

SimpleSound is one of the most exciting features of the WR7. It gives you total volume control over ALL the components in your system, even those that do not have built--in volume control, such as TIVO, DVD and VCR. SimpleSound saves you the hassle and inconvenience of constantly switching between component modes just to control volume.

First you should identify which device in your system will be used to deliver sound. In a basic system, the sound may come from your TV speaker. In a more advanced system, the sound may come from your audio components (such as a Surround Sound Receiver or Home Theatre system).

Now, let’s set--up SimpleSound. Here’s how:

STEP 1: Press and hold the button that corresponds to the Component you want to add volume control to (such as a DVD or VCR) and the SELECT (SEL) button at the same time for about three seconds until the component LED light turns on.

COMPONENT

BUTTONS

SELECT

WR7 1/13/08 12:18 PM Page 25

Page 26

STEP 2: Press the VOLUME UP [VOL ] button and then press either the TV or AUDIO component button that you want to use for volume. The Component LED light will blink three times to confirm that it is saved. This sets up three buttons (Volume Up, Volume Down and MUTE) as a group for that component.

Repeat Steps 1-2 for all other components.

Note: SimpleSound is what’s technically referred to as a “Punch Through” feature and is not limited to volume control. It can also be applied to other groups of buttons. If you find yourself switching to a particular component mode frequently to access a particular control, consider using Punch Through.

VOLUME

WR7 1/13/08 12:18 PM Page 26

Page 27

Channel Control ‘Punch Through’

This ‘punch through’ enables you to program the WR7 so that either the Cable or TV Channel Controls (CHANNEL UP, DOWN, LAST, CHANNEL NUMBERS 0-9, +10 and ENTER) will also operate in other component modes on the remote control.

STEP 1: Press and hold the component button you want to add channel control to, such as [DVD] or [VCR], and the SELECT [SEL] button at the same time for two seconds until the Component LED light turns on.

STEP 2: Press the CHANNEL UP {CH } button. The component LED light will blink once.

STEP 3: Press either the [TV] or [CABLE/SAT] button that you want to use as the source of channel control. The component LED will blink three times to confirm it is saved.

CHANNEL

SELECT

COMPONENT

BUTTONS

WR7 1/13/08 12:18 PM Page 27

Page 28

Transport Control ‘Punch Through’

This ‘punch through’ enables you to program the WR7 so that VCR or DVD Transport Controls (PLAY, STOP, FF, REW, PAUSE, SKIP and RECORD) will also operate in other component modes on the remote control.

STEP 1: Press and hold the component button you want to add Transport Control to, such as [CABLE/SAT] or [TV], and the SELECT [SEL] button at the same time for two seconds until the Component LED light turns on.

STEP 2: Press the [PLAY] button. The component LED light will blink once.

STEP 3: Press either the [DVD] or [VCR] button that you want to use as the source of Transport Control. The component LED will blink three times to confirm it is saved.

SELECT

COMPONENT

BUTTONS

PLAY

WR7 1/13/08 12:18 PM Page 28

Page 29

OSD (On-Screen Display) Control ‘Punch Through’

This ‘punch through’ enables you to program the WR7 so that CBL or DVD OSD Controls (MENU, GUIDE, INFO, EXIT, SEL and 4 Cursor Controls) will also operate in other component modes on the remote control.

STEP 1: Press and hold the component button you want to add OSD Control to, such as [TV] or [VCR], and the SELECT [SEL] button at the same time for two seconds until the Component LED light turns on.

STEP 2: Press the [MENU] button. The component LED will blink once.

STEP 3: Press either the [CABLE/SAT] or [DVD] button that you want to use as the source of OSD Control. The component LED will blink three times to confirm it is saved.

SELECT

COMPONENT

BUTTONS

WR7 1/13/08 12:18 PM Page 29

Page 30

Erasing Commands - Overview

You can erase a single learned command, all learned commands in each component mode, SimpleSound programming, MacroPower commands, or re--set the remote to original factory default settings.

Erasing a Single Learned Command from One Component

STEP 1: Press the component button where the learned command is stored and the [ENTER] button at the same time for two seconds until the component LED light turns on.

STEP 2: Press and hold the button you want to erase for two seconds. The component LED light will blink twice to confirm the erasure.

STEP 3: Repeat Step 2 to erase any other buttons in the selected component mode.

STEP 4: To exit Erase mode, press and hold both the component button and the [ENTER] button at the same time until the component LED light blinks three times.

COMPONENT

BUTTONS

ENTER

WR7 1/13/08 12:18 PM Page 30

Page 31

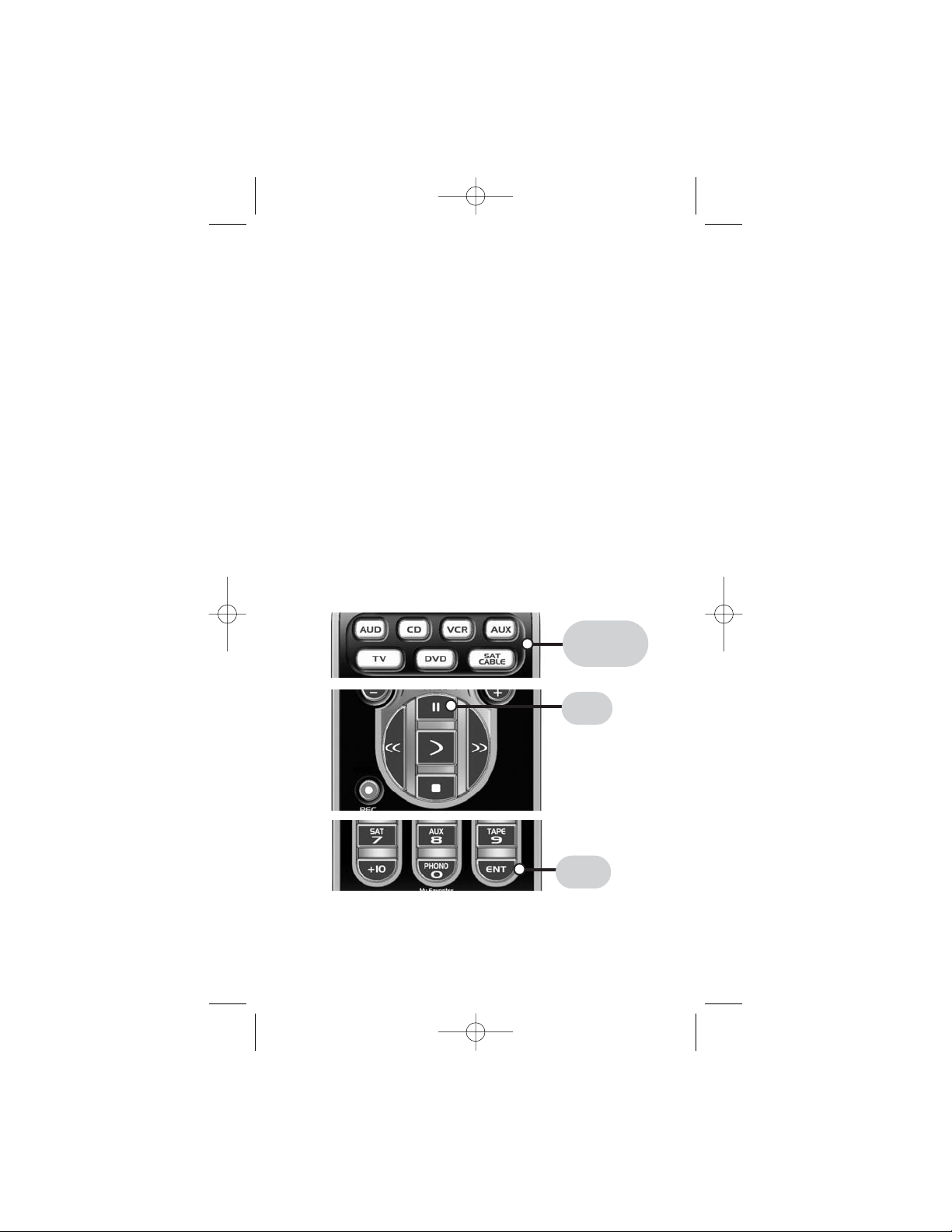

Erasing All Learned Commands from One Component

This function allows you to erase all the learned commands from one component. For example, if you want to erase all learned commands on the TV component button because you bought a new TV, the process is very simple.

STEP 1: Press the component button where all the learned commands are stored and the [ENTER] button at the same time for two seconds until the component LED turns on.

STEP 2: Press and hold both the component button you want to erase and the [PAUSE] button at the same time for two seconds, until the component LED light blinks twice to confirm the erasure.

STEP 3: To exit Erase mode, press and hold both the component button and the [ENTER] button at the same time until the component LED light blinks three times.

COMPONENT

BUTTONS

ENTER

PAUSE

WR7 1/13/08 12:18 PM Page 31

Page 32

Erasing MacroPower & Other Macro Commands

STEP 1: To erase MacroPower commands on the POWER [ON] or [SYSTEM OFF] button, press and hold either the POWER [ON] or [SYSTEM OFF] button and the [MUTE] button simultaneously for two seconds until the current status component LED turns on.

IMPORTANT: If you don’t proceed to the next step within 30 seconds, the LED will turn off and exit set-up mode and you will need to start over.

STEP 2: Press the CHANNEL UP [CH ] button to erase and exit Erase mode. The component LED light will blink three times to confirm the erasure.

NOTE: To erase other Macros, simply press the appropriate button in Step 1 in combination with the [MUTE] button.

SYSTEM

OFF

POWER

MUTE

CHANNEL

WR7 1/13/08 12:18 PM Page 32

Page 33

Erasing SimpleSound & Other ‘Punch Through’ Commands

STEP 1: Press and hold the Component button you want to erase volume control from, such as DVD or VCR and the SELECT [SEL] button at the same time for two seconds until the Component LED light turns on.

STEP 2: Press the VOLUME UP [VOL ] button and the same component button from Step 1. The component LED light will blink three times to confirm the erasure.

Repeat Steps 1--2 to erase SimpleSound commands from other components.

NOTE: To erase other ‘punch through’ commands, simply press the following buttons in place of VOLUME UP in Step 2:

• For Channel Control, press: CHANNEL UP [CH ]

• For Transport Control, press: PLAY [ ]

• For OSD Control, press: [MENU]

VOLUME

SELECT

COMPONENT

BUTTONS

WR7 1/13/08 12:18 PM Page 33

Page 34

Factory Reset

You can reset your WR7 remote to the original factory default settings.

Press and hold both the [TV] and RECORD [REC] buttons for about five seconds until the [CABLE/SAT] component LED light blinks five times. All programming and set-up codes that you have entered into the remote will be erased and the WR7 will return to the original factory default settings.

Warning

This procedure will erase all programming and set-up codes that you have entered into the remote.

COMPONENT

BUTTON

SAT/CABLE

RECORD

WR7 1/13/08 12:18 PM Page 34

Page 35

Pre-Programmed Code Tables

The WR7 Pre-Programmed code library is classified by category (Audio, CD, VCR/DVR, etc.).

Within each category, the code numbers are listed in rows by brand (Sony, Panasonic, B & K, etc.). Some brands have more than one three-digit code.

Circle the correct row and refer to it while you perform setup operations.

AUDIO

VCR/DVR

AUX

DVD

CABLE/SAT

Amps, Preamps & A/V Receivers

CD Players & Changers

VCRs, DVRs & Combo Units

iPod, Media PC, Gaming System, Lighting Controls

TVs, Plasmas, Projectors & Monitors

DVD Players & Recorders

Cable Set Top Boxes & Satellite Receivers

38-39

41-43

44-45

WR7 1/13/08 12:18 PM Page 35

Page 36

ADCOM 082 092 225 161 269 356 AIWA 170 018 104 202 203 213 211 188 AKAI 189 ANTHEM 335 337 ARCAM 141 077

ATLANTIC TECHNOLOGY 342

AUDIO FILE 071 B & K 096 097 BOSE 070 170 224 347 409 460 BOSTON ACOUSTICS 4 47 CARVER 006 028 061 071 201 214 226 185 013 077

284 CITATION 148 CLARION 026 DENON 001 109 215 230 234 330 ELAN 057 290

ENLIGHTENED AUDIO 099 098

ESCIENT 451 FISHER 214 182 FLEXTRONICS 378

FOSGATE AUDIONICS 148 342

GOLDSTAR 008

HARMAN KARDON 148 233 077 154 118 318

HITACHI 020 INSIGNIA 589 INTEGRA 275 017 046 108 080 209 JAMO 398 JCPENNEY 216 JVC 163 191 114 279 291 KENWOOD 026 066 145 192 182 005 280 374 KLH 331 KOSS 216 573 KRELL 072 384 LEXICON 120 235 236 237 357 360 LINN 124 377 LUXMAN 009 139 052 165 115 004 MAGNAVOX 086 164 152 208 MARANTZ 006 028 031 040 063 185 186 265 289 492 MCINTOSH 238 286 MERIDIAN 100 012 013 MITSUBISHI 242 204 MONDIAL 157 158 042 043 081 112 MYRYAD 077 NAD 186 113 NAKAMICHI 040 244 245 172 183 287 NEC 176 NIRO 343 NILES 403 ONKYO 275 017 046 108 080 209 OPTIMUS 026 041 OUTLAW 342 PANASONIC 032 195 219 177 292 PARASOUND 129 130 132 261 294 295 333 334 PHILIPS 249 250 063

PIONEER 014 039 044 069 168 116 035 078 198 480 PROCEED 144 268 RCA 010 048 117 156 067 288 REALISTIC 019 073 075 095 ROTEL 074 083 085 SAMSUNG 016 SANSUI 040 048 110 063 065 228 SANYO 214 SCOTT 019 SHARP 026 094 175 SHERWOOD 024 102 106 447 SONY 002 018 247 248 166 101 184 218 271 SOUNDESIGN 036 SUNFIRE 344 345 182 TEAC 005 019 049 040 212 217 TECHNICS 122 176 193 219 178 177 200 257 262 THETA DIGITAL 136 TOSHIBA 060 087 198 278 YAMAHA 026 253 169 067 173 205 264 232 089 274 ZENITH 143 210

SATELLITE Radios

BRAND CODE NUMBERS DELPHI 515 POLKAUDIO 515 SIRIUS 555

XM SATELLITE RADIO 515

AUDIO

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 36

Page 37

ADCOM 062 042 AIWA 089 170 187 AKAI 202 AMC 231 232 ARCAM 238 AUDIO ACCESS 119 147 AUDIO EASE 165 AUDIO TECHNICA 046 CALIFORNIA AUDIO 103 008 CARVER 185 041 044 050 107 130 134 135 138 139

203 204 167 CREEK 159 DENON 002 123 EMERSON 042 FISHER 050 185 134 008 GENEXXA 010 HARMAN KARDON 033 047 208 HITACHI 042 175 INKEL 130 JCPENNEY 141 JENSEN 158 JVC 004 022 136 163 213 214 242 243 KENWOOD 185 007 023 055 071 072 142 137 254 KRELL 241 KYOCERA 005 LUXMAN 011 028 070 249 252 MAGNAVOX 044 107 MARANTZ 041 044 051 077 107 209 246 MCINTOSH 212 247 MEMOREX 010 MISSION 044 107 MITSUBISHI 179 MONDIAL 147 MYRYAD 244 155 NAD 005 178 NAKAMICHI 217 218 NEC 062 NIKKO 046 NSM 044 107 ONKYO 030 038 039 168 169 OPTIMUS 010 050 081 PANASONIC 103 172 008 068 248 PARASOUND 233 240 PHILIPS 041 044 107 246 PIONEER 010 020 174 175 176 PROCEED 239 PROTON 044 107 QUASAR 103 008 RCA 017 042 150 REALISTIC 042 050 051 187 ROTEL 044 107 161 178 250 SAE 044 107 SANSUI 044 107 128 171 190 125 SANYO 050

SHARP 026 031 051 SHERWOOD 019 051 096 112 115 119 166 SIGNATURE 033 SONY 048 081 097 126 133 177 225 226 164 SOUNDESIGN 251 SUMO 155 SYLVANIA 044 107 SYMPHONIC 052 TANDY 010 TEAC 051 052 140 079 TECHNICS 103 172 184 008 068 THETA DIGITAL 234 235 VICTOR 004 022 WARDS 185 033 YAMAHA 024 046 054 186 183 245

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 37

Page 38

VCRs

ADMIRAL 025 053 ADVENTURA 034 AIKO 117 AIWA 034 161 AKAI 016 146 043 124 125 AMERICA ACTION 117 AMERICAN HIGH 031 AMPRO 072 ANAM 145 ASHA 040 AUDIO DYNAMICS 012 023 039 043 AUDIOVOX 101 BEAUMARK 040 BROOKSONIC 035 037 129 CALIX 101 CANON 028 145 CAPEHART 108 CCE 024 117 CITIZEN 101 117 COLT 024 CRAIG 003 102 135 CURTIS MATHES 145 CYBERNEX 040 DAEWOO 111 116 117 005 010 108 110 112 DAYTRON 108 DBX 012 023 039 043 DYNATECH 034 053 ELECTROHOME 059 ELECTROPHONIC 101 EMERSON 006 029 035 017 025 027 145 034 036 037

101 129 131 153 162 116 FISHER 003 010 008 009 FUJI 031 FUNAI 034 GARRARD 034 GE 145 072 147 144 GO VIDEO 132 136 155 102 115 GOLDSTAR 101 114 013 012 123 GRADIENTE 034 HARLEY DAVIDSON 034 HARMAN KARDON 012 HARWOOD 024 HITACHI 026 150 034 043 160 013 HQ 034 INSTANTREPLAY 145 JCL 145 JCPENNEY 012 013 015 102 101 JENSEN 043 JVC 048 043 130 150 012 145 KEC 101 KENWOOD 048 034 KLH 024 KODAK 145 101 LG 101 114 013 012 123

LLOYD 034 LOGIK 024 LXI 034 003 009 017 MAGIN 102 MAGNAVOX 067 145 034 164 MARANTZ 067 012 145 MARTA 101 MATSUI 027 030 MATSUSHITA 145 MEI 145 MEMOREX 101 003 010 145 034 053 072 102 139 MGN TECHNOLOGY 040 MINOLTA 013 MITSUBISHI 059 061 151 013 051 MOTOROLA 145 053 MTC 034 102 MULTITECH 024 034 NEC 012 023 039 043 048 NIKKO 101 NOBLEX 040 NORDMENDE 043 OLYMPUS 031 OPTIMUS 101 OPTONICA 053 ORION 025 PANASONIC 070 145 163 167 PENTAX 013 145 PHILCO 145 034 067 PHILIPS 145 067 034 101 071 PILOT 101 PIONEER 021 013 048 PORTLAND 108 PROFITRONIC 040 PROTEC 024 PULSAR 072 QUARTZ 002 RADIO SHACK 123 RADIX 101 RANDEX 101 RCA 144 147 145 013 034 102 REALISTIC 003 008 010 145 034 102 053 101 RICO 058 RUNCO 148 SAMSUNG 102 113 115 112 144 147 125 SANKY 053 SANSUI 022 043 048 135 SANYO 003 010 102 SCOTT 017 037 112 129 131 SEARS 003 008 010 013 101 009 017 073 112 SHARP 149 145 165 SHINTOM 024 SHOGUN 040 SIGNATURE 034 SINGER 024 SONY 056 057 058 003 145 149 154

VCR/DVR

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 38

Page 39

SOUNDESIGN 034 STS 013 SYLVANIA 145 034 059 067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEAC 034 039 043 TECHNICS 145 070 TEKNIKA 145 019 034 101 THOMAS 034 TMK 006 TOSHIBA 112 131 008 059 013 TOTEVISION 102 101 UNITECH 102 VECTOR RESEARCH 012 VICTOR 048 VIDEO CONCEPTS 012 034 VIDEOSONIC 102 VILLAIN 034 WARDS 003 013 017 024 145 034 102 053 131 WESTINGHOUSE 024 025 XR-1000 024 145 034 YAMAHA 012 034 039 043 ZENITH 072 048 101 034 058

TV/VCR Combos

AMERICA ACTION 117 DAEWOO 005 117 EMERSON 153 FUNAI 034 GOLDSTAR 101 123 HARLEY DAVIDSON 034 HITACHI 034 JCPENNEY 101 LG 101 123 LLOYD 034 MAGNAVOX 034 067 MEMOREX 101 PANASONIC 070 167 PHILIPS 034 067 145 RADIO SHACK 123 RCA 034 144 SAMSUNG 102 SEARS 101 SONY 057 154 058 SYLVANIA 067 SYMPHONIC 034 THOMAS 034 ZENITH 034

DVR Receivers

HUGHES 001 HUMAX 001 PHILIPS 001 REPLAY NETWORKS 775 SONY 804 805 TIVO 001 TOSHIBA 001

VCR/DVR

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 39

Page 40

iPod Controls

APPLE / iPod 901 912 BOSE 909 GRIFFIN 471 KENSINGTON 906 TEN TECHNOLOGY 901

MEDIA PC Controls

DELL 001 GATEWAY 001 HP 001 KEYSPAN 797 SONY 001 TOSHIBA 001 WINBOOK 001

GAMING SYSTEM Controls

MICROSOFT/ XBOX 908 607 SONY / PS2 914

LIGHTING Controls

LITE-TOUCH 708 757 LUTRON 658 659 577 X-10 683 593 XANTECH 688 689

AUX

Brand Code Numbers

WR7 1/13/08 12:18 PM Page 40

Page 41

ABEX 025 ADMIRAL 072 251 333 ADVENT 247 ADVENTURA 002 AIKO 103 ALERON 028 AKAI 116 146 248 281 404 405 A MARK 112 AMERICA ACTION 043 AMPRO 073 AMSTRAD 052 ANAM 043 054 056 080 112 AOC 116 363 112 058 APEX DIGITAL 006 ASTAR 477 AUDIOVOX 076 BELCOR 116 BELL&HOWELL 333 072 BRADFORD 043 BROKSONIC 238 BROCKWOOD 116 CANDLE 116 002 003 363 CAPEHART 058 CELEBRITY 001 CENTURION 116 CETRONIC 043 CITIZEN 116 002 003 363 043 258 103 CLARION 043 CLASSIC 043 CLP CLASSIC 333 COLORTYME 116 CONCIERGE 073 CONCERTO 363 CONTEC 043 050 051 CORNEA 116 CRAIG 043 054 CROSLEY 164 CROWN 043 CURTIS MATHES 116 258 363 CXC 043 DAEWOO 363 016 043 044 076 103 114 125 DAYTRON 363 DELL 320 164 363 DIGITAL LIFESTYLE 528 DIGITRON 258 DIMENSIA 333 DUKANE 011 025 DUMONT 116 073 DURABRAND 096 DWIN 257 DYNASTY 043 DYNEX 399 EIKI 187 ELECTROBAND 001 ELECTROHOME 024 076

ELECTROGRAPH 466 ELEKTRA 072 ELEMENT 526 EMERSON 028 048 043 155 005 116 363 047 050 051

076 096 153 ENVISION 116 ESA 323 FISHER 007 057 FUJITSU 246 198 FUNAI 028 043 052 FUTURETECH 043 GATEWAY 242 268 GE 073 116 008 009 034 056 074 155 333 363 GEM 391 GIBRALTER 116 073 GOLDSTAR 113 116 102 004 106 112 GRUNPY 028 043 HAIER 363 HALL MARK 363 HANNSPREE 381 HARLEY DAVIDSON 028 HARSPER 466 HARVARD 043 HAVERMY 081 HELLO KITTY 076 HIMITSU 043 HISENSE 419 HITACHI 011 166 363 009 010 012 023 075 158 072 HP 378 316 327 ILO 472 INFINITY 164 INFOCUS 333 330 INTEQ 073 INSIGNIA 350 399 400 052 164 403 JANEIL 002 JBL 164 JCB 001 JCPENNEY 363 024 116 008 009 030 065 258 333 JENSEN 013 JVC 038 034 001 083 199 210 KAWASHO 116 001 KEC 043 KENWOOD 116 001 KLEGG 466 KLOSS 002 059 KREISEN 530 KTV 043 116 KURAZAI 072 LG 363 113 116 102 363 106 112 LODGENET 072 LOEWE 164 LOGIK 072 LUXMAN 363 LXI 166 007 138 052 251 333 164

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 41

Page 42

MAGNAVOX 164 059 116 003 060 061 363 022 333 094

226 390 MAJESTIC 333 072 MARANTZ 116 164 MATSUI 164 MATSUSHITA 080 MAXENT 242 MEGATRON 116 011 MEMOREX 007 072 363 MGA 116 363 024 028 042 MIDLAND 333 073 MINTEK 282 362 MINUTZ 008 MITSUBISHI 124 109 024 363 028 040 042 146

MONTGOMERY WARD 333 072

MOTOROLA 081 MTC 116 363 258 MULTITECH 043 NAD 138 025 NEC 272 132 134 116 040 016 024 056 019 262 NET TV 242 NIKEI 043 NIKKO 116 NIKO 527 NORCENT 390 NTC 103 NUVISION 351 OLEVIA 432 ONKING 043 ONWA 043 OPTIMUS 025 OPTONICA 019 251 OPTOMA 265 ORION 096 PANASONIC 080 034 056 164 208 REVOLUTION HD 466 PHILCO 116 003 059 060 164 363 024 056 PHILIPS 164 005 093 038 116 003 363 059 206 PILOT 116 PIONEER 234 025 018 023 116 272 393 POLAROID 388 PORTLAND 363 PRIMA 164 PRISM 034 PROSCAN 333 PROTON 363 112 058 171 172 PROTRON 392 398 PROVIEW 526 PULSAR 116 073 QUASAR 034 056 RADIO SHACK 019 363 043 RCA 333 065 116 363 024 056 152 023 074 REALISTIC 007 019 043 047 RUNCO 072 182 073 395 416 SAMPO 116 058 363 242

SAMSUNG 258 050 089 105 363 333 228 229 SAMSUX 116 SANSEI 076 SANSUI 096 SANYO 166 007 020 053 057 082 187 SCEPTRE 276 SCOTCH 116 SCOTT 028 043 363 048 SEARS 138 030 363 007 028 057 094 333 082 166 SELECO 205 011 SHARP 251 019 014 028 029 363 022 175 SHENG CHIA 081 SHOGUN 116 SIGNATURE 072 SIMPSON 003 SONY 001 SOUNDESIGN 028 363 003 043 SOVA 363 SOYO 528 SPECTRICON 112 SPECTRONIQ 392 398 SQUAREVIEW 052 STARLITE 043 SSS 363 043 SUPRA 116 SUPRE MACY 002 SUPREME 001 SVA 328 SYLVANIA 116 003 052 059 060 164 044 333 SYNTAX OLEVIA 333 363 432 TANDY 251 TATUNG 056 TECHNICS 034 080 TECHNOL ACE 028 TECHWOOD 363 TEKNIKA 002 003 363 024 028 043 072 258 TELERENT 072 TERA 172 TMK 363 TNCI 073 TOSHIBA 138 030 007 040 258 325 TRUTECH 529 TVS 096 UNIVERSAL 008 009 VICTOR 038 VIDEO CONCEPTS 146 VIDIKRON 174 164 188 VIDTECH 363 VIEWSONIC 242 389 VIKING 002 VIORE 472 VISCO 526 VITO 363 VIZIO 386 387

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 42

Page 43

WARDS 363 008 009 019 028 060 061 072 074

164 034 WAYCON 015 WESTINGHOUSE 076 276 YAMAHA 116 363 YORK 363 YUPITERU 043 ZENITH 363 073 072 095 103 ZONDA 112

Brand Code Numbers

WR7 1/13/08 12:18 PM Page 43

Page 44

AIWA 146 AKAI 281 ALLEGRO 091 APEX DIGITAL 087 111 115 BLAUPUNKT 111 BROKSONIC 130 CINEVISION 091 COBY 260 CYBERHOME 271 DENON 138 173 DURABRAND 091 DVD 2000 017 EMERSON 091 143 ENTERPRISE 074 FISHER 147 FUNAI 143 GOLDSTAR 091 GO VIDEO 137 091 220 221 222 GREENHILL 111

HARMAN KARDON 084 140

HITACHI 101 HITEKER 087 ILO 268 INITIAL 111 INSIGNIA 143 JBL 084 JVC 012 KENWOOD 151 KISS 279 KLH 135 KRELL 104 LITEON 264 265 LEXICON 148 LG 091 057 MAGNAVOX 001 096 143 282 MARANTZ 001 095 MALATA 267 MERIDIAN 153 MINTEK 111 282 MITSUBISHI 017 MYRYAD 102 134 NAD 088 NAKAMICHI 103 NESA 111 ONKYO 076 035 180 OPTIMUS 023 OPPO 266 ORION 130 PANASONIC 138 144 150 285 PHILIPS 001 095

PHILIPS MAGNAVOX 035 001

PIONEER 023 131 POLAROID 233 POLK AUDIO 035 001 RIO 091

RJTECH 269 SAMSUNG 165 170 137 159 275 SANSUI 154 SANYO 147 SEARS 130 SENSORY SCIENCE 222 SHARP 094 SHINSONIC 033 SONIC BLUE 091 SONY 002 033 145 191 286 SYLVANIA 143 SYMPHONIC 143 TATUNG 102 TEAC 023 270 TECHNICS 138 TECHWOOD 088 THETA DIGITAL 023 TOSHIBA 035 130 141 164 188 273 URBAN CONCEPTS 035 VENTURER 149 YAMAHA 138 089 001 197 ZENITH 057 091

BLU-RAY & HD DVDs

LG 091 PANASONIC 285 PIONEER 304 SAMSUNG 275 SONY 286 TOSHIBA 273

DVD Recorders

GO VIDEO 220 221 222 CYBERHOME 271 ILO 268 KISS 279 LITEON 265 PANASONIC 138 SENSORY SCIENCE 222 SONY 191 TOSHIBA 188

TV/DVD Combos

AKAI 281 AIWA 146 FUNAI 143 INSIGNIA 143 MAGNAVOX 282 MINTEK 282 SAMSUNG 165 SYLVANIA 143 SYMPHONIC 143 TOSHIBA 130

DVD

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 44

Page 45

TV/DVD/VCR Combos

MAGNAVOX 143 PANASONIC 144 SYLVANIA 143 TOSHIBA 164

DVD/VCR Combos

GO VIDEO 137 PANASONIC 150 PHILIPS 001 (VCR Functions for VCR 067) SAMSUNG 137 159 SANSUI 154 SONY 145 TOSHIBA 141 ZENITH 091 (VCR Functions for VCR101)

DVD

Brand Code Numbers

WR7 1/13/08 12:18 PM Page 45

Page 46

CABLE BOXES

ABC 004 042 ADELPHIA 001 110

ADVANCED NEWHOUSE 001

ALTRIO 001 AMERICAST 099 ARMSTONG 110 AT&T BROADBAND 110

ATLANTIC BROADBAND 001 110

BELL SOUTH 099 BLUE RIDGE 001 110 BRESNAN 110 BRIGHT HOUSE 001 110 BUCKEYE COMM 110 CABLEVISION 001 110 108 CHARTER 001 110 CISCO 001 042 COGECO 110 COMCAST 001 110 COMSAT 110 COX DIGITAL 001 110 DIGEO 111 DIRECTOR 110 GCI 110

GENERAL INSTRUMENT 110 004

GNC 099 INSIGHT 110 JERROLD 110 004 MASSILLON 110 MEDIACOM 110 MIDCONTINENT 110 MOTOROLA 110 148 111 MOXI 111 NCTC 110 NEW WAVE 110 OAK 031 ONELINK 001 PACE 001 110 PANASONIC 044 047 PHILIPS 085 PIONEER 001 034 105 RCA 047 RCN 110 RODGERS 001

SCIENTIFIC ATLANTA 001 042

SEREN 001 SERVICE ELECTRIC 110 SHAW 110 SIGECOM 001 SONY 108 SPRUCER 047 STARCOM 004 SUSQUEHANNA 001 110 TIME WARNER 001 110 TORX 004

UNITED CABLE 004 VERIZON 110 VIDEOTRON 001 VISTA III MEDIA 110

WAVE BROADBAND

110 WEHCO VIDEO 110 WIDE OPEN WEST 001 099

SATELLITE RECEIVERS

CABLEVISION 148 DIRECTV 173 DISH 122 ECHOSTAR 122 EXPRESSVU 122 GE 116

GENERAL INSTRUMENT 148

GOI 122 HITACHI 114 HTS 122 HUGHES 114 JVC 122 LG 170 MITSUBISHI 114 NEXT LEVEL 148 PANASONIC 142 PHILIPS 156 114 PROSCAN 116 RADIOSHACK 148 RCA 116 SAMSUNG 163 169 175 SONY 115 STAR CHOICE 148 TOSHIBA 114 VOOM 148

CABLE/SAT

Brand Code Numbers Brand Code Numbers

WR7 1/13/08 12:18 PM Page 46

Page 47

Frequently Asked Questions

If the batteries run out, will I lose my settings?

No. The WR7 stores all of your settings in non-volatile FLASH memory. You could remove the batteries for months, replace them at your convenience, and the WR7 would still remember your settings.

What is MacroPower?

MacroPower is a very useful way to make a lot of things happen with one button push. For example, in most home theaters, to watch television, the user must turn on the TV, then turn on the Cable Box or the Satellite Receiver, then turn on the Surround Sound system for sound. Instead of pressing all of those buttons one at a time, MacroPower enables you to turn on all of these components, in the sequence you want, with one button push. For more information on why and how you should program MacroPower commands, refer to page 21 in this Manual.

What if my remote control no longer works from a distance?

Replace the batteries with new Alkaline batteries.

Who can I contact for more answers?

The Universal Remote Control technical support and customer service staff are ready to answer any questions you might have.

E-Mail us at techsupport@universalremote.com

Visit our website www.universalremote.com

Call us at (914) 835-4484

Monday - Friday, 9AM to 6PM (EST)

WR7 1/13/08 12:18 PM Page 47

Page 48

USA Limited Warranty

UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workmanship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product.

This warranty not does apply to the following:

• Units purchased from unauthorized resellers.

• Units purchased second-hand (used).

• Units installed or deployed for rental or commercial use.

• Damage caused by misuse, neglect, or acts of nature.

• Products that have been modified or incorporated into other products.

• Products purchased more than 12 months ago.

Specifications

Learning Capability.............80 buttons for any component

Macro Capability............13 Macros of up to 20 steps each

Non-Volatile Flash Memory...........................64 KByte

IR Range (Line of Sight via Infrared) .......30--50 feet,

depending on operational environmental conditions

Weight ..............................................6.9 oz. (with batteries)

Size .....................................2 1/8”W x 8 3/4”H x 1 1/8”D

Batteries .......................Two AA Alkaline batteries (included)

WR7 1/13/08 12:18 PM Page 48

UNIVERSALUNIVERSAL

remote controlremote control

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

www.universalremote.com

The Pioneer in Control Technology

WR7 1/13/08 12:18 PM Page 49

Universal Remote Control WR7 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
