Universal Remote Control TKP-2000 User Manual
TKP-2000 Network Keypad
Owner’s Manual
TKP-2000 Installation Manual ©2011 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE
OF CONTENTS
Congratulations! 1
Features and Benefits 2
Parts List 2
TKP-2000 Product Description 3

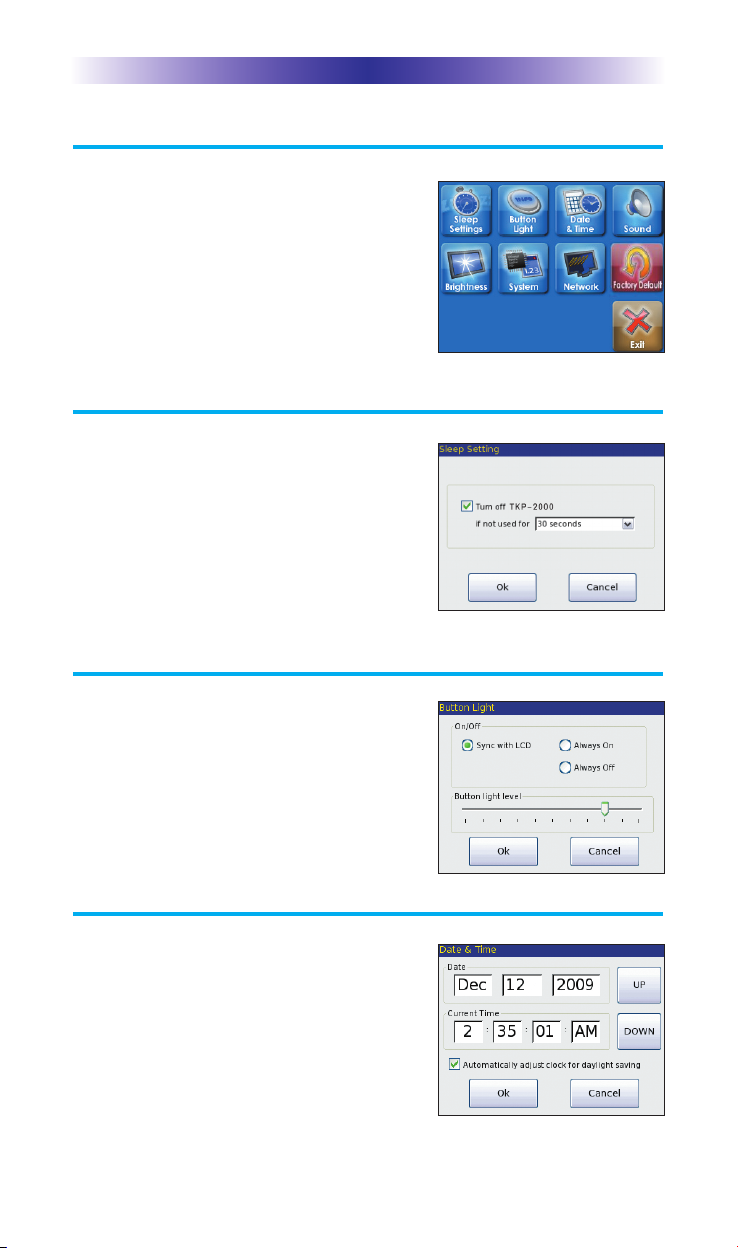

Displaying the Settings Screen 4
Adjusting Sleep Settings 4
Button Light Settings 4
Setting Date and Time 4
Sound 5
Adjusting Brightness 5
System 5
Network 5
Factory Default 6
Exit 6
Frequently Asked Questions 7
Specifications 7
USA Limited Warranty Statement 8
Federal Communication Commission
Interference Statement 10
Regulatory Information to the user 11
Page 1
TKP-2000 NETWORK KEYPAD
Congratulations!
You’ve purchased a unique synthesis of hardware and software engineering,
the Total Control TKP-2000 Network Keypad. The TKP-2000 achieves a
magnificent combination of power and flexibility by simplifying and
automating the operation of even the most complex systems.
The TKP-2000 has the ability to control audio video components, energy
management devices, multi-zone matrixes, PCs, iPods and whole
house URC Lighting. It communicates over IP to the Total Control
MRX-10 Network System Controller.
The MRX-10 “Controller” is required to make the TKP-2000 work.
The combination of the TKP-2000 and MRX-10 create a robust and powerful
system to control the Total Control product line and your home theatre
equipment.
Page 2
TKP-2000 NETWORK KEYPAD
Features and Benefits
2-Way IP Home Theater AVRS
Now with the unique URC 2-Way database, you can control your
multizone audio video receivers over your home network via the
MRX-10 Network System Controller.
2-Way IP Control of Media on PCs and iPods
The high speed of the LAN enables the TKP-2000 to display lists of
artists, albums or songs and to display the cover art of the selected
album on the Now Playing screen of the remote control from the
PSX-2 Personal Server or from a Mac or PC.
Backlit Color LCD screen
The TKP-2000 has a programmable 3.5” color touch screen. When
any button is pressed, the color LCD screen as well as the remote
buttons, will light up.
User Configurable Internet RSS for News, Sports, Stocks and
Weather
The well known URC modules for News, Sports, Weather and Stocks
are all available updated to the TKP-2000 screen and of course, are
completely user set.
No batteries to replace...Ever!
The TKP-2000 is powered over the ethernet cable it’s connected to,
so you never have to worry about replacing batteries.
Parts List
The TKP-2000 Network Keypad includes:
1 - TKP-2000 Network Base Station
1 - Owner’s Manual
4 - Screws for mounting to a wall box
TKP-2000 Product Description
The TKP-2000 consists of a 3.5” color touchscreen and 6 customizable
buttons. Your whole house custom installer can request custom buttons
specific to your Total Control setup.
Power: Turn on your Total Control setup by pressing the Power button.
Lights: Press to control URC Lighting throughout your home.
Main: Press to view the main screen and control the Total Control setup.
Vol+, Vol- and Mute: Easily adjust the volume settings for any zone.
LAN port: This is connected by your whole house custom installer to
your home network via Ethernet cable to a PoE (Power over
Ethernet) switch.
Page 3
TKP-2000 NETWORK
KEYPAD
