Universal/Multiflex (Frigidaire) NLPWD15A1, APWD15N1, APWD15T1, APWD15A1 Installation Guide

KiT COMPONENTS:

• 1 Pedestal Installation Instructions.

A 2 Front brackets.

B 2 Front bracket spacers. C 2 Rear brackets.

D 14#10 (16 x .500) screws.

COMPOSANTS DU N#CESSAIRE:

1 instructions d'installation

A 2 supports avant.

B 2 espaceurs pour supports avant. C 2 supports arrieres.

D 14visn ° 10(16x.500).

Tools needed: Outils necessaires:

Herramientas necesarias:

OR OU

Optional universal

wrench available

from dealer

CI6 universeile

optionnelle (en vente

chez le detaillant)

Llave universal opcional

(disponible a traves

de su distribuidor local)

Adjustable wrench

Cle & mole[te

Llave ajustable

OR OU

9/16" or 14 mm box wrench

Cle polygonale de

9/16 po ou de 14 mm

Llave de cube de

9/16 po o 14 mm

COMPONENTES DEL KIT:

1 libro de instrucciones de instalaciOn

A 2 soportes delanteros.

B 2 espaciadores para soportes delanteros. C 2 soportes traseros.

D 14tornillos n.° 10 (16x .500).

_ Total weight IN closed drawer or combination of IN and ON TOP OFopen drawer should not exceed 65 lb. (29.5 kg).

Le poids total DANS un tiroir ferme ou une com-

binaison du poids DANS et SUR letiroir ouvert ne dolt pas exceder

29,5 kg (65 Ib).

Elpeso total DENTROdel cajOn cerrado o el peso

combinado de los articulos que esten DENTROy ENCIMA del cajOn abierto no debe exceder las 65 Ib (29,5 kg).

_4_

AND

Phillips screwdriver

Tburnevis Phillips

Destornillador Phillips

AND

Carpen[er's level

Niveau de charpenfier

Nivel de carpintero

Failureto disconnect from power source before stacking could result in personal injury or even death.

Improper installation of dryer venting could result in personal injury or damage

to property. Toavoid back or other injury, have more

than one person move or lift the washer

or dryer.

English continued on page 2.

Ne pas dObrancher I'appareil de sa source d'alimentation en 61ectricite avant de le

superposer peut causer des blessures,

voire la mort.

Une installation inappropriee du systeme de ventilation de la secheuse peut causer

des blessures ou des dommages materiels. Pour 6viter les blessures au dos ou d'autres types de blessure, demandez

I'aide d'autres personnes pour dOplacer ou soulever la laveuse ou la secheuse.

Pour la suite de la version fran_aise,

reportez-vous a la page 6.

El no desconectar el suministro electrico antes de la instalaciOn apilada puede

ocasionar lesiones personales o incluso la muerte.

La instalaciOn inadecuada de laventilaciOn de la secadora puede ocasionar lesiones

personales o dahos a la propiedad. Para evitar lesiones en la espalda u otro

tipo de lesiones, procure levantar o mover la lavadora o secadora con laayuda de mas de una persona.

Laversion en espaflol continOaen la p_igina 10.

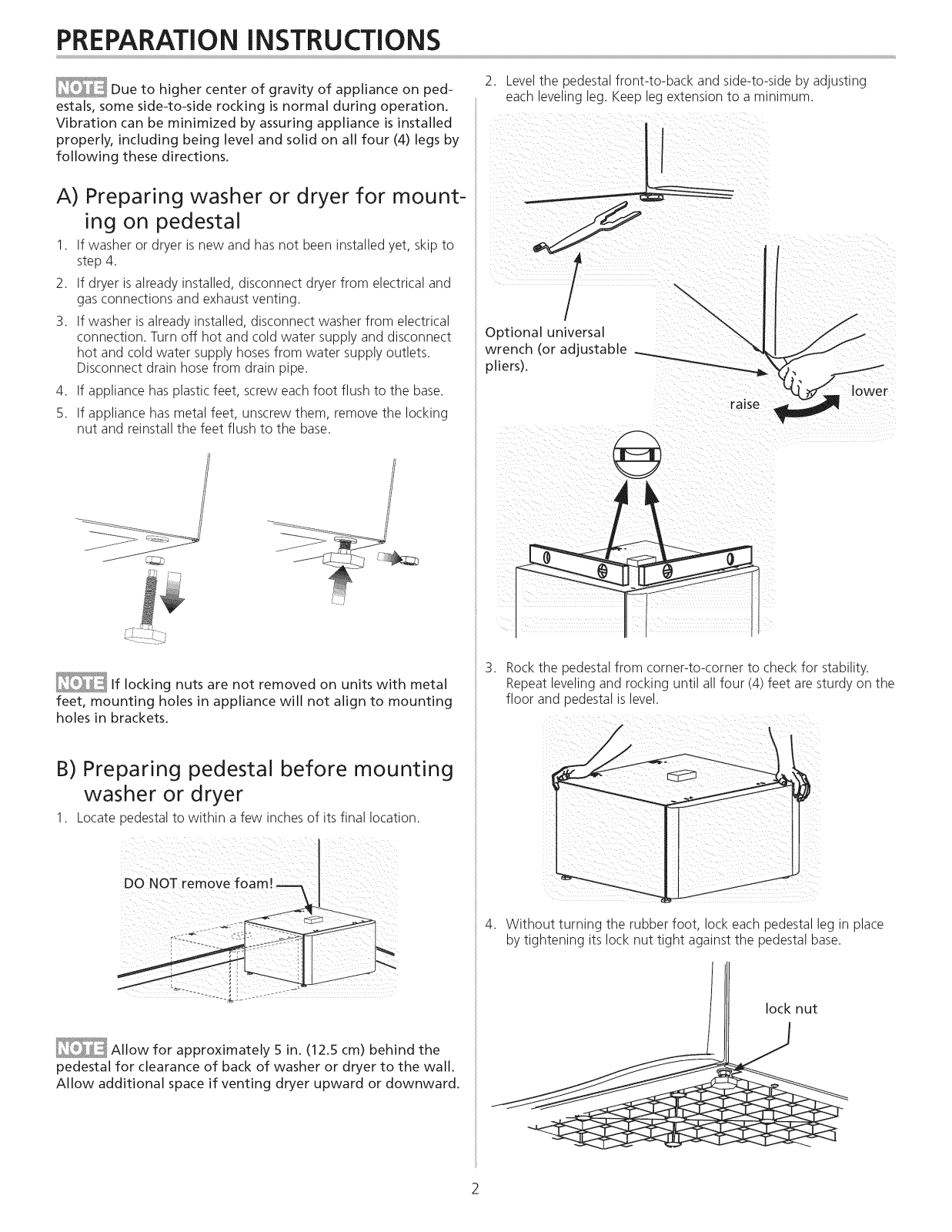

PREPARATION iNSTRUCTiONS

Due to higher center of gravity of appliance on ped-

estals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed

properly, including being level and solid on all four (4) legs by following these directions.

A) Preparing washer or dryer for mount-

ing on pedestal

1. If washer or dryer is new and has not been installed yet, skip to step 4.

2. If dryer is already installed, disconnect dryer from electrical and gas connections and exhaust venting.

If washer is already installed, disconnect washer from electrical

connection. Turn off hot and cold water supply and disconnect

hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe.

4. If appliance has plastic feet, screw each foot flush to the base.

5. If appliance has metal feet, unscrew them, remove the locking

nut and reinstall the feet flush to the base.

Level the pedestal front-to-back and side-to-side by adjusting

each leveling leg. Keep eg extension to a minimum.

If locking nuts are not removed on units with metal

feet, mounting holes in appliance will not align to mounting holes in brackets.

B) Preparing pedestal before mounting

washer or dryer

1. Locate pedestal to within a few inches of its final location.

Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow additional space if venting dryer upward or downward.

Rock the pedestal from comer-to-comer to check for stability. Repeat leveling and rocking until all four (4) feet are sturdy on the

floor and pedestal is level.

Without turning the rubber foot, lock each pedestal leg in place

by tightening its lock nut tight against the pedestal base.

lock nut

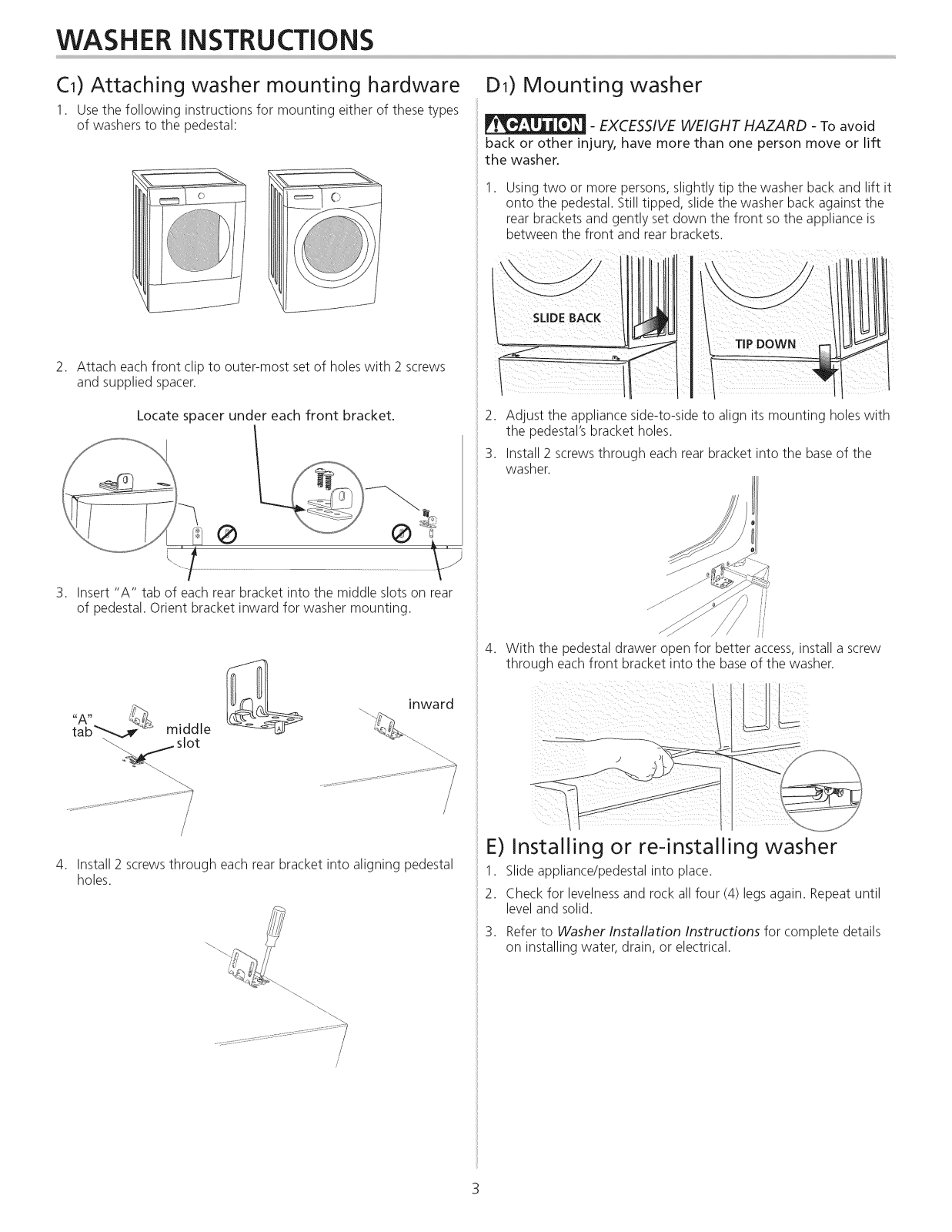

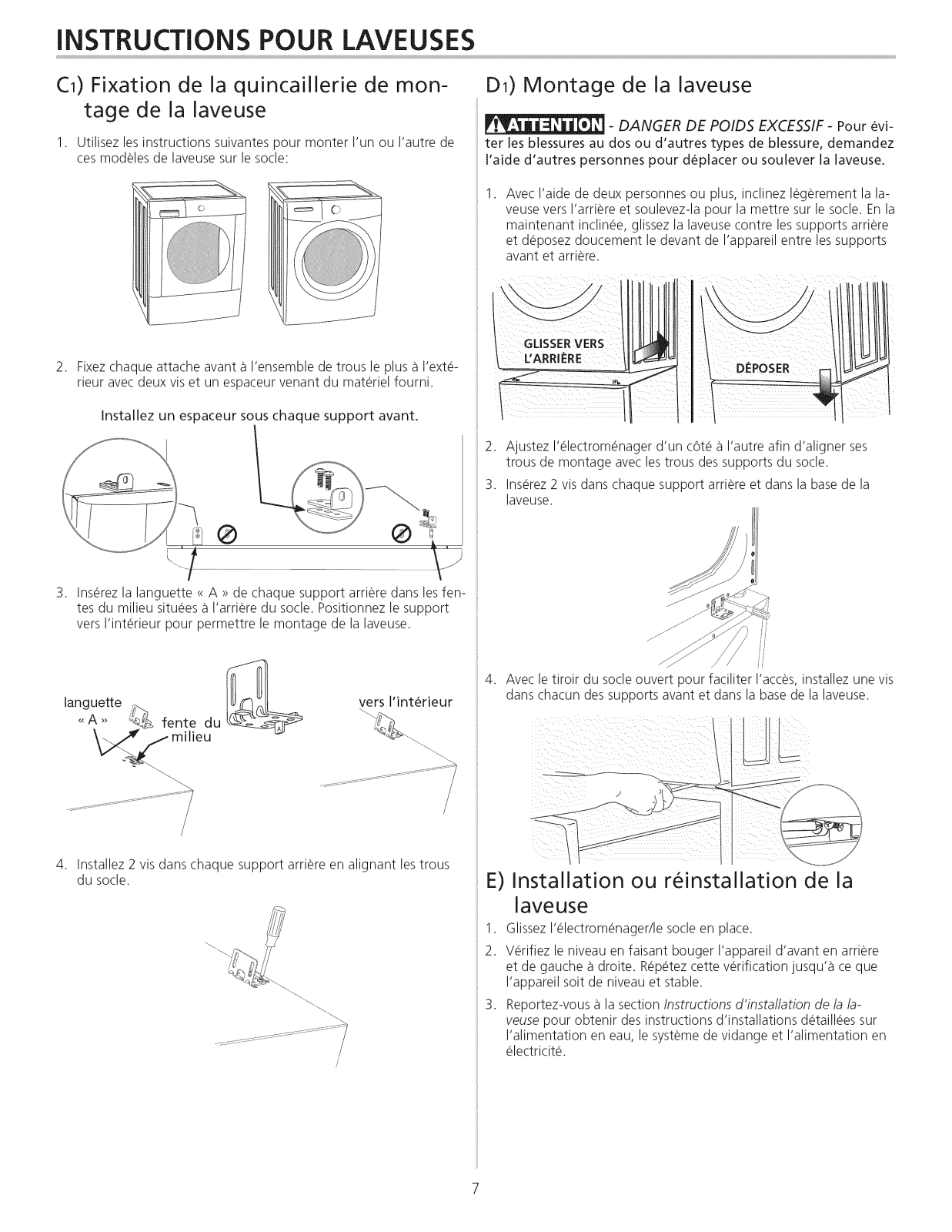

WASHER iNSTRUCTiONS

C1) Attaching washer mounting hardware

1. Use the following instructions for mounting either of these types of washers to the pedestal:

2. Attach each front clip to outer-most set of holes with 2 screws and supplied spacer.

Locate spacer under each front bracket.

® ®

DI) Mounting washer

- EXCESSIVE WEIGHT HAZARD - To avoid

back or other injury, have more than one person move or lift the washer.

Using two or more persons, slightly tip the washer back and lift it

onto the pedestal. Still tipped, slide the washer back against the

rear brackets and gently set down the front so the appliance is between the front and rear brackets.

Adjust the appliance side-to-side to align its mounting holes with the pedestal's bracket holes.

Install 2 screws through each rear bracket into the base of the

washer.

Insert "A" tab of each rear bracket into the middle slots on rear

of pedestal. Orient bracket inward for washer mounting.

_A _

Install 2 screws through each rear bracket into aligning pedestal holes.

middle

slot

4. With the pedestal drawer open for better access, install a screw through each front bracket into the base of the washer.

inward

E) Installing or re-installing washer

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

level and solid.

3. Refer to Washer Installation Instructions for complete details on installing water, drain, or electrical.

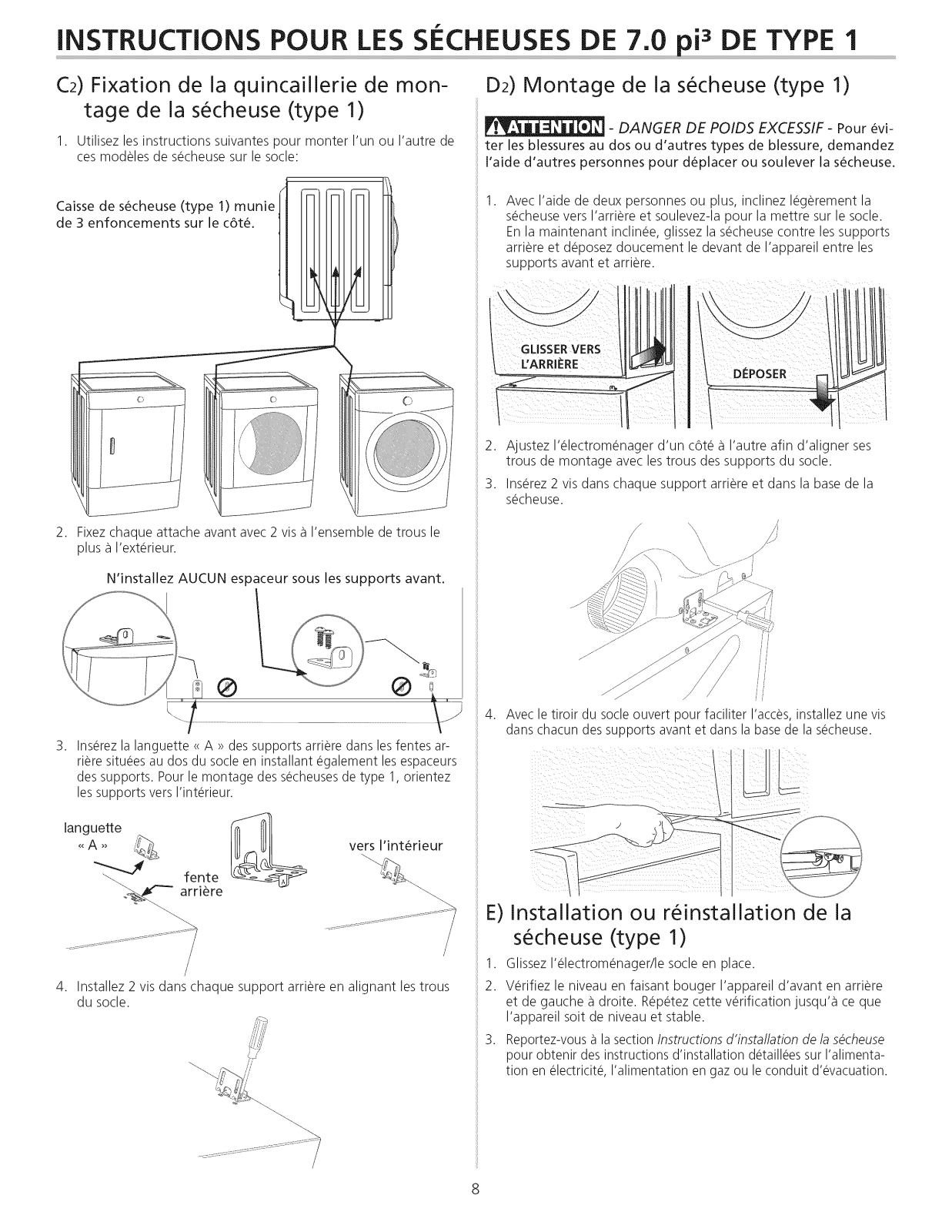

7.0 cu ft DRYER (STYLE 1) iNSTRUCTiONS

C2) Attaching dryer (style 1) mounting

hardware

Use the following instructions for mounting any of these types of

dryers to the pedestal:

Dryer cabinet (style 1) with 3 indents on side.

2. Attach each front clip to outer-most set of holes with 2 screws.

D2) Mounting dryer (style 1)

- EXCESSIVE WEIGHT HAZARD - To avoid

back or other injury, have more than one person move or lift the dryer.

Using two or more persons, slightly tip the dryer back and lift it

onto the pedestal. Still tipped, slide the dryer back against the

rear brackets and gently set down the front so the appliance is between the front and rear brackets.

Adjust the appliance side-to-side to align its mounting holes with the pedestal's bracket holes.

Install 2 screws through each rear bracket into the base of the

dryer.

NO spacers under front brackets.

3. Insert "A" tab of each rear bracket into the rear slots on rear of pedestal using rear bracket spacers. Orient bracket inward for "style 1" dryer mounting.

tab ;_ ._._inward

"A" '_%

0 t "_"_._..

4. Install 2 screws through each rear bracket into aligning pedestal holes.

4. With me oeclesia orawer ooen for Deiieraccess, nsia ascrew mrougn each front bracket nto the base of me or'/er.

E) Installing or re-installing dryer (style 1)

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4)legs again. Repeat until

level and solid.

3. Refer to Dryer Installation Instructions for complete details on

installing electrical, gas, or exhaust venting.

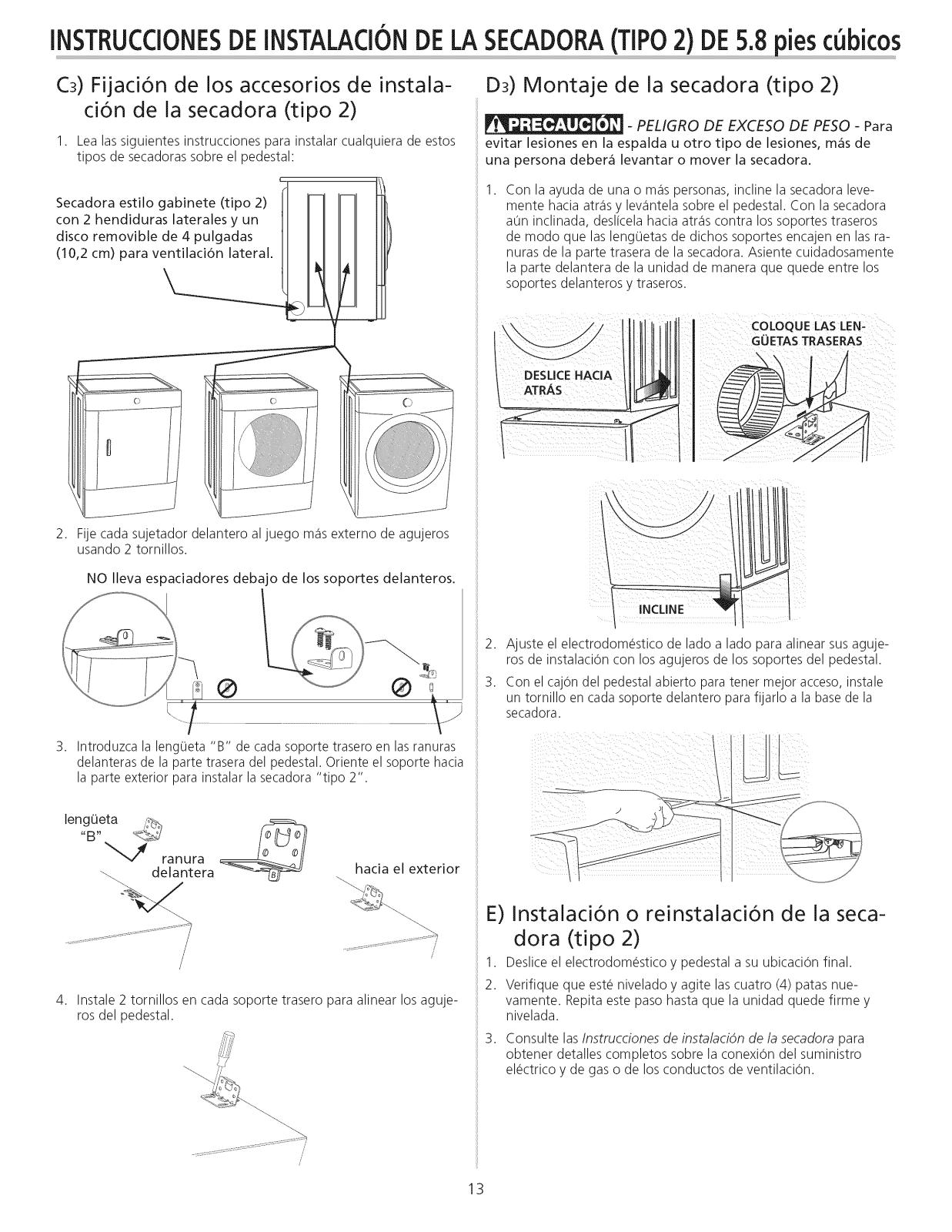

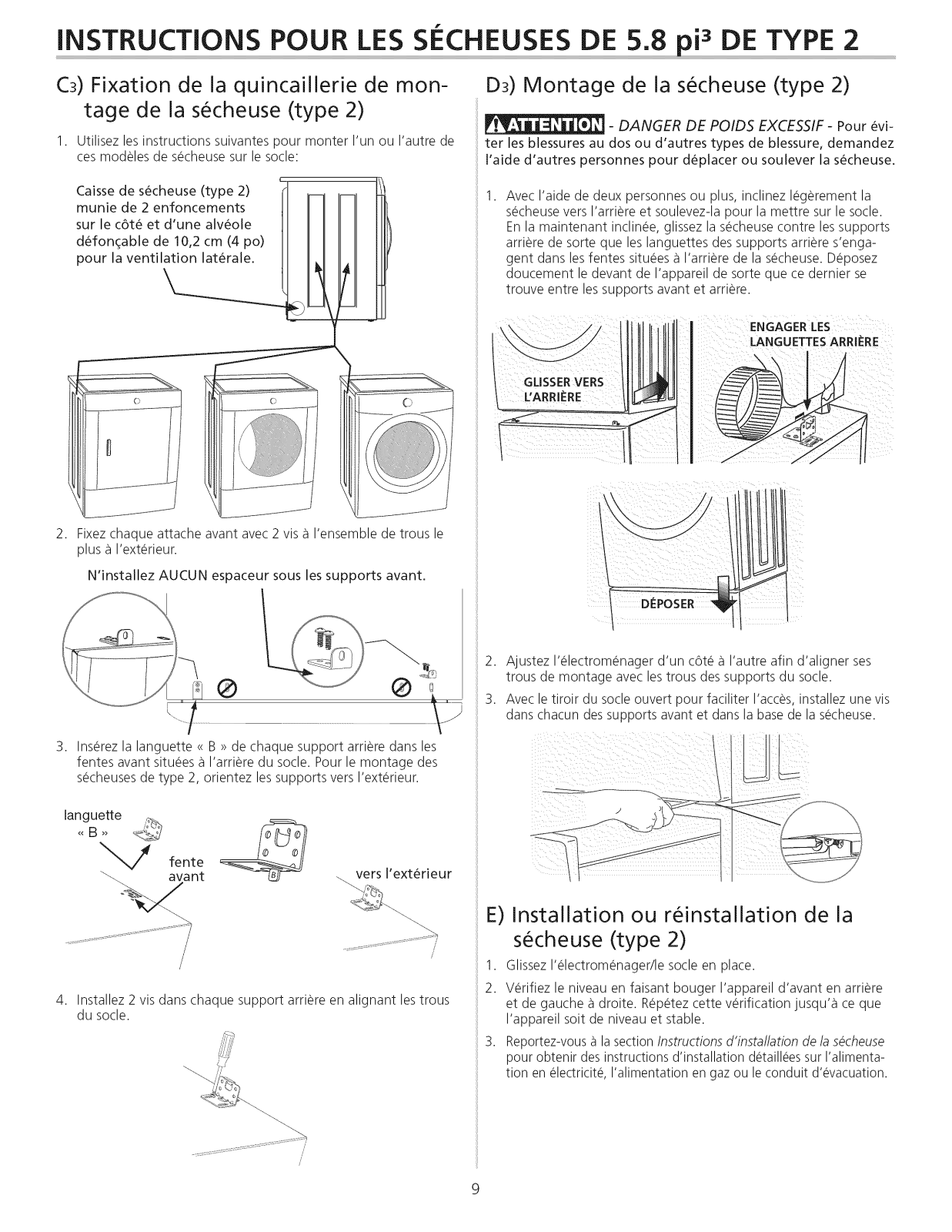

5.8 cu ft DRYER (STYLE 2) iNSTRUCTiONS

Cs) Attaching dryer (style 2) mounting

hardware

1. Use the following instructions for mounting any of these types of dryers to the pedestal:

Dryer cabinet (style 2) with 2 indents on side and 4 inch knockout for

side venting.

2. Attach each front clip to outer-most set of holes with 2 screws.

D3) Mounting dryer (style 2)

- EXCESSIVE WEIGHT HAZARD - To avoid

back or other injury, have more than one person move or lift the dryer.

Using two or more persons, slightly tip the dryer back and lift it

onto the pedestal. Still tipped, slide the dryer back against the

rear brackets so tabs on rear brackets engage the slots on the back of the dryer. Gently set down the front so the appliance is

between the front and rear brackets.

ENGAGE REAR TABS

SLIDE BACK

NO spacers under front brackets.

Insert "B" tab of each rear bracket into the front slots on rear of pedestal. Orient bracket outward for "style 2" dryer mounting.

_Ib ---'_ front

\_ s_ ot

_:ib_ outward

4. Install 2 screws through each rear bracket into aligning pedestal holes.

Adjust the appliance side-to-side to align its mounting holes with the pedestal's bracket holes.

With the pedestal drawer open for better access,install a screw through each front bracket into the base of the dryer.

E) Installing or re-installing dryer (style 2)

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4)legs again. Repeat until level and solid.

3. Refer to Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.
