NCV1
INSTRUCTION MANUAL
Page 2
Introduction
The NCV1 is a convenient pocket-size multifunction tester, which
combines latest digital technology with advanced powerful intelligent
sensor enable it to distinguish high/low AC voltage.
Features include
• Non-contact AC voltage test: from 70-600 V AC
(with auto hi/low sensitive indication)
• DC voltage/polarity check: 1.5 V - 36 V DC
• Continuity check: 0 - 80 M
• Flash light
Safety Notes
• The tester should not be used to test voltages above the stated
rated voltage.
• Operating temperature within -10˚ to +50˚C (14˚ to 122˚F)
and the frequency range from 50 to 500 Hz. Best environmental
temperature range up to 30˚C, humidity 80% at altitude up to
2,000 meter.
• The tester must be tested on a known voltage source to make sure
it is operating properly.
• The tester must not be used in the presence of moisture,
(e.g. dew or rain).
• Damaged tester must not be used.
• Static electricity may be generated by rubbing the "BODY" of
the tester (when pressing the switch) thus causing LED blinks, this
is NORMAL.
• The flashlight always lights up when pressing the switch, this
is NORMAL.
• In case of doubt, please consult a qualified technician.
Self-Test Function
Prior to use, it is necessary to perform a self-test to ensure guaranteed
indication. Press the switch down and touch the "TEST PIN" by other
free hand.
Both LED lights up and buzzer sounds indicating "NORMAL
FUNCTIONING".
Non-Contact AC Voltage Testing
Press the switch when testing.
Identifying polarity of AC voltage of the wire
To locate "LIVE/HOT" side of the wire, hold/grip the wire with your
free hand and gently "TRACE" inward.
Broken wire/fault finding
"FAULT/BREAK" point in the "LIVE/HOT" wire is indicated by an
interruption in sound and light (LED(2)).
Proper connection check
Move the tester close to the hair dryer with the power OFF. The buzzer
comes ON when the plug is inserted improperly, or if the "LIVE/HOT"
wire is improperly connected to the plug.
Ground/Earthing check
Move the tester close to the fan, toaster, electric kettle, dryer
machine, microwave oven, etc.. The buzzer comes ON if the
"GROUND/EARTHING" is not connected in the wiring.
LED (1)
Inward
LED (2)
NCV1-MAN P. 1
Page 3

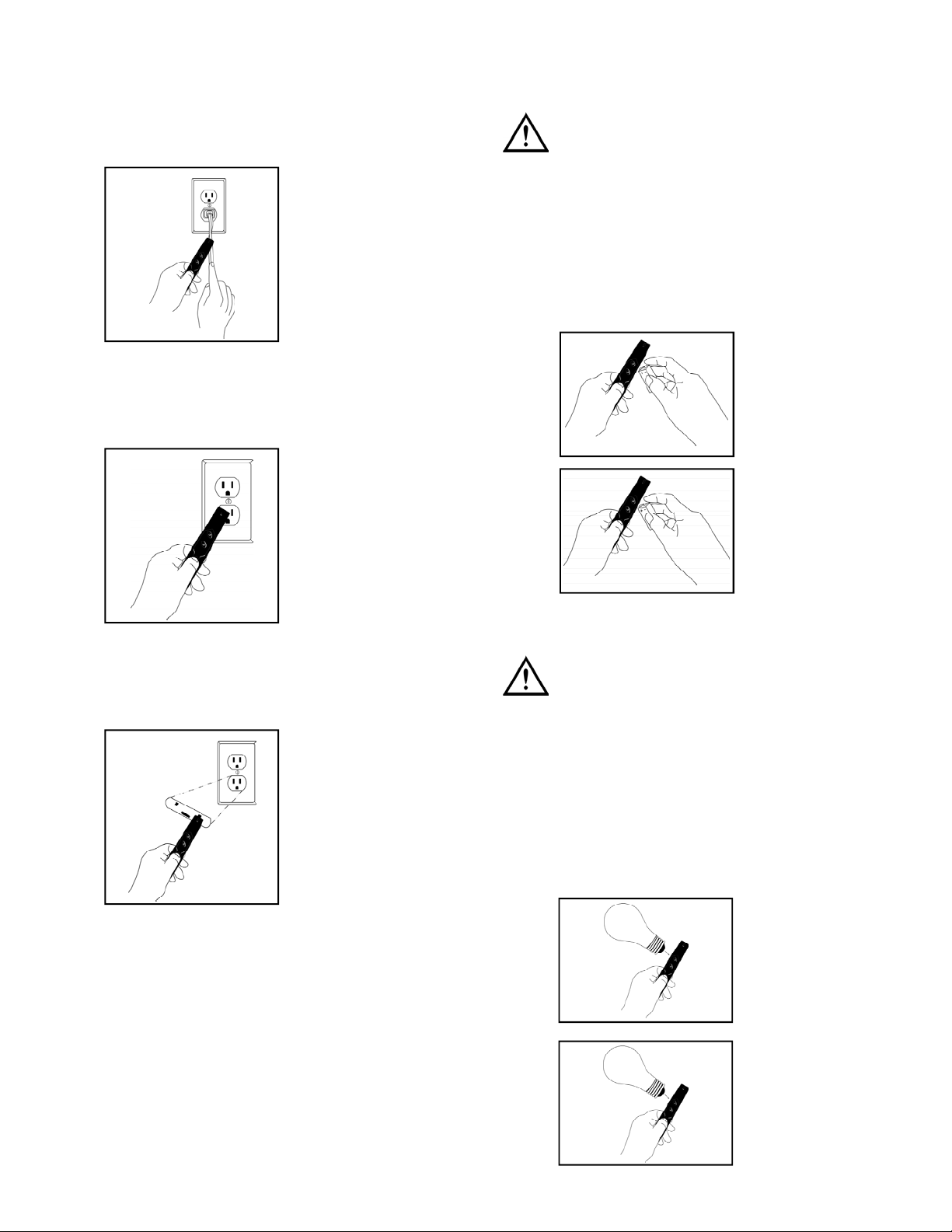

NOTE:
1. To Reduce Sensitivity
If sensitivity is too high, hold/grip the wire and "TRACE" inward for
accurate results.
2. High Sensitive Sense
For more sensitive detection, face "FLAT BOTTOM SIDE"
(near the "TIP") towards the AC voltage.
3. Low Sensitive Sense
For lower sensitive detection, face "TIP" side towards the
AC voltage.
4. Due to auto High/Low sense feature, LED(2) glows steady when
AC signals are stronger. When the tester approaches near the AC
Voltage LED(2) starts blinking, buzzer tone changes.
5. Static electricity may be generated by rubbing the plastic
housing thus cause false indication(LED blinks).
6. The sensitivity may be reduced under high humidity environments.
7. Testing through the wire should be unshielded and must
connect to AC voltage.
8. Wires inside concrete walls or metal conduit can not be detected.
LED blinks
and buzzer
sounds when
"POSITIVE" (+)
No response when
"NEGATIVE" (-)
GOOD
LED blinks and
buzzer sounds
FAULT
No response
NCV1-MAN P. 2
DC Voltage/Polarity Check
(1.5V ~ 36VDC)
WARNING!
Be sure to disconnect any AC mains or high voltage!
Press the switch when testing.
Touch the "TEST PIN" with "POSITIVE" (+) side, and be sure that the
free hand touches the other "NEGATIVE" (-) side.
Continuity Check
WARNING!
Be sure to disconnect any AC mains or high voltage!
Press the switch when testing.
Press test switch then contact one side of the object to the "TEST PIN"
and the other side of the object with your free hand. The NCV1 will
easily identify "GOOD" or "BAD" fuses, bulbs, heating elements, wiring
etc., and it can also check/identify resistor, coils, etc.
Page 4

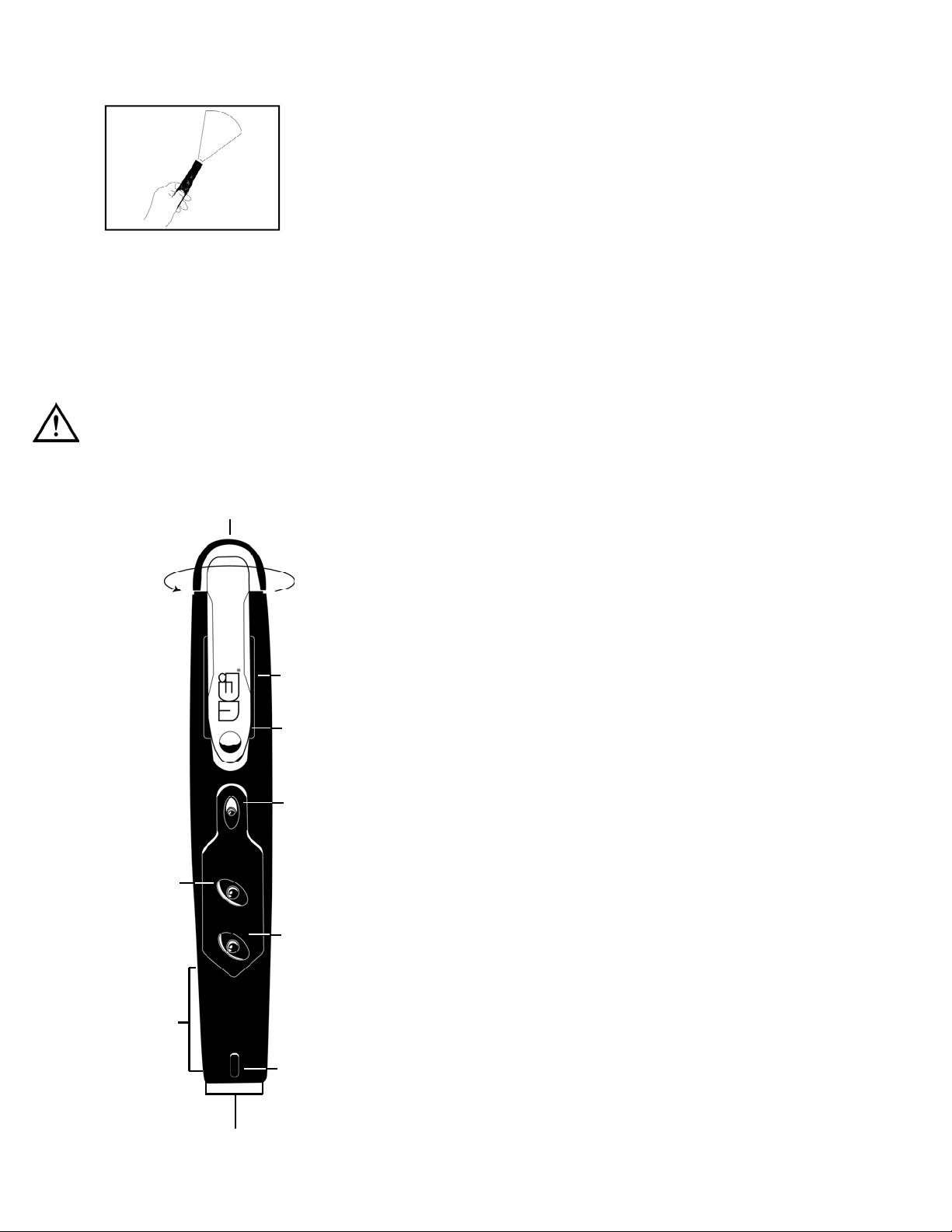

LED (1)
always lights
up when
pressing
the switch.
Twist to open
Buzzer
Battery
compartment
(cover)
Clip
Press switch
(Press:ON)
(Release: OFF)
"Test Pin"
Flash Light,
super bright
white LED (1)
Low sense area "TIP"
(ACV, Radiation)
"Flat Bottom Side"
High sense area
(ACV)
LED (2) auto
hi/low indication
(steady glow:
Low signal)
(Blinking: strong
signal)
NCV1-MAN P. 3
Flashlight
Battery Replacement
Twist the clip either left or right hand side and pull the cover out,
replace with fresh batteries with "NEGATIVE" at left side and then
place back the cover.
WARNING!
Do not operate the tester with cover removed.
Page 5
Limited Warranty
The NCV1 is warranted to be free from defects in materials and workmanship for a period of
three years from the date of purchase. If within the warra n ty period your instrument should
become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
This warra n ty covers normal use and does not cover damage which occurs in shipment or
failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper
maintenance. Batteries and consequential damage resulting from failed batteries are not
covered by warra n ty.
Any implied warranties, including but not limited to implied warranties of merchantability
and fitness for a particular purpose, are limited to the express warranty. UEi shall not
be liable for loss of use of the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such damage, expenses or
economic loss. A purchase receipt or other proof of original purchase date will be required
before warra n ty repairs will be rendered. Instruments out of warra n ty will be repaired
(when repairable) for a service charge. Return the unit postage paid and insured to:
1-800-547-5740 • FAX: (503) 643-6322
www.ueitest.com • Email: info@ueitest.com
This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.
NCV1
Non-Contact Voltage Tester
Copyright © 2007 UEi NCV1-MAN 1/07
