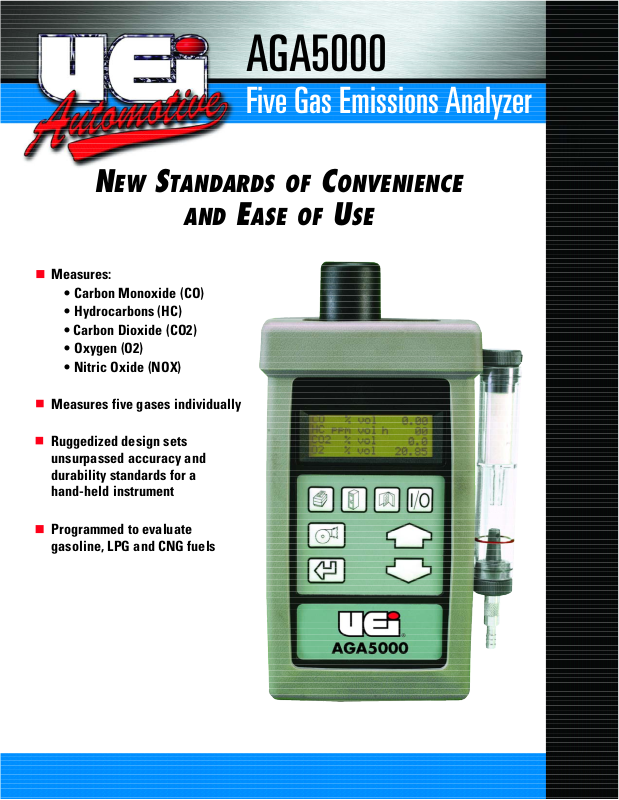

AGA5000

Five Gas Emissions Analyzer

Measures:

• Carbon Monoxide (CO)

• Hydrocarbons (HC)

• Carbon Dioxide (CO2)

• Oxygen (O2)

• Nitric Oxide (NOX)

Measures five gases individually

Ruggedized design sets
unsurpassed accuracy and
durability standards for a
hand-held instrument

Programmed to evaluate
gasoline, LPG and CNG fuels

The AGA5000
has the following features:

•

Measures:

• Carbon Monoxide (CO)

• Hydrocarbons (HC)

• Carbon Dioxide (CO2)

• Oxygen (O2)

• Nitric Oxide (NOX)

•

Measures five gases individually (actual, not calculated)

•

Infrared link to optional portable printer

•

Programmed to evaluate gasoline, LPG and CNG fuels

•

Programmable four or eight line backlit display

•

Separate pump switch (Run pump only during testing)

•

Measurements are shown in real time

•

Self-powered, the only connection to the vehicle is the tailpipe hose

•

Integral flow checking provides warning of probe blockages

•

The calibration procedure uses standard automotive test gases

•

Includes: Protective rubber boot, Water trap and filter, Carrying case,
Battery charger, exhaust probe and five extra filters

• One year limited warranty

The AGA5000 is a truly portable exhaust gas analyzer
that sets new standards of convenience and ease of
use. It fits comfortably in one hand and can run for up
to four hours on its internal re-chargeable battery.

Programmable four or eight line backlit display shows
measurements in real time. The AGA5000 is made for
additional uses which include engine fault diagnosis
and tune-up verification. Integral flow checking
provides warning of probe or filter blockages.

The calibration procedure allows the unit to be
calibrated using standard automotive test gases.

Copyright © 2006 UEi Automotive Specifications are subject to change without notice. L539 AUTO 4/06

AGA5000 • Five Gas Emissions Analyzer

Specifications

Distributed By:

1-800-547-5740 • Fax: [phone]
Service: [phone]
www.ueiautomotive.com
Email: [e-mail]

IN CANADA

Vancouver: Phone: [phone] • Fax: [phone]
Toronto: Phone: [phone] • Fax: [phone]

IN EUROPE

Phone: [phone] • Fax: [phone]

*To obtain the quoted specifications the instrument should be calibrated with
clean ambient air (normally outside the workshop) at standard temperature and
pressure (STP).

Gases Resolution Accuracy Range

CO 0.01% ±5% of reading 0-5%

±0.5% volume Over-range 20%

O2 0.01% ±5% of reading 0-21%

±0.1% volume Over-range 25%

HC 1 ppm ±5% of reading 0-2000 ppm

±12 ppm volume Over-range 10,000 ppm

NOX 1 ppm ±5% pf reading 0-5000 ppm

±40 ppm volume Over-range 5,000 ppm

CO2 0.1% ±5% of reading 0-16%

±0.5% volume Over-range 20%
Lambda 0.001 - 0.8-1.2
AFR 00.01 - 11.76-17.64
Sensor response time 15 seconds
Pre-programmed fuels Gasoline, LPG and CNG
Ambient operating range +41˚F to 104˚F / 10% to 90% RH non condensing
Hose length 12’
Battery charger Input: 110V AC

Output: 10V AC off load
Analyzer battery run time > 4 hours from full charge with pump running

Replacement Parts:

Particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16345

AC Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KMCU900/110

Exhaust probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGPROBE

Optional Accessories:

Infrared printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KMIRP2

Paper roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16646
