Universal Enterprise ADM4201KIT User Manual

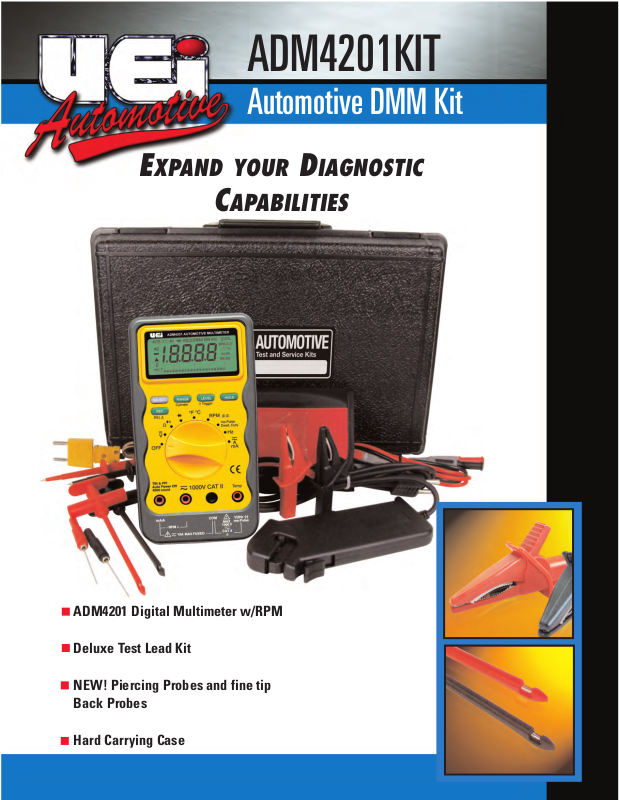

ADM4201KIT

Automotive DMM Kit

EXPAND YOUR DIAGNOSTIC

CAPABILITIES

ADM4201 Digital Multimeter w/RPM

Deluxe Test Lead Kit

NEW! Piercing Probes and fine tip
Back Probes

Hard Carrying Case

ADM4201KIT • Digital Multimeter w/ deluxe test lead kit

AUT

OMOTIVE

Tes

t an

d S

erv

ice

Ki

ts

The ADM4201 is a handheld battery operated
professional automotive multimeter designed to
provide trouble shooting solutions to the most
difficult problems encountered in today’s
sophisticated automotive electronic systems. The
ADM4201 has a bright LED backlight. A battery
access door allows users to replace the battery and
fuse without breaking calibration seals! High impact
over-molded case absorbs shock over more of the
case than a conventional rubber boot design. The Kit
includes an assortment of test leads and probes to
make any application easier and a rugged carrying
case.

The ADM4201KIT
has the following features:

ADM4201

• Accurate RPM measurement for 2 and 4 stroke automotive engines with
1 to 8 cylinders using the inductive pickup

• ms-pulse Width function to test on-time of both PFI type and TBI type
fuel injectors

• Duty Cycle and direct DWELL reading

• 4 step adjustable triggers on 1 to 8 cylinders

• Temperature measurement up to 2,498˚F or 1,370˚C

• 3-3/4 digit, 4,000 count display with bar-graph (Frequency range:
99,999 counts)

• Backlit display

• Auto-power off

• High impact over-molded case

• CE-mark

• IEC 1010.1-92, CAT II 1000 V rating

KIT INCLUDES

• Universal straight/right angle test lead extensions
Insulated fine point tip leads

•

• Large jaw alligator clips

• Convenient carrying pouch

•

NEW! Peircing probes

• NEW! Fine tip Back Probes

• Three year limited warranty

Specifications

DC Voltage: 0 to 1,000 V

C Voltage: 0 to 1,000 V (50 Hz to 400 Hz)

A
Basic Accuracy: DC V – 0.5%, AC V – 0.75%
RPM (4 Stroke): 120 to 20,000 RPM
RPM (DIS & 2 Stroke): 60 to 10,000 RPM
DC Current: 0 to 10 A (20 A for 30 seconds)
Resistance: 0 to 40 MΩ
Frequency: 0.5 Hz to 200 kHz
Duty Cycle: 0% to 99.9%
Dwell: 0° to 356.4°
Pulse Width: 0.50 ms to 1999.9 ms
Diode Test: 3.0 V
Continuity Test: Beep at Approx. <50
Temperature: -40 to 2498 °F (-40 to 1370 °C)

Annual calibration suggested.
