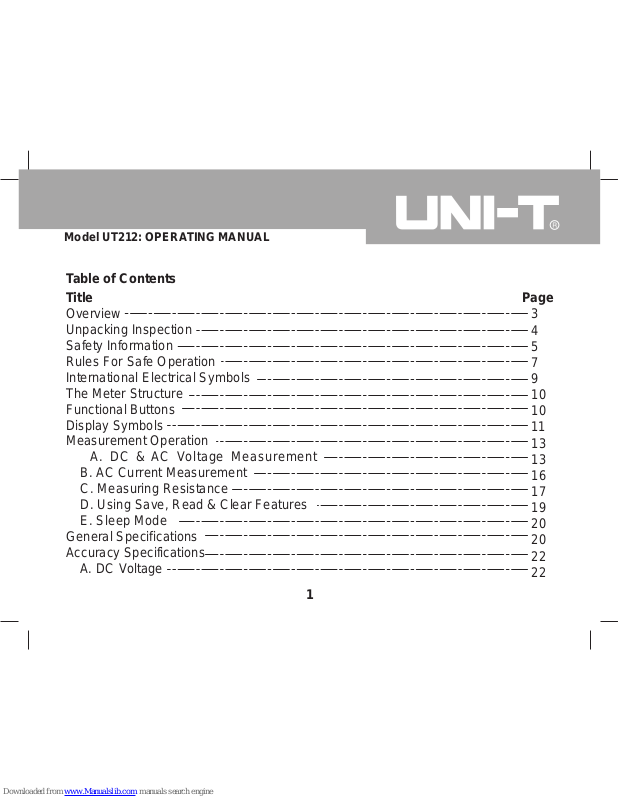

UNI-T UT212 Operating Manual

Table of Contents

Overview
Unpacking Inspection
Safety Information
Rules For Safe Operation
International Electrical Symbols
The Meter Structure
Functional Buttons
Display Symbols
Measurement Operation
A. DC & AC Voltage Measurement
B. AC Current Measurement
C. Measuring Resistance
D. Using Save, Read & Clear Features
E. Sleep Mode
General Specifications
Accuracy Specifications
A. DC Voltage

Title Page

3
4
5
7
9
10
10
11
13
13
16
17
19
20
20
22
22

Model UT212: OPERATING MANUAL

1

B. AC Voltage
C. AC Current
D. Resistance
Maintenance
A. General Service
B. Replacing the Battery

Title Page

23
24
25
26
26
27

Model UT212: OPERATING MANUAL

2

Overview

Warning

This Operating Manual covers information on safety and cautions. Please read the
relevant information carefully and observe all the Warnings and Notes strictly.

To avoid electric shock or personal injury, read the “Safety Information” and “Rules
for Safety Operation” carefully before using the Meter.

The Model UT212 (hereafter referred to as “the Meter”) are a 3999 counts 3 3/4 digits
auto clamp multimeter, they auto sense on AC & DC voltage, AC current and resistance
measurement. They have full range overload protection and special outlook design.
They are such a smart electrical testing clamp meter.

It also equips with data save, data recall, low battery display and auto power off
features.

Model UT212: OPERATING MANUAL

3

Unpacking Inspection

Open the package case and take out the Meter. Check the following items carefully
to see any missing or damaged part:

Item Description Qty

1
2

Operating Manual
Test Lead

1 piece
1 pair

In the event you find any missing or damage, please contact your dealer immediately .

9V Battery (NEDA 1604, 6F22 or 0006P)
(installed inside the Meter)

1 piece3

Model UT212: OPERATING MANUAL

4

Safety Information

This Meter complies with the standards IEC61010: in pollution degree 2, overvoltage
category (CAT. II 600V / CAT III 300V) and double insulation.

CAT II: Local level, appliance, PORTABLE EQUIPMENT etc., with smaller transient
voltage overvoltages than CAT. III
CAT. III: Distribution level, fixed installation, with smaller transient overvoltages than
CAT. IV.

Under the influence of Radiated, Radio-Frequency Electromagnetic Field phenomenon,
the UT212 may malfunction and can self-recover after the test.

Use the Meter only as specified in this operating manual, otherwise the protection
provided by the Meter may be impaired.

In this manual, a Warning identifies conditions and actions that pose hazards to the
user, or may damage the Meter or the equipment under test.

Model UT212: OPERATING MANUAL

5

A Note identifies the information that user should pay attention on.
International electrical symbols used on the Meter and in this Operating Manual are

explained on page 9.

Model UT212: OPERATING MANUAL

6

Warning

Rules For Safe Operation

To avoid possible electric shock or personal injury, and to avoid possible
damage to the Meter or to the equipment under test, adhere to the following
rules:

Check for the lever is in good condition when measuring AC current.
Must center the wire (conductor) within the transformer jaw.

Before using the Meter inspect the case. Do not use the Meter if it is damaged
or the case (or part of the case) is removed. Look for cracks or missing
plastic. Pay attention to the insulation around the connectors.

Inspect the test leads for damaged insulation or exposed metal. Check the
test leads for continuity. Replace damaged test leads with identical model
number or electrical specifications before using the Meter.

Do not apply more than the rated voltage 600V, between the terminals or
between any terminal and grounding.

When the Meter working at an effective voltage over 60V in DC or 30V in AC,
special care should be taken for there is danger of electric shock.

When using the test leads, keep your fingers behind the finger guards.

Model UT212: OPERATING MANUAL

7

Disconnect circuit power and discharge all high-voltage capacitors before
testing resistance.

Replace the battery as soon as the battery indicator appears or no display
when turning on the Meter. With a low battery, the Meter might produce
false readings that can lead to electric shock and personal injury.

Before carrying out any measurement, make sure the Meter is in good
condition after turning it on.

When servicing the Meter, use only the same model number or identical
electrical specifications replacement parts.

The internal circuit of the Meter shall not be altered at will to avoid damage
of the Meter and any accident.

Soft cloth and mild detergent should be used to clean the surface of the
Meter when servicing. No abrasive and solvent should be used to prevent
the surface of the Meter from corrosion, damage and accident.

Turn the Meter off when it is not in use and take out the battery when not
using for a long time.

Constantly check the battery as it may leak when it has been using for some
time, replace the battery as soon as leaking appears. A leaking battery will
damage the Meter.

Model UT212: OPERATING MANUAL

8

International Electrical Symbols

Do not use or store the Meter in an environment of high temperature, humidity ,
explosive, inflammable and strong magnetic field. The performance of the
Meter may deteriorate after dampened.

Deficiency of Built-In Battery
AC or DC
Grounding
The allowed removable dangerous voltages existed between the leads.
Conforms to Standards of European Union
Warning. Refer to the Operating Manual
Double Insulated

Model UT212: OPERATING MANUAL

9

The Meter Structure (see figure 1)

(figure 1)

1. Transformer Jaws designed to pick up the AC
current flowing through the conductor.

2. LCD Display.

3. Function Buttons

4. Input Terminals

Button Operation Performed

SAVE
READ

Press to store the data.
Press to recall the stored data.

(POWER)

Press to turn the Meter on and off.

Functional Buttons

Below table indicated for information about the functional
button operations.

Model UT212: OPERATING MANUAL

10

Display Symbols (see figure 2)

(figure 2)

Number Symbol Meaning

STANDBY --­No. XX
SAVE
“ “

1
2
3
4
5

Auto power off is on
Standby indicator
The number of records are saved
Indicator for saving record.
Indicator for negative reading

Model UT212: OPERATING MANUAL

11

Number Symbol Meaning

AC
DC
OL

,k ,M

6
7
8

9

Indicator for AC Voltage.
Indicator for DC Voltage
Indicator for overloading

Volts. The unit of voltage.
Indicator for AC current

Ohm. The unit of resistance.
kilohm. 1 x 103 or 1000 ohms.
Megaohm. 1 x 106 or 1,000,000 ohms.

V
A
Auto

10

11

The Meter is in the auto range mode in which the Meter
automatically selects the range with the best resolution.

The battery is low.

Warning: To avoid false readings, which could lead
to possible electric shock or personal injury, replace
the battery as soon as the battery indicator appears.

Model UT212: OPERATING MANUAL

12

Measurement Operation

The LCD displays full icon while turning on the Meter, then the Meter will carry out
self-check process, it will take around 2 seconds, after that, the Meter will enter stand
by mode and display “STANDBY-----“.

A. DC and AC Voltage Measurement (See figure 3)

figure 3

Warning

To avoid harms to you or damages to the Meter
from electric shock, please do not attempt to
measure voltages higher than 600V although
readings may be obtained.

When measure high voltages, take extra care to
avoid electric shock

red black

Model UT212: OPERATING MANUAL

13

Full auto measurement mode
To measure DC and AC voltage, connect the Meter as follows:

1. Insert the red test lead into the V terminal and the black test lead into the COM
terminal

2. Connect the test leads across with the object being measured. When the AC
voltage is higher than AC1.5V or DC voltage is higher than ±1V, the Meter will
automatically enter the voltages measurement mode.
The measured value shows on the display.

3. When the input voltage is less than 5V, the input impedance is around 10M .
When the voltage is higher than 5V, the input impedance will instantly transit from
1k to 10M .

Semi auto measurement mode
Press SAVE button to turn the Meter on, the Meter will then enter into voltage

measurement mode, the input impedance is 10M at this moment. The Meter is
default as DC voltage measurement mode. The Meter will auto identify the voltage
type and switch to the appropriate measurement mode.

Model UT212: OPERATING MANUAL

14

Note:

When DC and AC voltage measurement has been completed, disconnect the
connection between the testing leads and the circuit under test, and remove the
testing leads away from the input terminals of the Meter.

Model UT212: OPERATING MANUAL

15

B. AC Current Measurement (See figure 4)

L

N

a b

figure 4

correct incorrect

To measure current, do the following:

1. Check the lever is in good condition.

2. Press the lever to open the transformer jaws.

3. Center the conductor within the transformer jaw
like figure 5.

4. When the tested current is greater than AC0.4A,
the Meter will automatically enter current testing
mode.
The measured value shows on the display, it is a
effective value of sine wave (mean value
response).

Note

When current measurement has been
completed, disconnect the connection between the conductor under test and the
jaw, and remove the conductor away from the transformer jaw of the Meter.

Model UT212: OPERATING MANUAL

16

C. Measuring Resistance (see figure 5)

red black

figure 5

Warning

T o avoid damages to the Meter or to the devices
under test, disconnect circuit power and
discharge all the high-voltage capacitors before
measuring resistance.

When the Meter working at an effective voltage
over 60V in DC or 30V in AC, special care should
be taken for there is danger of electric shock.

To measure resistance, connect the Meter as
follows:

1. Insert the red test lead into the terminal and
the black test lead into the COM terminal.

2. Connect the test leads across with the object
being measured.
The measured value shows on the display.

Model UT212: OPERATING MANUAL

17

Note

The test leads can add 0.1 to 0.2 of error to resistance measurement. To obtain
precision readings in low-resistance measurement, it is necessary to subtract the
value measured when the testing leads are short circuited from the reading.

If reading with shorted test leads is not less than 0.5 , check for loose test leads,
incorrect function selection, or any other reasons.

The LCD displays OL indicating open-circuit or the tested resistor or the resistor
value is higher than the maximum range of the Meter.

For high-resistance measurement (>1M ), it is normal to take several seconds to
obtain a stable reading.. In order to obtain stable reading, try to use as short as
test lead possible.

When resistance measurement has been completed, disconnect the connection
between the testing leads and the circuit under test, and remove the testing leads
away from the input terminals of the Meter.

Model UT212: OPERATING MANUAL

18

D. Using Save, Read and Clear Features

1. Under any measurement mode, press SA VE button to enter save mode. The LCD
displays “SAVE No.” to indicate saving record is in process and the index number
(number of records saved).

2. During measurement or standby mode, press READ button to exit the current
measurement mode or standby mode and to display the last number of saved
reading. Each presses to view the next saved reading, it is in first save last out
bases. When the first saved reading is displayed, press READ button again to
return to measurement or standby mode.

3. During measurement or standby mode, press and hold READ button to clear the
saved readings. The LCD displays CLR to confirm the operation, SAVE No.xx will
disappear.

4.The maximum number of reading saved is 10.

Model UT212: OPERATING MANUAL

19

E. Sleep Mode

1. Under the standby mode, to preserve battery life, the Meter automatically enters
into sleep mode you do not press any button or carrying out measurement for
around 10 minutes. The Meter display

.

2. The Meter can be activated by pressing any button except the YELLOW button,
the Meter displays standby mode symbol.

3. The Sleep Mode feature will be invalid under measurement mode.

Maximum Voltage between

any Terminals and Grounding: Refer to different range input protection voltage.

Maximum Current Measurement: 400A.

of Transformer Jaw:

Auto Function: Auto detect
Maximum Display: Digital: 3999, 3 3/4 digits
Overload Display: OL

Model UT212: OPERATING MANUAL

20

General Specifications

Range: Auto
Polarity Display: Auto
Measurement Speed: Updates 2-3 times/second.
Below 1V/m electrostatic discharge: Accuracy = specified accuracy + 5% of the

range.

Over 1V/m electrostatic discharge: Without specified accuracy.

Temperature: Operating: 0

to +40 (32 to +104 ).

Storage: -10

to +50 (14 to +122 ).

Relative Humidity: 75% @ 0 to 30 ; 50% @ 30 to 40 .
Altitude: Operating: 2000 m.

Storage: 10000 m.
Battery Type: One piece of 9V (NEDA1604 or 6F22 or 006P).
Battery Deficiency: Display
Dimensions (HxWxL): 210mm x 75.6mm x 30mm
Weight: Approximate 300g (battery included).
Safety/Compliances: IEC61010 CAT. II 600V / CAT III 300V

overvoltage and double insulation standard.

Certifications:

Model UT212: OPERATING MANUAL

21

Accuracy Specifications

Accuracy: ( a% reading + b digits) , guarantee for 1 year.
Operating temperature: 23

5 .

Relative humidity: 75%.

A. DC Voltage

Range Resolution Accuracy RemarksOverload

Protection

4V

40V

400V

1mV

10mV

100mV

(0.8%+1)

(1%+3)60V 1V

600V

Input impedance:
Full auto measurement mode:
When Vx 5V, it is around 10M .
When Vx>5V , it instantly transits
from 1k to 10M .
At high impedance mode:
around 10M

Testing sensitivity:
DC 1V

Model UT212: OPERATING MANUAL

22

B. AC Voltage

Range Resolution Accuracy RemarksOverload

Protection

4V
40V
400V

1mV
10mV
100mV

(1.2%+5)

(1.5%+5)

60V

1V 600V

Input impedance:
Full auto measurement mode:
When Vx 5V, it is around
10M .

When Vx > 5V, it instantly

transits from 1k to 10M .
At high impedance mode:
around 10M High impedance
is mode is 10M .

Displays effective value of sine
wave (mean value response).

Frequency response:
50Hz~400Hz.
Testing sensitivity:

AC 1.5V

Model UT212: OPERATING MANUAL

23

C. AC Current

Range Resolution Accuracy Remarks

0.4A input current
20A: (3.0%+8)

>20A: (2.0%+8)

200A: (1.5%+5)

>200A: (1.5%+50)

40A

400A

10mA

100mA

Frequency response

50Hz~60Hz.

Display effective value of
sine wave (mean value
response).

Testing sensitivity: AC0.4A

Model UT212: OPERATING MANUAL

24

D. Resistance

Range Resolution Accuracy Overload Protection

4k
40k
400k
4M
20M

600Vp

400

1
10
100
1k
10k

0.1

(1.2%+2) + test lead short

circuit resistance value

(1.0%+2)

(1.2%+2)
(1.5%+2)

Model UT212: OPERATING MANUAL

25

Maintenance

This section provides basic maintenance information including battery replacement
instruction.

Warning
Do not attempt to repair or service your Meter unless you are qualified to do
so and have the relevant calibration, performance test, and service information.

To avoid electrical shock or damage to the Meter, do not get water inside the case.

A. General Service

Periodically wipe the case with a damp cloth and mild detergent. Do not use

abrasives or solvents.

To clean the terminals with cotton bar with detergent, as dirt or moisture in the

terminals can affect readings.

Turn the Meter off when it is not in use.
Take out the battery when it is not using for a long time.
Do not use or store the Meter in a place of humidity, high temperature, explosive,

inflammable and strong magnetic field.

Model UT212: OPERATING MANUAL

26

B. Replacing the Battery (See t)

Warning
To avoid false readings, which could
lead to possible electric shock or
personal injury, replace the battery as
soon as the battery indicator “ ”
appears or no display when turning on
the Meter.

Make sure the transformer jaw
and the test leads are disconnected
from the circuit being tested before
opening the case bottom.

Make sure the test leads are
removed from the input terminals.

screw

battery

figure 6

t

Model UT212: OPERATING MANUAL

27

** END **

This operating manual is subject to change without notice.

To replace the battery:

1. Turn the meter power off and remove all the connections from the terminals.

2. Remove the screw from the battery compartment, and separate the battery compartment
from the case bottom.

3. Remove the battery from the battery compartment.

4. Replace the battery with a new 9V battery (NEDA1604, 6F22 or 006P).

5. Rejoin the case bottom and battery compartment, and reinstall the screw.

Model UT212: OPERATING MANUAL

28

Model UT212: OPERATING MANUAL

29

Copyright 2005 Uni-Trend Group Limited.

All rights reserved.
Manufacturer:

Uni-Trend Technology (Dongguan) Limited
Dong Fang Da Dao
Bei Shan Dong Fang Industrial Development District
Hu Men Town, Dongguan City
Guang Dong Province
China
Postal Code: 523 925

Headquarters:
Uni-Trend Group Limited
Rm901, 9/F, Nanyang Plaza
57 Hung To Road
Kwun Tong
Kowloon, Hong Kong
Tel: [phone]
Fax: [phone]
Email: [e-mail]
http://www.uni-trend.com

Model UT212: OPERATING MANUAL

30
