OPERATOR / ILLUSTRATED PARTS MANUAL

08-20-08

FS300 SERIES, PLAIN AND DIFFERENTIAL FEED,

HIGH SPEED FLAT BED MACHINES

MANUAL NO. PT9914

FOR STYLES

FS315L63 FS316L61 FS316L62 FS316L63

Manual No. PT9914 llustrated Parts List for FS300 Series Machines

Union Special Corporation Rights Reserved In All Countries

Printed in U.S.A. Jan. 2000

PREFACE

This parts manual has been prepared to assist you in locating individual parts or assemblies on FS300 Series machines. It can be used in conjunction with Union Special Engineer's Manual EN9424.

It is the desire of Union Special that each machine run at its optimum performance. Parts listed in this manual are designed specifically for your machine and are manufactured with utmost precision to assure long lasting service.

This manual has been comprised on the basis of available information. Changes in design and/or improvements may incorporate a slight modification of configuration in illustrations or part numbers.

On the following pages are illustrations and terminology used in describing the parts used on FS300 Series machines.

PREFACE .................................................................................................................................................................... 2

IDENTIFICATION OF MACHINES ............................................................................................................................... 4

CLASS DESCRIPTION ................................................................................................................................................. 4

STYLE OF MACHINES ................................................................................................................................................. 4

STYLE OF MACHINES CONT. .................................................................................................................................... 5

ILLUSTRATIONS........................................................................................................................................................... 5

IDENTIFYING PARTS ................................................................................................................................................... 5

NEEDLES ..................................................................................................................................................................... 5

SAFETY RULES ............................................................................................................................................................ 6

FS300 SERIES BUILDING BLOCK STYLE DESIGNATION SYSTEM................................................................................ 7

CAUTION AREAS: ...................................................................................................................................................... 8

OPERATOR'S DAILY CHECK LIST:.............................................................................................................................. 9

OPERATING CAUTIONS: ........................................................................................................................................... 9

OPERATING CAUTIONS (CONT.): .......................................................................................................................... 10

OPERATING THE PEDALS: ....................................................................................................................................... 10

LUBRICATION: ......................................................................................................................................................... 11

THREADING THE MACHINE: ................................................................................................................................... 12

THREADING THE MACHINE (CONT.): .................................................................................................................... 13

THREADING METHODS ........................................................................................................................................... 14

ADJUSTING THE STITCH LENGTH: ........................................................................................................................... 15

PRESSER FOOT PRESSURE AND LIFTER: .................................................................................................................. 15

FEED, NEEDLE LOOPER TIMING:............................................................................................................................. 16

NEEDLE ALIGNMENT: .............................................................................................................................................. 16

LOOPER SETTING:.................................................................................................................................................... 17

NEEDLE BAR SETTING: ............................................................................................................................................. 17

REAR NEEDLE GUARD: ........................................................................................................................................... 18

FEED DOG CENTERING AND HEIGHT ABOVE THROAT PLATE: ............................................................................ 18

PRESSER FOOT: ........................................................................................................................................................ 18

LOOPER THREAD TAKE-UP CAM SETTING: ............................................................................................................ 19

THREAD CONTROL: ................................................................................................................................................ 19

PULLER ADJUSTMENTS: ........................................................................................................................................... 20

PULLER ADJUSTMENTS CONT.: ............................................................................................................................... 21

BUSHINGS ................................................................................................................................................................ 23

NEEDLE BAR ............................................................................................................................................................ 25

UPPER MAIN SHAFT ................................................................................................................................................. 27

THREAD GUIDE ........................................................................................................................................................ 29

TENSION RELEASE & THREAD TENSION .................................................................................................................. 31

PRESSER FOOT LIFT .................................................................................................................................................. 33

COVERS, UPPER ARM ............................................................................................................................................ 35

LOWER MAIN SHAFT ............................................................................................................................................... 37

LUBRICATION, OIL TUBING & OIL PUMP ................................................................................................................ 39

LOOPER DRIVE ........................................................................................................................................................ 41

NEEDLE GUARD ...................................................................................................................................................... 43

LOOPER THREAD TAKE-UP ..................................................................................................................................... 45

FEED DRIVE MECHANISM FOR PLAIN FEED .......................................................................................................... 47

FEED DRIVE MECHANISM FOR DIFFERENTIAL FEED .............................................................................................. 49

FEED DRIVE MECHANISM FOR PLAIN FEED .......................................................................................................... 51

FEED DRIVE MECHANISM FOR DIFFERENTIAL FEED .............................................................................................. 53

COVERS, LOWER BED............................................................................................................................................. 55

COVERS, LOWER BED............................................................................................................................................. 57

SEWING PARTS ........................................................................................................................................................ 59

FOLDERS .................................................................................................................................................................. 61

PULLER DRIVE ASSEMBLY ........................................................................................................................................ 63

PULLER ASSEMBLY ................................................................................................................................................... 65

PULLER ASSEMBLY ................................................................................................................................................... 67

MISCELLANEOUS PARTS PA1 (USE WITH CC2 CHAIN CUTTER) ........................................................................... 69

MISCELLANEOUS PARTS PA1A (USE WITHOUT CC2 CHAIN CUTTER) .................................................................. 71

TUBING PA1 WITH CHAIN CUTTER ......................................................................................................................... 72

TUBING PA1A WITHOUT CHAIN CUTTER ................................................................................................................ 73

TABLING (EXTRA SEND CHARGE) .......................................................................................................................... 75

PRESSER FOOT LIFTER .............................................................................................................................................. 77

ACCESSORIES ......................................................................................................................................................... 79

NUMERICAL INDEX OF PARTS ................................................................................................................................ 80

NUMERICAL INDEX OF PARTS ................................................................................................................................ 81

IDENTIFICATION OF MACHINES

Each UNION SPECIAL machine is identified by a style number, which is stamped into the style plate affixed to the middle of the machine under the tension assembly. The serial number is stamped into the serial number plate affixed to the right rear base of the machine.

CLASS DESCRIPTION

Precision high speed, single needle, plain or differential feed flat bed machines. Totally enclosed feed and looper drive mechanism, automatic forced feed lubrication system with easily replaceable filter. Main feed has thumbscrew adjustment and differential feed has lever adjustment and independently driven rear needle guard.

STYLE OF MACHINES

FS316L61-3H36CC2PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, flat sewing parts, close-

coupled toothed roller puller, pneumatic power "AIR-KLIPP" Chain cutter, pneu matic assisted presser foot and roller lift, and double lap seam folder with 1/8" (3.2mm) capacity. For attaching the risers to jeans, seat seaming operations on jeans, bibs to overalls and piecing sleeves on denim jackets. Seam Specifications 401LSc-3. Recommended needle 128 GAS sizes 140/054 - Stitch range 7-10 S.P.I.. Maximum recommended speed 6000 R.P.M.

FS316L61-3H36PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, flat sewing parts, close-

coupled toothed roller puller, pneumatic assisted presser foot and roller lift, and double lap seam folder with 1/8" (3.2mm) capacity. For attaching the risers to jeans, seat seaming operations on jeans, bibs to overalls and piecing sleeves on denim jackets. Seam Specifications 401LSc-3. Recommended needle 128 GAS sizes 140/ 054 - Stitch range 7-10 S.P.I.. Maximum recommended speed 6000 R.P.M..

FS316L62-3H36CC2PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, .040" stepped chaining

sewing parts, close-coupled toothed roller puller, pneumatic power "AIR-KLIPP" Chain cutter, pneumatic assisted presser foot and roller lift, and double lap seam folder with 1/8" (3.2mm) capacity. For attaching the risers to jeans, seat seaming operations on jeans, bibs to overalls and piecing sleeves on denim jackets. Seam Specifications 401LSc-3. Recommended needle 128 GAS sizes 140/054 - Stitch range 7-10 S.P.I.. Maximum recommended speed 6000 R.P.M..

FS316L62-3H36PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, .040" stepped chaining

sewing parts, close-coupled toothed roller puller, pneumatic assisted presser foot and roller lift, and double lap seam folder with 1/8" (3.2mm) capacity. For attaching the risers to jeans, seat seaming operations on jeans, bibs to overalls and piecing sleeves on denim jackets. Seam Specifications 401LSc-3. Recommended needle 128 GAS sizes 140/054 - Stitch range 7-10 S.P.I.. Maximum recommended speed 6000 R.P.M..

FS316L63-3H32CC2PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, .070" stepped chaining

FS316L63-3H32PA1 DOUBLE LAP SEAM. Three needle, plain feed, high capacity, .070" stepped chaining

STYLE OF MACHINES CONT.

FS315L63-3H32CC2PA1 Same as FS316L63-3H32CC2PA1 except differential feed.

FS315L63-3H32PA1 Same as FS316L63-3H32PA1 except differential feed.

ILLUSTRATIONS

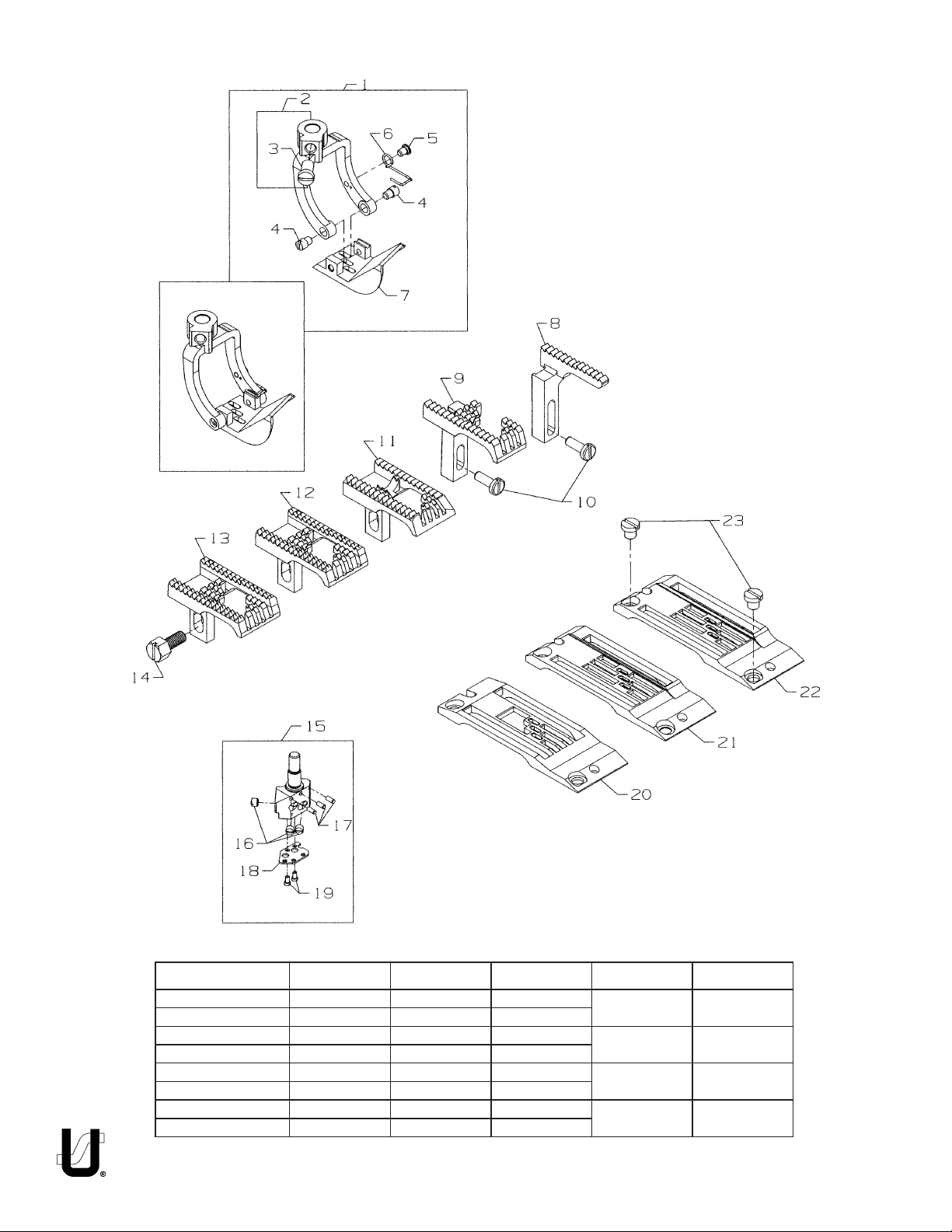

This manual has been arranged to simplify ordering repair parts. Exploded views of various sections of the mechanism are shown so that the parts may be seen in their actual position in the machine. On the page opposite the illustration will be found a listing of the parts with their part numbers, description and the number of pieces required in the particular view being shown.

Numbers in the first column are reference numbers only, and merely indicate the position of the part in the illustration. The reference number should never be used in ordering parts. Always use the part number listed in the second column.

Component parts of sub-assemblies which can be furnished for repairs are indicated by indenting their descriptions under the description of the main sub-assembly. As an example refer to the following text.

5. 50366B Needle Thread Strike-Off Assembly ................................................................................ 1

6. 50358V Needle Thread Strike-Off .................................................................................. 1

7. 50370F Thread Strike-Off Component ......................................................................... 1

8. SS7060310SP Screw, for plate strike-off .................................................................................. 1

When a part is common to all machines covered in this manual, no specific usage will be mentioned in the description. However, when the parts for the various machines are not the same, the specific usage will be mentioned in the description and, if necessary, the difference will be shown in the illustration.

*Ref. No. showing no Part No. is for location only. Part is not for sale separately.

A numerical index of all the parts shown in this manual is located at the back. This will facilitate locating the illustration and description when only a part number is known.

IDENTIFYING PARTS

Where construction permits, each part is stamped with its part number. On some of the smaller parts and on those where construction does not permit, an identification letter is stamped in to distinguish the part from similar ones.

PLEASE NOTE: Part numbers represent the same part, regardless of which manual they appear. On all orders please include

part number, name and style of machine for which the part was ordered.

For optimum performance use only genuine Union Special replacement parts.

NEEDLES

Each needle has both a type and size number. The type number denotes the kind of shank, point, length, groove, finish and other details. The size number, stamped on the needle shank, denotes the largest diameter of the blade measured between the shank and the eye. Collectively, the type number and size number represent the complete symbol which is given on the label of all needles packed and sold by Union Special.

TYPE DESCRIPTION

128 GAS Short, double groove, struck groove, ball eye, spotted, round point, chromium plated- Sizes available 080/032,

090/036, 100/040, 110/044, 125/049, 150/060.

When changing the needle, make sure it is fully inserted in the needle holder before the screw is tightened.

When ordering needles, please use the complete type and size numbers as printed on the package to ensure prompt and accurate processing of your order. A complete order should read as follows: "100 needles, type 128 GAS, size 150/060".

SAFETY RULES

1. Before putting the machines described in this manual into service, carefully read the instructions. The starting of each machine is only permitted after taking notice of the instructions and by qualified operators.

IMPORTANT! Before putting the machine into service, also read the safety rules and instructions from the

motor supplier.

2. Observe the national safety rules valid for your country.

3. The sewing machines described in this instruction manual are prohibited from being put into service until

it has been ascertained that the sewing units which these sewing machines will be built into, have conformed with the EC Council Directives (89/392/EEC, Annex II B).

Each machine is only allowed to be used as foreseen. The foreseen use of the particular machine is described in paragraph “STYLES OF MACHINES” of this instruction manual. Another use, going beyond the description, is not as foreseen.

4. All safety devices must be in position when the machine is ready for work or in operation. Operation

of the machine without the appertaining safety devices is prohibited.

5. Wear safety glasses.

6. In case of machine conversions and changes all valid safety rules must be considered. Conversions

and changes are made at your own risk.

7. The warning hints in the instructions are marked with one of these two symbols:

8. When doing the following the machine has to be disconnected from the power supply by turning off

the main switch or by pulling out the main plug:

8.1 When threading needle(s), looper, spreader etc.

8.2 When replacing any parts such as needle(s), presser foot, throat plate, looper, spreader, feed dog, needle guard, folder, fabric guide etc.

8.3 When leaving the workplace and when the workplace is unattended.

8.4 When doing maintenance work.

8.5 When using clutch motors without actuation lock, wait until the motor is stopped totally.

9. Maintenance, repair and conversion work (see item 8) must be done only by trained technicians or special skilled personnel under consideration of the instructions.

10. Any work on the electrical equipment must be done by an electrician or under direction and supervision of special skilled personnel.

11. Work on parts and equipment under electrical power is not permitted. Permissible exceptions are described in the applicable sections of standard sheet DIN VDE 0105.

12. Before doing maintenance and repair work on the pneumatic equipment, the machine has to be disconnected from the compressed air supply. In case of existing residual air pressure, after disconnecting from compressed air supply (i.e. pneumatic equipment with air tank), the pressure has to be removed by bleeding.

FS300 SERIES BUILDING BLOCK STYLE DESIGNATION SYSTEM

CAUTION AREAS:

OPERATOR'S DAILY CHECK LIST:

The following should be checked daily and cleaned as required when it applies to your Union Special machine:

••Lint area (clean with compressed air or brush)

••Needle bar bushings

••Under feed dogs & throat plates

••In knives

••In thread control eyelets

1. The oil level in the sight gauge should be between the two red lines when the machine is at rest. If not, fill with Union Special Specification 175 oil, (Union Special Part No. 28604R).

2. The correct rotating direction of

••Cooling airways

••In the machine

••In the motor

••In the cooling package

(package is an extra send charge)

the handwheel is counterclockwise, as viewed from the handwheel's side. NEVER run the machine in reverse direction.

OPERATING CAUTIONS:

1. Do not put your hand under the needles when turning on the power switch or at any time.

2. Do not put your hand into the sewing area while the machine is running.

3. Turn off the power switch and make sure the clutch motor is at rest before removing the V belt.

OPERATING CAUTIONS (CONT.):

4. During operation, do not allow head, hands or any instrument, tool etc. near handwheel, V belt and motor.

5. Do not operate your machine without the proper belt guard, sewing guards or any other protectors that have been provided. Doing so is very dangerous.

6. Before inspecting, adjusting, cleaning, threading the head or replacing needles, turn OFF the power switch. Make sure the flywheel on the motor has stopped, it will be kept running by inertia after turning OFF the power switch. DO NOT depress the foot pedal while the machine is running or it will cause the machine to rotate abruptly.

7. Turn OFF the power switch when you leave your machine or in case of a power failure.

8. Do not wipe the machine surface with lacquer thinner.

OPERATING THE PEDALS:

1. Locate the center of drive treadle (A) to be in line with the needles.

2. Locate presser lifter pedal (B) for operator comfort.

3. Use S-shaped hook (C) to connect presser lifter pedal chain (D) to presser lifting lever (E).

LUBRICATION:

The oil should be between the two red lines in sight gauge (B) when the machine is at rest.

1. If oil is required remove oil cap (A).

2. Fill between lines (B) with Union Special Specification 175 oil (Union Special Part No. 28604R).

CAUTION! Do not exceed the upper red marker line. Excessive oil in the machine will result in

oil leakage and possible overheating.

3. To drain oil reservoir, remove oil drain cap (C) on the underside of the machine.

4. To ensure oil flow through machine, check oil flow window (D).

THREADING THE MACHINE:

Turn off main power switch before threading! When using clutch motors without actuation lock wait until the motor has completely stopped.

Thread the machine according to the following threading illustrations.

THREADING THE MACHINE (CONT.):

threading the machine (cont.):

When the needle thread lubricator is used:

1. Saturate felt (A).

2. Pass thread over felt.

When the needle thread lubricator is not used:

1. Remove felt (A).

The standard needle is 128 GAS, needle range sizes "090/036 150/060." Insert needle according to the following procedure:

1. Bring needle head (A) to the highest position.

2. Loosen screw (B), insert needle into holes. The needle scarf should face rearwards as viewed from the operator's side.

THREADING METHODS

CAUTION!

When using an untwisted thread such as wooly nylon or weak thread, do not wind it around the intermediate thread guide.

3. Retighten screw (B).

PRESSER FOOT PRESSURE AND LIFTER:

1. Adjust presser foot pressure by loosening nut (A) and turning presser foot adjust screw (B) clockwise to increase the pressure, counterclockwise to decrease the pressure.

2. Retighten nut (A).

ADJUSTING THE STITCH LENGTH:

Turn off main power switch before setting the stitch length! When using clutch motors without actuation lock wait until the motor has completely stopped.

1. To change stitch length turn stitch regulating screw (A).

Clockwise to increase the stitches per inch/shorten the length of one stitch.

Counterclockwise to decrease stitches per inch/increase the length of one stitch.

2. Numbers 0-11 on stitch regulating screw are for operator's

reference only.

FEED, NEEDLE LOOPER TIMING:

Set the first screw in operating direction of the feed drive eccentrics to be straight up, then, holding this position, set the needle bar at B.D.C.. Set the looper timing to the needles to be synchronized. Adjust the looper timing with the looper avoid drive sprocket.

NEEDLE ALIGNMENT:

Torque needle head to 14 to 16 in-lbs (1.6 to 1.8Nm).

Install the feed dog, needles and throat plate. Use the adjustable ferrules to align the needles in the throat plate and align the feed dog so it is centered side to side. tighten the throat plate support and ferrules in place.

LOOPER SETTING:

Use the right needle and looper to set the looper gauge. Set the looper gauge to 1/8" (3.2mm)when loopers at extreem right. Set the loopers front to back to deflect the needles forward .002" to .006" (.05mm to .10mm). set the looper avoid so the needle touches the back of the looper 2/3 down back as needles decend.

NEEDLE BAR SETTING:

Set the needle height so when the top of the needle eye is even with the bottom of the looper (on it's travel to the left) the looper tip is .020" (.5mm) past the needle. Use the left needle. Recheck looper setting. Torque needle bar clamp screw to the following specifications:

Torque needle bar@

18 to 20 in.-lbs. (2.0 to 2.3Nm)

REAR NEEDLE GUARD:

Set the timing of the rear needle guard so the guard reaches it's furthest travel forward as the loopers enter the scarfs on the travel to the left. Bring the looper tips to the center of the needles in the scarf. The tip of the needles should be 3/64" +/-1/64" (1.2mm +/-.4mm) below the top guarding surface. The guard should just touch the needles up to .002 (.05mm) deflection. The loopers when traveling to the left should just touch the needles to .002" (.05mm) clearance when entering the scarf area.

FEED DOG CENTERING AND HEIGHT ABOVE THROAT PLATE:

Set the machine to its longest stitch length. Center feed dog, front to back, so as to obtain equal clearance on the front side and back side of feed dog in the throat plate slots. Set the feed dogs to come out of the throat plate level. Set feed dog height to be full tooth at the rear when the feed dog is at the top of its stroke.

PRESSER FOOT:

Center the needles in the presser foot needle slots. The presser foot lifter lever stop should be set to when the foot is lifted it does not interfere with the needle head when the needle bar is down.

LOOPER THREAD TAKE-UP CAM SETTING:

The looper thread cam should be set so that the looper threads cast off the high lobe of the cam as the point of the needles are just even with the under side of the looper. Set the cast-off plate eyelets so that when the looper reaches its left end of travel, all of the looper thread is used and no thread is drawn from the cone. Move down for less. Set the retaining finger so that the finger is even with the bottom edge of its holder and the tip on the right side is touching the cast-off plate.

THREAD CONTROL:

Set the individual needle thread eyelets so they are 25mm below the top casting and to the extreme right when using the mount adapter.

PULLER ADJUSTMENTS:

With the roller resting on the top of the throat plate, the stop collar should be set about 15mm above the ledge of the puller casting where the stop screw rests. Set the stop screw to rest on the casting and lock in place. Set the lifter lever block to have 0.05mm to 0.15mm clearance above the lifter lever in the neutral position.

Note: When changing sprockets, if the total number of teeth on both sprockets is differentthan what was on the puller, check and readjust these settings.

Use the puller tension nut to add or remove pressure frm the roller.

PULLER ADJUSTMENTS CONT.:

When assembeling the puller to the machine, make sure that a minimum of .05 clearence is maintained between the roller and the throat plate step. Also the roller must sit flat on the throat plate.

Time the puller so the roller feeds at the same time the feed dog is feeding. When setting, both should be feeding at the same S.P.I.. Adjust the timing by using the sprocket on the upper main shaft in the arm.

SNOITANIBMOCTEKCORPSRELLUP

EVIRDRELLUP

TEKCORPS

RELLUP

TEKCORPS

2/1±.I.P.S

HCTITS

41518

41412/17

51417

51312/16

31512/18

316

61316

21612/19

116101

BUSHINGS

Ref.

No.

Part No.

50654

50332U

50330CZ

50654A

50344BE

SQ1110401MZ

50344BC

50344E

50344BF

10.

35036BS

11.

50393GE

12.

22571L

13.

50393FU

14.

50393EY

15.

50392AB

16.

PS0400142KH

17.

50381E

18.

50344BU

19.

SQ1110401MZ

Description

Bushing, for needle bar, upper .....................................................................

Pin, for front lifter lever ..................................................................................

Bushing, for presser bar ................................................................................

Bushing, for needle bar, lower ......................................................................

Bushing, for lower mainshaft, left .................................................................

Fitting .....................................................................................................

Bushing, for needle lever ..............................................................................

Bushing ........................................................................................................

Bushing, for lower mainshaft, right ...............................................................

Stitch Regulator Bushing ..............................................................................

Oil Sight Gauge ............................................................................................

Screw, for drain plug ....................................................................................

Fitting, oil tube ..............................................................................................

Fitting, filter ..................................................................................................

Bushing, for tension release..........................................................................

Pin ................................................................................................................

Bushing, for lifter lever, back ........................................................................

Bushing, front ...............................................................................................

Fitting .....................................................................................................

Amt. Req.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

NEEDLE BAR

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

Part No.

SS4080620TP 50323P 50317B 50345W 50355AM SS7111120TP 50352 661-259B 50355AN 50351A 50393JP 50358X SS7080520SP CE27 50354F CE63 SS8110422TP 29476TC 50393JZ 50393JW SS6090440SP SS6121010SP 29476VN 50338 666-328 CE59 50338A SS6090620SP

Description

Screw ...........................................................................................................

Needle Bar Eyelet .........................................................................................

Needle Bar ...................................................................................................

Connecting Rod Assembly ...........................................................................

Needle Bar Clamp .................................................................................

Screw ...............................................................................................

Pivot Pin .................................................................................................

Needle Bearing Cage ............................................................................

Connecting Rod ....................................................................................

Washer .........................................................................................................

Eyelet Seal ....................................................................................................

Needle Thread Eyelet ...................................................................................

Screw ...........................................................................................................

Loctite Adhesive, (not shown), for screw .....................................................

Slide Block ....................................................................................................

Three Bond Adhesive, (not shown), for slide block .......................................

Screw ...........................................................................................................

Oil Tube Assembly ........................................................................................

Oil Tube ........................................................................................................

Hose Clamp .................................................................................................

Screw, for oil tube assembly .........................................................................

Screw ...........................................................................................................

Slide Block Guide and Cover Assembly ........................................................

Guide, for slide block .............................................................................

Felt, for slide block ..................................................................................

Loctite Adhesive, (not shown), for felt ...................................................

Cover, for guide .....................................................................................

Screw .....................................................................................................

Amt. Req.

1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 2 1 1 1

1 1

UPPER MAIN SHAFT

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Part No.

50322BC 50691 SS7111120TP SS7681410TP SS8681412TP 50322AF 50642A 22894T 50335BD SS8660612TP 661-262 50342BE SS8661012TP 660-1087 50321F SS8681412TP 660-1043 661-261 SS7660520SP

Description

Upper Main Shaft Assembly ..........................................................................

Counter Weight .....................................................................................

Screw, for counter weight ...............................................................

Screw, for counter weight ......................................................................

Upper Main Shaft ...................................................................................

Sprocket, Main Drive ....................................................................................

Screw .....................................................................................................

Bearing Adapter Assembly ..........................................................................

Screw, for bearing adapter ...................................................................

Retaining Ring ..............................................................................................

Sprocket, for upper main shaft .....................................................................

Set Screw, for sprocket ...........................................................................

"O" Ring.........................................................................................................

Handwheel ..................................................................................................

Set Screw, for handwheel ......................................................................

Tack Pin, for handwheel ...............................................................................

Load Ring, for lower main shaft ....................................................................

Screw, for handwheel preload ....................................................................

Amt. Req.

1 1 1 1 1 1 1 4 1 2 1 1 2 1 1 2 1 2 1

THREAD GUIDE

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

Part No.

SS7120640SP 50666A SS4090815SP 50666 50692E 50666C 50366 SS4120915SP 50663A 50393HH 50392V SS4090815SP 36271A 50358W SS8080410TP SS7080510TP 50683 50658B SS7090610SP SS7120640SP 50658A SS1121010SP 50357AE SD0380551SL 50357AS 50357Y 50392BA 50357V 605A C50044E SS7120710SP 50366B SS7060310SP 50370F 50358V

Description

Screw, for lead-in eylet ................................................................................

Thread Eyelet Assembly ...............................................................................

Screw .....................................................................................................

Tube Bracket ..........................................................................................

Lead-In Tension Eyelet ...........................................................................

Thread Tube ...........................................................................................

Thread Eyelet Tube ................................................................................

Screw, for spreader thread guide ................................................................

Thread Ratio Control Assembly ....................................................................

Silicone Thread Lubricator .....................................................................

Needle Thread Guide ............................................................................

Screw, for silicone tank ..........................................................................

Adjusting Needle Thread Eyelet .............................................................

Holder, For Needle Thread Eyelet ...........................................................

Screw ...............................................................................................

Screw .....................................................................................................

Mounting Bracket ........................................................................................

Looper Frame Eyelet ....................................................................................

Screw ...........................................................................................................

Looper Frame Eyelet ....................................................................................

Screw, for thread guide ................................................................................

Nipper Plate Assembly .................................................................................

Screw .....................................................................................................

Nipper Spring .........................................................................................

Nipper Spring Plate ................................................................................

Thread Guide .........................................................................................

Nipper Plate ...........................................................................................

Screw, for needle thread guide ...................................................................

Needle Thread Guide ..................................................................................

Screw, for strike-off .......................................................................................

Needle Thread Strike-Off Assembly ..............................................................

Screw .....................................................................................................

Thread Strike-off Component ................................................................

Needle Thread Strike-off ........................................................................

Amt. Req.

2 1 2 2 1 1 2 2 1 1 1 2 3 1 3 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1

TENSION RELEASE & THREAD TENSION

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Part No.

50392Z 660-283A SS4120915SP 50692D 57892K 56392G B3120352000 B3126012000 B3120704000 56392H 11550100 B3103800400 B3112704000 50692J 56392M 50692 50392AV SS7090520SP 50692A 57865 NS6110420SP 50392BC 22875N SS7121410TP

Description

Tension Needle Lever Assembly ...................................................................

Retainer Washer ...........................................................................................

Screw, for tension assembly .........................................................................

Six Thread Tension Assembly .........................................................................

Thread Tension Eyelet ............................................................................

Tension Post ...........................................................................................

Tension Disc Felt .....................................................................................

Tension Disc ...........................................................................................

Tension Disc Felt .....................................................................................

Spring Shield ..........................................................................................

Spring, needle (Purple) ..........................................................................

Spring, looper (Blue) ..............................................................................

Ferrule, tension spring ............................................................................

Knob, needle (Purple) ............................................................................

Knob, looper (Blue) ................................................................................

Tension Disc Separator ...........................................................................

Guide, for tension disc separator ...........................................................

Screw, for guide .....................................................................................

Tension Bracket ......................................................................................

Lead-In Thread Guide ............................................................................

Nut .........................................................................................................

Tension Release Lever Shaft Connection .....................................................

Stop Screw .............................................................................................

Binder Screw ..........................................................................................

Amt. Req.

1 1 2 1 6 6 6

6 6 3 3 6 3 3 1 2 2 1 6 6 1 1 1

PRESSER FOOT LIFT

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

Part No.

11071602 11071701 660-1014 C50056B 50632A 50643C SS6110610TP 50335AG 50335AH SS8110422TP 660-739 RE0500000K0 50381F SD0790303SP CE49 29476YD SD0790303SP 50355AR 50381G SS9151740CP 29476TT SS6151920SP NS6150310SP 50332V SS6153040SP SS4121215SP CE49 50381 RO068190100 50381B

Description

Adjusting Screw, for spring ...........................................................................

Locking Nut ..................................................................................................

"O" Ring ........................................................................................................

Spring Rod ....................................................................................................

Spring, for presser bar ...................................................................................

Presser Bar ....................................................................................................

Screw, for guide plate ..................................................................................

Guide Plate, for presser bar ..........................................................................

Presser Bar Guide .........................................................................................

Set Screw ...............................................................................................

Oil Seal .........................................................................................................

E Ring, for pin ................................................................................................

Lever, for lifter, front .....................................................................................

Screw, for wire connector ............................................................................

Loctite Adhesive, (not shown), for screw .....................................................

Rear Lifter Lever Assembly ............................................................................

Screw, for lifter lever assembly ...............................................................

Wire Connector .....................................................................................

Lifter Lever, rear .....................................................................................

Hex Screw ........................................................................................

Stop Assembly ..............................................................................................

Screw, for adjusting stopper ..................................................................

Hex Nut ..................................................................................................

Stopper, for lifter lever ............................................................................

Screw, for adjusting stopper ..................................................................

Screw, for stopper ........................................................................................

Loctite Adhesive, (not shown), for screw .....................................................

Spring, for lifter lever .....................................................................................

"O" Ring ........................................................................................................

Lifter Lever Assembly ....................................................................................

Amt. Req.

1 1 1 1 1 1 2 1 1 2 1 1 1 1

1 1 1 1 1 1 1 2 1 1 2

1 1 1

COVERS, UPPER ARM

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20. *21. *22. *23. *24. *25. *26. *27. *28. *29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

Part No.

SS4121615SP 50393EU B3530555000 660-212 50382FW 50382FZ SS7120640SP 50317C TA1050504RO 50393HB 50684C 50662A SS6121050SP 50684B WP0480856SP 22569B 50382FY 50382FX SS4121215SP TA1100604RO 21237EV 21237DR 22784N 21237ET 660-886 21237EU 51170D 671-102A SS7090610SP 99682XCA NS6620320SP 99682XC1 99682XC2 WZ0641510KP SD0640323TP 99682XC SS1110640SL 22517B 652C16 50393EW 50382GA SS4120915SP SS4120615SP 50382GM SS4120615SP 50658B LA452

Description

Screw, for top cover .....................................................................................

Plug, for top cover ........................................................................................

Oil Sight Gauge, top .....................................................................................

"O" Ring, for oil sight gauge ...........................................................................

Top Cover .....................................................................................................

Quad Ring, for top cover ..............................................................................

Screw, for needle bar guard ........................................................................

Needle Bar Guard ........................................................................................

Plug, for bed .................................................................................................

Gasket, for puller drive Adapter ...................................................................

Puller Drive Adapter .....................................................................................

Screw, for puller drive adapter .....................................................................

Gasket, for Puller Drive Housing ....................................................................

Washer .........................................................................................................

Screw ...........................................................................................................

Quad Ring, for head cover ...........................................................................

Head Cover .................................................................................................

Screw, for head cover ..................................................................................

Plug, for head cover .....................................................................................

Needle Cooler Assembly ..............................................................................

Cooler Tube ...........................................................................................

Screw .....................................................................................................

Cooler Housing ......................................................................................

O-Ring ....................................................................................................

Bracket ..................................................................................................

Nut .........................................................................................................

Flow Control ...........................................................................................

Screw ...........................................................................................................

Protection Shield Assembly ..........................................................................

Nut .........................................................................................................

Bracket Holder .......................................................................................

Bracket ..................................................................................................

Spring Washer ........................................................................................

Shoulder Screw ......................................................................................

Protection Shield ...................................................................................

Counter Sunk Head Screw .....................................................................

Screw ...........................................................................................................

Washer .........................................................................................................

Rubber Gasket, for needle lever ..................................................................

Cover, for thread take-up ............................................................................

Screw, for thread take-up cover ..................................................................

Screw, for thread cover ...............................................................................

Thread Cover ...............................................................................................

Screw, for thread take-up cover ..................................................................

Eyelet ...........................................................................................................

Label, direction of rotation ..........................................................................

Amt. Req.

6 1 1 1 1 1 2 1 1 2 1 1 5 1 4 4 1 1 4 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1

* PA1 KIT ONLY

LOWER MAIN SHAFT

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

17A.

18.

Part No.

SS7660520SP 660-1062 50374 50321G SS8661012TP 50342AX SS8660612TP 50342BS 50335AK 29476UH 50322AL 50335BB 50322AG 50333A SS8660612TP 660-934 50622D 50622E SS8660410SP

Description

Shoulder Screw, for lower main shaft, right ..................................................

Spring Washer ..............................................................................................

Spacer, for pulley assembly .........................................................................

Pulley Assembly ...........................................................................................

Set Screw ...............................................................................................

Sprocket, for lower main shaft .....................................................................

Screw ....................................................................................................

Timing Belt ....................................................................................................

Retaining Ring, for ball bearing ...................................................................

Mainshaft Assembly, lower, right .................................................................

Ball Bearing, for lower main shaft ...........................................................

Retaining Ring .......................................................................................

Lower Main Shaft, right ..........................................................................

Coupling, for lower main shafts ....................................................................

Screw ....................................................................................................

Oil Seal .........................................................................................................

Lower Main Shaft, left for plain feed.............................................................

Lower Main Shaft, left for differential feed ...................................................

Screw ....................................................................................................

Amt. Req.

1 1 1 1 2 1 2 1 1 1 1 1 1 1 4 1 1 1 2

LUBRICATION, OIL TUBING & OIL PUMP

Ref.

No.

Part No.

50393HN

SS8660612TP

50332S

34393D

50393EX

SS8660612TP

50393GB

50393GD

SS4091015SP

10.

50393FR

11.

50384

12.

11843208

13.

50393FV

14.

29476XV

15.

SS7120710SP

16.

NS6110310SP

17.

SQ1110402MZ

18.

50393KH

19.

50393-27

20.

50393KM

21.

50393-407

22.

13765607

23.

50393-47

24.

50393-51

25.

50393-89

26.

29476UT

27.

50393KH

28.

50393-70

29.

50393KM

30.

13765607

31.

50393-140

32.

50393-40

33.

50393-170

34.

50393KF

35.

50393KM

36.

50393HR

37.

50393HL

38.

50393FS

39.

998-358F

40.

SS4090815SP

41.

50393HK

42.

SS6151812TP

43.

WS0631510KP

44.

22571E

45.

RM2871B

46.

50393EB

47.

50384A

48.

50393FT

49.

50393HJ

Description

Oil Pump Assembly, 2-stage .........................................................................

Screw .....................................................................................................

Spring, for plunger..................................................................................

Plunger ..................................................................................................

Collar, for oil pump .................................................................................

Screw ...............................................................................................

Oil Pump Housing, 2 Stage......................................................................

Screw, for oil filter cover................................................................................

Cover, for oil filter..........................................................................................

"O" Ring, for oil filter cover.............................................................................

Oil Filter.........................................................................................................

Oil Tube, for supply (1) ..................................................................................

Oil Supply Assembly, upper ..........................................................................

Screw, for front upper tube ....................................................................

Nut .........................................................................................................

Fitting .....................................................................................................

Tube Retaining, spring ...........................................................................

Oil Tube ..................................................................................................

Tube Retaining, spring ...........................................................................

Oil Tube ..................................................................................................

"T" Connector .........................................................................................

Oil Tube ..................................................................................................

Oil Supply Assembly, lower ...........................................................................

Tube Retaining, spring ...........................................................................

Oil Tube ..................................................................................................

Tube Retaining, spring ...........................................................................

"T" Connector .........................................................................................

Oil Tube ..................................................................................................

Tube Retaining, spring ...........................................................................

Plug, for feed chamber ..........................................................................

Oil Tube, for suction ................................................................................

Oil Tube Holder .............................................................................................

Plastic Clip ....................................................................................................

Screw, for oil tube holder ..............................................................................

Felt ...............................................................................................................

Screw, for oil pan ..........................................................................................

Spring Washer ..............................................................................................

Screw, for oil drain plug ................................................................................

Cable Tie ......................................................................................................

Oil Pan ..........................................................................................................

"O" Ring ........................................................................................................

Oil Tube, for suction ......................................................................................

Amt. Req.

1 2 2 2 1 2 1 1 3 1 1 1 1 1 2 1 1 1 1 7 1 2 1 1 1 1 2 1 5 2 1 1 1 1 3 1 1 1 1 1 1 6 6 1 2 1 1 1 1

LOOPER DRIVE

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

Part No.

50313C 22652B10 22565 C50041D 538A C50041H 22652J10 C50041E 53634C 22881C C50041G C50041F 51909C 51909D8 51909D9 51908B8 51908B9 SS7120910SP CE63 660-893 50344AM 660-455 50313J SS7120910SP 50314F 50314E 50642 22653J8 667J33 660-979 50342BJ SS8660612TP 50342BK SS8660612TP 50342BP

Description

Looper Holder ..............................................................................................

Screw, for looper holder ........................................................................

Looper Throwout Lever ................................................................................

Screw ....................................................................................................

Collar, Stop ..................................................................................................

Screw ....................................................................................................

Lock, Looper Holder .....................................................................................

Washer .........................................................................................................

Screw ...........................................................................................................

Stop .............................................................................................................

Spring, Plunger ......................................................................................

Looper, Middle (all gauges) .........................................................................

Looper, Rear (32 gauge) ..............................................................................

Looper, Rear (36 gauge) ..............................................................................

Looper, Front (32 gauge) .............................................................................

Looper, Front (36 gauge) .............................................................................

Screw, for bearing housing ..........................................................................

Three Bond Adhesive, (not shown), for screw ..............................................

Oil Seal, looper .............................................................................................

Bearing Housing Assembly, for looper drive .................................................

"O" Ring, for bearing housing assembly ........................................................

Looper Rocker Assembly .............................................................................

Screw, for retaining plate ............................................................................

Eccentric Retaining Plate ............................................................................

Looper Avoid Adjusting Eccentric ...............................................................

Looper Drive Assembly ................................................................................

Screw ....................................................................................................

Crank Pin ...............................................................................................

"O" Ring ..................................................................................................

Sprocket, for looper driven ..........................................................................

Screw ....................................................................................................

Sprocket, for looper drive ............................................................................

Screw ....................................................................................................

Looper Drive Belt ..........................................................................................

Amt. Req.

1 1

2/3

1 1 1 1 1 1 1 1 1 1 1 1 1 1 3

1 1 1 1 2 1 1 1 1 1 2 1 2 1 2 1

NEEDLE GUARD

Ref.

No.

Part No.

50373DA

SS8110422TP

50368W

50668

SS8110422TP

50368E

50368A

50622C

RC0560711KP

10.

50625

11.

SS6090620SP

12.

C50025E

Description

Needle Guard Eccentric .............................................................................

Screw, for needle guard eccentric .......................................................

Connecting Rod Assembly, for needle guard ..............................................

Pivot Link ......................................................................................................

Screw .....................................................................................................

Washer .........................................................................................................

Pivot Pin ........................................................................................................

Shaft, for needle guard ................................................................................

Retaining Ring .......................................................................................

Holder, for needle guard .............................................................................

Screw ....................................................................................................

Needle Guard, Rear (32 Gauge/36 Gauge).................................................

Amt. Req.

1 1 2 1 1 2 2 1 1 1 2 1

LOOPER THREAD TAKE-UP

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

Part No.

50657A SD0380551SL 50332AC 50347R 51959B 50358H SS7060310SP SS6060440TP 41358 SS9080410SP 50304H 50604 SS7080520SP 50383E 50357AN SS9111010SP SS6110610TP 29476UK SS7092110TP 50383F 50304K WZ0640200KP SD0630275SP 50623B 22894C 50323B 22-348 C50077P 50323L 77B

Description

Cast-Off Plate Assembly ...............................................................................

Screw .....................................................................................................

Tension Spring ........................................................................................

Pin ..........................................................................................................

Tension Disc ...........................................................................................

Eyelet .....................................................................................................

Screw .....................................................................................................

Washer ...................................................................................................

Screw .....................................................................................................

Strike-Off Wire ........................................................................................

Retaining Finger .....................................................................................

Screw .....................................................................................................

Mounting Bracket ..................................................................................

Cast-Off Plate ........................................................................................

Screw, for collar bracket ..............................................................................

Screw, for cast-off holder .............................................................................

Cast-Off Plate Holder Assembly ...................................................................

Screw, for collar bracket ........................................................................

Take-up Collar Bracket ..........................................................................

Cast-Off Plate Holder .............................................................................

Washer ...................................................................................................

Shoulder Screw, for cast-off plate holder ...............................................

Take-up Assembly ........................................................................................

Set Screw ...............................................................................................

Take-up Hub ...........................................................................................

Pin ....................................................................................................

Spacer ...................................................................................................

Disc, for take-up .....................................................................................

Screw, for take-up disc ..........................................................................

Amt. Req.

1 1 1 1 2 3 3 1 2 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 2 1 2 1 2 2

FEED DRIVE MECHANISM

FOR PLAIN FEED

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

Part No.

18-1432 50334BD 29126FB 50634 50334A 50634E 22637P24 SS7091110TP 50640-29 SS8660612TP SS7090530SP 50334Y 50334W 50634C 50637A 50335BA 50634D 50637

Description

Screw ...........................................................................................................

Hex Eccentric Stud .......................................................................................

Drive Fork Assembly, right .............................................................................

Feed Bar Assembly .......................................................................................

Plain Feed Bar Guide ....................................................................................

Feed Dog Holder ..........................................................................................

Screw .....................................................................................................

Screw ...........................................................................................................

Feed Eccentric, main ...................................................................................

Screw .....................................................................................................

Screw ...........................................................................................................

Oil Shield ......................................................................................................

Oil Scraper ...................................................................................................

Feed Bar Seal ...............................................................................................

Guide Plate, left, rear ...................................................................................

Guide Plate, right, rear .................................................................................

Feed Bar Seal ...............................................................................................

Guide Plate, front .........................................................................................

Amt. Req.

1 1 1 1 1 1 1 1 1 2

1 1 1 1 1 1 1

FEED DRIVE MECHANISM

FOR DIFFERENTIAL FEED

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

Part No.

18-1432 50334BD 29476VV 50334AW 50340F SS8660612TP 50334BE 50334AX 50640A29 SS8660612TP SS7090530SP 50334Y 50334V 50334BH 50335AM 50335BA 50334BJ 50335AN 660-220 50337J SS4121215SP 29476YH 50337H 50337U 50337BD SS7090610SP B1647704000A 50387 SS7090610SP 50337S SS8110422TP 50337L SS6110650TP 50337R SS8090710SP SS6091022TP SP0550271TP 50337M

Description

Screw ...........................................................................................................

Hex Eccentric Stud .......................................................................................

Drive Fork Assembly ......................................................................................

Feed Eccentric, differential .........................................................................
