NO PART LIST
1
2
3
4
5
6
7
8
9
ITEM
A
B
C
D
E
F
G
H
7pcs
HARDWARE
JCBB SCREW
JCBC SCREW
JCBC SCREW
SPRING WASHER
FLAT WASHER
BACK REST
SIDE PANEL
(L)
SIDE PANEL
(R)
FRONT
SIDE RAIL
BACK
SIDE RAIL
LEG
SLAT
CENTER
SUPPORT
SUPPORT
LEG
M8 x 20MM
M6 x 40MM
M6 x 50MM
SCREW
M4 x 32MM
L - KEY
M4 x 65MM
L - KEY
M5 x 65MM
QTY
1PC
1PC
1PC
1PC
1PC
4PCS
2 SET
1PC
2PCS
QTY
12PCS
4PCS
4PCS
4PCS
4PCS
14PCS
1PC
1PC

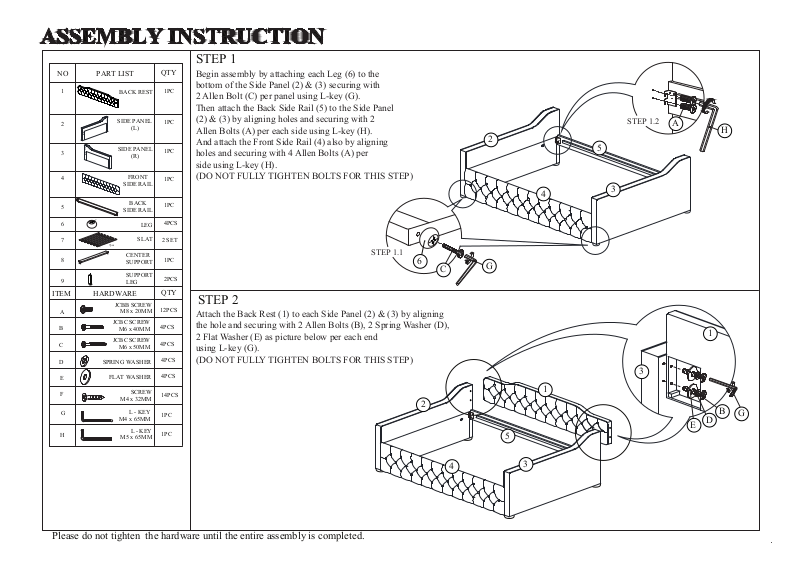

STEP 1
Begin assembly by attaching each Leg (6) to the
bottom of the Side Panel (2) & (3) securing with
2 Allen Bolt (C) per panel using L-key (G).
Then attach the Back Side Rail (5) to the Side Panel
(2) & (3) by aligning holes and securing with 2
Allen Bolts (A) per each side using L-key (H).
And attach the Front Side Rail (4) also by aligning
holes and securing with 4 Allen Bolts (A) per
side using L-key (H).
(DO NOT FULLY TIGHTEN BOLTS FOR THIS STEP)
STEP 1.1
6
C
STEP 2
Attach the Back Rest (1) to each Side Panel (2) & (3) by aligning
the hole and securing with 2 Allen Bolts (B), 2 Spring Washer (D),
2 Flat Washer (E) as picture below per each end
using L-key (G).
(DO NOT FULLY TIGHTEN BOLTS FOR THIS STEP)
2
STEP 1.2
A
H
2
5
4
3
G
1
3
1
B
D
E
G
5
Please do not tighten the hardware until the entire assembly is completed.
4
3

STEP 3 STEP 4
Secure 2 Support Leg (9) to the Center Support (8) as shown on step 3.1. Tighten the
Support Leg (9) clockwise until secure. Insert the pre-set metal on Center Support (8) to the
metal bracket on each side of Side Panel (2) & (3) as step 3.2. Then securing the metal
bracket as shown in step 3.3 with 1 Screw (F) each side using
Phillips Head Screwdriver (NOT INCLUDED)
8
STEP 3.1
8
Tighten All Bolts from step 1 to step 3 by using L-key (G) & (H) that has been provided.
Attached slat (7) to Front Side Rail (4) & Back Side Rail (5) by unrolling and securing
with 6 Screw (F) per set. Securing Slat (7) to Back Side Rail (5) with 2 Screw (F) as step
4.1. Following by step 4.2, using 1 Screw (F) to secure Slat (7) to Front Side Rail (4).
Repeat the same step to attach another set of slat (7).
STEP 3.2
STEP 3.3
STEP 5
9
2
8
3
F
7
4
STEP 4.1
F
7
5
STEP 4.2
F
ASSEMBLY
COMPLETE
Please do not tighten the hardware until the entire assembly is completed.
7
