Union Rustic W006631746 Assembly Instructions

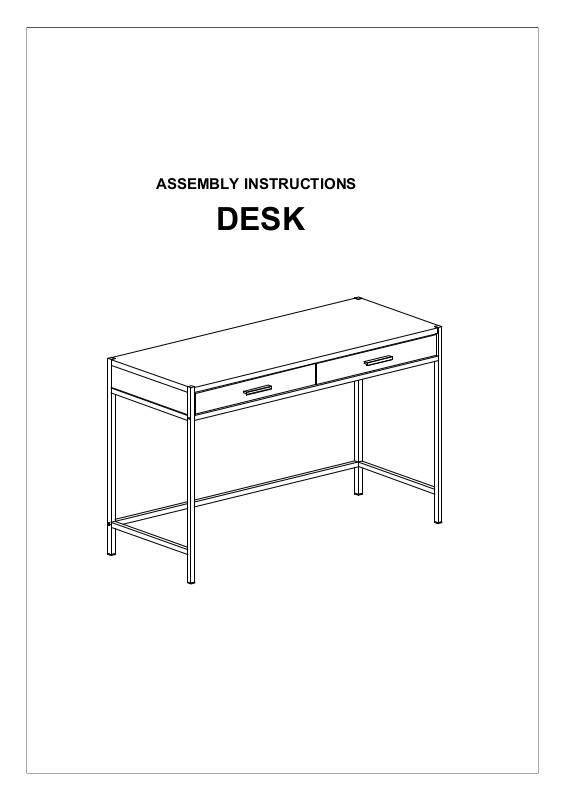

DESK

ASSEMBLY INSTRUCTIONS

Dear Valued Customers:

On behalf of our entire team, I’d like to take this opportunity to welcome you as our

new customer. I hope you are enjoying your recent purchase. I am thrilled to have you

with us.

If, for any reason, you are not completely satisfied with your purchase, I will be your
primary contact and I encourage you to email or call me at any time with your questions
and comments so that I can address your concerns as soon as possible.

I would be very grateful if you could spare a few minutes to leave a product review. By

doing so, you’ll give millions of fellow shoppers vital information to help them make the

right purchase decision in the future. I deeply appreciate your honest review of the
product.

Thank you again and Have a lovely day!

Sincerely,

We pride ourselves on providing the best quality products toour customers. Our
customers are the most important part of our business, and we
work tirelessly to ensure your complete satisfaction.

Director of the Customer Care Team

Table of Contents

Assembly Tools Required

No. 2 Phillips Screwdriver

Tip Shown Actual Size

Skip the power trip.
This time.

Page 1

Flat head screwdriver

Shown Actual Size

Part Identification 2

Hardware Identification 3

Assembly Steps 4-17

Safety 18-20

Warranty 21

Part ldentification

1

1. TOP (1)

2. LEFT END (1)

3. RIGHT END (1)

4. UPRIGHT (1)

5. BRACE (1)

6. FRONT MOLDING (1)

7. BACK (1)

8. STRETCHER (1)

9. LEFT DRAWER FRONT (1)

10.RIGHT DRAWER FRONT (1)

11. LEFT DRAWER SIDE (2)

12. RIGHT DRAWER SIDE (2)

13. DRAWER BACK (2)

14. DRAWER BOTTOM (2)

15. DRAWER BRACE (2)

Page 2

7

9

6

2

3

10

11

4

8

5

11

12

12

13

13

14

14

15

15

Hardware ldentification

A.HIDDEN CAM - 17+1

B.CAM SCREW - 11+1

D.1-9/16" MACHINE SCREW - 4+1

C.WOOD DOWEL - 11+1

F.HIDDEN CAM - 8+1

E. 1-1/2''FLAT HEAD SCREW - 14+1

G. CAM SCREW - 8+1

N.WRENCH - 1

Page 3

J.SMALL CAM SCREW - 6+1

H.PULL - 2

K. 1/2" PAN HEAD SCREW - 3+1

L. APPLIQUE CARD - 1

M.WOOD DOWEL - 4+1

I. 7/8" MACHINE SCREW - 4+1

J

J

J

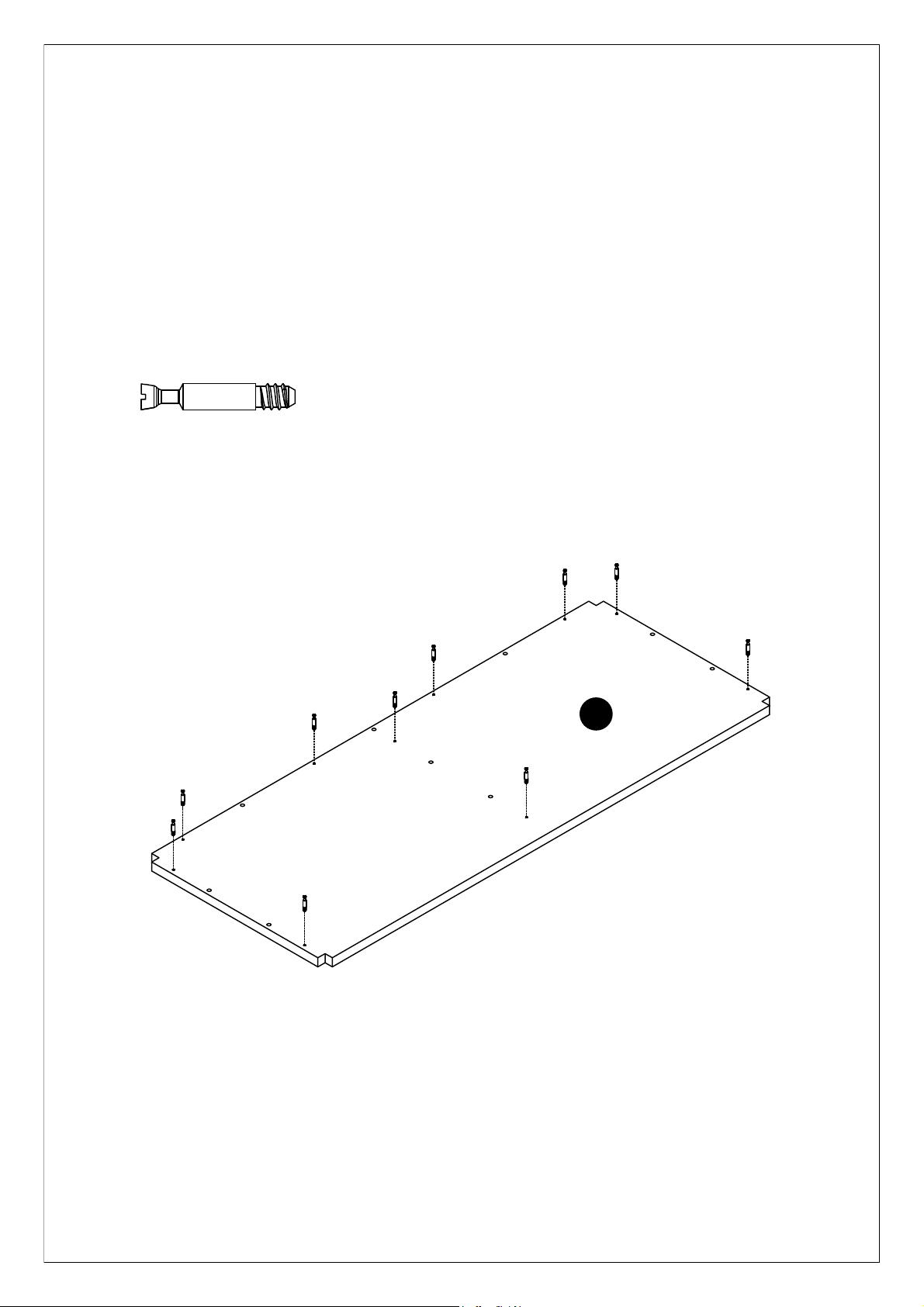

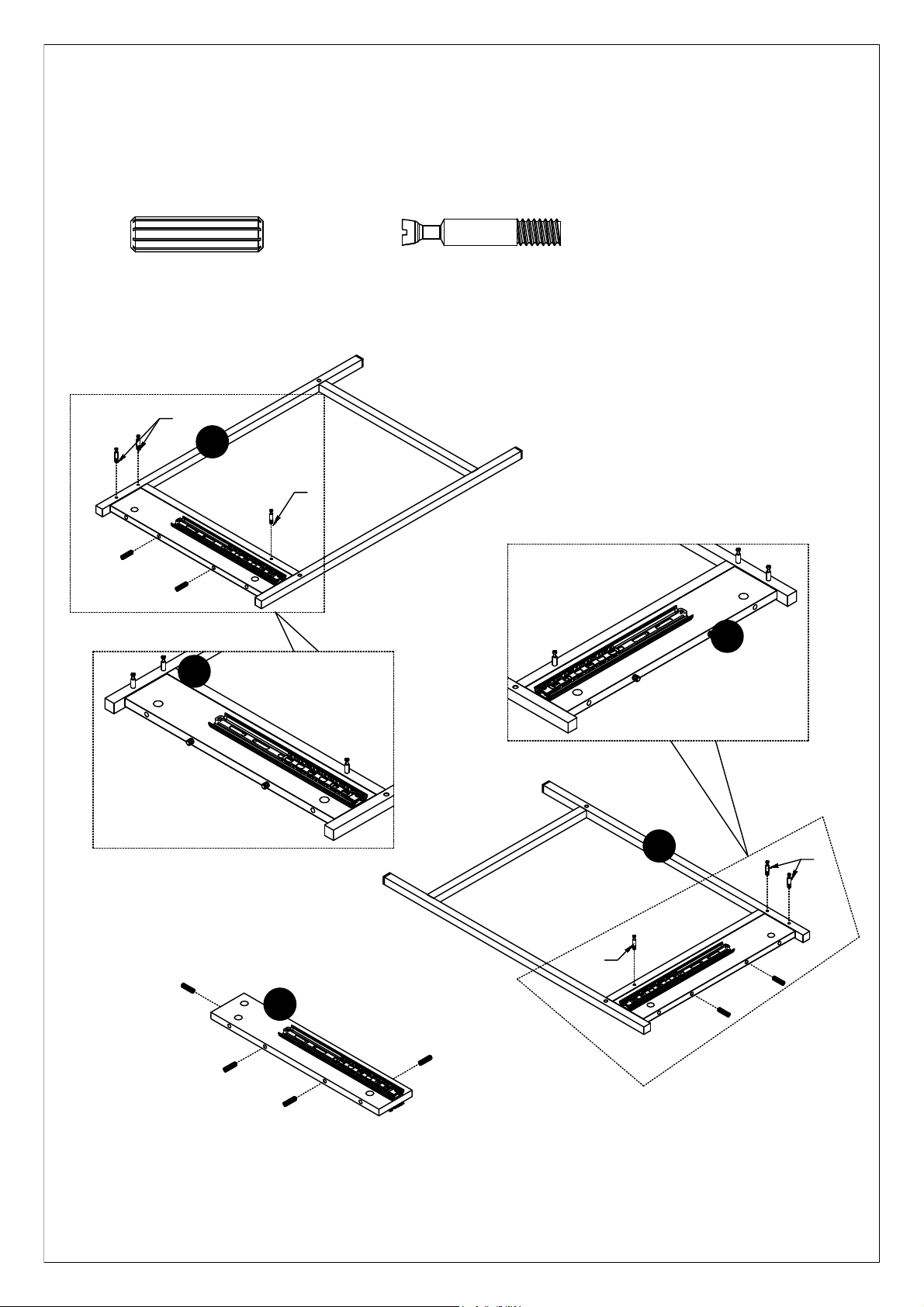

STEP 1

Page 4

C.WOOD DOWEL - 8

J.SMALL CAM SCREW - 6

2

J

J

3

J

J

C

C

C

C

C

3

2

J

J

J

C

C

C

4

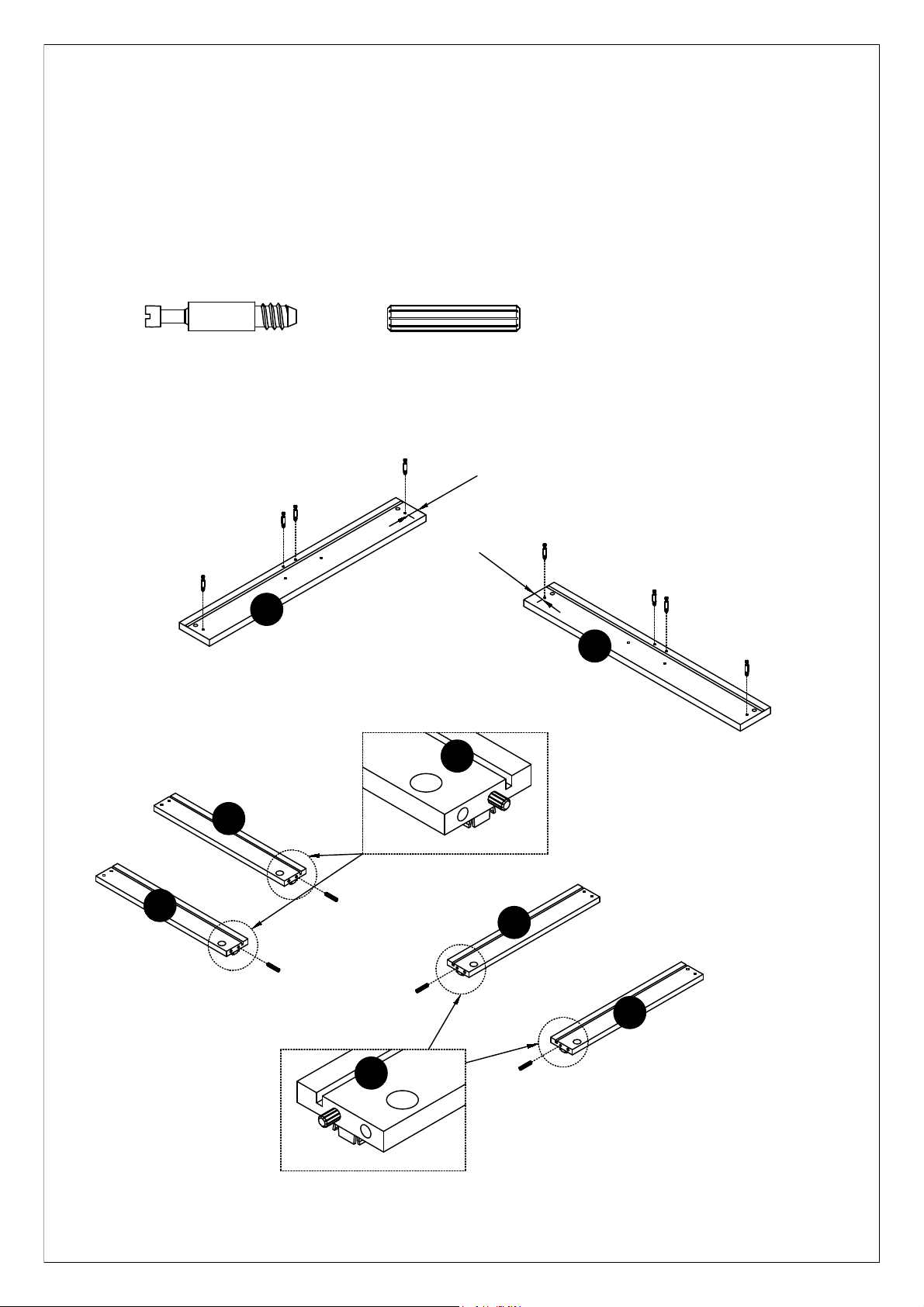

STEP 2

Page 5

B.CAM SCREW - 1

C.WOOD DOWEL - 3

K. 1/2" PAN HEAD SCREW - 3

B

6

5

6

5

7

C

C

C

K

K

K

STEP 3

Page 6

A.HIDDEN CAM - 1

E. 1-1/2''FLAT HEAD SCREW - 2

7

5

4

A

E

E

5

4

7

Finished edge

Flat head
screwdriver

1

2

3

The arrow must
point toward the
dege of the board.

Flat head
screwdriver

1

2

3

The arrow must
point toward the
dege of the board.

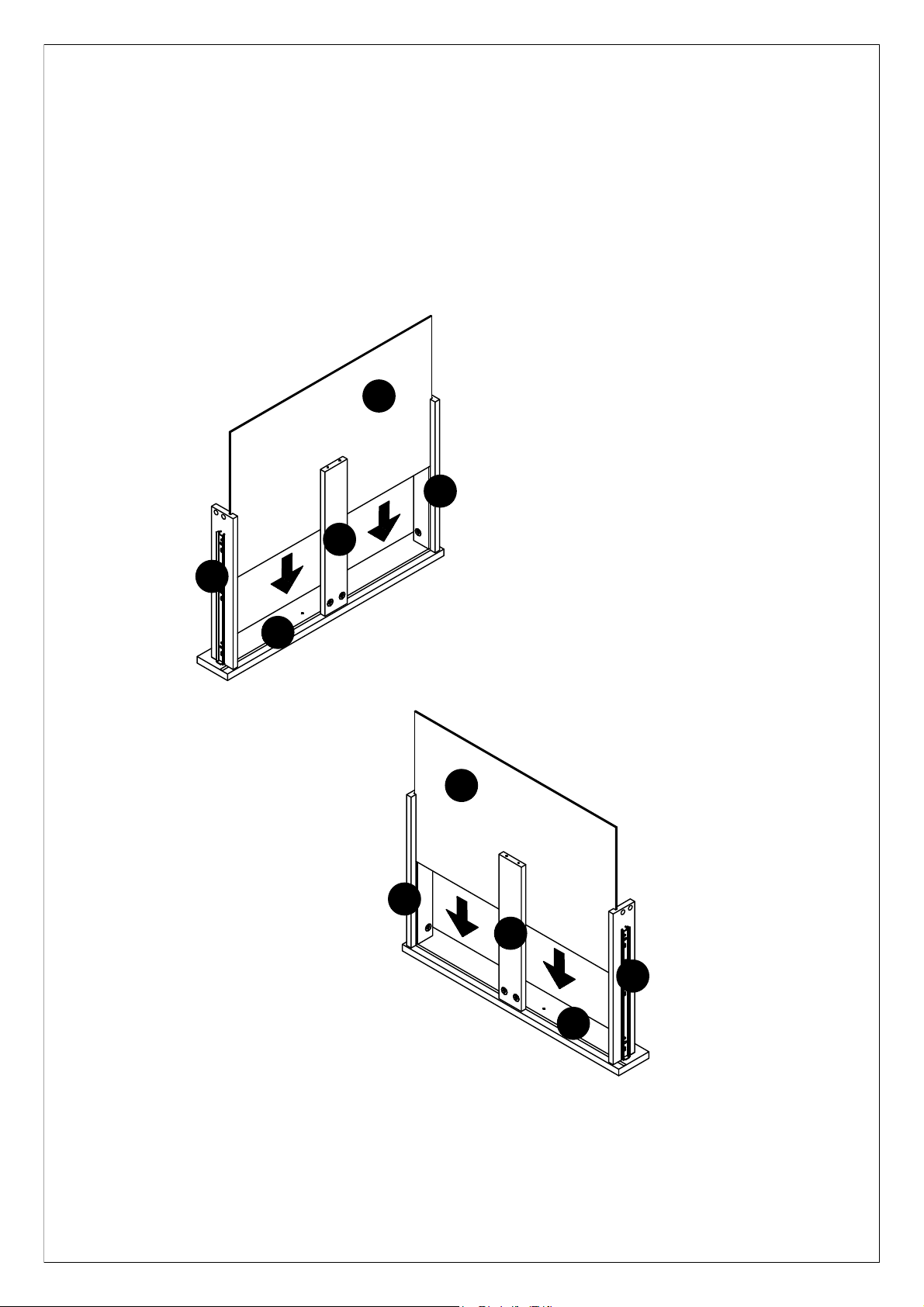

STEP 4

Page 7

A.HIDDEN CAM - 3

D.1-9/16" MACHINE SCREW - 2 N.WRENCH - 1

5

7

4

2

8

A

A

A

D

D

Before tighten all the screws , be sure check whether the hole is
consistent with the correspongding position on the manual.

STEP 5

Page 8

A.HIDDEN CAM - 3

D.1-9/16" MACHINE SCREW - 2 N.WRENCH - 1

3

Flat head
screwdriver

1

2

3

The arrow must
point toward the
dege of the board.

8

7

5

A

A

A

D

D

Before tighten all the screws , be sure check whether the hole is
consistent with the correspongding position on the manual.

STEP 6

Page 9

B.CAM SCREW - 10

1

STEP 7

Page 10

Flat head
screwdriver

1

2

3

The arrow must
point toward the
dege of the board.

A.HIDDEN CAM - 10

1

7

2

3

A

A

A

A

A

A

A

A

A

A

Before tighten all the screws , be sure check whether the hole is
consistent with the correspongding position on the manual.

4

STEP 8

Page 11

G. CAM SCREW - 8

9

10

24MM

11

11

12

12

M.WOOD DOWEL - 4

24MM

G

G

G

G

G

G

G

G

M

M

M

M

12

11

STEP 10

Page 12

Flat head

screwdriver

1

2

3

The arrow must
point toward the
dege of the board.

10

9

12

15

11

12

15

11

F.HIDDEN CAM - 8

F

F

F

F

F

F

F

F

STEP 11

Page 13

14

15

11

12

14

15

11

Unfinished surface

Unfinished surface

12

9

10

STEP 12

Page 14

E. 1-1/2''FLAT HEAD SCREW - 12

13

13

12

11

E

E

E

E

E

E

E

E

E

E

E

E

I. 7/8" MACHINE SCREW - 4

STEP 13

Page 15

10

9

11

11

12

12

I

I

H

I

I

H

H.PULL - 2

STEP 14

Page 16

9

10

LEFT
DRAWER

RIGHT

DRAWER

60 lbs

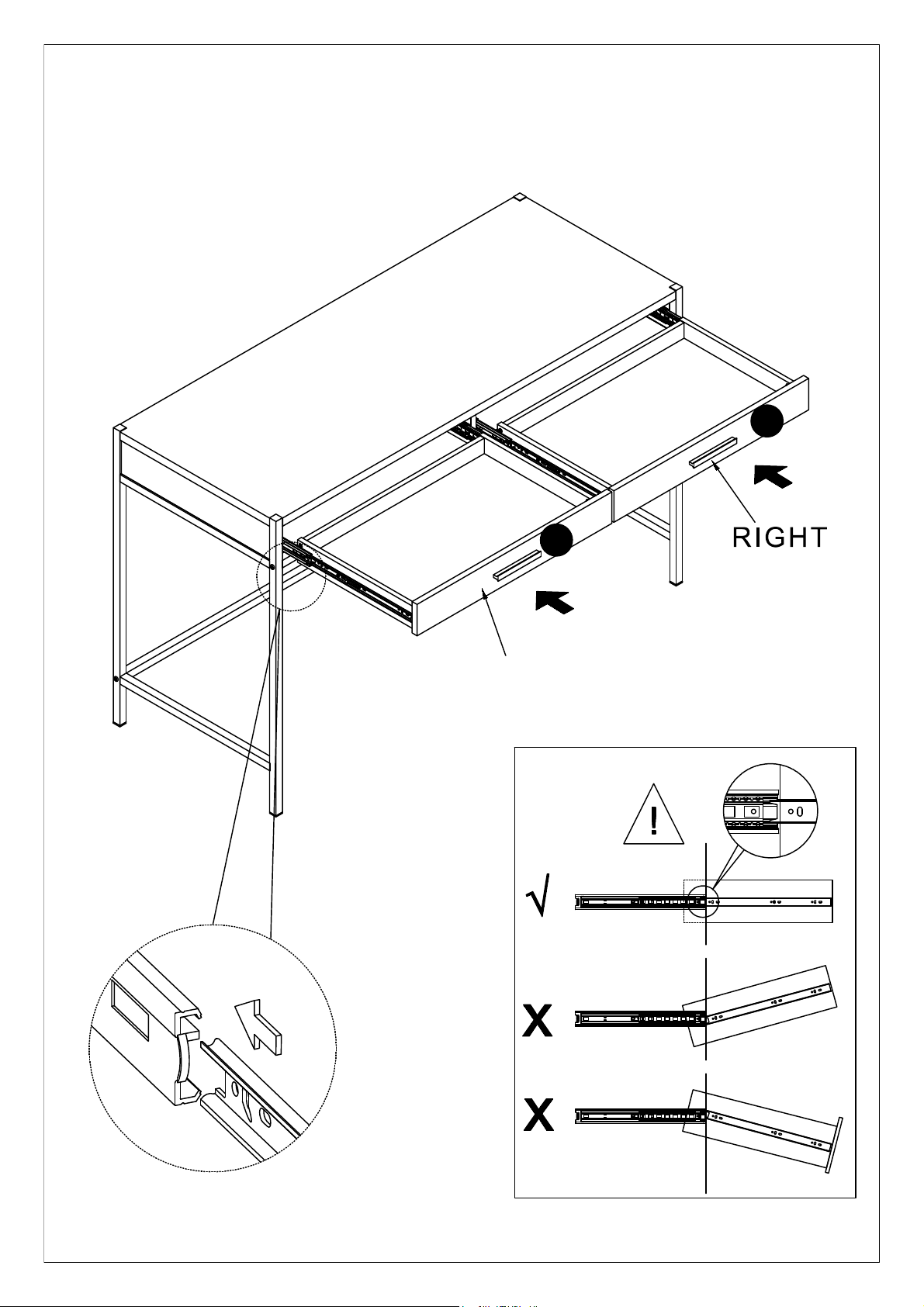

STEP 15

Page 17

15 lbs

15 lbs

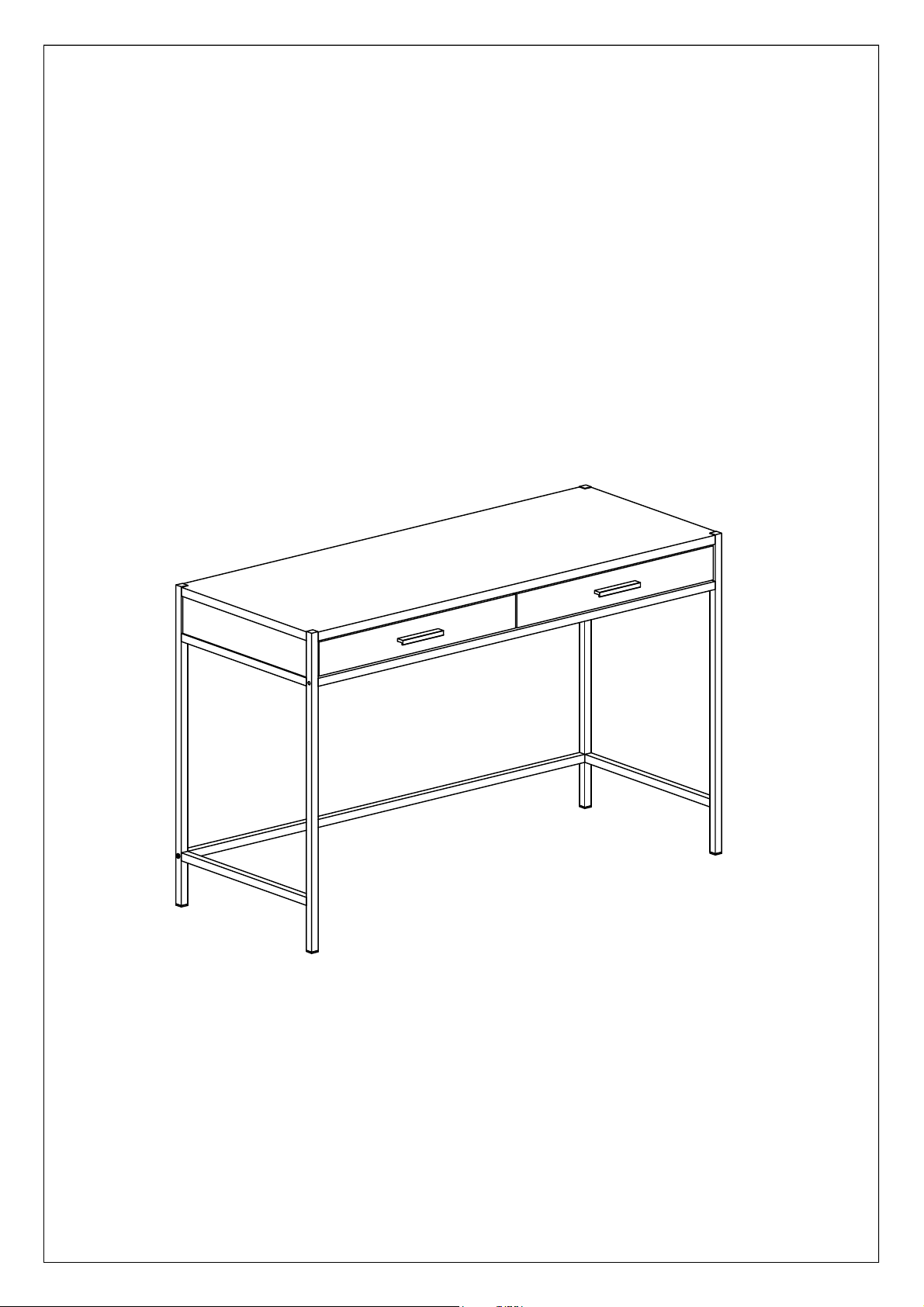

NOTE:Please read the back pages of the instruction booklet for
important safety information.

This completes assembly. Clean with your favorite furniture polish or

a damp cloth. Wipe dry。

Peel a APPLIQUE CARD from the APPLIQUE CARD
L) and stick one onto each visible HIDDEN CAM.

L.APPLIQUE CARD - 1

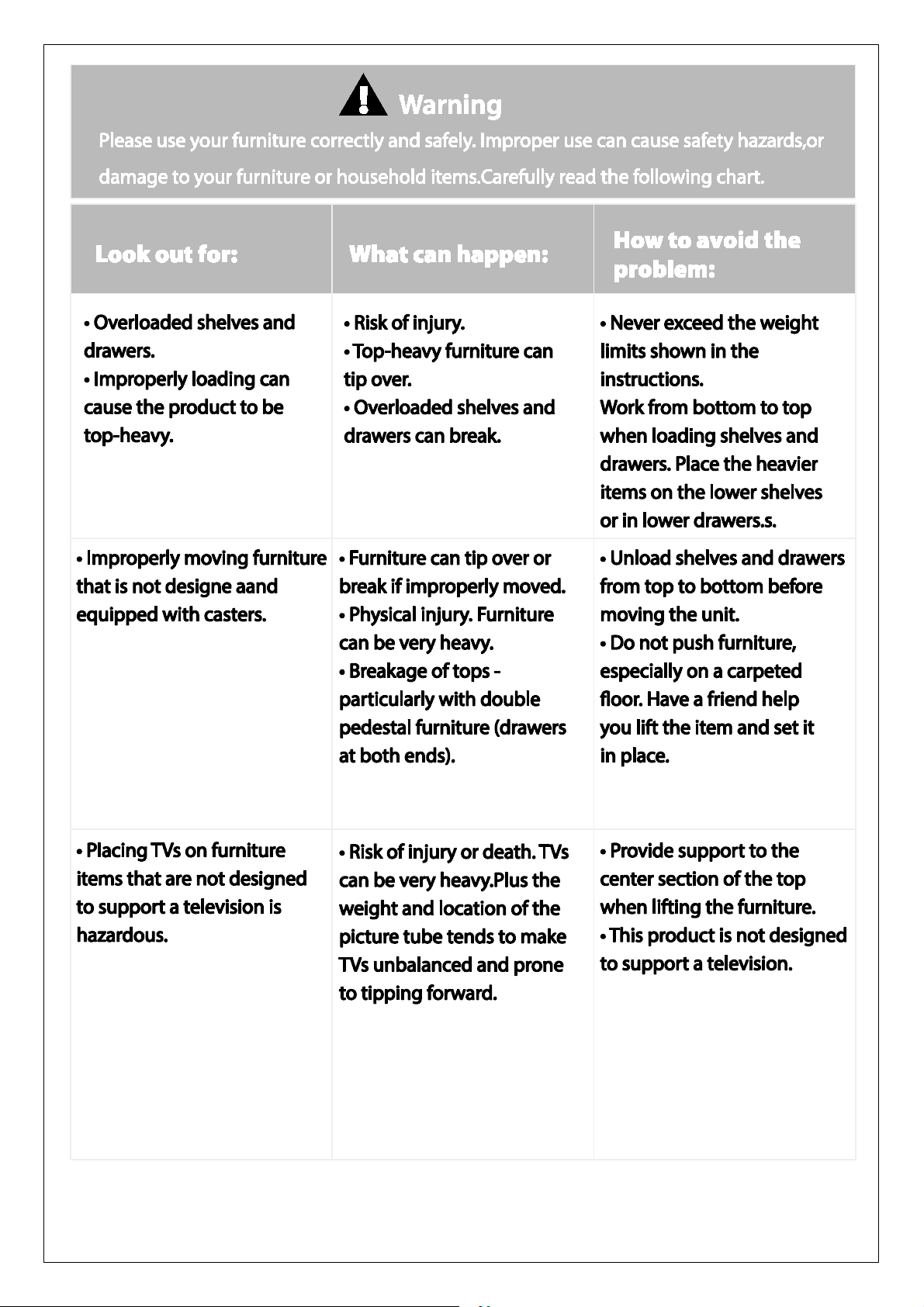

Page 18

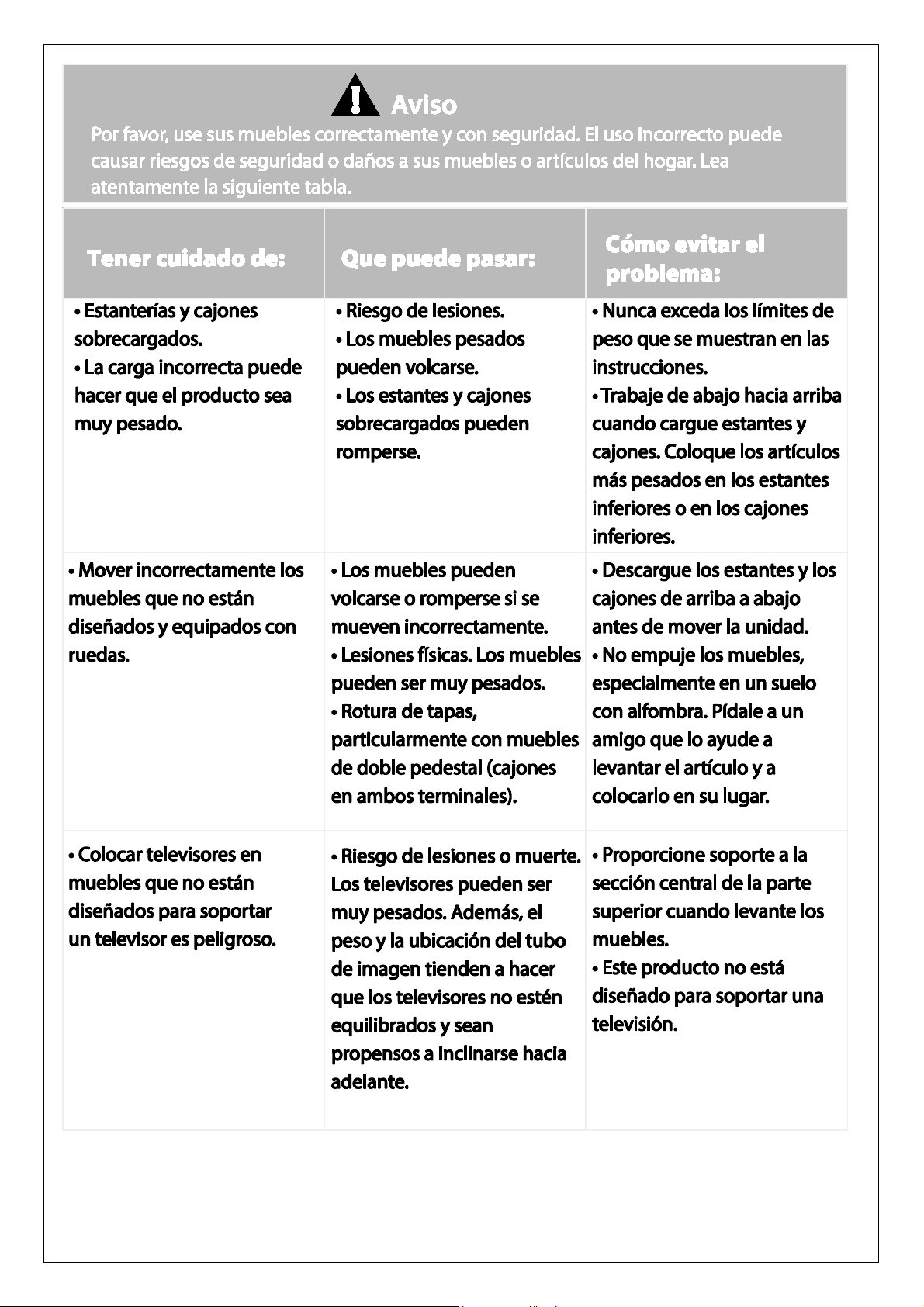

Page 19

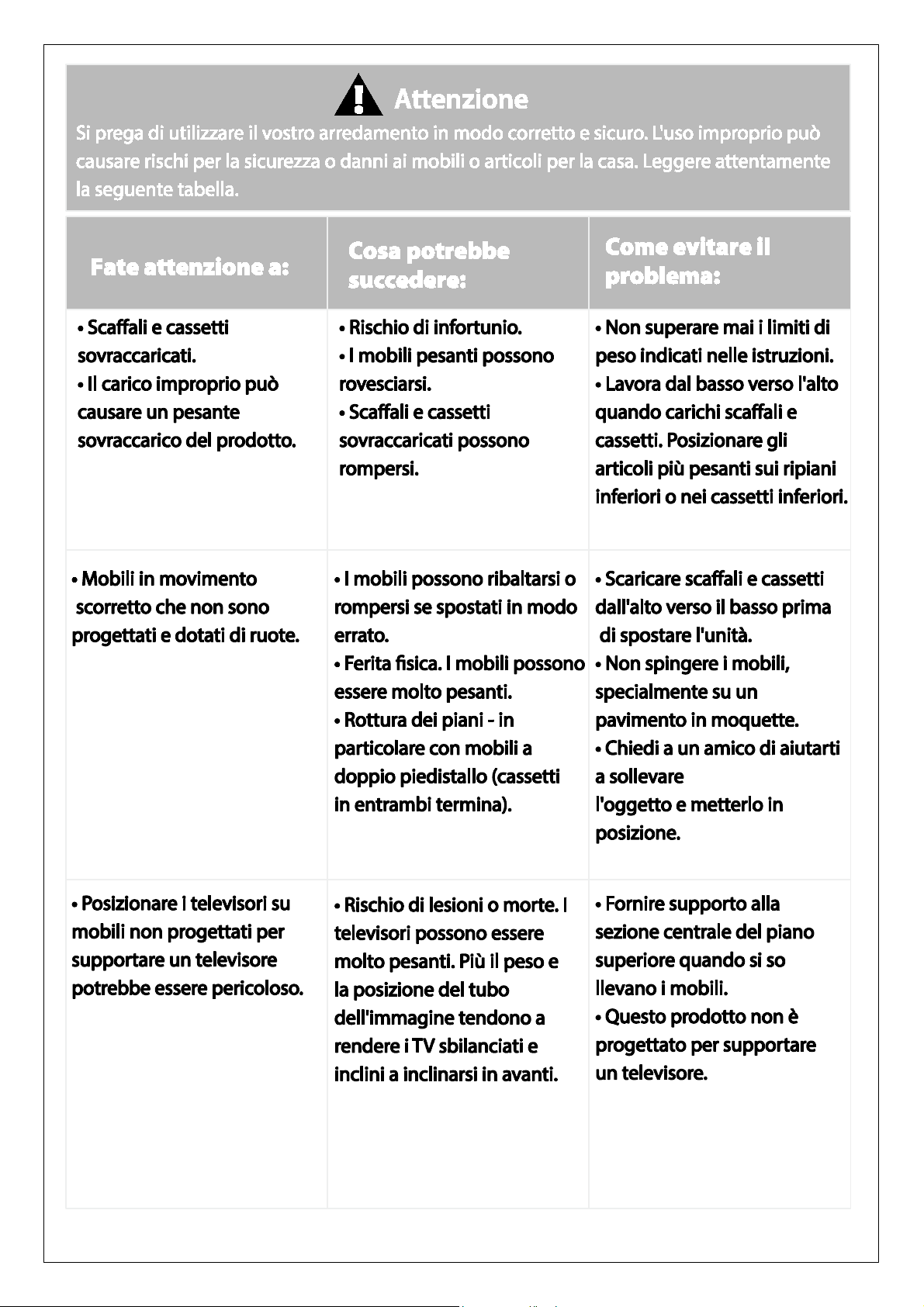

Page 20
