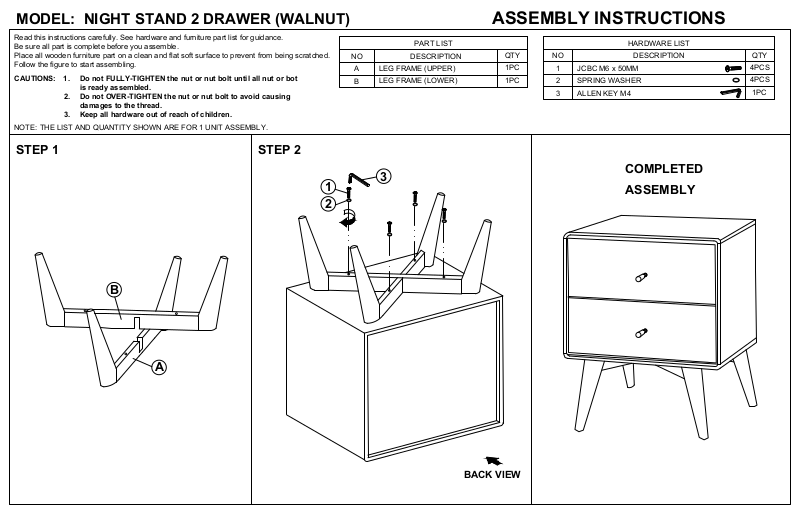

MODEL: NIGHT STAND 2 DRAWER (WALNUT)
Read this instructions carefully. See hardware and furniture part list for guidance.
Be sure all part is complete before you assemble.
PART LIST
ASSEMBLY INSTRUCTIONS
HARDWARE LIST
Place all wooden furniture part on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS: 1. Do not FULLY-TIGHTEN the nut or nut bolt until all nut or bot
is ready assembled.
2. Do not OVER-TIGHTEN the nut or nut bolt to avoid causing
damages to the thread.
3. Keep all hardware out of reach of children.
NOTE: THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
NO DESCRIPTION
A
B
LEG FRAME (UPPER)
LEG FRAME (LOWER)
QTY
1PC
1PC
NO DESCRIPTION
1 JCBC M6 x 50MM
2 SPRING WASHER
3
ALLEN KEY M4
QTY
4PCS
4PCS
1PC
STEP 1
STEP 2
1
2
COMPLETED
3
ASSEMBLY
B
A
BACK VIEW
