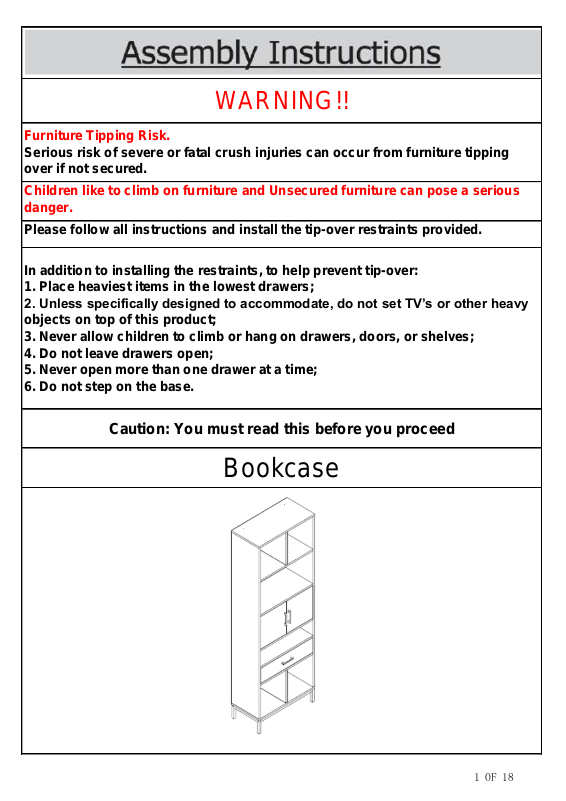

Union Rustic W006114041 Installation & Assembly

Page 1
In addition to installing the restraints, to help prevent tip-over:
1. Place heaviest items in the lowest drawers;
2. Unless specifically designed to accommodate, do not set TV’s or other heavy
objects on top of this product;
3. Never allow children to climb or hang on drawers, doors, or shelves;
4. Do not leave drawers open;
5. Never open more than one drawer at a time;
Caution: You must read this before you proceed
Bookcase
WARNING!!
Furniture Tipping Risk.
Serious risk of severe or fatal crush injuries can occur from furniture tipping over if not secured.
Children like to climb on furniture and Unsecured furniture can pose a serious danger.
Please follow all instructions and install the tip-over restraints provided.
1 OF 18
Page 2
Label Picture Description QTY
A
Side Frame
2
B
Transversal Tube
2
C Top Panel 1
D Bottom Panel 1 E Shelf 1
F Middle Shelf 1
G
Divider
2
H Left Panel 1
2 OF 18
Page 3
I Right Panel 1
J Middle Divider 1
K Left Door 1
L Right Door 1
M Shelf under Door 1
N Shelf above Drawer 1
O Front Panel of Drawer 1
P Left Panel of Drawer 1
3 OF 18
Page 4
Q Right Panel of Drawer 1
R Back Panel of Drawer 1
S Bottom of Drawer 1
T Shelf under Drawer 1
U
Back Wall at Top and
Bottom
2
V Back Wall at Middle 3
Label Picture Description QTY
Cam Lock 23
Cam Bolt 23
Wooden Dowel 27
4 OF 18

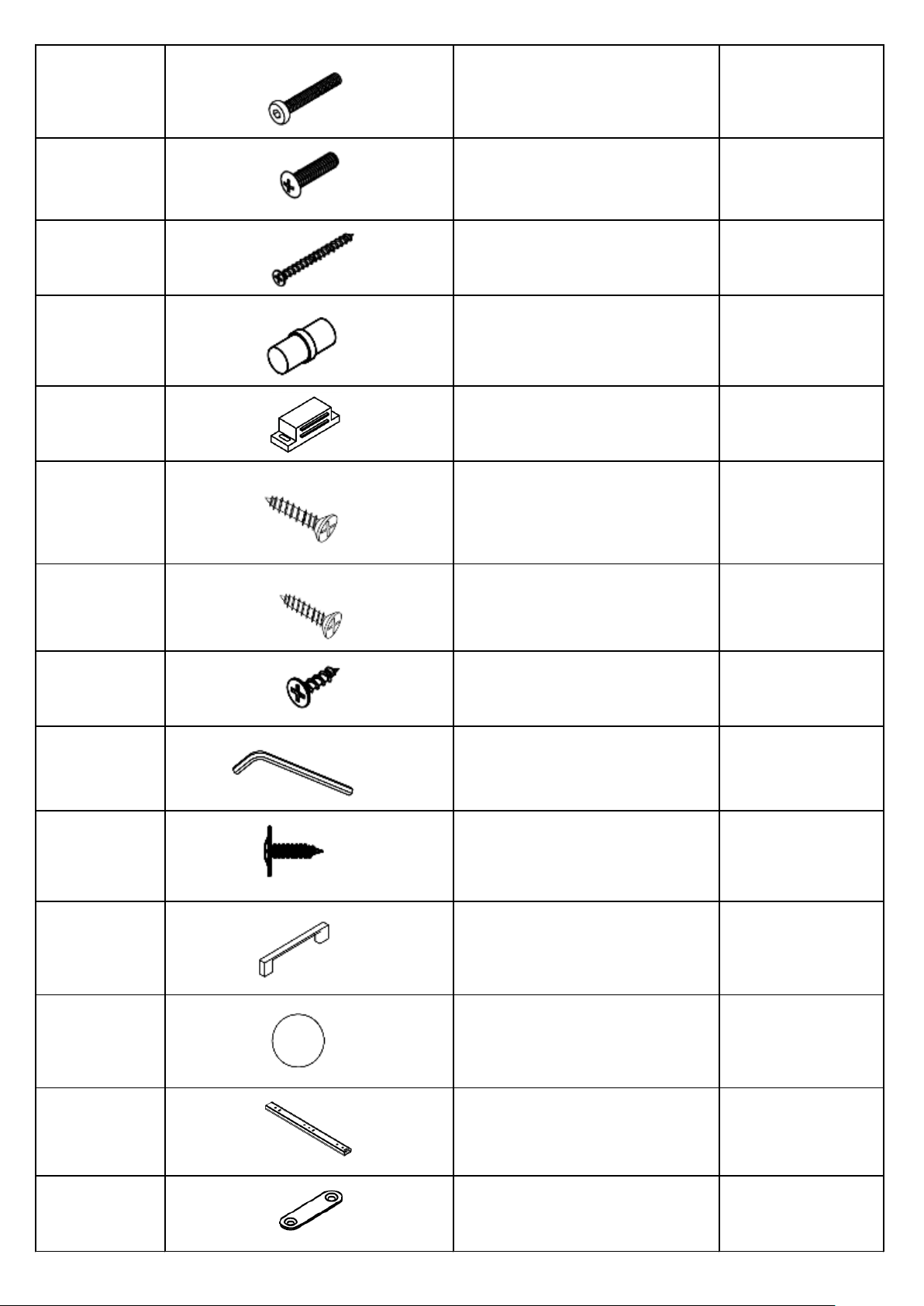

Page 5
Bolt
(M6*30mm)
9
Bolt
(M4*20mm)
7
Screw
(M4*40mm)
15
Door Hinge 5
Magnet 2
Screw
(M3*16mm)
5
Screw
(M3*12mm)
5
Screw
M3.5*12mm
9
Hex Key 1
Screw
(M3*12mm)
39
Handle 3
Holes Cover 23
Drawer Slides 2
Magnetic Bar 2
5 OF 18
Page 6
L-shape Metal
Brackets
2
Screws (M4*35mm) 3
Screws (M4*15mm) 3
Plastic Dowel 3
Screwdriver
(Not provided)
1
Power Drill
(Not provided)
1
Hammer
(Not provided)
1
Cabinet Restraint Device Hardware
6 OF 18

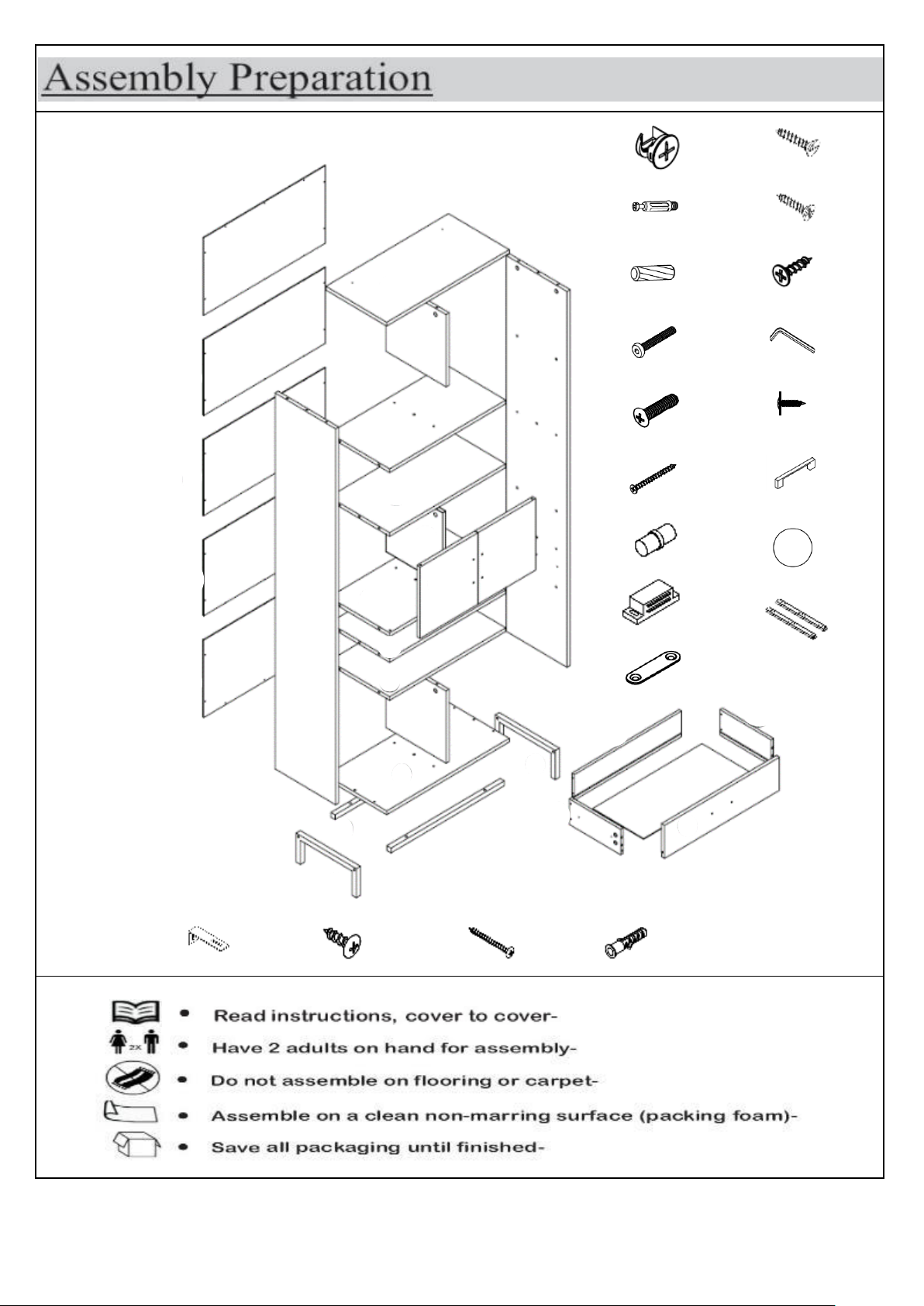

Page 7
Before
Beginning
Assembly:
*23
*23
*15
*7
*27
*9*2*2
*2
*3
*3
*3
*5
*5
*5*9*1
*39
*3
*23
*2
P
O
N
M
LKJ
I
H
G
F
E
DCB
AVU
T
R
S
A
B
G
Q
V
U
V
7 OF 18
Page 8
Overview
This Bookcase has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Bookcase parts, the above picture is to help you put the various parts into perspective. Please read through the instructions herebelow to familiarise the parts and steps before assembly.
Side Frame(A)
Transversal Tube(B)
Top Panel(C)
Bottom Panel(D)
Shelf(E)
Divider(G)
Divider(G)
Middle Shelf(F)
Right Panel(I)
Left Panel(H)
Left Door(K)
Right Door(L)
Shelf under Door(M)
Shelf above Drawer(N)
Front Panel of
Drawer(O)
Shelf under Drawer(T)
8 OF 18
Page 9
Open the carton and place all parts onto a clean, non-marring surface. Split up the Drawer Slides() into a and b.
Step 2
Step 1
b
a
a
bPQ
I
H
9 OF 18
Page 10
2.1) Attach part a of Drawer Slides () to Left panel(H) and Right panel(I) using screw()with Screwdriver()
2.2) Attach part b of Drawer Slides() to Left Panel of Drawer(P) and Right Panel of Drawer(Q) using screw() with Screwdriver()
Step 3
Step 4
Insert Wooden Dowel() into mounting positions on E,F,G,H,I,J,M,N,T as shown.
Insert Cam Bolt() into the mounting positions of H,I,C,F,O,T,as shown, lock by turning Cam Bolt() with Screwdriver()
T
F
O
C
I
H
JEF
T
GGN
M
I
H
10 OF 18
Page 11
Step 5
5.1) Attach Magnet() to Middle Panel(F) using Srew() with Screwdriver() .
5.2) Attach Magnet() to Left Door(K) and Right Door(L) using Srew() with Screwdriver().
Step 6
6.1) Insert Wooden Dowel on Divider(J) into the mounting positions on Middle Shelf(F), and Insert Cam Bolt on Middle Shelf(F) into the mounting positions on Divider(J), then Insert Cam Lock() into the mounting positions of Middle Divider(J). Lock by turning Cam Lock() with Screwdriver(). Use Holes cover() to cover the mounting position of Cam Lock().
6.2) Insert Wooden Dowel on Divider(G) into the mounting positions on Shelf under Drawer(T), and Insert Cam Bolt on Shelf under Drawer(T) into the mounting positions on Divider(G), then Insert Cam Lock() into the mounting positions of Divider(G). Lock by turning Cam Lock() with Screwdriver(). Use Holes cover() to cover the mounting position of Cam Lock().
Note: Ensure the arrows on Cam Locks head points towards the Cam Bolt mounting positions.
K
K
L
F
F
J
F
T
G
11 OF 18
Page 12
Step 8
7.1) Attach Door Hinge() to the two sides of Left door(K) and Right door(L) as shown.
7.2) Insert one side of Door Hinge on Left door(K) and Right door(L) into the mounting position on Middle Shelf(F).
8.1) Insert the other side of Door Hinge on Left door(K) and Right door(L) into the mounting position on Shelf under Door(M).And insert the Wooden dowel on Shelf under Door(M) into Middle Divider(J) at the same time. Attach Shelf under Door(M) to Middle Divider(J) using Screw() with Screwdriver().
8.2) Insert the Wooden dowel on Divider(G) into Shelf(E), attach Shelf(E) to Divider(G) using Screw() with Screwdriver().
Step 7
KLJ
F
E
G
M
KJL
F
12 OF 18
Page 13
9.1) Insert Wooden Dowel on Shelf(E),Middle Shelf(F),Shelf under Door(M),Shelf above Drawer(N),Shelf under Drawer(T) into the mounting positions on Left Panel(H) and Right Panel(I),and insert Cam Bolt on Left panel(H) and Right panel(I) into the mounting positions on Middle Shelf(F), Shelf above Drawer(N). Insert Cam Lock() into the mounting positions on Middle Shelf(F), Shelf above Drawer(N), lock by turning Cam Lock() with Screwdriver() as shown.
9.2) Use Holes cover() to cover the mounting position of Cam Lock().
Step 9
Step 10
10.1) Insert Wooden Dowel on Left panel(H),Right Panel(I) and Divider(G) into the mounting positions on Top panel(C) and Insert Cam Bolt on Top panel(C) into the mounting positions on Left panel(H), Right Panel(I) and Divider(G). Lock by turning Cam Lock() with Screwdriver().
10.2) Insert Wooden Dowel on Left panel(H),Right Panel(I) and Divider(G) into the mounting positions on Bottom panel(D). Attach Bottom panel(D) to Left panel(H),Right Panel(I) and Divider(G) by using Screw() with Screwdriver().
10.3) Use Holes cover() to cover the mounting position of Cam Lock().
T
G
E
F
J
MNGHI
I
G
G
D
H
C
13 OF 18
Page 14
Step 12
Attach Back Wall at Top and Bottom(U) and Back Wall at Middle to the frame of bookcase using Screw() with Screwdriver().
12.1) Attach Side Frame(A) to Transversal Tube(B) using Bolt() with Hex Key().
12.2) Attach Transversal Tube(B) to Bottom Panel(D) using Bolt() with Hex Key() as shown.
Step 11
D
U
V
V
V
U
A
A
B
B
B
B
A
A
14 OF 18
Page 15
Step 13 Step 14
13.1) Attach Left Panel of Drawer(P) and Right Panel of Drawer(Q) to Back Panel of Drawer(R) using Screw() with Screwdriver().
13.2) Insert Bottom of Drawer(S) into the grooves between Left Panel of Drawer(P) and Right Panel of Drawer(Q).
13.3) Insert Cam Bolt on Front Panel of Drawer(O) into the mounting positions on Left Panel of Drawer(P) and Right Panel of Drawer(Q). Insert Cam Lock() into the mounting positions on Left Panel of Drawer(P) and Right Panel of Drawer(Q). Lock by turning Cam Lock() with Screwdriver().
13.4) Use Holes Cover() to cover the mounting positions of Cam Lock().
13.5) Attach Handle() to Front Panel of Drawer(O) using Bolt() with Screwdriver()
14.1) Attach Handle() to Left Door(K) and Right Door(L) using Bolt() with Screwdriver().
14.2) Put the Drawer Member on the Drawer to Cabinet Member on the Bookcase, then carefully push Drawer into the Bookcase.
O
SRS
R
P
Q
P
Q
RPQ
K
L
15 OF 18
Page 16
Usage For Cabinet Restraint Device
Step 15
WARNING
Serious or fatal crushing injuries can occur from tipping furniture. To help prevent tip-over: ALWAYS secure this furniture to the wall
using Cabinet Restraint Device.
See product instructions for more ways to help prevent furniture tip-
over.
C
C
16 OF 18
Page 17
15.1)Use Power Drill() Drill two mounting positions on wall at same height, insert Plastic Dowel() into the mounting position with a Hammer()(Not priovided).
13.2)Attach L-shape Metal Sheet() to plastic Dowel()using Screw() with Screwdriver( ). Note: The Metal sheet need to be secured to solid, load bearing surface. Please use a Stud Finder(not supplied) if needed to locate the Wall Frame.
13.3)Attach L-shape Metal Sheet() to Top Panel(A)using Screw() with Screwdriver(). Your Bookcase is ready for use. This Bookcase can only be used on a flat, level surface.
17 OF 18
Page 18

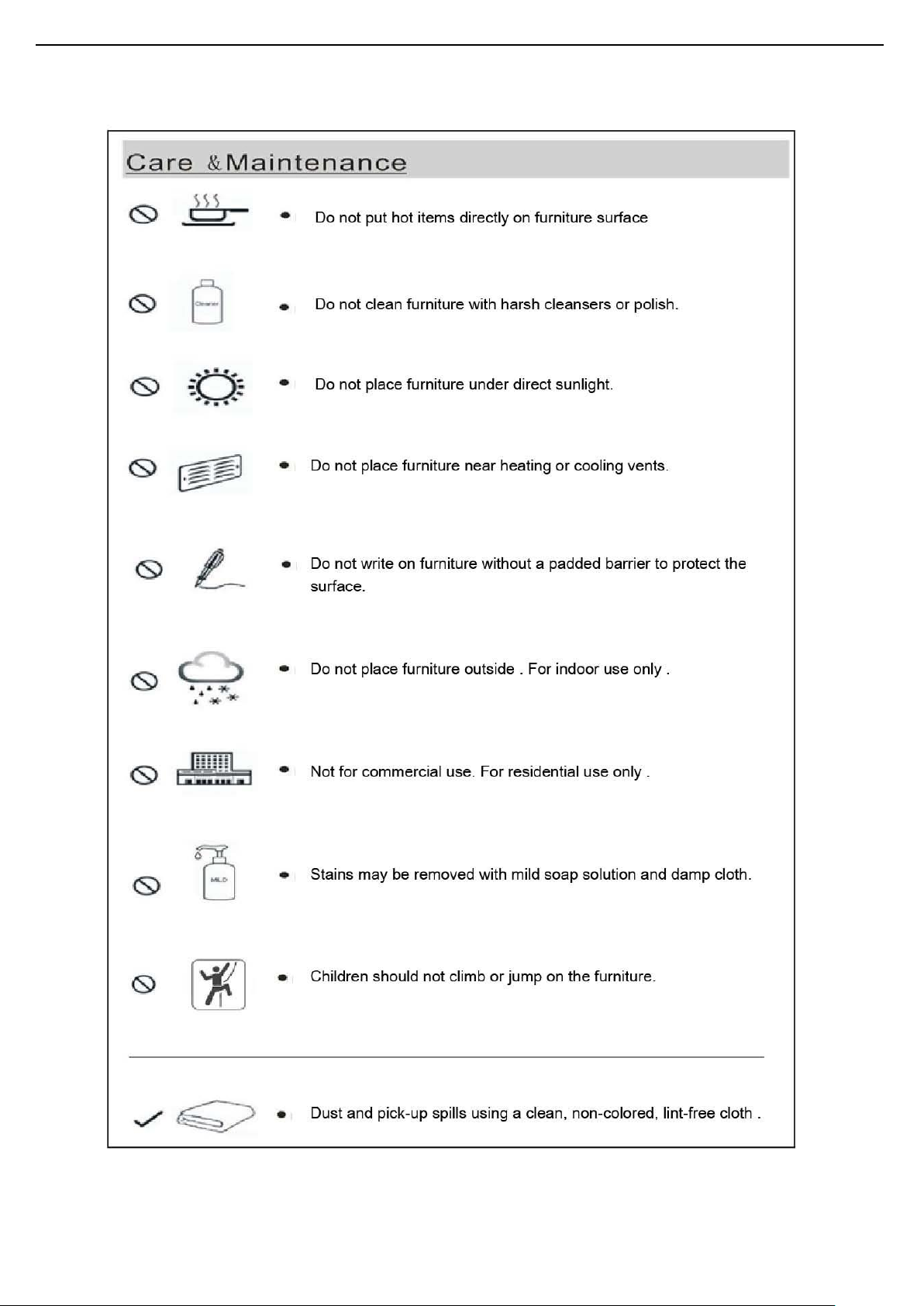

18 OF 18
