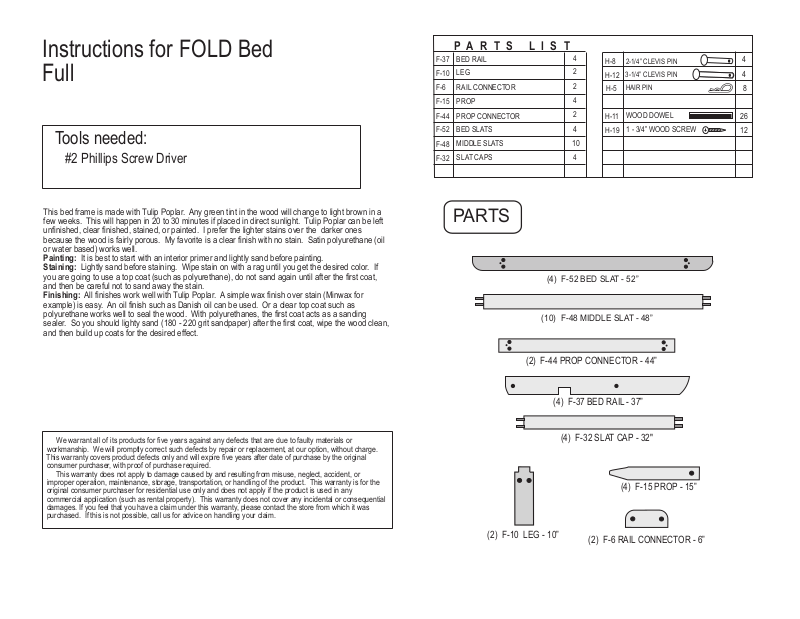

Instructions for FOLD Bed
Full
Tools needed:
#2 Phillips Screw Driver
PARTS LIST
BED RAIL
F-37
LEG
F-10
RAIL CONNECTOR
F-6
PROP
F-15
PROP CONNECTOR
F-44
BED SLATS
F-52
MIDDLE SLATS
F-48
SLAT CAPS
F-32
4
2
2
4
2
4
10
4
2-1/4” CLEVIS PIN
H-8
3-1/4” CLEVIS PIN
H-12
HAIR PIN
H-5
WOOD DOWEL
H-11
1 - 3/4” WOOD SCREW
H-19
4
4
8
26
12
This bed frame is made with Tulip Poplar. Any green tint in the wood will change to light brown in a
few weeks. This will happen in 20 to 30 minutes if placed in direct sunlight. Tulip Poplar can be left
unfinished, clear finished, stained, or painted. I prefer the lighter stains over the darker ones
because the wood is fairly porous. My favorite is a clear finish with no stain. Satin polyurethane (oil
or water based) works well.
Painting: It is best to start with an interior primer and lightly sand before painting.
Staining: Lightly sand before staining. Wipe stain on with a rag until you get the desired color. If
you are going to use a top coat (such as polyurethane), do not sand again until after the first coat,
and then be careful not to sand away the stain.
Finishing: All finishes work well with Tulip Poplar. A simple wax finish over stain (Minwax for
example) is easy. An oil finish such as Danish oil can be used. Or a clear top coat such as
polyurethane works well to seal the wood. With polyurethanes, the first coat acts as a sanding
sealer. So you should lighty sand (180 - 220 grit sandpaper) after the first coat, wipe the wood clean,
and then build up coats for the desired effect.
We warrant all of its products for five years against any defects that are due to faulty materials or
workmanship. We will promptly correct such defects by repair or replacement, at our option, without charge.
This warranty covers product defects only and will expire five years after date of purchase by the original
consumer purchaser, with proof of purchase required.
This warranty does not apply to damage caused by and resulting from misuse, neglect, accident, or
improper operation, maintenance, storage, transportation, or handling of the product. This warranty is for the
original consumer purchaser for residential use only and does not apply if the product is used in any
commercial application (such as rental property). This warranty does not cover any incidental or consequential
damages. If you feel that you have a claim under this warranty, please contact the store from which it was
purchased. If this is not possible, call us
for advice on handling your claim.

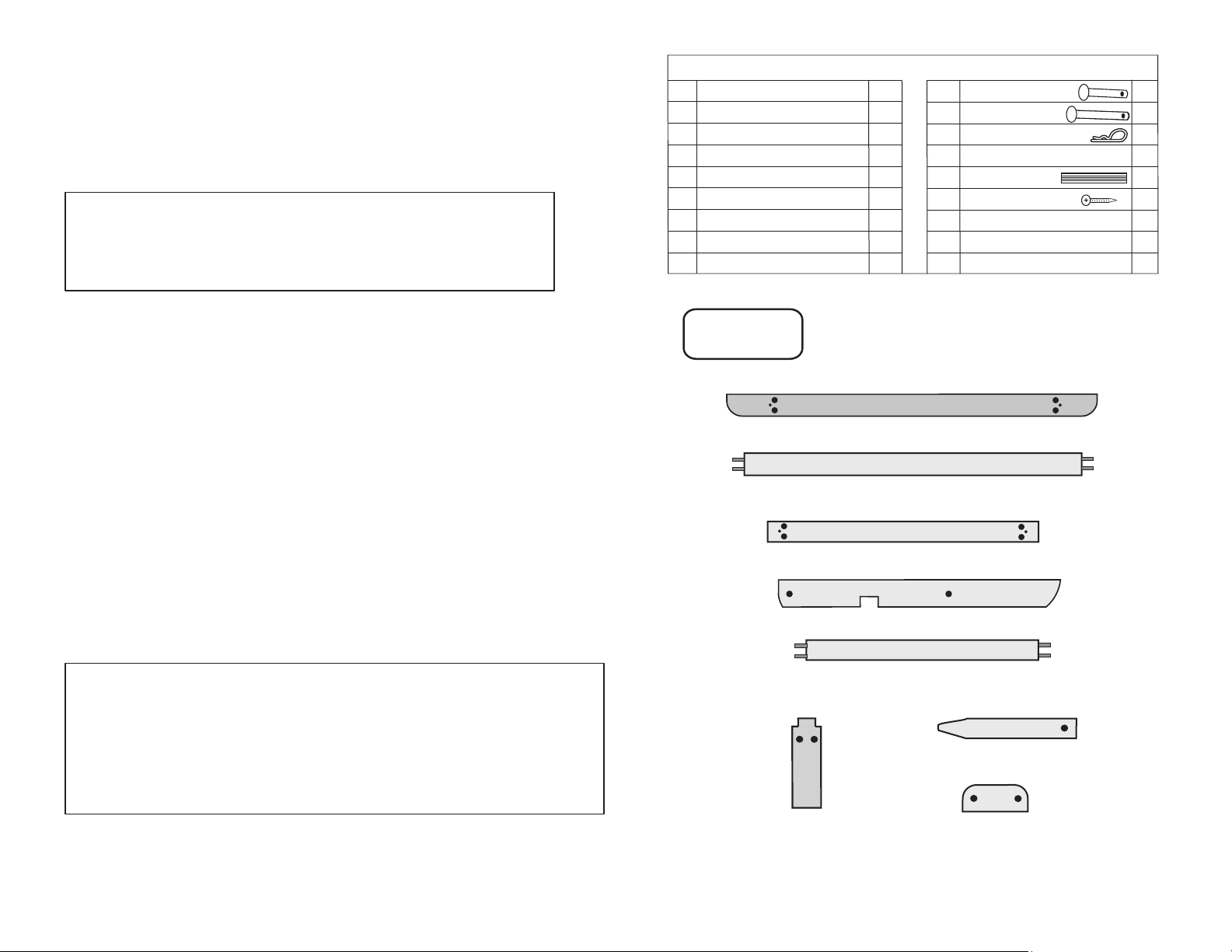

PARTS
(4) F-52 BED SLAT - 52”
(10) F-48 MIDDLE SLAT - 48”
(2) F-44 PROP CONNECTOR - 44”
(4) F-37 BED RAIL - 37”
(4) F-32 SLAT CAP - 32"
(4) F-15 PROP - 15”
(2) F-10 LEG - 10”
(2) F-6 RAIL CONNECTOR - 6”
Page 2

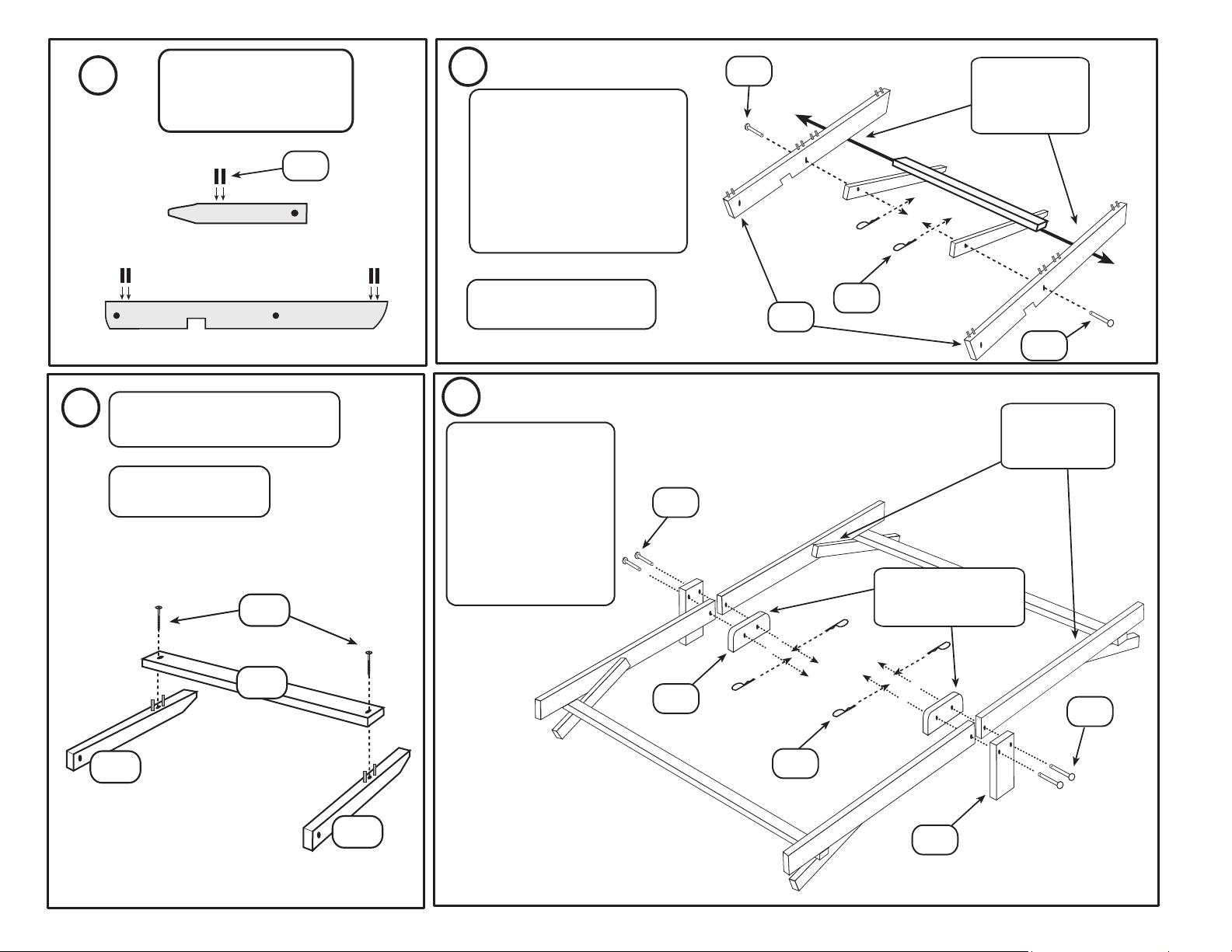

1
Push Wood Dowels (H-11)
all the way into holes on the
edge of the (4) Props (F-15)
and the (4) Bed Rails (F-37).
H-11
F-15 PROP
3
Attach two of the Bed Rails (F-37)
to the outside of one of the
Prop Assemblies using
2-1/4” Clevis Pins (H-8).
Let the Prop Assembly swing
down so that the Prop Connector
can go below the Bed Rails.
Secure the Clevis Pins
with Hair Pins (H-5).
H-8
Be sure that the
Prop Connector
goes below the
Bed Rail.
F-37 BED RAIL
Press the Prop Connector (F-44) onto
2
the Wood Dowels on the Props (F-15).
Attach with Wood Screws (H-19).
Repeat these steps to
make the other Prop
Assembly.
F-44
H-19
Repeat these steps to make
the other half of the bed
frame.
4
•
First, insert two 3-1/4”
Clevis Pins (H-12) into
each Leg (F-10)
•
Then push one of the
Clevis Pins onto each
of the Bed Rails.
•
Then slide the
Rail Connectors (F-6)
onto the Clevis Pins.
•
Put a Hair Pin (H-5) on
each Clevis Pin.
H-12
F-6
H-5
F-37
H-8
Be sure that the
Props are on the
INSIDE of the
Bed Rails.
Be sure that the curved
side of the Rail
Connector (F-6)
is on the top.
H-12
F-15
F-15
H-5
F-10
Page 3

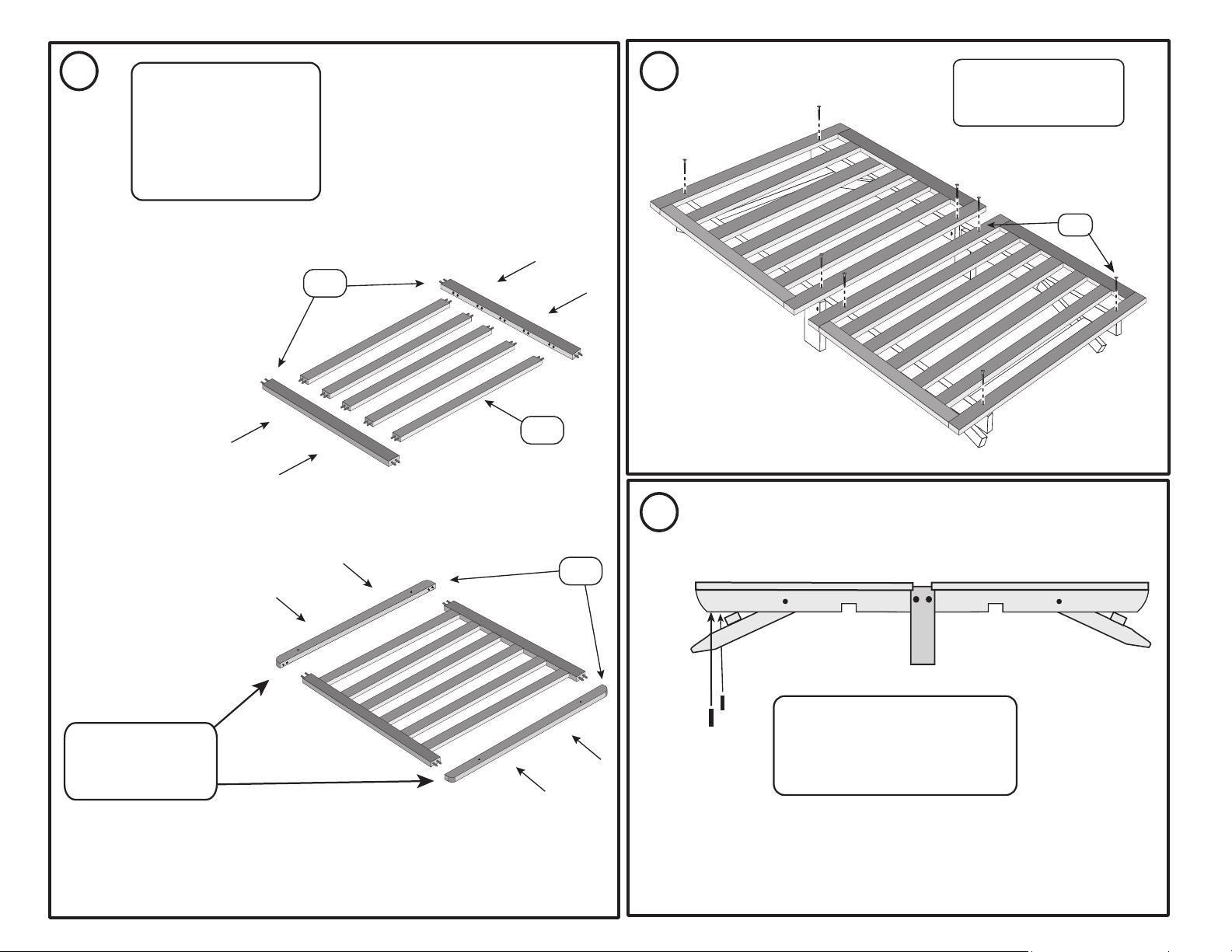

5
Assemble the Slat Decks by
pressing (5) Middle Slats (F-48)
into (2) Slat Caps (F-32).
Then press (2) Bed Slats (F-52)
onto the Slat Caps.
Repeat for the other Slat Deck.
F-32
F-48
6
7
Push the Slat Decks down
onto the Wood Dowels
and attach with
Wood Screws (H-19).
H-19
Note:
Be sure that the 4
dowel holes are on
the bottom.
F-52
Push (2) “Wood Dowels (H-11) all
the way into the holes on the bottom
of the Bed Rails on just one end of
the bed. (When the bed is folded,
these dowels will fit into the holes on
the other end of the bed.
Page 4

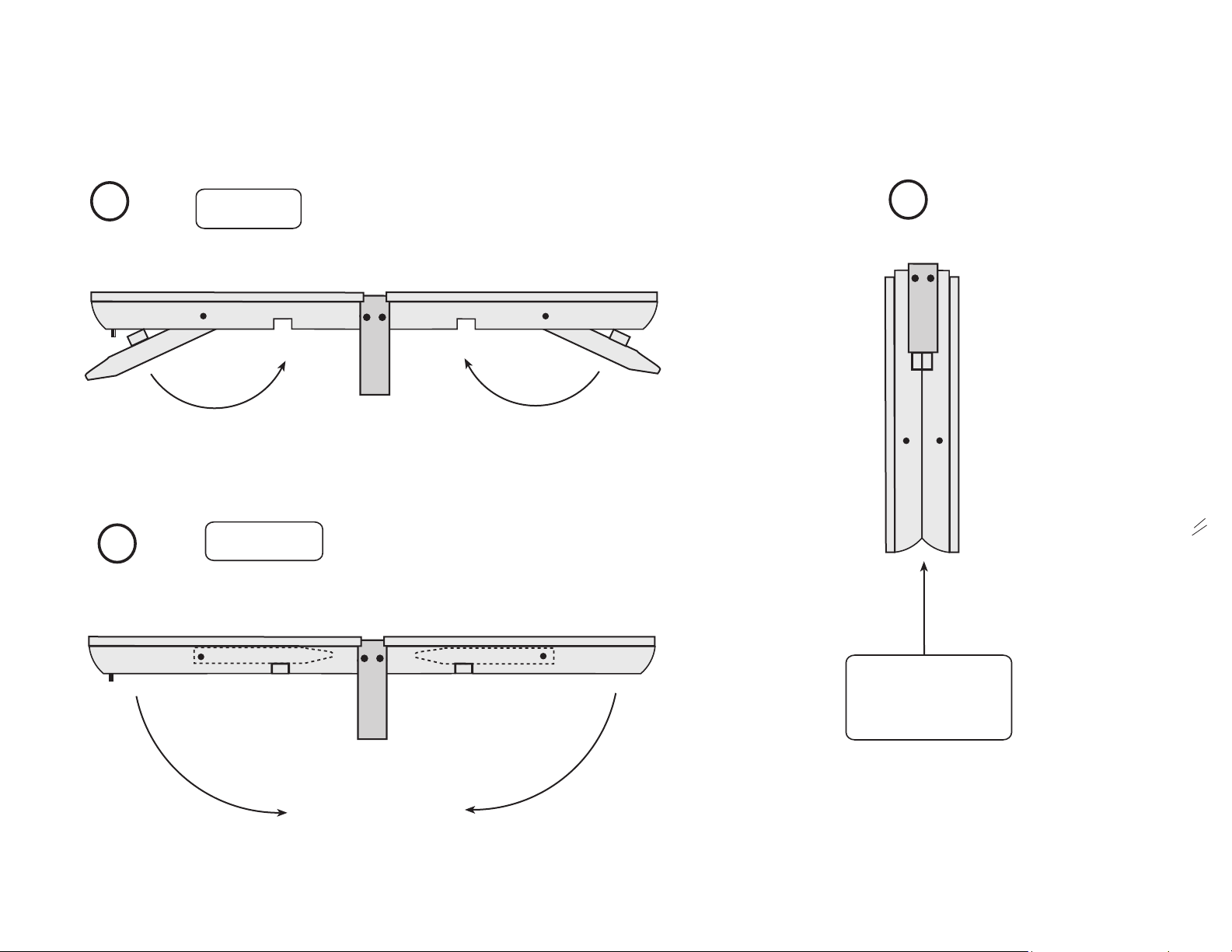

Operation:
1
2
Fold up Prop
assemblies.
Fold Bed Rails
together.
3
To secure bed in the
folded position, push the
Wood Dowels into holes
on the Bed Rails from
the other side.
