Union Rustic W005273576 Assembly Instructions

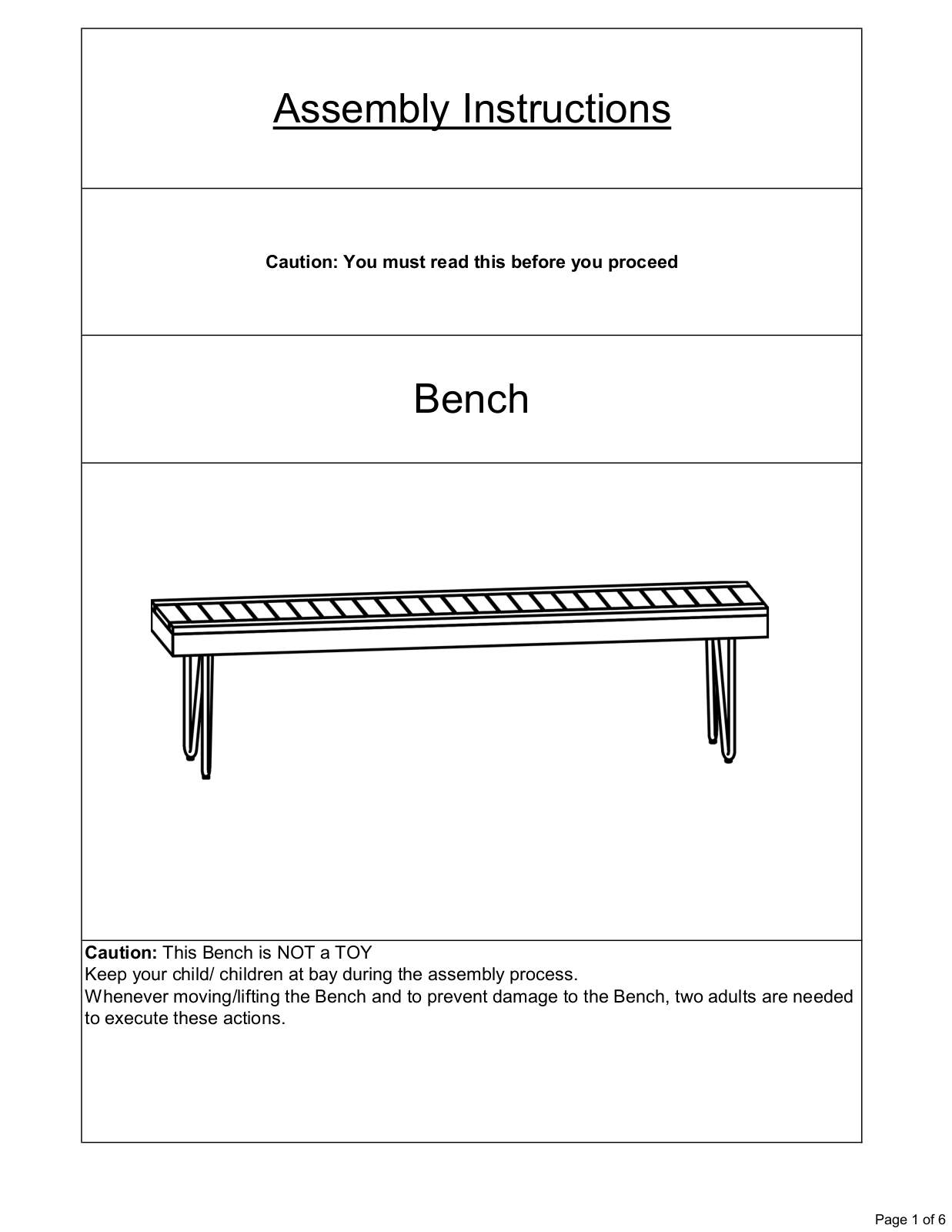

Assembly Instructions

Page 1 of 6

Caution: You must read this before you proceed

Bench

Caution: This Bench is NOT a TOY
Keep your child/ children at bay during the assembly process.
Whenever moving/lifting the Bench and to prevent damage to the Bench, two adults are needed
to execute these actions.

①

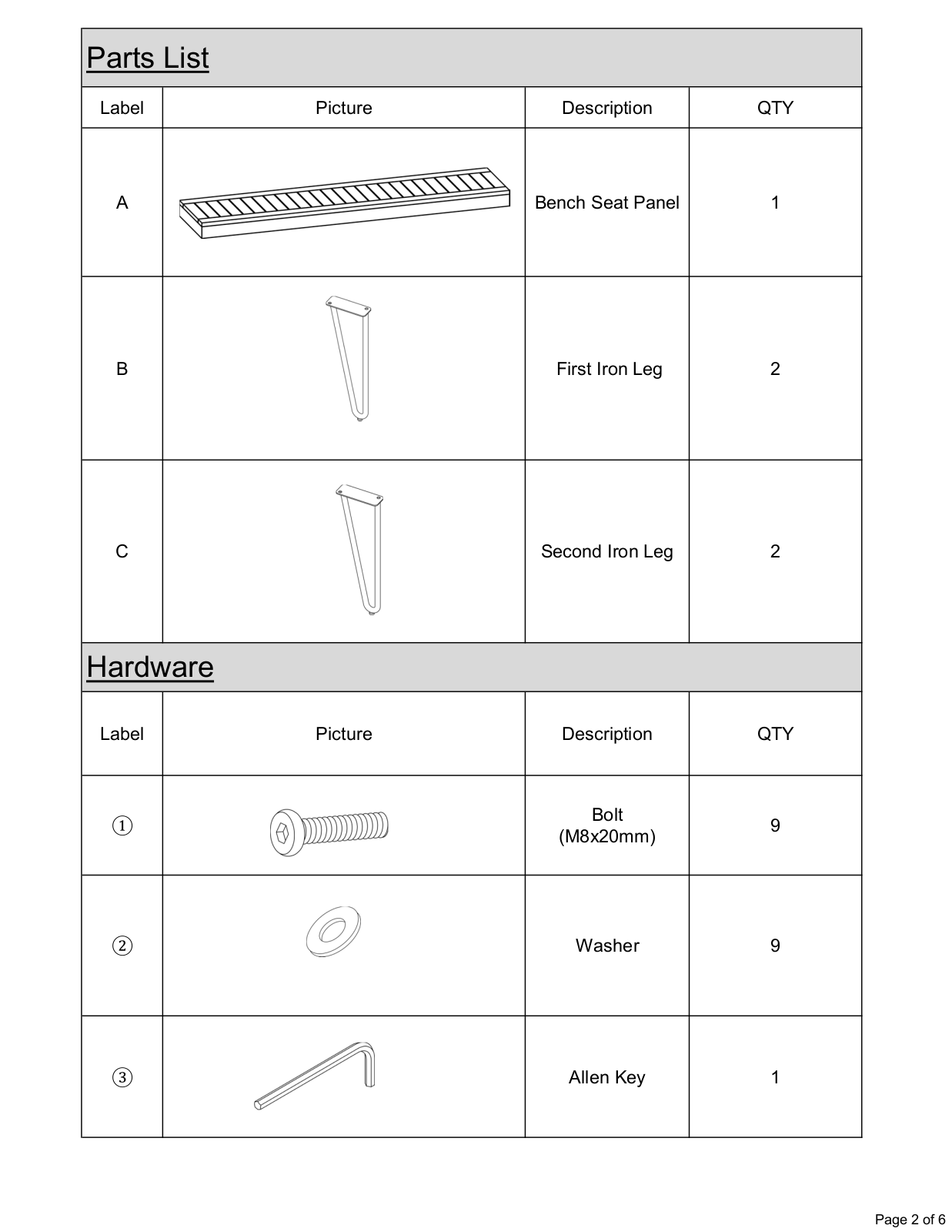

Parts List

Page 2 of 6

Label Picture Description QTY

A Bench Seat Panel 1

B First Iron Leg 2

C Second Iron Leg 2

Hardware

Label Picture Description QTY

Bolt

(M8x20mm)

② Washer 9

9

③ Allen Key 1

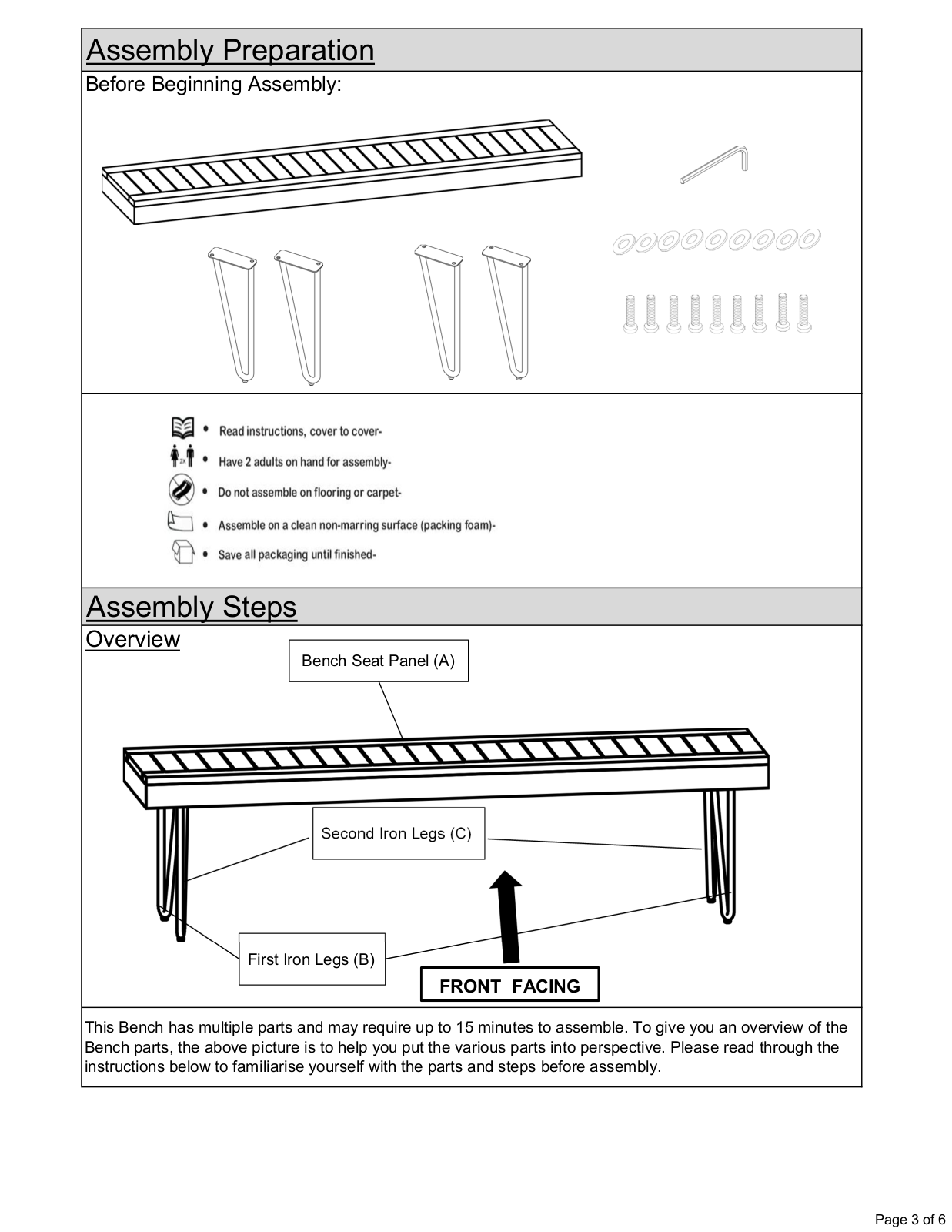

Assembly Preparation

Page 3 of 6

Before Beginning Assembly:

Assembly Steps

Overview

Bench Seat Panel (A)

Second Iron Legs (C)

First Iron Legs (B)

FRONT FACING

This Bench has multiple parts and may require up to 15 minutes to assemble. To give you an overview of the
Bench parts, the above picture is to help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before assembly.

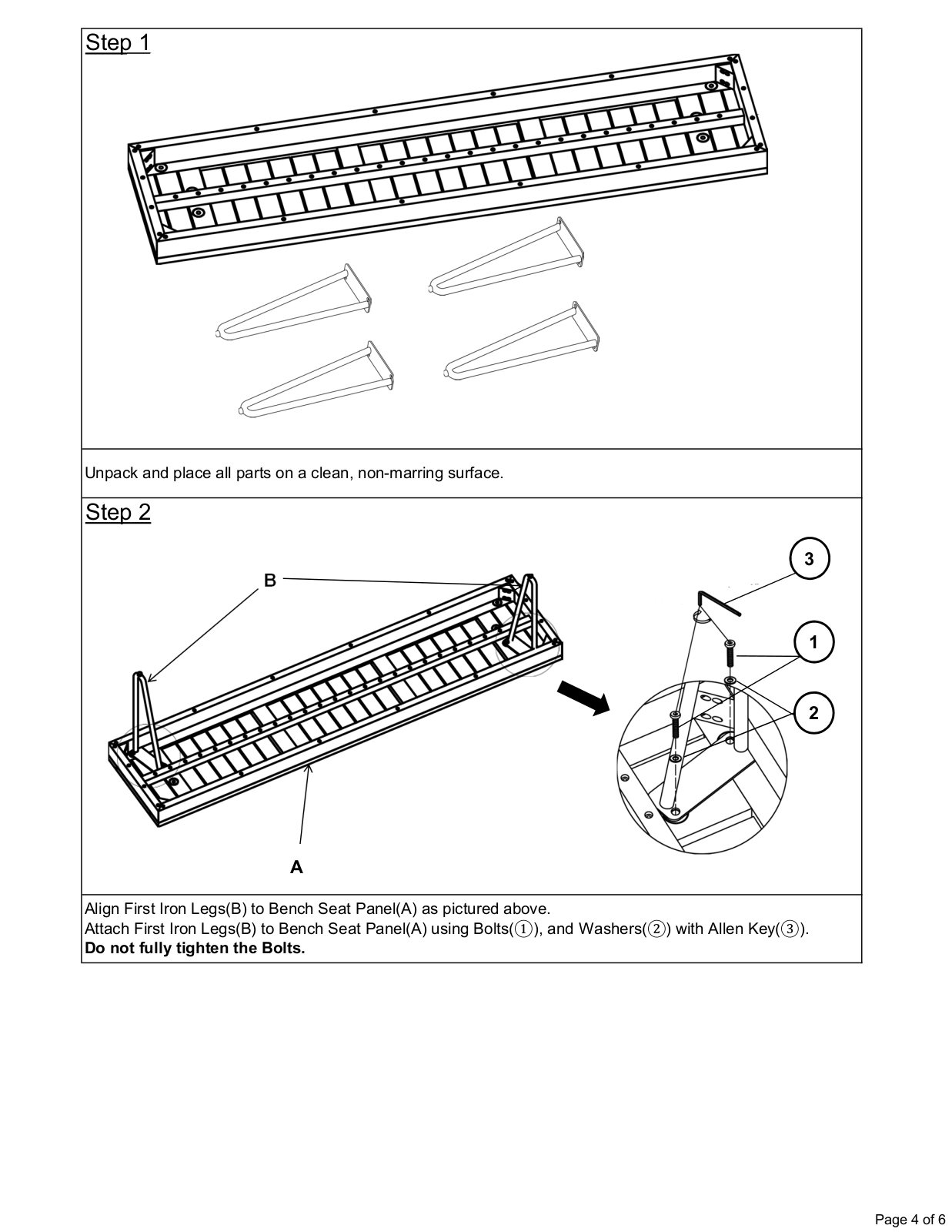

Step 1

Unpack and place all parts on a clean, non-marring surface.

Step 2

B

A

Align First Iron Legs(B) to Bench Seat Panel(A) as pictured above.
Attach First Iron Legs(B) to Bench Seat Panel(A) using Bolts(①), and Washers(②) with Allen Key(③).

Do not fully tighten the Bolts.

3

1

2

Page 4 of 6

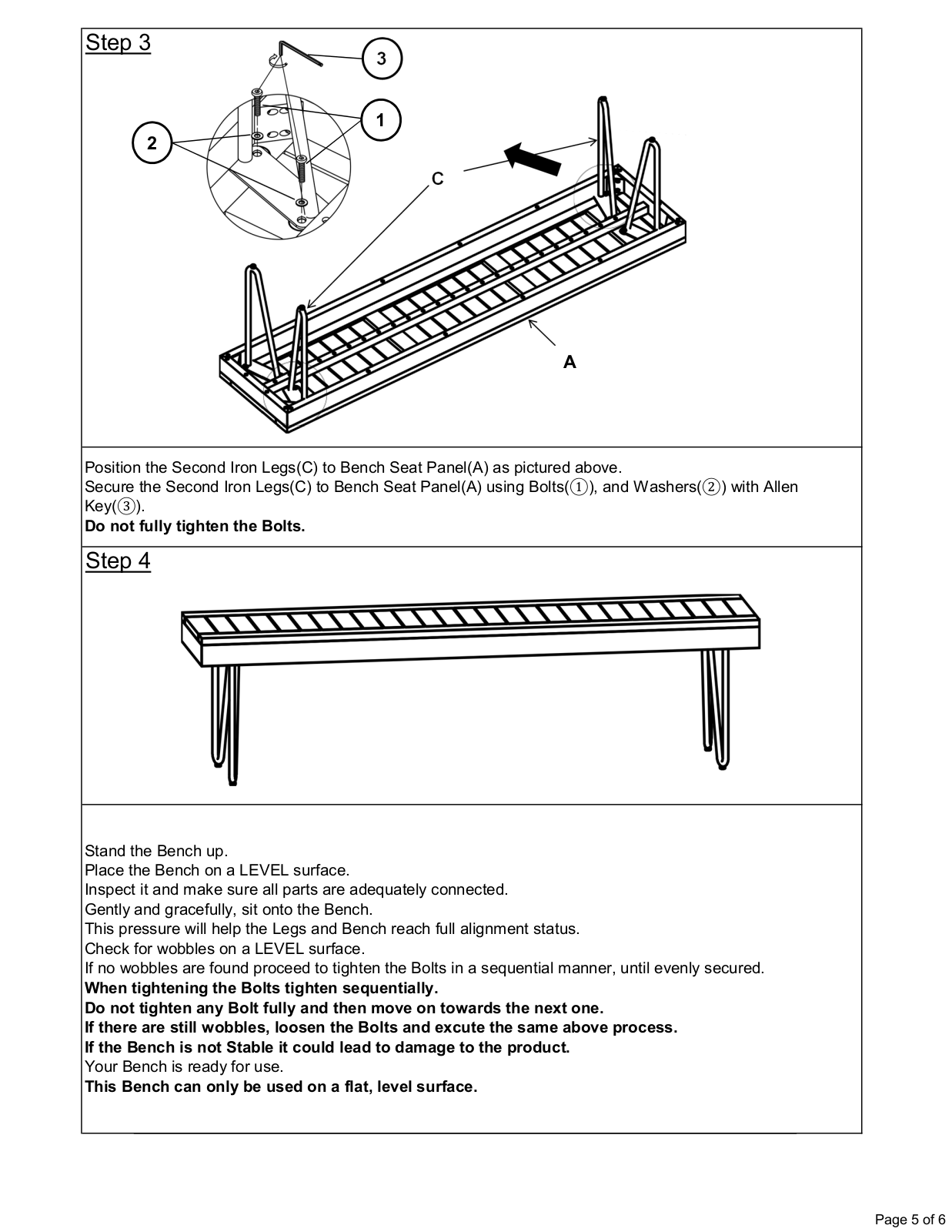

Step 3

3

1

2

C

A

Position the Second Iron Legs(C) to Bench Seat Panel(A) as pictured above.
Secure the Second Iron Legs(C) to Bench Seat Panel(A) using Bolts(①), and Washers(②) with Allen
Key(③).

Do not fully tighten the Bolts.

Step 4

Stand the Bench up.
Place the Bench on a LEVEL surface.
Inspect it and make sure all parts are adequately connected.
Gently and gracefully, sit onto the Bench.
This pressure will help the Legs and Bench reach full alignment status.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten the Bolts in a sequential manner, until evenly secured.

When tightening the Bolts tighten sequentially.
Do not tighten any Bolt fully and then move on towards the next one.
If there are still wobbles, loosen the Bolts and excute the same above process.
If the Bench is not Stable it could lead to damage to the product.

Your Bench is ready for use.

This Bench can only be used on a flat, level surface.

Page 5 of 6

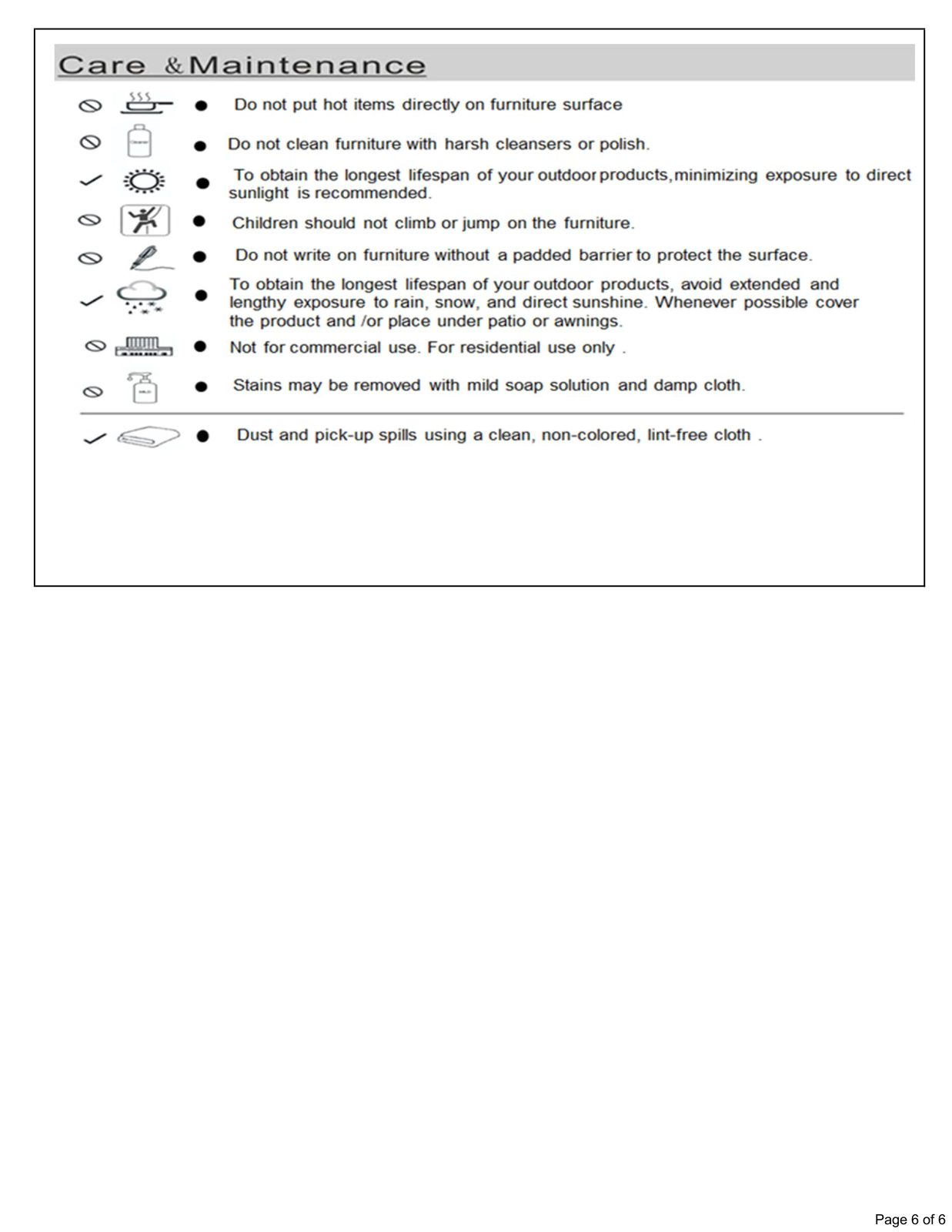

Page 6 of 6
