OPENSTAGE 40 (US) TELEPHONE USER GUIDE

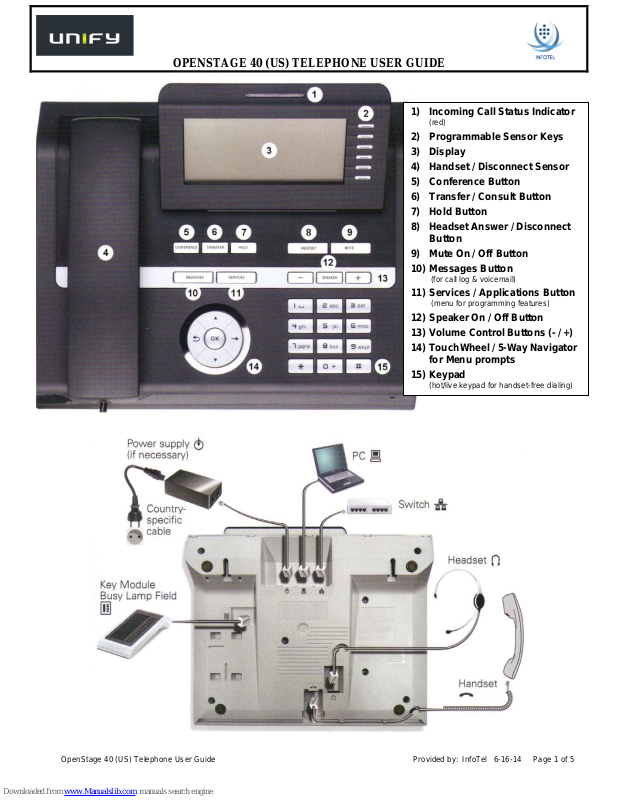

1) Incomin g Ca l l S ta t us In dic a tor
(red)
2) Programmabl e Sensor Keys
3) Display
4) Handset / Disconnect S ensor
5) Conference Button
6) Transfer / Consult Button
7) Hold Button
8) Headset Answer / Disconnect
Button
9) Mute On / Off Button
10) Messages Button
(for call log & voicemail)
11) Services / Applications Button
(menu for programming features)
12) Speaker On / Off Button
13) Volume Control But tons (- / +)
14) TouchWheel / 5-Way Navigator
for Menu prompts
15) Keypad
(hot/live keypad for handset-free dialin g)
OpenStage 40 (US) Telephone User Guide Provided by: InfoTel 6-16-14 Page 1 of 5
Page 2
FEATURE
TOUCHWHEEL MENU/Button Options
immediate dialing without lifting receiver. This will
automatically activate the SPEAKER option on each
telephone. To move a call from speaker to handset, si m ply lift
• With the handset in the cradle, dial the desired telephone number
Press OK to place call via Speakerphone
-
You are connected to the caller
PL AC ING A CA LL
NOTE: All telephones have a “hot” keypad that allows
handset.
INTERCOM CALL (CO M GROUP)
Place an i nter com call to a member of your “ group” using the
telephone speakers.
HANDSET FRE E DIALING
NAV IGAT IO N / TO UCH W HEE L
OPTIONS DURING INCOMING
CALL
prom pts and TouchWheel (Select = press OK)
Answering your telephone via display
ANSWERING A C ALL
Lift Handset or press Headset press Speaker button
EXTERNAL CALLS
• Dial the 10-digit telephone number and press OK
INTERNAL CALLS
• Dial Internal Extension number only and press OK
NOTE: It is not necessary to dial a "9" before placing a call, but the system will accept it.
• Press the COM SPEAK button
• Dial the 2-digit intercom code for the individual you wish to “intercom”
• Wait for confirmation tone and then begin speaking.
• Lift receiver to place call via Handset
OR
•
Accept – Select OK to answer call via speaker
Deflect – Scroll
and select OK. Type desired destination
number and press OK to Redirect incoming call
While telephone is ringing – Lift HANDSET
OR
Press the HEADSET button (Headset LED will illuminate)
OR
Press the SPEAKER button (Speaker LED will illuminate)
ANS WER ING A SEC OND L INE
ON Y OUR T EL EPHO NE
(keysets)
INTERCOM CALL (CO M GROUP)
Place an i nter com call to a member of your “ group” u sing the
telephone speakers.
DIS CON NECT ING A CAL L
To terminate the connection
MUTE
To temporarily deactivate the microphone on t he ha nds et or
speakerphone
LAST NUMBER REDIAL
Enables u ser to R EDIAL the l ast numb er di aled
(internal or external)
(minus icon appears in display w hen co nnected to caller)
• Lightly press the flashing extension SENSOR key (this places your current
call on HOLD)
•
• Press the COM SPEAK button
• Dial the 2-digit intercom code for the individual you wish to “intercom”
• Wait for confirmation tone and then begin speaking.
While connected to the caller
• Via HANDSET re place hands et in cra dle or touch light sensor in
earpiece portion of telephone cradle
• Via HEADSET, press the HEADSET button
• Via SPEAKER, press the SPEAKER button
While the caller is on hold
• Scroll and select Disconnect from menu options
• While connected to the caller, press t he MUTE button
(The LED on the MUTE button will illuminate to ensure feature is activated)
• To deactivate mute, press the lit MUTE button
(The LED on the MUTE button will deactivate)
HANDSET-FREE
• Press the OK button twice (call defaults to Speakerphone)
OR
• Lift the handset
• Press OK on Redial menu option
(number displays in field)
RINGER CUTOFF
To disable the RI NGER but al l ow i ncomi ng call s
OpenStage 40 (US) Telephone User Guide Provided by: InfoTel 6-16-14 Page 2 of 5
To DEACTIVATE ringer
• Press and hold the ASTERISK * button located on the keypad for
approx. 3 seconds
(A BELL ICON with a slash through it will appear in display indicating ringer is
deactivated)
To ACTIVATE ringer
• Press and hold the ASTERISK * button for approx. 3 seconds
