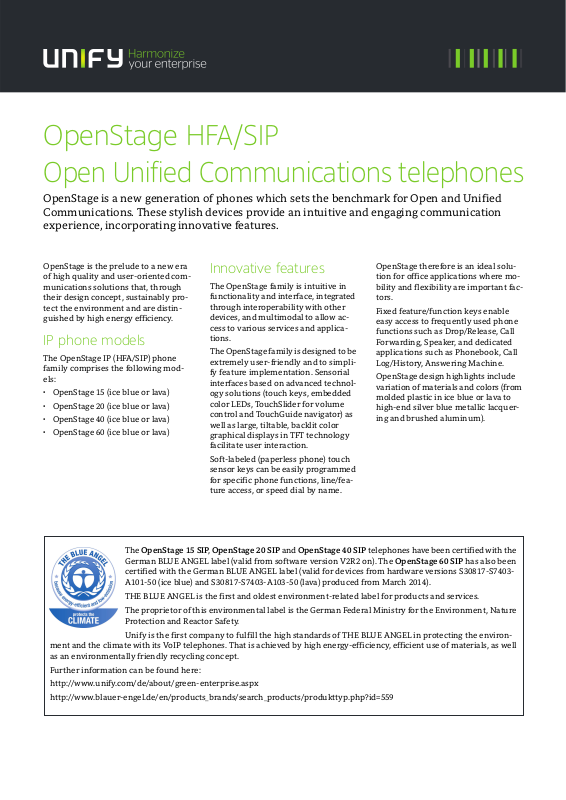

OpenStage HFA/SIP
Open Unified Communications telephones

OpenStage is a new generation of phones which sets the benchmark for Open and Unified
Communications. These stylish devices provide an intuitive and engaging communication
experience, incorporating innovative features.

OpenStage is the prelude to a new era
of high quality and user-oriented com­munications solutions that, through
their design concept, sustainably pro­tect the environment and are distin­guished by high energy efficiency.

IP phone models

The OpenStage IP (HFA/SIP) phone
family comprises the following mod­els:

• OpenStage 15 (ice blue or lava)

• OpenStage 20 (ice blue or lava)

• OpenStage 40 (ice blue or lava)

• OpenStage 60 (ice blue or lava)

Innovative features

The OpenStage family is intuitive in
functionality and interface, integrated
through interoperability with other
devices, and multimodal to allow ac­cess to various services and applica­tions.

The OpenStage family is designed to be
extremely user-friendly and to simpli­fy feature implementation. Sensorial
interfaces based on advanced technol­ogy solutions (touch keys, embedded
color LEDs, TouchSlider for volume
control and TouchGuide navigator) as
well as large, tiltable, backlit color
graphical displays in TFT technology
facilitate user interaction.

Soft-labeled (paperless phone) touch
sensor keys can be easily programmed
for specific phone functions, line/fea­ture access, or speed dial by name.

OpenStage therefore is an ideal solu­tion for office applications where mo­bility and flexibility are important fac­tors.

Fixed feature/function keys enable
easy access to frequently used phone
functions such as Drop/Release, Call
Forwarding, Speaker, and dedicated
applications such as Phonebook, Call
Log/History, Answering Machine.

OpenStage design highlights include
variation of materials and colors (from
molded plastic in ice blue or lava to
high-end silver blue metallic lacquer­ing and brushed aluminum).

The OpenStage 15 SIP, OpenStage 20 SIP and OpenStage 40 SIP telephones have been certified with the
German BLUE ANGEL label (valid from software version V2R2 on). The OpenStage 60 SIP has also been
certified with the German BLUE ANGEL label (valid for devices from hardware versions S30817-S7403­A101-50 (ice blue) and S30817-S7403-A103-50 (lava) produced from March 2014).

THE BLUE ANGEL is the first and oldest environment-related label for products and services.

The proprietor of this environmental label is the German Federal Ministry for the Environment, Nature
Protection and Reactor Safety.

Unify is the first company to fulfill the high standards of THE BLUE ANGEL in protecting the environ­ment and the climate with its VoIP telephones. That is achieved by high energy-efficiency, efficient use of materials, as well
as an environmentally friendly recycling concept.

Further information can be found here:
http://www.unify.com/de/about/green-enterprise.aspx
http://www.blauer-engel.de/en/products_brands/search_products/produkttyp.php?id=559

Each OpenStage IP phone provides an

A

M

integrated Ethernet switch. The net­work is accessed by 10/100 Base-T or,
as a variant, via Gigabit Ethernet (ex­ceptions: OpenStage 20 SIP/HFA).

All phones support 802.3af Power over
LAN.

Experience ...

udioPresence

OpenStage SIP/HFA phones offer Best-In-Class High Defini-

T

tion Voice – AudioPresence
AudioPresence

TM

Administration

OpenStage telephones are easy to de­ploy and ongoing administration is
simple.

The telephones can be centrally man­aged as part of an IT environment.

TM

HD.

HD ensures that all OpenStage SIP/HFA
phone users can get an immersive audio experience for
voice calls and audio conferences. AudioPresence

TM

HD is
provided across the entire portfolio of the OpenStage SIP/
HFA phones.

AudioPresenceTM HD leverages the standards-based G.722

high-definition audio codec, best-in-class speaker, microphone and acoustic
components, as well as advanced noise rejection and echo cancellation in all
OpenStage SIP/HFA phones.

SIP and HFA phone
variants

Each model of OpenStage IP phones is
available as a phone variant with the
open standards for SIP voice commu­nication or with the proprietary proto­col of Unify (CorNet-IP, also known as
HFA = HiPath Feature Access).

In addition to the standard-based SIP
(RFC 3261) VoIP protocol, OpenStage
SIP phones support even more fea­tures such as consultation, local 3-way
conference, multilines, and team fea­tures that allow a high degree of flexi­bility in your IT strategy.

The OpenStage HFA (CorNet-IP) vari­ants provide – together with an inno­vative user interface – a favorable ac­cess to a wide range of features of the
following platforms:

• HiPath 3000

• OpenScape 4000

• OpenScape Office

• OpenScape Business

Product family

OpenStage 15

OpenStage 15 is a universal solution
for efficient and professional telepho­ny. Each succeeding model has in­creased feature capabilities and per­ceived value, culminating in the high­end OpenStage 60 model targeted at
top level managers and executives.

OpenStage 15 is a full-featured speak­erphone with display and eight func­tion keys with LEDs that could be used
for line keys when operated as a multi­line telephone, for example.

Display

• Graphical display, 2-line mono­chrome (non swivel)

Keys

• Dialing keypad

• 3 fixed function keys with red LEDs

• 8 freely-programmable keys with
red LEDs (extendable with key mod­ule)

• Key labeling via paper inserts

• Control keys +/-

• 3 keys for navigation

Acoustics

• Hands-free (fully duplex)

• AudioPresence

Wall-mountable

OpenStage 15

ice blue

TM

HD

OpenStage 15

lava

OpenStage 20

OpenStage 20 is a well equipped speak­erphone. With its intuitive and interac­tive user interface, it is a universal so­lution for efficient and professional
telephony.

Display

• Tiltable graphical display, 2 lines
monochrome

Keys

• Dialing keypad

• 7 fixed function keys (partly
equipped with red LEDs)

• Control keys +/-

• 3-way navigator

Acoustics

• Hands-free (fully duplex)

• Open listening

• AudioPresence

Wall-mountable

OpenStage 20

ice blue

TM

HD

OpenStage 40

Customizable for various workplace
environments, OpenStage 40 is recom­mended for use as an office phone, e. g.
for desk sharing, people working in
teams or call center staff.

Display

• Tiltable graphical display, 6 lines
monochrome, backlit

• Optical call alert

Keys

• Dialing keypad

• 8 fixed function keys (partly
equipped with red LEDs)

• 6 freely programmable touch keys
(illuminated) with red LEDs (func­tion, speed dial or line keys)

• Control keys +/-

• 5-way navigator

Acoustics

• Hands-free (fully duplex)

• AudioPresence

Interfaces

• Headset jack

Wall-mountable

TM

HD

OpenStage 60

Offers top-notch functionality and in­novations, combining a maximum of
usability with a clear, intuitive, and
sleek design. An open application plat­form and personalization options
make this phone the first choice for
boss-secretary environments and peo­ple interacting with lots of other devic­es.

Display

• Tiltable graphical color TFT display,
320 x 240 pixel (QVGA), backlit

• Optical call alert

Keys

• Dialing keypad

• 6 fixed function keys (partly
equipped with blue LEDs)

• 8 freely programmable touch keys
(illuminated) with blue LEDs (func­tion, speed dial or line keys)

• 6 mode keys (touch/sensor keys, il­luminated) with blue or blue/white
LEDs (e. g. to start applications)

• TouchSlider for volume adjustment
with blue/white LEDs

• TouchGuide for navigation

Acoustics

• Hands-free (fully duplex)

• Polyphonic ring tones

• AudioPresence

TM

HD

OpenStage 20

lava

OpenStage 40

ice blue

OpenStage 40

lava

Interfaces

• Headset jack

• Bluetooth

• USB Master

OpenStage 60

ice blue

OpenStage 60

lava

Accessories

For the respective OpenStage models, a
comprehensive range of accessories
will be released separately. Here is a
complete list of accessories:

OpenStage Key Module 15

• 18 additional freely programmable
keys with LEDs: function, speed dial,
or line keys

• Key labeling via paper inserts

• In ice blue or lava

• For OpenStage 15/40 (up to 1 unit
can be connected)

OpenStage Key Module 40, 60

• 12 additional freely programmable
keys with LEDs: function, speed dial,
or line keys (two-level)

• Large graphical display for key label­ing

• In ice blue, lava, or silver blue metal­lic

• For OpenStage 40, 60 (up to 2 units
can be connected)

OpenStage
Busy Lamp Field 40

• 90 additional freely programmable
keys with LEDs: function, speed dial
or line keys

• Key labeling via paper inserts

• In ice blue or lava

• For OpenStage 40 (only 1 unit can be
connected)

Fore more information, refer to:
http://wiki.unify.com/wiki/
OpenStage_Busy_Lamp_Field_40

Wall mount kit

For OpenStage 20 and 40 in ice blue or
lava

OpenStage Manager

For administration of OpenStage 60,
the OpenStage Manager offers the fol­lowing functions:

• Administer the OpenStage Phone
Book:
Synchronize contacts,
Edit the phone book,
Add pictures

• Manage polyphonic ring tones

• Load screen saver pictures

• Configure OpenStage phones

• Backup/restore user data

OpenStage applications

OpenStage is an extremely powerful
platform for efficient business applica­tions.

The following applications are avail­able with the OpenStage phones

1

:

Personal phone book

• Up to 1,000 personal contacts with
different call numbers

• Combination of contacts into groups

• Add a picture to contacts

Call log/history

• List of missed, forwarded, dialed,
and received calls

• Dial from the call log list

Directory access (LDAP client)

• Query corporate directories using
LDAP

• Quick search and advanced search
with various search criteria

Graphical voicemail control

• Message waiting indication via LED
and icon on idle screen

• Intuitive user interface with CD
player look & feel

• Support with HiPath Xpressions
V5.0, OpenScape Xpressions V6.0,
V7.0

Bluetooth V2.0

• Object Push Profile: Send and re­ceive business cards/vCards

• Headset profile: Connect a Blue­tooth headset

XML applications

The OpenStage 60 supports the inte­gration of applications via its XML ap­plication platform. More detailed infor­mation can be found at: http://
wiki.unify.com/wiki/XML_Applications

2

Telephony

• Graphical call handling

• Context-sensitive menus

• Simple use of complex phone fea­tures

1. Not all features are available on all telephones. 2. OpenStage 60 only

Conference unit support

The conference unit can be connected
via cable to the headset jack or via BT
Interface, depending on phone type
and conference type.

Information on recommended confer­ence units can be found at:

• http://wiki.unify.com/wiki/
Conference_Unit

• http://wiki.unify.com/wiki/
HiPath_Ready_Certifications

Video support

Video calls

The OpenStage 60 SIP supports video
calls via UVC-compliant USB cameras
using the H.263 codec. The basic call
features (e. g. hold, retrieve, mute, and
consult) support video transmission.

OpenStage Gate View

The OpenStage Gate View solution en­ables the transmission of video data
from a monitoring camera to the dis­play of OpenStage 60 HFA phones.

This way, a perfect video monitoring
solution is provided for many situa­tions, e. g., for monitoring of doors or
parking areas.

For details, refer to:
http://wiki.unify.com/wiki/
OpenStage_Gate_View

Platform support

OpenStage SIP phones are supported
by OpenScape Voice and Asterisk.

OpenStage CorNet-IP telephones can
be operated on HiPath 3000 and 4000
as well as on OpenScape Office and
OpenScape Business.

Access to the PSTN –
acoustic/voice quality

• FCC Part 68/CS-03 (Technical Re­quirements for Connection of Ter­minal Equipment to the Telephone
Network)

• TIA/EIA-810A (Transmission Re­quirements for Narrowband VoIP
and Voice over PCM Digital Wireline
Telephones)

• TBR8 (Telephony 3.1 kHz teleser­vices – attachment requirements for
handset terminals)

• Hearing aid capability (HAC) accord­ing to TIA/EIA-504A (Electronic In­dustries Association recommended
standard RS-504 magnetic field in­tensity criteria for telephone com­patibility with hearing aids)

Specifications

OpenStage 15 OpenStage 20 OpenStage 40 OpenStage 60

Display

Tiltable display (pixels, type) 2 lines,

205 x 41 pixels (not
tiltable, fixed view-

ing angle of 30°)

Background lighting for display – – Yes Yes

Keys/LEDs

Fixed function keys (pushbuttons,
partly illuminated)

Freely programmable touch sensor
keys (illuminated)

Mode keys (touch sensor keys, illumi­nated)

Optical call alert – – red blue

Volume adjustment +/- key +/- key +/- key TouchSlider with

Navigation element 3 navigation keys 3-way navigator 5-way navigator TouchGuide

Interfaces

Bluetooth V2.0
(vCard support and headset profile)

Headset jack for corded/cordless
headsets

USB Master – – – Yes

OpenStage Key Modules Yes (max. 1) – Yes (max. 2) Yes (max. 2)

OpenStage Busy Lamp Field – – Yes (max. 1) –

Integrated Ethernet switch 10/100 Base-T or

Certifications

8 keys with red LEDs – 6 keys with red LEDs 8 keys with blue

Gigabit Ethernet

(optional variant)

3

3 red LEDs

– – – 6 with blue or blue/

–––Yes

––YesYes

2 lines,

205 x 41 pixels

7

5 red LEDs

10/100 Base-T 10/100 Base-T or

Safety EN60950-1

Safety US/CAN: UL60950-1;

6 lines,

240 x 128 pixels

8

6 red LEDs

Gigabit Ethernet

(optional variant)

320 x 240 pixels

(QVGA) color TFT

5.7”

6

5 blue LEDs

LEDs

white LEDs

blue/white LEDs

10/100 Base-T or
Gigabit Ethernet

(optional variant)

General CE Mark, UL Mark

Safety EN60950-1, UL60950-1

EMC EN55022 Class B, EN55024, EN61000-3-2, EN61000-4-11

FCC Part 15 (CFR 47) Class B

Environment German BLUE ANGEL label for the OpenStage SIP telephones

Audio

G.711 (64 kbit/s a/ law)
G.722 (64 kbit/s)
G.729AB (8 kbit/s)

Open listening Yes Yes Yes Yes

Full duplex hands-free Yes Yes Yes Yes

Echo canceling for local echo (AEC)
full duplex

Applications

See section "OpenStage Applications" – – – Yes

Ye s
Ye s
Ye s

YesYesYesYes

Ye s
Ye s
Ye s

Ye s
Ye s
Ye s

Ye s
Ye s
Ye s

OpenStage 15 OpenStage 20 OpenStage 40 OpenStage 60

Security features

Layer 2 authentication (802.1x) Yes Yes Yes Yes

Network

IEEE802.1Q Yes Yes Yes Yes

QoS

YesYesYesYes

(DIFFSERV and IEEE802.1p)

Power supply

External power supply unit

YesYesYesYes

(EU, US or UK)

Power over LAN: IEEE 802.3af Yes Yes Yes Yes

PoE class Class 1 Class 1 Class 2 Class 3

Consumption data after annual load

23.7 kWh 22.0 kWh 25.2 kWh

31.7 kWh

cycle according to RAL-UZ 150

Specifications

Dimensions

70 x 240 x 221 70 x 240 x 220 70 x 270 x 220 70 x 300 x 220

(height x width x depth [mm])

Weight (kg) 0.783 0.834 1.068 1.245

Colors ice blue or lava ice blue or lava ice blue or lava ice blue or lava

Storage conditions -40 °C to +70 °C (-40 °F to 158 °F)

Operating conditions +5 °C to +40 °C (41 °F to 104 °F)

1. hardware-dependent

1

Copyright © Unify GmbH & Co. KG 02/2014
Hofmannstr. 51, 81379 Munich/Germany

All rights reserved.

Reference No.: A31002-S2000-D101-17-7629

The information provided in this document contains merely general descriptions or
characteristics of performance which in case of actual use do not always apply as
described or which may change as a result of further development of the products. An
obligation to provide the respective characteristics shall only exist if expressly agreed
in the terms of contract.

Availability and technical specifications are subject to change without notice.

Unify, OpenScape, OpenStage and HiPath are registered trademarks of
Unify GmbH & Co. KG. All other company, brand, product and service names are
trademarks or registered trademarks of their respective holders.

unify.com
