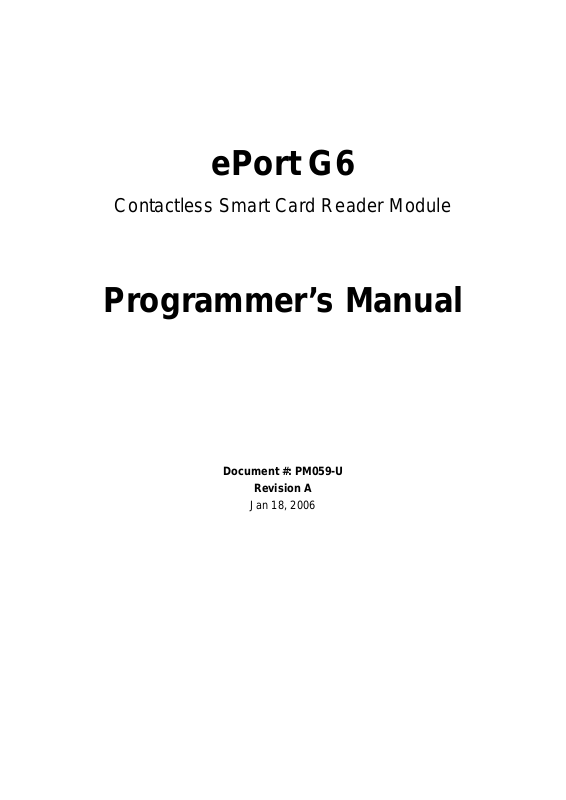

ePort G6
Contactless Smart Card Reader Module
Programmer’s Manual
Document #: PM059-U
Revision A
Jan 18, 2006
ePort Programmer’s Manual UDN PM059-U Rev. A
NOTICE
The issuer of this manual has made every effort to provide accurate information contained in this manual. The issuer shall not be held liable for any technical and editorial omissions or errors made herein; nor for incidental consequential damages resulting from the furnishing, performance or use of this material. This document contains proprietary information protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated without the prior written permission of the issuer. The information provided in this manual is subject to change without notice.
AGENCY APPROVED
- Specification for FCC Class B
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help.
You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment.
WARNING
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
ePort Programmer’s Manual UDN PM059-U Rev. A
WARRANTY
This product is served under one-year warranty of defects in material and functionality to the original purchasers. Within the warranty period, if the product found to be defective will be repaired or replaced. This warranty applies to the products only under the normal use of the original purchasers, and in no circumstances covers incidental or consequential damages through consumers’ misuse or modification of the product.
PREFACE
This manual provides detailed information relating to the overall operational, electrical, mechanical, environmental and functional aspects of the ePort G6. This document should be read and understood prior to initial operation of the product. For ease of installation and programming use, we have addressed everything from its attractive features to its various configurations. When designing the ePort G6, we selected what we feel are the most useful features and functions. If in some cases you find that your specific needs differ from our existing products, we welcome your comments and suggestions. Custom-designed models are also available. If further questions do arise, please call for technical support, our FAE will assist you in any way we can.
II
ePort Programmer’s Manual UDN PM059-U Rev. A
Table of Contents
Section1 : General Description.................................................................1-1
Features................................................................................................................... 1-1
Application.............................................................................................................. 1-1
Section2 : Configurations ......................................................................... 2-2
Dimensions of ePort G6 PCBA.............................................................................. 2-2
Dimensions of Antenna PCBA............................................................................... 2-2
Accessories of ePort G6........................................................................................ 2-3
Section3 : Technical Specifications ......................................................... 3-4
Functional Specifications...................................................................................... 3-4
Electrical Specifications ........................................................................................ 3-4
  Power Required........................................................................................................... 3-4
  Power Consumption.....................................................................................................3-4
  Communication............................................................................................................ 3-4
  Communication Signal (RS232) ..................................................................................3-4
Environmental Specifications................................................................................ 3-5
  Temperature.................................................................................................................3-5
  Humidity.......................................................................................................................3-5
Pin Assignment....................................................................................................... 3-6
Communication....................................................................................................... 3-7
  RS232 Interface Data Output ......................................................................................3-7
  RS232 Interface Pass Through ...................................................................................3-7
  F2F TTL Interface (Optional) .......................................................................................3-7
  Transmission Protocol (RS232)...................................................................................3-7
Section4 : Commands and Responses..................................................4-10
4.1 Reader default setting.....................................................................................4-10
4.2 Reader Command Description .......................................................................4-10
  % (25H) – Retransmit ................................................................................................4-10
  70 (3730H) or 90 (3930H) – Serial Number Report...................................................4-10
  71 (3731H) or 91 (3931H) – Copyright Report.......................................................... 4-10
  72 (3732H) or 92 (3932H) – Reader Model Number Report..................................... 4-11
  73 (3733H) or 93 (3933H) – Reader PCB Number Report........................................ 4-11
  74 (3734H) or 94 (3934H) – Contactless Smart Card Library Version Report .......... 4-11
  75 (3735H) or 95 (3935H) – F/D Parameters List Report.......................................... 4-1 1
  76 (3736H) or 96 (3936H) – Boot loader Version Number Report............................ 4-11
III
ePort Programmer’s Manual UDN PM059-U Rev. A
77 (3737H) or 97 (3937H) – Reader Configuration Data Report............................... 4-11
  78 (3738H) or 98 (3938H) – Reader Customer Configuration Data Report..............4-12
  79 (3739H) or 99 (3939H) – Reader Manufacturing Configuration Data Report....... 4-12
  9 (39H) – Version Report...........................................................................................4-13
  ? (3FH) – Select Verbose Responses Command......................................................4-13
  $ (24H) – Reader Status Request..............................................................................4-13
  L (4CH) – LED ON.....................................................................................................4-14
  l (6CH) – LED OFF ....................................................................................................4-14
  ( (28H) – LED flash.................................................................................................... 4-14
  # (23H) – Configuration Request...............................................................................4-14
  <CAN> (18H) – Pass through toggle.........................................................................4-15
  <7FH> – Warm Reset................................................................................................4-15
  <09H> – Configuration Setting ..................................................................................4-15
4.3 Contactless Mag Stripe Command Description............................................4-17
  P (50H) – Arm to Read...............................................................................................4-17
  p (70H) – Arm to Read (Used for M anufacturi ng Test Only ).....................................4-17
  <ESC> (1BH) – Abort Arm to Read ...........................................................................4-17
  Q (51H) – Transmit Track 1 data ...............................................................................4-17
  R (52H) – Transmit Track 2 data................................................................................ 4-17
4.4 Contactless Smart Card Command Descriptions.........................................4-18
  G (47H) – ISO14443 type protocol select.................................................................. 4-18
  H(48H) – PayPass/Express card auto read function disable/enable......................... 4-18
  O (4FH) – Antenna power on..................................................................................... 4-18
  o (6FH) – Ant enna power OF F..................................................................................4-19
  b (62H) – Request......................................................................................................4-19
  c (63H) – Anticollision(type A)/Slot-Marker................................................................4-19
  f (65H) – Select(type A)/Attrib(type B)....................................................................... 4-20
  g (66H) – Mifare classical card authentication........................................................... 4-21
  h (67H) – Mifare classical card read block.................................................................4-21
  i (68H) – Mifare classical card write block .................................................................4-22
  t (74H) – Mifare Value Operation ...............................................................................4-22
  X (58H) – Mifare classical card activation.................................................................. 4-23
  x (78H) – Card halt.....................................................................................................4-23
  J (6BH) – Activate PICC cpu card..............................................................................4-23
  j (6BH) – Load Mifare key (Mifare classical card only)..............................................4-23
  k(6CH) – Mifare Reader Chip Direct Control............................................................. 4-24
  y (79H) – Send DESELECT command...................................................................... 4-24
  Z (41H) – I/O to contactless CPU card with APDU format.........................................4-24
  z (7AH) – I/O to contactless card for block data exchange .......................................4-25
3.6 Responses to the Host....................................................................................4-26
IV
ePort Programmer’s Manual UDN PM059-U Rev. A
Section1: General Description
This section presents general information about the basic characters of the ePort G6.
Features
The ePort G6 provides the following features:
1 Small footprint PCB size: 1.4L*1.7W (inch) without antenna board 2 Support ISO 14443 type A & B standard 3 Support Amex ExpressPay, MasterCard PayPass, Visa MSD applications. 4 Read/write Philips Mifare classical contactless smart card 5 Provide the options for the direct coupling antenna and the remote antenna 6 RS232, and serial TTL (optional) Interface 7 RS232 data pass through function 8 TTL F2F magnetic stripe decode data pass through (optional) 9 F2F decoder data emulation (optional)
10 Firmware upgradeable
Application
The contactless smart card reader module ePort G6 is mainly to support the contactless payment systems. The small footprint size of the module makes it easily to integrate to the current transaction system such as Point-of-Sale terminal, kiosk, and vending machine station as the part of the system. The module communicates with a host computer or terminal using a standard RS-232 or TTL interface.
At the meantime, ePort G6 offers both RS232 and TTL magnetic stripe decoder pass-thru function to allow the terminal to share the same input port with other peripheral devices. The TTL interface output is in the F2F decoder data emulation. This benefits the existing system without change its hardware configuration to catch up the future payment trend.
1-1
ePort Programmer’s Manual UDN PM059-U Rev. A
Section2: Configurations
This section shows the dimensions, accessories and setup for the ePort G6.
Dimensions of ePort G6 PCBA
Figure 2-1 Dimensions of ePort G6 PCBA
Dimensions of Antenna PCBA
Figure 2-2 Dimensions of Antenna PCBA
2-2
ePort Programmer’s Manual UDN PM059-U Rev. A
Accessories of ePort G6
The following accessories should be supplied along with ePort G6. Make sure all the following accessories are contained in your package.
1. Interface cable - DB9 male connector 1.5M
2. Programmer’s manual or Simple manual
3. Power adapter 12Vdc 500mA (RS232 interface only)
2-3
ePort Programmer’s Manual UDN PM059-U Rev. A
Section3: Technical Specifications
Functional Specifications
Contactless communication at 13.56MHz
Proximity operation distance of up to 100mm
4 output lines for external LED indication (support Paypass application)
Audio buzzer
Support RS232 data output baud rate up to 115.2K BPS
Support RS232 pass through baud rate up to 38400 BPS
Support TTL level for serial data output (optional)
Support TTL level for F2F decoder data output emulation (optional)
Support direct matching antenna
Support Remote 50 ohm matching antenna (optional)
Support all layers of 14443 including the type A and B communication scheme
Support contactless communication using MIFARE higher baud rate up to 424KHz
Support the fast MIFARE Classic security algorithm to authenticate MIFARE classic
products
Support American Express ExpressPay transaction application
Support MasterCard PayPass transaction application
Support Visa MSD transaction application
Electrical Specifications
Power Required 12VDC
Power Consumption 100mA in idle mode; 200mA in operating mode
Communication Standard RS232 signal level TTL 5V signal level (optional)
Communication Signal (RS232) Logic 1 = -3 volts to –15 volts or TTL level 5 volts
3-4
ePort Programmer’s Manual UDN PM059-U Rev. A
Logic 0 = +3 volts to +15 volts or TTL level 0 volt
Environmental Specifications
Temperature Operating: -10-50
Storage: -30-70
Humidity Operating: 10-85% (non condensing) Storage: 10-90% (non condensing)
3-5
