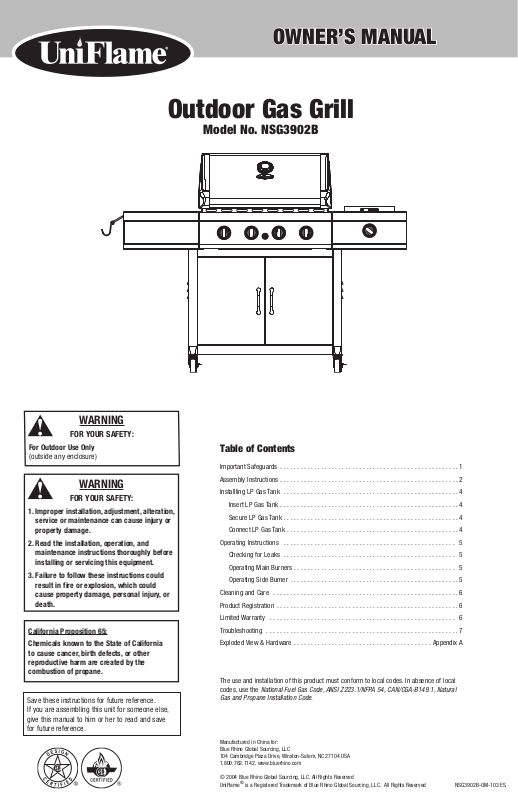

OWNER’S MANUAL

Outdoor Gas Grill

Model No. NSG3902B

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1.Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2.Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3.Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

California Proposition 65:

Chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm are created by the combustion of propane.

Save these instructions for future reference.

If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installling LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Insert LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Secure LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Connect LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Checking for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating Main Burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating Side Burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix A

The use and installation of this product must conform to local codes. In absence of local codes, use the National Fuel Gas Code,ANSI Z223.1/NFPA 54, CAN/CGA-B149.1, Natural Gas and Propane Installation Code.

Manufactured in China for: Blue Rhino Global Sourcing, LLC

104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA 1.800.762.1142, www.bluerhino.com

© 2004 Blue Rhino Global Sourcing, LLC. All Rights Reserved



UniFlame® is a Registered Trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved

NSG3902B-OM-103 ES

Outdoor Gas Grill Model No. NSG3902B

WARNING

FOR YOUR SAFETY

If you smell gas -

1.Shut off gas to appliance.

2.Extinguish any open flame.

3.Open lid.

4.If odor continues, immediately call your gas supplier or your fire department.

1.Do not store spare LP cylinder within 10 feet (3.05 m) of this appliance.

2.Do not store or use gasoline or other liquids with flammable vapors within 25 feet (7.62 m) of this or any other appliance.

3.An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Safety First

DANGERS and Cautions

1.This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.

2.This grill is NOT for commercial use.

3.This grill is for use with liquid propane (LP) gas only. The conversion to or attempted use of natural gas in this LP gas grill is dangerous and will void your warranty.

4.LP gas Characteristics:

a.LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.

b.LP gas is explosive under pressure, heavier than air, and settles and pools in low areas.

c.LP gas in its natural state has no odor. For your safety, an odorant is added that smells like rotten cabbage.

d.Contact with LP gas can cause freeze burns to skin.

5.LP gas tank needed to operate. Only tanks marked “propane” may be used.

6.The LP gas supply tank must be constructed and marked in accordance with the Specifications for LP gas Cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSAB339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods; and Commission.

7.LP gas tank must be arranged for vapor withdrawal.

8.The LP gas tank must have a listed overfilling prevention device (OPD).

9.Only use 20-pound cylinders equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances.

10.The LP gas tank must have a tank collar to protect the tank valve.

11.Never use an LP gas tank with a damaged body, valve, collar, or footing.

12.Dented or rusted LP gas tanks may be hazardous and should be checked by your LP gas supplier prior to use.

13.The LP gas tank should not be dropped or handled roughly.

14.Tanks must be stored outdoors out of the reach of children and must not be stored in a building, garage, or any other enclosed area. Your tank must never be stored where temperatures can reach over 125°F.

15.Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.

16.Never attempt to attach this grill to the self-contained LP gas system of a camper trailer, motor home, or house.

17.The use of alcohol, or prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance.

18.Never use charcoal, lighter fluid, lava rocks, gasoline, kerosene, or alcohol with this product.

19.Your grill has been checked at all factory connections for leaks. Recheck all connections, as movement in shipping can loosen connections.

20.Check for leaks even if your unit was assembled for you by someone else.

21.Do not operate if gas leak is present. Gas leaks may cause a fire or explosion.

22.You must follow all leak-checking procedures before operating. To prevent fire or explosion hazard when testing for a leak:

a.Always perform leak test before lighting the grill and each time the tank is connected for use.

b.No smoking. Do not use or permit sources of ignition in the area while conducting a leak test.

c.Conduct the leak test outdoors in a well-ventilated area.

d.Do not use matches, lighters, or a flame to check for leaks.

e.Do not use grill until any and all leaks are corrected.

If you are unable to stop a leak, disconnect the LP gas supply. Call a gas appliance serviceman or your local LP gas supplier.

23.Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

24.Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

25.Keep all combustible items and surfaces at least 21 inches (53 cm) away from the grill at all times. DO NOT use this grill or any gas product under any overhead or near any unprotected combustible constructions.

26.It is essential to keep the grill’s valve compartment, burners, and circulating air passages clean. Inspect grill before each use.

27.Do not alter grill in any manner.

28.Do not use the grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened.

29.This grill should be thoroughly cleaned and inspected on a regular basis. Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to the appliance being put into operation.

30.Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified by the manufacturer.

31.Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.

32.Do not use this appliance without reading “Operating Instructions” in this manual.

33.Do not touch metal parts of grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

34.When cooking, fire extinguishing materials shall be readily accessible. In the event of an oil grease fire, do not attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.

35.Do not install or use in or on boats or recreational vehicles.

36.Do not use grill in high winds.

37.Never lean over the grill when lighting.

38.Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.

39.Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.

40.Storage of grill indoors is permissible only if the tank is disconnected, removed from the grill and properly stored outdoors.

41.Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.

42.Do not attempt to disconnect the gas regulator from the tank or any gas fitting while the grill is in use.

43.Always place your grill on a hard, level surface. An asphalt or blacktop surface may not be acceptable for this purpose.

44.Use extreme caution on wooden decks.

45.Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

46.Keep all electrical cords away from a hot grill.

47.Do not use grill for indoor cooking or heating. TOXIC fumes can accumulate and cause asphyxiation.

48.After a period of storage and/or nonuse, check for leaks, burner obstructions and inspect for any abrasion, wear, cuts to the hose.

49.Failure to open lid while igniting the grill’s burners, or not waiting 5 minutes to allow the gas to clear if the grill does not light, may result in an explosive flame-up.

50.If grill is not in use, the gas must be turned off at the supply tank.

51.Never operate grill without heat plates installed.

52.Always use a meat thermometer to ensure food is cooked to a safe temperature.

53.Do not store a spare LP gas tank under or near this appliance.

54.Never fill the tank beyond 80 percent full.

55.Deaths, serious injury or damage to property may occur if the above is not followed exactly.

Uniflame Nsg3902b Owner's Manual

Contact 1-800-762-1142 for assistance. Do not return to place of purchase.

page no.

2



Assembly Instructions







Step



4

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1-800-762-1142 toll free. Please have your owner’s manual and serial

number available for reference.



For Easiest Assembly:

To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

Clear an area large enough to layout all components and hardware.

When applicable, tighten all hardware connections by hand first. Once the step is completed go back fully tighten all hardware.

Follow all steps in order to properly assemble your product.

Step Remove grill body from cart

1A. Unscrew 6 screws from cart. B. Lift cart off grill body.

Step

5

Step Attach wheels to cart

2A. Insert 2 rear wheels into cart legs.

B. Attach 2 front wheels into cart legs using 2 wheel screws (C).

C



Note: cart is shown





upside down.

Step





Step Attach cross bar

6

3

A. Insert tabs on cross bar into slots on inside of cart frame.





B. Attach cross bar to cart by using 2 sets of large screws (F), lock washer (K), and



large washer (J).





F





K





J



Attach doors and basket

A.Install right and left door by placing bottom pin into hole in cart and snapping top pin into place.

Note: Spring pins is located on top of door.

B. Hang basket on left door.

Insert grill body and unscrew hardware

Note: 2 people required to put grill body onto cart.

A.Remove 2 sets of small screws (D), lock washers (K) and large washers (J) from control panel. Save for use in step 8.

B.Place grill body onto cart.

C.Feed hose line through right side of cart.

Note: There is a 3/16” gap between the grill body and the cart frame.

J

K

D

Assemble left side shelf

A.Insert tabs on condiment basket into slots on left side shelf and slide right.

B.Attach left condiment baskets to left side shelf using small screw (D), lock washer (K) and medium washer (I).

I

K

D

KI

D

A B C

Step Assemble right side shelf

7A. Attach Side burner knob assembly to right side shelf using smallest screw (A), small screw (B), smallest washer (G) and small washer (H).

B.Insert tabs on right condiment basket into slots on right side shelf and slide left

C.Attach right condiment baskets to right side shelf using small screw (D), lock washer (K) and medium washer (I).

D.Attach gas line to side burner valve.

G B

A IK H

D

G

A D

B K H I

A B C

Outdoor Gas Grill Model No. NSG3902B

Step

Attach side burner ignitor wire

10

Insert side burner wire from control panel to ignitor on side burner.

Note: view is from under right side shelf.

Step

Insert heat plates

11

Place 4 heat plates on tabs above burners.

DD1

Step Attach side shelves

8Attach right and left side shelves to cart frame using 6 sets of small screws (D), lock washers (K), large washers (J), and 4 sets of large screws (F), large lock washers (K), and medium washers (I).

F K J I K D

Step

12

Insert cooking grid and warming rack

A.Place cooking grids.

B.Place warming rack with legs down onto sides of grill body.

J

K

D

Step Secure grill body to cart frame

9Secure grill body to cart frame using 4 sets of medium screws (E), lock washers (K), large washers (J).

E

K



J

Step

13

Attach tool hanger

Insert tool hanger into holes in left side shelf.

Contact 1-800-762-1142 for assistance. Do not return to place of purchase.

page no.

4



Step

Attach tank retainer wire

14

Insert legs of tank retention wire into cart base.

Step

Attach grease cup

15

Hang grease cup to bottom of grill body.





Step

Insert battery

16

A. Unscrew ignition button on control panel.

B. Remove protective cover from AA Battery.

C. Insert battery wuth positive ( + ) end facing out.



D. Replace ignition button turning clockwise.



+-

Installing LP Gas Tank

To operate you will need (1) precision-filled standard grill LP gas tank (20#) with external valve threads.

Insert LP Gas Tank

Place precision filled LP gas tank into hole in grill body upright so it is arranged for vapor withdrawal.

Secure LP Gas Tank

Secure tank by sliding tank retainer wire over shoulder of LP gas tank.

Connect LP Gas Tank

Before connecting, be sure that there is no debris caught in the head of the gas tank, head of the regulator valve or in the head of the burner and burner ports.

Connect gas line to tank by turning knob clockwise until it stops.

Step

17

Completed

Congratulations your assembly is now complete. Read Operating Instructions before proceeding.

Outdoor Gas Grill Model No. NSG3902B

Operating Instructions

Checking for Leaks

Burner Connections

Make sure the regulator valve and hose connections are securely fastened to the burner and the tank.

If your unit was assembled for you, visually check the connection between the burner pipe and orifice. Make sure the burner pipe fits over the orifice.

WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury, or damage to property.

Please refer to diagram for proper installation.

If the burner pipe does not rest flush to the orifice, please contact 1.800.762.1142 for assistance.

Tank/Gas Line Connection

Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.

Make sure control knobs are off. Turn LP gas tank ON at valve.

Spoon leak check solution at all “x” locations

Gas Valve with orifice

Burner

Venturi

Gas

Connections

Main Burners

Gas

Connections

Burner

Venturi

Gas Valve with orifice

Side Burner

X

X

X

X

X

If any bubbles appear turn LP gas tank OFF, reconnect and re-test. If you continue to see bubbles after several attempts, disconnect LP gas source and contact 1.800.762.1142 for assistance.

If no bubbles appear after one minute turn tank OFF, wipe away solution and proceed.

Operating Main Burners

Lighting











1. Open lid. Attempting to light the





















burner with the lid closed may











cause an explosion!











2. Make sure there are no







1/2"

obstructions of airflow to the gas

Flame

12.7 mm









unit. Spiders and insects can nest













1/4"

within and clog the burner / venturi

Burner











6.4mm

tube at the orifice. A clogged















burner tube can lead to a fire









0"

beneath the appliance.













0mm

3. All control knobs must be in the











Main burner proper flame height.









OFF position.



















4.Turn on gas at LP gas tank.

5.Push and turn control knob counterclockwise to HIGH.

6.Press the electronic igniter button and hold for 5 seconds to light burner.

7.If ignition does not occur in 5 seconds, turn burner control knob OFF, wait 5 minutes, and repeat lighting procedure.

8.If igniter does not light burner, use a lit match secured with the lighting rod provided to light burners manually. Access the burners through the cooking grid and heat plates. Position the lit match near side of the burner.

Important: Always use the lighting rod provided when lighting burners with a match.

9.After lighting, observe the burner flame, make sure all burner ports are lit and flame height matches illustration.

CAUTION: If burner flame goes out during operation, immediately turn the gas “OFF” and open lid to let the gas clear for about 5 minutes before re-lighting.

Turning Off

1.Turn all control knobs clockwise to the OFF position one at a time.

2.Turn gas off at LP tank.

Initial Use

Before cooking on this grill for the first time, operate the grill for about 15 minutes with the lid closed and the gas turned on “HIGH.” This will “heat clean” the internal parts and dissipate odor from the manufacturing processes.

Direct Cooking

1.Light burners per lighting instructions.

2.Set burners to desired level and allow temperature to be reached.

3.Place food directly over burners.

4.With lid open or closed, cook untill desired internal temperatures are acheived.

Indirect Cooking

Ideal for roasts and larger cuts of meat.

1.Remove cooking grid.

2.Place metal tray in center, on heat plates.

3.Replace cooking grid.

4.Light burners.

5.Turn center burner off. Set ouside burners to desired level and allow temperature to be reached.

6.Place food on cooking grid, directly over metal tray.

7.With lid closed, cook until desired internal temperatures are achieved.

Tips For Better Cook Outs and Longer Product Life

1.Spray or coat cooking surfaces with vegetable oil before cooking to avoid sticking.

2.Place vegetables or delicate foods into aluminum foil pouches.

3.Use a quality grill brush after each event to keep cooking surfaces clean and rust free.

4.Empty grease pan after every use.

CAUTION: Do not cover grill until it is completely cool to the touch.

Operating Side Burner

NOTE: Side burner can be used while main burners are operating. Never use side burner as a grill.

Lighting







1. Open lid. Attempting to light the









Flame



burner with the lid closed may





cause an explosion!

Burner





2. Make sure there are no











obstructions of airflow to the gas







unit. Spiders and insects can nest







within and clog the burner / venturi

0"

3/8"

3/4"

tube at the orifice. A clogged

burner tube can lead to a fire

0 mm

9.5 mm

19 mm







beneath the appliance.

Side burner proper flame height.



3.Control knob must be in the OFF position.

4.Turn on gas at LP gas tank.

5.Push and turn control knob counterclockwise to HIGH.

6.Press the electronic igniter button and hold for 5 seconds to light burner.

7.If ignition does not occur in 5 seconds, turn burner control knob OFF, wait 5 minutes, and repeat lighting procedure.

8.If igniter does not light burner, use a lit match secured with the lighting rod provided to light burners manually. Position the lit match near side of the burner.

Important: Always use the lighting rod provided when lighting burners with a match.

9.After lighting, please observe the burner flame, make sure all burner ports are lit and flame height matches illustration.

CAUTION: If burner flame goes out during operation, immediately turn the gas “OFF” and open lid to let the gas clear for about 5 minutes before re-lighting.

Turning Off

1.Turn control knob clockwise to the OFF position.

2.Turn gas off at LP gas tank.

Cooking

1.Light burner.

2.Set burner to desired temperature

3.Place pan on center of grid.

4.Cook and adjust temperature as needed.

+ 12 hidden pages
