Uniden XC 320 User Manual

uni ~n@

XC 320

Cordless Telephone

Operating Guide

For Australia and New Zealand

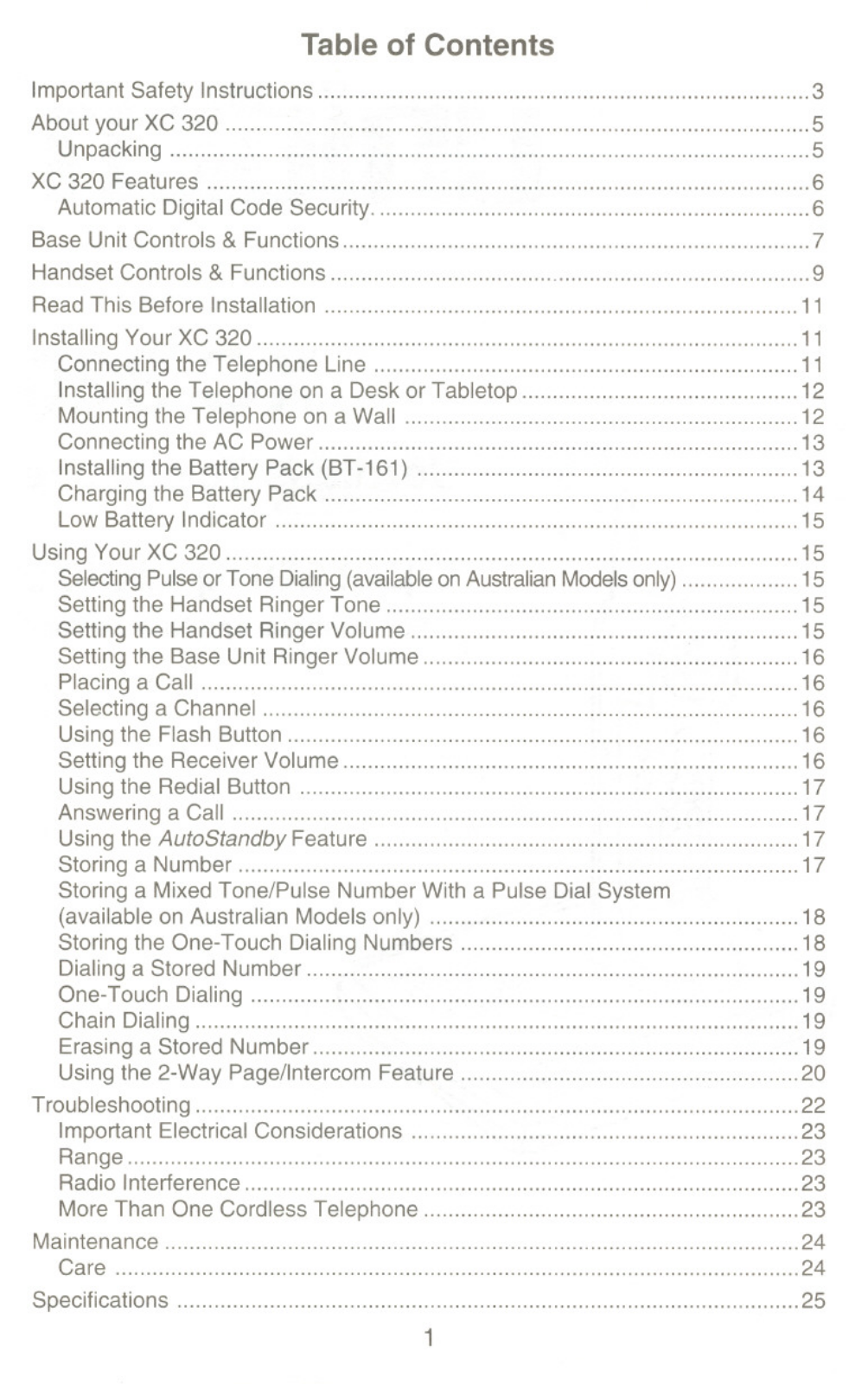

Table of Contents

ImportantSafetyInstructions 3
AboutyourXC320 5

Unpacking 5

XC 320 Features """"""""""""""""""""""""""" 6

Automatic Digital Code Security. 6

Base Unit Controls & Functions 7

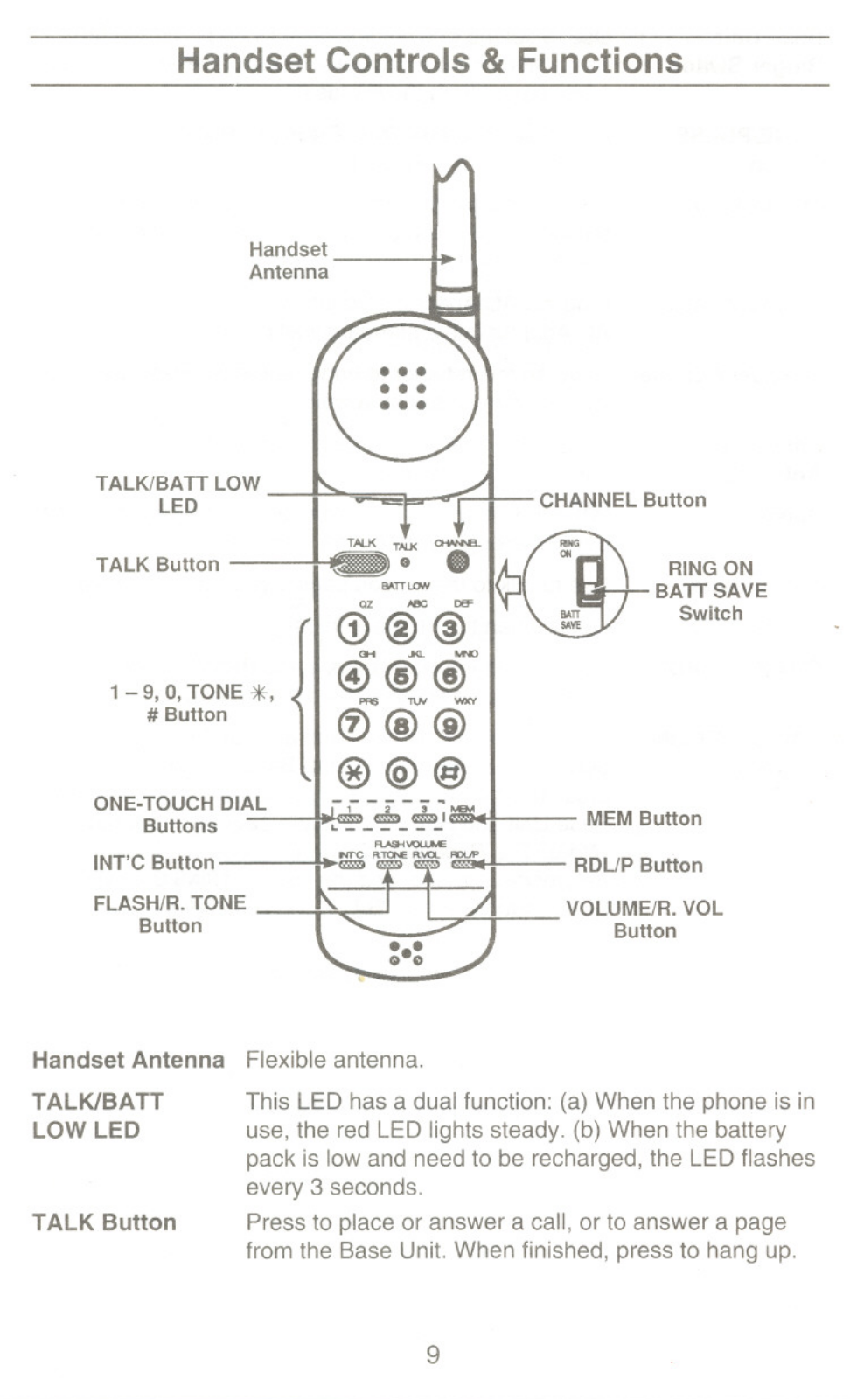

Handset Controls & Functions 9

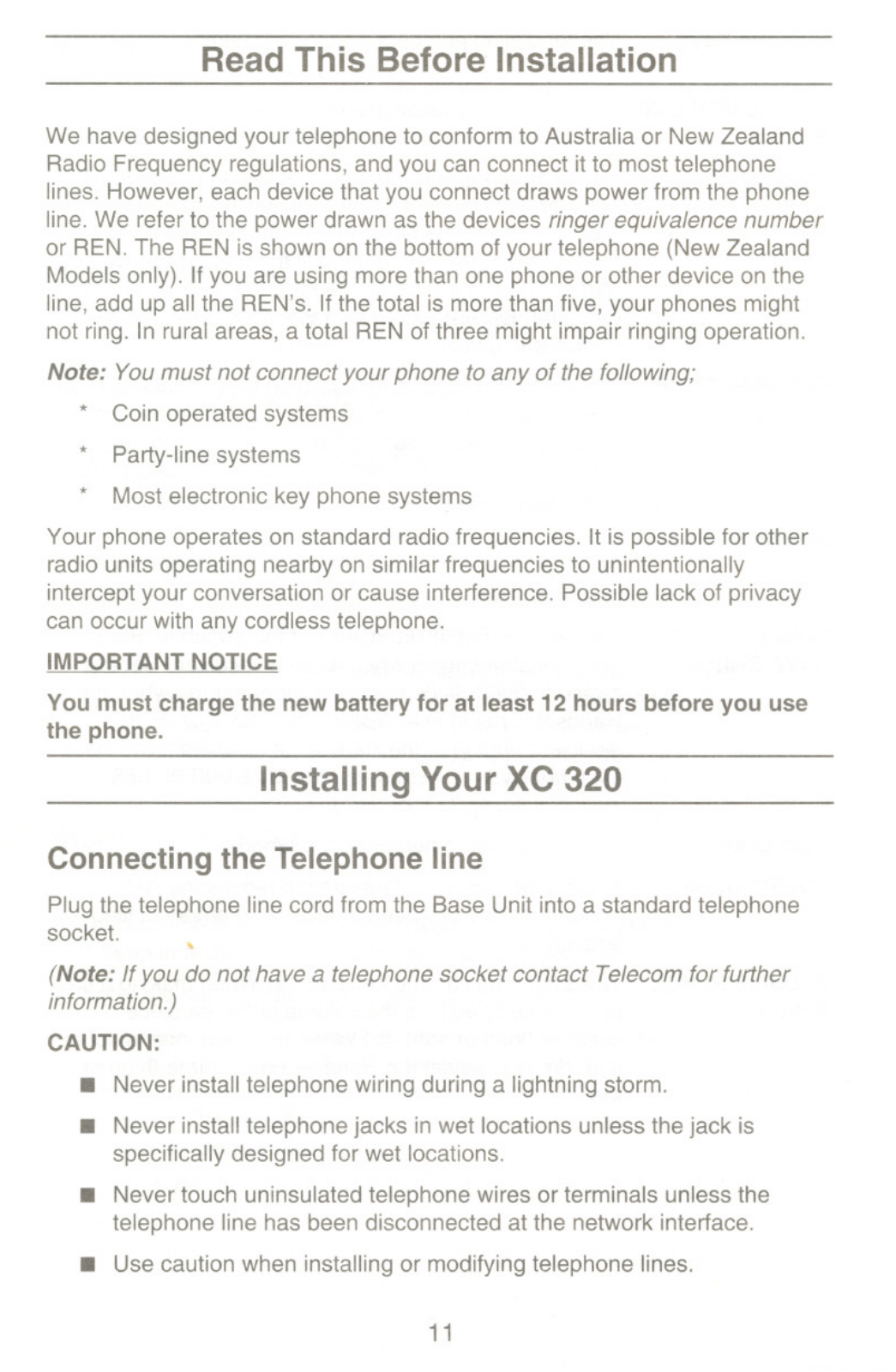

Read This Before Installation 11

Installing Your XC 320 11

Connecting the Telephone Line 11

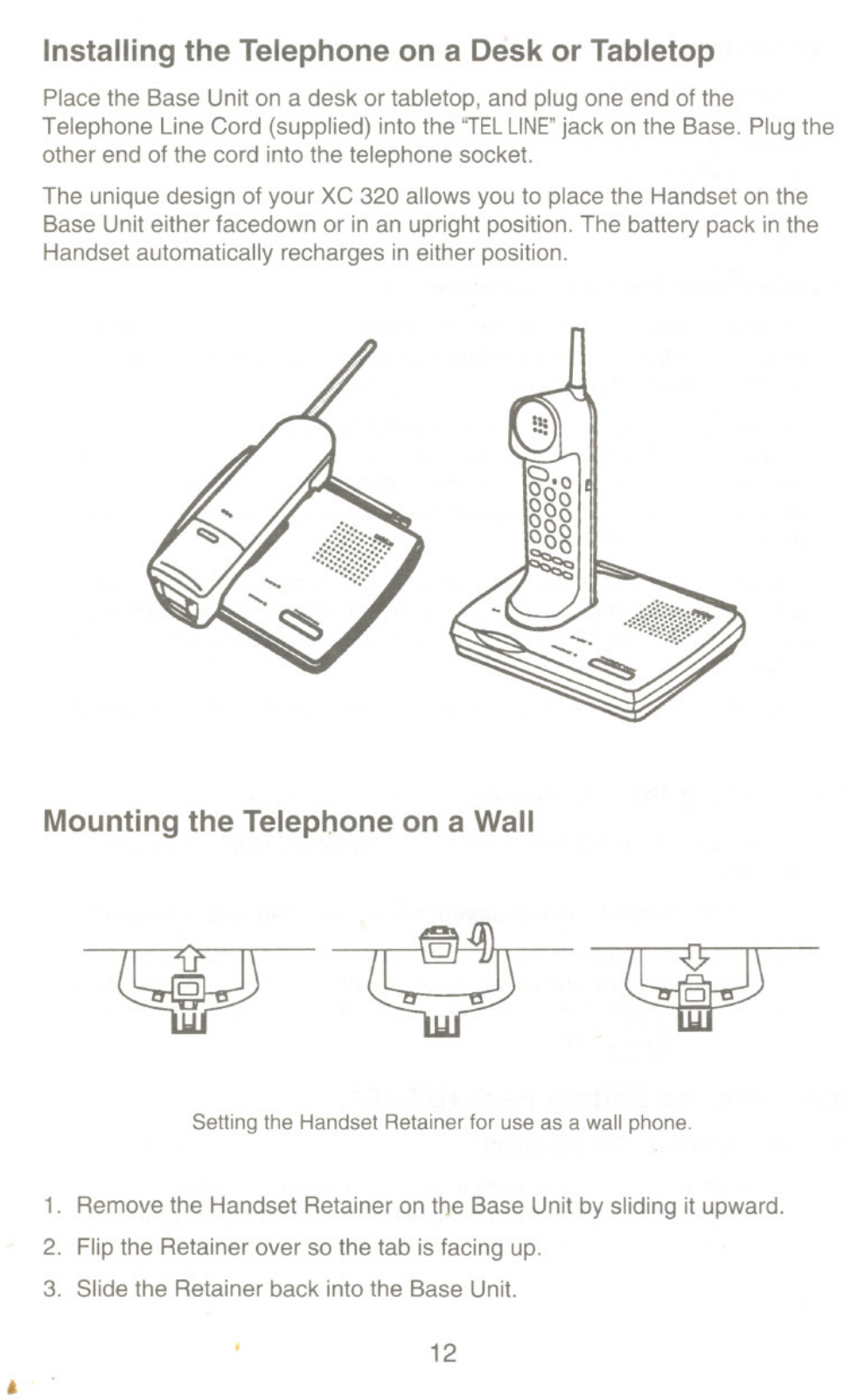

Installing the Telephone on a Desk or Tabletop 12
Mounting the Telephone on a Wall 12
Connecting the AC Power 13

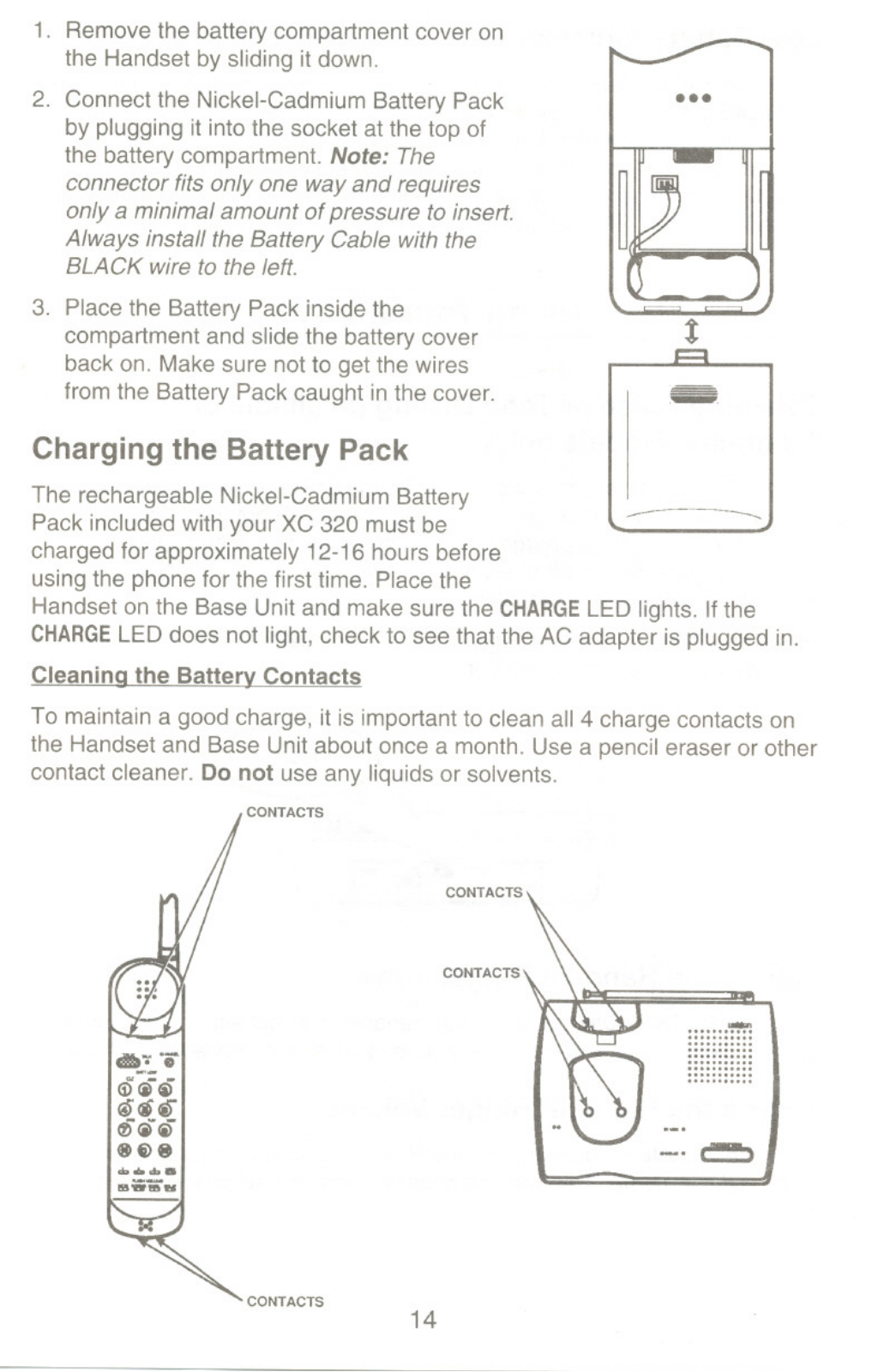

Installing the Battery Pack (BT-161) 13

Charging the Battery Pack 14

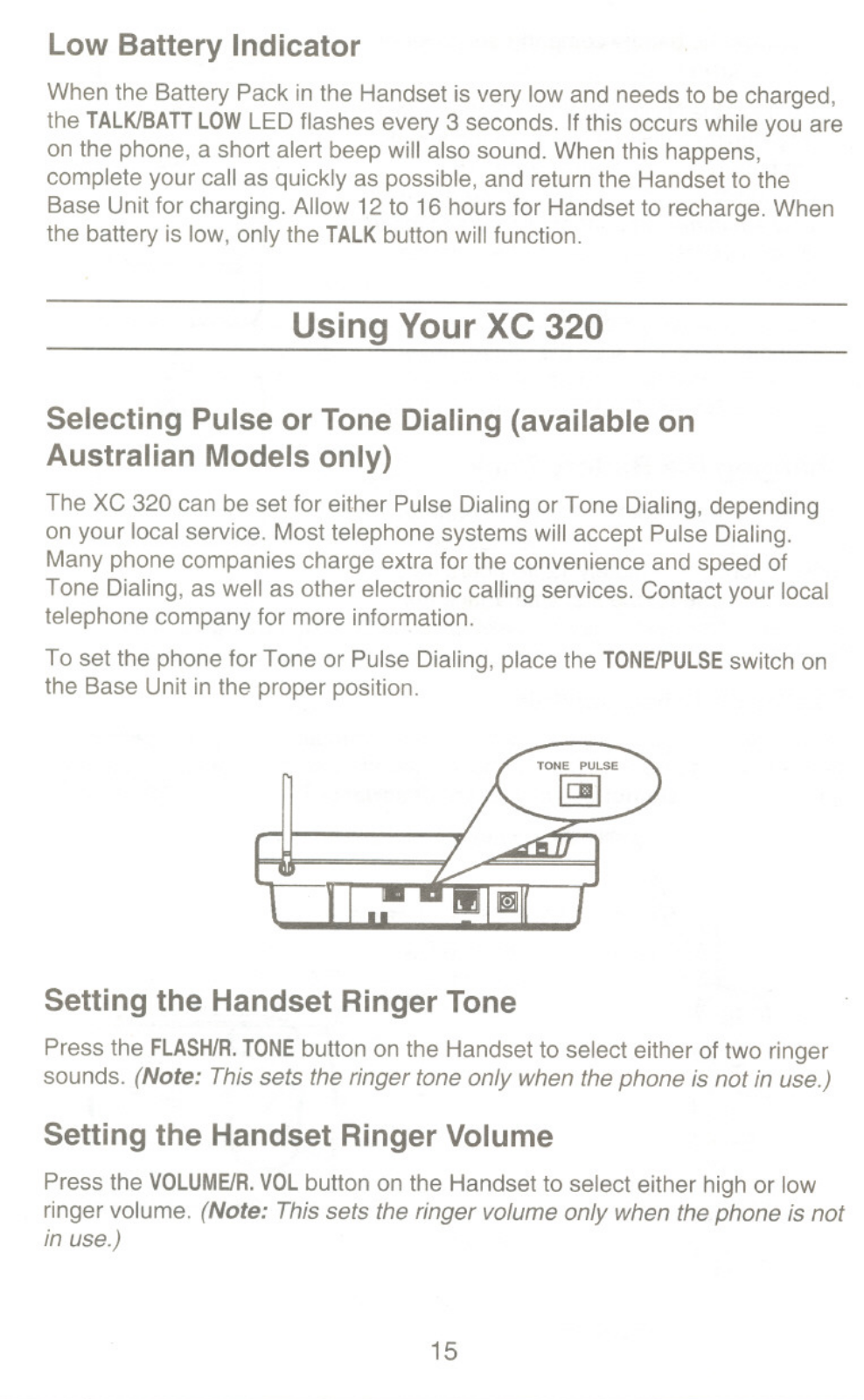

Low Battery Indicator 15

Using Your XC 320 15

SelectingPulseor Tone Dialing(availableonAustralianModelsonly) 15
Setting the Handset Ringer Tone 15
Setting the Handset Ringer Volume 15

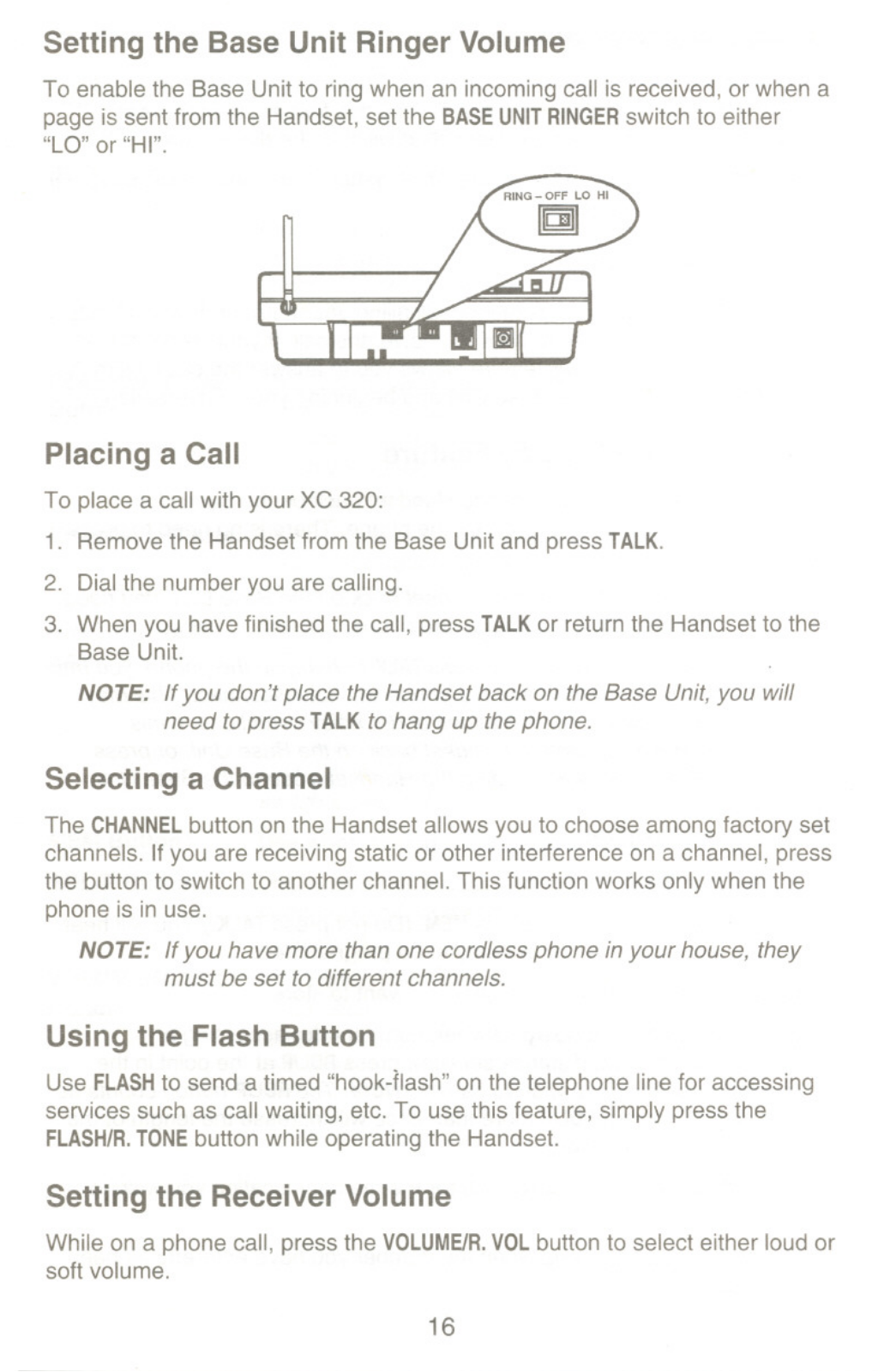

Setting the Base Unit Ringer Volume 16
Placing a Call 16
Selecting a Channel 16
Using the Flash Button

Setting the Receiver Volume 16

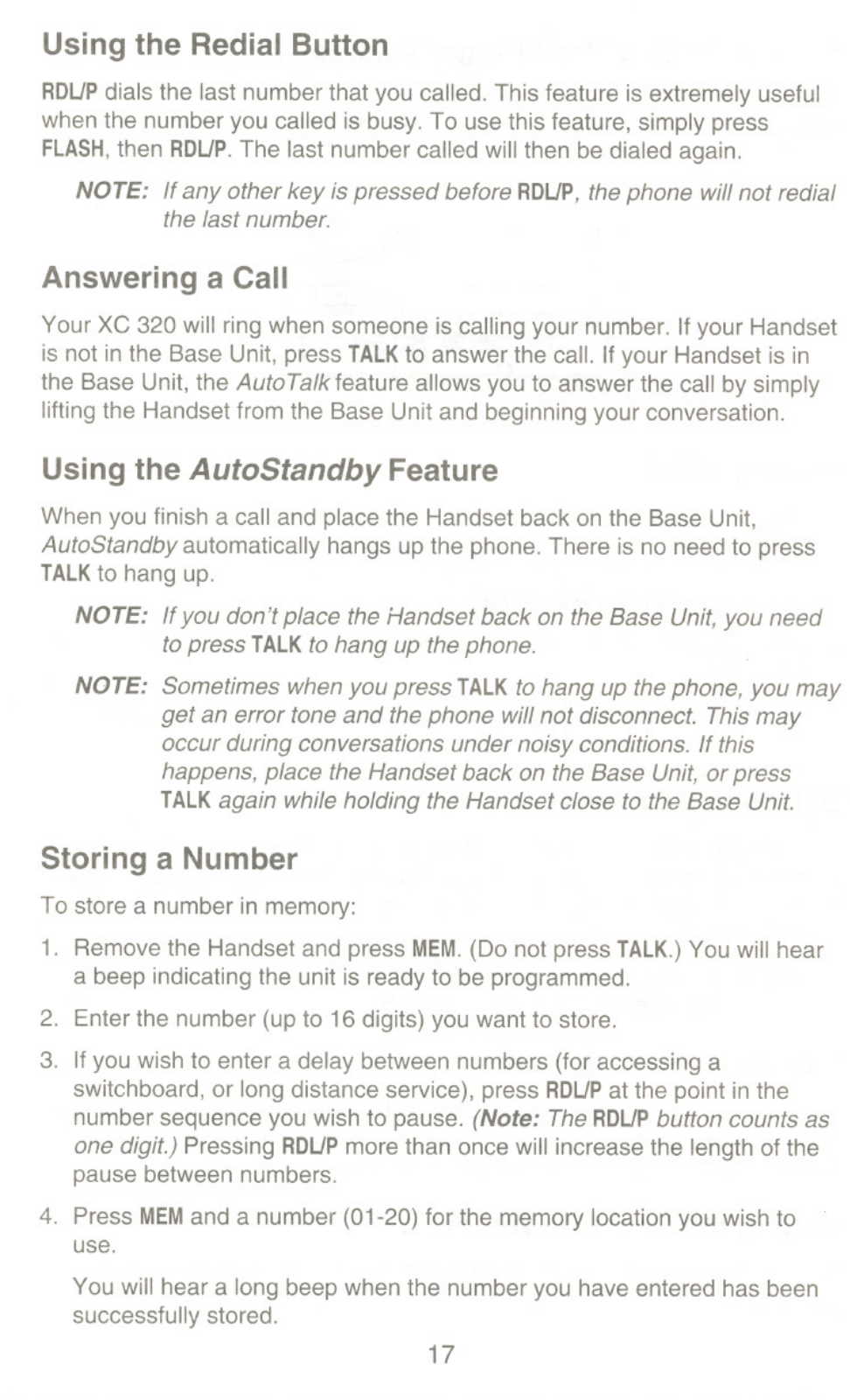

Using the Redial Button 17
Answering a Call 17
Using the
Storing a Number 17

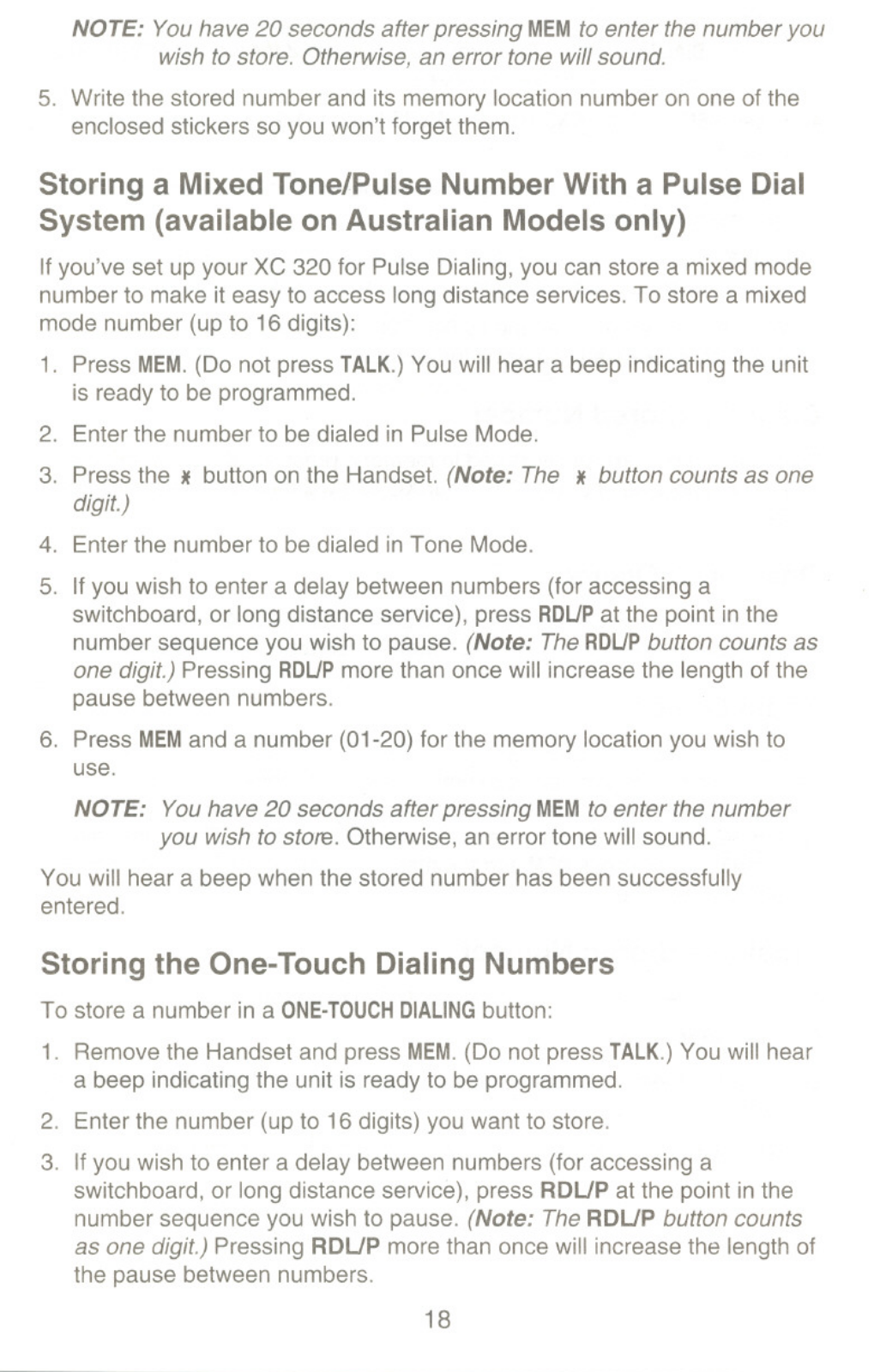

Storing a Mixed Tone/Pulse Number With a Pulse Dial System
(available on Australian Models only) 18

Storing the One-Touch Dialing Numbers 18

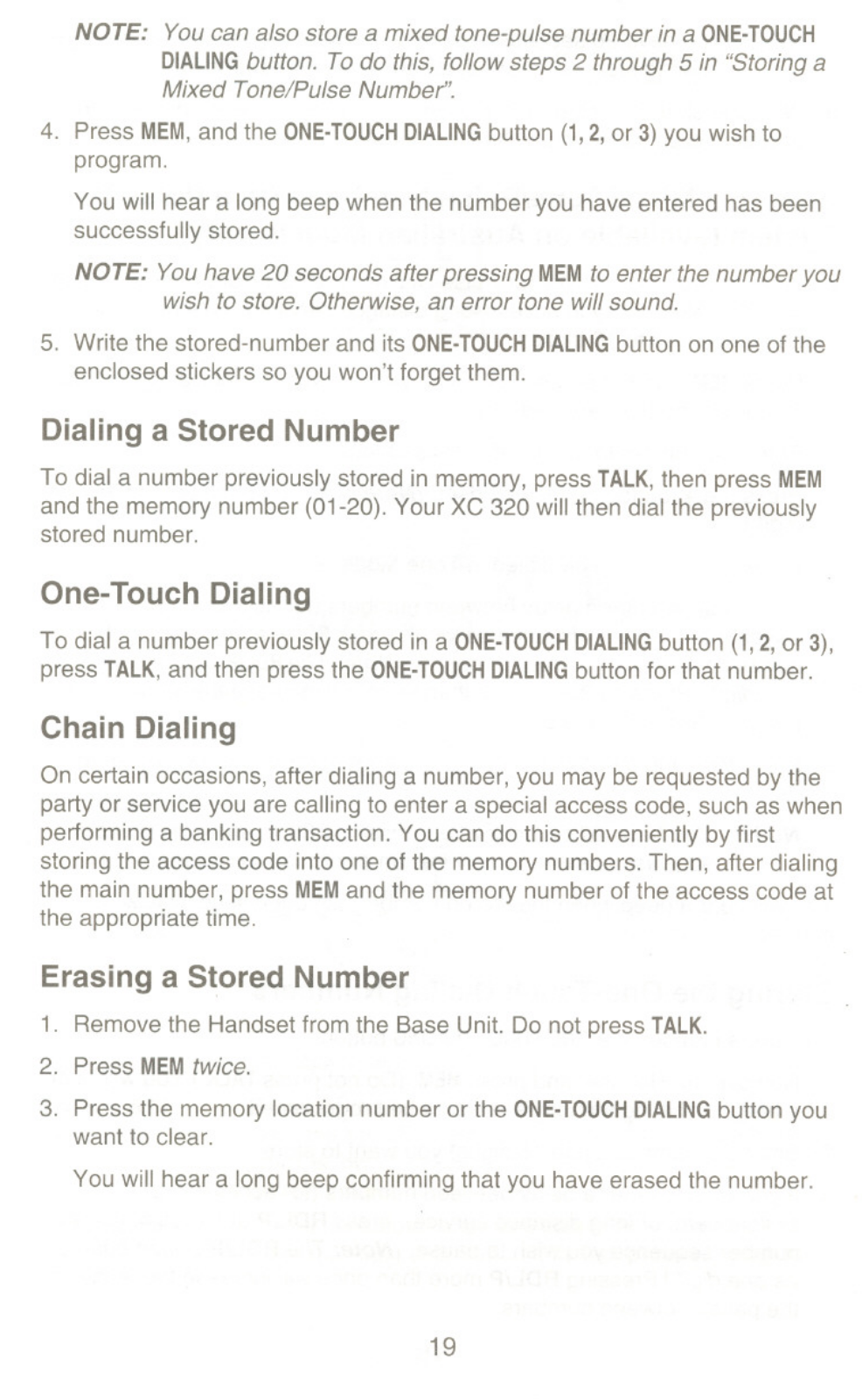

Dialing a Stored Number 19

One-Touch Dialing """"""""""""""""""""""""""'" 19
Chain Dialing """"""""""""""""""""""""""'" 19
Erasing a Stored Number 19

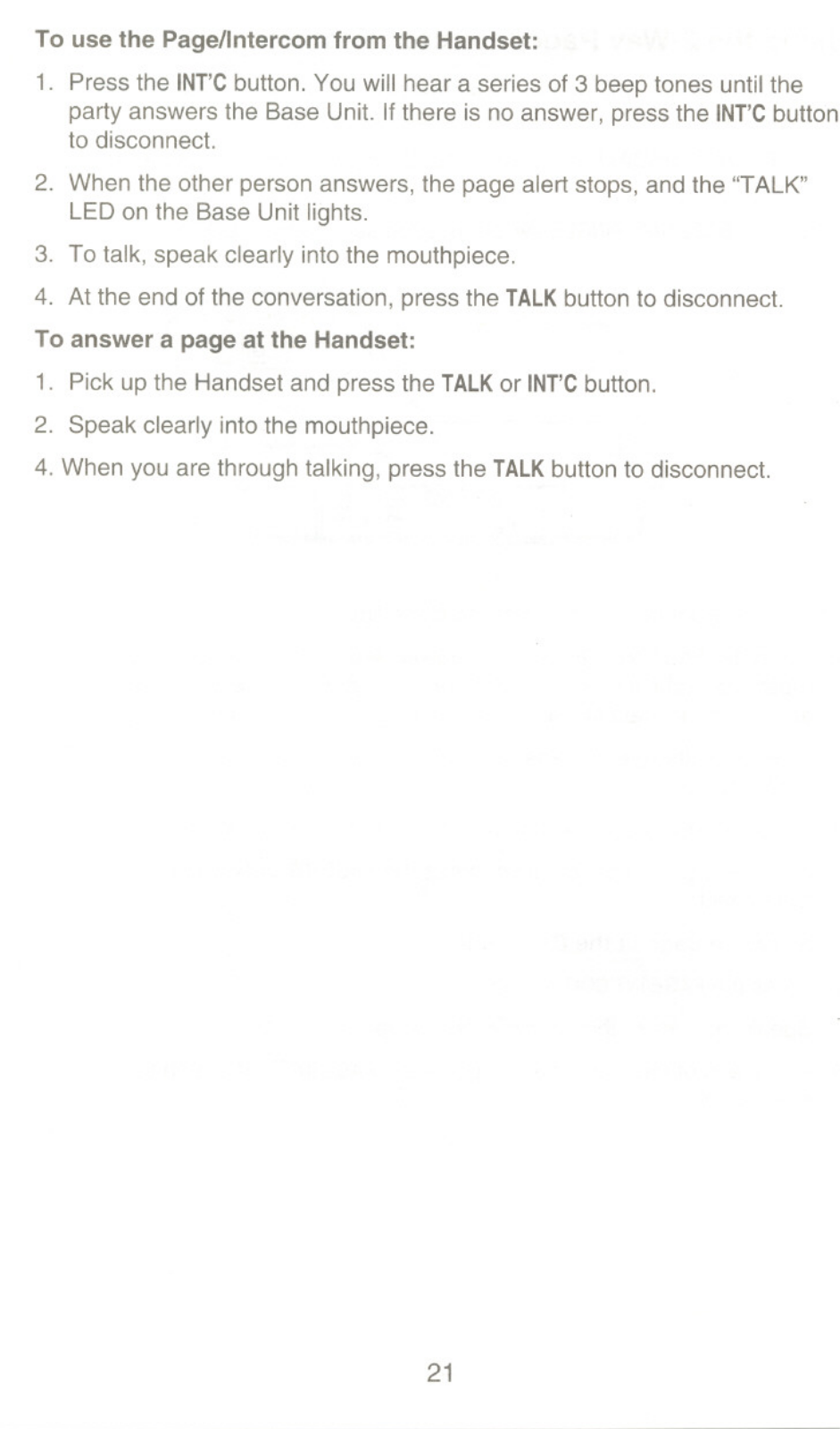

Using the 2-Way Page/Intercom Feature 20

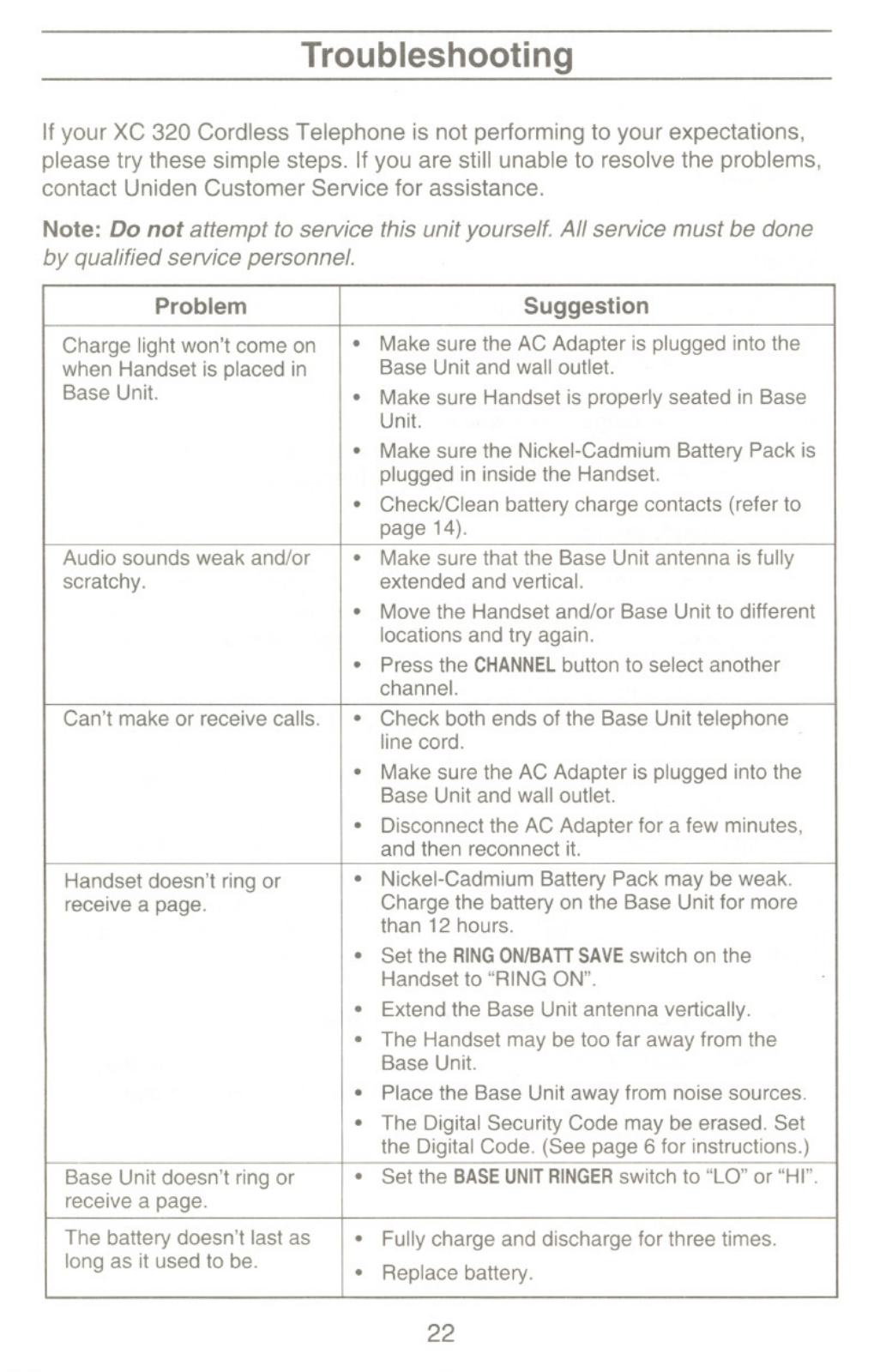

Troubleshooting 22

AutoStandby Feature 17

ImportantElectricalConsiderations , 23

Range 23

Radio Interference 23

More Than One Cordless Telephone 23

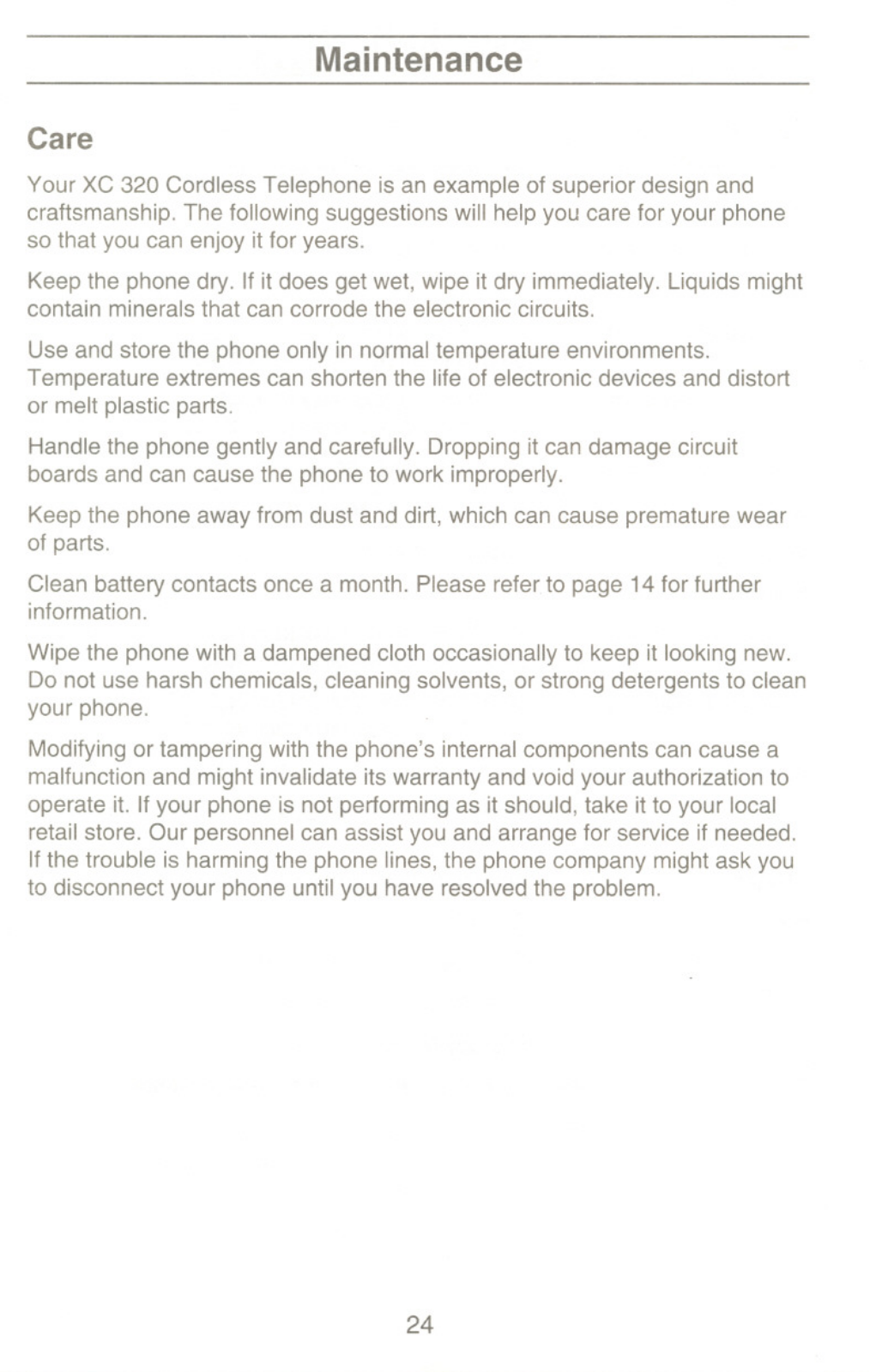

Maintenance 24

Care 24

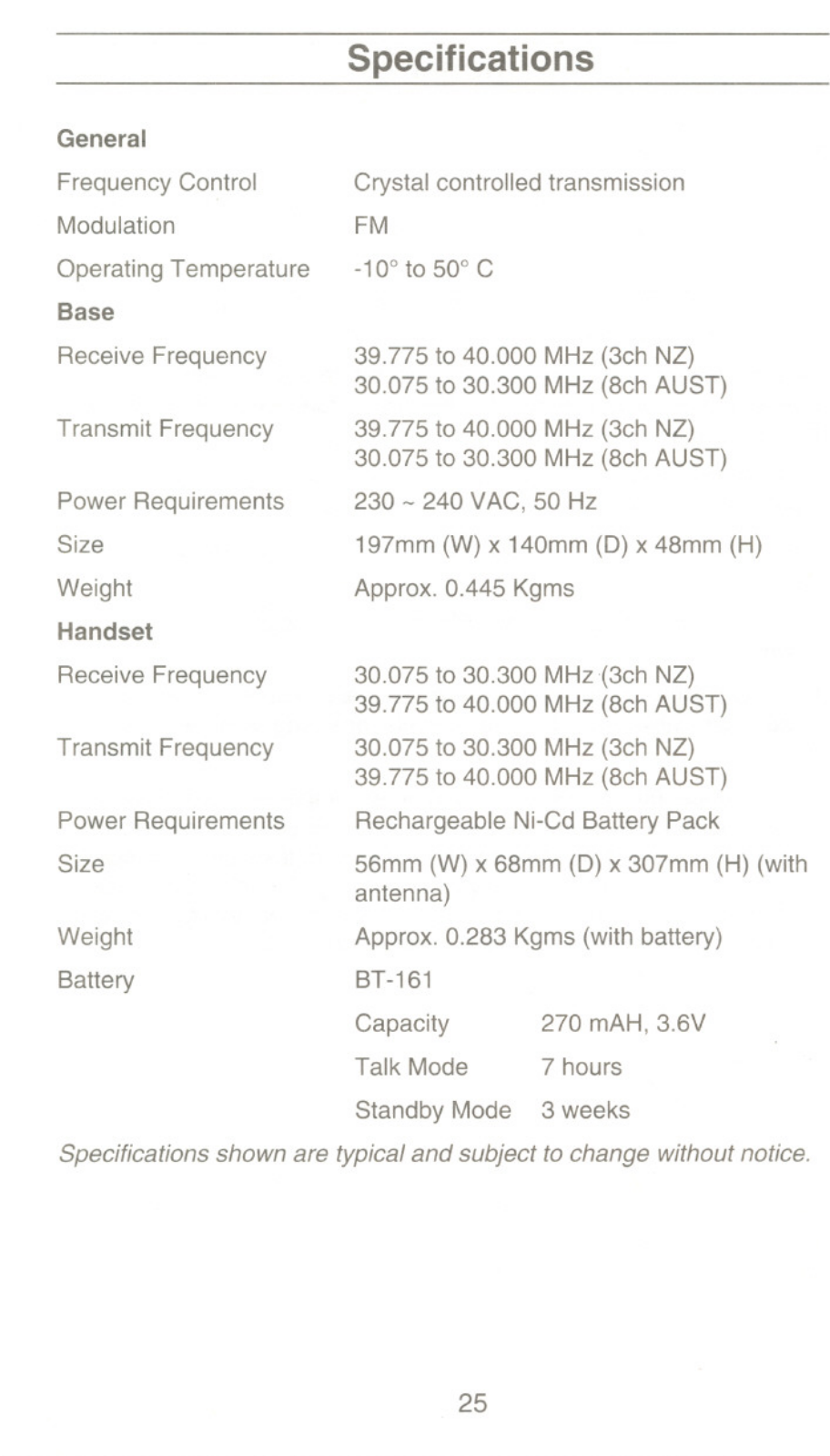

Specifications 25

""""""""""""""""""""""""""" 16

1

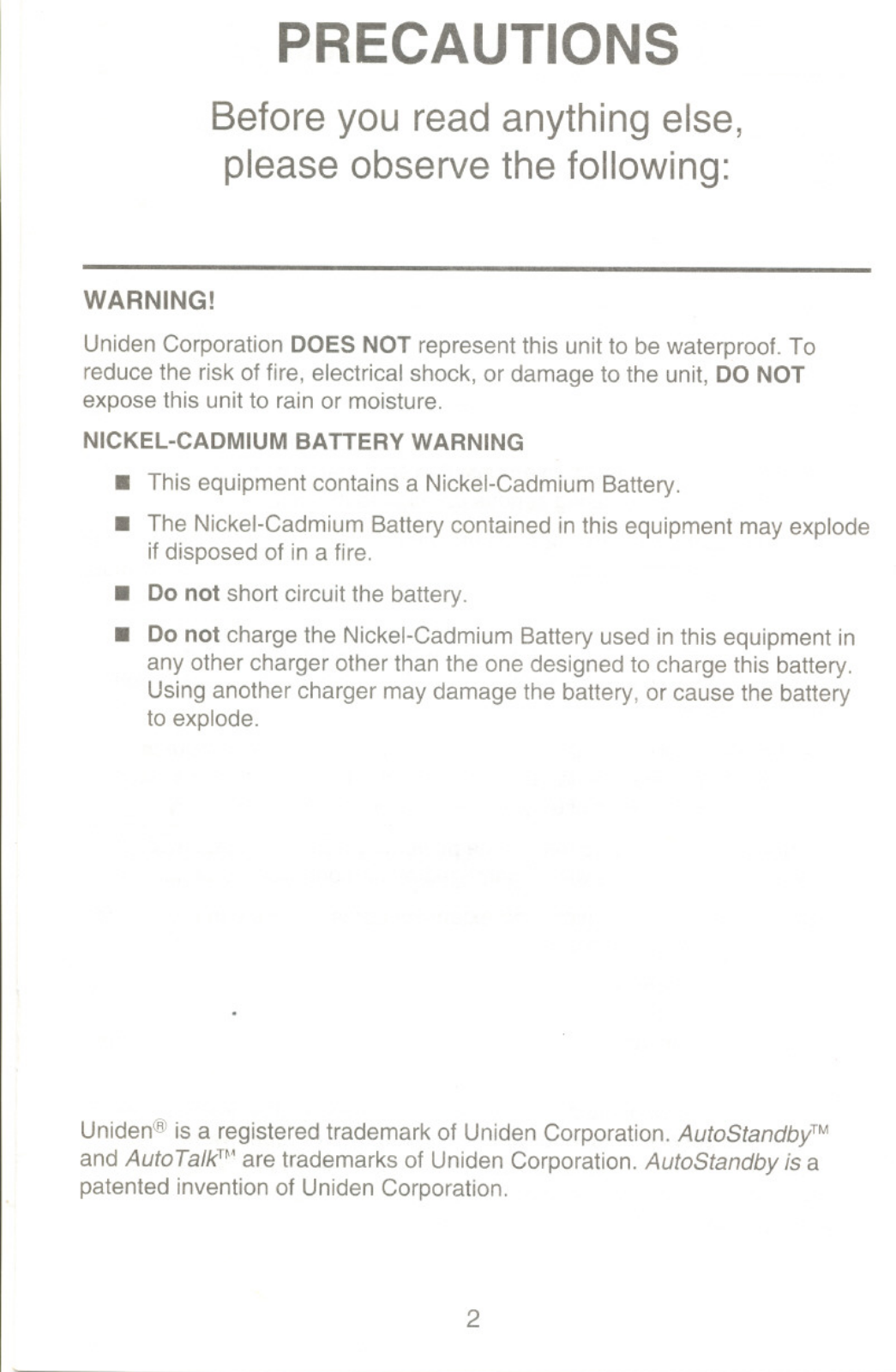

PRECAUTIONS

Beforeyou read anythingelse,

please observe the following:

WARNING!

Uniden CorporationDOES NOT representthis unit to be waterproof. To
reducethe risk offire, electrical shock, or damage to the unit, DO NOT

expose this unit to rain or moisture.

NICKEL-CADMIUM BATTERY WARNING

. This equipment contains a Nickel-Cadmium Battery.

. The Nickel-Cadmium Batterycontained inthis equipment may explode

if disposed of in a fire.

. Do not short circuit the battery.

. Do not charge the Nickel-Cadmium Batteryused in this equipment in

any other charger other than the one designed to charge this battery.
Using another charger maydamage the battery, or cause the battery

to explode.

Uniden@is a registered trademark of Uniden Corporation. AutoStandbyTM
and AutoTalkn~are trademarks of Uniden Corporation. AutoStandby is a
patented invention of Uniden Corporation.

2

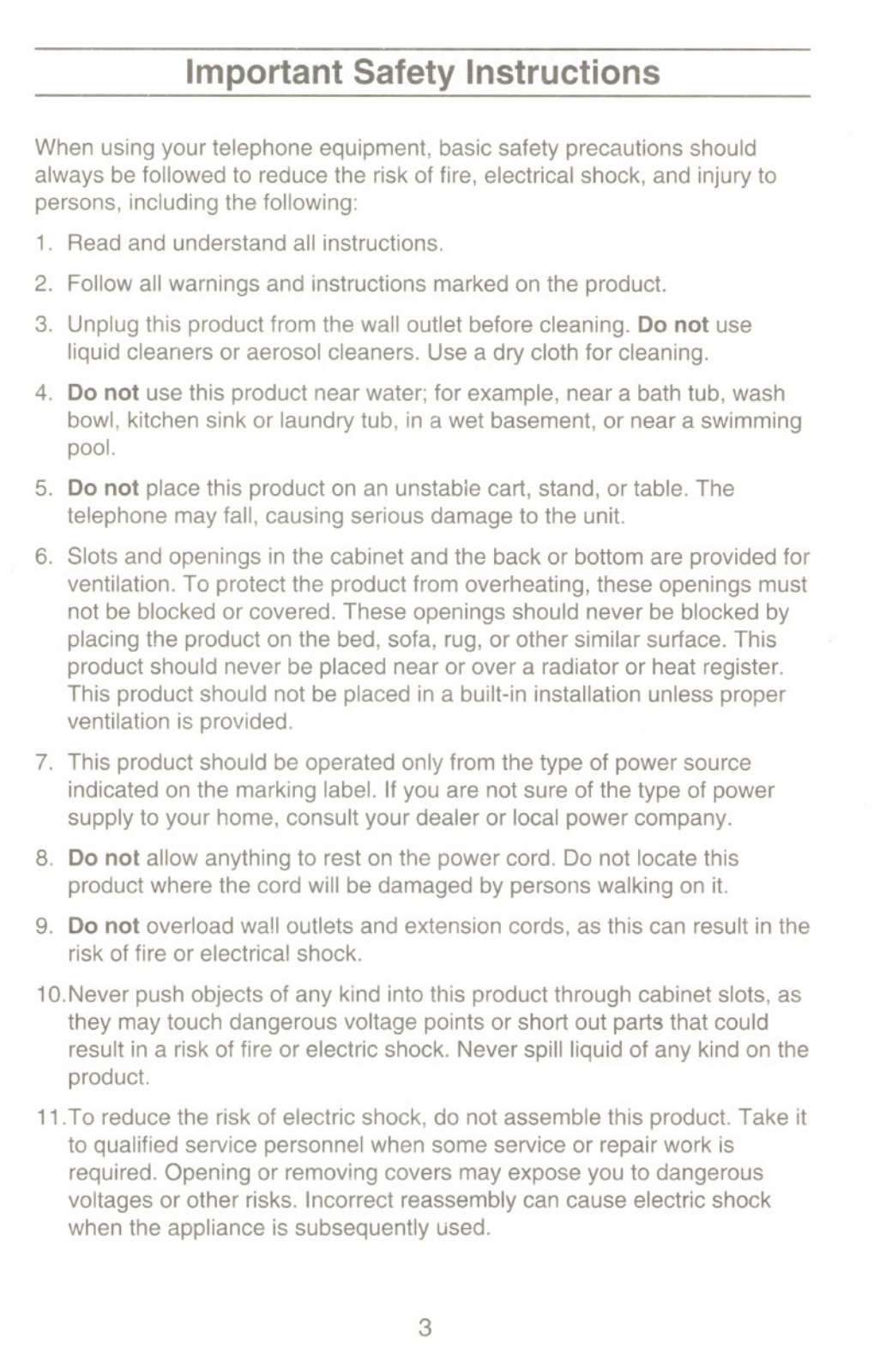

Important Safety Instructions

When using yourtelephone equipment, basic safety precautions should
always be followed to reduce the riskof fire, electrical shock, and injury to
persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use
liquidcleaners or aerosol cleaners. Usea dry cloth for cleaning.

4. Do not use this product near water; for example, neara bath tub, wash
bowl, kitchen sink or laundrytub, ina wet basement, or neara swimming
pool.

5. Do not place this product on an unstable cart, stand, or table. The
telephone mayfall, causing serious damage to the unit.

6. Slots and openings in the cabinet and the back or bottom are provided for
ventilation. To protect the product from overheating, these openings must
not be blocked or covered. These openings should never be blocked by
placing the product on the bed, sofa, rug, or other similar surface.This
product should neverbe placednear or over a radiator or heat register.
This product should not be placed in a built-in installation unless proper
ventilation is provided.

7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord willbe damaged by persons walking on it.

9. Do not overload wall outlets and extension cords, as this can resultin the
risk of fire or electrical shock.

10.Never push objects of any kindinto this product through cabinet slots, as
they maytouch dangerous voltage points or shortout partsthat could
result in a risk of fire or electric shock. Never spill liquid of any kind on the
product.

11.To reduce the risk of electric shock, do not assemble this product.Take it
to qualified service personnel when some service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrectreassembly can cause electricshock
when the appliance is subsequently used.

3

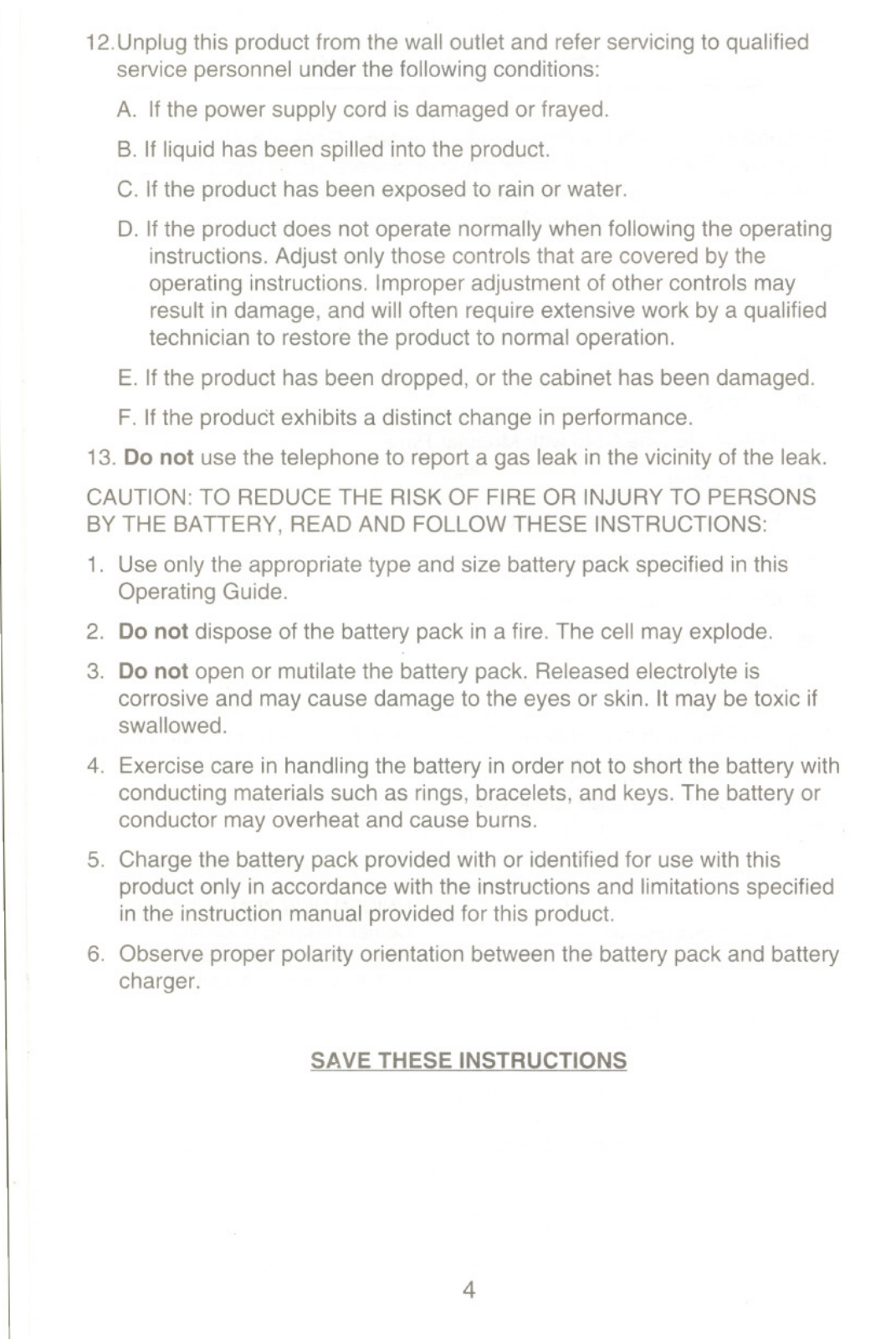

12.Unplugthis product from the wall outlet and referservicing to qualified
service personnel under the following conditions:

A. If the power supply cord isdamaged or frayed.
B. If liquid has been spilledinto the product.
C. If the product has been exposed to rain or water.
D. Ifthe productdoes not operate normally when following the operating

instructions. Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls may

result in damage, and will often require extensive work by a qualified

technician to restorethe productto normal operation.
E. Ifthe product has been dropped, or the cabinet has been damaged.
F. If the produCtexhibits a distinct change in performance.

13. Do not use the telephoneto reporta gasleak in the vicinity ofthe leak.
CAUTION: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS

BYTHE BATTERY, READ AND FOllOW THESE INSTRUCTIONS:

1. Use only the appropriate type and size battery pack specified in this
Operating Guide.

2. Do not dispose of the battery pack in a fire. The cell may explode.

3. Do not open or mutilate the battery pack. Releasedelectrolyte is

corrosive and may cause damage to the eyes or skin. It may be toxic if
swallowed.

4. Exercisecare in handling the batteryin order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.

5. Charge the battery pack provided with or identifiedfor use with this

product only in accordance with the instructionsand limitations specified
in the instruction manual provided for this product.

6. Observe proper polarity orientation betweenthe battery pack and battery

charger.

SAVE THESE INSTRUCTIONS

4

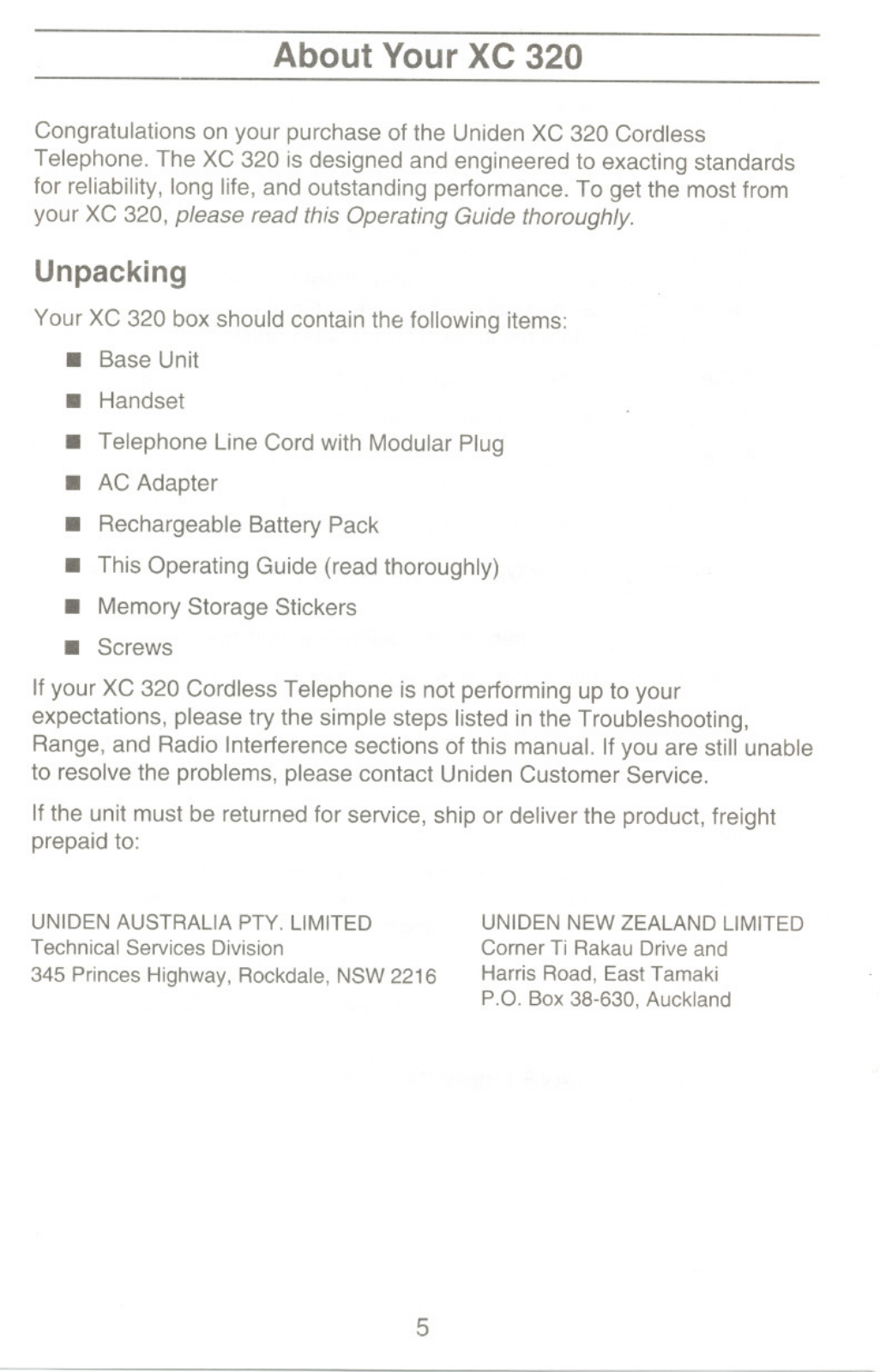

About Your XC 320

Congratulations on your purchase of the UnidenXC 320 Cordless

Telephone. The XC320 is designed and engineered to exacting standards
for reliability, long life, and outstanding performance. To get the most from
your XC 320, please read this Operating Guide thoroughly.

Unpacking

Yourxc 320boxshouldcontainthefollowingitems:

. BaseUnit

. Handset

. Telephone Line Cord with Modular Plug

. AC Adapter

. RechargeableBatteryPack

. This Operating Guide (read thoroughly)
. Memory Storage Stickers

. Screws

Ifyour XC 320 CordlessTelephone is not performing upto your

expectations, please try the simple steps listed in the Troubleshooting,

Range,and Radio Interference sections of this manual. If you are still unable

to resolve the problems, please contact Uniden Customer Service.
Ifthe unit must be returned for service, ship or deliver the product, freight

prepaid to:

UNIDEN AUSTRALIA PTY. LIMITED
Technical SeNices Division

345 Princes Highway, Rockdale, NSW 2216

UNIDEN NEW ZEALAND LIMITED
Corner Ti Rakau Drive and

Harris Road, East Tamaki
p.a. Box 38-630,Auckland

5

XC 320 Features

. UltraClearPlus noise reduction provides the quality sound of a corded

telephone.

. Eight 30/39 MHz Channels (Australia): Three 30/39 MHz Channels

(NewZealand)

. 20-Number Memory
. Maximum Operating Range

. One-Touch Memory Dialing
. 2-Way Paging/Intercom

. Redial/Pause and Flash
. AutoStandby

. AutoTalk

. Tone/Pulse Dialing (available on Australian Modelsonly)
. Automatic Digital Code Security
. Handset Volume Control/Ringer Volume Control
. Battery Saving Feature

. 2-Way Handset Mounting

. Reversible Handset Retainer

Automatic Digital Code Security

Many cordless telephones operate similarly and on the same frequency.
Without digital code security, another Handset could make calls usingyour
Base Unit and telephone line.Therefore, to avoid any unauthorizedcalls
through your Base Unit, a DigitalCode feature was added to your XC 320.
This Digital Code is shared only between the Handsetand Base Unit. The
Code isset automaticallywhen you first usethe phone.

If the Base Unit losespower while the Handset is off the Base, the Digital
Code may be erased. When this happens,the Handset will notfunction. To

establish communication between the Handsetand Base Unit:

1. Restore power to the Base Unit.

2. Place the Handseton the Base Unit.The CHARGELED will blink to
indicate that the Digital Security Code isset.

6

Base Unit Controls & Functions

RING- OFFLOHI

Switch

TELLINE

TONEPULSE

Switch

DCIN9V +%-

~

HandsetRetainer

INUSELED

BASEUNIT

Antenna I Speaker

I

..

Microphone

0 0

...........

...........

...........

...........

...........

...........

...........

...........

...........

.

.

f=

CHARGELED

7

I8B1

~

PAGEIINT'COM

Button

Base Unit
Ringer Switch

TONE/PULSE
Switch

TEL LINE Jack

Useto set the ring volume level ("LO" or "HI") of the
Base Unit for incoming calls, or the page alert tone level
when paged from the Handset.

Useto select either Tone Dialing or Pulse Dialing.
(Available on Australian Models only)

Plugthe supplied telephone line cord into this jack and
the other end of the cord into the standard modular

telephone socket.

DCInput Jack

Handset Retainer

Base Unit
Antenna

Speaker

Microphone
IN USE LED

CHARGE LED

PAGE/INT'COM
Button

Plugthe AC Adapter cord intothis jack. Then plug the
AC Adapter into a standard wall outlet.

Reverse this retainerto hang up the Handsetwhen the
XC 320 is mounted on a wall.

Collapsible antenna providesmaximum range when
fully extended and vertical.

When the Intercom is on, the speaker lets you hear the
persontalking to you on the Handset.

Useto talk to the person paging you fromthe Handset.
Lights when the phone is in use.
Lights when the Handsetis in the Base Unit and the

Battery Pack inside the Handset is charging.

Use to page the Handset and activate the Intercom
betweenthe Handset and the BaseUnit. When you
press this button, 3 beep tones sound repetitively at the
Base Unit and Handset until the page is answered.

(Note:ThePage/Intercom feature does notworkif

thephone is in use, or if the Handset RINGONIBATT

SAVEswitch is in the "BATTSAVE"position.)

8
