r
uniderr VS1000XR
RF REMOTE CONTROLLED
VEHICLE SECURITY SYSTEM
Operating Guide
U11iclen New Ze~1~~~aIbi<O1It~:d;
. . .-. ?\.\ ,!';"'j;)),j';j;rr':~~)!£\jj,j;"j~j~"It",;!t~
150 HarrisRoad,
EastTamaki,
Auckland
Phone:64-9-273 8383
Fax: 64-9-274 0009
PATENTED, 2-STAGE, PRE-INTRUSION,
ELECTROMAGNETIC SHOCK SENSOR
This VS1000XR is equipped with a 2-stage, pre-intrusion, electromagnetic shock
sensor. If the vehicle is lightly tapped, the first stage sensor will cause the alarm
siren to "chirp." This feature provides a pre-intrusion warning to would-be thieves. If
a harder impact is made to the vehicle, the second stage sensor will activate the
alarm and sound the siren. .
NOTE: The alarm will not have this pre-intrusion feature if your alarm is
programmed to use current sensing.
ALARM DURATION, SIRENAND FLASHING LIGHT
If the alarm is triggered, it will sound for four 28-second cycles with a 1a-second
pause between cycles. For example, if a door opening is detected, the alarm will
automatically sound for 28 seconds. If the door has not been shut before the end of
the 28-second cycle, the alarm will continue to sound for three more cycles and then
stop sounding. During this time the lights will flash in 38-second cycles with no
pause. If any of the other sensors are triggered, or the same door is closed and then
reopened, the process will begin again.
FOUR-FUNCTION LED
The alarm brain's red LED has four useful functions:
. The RF transmitter-receiver can be tested by pressing the transmitter button. If
the alarm brain LED comes on, the transmitter-receiver is working properly.
. When in valet mode the LED will flash at intervals of 1.5 seconds on, 0.5 second
off. This alerts you to the fact that the alarm is currently off. It also gives the
appearance to would-be thieves that the alarm is armed.
. When the VS1000XR is fully armed, the LED will flash at intervals of 0.5 second
on, 1.5 seconds off, as a warning to would-be thieves that your vehicle is
protected by an alarm.
. When the VS1000XR is not armed nor in the valet mode, the LED will be off.
PASSIVE OR ACTIVE ARMING
.PASSIVE ARMING: The alarmwill automatically arm itself 15seconds
after turning off the ignitionkey and closing that lastopened door.
. ACTIVE ARMING: The alarm will only arm after pressingthe transmitter's
button#1 providedignition key is off and all doors are closed.
CHIRP DISABLE
Arming or disarming chirp confirmation can be turned off. However, the chirp disable
feature will not disable the pre-intrusion chirp and full siren blast.
. CHIRP CONFIRMATION
. NO CHIRP CONFIRMATION
PASSIVE OR MANUAL DOORLOCK SELECTION
(PASSIVE MODE ONLY)
. Auto
. Active Lock: The doorlocks will not lock unless the remote transmitter is used.
Lock: The doorlocks will lock each time the alarm rearms by itself automatically.
\{E. T. SWITCH & OPERATION CHART
Valet Mode is useful for unloading groceries, or servicing the car if passive arming is
being used. To activate the valet mode, turn the ignition key on and press the V.ET.
switch once. Now the alarm will not arm. If you wish to deactivate the valet mode,
turn the ignition on and press the V.ET. switch once. Now the alarm can be armed.
Emergency disarm is a back-up method of disarming the alarm in case the
transmitter is lost or stolen. To disarm the alarm, first open a door. The alarm will
begin to sound. Turn on the key and then press the V.ET. switch once. Now the
system is disarmed.
Temporary disarm can be used to temporarily disarm the alarm if it is pr09rammed
for passive armin9. This is useful for leaving the car for a short period of time such
as a stop at a gas station. To operate, turn off the ignition and press the V.ET.
switch once before opening any door. If you change your mind and wish to leave the
car for an extended time, press. the transmitter button to arm the alarm. The
temporary disarm feature is automatically disengaged once the ignition is turned on.
V.E.T. v.Valet
.Mode
SWITCH
FUNCTIONS
STEP 1
STEP 2
STEP 3
STEP 4
LED
STATUS
NOTE 1: PASSIVE ARMING - Alarm will arm automatically 15 seconds after the last door is
NOTE 2: There are two ways to remove the "temporary disarm of passive arming" feature:
NOTE 3: When the VS1000XR is fully armed, the LED will flash at intervals of 0.5 second on,
NOTE 4: Press V.E.T. switch once before opening any door.
ACTIVATE
VALET VALET
DISARM THE
ALARM
TURN IGNITION PRESS V.E.T.
SWITCH ON SWITCH ONCE
PRESS V.E.T.
SWITCH ONCE
TURN IGNITION
SWITCH OFF.
ALARM IS NOW IN DISARMED
VALET MODE
LONG FLASH ON
(NOTE 3)
shut. However, if you wish, you can arm the alarm manually after the last door is
shut, by pressing the transmitter button once.
(1) Close all doors and press the transmitter once. The alarm will "chirp" and arm.
(2) Turn the ignition key from off to on, then back to off. The alarm will go back to the
"passive arming" mode.
1.5 seconds off. When in valet mode, the LED will flash at intervals of 1.5 seconds
on, 0.5 second off. This protects the car in valet mode, as would-be thieves will see
the flashing LED and assume the alarm is armed.
DEACTIVATE
TURN IGNITION
SWITCH ON
TURN IGNITION
SWITCH OFF
ALARM CAN NOW
BE ARMED
LED IS OFF
E.Emergency
.disarm
EMERGENCY
DISARM
THE ALARM IS
ALREADY ARMED
OPEN DOOR
(SIREN WILL SWITCH FROM ON
SOUND)
TURN IGNITION PRESS V.E.T.
SWITCH ON SWITCH ONCE
PRESS V.E.T. SWITCH
ONCE. ALARM IS
LED IS OFF LED IS OFF
T.Temporary
.disarm
TEMPORARY(1 TIME)
DISARMOFPASSIVE
ARMING(SEENOTE1&2)
DISARM THE ALARM
TURN IGNITION
TO OFF
(NOTE 4)
LEAVE CAR. ALARM
WILL NOT ARM FOR
THIS ONE TIME
ONLY
OPERATING GUIDE
CONGRATULATIONS
From the moment you purchased this VS1OOOXRVehicle Security System, you became a part
of the UNIDEN family. You started taking advantage of over 24 years of advanced security
engineering. You joined a team of engineers, technicians, designers, and people like yourself
who know how important protecting your car is. You discovered the UNIDEN difference.
This difference is important because the VS1 OOOXRis more than an alarm. It is complete
peace of mind. It is knowing that your car is protected around the clock by its own security
guard- one that never sleeps, never takes a break.
But even the best security systems will not work correctly without careful installation. For
greatest security, installation by a professional UNIDEN dealer is strongly recommended. He
understands both his alarms and your needs,andwill workhard to ensurethe VS1 OOOXRdoes
its job for you.
Welcome to the family: UNIDEN, your dealer, and you!
NOTICE
The information and specifications printed in this manual are current at the time of publication.
However, the UNIDEN policy is one of continual development and improvement. For this
reason, UNIDEN reserves the right to change specifications without notice.
Copyright @ 1994 UNIDEN. All rights reserved. This material may not be reproduced or
copied, in whole or in part, without the written permission of UNIDEN.
This Vehicle Security System is protected by patents in U.S.A., Great Britain, Germany and
Taiwan, and patents are pendinginJapan and Korea. .
FUNCTIONS OF THE TRANSMITTERS
1. LEDIndicator
The LED will light when there is transmission of signal.
2. Pressing Button #1 to
a. Arm/disarm the alarm of the car.
b. Activate the Panic function of the alarm.
3. Pressing Button #2 to
a. Enable Silent arming/disarming (Quiet Mode) when it is used with Button #1.
b. Arm/disarm 2nd car (optional 2nd alarm required).
IMPORTANT
Installation of a sophisticated vehicle security system like the VS1 OOOXR is a very complicated
procedure. For best results, please talk to your UNIDEN dealer about professional installation.
NOTE: This alarm is designed to protect your entire car and its contents. But remember that
every car is different, and it may be necessary to add sensors or accessories not included with
this alarm system. Also, even though this alarm offers a high level of security and convenience,
the level of protection and the features your alarm offers depend on how it was installed.
Therefore, please ask your dealer to clearly explain the protection and features of your alarm
after installation.
The VS1 OOOXRalarm system contains many innovative features and unique functions. Please
read the operation manual carefully in order to understand all of the protection and convenience
features that are offered.
OPERATING THE VS1000XR
AUTOMATICDOORLOCK/UNLOCKANDFLASHINGLIGHTS
Your VS1000XR offers the convenience of automatically locking and unlocking your car's doors and
flashing the lights when the car is armed and disarmed. This may require the addition of certain
optional accessories, and you should discuss with your professional UNIDEN dealer about whether or
not you wish to have them installed with your alarm.
This manual assumes you are using the power door lock control and flashing light features of your
VS1000XR. If you decide not to use these features, just disregard any references to them.
ARMING THE VS1000XR
If active arming is selected, the alarm will arm instantly after pressing the transmitter's button #1. A
"CHIRP" will be heard and the parking lights will flash once after pressing transmitter's button #1, to
signify that the alarm is armed.
If passive arming is selected, the alarm will automatically arm itself 15 seconds after all doors are
closed. A "CHIRP" will be heard and the parking lights will flash once after the last door is closed, to
confirm that alarm is arming. During the delay period of 15 seconds, you can temporarily stop the
armingof VS1OOOXRsimplybyopeningadoor. This letsyoure-enterthe car withouthavingto first
disarm the alarm. When finished, close the door and the alarm will recommence arming.
In either case, if you do not hear a chirp or see the flashing of the parking lights, the alarm is
informing you that a door has not been closed properly and therefore the alarm won't arm. This
remarkable patented fail-safe feature stops you from walking away thinking your car is protected
when it is not. (Your VS1000XR professional installer can turn this "CHIRP" off, if you desire.)
---+-..
DISARMING THEVS1000XR
If passive arming is selected, first press the transmitter's button #1 (the alarm will chirp twice and
parking lights will flash twice). Then, open a door within 15 seconds (If a door is not opened within
15 seconds, the alarm will rearm itself). Finally, turn ON the ignition key to stop rearming. This
VS1000XR's patented 3-step disarming process prevents accidental disarming.
Ifactive arming is used, you can choose Auto rearm or Permanent disarm mode. 'n auto rearm
mode, the alarm will rearm itself unless a door is opened within 15 seconds after pressing the
transmitter's button #1. In Permanent disarm mode, pressing the transmitter's button #1 will
disarm the alarm permanently. In either mode, two chirps will be heard and two flashing parking
lights will be seen after pressing the transmitter's button #1.
CARLOCATORANDTAMPERINDICATORWHILEDISARMING
Twolongflashesshowcar'slocationwhenthealarmisdisarmedbythetransmitter. TheVS1000XR
will notify the ownerof any prior attemptto breakinto the car. Ifthe alarmhad beentriggered,the
lightswill flashseventimes(insteadof twice)whenthetransmitteris usedto disarmthe alarm.
Switchingthe ignitionto "on"will resetthememoryofthealarm.
EMERGENCY CALL FOR HELP (PANIC MODE)
You can sound the siren by turning off the ignition key and holding down the transmitter's button #1
for three seconds. The siren will begin to sound, chasing away would-be attackers and alerting
neighbors. However, the range of the transmitter may vary; see Trouble Shooting section, item 2.
QUIETMODE
Quiet Mode allows using the transmitter to temporarily arm or disarm the alarm without chirps.
Pressing transmitter's Button #2 and then, within 10 seconds, press transmitter's button #1, the alarm
will either arm or disarm without chirping for that one time only. When you arrive home at night and
try to arm your alarm without disturbing your neighbors, Quiet Mode lets you arm your car without the
awakening siren chirps.
SECOND CAR OPERATION (optional)
With this option, you can arm/disarm 2 cars using the same remote transmitter. Button #1 controls
the 1st car and button #2 controls the 2nd car.
.. rI

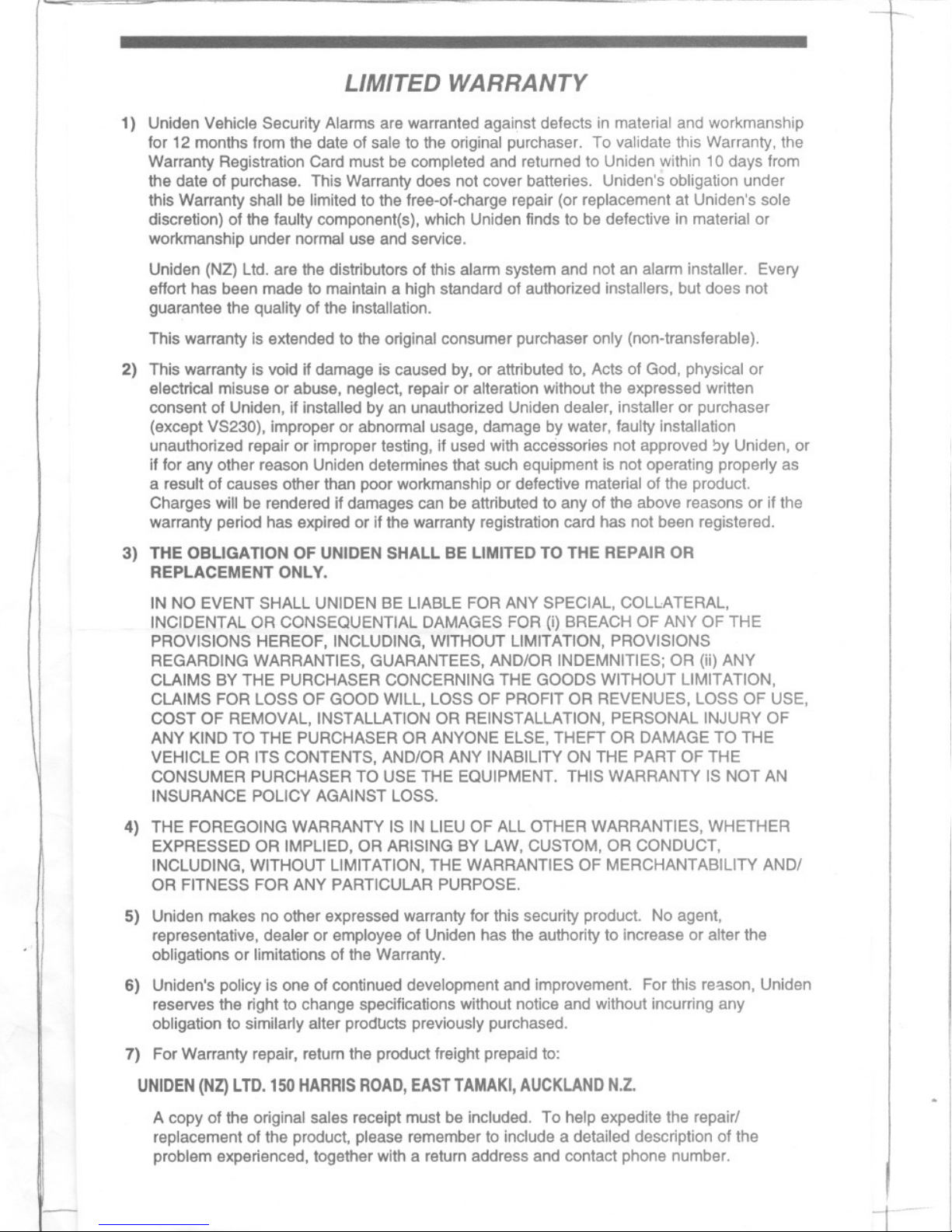

LIMITED WARRANTY
1) Uniden Vehicle Security Alarms are warranted against defects in material and workmanship
for 12 months from the date of sale to the original purchaser. To validate this Warranty, the
Warranty Registration Card must be completed and returned to Uniden within 10 days from
the date of purchase. This Warranty does not cover batteries. Uniden's obligation under
this Warranty shall be limited to the free-of-charge repair (or replacement at Uniden's sole
discretion) of the faulty component(s), which Uniden finds to be defective in material or
workmanship under normal use and service.
Uniden (NZ) Ltd. are the distributors of this alarm system and not an alarm installer. Every
effort has been made to maintain a high standard of authorized installers, but does not
guarantee the quality of the installation.
This warranty is extended to the original consumer purchaser only (non-transferable).
2) This warranty is void if damage is caused by, or attributed to, Acts of God, physical or
electrical misuse or abuse, neglect, repair or alteration without the expressed written
consent of Uniden, if installed by an unauthorized Uniden dealer, installer or purchaser
(except VS230), improper or abnormal usage, damage by water, faulty installation
unauthorized repair or improper testing, if used with accessories not approved !Jy Uniden, or
if for any other reason Uniden determines that such equipment is not operating properly as
a result of causes other than poor workmanship or defective material of the product.
Charges will be rendered if damages can be attributed to any of the above reasons or if the
warranty period has expired or if the warranty registration card has not been registered.
-+-
3) THE OBLIGATION OF UNIDEN SHALL BE LIMITED TO THE REPAIR OR
REPLACEMENT ONLY.
IN NO EVENT SHALL UNIDEN BE LIABLE FOR ANY SPECIAL, COLLATERAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR (i) BREACH OF ANY OF THE
PROVISIONS HEREOF, INCLUDING, WITHOUT LIMITATION, PROVISIONS
REGARDING WARRANTIES, GUARANTEES, AND/OR INDEMNITIES; OR (ii) ANY
CLAIMS BYTHE PURCHASER CONCERNINGTHE GOODSWITHOUT LIMITATION,
CLAIMS FOR LOSS OF GOODWILL, LOSS OF PROFIT OR REVENUES,LOSS OF USE,
COST OF REMOVAL, INSTALLATION OR REINSTALLATION, PERSONAL INJURY OF
ANY KIND TO THE PURCHASEROR ANYONE ELSE,THEFT OR DAMAGETO THE
VEHICLE OR ITS CONTENTS, AND/OR ANY INABILITYON THE PART OF THE
CONSUMER PURCHASERTO USE THE EQUIPMENT. THIS WARRANTY IS NOT AN
INSURANCE POLICYAGAINST LOSS.
4) THE FOREGOINGWARRANTY IS IN LIEUOF ALL OTHER WARRANTIES, WHETHER
EXPRESSED OR IMPLIED, OR ARISING BY LAW, CUSTOM, OR CONDUCT,
INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILlTY AND/
OR FITNESS FOR ANY PARTICULAR PURPOSE.
5) Uniden makes no other expressed warranty for this security product. No agent,
representative, dealer or employee of Uniden has the authority to increase or alter the
obligations or limitations of the Warranty.
6) Uniden's policy is one of continued development and improvement. For this re.:lson, Uniden
reserves the right to change specifications without notice and without incurring any
obligation to similarly alter prodtJcts previously purchased.
7) For Warranty repair, return the product freight prepaid to:
UNIDEN(NZ)LTD. 150HARRISROAD, EAST TAMAKI, AUCKLAND N.Z.
A copy of the original sales receipt must be included. To help expedite the repair/
replacement of the product, please remember to include a detailed description of the
problem experienced, together with a return address and contact phone number.
. i\
TROUBLE SHOOTING
Your VS1000XR is an extremely reliable vehicle security system. In most cases, the
rare operational difficulties are the result of a weak transmitter battery or an open car
door. Below are guidelines to solving the majority of the problems you may
experience. If after following these guidelines you have not found the problem,
contact your professional installer immediately.
1. No siren sound or chirp when transmitter button is pressed for arming or
disarming:
a. Check if the Red wire has power, while the Black wire is properly grounded.
b. Replace the transmitter battery and check the clips for proper polarity.
c. Check that all doors are closed.
2. Transmitter works in some areas and not in other areas:
This is probably due to excess RF activity in that area (usually just a short time
and only while you are in that area, depending on the type of the activity). It is
only temporary and won't affect the alarm in other areas.
3. Alarm sounds for no apparent reason:
Be sure that the transmitter button is not being held down too long, or something
in your pocket or purse is not pressing against the transmitter button. The
receiver may also be picking up interference from a nearby airport or military base,
Iow-flying plane or other sources. Such interference is temporary.
4. Alarm does not arm manually or automatically, but the doors will lock/unlock
when the transmitter is pressed. When ignition is off, LED has a long flash
(1.5 sec. on, 0.5 sec. off). When ignition is on, LED is off. -
A. The alarm has been accidentally put into valet mode.
B. Turn ignition on, press the V.E.T. switch once, then turn ignition off. Alarm can
now be armed.
NOTE 1: If the alarm still does not function properly after checking the V.E.T.
switch, consult the UNIDEN dealer where you purchased the product for
further advise.
NOTE 2: Under no circumstances should you yourself make any repairs or
adjustments to any component of the transmitter or receiver.
Unauthorized repairs or adjustments to any components will void the
warranty. However, you may change the transmitter battery by yourself, if
needed, as shown below.
CHANGING THE TRANSMITTER BATTERY
1. Unscrew the small screw from the transmitter's back.
2. Replace the battery. MAKE SURE THE POSITIVE AND
NEGATIVE BATTERY ENDS CORRESPOND CORRECTLY
TO THE POSITIVE AND NEGATIVE BATTERY CLIPS.
3. Place back the front cover, taking care not ~obreak
the LED.
4. Place back the screw, turning it in tight enough
to hold the case together, but not so tight that
the case cracks.
;,;
"'?:. '" BATTERYCLIPS
BATTERY( SEA172 )
(OBSERVECORRECTPOLARITY)
r
ACCESSORIES
Ask your dealer for more information!
INCLUDED
OPTIONAL
REMOTE CONTROL
SEA 177
Two transmitters included.
Arms and disarms the
alarm from up to
200 feet away. Get
one for everyone
who uses the car.
PATENTED,2-STAGE,
PRE-INTRUSION,
ELECTROMAGNETIC
SHOCK SENSOR
SEA858 ""
Detects impact!
shock of vehicle. .
Totally non-directional. ~
Provides pre-intrusion
warning and intrusion output.
MUL TI-TONE SIREN
SEA 173
Provides super-loud
128dB three distinctive ,..'
tones to separate this
siren from others. Black
ABS trumpet. Miniature size.
FLASHING LED
SEA 111 ,.' ..
A
".
.
~
Attractive, bright LED -
shows arm and disarm,
valet, and transmitter operation.
PIN SWITCHES
SEA864
Heavy-duty,
adjustable pin
switches protect boot
and bonnet. Heavy-duty contacts
assure long life, rustproof operation.
V.E. T. SWITCH
Allows disarming of
VS1000XR if
transmitter is lost or
stolen.
J:Z
--
1/JQ
DOORLOCK INTERFACE/ ACTUATOR
~
it
SEA169 SEA170
Automatically locks and unlocks the car's
doors when the button is pressed.
ALARM PAGER
SEA158
Alerts you up to two miles away, via the
miniature pocket beeper, of break-in or
vandalism to your car.
GLASS BREAK SENSOR
SEA~7
Detects the high-frequency
sound of glass breaking and
triggers alarm.' -
STARTER DISABLE RELA Y
MATSUSHITA
SEA862
Disables car's starter when
alarm is armed. Car cannot
be hot-wired or started, even
with ignition key. ~ .
MOTION I VIBRA TION SENSOR
SEA860
Detectsmotions such as jacking up or
towing.
ARM I MEMORY BEEPER
SEA863
"Beeps"when armed.
PATENTED,2-STAGE,
PRE-INTRUSION, MICROWA VE
SENSOR
SEA133
Protects convertibles & vans with pre-
intrusionwarning and intrusionoutput.
BA TTERY BACK-UP SIREN
SEA400
Protects car, even if battery cable is cut!
I
,
FILE: DTPlMANUAL\MO1 B-UD.PM5\MA Y1993
ORDER PART# 760-6941845IFOR UD
Loading...
