UNIDEN Model uh095sx

Dual Band (UHF CB/AM CB) Radio

Page 2

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Contents

Introduction

Features ............................................................................................................................ 2

Preventive Maintenance ........................................................................... 2

Troubleshooting.............................................................................................................. 2

Controls / Connectors ................................................................................. 3

Indicators ..................................................................................................... 4

Included with your uh095sx ....................................................................... 5

Operation

Setting AM or FM or Dual AM+FM Band ........ .......................................... 6

Setting the AM Squelch ................................... ......................................... 6

Setting the FM (UHF CB) Squelch ................................... ........................ 7

Monitor ...................................................................................................... 7

Selecting a Channel ......................................... ........................................ 7

Dual Watch ............................................................................................... 7

Programming the Instant Priority Channel ................................................ 8

Recalling the Instant Channel ................................................................... 8

Transmitting .............................................................................................. 8

Call Function ............................................................................................. 8

Selecting the Call tone .............................................................................. 8

Using UHF CB Repeater Channel (FM only) ............................................ 9

UHF CB Duplex Mode (FM only)............................................................... 9

Scanning ...................................................................................................10

Open Scan (OS) Mode .............................................................................10

Group Scan (GS) Mode ............................................................................11

Priority .................................................. ....................................................11

Programming Scan Channels ...................................................................11

40 Receive Channels ................................................................ ...............12

Manual Programming ........................................ ......................................12

Deleting a Programmed Receive Channel ............. ..................................12

Roger Beep ..............................................................................................12

Busy Channel Lockout ..............................................................................13

VOX Operation (optional VOX headset required) ....................................13

Scramble ................................................ ..................................................14

CTCSS (Continuous Tone Coded Squelch System - FM Only).................14

DCS (Digital Coded Squelch - FM Only) ...................................................14

LCD Backlight Dimmer ............................ .................................................14

UHF CB Channels & Frequencies...............................................................15

AM CB (HF Band) Channels and Frequencies ..........................................16

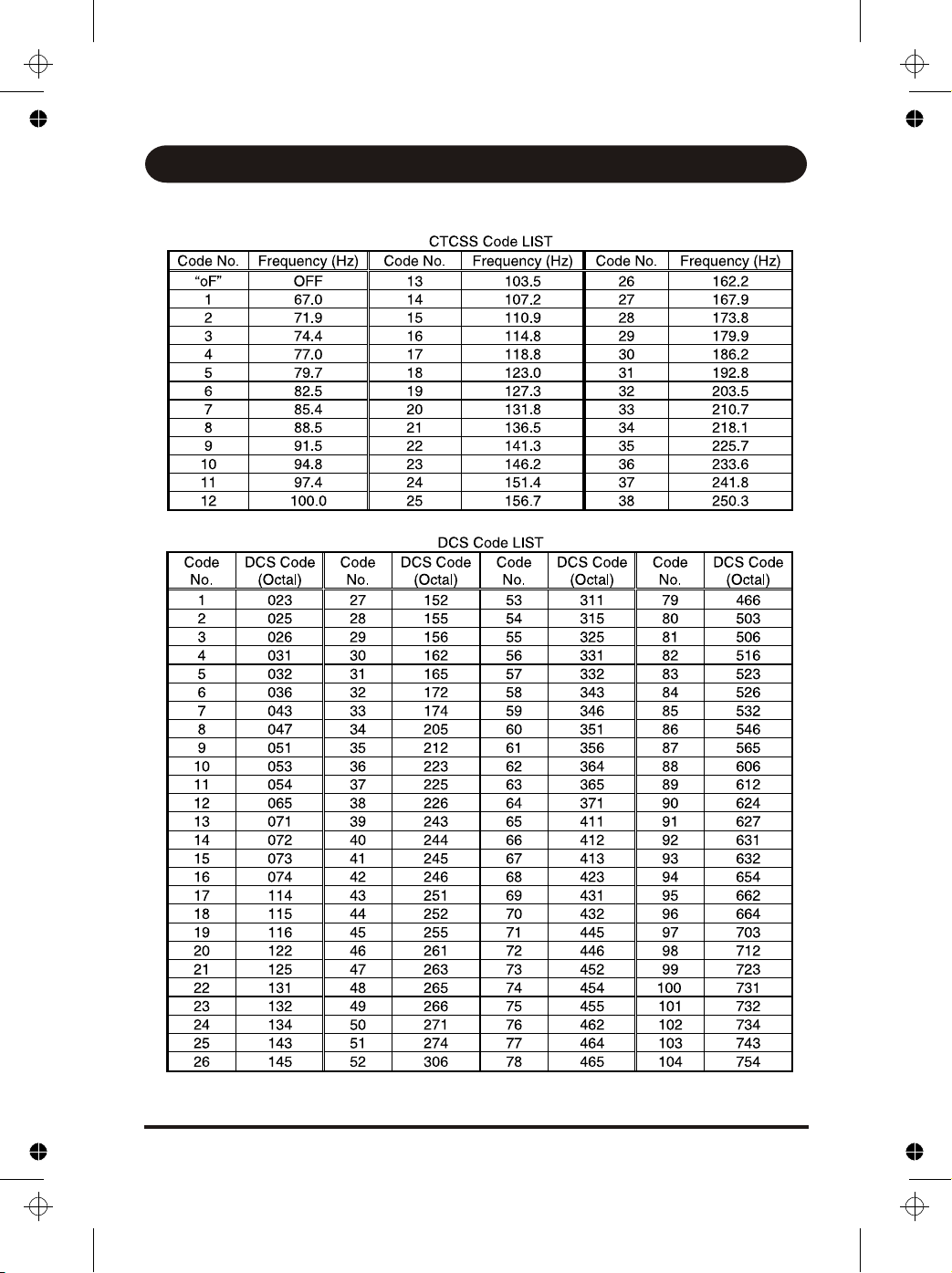

CTCSS & DCS Code List .............................................................................17

Warranty .......................................................................................................18

Page 3

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Introduction

The Uniden uh095sx is designed to provide you with years of trouble free service. Its rugged components and materials are capable of withstanding harsh environments. Please read this Operating Manual carefully to ensure you gain the optimum performance of the unit

The citizen band radio service is licenced in Australia by ACMA Radio-communications (Citizen Band Radio Stations) Class Licence and in New Zealand by MED General User Licence for Citizen Band Radio and operation is subject to conditions contained in those licenses.

Features

Preventive Maintenance:

The following system checks should be made every six to twelve months:

= Check the Standing Wave Ratio (SWR). = Inspect the tightness of all electrical connections. = Inspect the antenna coaxial cable for wear or breaks on the shielding. = Inspect the tightness of all screws and other mounting hardware.

Troubleshooting:

Should the unit malfunction or perform poorly, follow these procedures:

If the transceiver is completely inoperative: Check the power cord and fuse. If there is trouble with receiving: Check the VOLUME control setting. Be sure the SQUELCH is

adjusted properly. Possibly the radio is over-squelched.

If there is trouble with transmitting: Check that the transmission line (coaxial cable) is securely connected to the ANTENNA connector. Check that the antenna is fully extended for proper

operation. Check that all transmission line (coaxial cable) connections are secure and free of corrosion.

Blackening may occur on the Liquid Crystal Display if the uh095sx has been subjected to extreme high temperature (above 60°C) . This is not a fault. Normal LCD operation resumes when the temperature stabilizes back to standard operating operating condition (0-55°C).

AM+FM Band 40 Programmable Receive channels (450-

Voice Activated Function (VOX) 512MHz)

VOX Mic sensitivity adjustment - 9 levels

Volume Control with Power On/Off Switch AM Band

LCD Display with Backlight and 3-stage Transmit & Receive AM 40CH (AM Band, TX Dimmer Power 4W) - See p16 for AUST model/NZ

Signal Strength Indicator model AM frequencies

RF Power Indicator Variable Squelch with rotary adjust

One touch AM, FM or AM+FM Band selectable FM Band

Dual Watch with Instant Channel Transmit & Receive FM 40CH (UHF-CB, TX

One touch Instant Channel recalling Power 5W; Transmission is inhibited at CH22

AM, FM or AM+FM Group Scan with Priority & CH23)

Channel Watch Duplex Capability (from CH01 - CH08)

AM, FM or AM+FM Open Scan 38 Built-in CTCSS codes and 104 additional

Busy Channel Lock-out Function DCS codes

Roger Beep Function On/Off Preset FM Squelch with 3 levels

5 Different Call Tones

Memory Backup if power fails

Scramble

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Page 4

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Controls/Connectors

Controls and Connectors

Ref. Item Page Ref. Item Page

(1) Liquid Crystal Display (LCD) 4 (9) SCRAM/DCS/CTCSS (2) Channel Up/Down 7 - Scramble, DCS/CTCSS Button 14 (3) ON/OFF, Volume & AM Squelch 6 (10) MON/FM SQ/ (4) Push to Talk (PTT) Switch 8 - Monitor, FM Squelch/ Button 7,12 (5) Call Button 8 (11) AM/FM/DUAL Button 6, 7 (6) INST - Instant Button 8 (12) External Speaker Jack (7) MENU/ENTER Button 8-9, 11-14 (13) Power Input (13.8VDC) (8) SCAN/MEM/ Button 10, 11, 12 (14) HF Antenna Connection (AM) -

(15) UHF Antenna Connection (FM) -

SCAN

MEM

SCRAM

MON

FM SQ

AM/FM

DCS/CTCSS

POL

ENTER DUAL

Page 5

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Indicators

Ref. Item Page Ref. Item Page

(1) TX - Transmit 8 (12) CTCSS - Continuous Tone Coded

Squelch System 14

(2) DUP - Duplex 9

(13) DCS/CTCSS Code 14

(3) AM - AM Mode 6

(14) DCS - Digital Coded Squelch 14

(4) SQT - FM Squelch 7

(15) M - Memory 11

(5) FM - FM Mode 6

(16) Channel Frequency 7

(6) MON - Monitor 7

(17) PRI - Priority Channel 11

(7) Channel Number 7

(18) INST - Instant Channel 8

(8) VOX - Voice Activation 13

(19) GS - Group Scan 11

(9) BCL - Busy Channel Lockout 13

(20) SCAN 10

(10) S/RF - Signal receive or -

transmit RF power (21) DUAL - Dual Watch 7

(11) SCRAMBLE 14

212

Page 6

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Included with your uh095sx

nid

Mod

uh095sx

l nd (UH

/AM B) Ra

F B C

uh095sx Owners Manual

Mounting Bracket,

Mounting Screws, Washer Stars

And Screws

Optional Accessories

External Speaker (MS100) UHF CB Antenna (AT470) VOX Earphone/Mic

(VM090)

DC Power Cord with fuse

Microphone Hanger & Screws

Washers and spare fuse

Page 7

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Setting the AM Squelch

Select only by pressing . Turn the outer ring of the control to adjust the Squelch.

You must select a channel which is not in use before setting the SQUELCH control. (Selecting a Channel see p7)

Think of the squelch control as a gate. If you turn Squelch fully clockwise it raises the 'Squelch gate' so high that no signals get through.

If you turn the Squelch fully counterclockwise it lowers the 'Squelch Gate' to the extent that all signals get through weak, medium and strong signals and noise.

To set the 'Squelch Gate' to the desired level, turn the squelch knob counterclockwise until you hear noise. Then carefully turn the Squelch knob clockwise until the noise stops. Now only strong signals get through.

AM/FM

Selecting AM or FM or Dual AM+FM Band

Turn the uh095sx ON by rotating the volume control clockwise. By pressing you may select which band the uh095sx will receive and transmit on. When only is displayed the uh095sx will transmit and receive on AM CB channels which is HF Band. When only is displayed transmit and receive will be on UHF CB channels. When both

and are displayed either

or will flash reflecting the

band that the uh095sx is currently on.

AM FM AM FM

Page 8

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Setting the FM (UHF CB) Squelch

The FM Band has an Automatic Squelch Control. It requires no adjustment. However, if you are in a very high noise area it may break through. The uh095sx has 3 preset squelch levels: 1 - Normal sensitivity (minimum squelch) 2 - Medium sensitivity (medium squelch) 3 - Minimum sensitivity (maximum/tight squelch)

Select only by pressing . Press and hold /FM SQ/ . The squelch preset will flash. Use or to select preset 1, 2 or 3. Press /FM SQ/ to store. The tight squelch icon SQT flashes if level 3 is selected.

Monitor

Press momentarily to open the squelch and receive all weak signals. MON appears on the display when on. Press again momentarily to cancel.

Selecting a Channel

Press to select either or or both + . Press CH or to select the desired channel.

For your reference a list of the available channels, corresponding frequencies and guidelines for their use is printed on page 15. For Australia, UHF CB/FM Channels 05 and 35 are reserved for Emergency Calls.

Dual Watch

Dual watch will continuously monitor the Instant channel no matter what other channel or band you are on (Instant Priority Channel see p8).

Press and hold /DUAL to turn Dual Watch on or off. DUAL appears on the display when on.

AM FM AM FM

AM/FM

MON

AM/FM

Page 9

INST

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Programming the Instant Priority Channel

Press or to select the Priority Channel you prefer on either AM or FM. Press and hold INST button on the microphone for 3 seconds to store the new setting. INST icon appears.

If Dual Watch feature is on the Instant channel will always be monitored no matter what band or other channel you are on.

If Priority feature is on the Instant channel will always be monitored no matter what band or group you are scanning.

Recalling the Instant Channel

Momentarily press the INST button on the microphone at any time to return to the Instant Channel.

Transmitting

The uh095sx uses the 40 UHF-CB Channels and the 40 AM-CB Channels.

UHF Channels 22 and 23 are for telemetry and telecommand applications. Transmit is inhibited on these channels.

Select the desired channel. Press the microphone's PTT button and speak normally into the microphone. Hold it approx. 7cm from your mouth. Release the PTT button to end the transmission and listen for a reply.

Call Function

Press the microphone Call Button. A two second ringing tone will be transmitted. You may select from 5 types of tones (see below).

Current regulations require calling tones to be restricted to one transmission per minute. If a second transmission is attempted within one minute then an error tone will sound.

Selecting the Call tone

Press six times. Press or to select from call tones 1-5. Press and hold /ENTER to store the new setting.

If a button is not pressed within 10 seconds the uh095sx will automatically exit the Menu Mode.

PTT

CALL

Page 10

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Using UHF CB Repeater Channels (FM Only)

UHF CB repeaters are used to retransmit or relay your signal. Repeaters will extend the range of your radio and overcome the shielding effect caused by solid obstructions. In normal Simplex operation, your radio transmits on one particular frequency and receives on that same frequency. If there is a barrier that partially blocks your transmitted signal, the probability of another radio receiving the signal is very slim. Hills, tall buildings, metallic structures,...etc tend to act as a screen between radios.

Standard Operation without the aid of a Repeater Station.

Operation with the aid of a Repeater Station (Duplex).

The signal coming from your radio is received by the Repeater Station and the re-transmitted at the same time on another channel. This operation is called "Duplexing".

For example,

CH01 on Duplex Mode will Receive on CH01 but Transmit on CH31 CH02 on Duplex Mode will Receive on CH02 but Transmit on CH32 etc...

If you transmit on CH01 Duplex mode, you are actually transmitting on CH31 the repeater station down-coverts your signal and retransmits on CH01.

/ENTER

UHF CB Duplex Mode (FM only)

For this example we are adopting CH01 as the channel being used in your area for repeater use.

Press once. DUP flashes on the display. Press or to select duplex ON or OFF. Press and hold

to store setting. Only channels 01 - 08 are available for Duplex.

Check with your local Retailer for information on available repeaters.

Page 11

Scanning

The uh095sx scanning feature allows you to search the SCAN MEMORY for active channels on either AM or FM or both AM+FM channels at the same time. The scan memory has two main groups; Open Scan (OS) and Group Scan (GS). OS Scan searches all the channels in its memory continuously. GS Scan has the ability of monitoring a priority channel every 1.5 seconds while searching channels in its memory. Press to select which band you wish to scan. Press and Scanning starts. The SCAN icon flashes.

! The scan direction can be changed at any time by pressing or . ! To skip the active channel, press or momentarily. Scanning resumes. ! To deactivate SCAN, press or the INST button on the microphone. ! If SCAN is deactivated while Scanning has stopped on an active channel, the

uh095sx will stay on that active channel.

! If no channels are active, the uh095sx will reinstate the starting channel.

Open Scan (OS) Mode

Allows continuous scanning of all selected channels. If an active channel is found, scanning will stop on that channel.

If the received signal ceases, the unit will wait 3 seconds for the signal to return, otherwise scanning resumes.

If the PTT button is pressed during scanning the uh095sx will return temporarily to the starting scan channel and transmit. Scanning will automatically resume after 20 seconds of inactivity. If the PTT button is pressed while scanning has stopped on an active channel the uh095sx will transmit on that same channel. Scanning will automatically resume after 20 seconds of inactivity.

Programming Scan Channels see p11.

OS Mode is indicated by the absence of the GS icon.

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

AM/FM

Page 12

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Group Scan (GS) Mode

The GS scan memory is empty at factory setting. Channels must be programmed to GS scan memory for scan to work in GS mode (see Programming Scan Channels below).

Allows you to monitor a Priority channel while scanning other channels in the GS memory. The Priority channel is the same as the Instant Priority Channel, see p.8.

To use GS Mode Scanning, press two times momentarily. Press or to select ON. Press and hold /ENTER to store setting. GS appears on the display when on. GS Scanning checks the Instant Priority Channel for activity regularly.

If the priority setting is not turned on, then GS can be used in the same way as OS. (see Priority below).

The uh095sx will scan the group channels and stop on any active channel. When stopped on an active channel the Priority channel will still be monitored for activity. If the Priority channel becomes active the uh095sx will immediately switch to the Priority channel.

To deactivate SCAN, press the button or the INST button on the microphone.

Priority

Priority monitors the instant channel continuously during scanning. Press three times. Press to select ON. Press and hold /ENTER to store. PRI appears on the display when on.

Programming Scan Channels

Select which Scanning Mode you wish to use - OS or GS.

Select or or + . Select the channel you want to store using .

Press and hold /MEM to store. M icon appears and a short tone beep is heard. To remove the channel from Memory. Press and hold /MEM once more. The M icon disappears.

AM FM AM FM

SCAN

Page 13

Operation

40 Receive Channels

The uh095sx also has 40 receive only channels (CH41 to CH80) which can be programmed with frequencies ranging from 450-512MHz (in 12.5kHz steps). When programmed they are added to the FM band channels. If you know the frequency you may store it manually.

Manual Programming

Turn power off. Press and hold while turning power back on. The channel indicator flashes the lowest available empty channel. You may use the or to select another channel.

Press /ENTER . The first digit of the frequency indicator flashes. Press or to select first digit. Press or to move left or right between digit positions and press or to change digits.

When finished press /ENTER, the channel indictor flashes. Press or to select next channel for programming or press and hold /ENTER to store setting. A confirmation tone sounds. The channel is automatically entered into OS scan memory.

Deleting a Programmed Receive Channel

Follow the steps in Manual Programming to enter a frequency for a desired channel. Select 0 for the first frequency digit and then press /ENTER. Press or to select another channel or press and hold /ENTER to exit programming mode.

Roger Beep

Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT and VOX transmission.) Press eight times. Press or to display ON. Press and hold /ENTER to store the new setting.

If a button is not pressed within 10 seconds the uh095sx will automatically exit the Menu Mode.

MON

SCAN

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Page 14

Busy Channel Lockout

BCL is used when CTCSS or DCS is selected to prevent transmission when the uh095sx detects a transmission from another unit using the same CTCSS or DCS code. Press five times. Press or to select ON. Press and hold

/ENTER to store the new setting. BCL appears on the display when on.

If a button is not pressed within 10 seconds the uh095sx will automatically exit the Menu Mode.

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

VOX Operation (optional VOX headset required)

VOX is the automatic transmitting function by inputting voice into the VOX headset mic without pressing the PTT key. Press /ENTER four times. Press or to select the desired VOX sensitivity (oF, 1-9).

Press and hold /ENTER to store the new setting. VOX appears on the display when select 1-9. Connect the optional VOX headset.

If a button is not pressed within 10 seconds the uh095sx will automatically exit the Menu Mode.

Page 15

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

Operation

Scramble

Scramble enables private communications by scrambling the voice signal. This prevents users without descrambler equipment or a compatible unit understanding the conversation. Select desired channel. Press momentarily. SCRAMBLE icon appears. Press momentarily again to disable scramble.

For safety purposes Scramble is inhibited on FM channels 5, 11, 35 and Duplex enabled channels and also AM channels 9, 11 and 16 for Australia.

CTCSS (Continuous Tone Coded Squelch System - FM Only)

Press and hold DCS/CTCSS. CTCSS icon appears.

Press or to select the desired CTCSS code 01 - 38. Press DCS/CTCSS once to store the new setting. To turn off CTCSS (or DCS) select the oF code during setting.

FM Channels 5 and 35 are used for emergency channels. CTCSS and DCS will not operate on these channels.

DCS (Digitally Coded Squelch - FM Only)

DCS is a digital extension of CTCSS. It provides 104 extra, digitally coded, squelch codes that follow after the 38 CTCSS codes. CTCSS 1-38, followed by DCS 1-104.

Follow the steps for setting a CTCSS code. Press or until the DCS codes appear. Press DCS/CTCSS to store. The DCS icon and code will display.

FM Channels 5 and 35 are used for emergency channels. CTCSS and DCS will not operate on these channels.

LCD Backlight Dimmer

Press seven times. Press to select Hi, Low or Off. Press and hold /ENTER to store.

SCRAM

MENU MENU

Page 16

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

UHF CB Channels & Frequencies

Simplex Mode Duplex Mode

CH No. Transmit / Receive Transmit Scramble CTCSS/DCS Usage

Frequency (MHz) Frequency (MHz)

1 476.425 477.175 CH31 - - Repeater 2 476.450 477.200 CH32 - - Repeater 3 476.475 477.225 CH33 - - Repeater 4 476.500 477.250 CH34 - - Repeater 5 476.525 477.275 CH35 Inhibited Inhibited Repeater /Emergency 6 476.550 477.300 CH36 - - Repeater 7 476.575 477.325 CH37 - - Repeater 8 476.600 477.350 CH38 - - Repeater

9 476.625 - - - 10 476.650 - - - 11 476.675 - Inhibited - Calling 12 476.700 - - - 13 476.725 - - - 14 476.750 - - - 15 476.775 - - - 16 476.800 - - - 17 476.825 - - - 18 476.850 - - - 19 476.875 - - - 20 476.900 - - - 21 476.925 - - - 22 476.950 (RX only) - - - Telemetry 23 476.975 (RX only) - - - Telemetry 24 477.000 - - - 25 477.025 - - - 26 477.050 - - - 27 477.075 - - - 28 477.100 - - - 29 477.125 - - - 30 477.150 - - - 31 477.175 - - - Repeater 32 477.200 - - - Repeater 33 477.225 - - - Repeater 34 477.250 - - - Repeater 35 477.275 - Inhibited Inhibited Repeater /Emergency 36 477.300 - - - Repeater 37 477.325 - - - Repeater 38 477.350 - - - Repeater 39 477.375 - - - 40 477.400 - - - -

Please follow these guidelines for channel use in Australia:

• Channels 05 and 35 are Emergency Channels.

• Channel 11 is a Calling Channel.

• Channels 22 and 23 are for telemetry and telecommand applications

and TX is inhibited on these channels.

General communication is accepted on all other channels with these guidelines:

• Channel 40 - road channel (Australia).

• Channels 01-08 (and 31-38) are repeater channels.

• Scramble is inhibited on a Duplex channel when Duplex enabled.

Page 17

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

AM CB (HF Band) Channels & Frequencies

CH NO.

Frequency

AUST (MHz)

Scramble

01 26.965 02 26.975 03 26.985 04 27.005 05 27.015 06 27.025 07 27.035 08 27.055 09 27.065 10 27.075 11 27.085 12 27.105 13 27.115 14 27.125 15 27.135 16 27.155 17 27.165 18 27.175 19 27.185 20 27.205 21 27.215 22 27.225 23 27.255 24 27.235 25 27.245 26 27.265 27 27.275 28 27.285 29 27.295 30 27.305 31 27.315 32 27.325 33 27.335 34 27.345 35 27.355 36 27.365 37 27.375 38 27.385 39 27.395 40 27.405

The uh095sx will only operate on the frequencies of the country of original purchase. The frequencies cannot be changed from one country to another. It is illegal to operate a uh095sx set on Australian frequencies in New Zealand or a uh095sx set on New Zealand frequencies in Australia.

! Road Channel for Australia/New Zealand Model is shown in BOLD in the

table. Modulation: AM, Transmit Power (each channel): 4W

Usage

Road Ch(AUS)

Emergency

Road Ch(NZ)

SSB

Frequency

NZ (MHz)

26. 330

26. 340

26.350

26.370

26.380

26.390

26.400

26.420

26.430

26.440

26.450

26.470

26.480

26.490

26.500

26.520

26.530

26.540

26.550

26.570

26.580

26.590

26.620

26.600

26.610

26.630

26.640

26.650

26.660

26.670

26.680

26.690

26.700

26.710

26.720

26.730

26.740

26.750

26.760

26.770

Inhibited (AUS only)

Page 18

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

CTCSS & DCS Code List

Page 19

UNIDEN UH095SX UHF CB/AM CB TRANSCEIVER RADIO

Two Year Limited Warranty

Note: Please keep your sales docket as it provides evidence of warranty. Warrantor: Uniden Australia Pty Limited ABN 58 001 865 498

Uniden New Zealand Limited

Warranty only available in original country of purchase

Elements of Warranty: Uniden warrants to the original retail owner for the duration of

this warranty, its uh095sx Dual Band (UHF CB/AM CB) Radio (hereinafter referred to as the Product) to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.

Warranty Duration: This warranty to the original retail owner only, shall terminate and be of no further effect TWO (2) years after the date of original retail sale. This warranty will be deemed invalid if the Product is; (A) Damaged or not maintained as reasonable and necessary, (B) Modified, altered or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, or (F) Where the Serial Number label of the product has been removed or damaged beyond recognition.

Warranty only valid in the country of original retail/sale. Parts Covered: This warranty covers for two (2) years, the Product and included

accessories. Statement of Remedy: In the event that the Product does not conform to this

warranty at any time while this warranty is in effect, the warrantor at its discretion, will repair the defect or replace the Product and return it to you without charge for parts or service. This warranty does not provide for reimbursement or payment of incidental or consequential damages.

This EXPRESS WARRANTY is in addition to and does not in any way affect your rights under the TRADE PRACTICES ACT 1974 (Cth) (Australia) or the CONSUMER GUARANTEES ACT (New Zealand).

Procedure for obtaining performance or warranty: In the event that the Product does not conform to this warranty, the Product should be shipped or delivered, freight prepaid, with evidence of original purchase, (eg. a copy of the sales docket), to the warrantor at:

UNIDEN AUSTRALIA PTY LTD UNIDEN NEW ZEALAND LTD

Service Division Service Division 345 Princes Highway, 150 Harris Road, East Tamaki, Rockdale, NSW 2216 Auckland Fax (02) 9599 3278 Fax (09) 274 4253 www.uniden.com.au www.uniden.co.nz

UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio

WARRANTY

Page 20

Printed in China UTZZ01934ZA(0)
