Uniden UDW-10003 User Manual
UDW-10003 Video Surveillance System
What’s in the Box
User’s Manual
Portable receiver with 3-inch color LCD display
Two AC adapters
If any items are missing or damaged, contact our Customer Care Line immediately.
Never use damaged products!
Need Help? Get answers 24/7 at our website: www.uniden.com.
If You... Contact Uniden’s... Phone Number
have a question or problem Customer Care Line* 817-858-2929 or 800-297-1023
need a replacement part or accessory Parts Department* 800-554-3988
need special help due to a disability Accessibility Help Line 800-874-9314 (voice or TTY)
* During regular business hours, Central Standard Time. Visit our website for detailed business hours.
Software CD
Portable video camera
AV cable
Camera stand
USB cable
Important Safety Instructions!
This manual contains important information about this product’s operation. If you are installing this
product for others, you must leave this manual or a copy with the end user.
When using your equipment, always follow basic safety precautions to reduce the risk of re, electric shock and
injury to persons, including the following:
This equipment is NOT waterproof. DO NOT expose it to rain or moisture.
►
DO NOT immerse any part of the product in water. Do not use this product near water, e.g., near a bath tub,
►
wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except battery
►
powered ones) during an electrical storm.
Use only the power cord and/or batteries indicated in this manual. Never dispose of any batteries in a re:
►
they may explode. Check with local codes for possible special disposal instructions.
Never tug or pull on any power cord: be sure to leave some slack in the cord when placing your equipment,
►
and always use the plug to unplug cord from the wall outlet.
Never leave power cords where they can become crushed, cut, or frayed; when running power cords, avoid
►
letting them rub against any sharp edges or lie across any high trac areas where people might trip over
them.
Do not use the device if the adapter cords or plugs have been damaged, the unit has been exposed to
►
liquids, or the unit has been dropped or is damaged.
Warnings to Parents and Other Users
Failure to follow these warnings and the assembly instructions could result in serious injury or death. This
product is not designed or intended for use as a medical monitor, nor should this product be used as a
substitution for medial or parental supervision. Always be sure that both the transmitter and receiver are
working properly and are within range of each other.
STRANGULATION HAZARD. Keep the adapter cords out of the reach of children.
►
WARNING: KEEP OUT OF THE REACH OF CHILDREN. This product is not a toy and is not intended for use by
►
any children under the age of 13. If you are between the ages of 13 and 18, review these terms, conditions
and safety warnings with your parents or guardian to make sure that you and your parent or guardian
understand these terms, conditions, and safety warnings.
Allow for proper ventilation when units are in use. Do not cover the camera or receiver with any object such
►
as a blanket. Do not place it in a drawer or in any location which would mue the sound or interfere with
the normal ow of air.
SAVE THESE INSTRUCTIONS!
For best results:
To avoid damage to your equipment, follow these simple precautions:
Do not drop, puncture or disassemble any part of the equipment. There are no user-serviceable parts inside.
►
Do not expose the equipment to high temperatures, and avoid leaving the equipment in direct sunlight for
►
more than a few minutes. Heat can damage the case or electrical parts.
Do not place heavy items on top of the equipment or expose the equipment to heavy pressure.
►
Remove the power adapter during long periods between usages.
►
Clean only with a dry cloth.
►
Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes
no liability for damages to property or injury to persons caused by improper handling or failure to
comply with these safety instructions.
Contents
Important Safety Instructions! ........2
Warnings to Parents and Other
Users .................................................... 2
For best results: .................................... 3
Getting Started .................................4
Connect the Power ....................................4
Charge the batteries ........................... 4
Check the Video Signal ............................5
Learning Your System ......................6
Get to Know the Camera .........................6
What the buttons do ..........................6
What the lights mean ......................... 6
Using the camera mount .................. 7
Get to Know the Receiver ........................ 8
What the buttons do ..........................8
What the lights mean ......................... 9
What the connections do .................9
Using the Menu .........................................10
Using Zoom Mode ...................................11
Pan and tilt in zoom mode .............11
Understanding Night Vision .................11
Connecting to Your TV ...........................12
Reducing pixellation ........................12
Multiple Camera Features............. 13
Pairing Cameras ........................................13
Some things to know about
pairing cameras:.............................13
Changing to a Dierent Camera .........14
Setting Up a Scan .....................................15
Using Quad Display .................................16
To enter quad display ......................16
To exit quad display .........................16
Solving Problems........................... 17
Unstable or Weak Signal ........................18
Weak signal and video
performance ....................................18
Noise or Static ............................................19
Resetting Your System ...........................20
Additional Information ................. 21
Product Specications ............................21
Polymer-Lithium Battery
Warning ...................................... 22
Recycling and Disposal
Information ................................. 22
FCC Compliance Information ....... 23
Part 15 Compliance Statement ....23
RF Exposure Information ................23
IC Compliance Information ........... 23
Radio Equipment Notice .................23
CE Compliance Information .......... 23
One-year Limited Warranty .......... 24
Getting Started
LINK
POWER
button
LINK
POWER
button
POWER
button
POWER
button
Connect the Power
Connect one AC adapter to the camera’s power input and the other to the receiver’s power
1.
input. (The two adapters are exactly the same.)
Connect the other end of each adapter to a standard 120 volt AC indoor outlet.
2.
Press the
3.
Power status
If... Try...
a
doesn’t come on
POWER
button on both the receiver and the camera; the bottom light on the left (the
light) should turn on.
Power status
light
reconnecting the AC adapter
seeing if the power outlet is controlled by a wall switch
-
Charge the batteries
The batteries in your camera and receiver will charge whenever the power is connected. Let the
batteries charge completely (about 8 hours) before you unplug the camera and receiver to move
them around. (You can still use the camera and receiver: just keep them plugged in.)
4
Check the Video Signal
1
2
3
4
1
Signal
status
Channel
status
Charge
status
1
Signal
status
Channel
status
Charge
status
As soon as the receiver powers on, it detects
the camera and shows the video on the display. The
icons at the top of the screen tell you what’s going
on with the camera and receiver.
The table below shows the different status icons
and what they mean. Since the icons appear based
on the state of the camera and receiver, you won’t
see all of these icons at the same time.
Icon What it means
If... Try...
the signal status icon shows no bars
or the display says
the signal status icon shows one or
two bars or the video quality is poor
there is a lot of static on the receiver see page 19 for tips on avoiding interference
The signal from the camera is 1-low, 2-fair, 3-good, or 4-perfect.
There is no signal from the camera.
The video currently on the display comes from the camera connected
to channel 1, 2, 3, or 4.
The battery is charging. This icon disappears when the battery is full.
The video is currently zoomed in.
making sure the camera is turned on
-
No Signal
re-pairing the camera and receiver (see page 13)
-
see page 18 for tips on improving video quality
5
Get to Know the Camera
LINK
POWER
Power
connector
Link
status
LINK
Antenna
Stand
Lens
Battery
status
Power
status
LINK
POWER
Power
connector
Link
status
LINK
Antenna
Stand
Lens
Battery
status
Power
status
What the buttons do
Button What it does
Learning Your System
POWER
LINK
Turn the camera on. Press
and hold to turn it off.
Enter pairing mode.
What the lights mean
Power Status
Link Status
Battery Status
light
State What it means
On The camera is on.
Off The camera is off.
light
State What it means
Flashing The camera is in pairing mode.
Orange The camera is connected to the receiver.
Off The camera is in standby.
light
State What it means
Green The battery is charging.
Red The battery is low; the camera will turn off in 3 minutes.
Off The battery is fully charged.
6
Using the camera mount
Camera
brace
Mounting
screw
Mounting
post
Post
lock
Screw
holes
Camera
brace
Mounting
screw
Mounting
post
Post
lock
Screw
holes
1
2
4
3
Loosen the
wingnut to
unlock the
mounting
post.
Attach the camera
to the mounting
screw and turn it
to the desired
direction.
Adjust the post to
the correct angle,
then tighten the
wingnut to lock the
post into place.
Tighten the brace against
the camera to
secure it
in place.
1
2
4
3
Loosen the
wingnut to
unlock the
mounting
post.
Attach the camera
to the mounting
screw and turn it
to the desired
direction.
Adjust the post to
the correct angle,
then tighten the
wingnut to lock the
post into place.
Tighten the brace against
the camera to
secure it
in place.
The camera has a built-in stand so you can place it on any flat
surface. If you want to place your camera on a wall or a ceiling (or
even if you just want to secure it to a flat surface), you can use
the included camera mount.
(You might want to bring the receiver along when you mount
the camera; it’s much easier to get the the camera into the right
position when you have the display handy.)
Hold the base of the mount where you want to attach it, and
1.
mark the location of the screw holes.
Use the included screws and anchors to attach the base to the
2.
wall or ceiling.
Attach the camera to the mounting screw. Tighten it a few
3.
turns, then turn it to the direction you want.
Tighten the camera brace up
4.
against the back of the camera to
secure it into place.
Unlock the mounting post by
5.
turning the wingnut to the left a
few turns.
Set the mounting post to the
6.
correct angle, then tighten the
wingnut until the post is locked
into place.
7
Get to Know the Receiver
VOL+
VOL−
OK
LEFT
DOWN
Battery
Power
Status lights:
BUTTONS:
SELECT
CAMERA
UP
MENU/OK
RIGHT
ZOOM
Antenna
Speaker
Front
Power input
POWER
Audio/video
output
USB output
Stand
Side (right)
VOL+
VOL−
OK
LEFT
DOWN
Battery
Power
Status lights:
BUTTONS:
SELECT
CAMERA
UP
MENU/OK
RIGHT
ZOOM
Antenna
Speaker
Front
Power input
POWER
Audio/video
output
USB output
Stand
Side (right)
What the buttons do
Button What it does
MENU/OK
LEFT
RIGHT
UP
Open and close the menu-
In zoom mode: pan to the left side of the zoom area.
In the menu: cycle through the available options for the selected menu item.

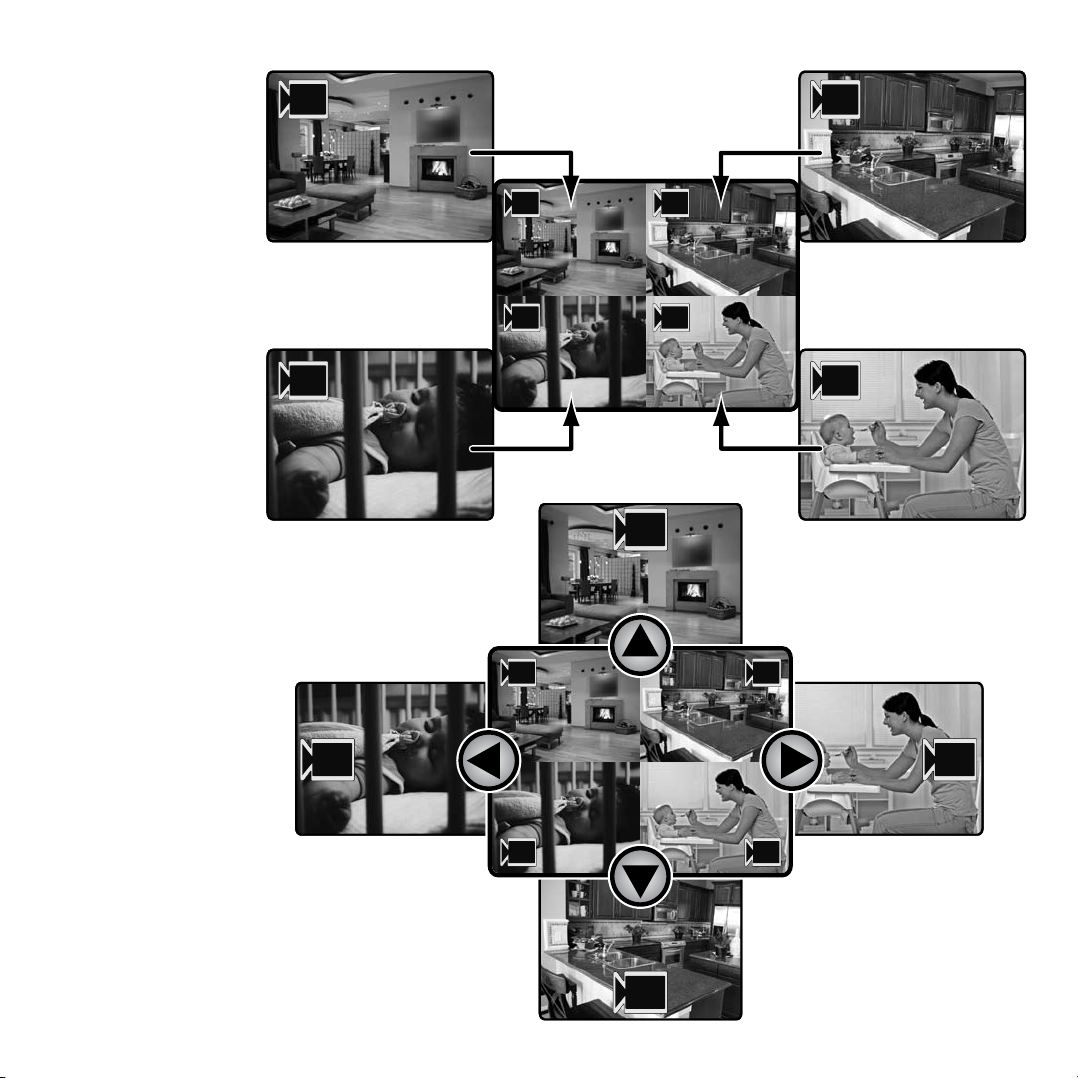

In quad display: go to channel 4.
-
In zoom mode: pan to the right side of the zoom area.
In the menu: cycle through the available options for the selected menu item.
In quad display: go to channel 3.
-
In zoom mode: pan to the top of the zoom area.
In the menu: move the cursor up one line.
In quad display: go to channel 1.
-
8
Loading...
