Uniden TRU548 User Manual

Download

Owner’s Manual

www.uniden.com

Welcome

Congratulations on your purchase of the Uniden TRU548 cordless telephone and answering system. This phone is designed and engineered to exacting standards for reliability, long life, and outstanding performance utilizing the latest in 2.4 GHz Spread Spectrum technology.

Note: Some illustrations in this manual may differ from the actual

unit for explanation purposes.

Features

• 2.4 GHz Spread Spectrum Technology

• Secure Digital Transmission

• Integrated Answering Device

• Caller ID and Call Waiting Caller ID

• Advanced Caller ID with Call Waiting Options

• 50 Number Caller ID Memory

• 20 Number Memory

• 3 Line, 16 Character Backlit Handset Display

• 3 Redial Memories (up to 32 digits)

• Flash and Pause

• Pulse / Tone Dialing

• 10 Day Standby Battery Life

• 6 Hour Talk Time

• Handset Earpiece and Ringer Volume Control

• Base Speakerphone

• 3-Way Conference Operation

• Bilingual Language, option

The TRU548 features include AutoTalk™ and AutoStandby™. AutoTalk allows you to answer a call by just removing the handset from the base so you don’t have to waste time pushing buttons or flipping switches. AutoStandby allows you to hang up by simply returning the handset to the base.

Digital Spread Spectrum Technology utilizes a “wider frequency band” vs. a “single narrow band” used in standard digital transmissions. The 2.4 GHz frequency range was recently released to commercial communications. The result is a more secure conversation with the clarity of digital sound, extended range, and minimal interference from other cordless phones.

To protect you against misbilled calls which might result from your phone being activated by other equipment, the TRU548 has Random Code™ digital security which automatically selects one of over 65,000 digital security codes for the handset and base. Also, the AutoSecure™ feature electronically locks your phone when the handset is in the base.

Be sure to visit our web site: www.uniden.com

Uniden® is a registered trademark of Uniden America Corporation. AutoTalk, AutoStandby, Random Code, and AutoSecure are trademarks of Uniden America Corporation.

Contents

Welcome/Features iv Controls and Functions 2

Getting Started

Read this first 4 Step 1: Checking the package contents 5 Step 2: Setting up the phone 6 Step 3: Installing the battery pack 7 Step 4: Setting Caller ID options/Language 13

Basics

Making and receiving calls 15 Terminology 16 Adjusting the volume 17 Redialing a call 18 Tone dialing switch-over 19 Traveling out-of-range 20 Selecting a different channel 20 Page 20

3-way conferencing 21 Flash and call waiting 21

Memory Dialing

Storing phone numbers and names 22 Steps for entering names and special characters 24 Making calls with memory dialing 26 Chain dialing 27 Editing a stored name and/or phone number 28 Erasing a stored name and phone number 30

Caller ID Features

Caller ID 31 When the telephone rings 31 Viewing the Caller ID Message list 32 Deleting information from the Caller ID list 33 Using the Caller ID list 34 Call Waiting Features 36

The Integrated Answering Device

Features 37 Turning the answering system on/off 38 Setting up your answering system 38 Using your answering system 42

Additional Information

Changing the digital security code 47 Installing the beltclip 48 Headset installation 48 Note on power sources 49 Maintenance 49 Troubleshooting 50 General Information 52 Technical Information 53 Precautions & Warranty 55 Index 57

Controls and Functions

5 6

7 8

10 11 12

13 14

16 17

1. Handset antenna

2. Headset jack cover

3. Handset battery compartment

4. Handset earpiece

5. LCD display

6. Memory key

7. Talk key

8. Vol (volume)/▼(cursor down) key

9.*/ (left cursor)/tone key

10. Redial/p (redial/pause) key

11. Options key

12. Handset microphone

13. Vol (volume)/▲(cursor up) key

14. Flash key

15. Cid (Caller ID) key

16. #/ (right cursor) key

17. Delete key

18. Select/Channel key

19. Handset charging contacts

CONTROLS AND FUNCTIONS[ 2 ]

20 21

22 23

24 25

42 43 44 45

28 29

30 31

32 33 34 35

36 37

39 40

20. Base Retainer

21. Pin Set Key

22. Clock Set Key

23. (Delete) Key

24. (Repeat) Key

25. Voice Memo Key

26. (Answer On/Off) Key

27. Base Charging Contacts

28. Base Speaker

29. Base Antenna

30. Spekaer LED

31. (Volume Up) Key

•

32. (Volume Down) Key

33. (Speaker) Key

34. (Play/Stop) Key

35. Status LED

36. (Skip) Key

37. Greeting Key

38. (Page/find) key

39. Record Time Switch

40. Ring Time Switch

41. Base Microphone

42. Base Ringer Switch

43. Pulse-Tone Switch

44. DC Power Input

45. Phone Jack

CONTROLS AND FUNCTIONS

[ 3 ]

Read This First

This cordless telephone must be set up before use. Follow these steps:

Step 1 (page 5)

Unpack the telephone and accessories.

Step 2 (page 6)

Next, choose the best location to set up the base unit.

Base unit

Step 3 (page 7 to 10)

Then, insert the battery pack into the handset. You must charge the battery pack for 15-20 hours before

plugging into the phone line and using the phone.

Step 4 (page 13 to 14)

Finally, set the Caller ID options and store your area code in the memory to use the Caller ID service.

Note: Skip the area code setting if your calling area requires 10-digit dialing.

GETTING STARTED[ 4 ]

Handset

About the digital security code

This cordless telephone uses a digital security code to prevent unauthorized access to your base unit. This security code prevents other cordless handsets from making calls through your base unit. A random security code will be assigned automatically between your base unit and handset when you charge the battery pack for the first time. If you want to reset the security code, see page 47.

Checking the Package Contents

Make sure you have received the following items in the package. If any of these items are missing or damaged, contact the Uniden Parts Department (see below).

GETTING STARTED

• Base unit • Handset • AC adapter (AD-313)

• Telephone line cord

• Beltclip

• Wall mount adapter

Uniden Parts Department

(800) 554-3988 Hours: M-F 7:00 AM to 5:00 PM CST.

We can also be reached on the web at www.uniden.com

• Rechargeable battery pack (BT-800)

Also included:

• This Owner’s Manual

• Quick Reference Guide

• Registration Card

GETTING STARTED

[ 5 ]

Setting Up the Phone

Do the following steps: A. Choose the best location C. Connect the base unit B. Install the battery pack D. Choose the dialing mode

A. Choose the best location

Before choosing a location for your new phone, read the “Installation Considerations” included in the “Precaution & Warranty”. Here are some important guidelines you should consider:

Avoid noise sources such as a window

Avoid heat sources, such as radiators, air ducts, and sunlight

Avoid television sets and other electronic equipment

by a street with heavy traffic

Avoid microwave ovens

Avoid excessive moisture, extremely low temperatures, dust, mechanical vibration, or shock

Avoid personal computers

Choose a central location

Avoid other cordless telephones

• The location should be close to both a phone jack and a continuous power outlet which is not switchable.

• Keep the base and handset away from sources of electrical noise such as motors and fluorescent lighting.

• Be sure there is sufficient space to raise the base antenna to a vertical position.

• The base can be placed on a desk, tabletop, or mounted on a standard wall plate.

GETTING STARTED[ 6 ]

B. Installing the Battery Pack

Charge the battery pack for at least 15-20 hours before plugging the telephone jack and start using your phone.

1 Press in on the battery cover release and slide the

cover down until it comes off.

2 Connect the battery pack connector with the correct

polarity (black and red wires) to the jack inside of the battery compartment.

Do not exert any force on this connection. It could cause damage to the battery or to the handset. The plastic connectors will fit together in only one way. Once you are certain that you have made a good connection, then insert the battery pack into the battery compartment. Do not pinch the wires.

3 Securely close the battery compartment cover by

sliding it up until it snaps into place.

4 Place the handset on the base. Remove the beltclip, if

attached, for face up charging.

BATTERY PLUG-IN

DIRECTION

BLACK RED

GETTING STARTED

Use only the Uniden Battery (BT-800) supplied with your phone. Replacement batteries are also available through the Uniden Parts Department (See page 5).

GETTING STARTED

[ 7 ]

Battery use time (per charge)

From fully charged

• 6 hours continuous use

• 10 days when the handset is in the standby mode

• Even when the battery pack is not being used, it will gradually discharge over a long period of time. For optimum performance, be sure to return the handset to the base unit after a telephone call.

• If you must replace the battery pack during a telephone call, complete the replacement of the battery pack within 30 seconds, and you can return to the original call.

Low Battery Alert

When the battery pack is very low and needs to be charged, the phone is programmed to eliminate functions in order to save power. If the phone is not in use, “

Battery

If the phone is in use, “

” appears on the LCD and none of the keys will operate.

Low Battery” flashes and the handset beeps.

Low

Complete your conversation as quickly as possible and return the handset to the base unit for charging.

The last number dialed in the redial memory, the names and the numbers stored in the memory locations are retained for up to 2 minutes while you replace the battery pack.

Cleaning the Battery Charging Contacts

To maintain a good charge, it is important to clean the battery contacts on the handset and base unit with a dry cloth or a pencil eraser about once month. Do not use any liquids or solvents.

GETTING STARTED[ 8 ]

C. Connect the base unit

1 Connect the AC adapter to the DC IN 9V

jack and to a standard 120V AC wall outlet.

2 Set the base on a desk or tabletop, and

place the handset on the base unit as shown. Remove the beltclip, if attached, for face up charging. (See “Mounting the Base Unit on a Wall”, on page 11.)

3 Then raise the antenna to a vertical

position.

4 Make sure that the status LED lights. If the LED does not

light, check to see that the AC adapter is plugged in and that the handset makes good contact with the base charging contacts.

• Use only the supplied AD-313 AC adapter. Do not use any other AC adapter.

• Connect the AC adapter to a continuous power supply.

• Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.

• After installing the battery pack in the handset, charge

your handset at least 15-20 hours before plugging into the phone line. Once the handset battery pack is fully charged, connect the telephone line cord to the base and telephone wall outlet.

5 Connect the telephone line cord to the TEL

LINE jack and to a telephone outlet once

the handset is fully charged.

GETTING STARTED

The handset can be placed up or face down in the base for charging.

Place the power cord so that it does not create a trip hazard or where it could become chafed and create a fire or electrical hazard.

If your telephone outlet isn't modular, contact your telephone company for assistance.

GETTING STARTED

[ 9 ]

D. Choose the dialing mode

Most phone systems use tone dialing which sends DTMF tones through the phone lines. However some phone systems still use pulse dialing such as in rural areas. The default setting is tone dialing. Depending on your dialing system, set the mode as follows:

If your dialing system is Set the switch to

Tone TONE

Pulse PULSE

•If you are not sure of your dialing system, set for tone dialing. Make a trial call. If the call connects, leave the setting as is, otherwise set for pulse dialing.

• If your phone system requires pulse dialing and you need to send the DTMF tones for certain situations during a call, you may “switch-over” to tone dialing. (Refer to “Tone Dialing Switch-over” on page 19.)

GETTING STARTED[ 10 ]

Mounting the base unit on a wall

Setting the handset retainer clip for wall mounting

On the base unit, pull the handset retainer out of the slot. Rotate it clockwise 180 degrees.

Flip the retainer from front to back. Slide it back into the slot so that the lip of the retainer is up and the oval is down. The retainer holds the handset in place.

GETTING STARTED

Standard wall plate mounting

This phone can be mounted on any standard telephone wall plate.

Snap the wall mount adapter into the notches on the base.

Plug the AC adapter to the

DDCC IINN 99VV

jack. Route the AC adapter cord inside the molded wiring channel as shown.

Plug the AC adapter into a standard 120V AC wall outlet.

Plug the telephone line cord into the

TTEELL LLIINNEE

the cord inside the molded wiring channel as shown.

Plug the telephone line cord into the telephone outlet.

Raise the antenna to a vertical position.

Align the mounting slots on the base with the mounting posts on the wall. Push in and down until the phone is firmly seated.

jack. Route

GETTING STARTED

Do not use an outlet controlled by a wall switch.

[ 11 ]

Direct wall plate mounting

If you don’t have a standard wall plate, you can mount your phone directly to the wall. Before doing this, consider the following:

• Avoid electrical cables, pipes, or other items behind the mounting location that could cause a hazard when inserting screws into the wall.

• Try to mount your phone within 10 - 15 feet of a working phone jack to avoid excessive cord lengths.

• Make sure the wall material is capable of supporting the weight of the base and handset.

• Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable for the wall material where the base unit will be placed.

1 Insert two mounting screws into the wall, (with their

appropriate anchoring device), 1/8 inches apart. Allow about 3/16 of an inch between the wall and screwheads for mounting the phone.

2 Set the retainer clip if necessary.

3 Refer to steps 1 through 7 on page 11 to mount the

telephone.

GETTING STARTED[ 12 ]

Setting Caller ID Options/Language

There are three Caller ID setup options available: AutoTalk, CIDCW (Caller ID on Call Waiting), and Area Code. (See page 14 for Area Code setup instructions.)

AutoTalk™ allows you to answer the phone without pressing the button. If the phone rings when AutoTalk is on, simply remove the handset from the base and the phone automatically answers the call. Or if the handset is not on the base, press any key to answer the call. If the phone rings when AutoTalk is off, you must press to answer the call.

Caller ID on Call Waiting (CIDCW) performs the same as regular Caller ID on a call waiting number. Call waiting options allow you to handle call waiting calls in six different ways. (See page 36.)

You must subscribe to CIDCW from your local phone company in order to use this feature. The Call Waiting options are a separate service available through your phone company.

Language option can be used to choose the language of your display. You can

select either English or French. To change your Caller ID options/Language:

1 Press in the standby mode.

The following screen appears.

2 Use and or a number key (1-3) to move the pointer

3 To set up the language of your display, press or

4 After you have made your Caller ID selections, press and return the

•

to the selection that you would like to change. Press to toggle between “ For “

CIDCW”, choose “On”, “Off”, or “Opt” depending upon the type of

On” and “Off” for “Auto Talk”.

service to which you subscribe.

the number key to move the pointer to “Language”. Press to select “

Eng” (English) or “Fr.”

(French).

handset to the base.

GETTING STARTED

[ 13 ]

If your calling area requires 10-digit dialing, do not program this option.

Entering Your Area Code

If you enter a 3-digit area code number in the Area Code option, your local area code does not appear in Caller ID messages. Do not program this option, if your calling area requires 10-digit dialing. When reviewing Caller ID messages, you will see only the local seven digit number. For calls received from outside your local area code, you will see a full 10-digit number.

1 When the phone is in the standby mode, press .

The Caller ID setting screen appears.

2 Press to select “

Area Code” or press .

3 Press .

4 Use the number keypad ( to ) to enter the 3-digit area code.

5 Press . A tone sounds and the displayed area code is entered.

6 Press to complete the setting or return the handset to the base. The

handset returns to the standby mode.

When the area code has already been stored in memory, the stored area code will be displayed. To change it, use the and number keypad to enter the new area code. Then press

To complete the setting, press or return the handset to the base unit.

GETTING STARTED[ 14 ]

Making and Receiving Calls

From the handset

To answer

a call

To make

a call

To hang up

Handset On the Base

Pick up the handset (AutoTalk) or pick up the handset and press .

1)Pick up the handset.

2)Press .

3)Listen for the dial tone.

4)Dial the number.

1)Pick up the handset.

Dial the number, then press .

Press , or return the handset to the base (AutoStandby).

Handset Off the Base

Press any key (Any Key Answer).

1)Press .

2)Listen for the dial tone.

3)Dial the number.

Dial the number, then press .

Press .

Refer to page 13 “Setting Caller ID Options/ Language” to turn on Auto Talk feature if desired.

BASICS

[ 15 ]

From the base (Receiving Calls only)

1 The phone rings. The status LED on the

base flashes.

The base microphone is located under the base. Position yourself as near to the base as possible and speak clearly.

2 Press and begin speaking.

The speaker LED lights.

3 To hang up, press .

Terminology

Throughout this manual, terms such as Standby and Talk Mode are used. Below is the terminology explanation.

• Standby Mode -The handset is not in use, off the base, and has not

been pressed. A dial tone is not present and the display is blank.

• Talk Mode -The handset is off the base and has been pressed

enabling a dial tone. “

Talk” appears on the display.

BASICS[ 16 ]

Adjusting the Volume

Handset ringer tone and volume

Press or in standby mode to select one of four

•

ringer tone and volume combinations.

Earpiece volume

Pressing or during a call will change the earpiece volume of the handset. This setting will remain in effect after the telephone call has ended.

•

Ringer A High

Ringer A Low

Ringer B High

Ringer B Low

•

BASICS

When you press in Maximum mode or in Low mode, an error tone sounds.

•

Ringer off

During the standby mode or tone/volume setting,

until the phone beeps and

press and hold “

Ringer Off” appears.

To turn the ringer back on, simply press “

Ringer A High” appears.

•

Base ringer switch

This switch turns the base ringer on or off.

Base speaker volume

To control the speaker volume of the base, adjust the volume and

•

as desired.

BASICS

[ 17 ]

• If the number exceeds 32 digits, only the first 32 digits are retained for redialing.

• Press and hold to delete the displayed redial number.

• Refer to terminology explanation on page 16, if necessary.

Redialing a Call

The last three phone numbers dialed can be quickly redialed.

Redialing from Standby Mode

From the Handset

1 Press .

The phone number that was last dialed appears on the display.

2 Press again.

Each press of will display one of the last three numbers dialed.

Most

recent

3 Press . “

Talk” appears on the display, then the volume setting

is displayed.

4 The selected number is dialed. After about 5 seconds, the call-time

display appears.

5 To hang up, press or place the handset on the base. The call-time will

be displayed for about 5 seconds.

BASICS[ 18 ]

Redial from Talk Mode

1 Press .

“

Talk” and the volume setting appears on the display.

If you set the ringer to off, “<Ringer Off>” appears on the display.

2 Press .

The last number dialed will be displayed and redialed.

3 To hang up, press or place the handset on the base. The call-time will

be displayed for about 5 seconds.

Tone Dialing Switch-over

• Only the last number dialed can be accessed after has been pressed.

BASICS

Some telephone companies use equipment that require pulse dialing (sometimes referred to as rotary dialing). If you need to enter tone dialing digits, you can switch-over to tone dialing during the call. An example of this could be entering your bank account number after you have called your bank. The digits of your bank account can be sent using DTMF tones. Initially make your call with the pulse dialing mode. Once your call connects, press . Enter the desired number (like in the example above, the bank account number). These digits will be sent as tone dialing. This special number can be stored in a memory location. This is referred to as Chain Dialing (See page 27). Once the call ends, the tone mode is canceled and pulse dialing mode resumes.

• The tone feature only applies when the dial mode is set to pulse.

BASICS

[ 19 ]

Traveling Out-of-Range

During a call, as you begin to move your handset too far from your base unit, noise increases. If you pass the range limits of the base unit, your call will terminate within 30 seconds.

Selecting a Different Channel

If you encounter interference while using your phone, you can manually change the phone’s channel for clear operation. Interference can come from appliances or other phones in your home. This function works only when the phone is in use. During the course of a conversation, if you hear static or noise which makes it difficult to hear, press . “ indicating the phone is changing to another channel. For more information on interference, refer to “Technical Information” on page 53.

Scanning” appears on the display,

Page

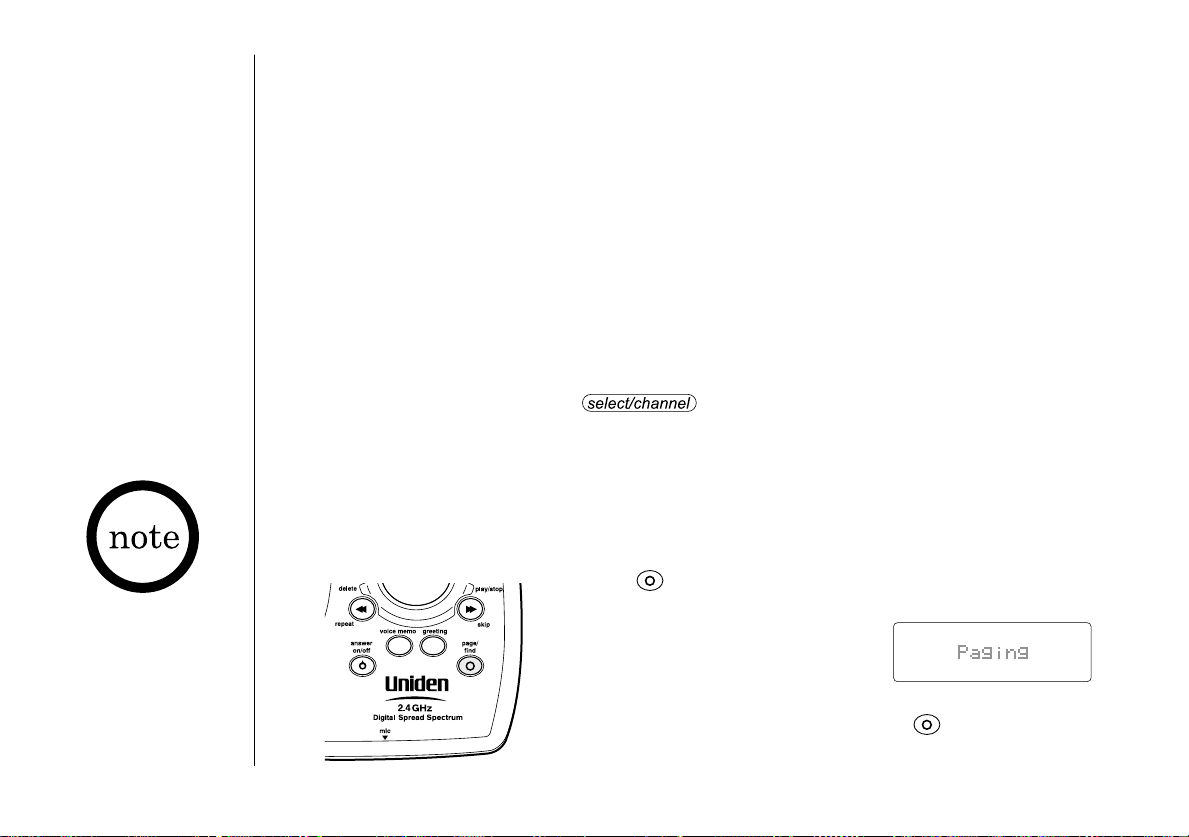

To locate the handset

1 Press on the base.

When an incoming call is received during paging, paging is canceled and the telephone is switched to the incoming call.

BASICS[ 20 ]

2 The handset beeps for 60

seconds. The following screen appears:

3 Press any key on the handset or on the

base, or return the handset to the base to end the page.

3-way Conferencing

The Uniden TRU548 permits 3-way conversations between the handset, base, and on outside lines.

When speaking on the base

1 Press on the base to join

the 3-way conversation.

2 To hang up, press on the base. The handset will

still be connected to the call.

When speaking on the handset

1 Press on the handset to join the 3-way conversation. 2 To hang up, return the handset to the base, or press

on the handset. The base will still be connected

to the call.

Flash and Call Waiting

If you have “Call Waiting” service and a call waiting tone sounds while you are on a call, press to accept the waiting call. There is a short pause, then you will hear the new caller. To return to the original caller, press again.

• You must subscribe through your local telephone company to receive Call Waiting Service.

• You must set the CIDCW to “on“ in the Caller ID set up options (see page 13).

Pressing the key on the base while dialing with the handset will set the 3-way conversation mode, and dialing is not affected.

BASICS

[ 21 ]

BASICS

Storing Phone Numbers and Names

Memory Dialing allows you to dial a number using just a few key presses. Your TRU548 stores up to 20 names/numbers in the handset.

• In memory dialing operation, you must press a key within 20 seconds or the phone will return to standby. If you return the handset to the base, the phone will return to standby also.

• You have 20 seconds after pressing to enter the number you wish to store. Otherwise, an error tone sounds.

With the Handset

1 Press and hold until “Memory Store”

is displayed.

2 Press and or enter a two-digit number (01 - 20) to select the

•

memory location where you would like to store the number.

3 Press . The following screen appears and a

cursor flashes indicating that the display is ready for the name to be entered.

If this screen appears, the selected memory location is already stored. Then you must either change the entry in this location, clear the entry in this location, or select “

Go Back” to choose another location.

4 Use number keys, , , or to enter the name. The

name cannot exceed 13 characters.

• See the “Steps for entering names and special characters” (See pages 24-25).

• Use and to move the cursor to the desired location.

• Use to delete characters as needed.

• Press and hold to delete all the characters.

• If a name is not required, go to step 5.

Memory Store 01 02

Store Name

Edit Memory07 Delete Memory07 Go Back

[ 22 ]

MEMORY DIALING

5 Press . “Store Number” is displayed.

The cursor flashes indicating that the display is ready for the number to be entered.

6 Use the number keypad to enter the phone number.

The phone number cannot exceed 20 digits.

• Use to enter pause in the dialing sequence. The display shows a “P”. Each pause counts as one digit and represents a two second delay of time between the digits.

• Use to delete digits as needed.

7 Press . The handset beeps and displays the

confirmation screen. Memory storage is complete. For example, if you store a name and number into memory location number 07, the display shows “

Memory07 Stored”.

After about 2 seconds, “

Memory Store” is displayed.

8 Press to return to standby mode.

Store Number

Store Number 8002971023

Memory07 Stored

Memory Store 07 UNIDEN CORP 08

• The pause feature is useful for long distance calling, credit card dialing, or sequences that require a pause between digits.

• The pause key counts as one digit. Pressing

more than once increases the length of pause between numbers.

• The 20 memory locations are represented by the numbers 01-20 on the keys. If you store a number in one of locations, then attempt to store a different number in the same location later, the new number will overwrite the previous one.

MEMORY DIALING

[ 23 ]

Steps for Entering Names and Special Characters

Refer to the letters on the number keys to select the desired characters. With each press of a numeric key, the displayed character appears in the following order: Upper case letters first, lower case letters next and finally the number corresponding to the key.

Number of times key is pressed

keys

123456789

ABCabc2

DEFdef3

GHIghi4

JKLjkl5

MNOmno6

PQRSpqrs7

TUVtuv8

WXYZwxyz9

*#-&()(blank) 0

If you make a mistake while entering a name

Use or to move the cursor to the incorrect character. Press

delete all characters, press and hold .

[ 24 ] MEMORY DIALING

to erase the wrong character, then enter the correct character. To

For example, to enter Uniden:

1 Pick up the handset and press and hold .

•

2 Enter a number or press , to select a memory location number.

3 Press .

4 Press twice.

5 Press five times.

6 Press six times.

7 Press four times, then press to move the cursor to the right.

If the next character uses the same number key, you must press to move the cursor over. Otherwise the next time you press the number key, it changes the character that was previously set.

8 Press five times.

9 Press five times.

10 When finished, Press .

To continue to store the telephone number, proceed to step 6 on page 23.

MEMORY DIALING

[ 25 ]

• If you press before

, you can confirm the name and number stored in the selected memory location. To exit this mode, press and hold until the display clears.

• To exit the memory function without dialing, press . The handset returns to standby.

• Whenever you are using a menu screen, you must press a key within 20 seconds or the phone will return to standby.

Making Calls with Memory Dialing

Memory dialing from Standby Mode

1 Press .

The handset displays your programmed memory locations.

2 Press and or enter a two-digit number (01 - 20) to

•

select the memory location you would like to dial.

3 Press . “

Talk” and the volume setting appear on

the display. Then the displayed number is dialed.

Display a Programmed Number

Use and to toggle between the names display and the numbers display.

Program name Program number

01 UNIDEN CORP 02 JOHN DOE 03 MOM AND DAD

01 8002971023 02 5452930

03 8175551212

01 UNIDEN CORP 02 JOHN DOE 03 MOM AND DAD

Talk 0123456789012

[ 26 ] MEMORY DIALING

When the stored phone number has 14 or more digits, “\” is displayed next to the 12th digit. Press to see the extra digits and to return.

05 012345678901 06 011813554329 07

Memory dialing from Talk Mode

1 Press . “Talk” and the volume setting appears.

If you set the ringer to off, “<Ringer Off>” appears on the display.

2 Press .

3 Enter a two-digit number (01 - 20) to select the memory

location of the desired phone number. The selected

Talk 0:00

Talk 0:35 0123456789012

phone number is displayed. Then the number is dialed.

4 To hang up, press .

Chain Dialing

The 20 memory locations on the handset are not limited to phone numbers. You may want to store in memory a group of numbers (up to 20 digits) that you need to enter once your call connects. This is referred to as Chain Dialing. An example of this is a bank account number. Once you have called your bank, when you are prompted to enter the account number, simply press

and then the location where the special number has been stored. Store your special number with identifying name in memory as you would a phone number (Refer to “Storing Phone Numbers and Names” on page 22). Enter a pause as necessary in the sequence. A pause counts as one digit and represents a two second delay in time between digits as they are sent.

MEMORY DIALING

If you select a memory location that does not have a stored number, the handset will beep rapidly and the phone will not dial.

MEMORY DIALING

[ 27 ]

Editing a Stored Name and/or Phone Number

1 Press and hold until “Memory Store”

is displayed.

2 Press and or enter a two-digit number (01 - 20)

•

Memory Store 01 UNIDEN CORP 02 JOHN DOE

to select the memory location you would like to edit.

3 Press .

The following screen appears with the memory location number that you have selected in the display.

•

4 Press or to select “

Edit Memory”, then press

Edit Memory01 Delete Memory01 Go Back

. The following screen appears. The cursor flashes indicating that the display is ready for the name to be edited. When a name has not been

Store Name UNIDEN CORP

stored, the cursor appears at the beginning of the second line.

5 Use the number keypad, , , or to edit the name

(See page 22). To edit only the phone number, skip this step.

6 Press . The following screen appears.

The cursor flashes indicating that the display is ready for the number to be edited.

[ 28 ] MEMORY DIALING

7 Use the number keypad, or to edit the

phone number. The phone number cannot exceed 20 digits (See page 23). If you don’t want to change the phone number, skip this step.

8 Press . The handset beeps and displays the

confirmation screen. The memory storage is complete. For example, if you store a name and number into memory location number 01, the display shows “

Memory01 Stored”. After about 2 seconds,

“

Memory Store” is displayed.

9 Press to return to standby mode.

Memory01 Stored

Memory Store 01 UNIDEN CORP 02 JOHN DOE

MEMORY DIALING

[ 29 ]

Erasing a Stored Name and Phone Number

1 Press and hold until “Memory Store”

is displayed.

2 Press and or enter a two-digit number (01 - 20) to

•

select the memory location you would like to erase.

3 Press .

The following screen appears with the memory location number that you have selected in the display.

4 Press to move the pointer down to

“

Delete Memory” command line.

5 Press . The following confirmation

screen appears.

6 Press to move the pointer to “

•

Yes”.

7 Press or .

There is a confirmation tone and the entry is deleted. The following screen appears.

8 After a few seconds the display returns to the

“

Memory Store” screen.

You may select another number to erase (return to step 2) or press to return to standby.

Memory Store 01 UNIDEN CORP 02 JOHN DOE

Edit Memory02 Delete Memory02 Go Back

Delete Memory02? Yes No

Memory02 Deleted

Memory Store 02 03 MOM AND DAD

[ 30 ] MEMORY DIALING

Caller ID

You must subscribe to Caller ID service to use this feature.

When the telephone rings, the Caller ID feature allows you to view the caller’s name and phone number on the display before you answer the phone. The handset displays the incoming call phone number, name, time, and the number of calls. Additionally, you can dial the displayed number and store the information for memory dialing. Make sure you have turned on the Caller ID/Call Waiting feature (See page 13).

CALLER ID FEATURES

• If you answer a call before the Caller ID message is received (Example: before the second ring), the Caller ID message will not appear.

When the Telephone Rings

1 When the Caller ID message is received, the display shows the caller’s

name and phone number. The incoming call information is stored in the Caller ID record. If the Caller ID service includes the caller’s name, the caller’s name appears on the display (up to 15 letters).

Here are some typical displays;

When the phone number and name data are received

When invalid data is received

When a private number is receivedWhen a private name is received

• When the call is received via a telephone company that does not offer Caller ID service, the caller’s phone number and name do not appear. (This includes international calls.)

• When the call is via a private branch exchange (PBX), the caller’s phone number and name may not appear.

CALLER ID FEATURES

[ 31 ]

When an unknown number is receivedWhen an unknown name is received

• In Caller ID operation, if no key is pressed within 20 seconds, an error tone sounds and the telephone returns to the standby mode.

• If a call comes in via a telephone system that does not offer Caller ID service, no information is stored.

• Each message can be up to 15 characters for the phone number and the name.

When the ringer is set off, “<Ringer Off>” appears.

2 When you pick up the phone, the display changes to “Talk”. (AutoTalk

feature is set to on)

Data errors appear as “2”.

Viewing the Caller ID Message List

The Caller ID list stores information for up to 50 incoming calls - even unanswered calls.

1 Press

The summary screen appears. The screen shows the number of new messages and total messages.

2 Press to display the latest Caller ID message.

3 Press to see the next message. Or press to see

previous message.

4 Press to return to standby.

in the Standby mode

New :01 Total:02

5/17 12:30PM 03 UNIDEN CORP 800-297-1023

•

[ 32 ] CALLER ID FEATURES

Deleting Information from the Caller ID List

The TRU548 stores up to 50 messages. If the phone receives the 51st message, the oldest one in the list is automatically deleted. Caller ID data can also be deleted manually.

Deleting a Caller ID message

1 Press . Display the message to be deleted from

•

the Caller ID list by pressing or .

2 Press .

•

3 Press or to select “

Yes” or “No”.

4 Press or .

When the pointer is at “

Yes”:

A tone sounds and the Caller ID message is deleted. The Caller ID message is then displayed.

When the pointer is at “No”:

The display returns to the Caller ID message.

5/17 12:30PM 03 UNIDEN CORP 800-297-1023

Delete Message? Yes No

• While using the “

Delete All?” or

“

Delete Message?”

screen, if no key is pressed within 20 seconds, an error tone sounds and the telephone returns to standby.

• If you get an incoming call or page, the deleting operation is canceled and the telephone returns to Standby so you can answer the call or page.

CALLER ID FEATURES

Deleting all Caller ID names/numbers

1 Press .

2 Press .

New :01 Total:02

Delete All? Yes No

CALLER ID FEATURES

[ 33 ]

3 Press or to select “Yes” or “No”. 4 Press or .

• You cannot make a call from the Caller ID list if your TRU548 is connected to a private branch exchange (PBX).

• When a long distance call has been set, “ appears in the display.

1”

Using the Caller ID List

Calling a party from the Caller ID list

You can place a call from the Caller ID list. The TRU548 stores up to 50 messages.

1 Press . Select the phone number that you want to

2 Press . The displayed phone number dials

Long Distance calls and Area Code Setting/Cancellation

Pressing while the incoming Caller ID information is displayed (in step 1) will place the prefix “ Pressing will set or cancel an area code setting.

Dial edit

You can temporarily edit the Caller ID number that is displayed by pressing

left, make your changes, and then press . This will not change the number in the Caller ID list memory. If you want to save this new number, store the information in memory (See page 35).

[ 34 ] CALLER ID FEATURES

•

When the pointer is at “

Yes”:

A tone sounds and all stored Caller ID messages are deleted.

When the pointer is at “

No”:

The display returns to the summary screen.

•

dial by pressing or .

automatically.

1” in the display to set up for a long distance call.

. A cursor appears in the display. Press to move the cursor

Total:00

New :01 Total:02

5/17 12:30PM 03 UNIDEN CORP 800-297-1023

Talk 8002971023

Storing Caller ID messages in Memory dialing

Messages shown in the Caller ID list can be stored in memory dialing. Using the incoming call information (i.e., Caller ID list), the phone number of the party on the Caller ID list can be stored in memory dialing.

CALLER ID FEATURES

1 Press .

Select the phone number to be stored from the Caller ID list by pressing or .

•

2 Press .

3 Press and or enter a two-digit number (01 - 20)

•

to select the memory location to be stored.

4 Press .

A tone will sound. The number is stored in memory, and the display returns to the Caller ID list.

If a message has already been stored in the selected memory number location, a confirmation screen is displayed. Press to select “

Yes”. Press to overwrite. The

display returns to the Caller ID list.

•

5/17 12:30PM 03 UNIDEN CORP 800-297-1023

Select Location 01 UNIDEN CORP 02 JONE DOE

5/17 12:30PM 03 UNIDEN CORP 800-297-1023

Replace Memory? Yes No

• You can not store a Caller ID message if no phone number appears in the message.

• If there is an incoming call or page, memory storage is canceled and the telephone is set to receive the incoming call or page.

CALLER ID FEATURES

[ 35 ]

When CIDCW is set to “

Opt” in the Caller ID

setup options (see page

13), you can view a list of ways to handle the new call.

Call Waiting Features

Your TRU548 gives you new options for call waiting. At the touch of a button, you can ask the caller to hold or conference them into your current call. You may be required to subscribe to call waiting and call waiting options to use these features. Not all features are available in all areas. Check with your local telephone company for details.

1 When you receive a call waiting call, press

for a list of options.

2 Press the or key or number keys to select

an option.

3 Press .

A confirmation screen will appear.

Your TRU548 is pre-programmed with six call waiting options. You may select to ask the calling party to hold, send them a busy message, or conference them into the current call. You may also select to answer and drop the first caller or, at any time, choose to drop the first or drop the last caller.

Check with your local telephone company for a full list of options.

[ 36 ] CALLER ID FEATURES

•

The Integrated Answering Device

The TRU548 has a built-in answering system that answers and records incoming calls. You can also use your answering system to record a conversation, leave a voice memo message for others who use the phone, or to announce a special message to callers when you’re away from your phone.

Features

• Digital Tapeless Recording

• 15 Minutes of Recording Time

• Selective Greetings (Outgoing Messages)

• Message Received Time and Day Announcement

• Remote Message Retrieval and Room Monitor

• Toll Saver

• Conversation Recording

Digital Tapeless Recording allows you to quickly review, save or delete the messages. You’ll never have to worry about a tape wearing out, jamming, or resetting improperly.

The Integrated Answering System is easy and convenient to use, but please read through all of the instructions carefully.

ANSWERING DEVICE

THE INTEGRATED

THE INTEGRATED ANSWERING DEVICE

[ 37 ]

• Press and hold or to quickly scroll

through numbers on the display.

• If you don’t complete

the clock setting within two minutes, the system returns to standby.

• You must press a key

within 2 minutes or the phone returns to standby.

[ 38 ]

THE INTEGRATED ANSWERING DEVICE

Turning the answering system on/off

1 To turn the answering system on, press . The

current greeting message will be played and you will hear a tone. The message counter displays the number of messages stored in memory. If the display flashes, then there are new messages waiting for you.

2 To turn the answering system off, press again.

After the announcement “Answer Off” the message counter display goes out.

When the answering system is full, displays on the base and the system announces “No remaining time”. You should delete some messages so that the system can record new messages.

Setting Up Your Answering System

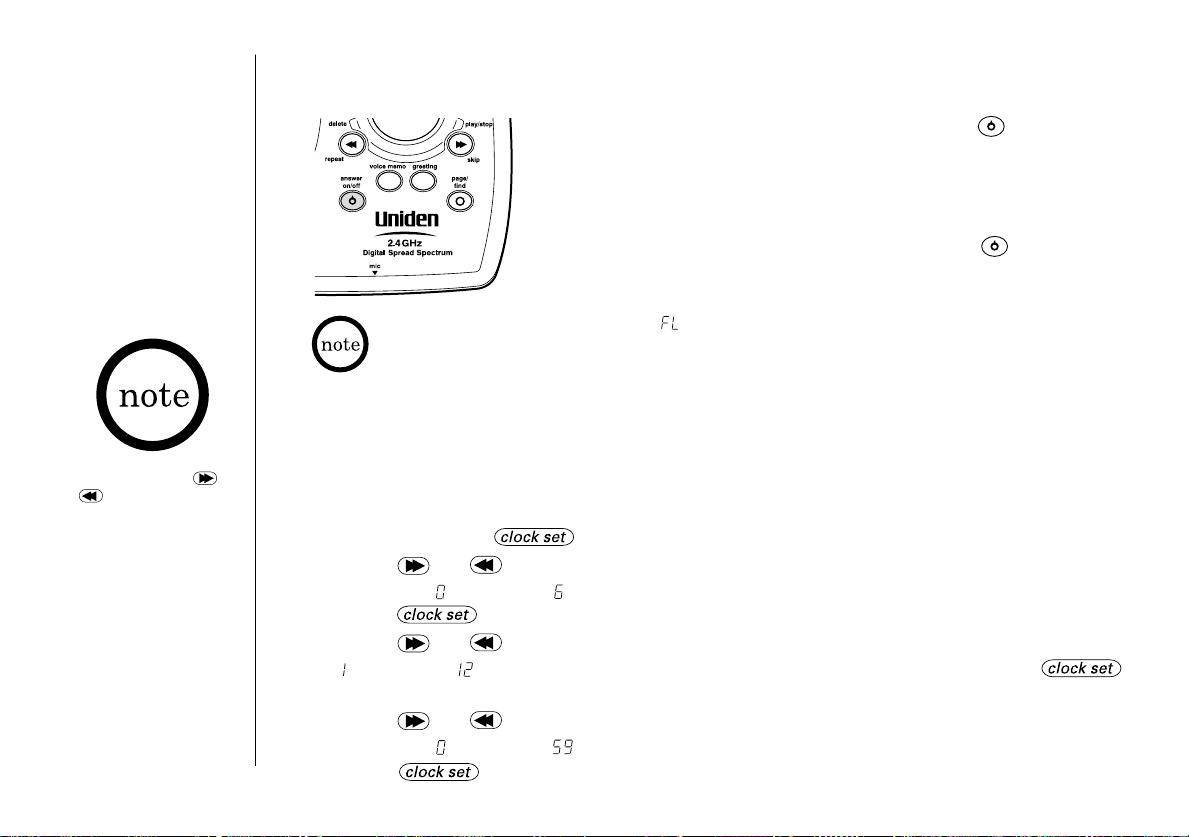

Setting the clock

The clock on TRU548 answering system starts when power is supplied to the base. Follow these steps to set the clock to the correct time.

1 Press and hold until a tone sounds. 2 Press or repeatedly until the correct day of the week is announced.

(Number through displays on the base as each day is announced.) Press again to select the day.

3 Press or repeatedly until you hear the correct hour setting. Numbers

through display on the base as each hour is announced. Press

again to select the correct hour.

4 Press or repeatedly until you hear the correct minute setting.

Numbers through display on the base as each minute is announced. Press again to select the correct minute.

5 The LED displays or . Press or until you hear the correct

AM/PM setting.

6 Press again to end the time/day setting. The TRU548

announces the day and time that you have set.

Setting your greeting

When you receive a call, the answering system automatically plays either a prerecorded message or your own greeting.

▼ Preset Message

The following message is prerecorded: “Hello, no one is available to take your call. Please leave a message after the tone.”

▼ Recording a personal outgoing message (Greeting)

1) Press and hold until you hear a tone. Start recording your

message immediately after you hear the tone end.

2) When you finish recording your message, press or .

A tone sounds and your message plays back on the phone.

▼ Choosing between the two outgoing messages

1) Press to play the outgoing message.

2) Press again while the message is playing. This switches

between the two options.

THE INTEGRATED ANSWERING DEVICE

• You can record a greeting up to 30 seconds.

• Position yourself as near to the base as possible and speak clearly when recording your outgoing message.

[ 39 ]

ANSWERING DEVICE

THE INTEGRATED

Selecting the message record time

You can set your answering system to record messages up to one or four minutes long.

One minute option: move the REC TIME switch to 1. Four minute option: move the REC TIME switch to 4.

▼ Announce only feature:

The announce only feature plays an outgoing message, but it will not allow the caller to leave a message. Move the REC TIME switch to the ANN position. The message counter LED displays “ ” when the system is on standby. Prerecorded outgoing message for Announce only feature is: For example: “Hello, no one is available to take your call.” (twice)

Selecting a PIN code

To play your messages from a remote location, you will need to enter a twodigit Personal Identification Number (PIN) code (00-99). To select a PIN, perform the following steps.

Press and hold or

to quickly scroll through numbers on the display.

[ 40 ]

THE INTEGRATED ANSWERING DEVICE

1 On the base, press and hold until a tone sounds and the LED

displays .

2 To set the first number, press or repeatedly to scroll from 0 to 9.

When the desired number appears in the display, press .

3 To set the second number, press or to scroll from 0 to 9. When the

desired number appears in the display, press . Then the entered PIN code is announced.

Setting ring time switch

The ring time/toll saver switch allows you to set

the number of rings the caller hears before the

answering system plays the outgoing message. You

can set the switch to answer after two rings or

after four rings.

Once the greeting has started, you can stop it when

you pick up the call at the handset or base.

In the TS (Toll Saver) position, the answering

system picks up after two rings if you have new

messages, and after four rings if there are none.

This way, if you make a long distance call to check

your messages, you can hang up after the second

ring to avoid billing charges.

If you answer at another phone extension and the greeting has started, you cannot stop the message. Wait until your greeting is complete before starting your conversation.

ANSWERING DEVICE

THE INTEGRATED

THE INTEGRATED ANSWERING DEVICE

[ 41 ]

• To stop playing your

messages, press again.

Using Your Answering System

Playing your messages

The base LED display shows the number of total messages. If the display is blinking, then there are new messages waiting for you. The TRU548 is designed to play your new messages first. After you play your new messages you can then play your old messages.

1 Press . The system announces the number of new and old messages,

then the incoming messages are played. The time and day each message was received is announced after the message is played.

2 When all new messages have played, a tone is heard. The message counter

LED stops flashing to indicate that all of the new messages have been reviewed.

3 After you have reviewed all your new messages, you can play your old

messages. Press and follow the instructions above.

• If you have several

messages, press and hold until you return to the message you want to replay.

Repeating a message

1 Press to review your message. The number of stored messages is

announced.

2 After a message has played for more than two seconds, (four seconds for

remote access) press to repeat the message. If you press two seconds

(four seconds for remote access) the system repeats the

previous message.

3 Press at any time to stop reviewing messages and return to standby.

[ 42 ] THE INTEGRATED ANSWERING DEVICE

before

Skipping a message

1 Press to review your messages. The number of messages

is announced.

2 Press at anytime to skip to the next message.

3 Press at any time to stop reviewing your messages and return to

standby.

Deleting a message

▼ Deleting an individual message

1 Press to review your message.

2 If you decide to delete a message, press anytime during the message.

The system beeps and immediately goes to the next message.

▼ Deleting all messages

Press and hold while the system is in standby. A tone sounds when all

messages are deleted. If there are any messages you have not reviewed, you

can not delete all messages at once. An error tone occurs.

• Each time is pressed, the system scans forward one message.

• If you have several messages, press and hold to find the message you want to play.

• When you press , you are permanently deleting the message. The message cannot be replayed.

ANSWERING DEVICE

THE INTEGRATED

THE INTEGRATED ANSWERING DEVICE

[ 43 ]

Voice memo

The voice memo function allows the user to record a message (up to 10 minutes) on the base.

• The voice memo function is completely independent of the outgoing message. It’s handy for leaving others a quick message.

• A voice memo message will be stored as a typical recorded message.

• Position yourself as near to the base as possible and speak clearly.

• A recorded conversation is stored and played back with typical recorded messages.

1 Press and hold until you hear a tone. The message counter

LED blinks.

2 Speak into the microphone.

3 When you have finished, press or to stop recording. The

system returns to standby.

4 To play voice memo, press .

Recording a conversation

You can record up to 10 minutes of conversation while you are making your call from the handset.

1 During the conversation from the handset, press and hold on

the base. The unit begins recording and the LED blinks. Both parties can hear tones every 15 seconds.

2 To stop the recording, press

handset to the base.

You cannot record a conversation while you are speaking on the base.

, or , or return the

[ 44 ] THE INTEGRATED ANSWERING DEVICE

Remote access away from home

You can operate your answering system from a remote location using any touch-tone telephone. Use this function to check for recorded messages, to play or delete messages, to record a new outgoing message, and to monitor sounds in the room.

1 Call your telephone number.

2 While the greeting message is played, press # and your PIN code within

2 seconds. If the answering system is off, let it ring 10 times. The tone sounds.

Then, press # and your PIN code within 2 seconds.

3 The answering system announces the time and day and the number of

messages stored in memory. Then the message playback automatically begins.

4 You may continue to listen to your message, or you may select a command

from the following chart.

Command Function

# then 1 Repeat a message # then 2 Playing your messages # then 3 Skipping a message # then 4 Deleting a message # then 5 Stop message playback # then 6 Answering system on # then 7 Voice memo record/stop (up to 4 minutes recording time) # then 8 Greeting message record/stop # then 9 Answer system off # then

5 After all of your messages have played, or the playback time exceeds 4

minutes, you will hear intermittent beeps indicating that the system is in the command waiting mode. You may enter another command at this time from the chart above.

Room monitor

THE INTEGRATED ANSWERING DEVICE

• During the remote operation, displays on the base.

• You must enter a command within 15 seconds of entering command waiting mode. Otherwise the answering system automatically hangs up and returns to standby.

• The system will only playback messages for four minutes and then it returns to command waiting mode. To continue playing your

message, press # then

2 again within 15 seconds.

[ 45 ]

ANSWERING DEVICE

THE INTEGRATED

6 When you finish, hang up to exit the system.

The answering system automatically returns to standby.

Remote room monitor

If you enter an incorrect PIN code three times, an error tone sounds and the phone automatically hangs up.

You can call your answering system from any touch-tone phone and monitor sounds in the room where your base is installed.

1 Call your telephone number.

2 While the greeting message is playing, press # and your PIN code.

3 The answering system begins announcing the time and day.

4 Press # then 5 to stop the messages. 5 Press # then

After 15 seconds, the answering system returns to the command waiting mode.

6 Press # then

another remote function. Or hang up to exit the system. The answering system automatically returns to standby.

. You hear sounds in the room where your phone is installed.

to monitor the room for another 15 seconds. Or select

Turn on the answering machine remotely

If you have forgotten to turn on your answering machine, you can turn it on remotely from any touch-tone telephone.

1 Call your telephone number. 2 Wait ten rings until the machine answers.

3 Press # and enter your PIN code within 2 seconds. The answering system

begins to announce the time and day.

4 Press # then 6 to turn the answering system on.

5 Hang up the phone and subsequent calls will be answered by the machine.

[ 46 ] THE INTEGRATED ANSWERING DEVICE

Changing the Digital Security Code

The digital security code is an identification code used to connect the handset and the base unit. Normally, setting the code is not necessary. The first time you charge your handset, the security code is automatically set (See page 4). In the rare situation that you suspect another cordless telephone is using the same security code, you can change the code.

1 Remove the handset from the base unit.

Press and hold on the base.

2 While the handset is emitting the paging sound,

replace the handset to the base unit. Release the

The paging tone stops. Leave the handset on the base for more than 3 seconds. A random, new security code is set.

If the handset battery pack is completely discharged or the battery pack is removed, the digital security code will be lost. If this happens, a new security code is set automatically next time the battery pack is charged.

INFORMATION

ADDITIONAL

ADDITIONAL INFORMATION

[ 47 ]

Installing the Beltclip

To attach the beltclip

Insert the beltclip into the holes on each side of the handset. Press down until it clicks.

Headset Installation

Your phone may be used with an optional headset, the Uniden HS910. To use this feature, insert headset plug into the headset jack. Your phone is ready for hands-free conversations. (Headset may be purchased by calling the Uniden Parts Department or visiting the website. See Page 5.)

[ 48 ] ADDITIONAL INFORMATION

To remove the beltclip

Pull both sides of the beltclip to release the tabs from the holes.

Note on Power Sources

INFORMATION

ADDITIONAL

BBaatttteerryy rreeppllaacceemmeenntt aanndd hhaannddlliinngg

When the operating time becomes short, even after a battery is recharged, please replace the battery. With normal usage, your batter y should last about one year. Please contact your place of purchase or the Uniden Parts Department for a replacement batter y.

PPoowweerr FFaaiilluurree

During the period that the power is of f, you will not be able to make or receive calls with the telephone.

Caution

• Use the specified battery pack.

• Do not remove the battery from the handset to charge it.

• Never throw the battery into a fire, disassemble it, or heat it.

• Do not remove or damage the battery casing.

Maintenance

When slightly dirty

Wipe with a soft, dry cloth.

When very dirty

Wipe with a soft cloth that has been dampened with diluted, neutral detergent. Dry with a dry cloth.

When the charging terminals become dirty

Wipe with a dry cloth or a pencil eraser, if necessary.

RECYCLING NICKEL-CADMIUM BATTERIES

Nickel-cadmium cells are used in the battery pack. Please take your used nickelcadmium battery packs to a store that recycles nickel-cadmium batteries.

Caution

Do not use paint thinner, benzene, alcohol, or other chemical products. Doing so may discolor the surface of the telephone and damage the finish.

ADDITIONAL INFORMATION

[ 49 ]

Troubleshooting

If your phone is not performing to your expectations, please try these simple steps first.

Symptom

The status LED won’t light when the handset is placed in the base unit. The audio sounds weak and/or scratchy.

Can’t make or receive calls.

The handset doesn’t ring or receive a page.

The Caller ID/CIDCW does not display.

• Make sure the AC adapter is plugged into the base unit and wall outlet.

• Make sure the handset is properly seated in the base unit.

• Make sure the charging contacts on the handset and base unit are clean.

• Press during a call to help eliminate background noise.

• Make sure that the base unit antenna is in a vertical position.

• Move the handset and/or base unit to a different location away from metal objects or appliances and try again.

• Make sure that you are not too far from the base.

• Check both ends of the base unit telephone line cord.

• Make sure the AC adapter is plugged into the base unit and wall outlet.

• Disconnect the AC adapter for a few minutes, then reconnect it.

• Reset the digital security code (See page 47).

• Make sure is pressed.

• The battery pack may be weak. Charge the battery on the base unit for 15-20 hours.

• The handset may be too far away from the base unit.

• Place the base unit away from appliances or metal objects.

• Reset the digital security code (See page 47).

• Make sure that Ringer Volume is not set to Ringer Off.

• The handset was picked up before the second ring.

• The call was placed through a switch board.

• Call your local telephone company to verify your Caller ID service is current.

• Charge the handset.

• Make sure that “

CIDCW” is not set to “Off”.

Suggestion

[ 50 ] ADDITIONAL INFORMATION

INFORMATION

ADDITIONAL

Symptom

The answering system does not work.

Messages are incomplete.

After a power failure, the outgoing message is deleted. No sound on the base unit speaker during call monitoring or message playback. Cannot access remote call-in features from another touchtone phone.

Severe noise interference.

If you still have a problem.

Suggestion

• Make sure the base unit is plugged in.

• Make sure that the answering system is turned on.

• Make sure that the message record time is not set to ANN (See page 40).

• The incoming messages may be too long. Remind callers to leave a brief message.

• The memory may be full. Delete some or all of the saved messages.

• Record your greeting again. The default message should remain.

• Adjust the speaker volume on the base unit.

• Make sure you are using the correct PIN number.

• Make sure that the touch-tone phone you’re using can transmit the tone for at least two seconds. If it cannot, you may have to use another phone to access your message.

• Keep the handset away from microwave ovens, computers, remote control toys, wireless microphones, alarm systems, intercoms, room monitors, fluorescent lights and electrical appliances.

• Move to another location or turn off the source of interference.

• Call our customer hotline at 1-800-297-1023

ADDITIONAL INFORMATION

[ 51 ]

General Information

The TRU548 complies with FCC Parts 15 and 68. Operating Temperature: 0ºC to +50ºC (+32ºF to +122ºF)

AC Adapter Information

AC Adapter part number: AD-313 Input Voltage: 120V AC 60Hz Output Voltage: 9V DC 400 mA

Battery Information

Battery part number: BT-800 Capacity: 800 mAH, 3.6V Battery Use Time (per charge)

From fully charged:

Talk Mode duration 6 hours Standby Mode duration 10 days

If the handset is left off of the base, the actual Talk Mode duration will be reduced respective to the amount of time the handset is off the base.

Recharge your phone on a regular basis about once a week by placing the handset on the base for 15-20hours. When the operating time becomes short, even after the battery is recharged, please replace the battery. With normal usage, the battery should last about one year.

Replacement batteries may be purchased at your local Uniden dealer or by contacting the Uniden Parts Department (800) 554-3988. Hours are from 7:00 a.m. to 5:00 p.m. Central Time, Monday through Friday. We can also be reached on the web at www.uniden.com

Specifications, features, and availability of optional accessories are all subject to change without prior notice.

[ 52 ] ADDITIONAL INFORMATION

Technical Information

INFORMATION

ADDITIONAL

The FCC wants you to know!

Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner's manual, could void your authority to operate this product. The equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.)

Below is some information that might concern you while using your new phone.

Range

Your new phone is designed to achieve the maximum possible range by transmitting and receiving according to the highest specifications set forth by the FCC. We have rated this phone to operate at a maximum distance with the qualification that the range depends upon the environment in which the telephone is used. Many factors limit range, and it would be impossible to include all the variables in our rating. The Maximum Range rating of this phone is meant to be used as a means of comparison against other range claims.

Telephone Line Problems

If you are having trouble with your telephone service, you must first disconnect your phone to determine if it is the cause of your problem. If you determine that it is the cause, you must leave it disconnected until the trouble has been corrected.

Radio Interference

ADDITIONAL INFORMATION

[ 53 ]

causing the problem. In addition, we recommend that the base not be plugged into a circuit that also powers a major appliance because of the potential for interference. Be certain that the antenna on the unit is fully extended when needed.

More Than One Cordless Telephone

If you want to use more than one cordless telephone in your home, they must operate on different channels. Press the channel key to select a channel that provides the clearest communication.

In the unlikely event that you consistently hear other voices or distracting transmissions on your phone, you may be receiving radio signals from another cordless telephone or other source of interference. If you cannot eliminate this type of interference, you need to change to a different channel.

Finally, it should be noted that some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communications between the handset and base of your cordless telephone are accomplished by means of radio waves which are broadcasted over the open airways. Because of the inherent physical properties of radio waves, your communications can be received by radio receiving devices other than your own cordless telephone unit. Consequently, any communications using your cordless telephone may not be private.

[ 54 ] ADDITIONAL INFORMATION

Precautions!

Before you read anything else, please observe the following:

Warning!

Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.

Rechargeable Nickel-Cadmium Battery Warning

• This equipment contains a rechargeable nickel-cadmium battery.

• Cadmium is a chemical known to the State of California to cause cancer.

• The rechargeable nickel-cadmium battery contained in this equipment may explode if disposed of in a fire.

• Do not short-circuit the battery.

• Do not charge the rechargeable nickel-cadmium battery used in this equipment in any charger other than the one designed to charge this battery as specified in the owner’s manual. Using another charger may damage the battery or cause the battery to explode.

Rechargeable Nickel-Cadmium Batteries Must Be Recycled or Disposed of Properly

• Uniden voluntarily participates in an RBRC® industry program to collect and recycle nickel-cadmium batteries at the end of their useful life, when taken out of service within the United States. The RBRC® program provides a convenient alternative to placing used nickel-cadmium batteries into the trash or municipal waste stream, which is illegal in some areas.

• Through the RBRC® program, Uniden makes it easy for you to drop off the used battery at local retailers of replacement nickelcadmium batteries. You may also contact your local recycling center for information on where to return the used battery. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in your area. Uniden's involvement in this program is part of its commitment to protecting our environment and conserving natural resources.

• RBRC® is a registered trademark of the Rechargeable Battery Recycling Corporation.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

When using your telephone equipment, these basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Use a dry cloth for cleaning without liquid or aerosol cleaners.

4. Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The telephone may fall, causing serious damage to the unit.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect the product from overheating, these openings must not be blocked or covered. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be damaged by persons walking on it.

9. Do not overload wall outlets and extension cords, as this can result in the risk of fire or electrical shock.

10.Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

11. To reduce the risk of electric shock, do not disassemble this product. Take it to qualified service personnel when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally when following the operating instructions. (Adjust only those controls that are

covered by the operating instructions. Improper adjustment

of other controls may result in damage and will often require extensive repair work by a qualified technician.) E. If the product has been dropped or the cabinet has been

damaged. F. If the product exhibits a distinct change in performance.

13. Do not use the telephone to report a gas leak in the vicinity of the leak.

Additional Battery Safety Precautions

Caution! To reduce the risk of fire or injury to persons by the

battery, read and follow these instructions:

ADDITIONAL INFORMATION

1. Use only the appropriate type and size battery pack specified in the owner’s manual.

2. Do not dispose of the battery pack in a fire. The cell may explode. Check the nickel-cadmium battery disposal package insert for disposal instructions.

3. Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling the battery in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

5. Charge the battery pack provided with or identified for use with this product only in accordance with the instructions and limitations specified in the owner’s manual provided for this product.

6. Observe proper polarity orientation between the battery pack and battery charger.

SAVE THESE INSTRUCTIONS!

Important Electrical Considerations

Unplug all electrical appliances when you know an electrical storm is approaching. Lightning can pass through your household wiring and damage any device connected to it. This phone is no exception.

Warning!

Please do not attempt to unplug any appliance during an electrical storm.

The FCC Wants You To Know

Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner’s manual, could void your authority to operate this product. The equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.)

Range

Telephone Line Problems

The FCC has granted the telephone company the right to disconnect service in the event that your phone causes problems on the telephone line. Also, the telephone company may make changes in facilities and services which may affect the operation of your unit. However, your telephone company must give adequate notice in writing prior to such actions to allow you time for making necessary arrangements to continue uninterrupted service. If you are having trouble with your telephone service, you must first disconnect your phone to determine if it is the cause of your problem. If you determine that it is the cause, you must leave it disconnected until the trouble has been corrected.

[ 55 ]

INFORMATION

ADDITIONAL

Radio Interference

Radio interference may occasionally cause buzzing and humming in your cordless handset, or clicking noises in the base. This interference is caused by external sources such as TV, refrigerator, vacuum cleaner, fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If these noises continue and are too distracting, please check around your home to see what appliances may be causing the problem. In addition, we recommend that the base not be plugged into a circuit that also powers a major appliance because of the potential for interference. Be certain that the antenna on the unit is fully extended when needed. In the unlikely event that you consistently hear other voices or distracting transmissions on your phone, you may be receiving radio signals from another cordless telephone or other source of interference. If you cannot eliminate this type of interference, you need to change to a different channel. Finally, it should be noted that some cordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

More Than One Cordless Telephone

If you want to use more than one cordless telephone in your home, they must operate on different channels. Press the channel key to select a channel that provides the clearest communication.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communications between the handset and base of your cordless telephone are accomplished by means of radio waves which are broadcast over the open airways. Because of the inherent physical properties of radio waves, your communications can be received by radio receiving devices other than your own cordless telephone unit. Consequently, any communications using your cordless telephone may not be private.

Installation Considerations

Selecting a Location

Before choosing a location for your new phone, there are some important guidelines you should consider:

• The location should be close to both a phone jack and continuous power outlet. (A continuous power outlet is an AC outlet which does not have a switch to interrupt its power.)

• Keep the base and handset away from sources of electrical noise such as motors or fluorescent lighting.

• Be sure there is sufficient space to fully extend the base antenna.

• The base can be placed on a desk or tabletop or mounted on a standard telephone wall plate.

• You should charge your new phone for 15-20 hours before completing the installation or using the handset.

[ 56 ] ADDITIONAL INFORMATION

Telephone Line Outlets

There are two types of phone outlets:

Modular Jack

Most phone equipment available now uses modular jacks. Phone cords are fitted with a molded plastic connector which plugs into this type of jack. If you do not have modular phone jacks, contact your local telephone company for information about their installation.

Hardwired Jack

Some equipment is wired directly to a phone jack, and these types of installations require a modular jack converter. This type of installation is not difficult; however, you should contact your Uniden telephone dealer or a telephone supply store for advice about the proper adapter or converter for your particular situation.

Connecting the Telephone Cords

Consider these safety guidelines before connecting the telephone cords:

Caution!

• Never install telephone wiring during a lightning storm.

• Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected.

• Use caution when installing or modifying telephone lines.

Applying Power to the Base

This phone requires an AC outlet, without a switch to interrupt power, and the included AC adapter. To relieve strain on the DC plug when the phone is placed on a desk or table, wrap the power cord around the strain relief notch on the bottom of the base.

NOTE: Place the power cord so that it does not create a trip

hazard, or where it could become chafed and create a fire or other electrical hazards.

Adapter Safety Features

If you cannot plug the AC adapter into the outlet, contact someone about replacing the outlet.

Plug the AC Adapter into a standard 120 VAC wall outlet.

Do not use an outlet controlled by a wall switch.

Use only the Uniden AC Adapter supplied with this phone.

One Year Limited Warranty

Important:Evidence of original purchase is required for warranty

service.

WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)

ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 12 months after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner’s manual for this product.

STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit and return it to you without charge for parts, service, or any other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the performance of this warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is void outside the United States of America.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner’s manual you are certain that the Product is defective, pack the Product carefully (preferably in its original packaging). The Product should include all parts and accessories originally packaged with the Product. Include evidence of original purchase and a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:

(800) 297-1023, 7 a.m. to 7 p.m. Central, Monday through Friday

Uniden America Corporation

Parts and Service Division 4700 Amon Carter Blvd. Fort Worth, TX 76155

Index

0 - 9

3-way conferencing . . . . . . . 21

Adjusting the volume . . . . . . 17

Answering device

Features . . . . . . . . . . . . . 37

Setting up. . . . . . . . . . . . 38

Using. . . . . . . . . . . . . . . 42

Base ringer switch . . . . . . . . 17

Base speaker volume . . . . . . 17

Battery pack

Preparing and charging . . . . 7

Replacement and handling. . 49

Caller ID

Caller ID service . . . . . . . . 31

Calling . . . . . . . . . . . . . 34

Call Waiting. . . . . . . . . . . 36

Deleting . . . . . . . . . . . . . 33

Features . . . . . . . . . . . . 13

Setting . . . . . . . . . . . . . 13

Storing . . . . . . . . . . . . . 35

Using. . . . . . . . . . . . . . . 34

Viewing . . . . . . . . . . . . . 32

Connection . . . . . . . . . . . . . 9

Dialing mode . . . . . . . . . . . 10

Digital security code. . . . . 4, 47

E, F, G

Earpiece volume . . . . . . . . . 17

Headset installation. . . . . . . 48

I, J, K, L

Installing the beltclip . . . . . 48

M, N, O

Maintenance. . . . . . . . . . . . 49

Making a call . . . . . . . . . . . 15

Memory dialing

Erasing a stored name

and phone number. . . . . . . 30

Making calls

with memory dialing . . . . . 26

Storing phone

numbers and names . . . . . . 22

Mounting the base unit. . . . . 11

P, Q

Package contents . . . . . . . . . 5

Page . . . . . . . . . . . . . . . . 20

Precautions . . . . . . . . . . . . 55

Receiving a call . . . . . . . . . 15

Redialing a call. . . . . . . . . . 18

Ringer volume. . . . . . . . . . . 17

ADDITIONAL INFORMATION

Setting up the base unit. . . . . 9

Setting up the handset. . . . . . 7

Setting up your answering system

Selecting a PIN code . . . . . 40

Selecting the

message record time . . . . . 40

Setting ring time switch . . . 41

Setting the clock . . . . . . . 38

Setting your greeting. . . . . 39

Turning the answering

system on/off . . . . . . . . . 38

Technical Information. . . . . . 53

Troubleshooting . . . . . . . . . 50

U, V, W, X, Y, Z

Using your answering system

Deleting a message . . . . . . 43

Playing your messages . . . . 42

Recording a conversation . . 44 Remote access

away from home . . . . . . . . 45

Remote room monitor. . . . . 46

Repeating a message . . . . . 42

Skipping a message . . . . . . 43

Voice memo . . . . . . . . . . . 44

Warranty . . . . . . . . . . . . . . 56

[ 57 ]

Memo

[ 58 ]

Memo

[ 59 ]

Memo

[ 60 ]

At Uniden, we’ll take care of you!

If you need any assistance with this product, please call our Customer Hotline at

1-800-297-1023

PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.

Our Uniden representatives will be happy to help you with any matters regarding the operation of this

unit, available accessories, or any other related matters.

Thank you for purchasing a Uniden product.

Hours: M-F 7:00 AM to 7:00 PM CST.

[ 61 ]

Covered under one or more of the following U.S. patents: 4,511,761 4,523,058 4,595,795 4,797,916 5,381,460 5,426,690 5,434,905 5,491,745 5,533,010 5,574,727 5,650,790 5,660,269 5,661,780 5,663,981 5,671,248 5,717,312 5,754,407 5,768,345 5,787,356 5,838,721 5,864,619 5,893,034 5,912,968 5,915,227 5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082 6,125,277

Printed in China UCZZ01758ZZ

Thank you for purchasing a Uniden Cordless Phone.

Uniden TRU548 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
